Basket Strainer
INSTRUCTION MANUAL
MODEL
DATE
JUNE 2023
XBS SERIES
XBS100
XBS112S
XBS112
XBS200
XBS112LA
XBS200LA

XBS SERIES BASKET STRAINER
www.tetonus.com
800.752.0399
[e-mail]
WELCOME TO THE WORLD OF TETON,
NATURAL RELIABILITY™!
You Made The Right Choice Investing In
This Quality Product. Thank You And Enjoy.
BEFORE USING THIS PRODUCT, PLEASE READ
THESE INSTRUCTIONS CAREFULLY AND
FAMILIARIZE YOURSELF WITH THE UNIT.
PLEASE KEEP THESE INSTRUCTIONS IN A SAFE
PLACE FOR FUTURE REFERENCE.
Teton Page 2
IMPORTANT SAFEGUARDS
Please read the operating instructions and familiarize yourself with the equipment
before placing it in service. Correct and safe use of the system requires strict
compliance with these safety instructions. For safety reasons, persons less than
16 years of age or persons that are not familiar with these instructions, should not
use this equipment.
WARNING: The strainer pot may be at a pressure that is higher or lower than the atmospheric pressure.
Always open the drain plug on the strainer pot and allow for the pressure to equalize before removing
the clear lid. Attempting to remove the lid before the pressure is equalized may result in a rapid
pressure release.
Pressure Hazard!
Do not run your pump
with discharge ports
closed or blocked.
Be sure to release
system pressure before
working on the pump.
Electrical Hazard!
Ground pump
before connecting
to power supply!
Risk of shock, burn
or death if not
handled properly.
Burn Hazard!
Operating motor can be
very hot. Do not touch
motor while running.
Allow to cool 30 minutes
after shut down before
handling. Risk of burn.
WARNING WARNING
WARNING
PRODUCT DESCRIPTION
This basket strainer is designed to block debris that could potentially clog the impeller or volute
of pump, causing it to cease moving water. This strainer basket can also provide ease in priming
your plumbing system during startup. Be sure to clean your strainer basket, as well as any skimmer
baskets, so water flow is not obstructed and the pump is not overworked.
UNPACKING
When unpacking the basket strainer, inspect carefully for any damage that may have occurred
during transit. Check for loose, missing and damaged parts.
SPECIFICATIONS
Capacity: 90 Cubic Inch
BASIC CONSTRUCTION
Body-Glass Filled ABS
Lid- Lexon
XBS100/XBS112S/XBS112/XBS200/XBS112LA /XBS200LA

Teton Page 3
INSTALLATION
1. Carefully remove the strainer pot assembly from its shipping package.
2. Determine the installation location of the strainer pot assembly. Ensure that adequate space is
provided for routine maintenance.
3. Plan carefully the layout of plumbing including cutting pipe to the exact length and ensuring
that adapters will be aligned and square with the strainer pot assembly and pump. Note that the
strainer must be installed so that water flow travels into the upper port and out the lower port.
Using PVC glue, glue the plumbing in place once you are certain that location is as desired.
4. Ensure that the upper port gasket is properly positioned between the strainer body and the half union
connection. Do not use grease or glue to attach as they may contain chemicals that could attack the
plastic material.
5. Hand tighten the split nut connection onto the strainer and glue the plumbing to the half union
fitting with PVC glue. (Make sure to hold plumbing firmly for 30 seconds while the glue sets up).
6. The lower port split nut connection on strainer can be
7. simply attached directly to most external pump(inlet adapters may be necessary, order as required).
Use the gasket provided and ensure that it is sitting correctly between either the pump and split nut or
inlet adapter and split nut (use Teflon tape with inlet adapters).
8. Hand tighten the split nut connection onto the inlet of the pump.
9. Turn system on and inspect both port connection(s) for leaks

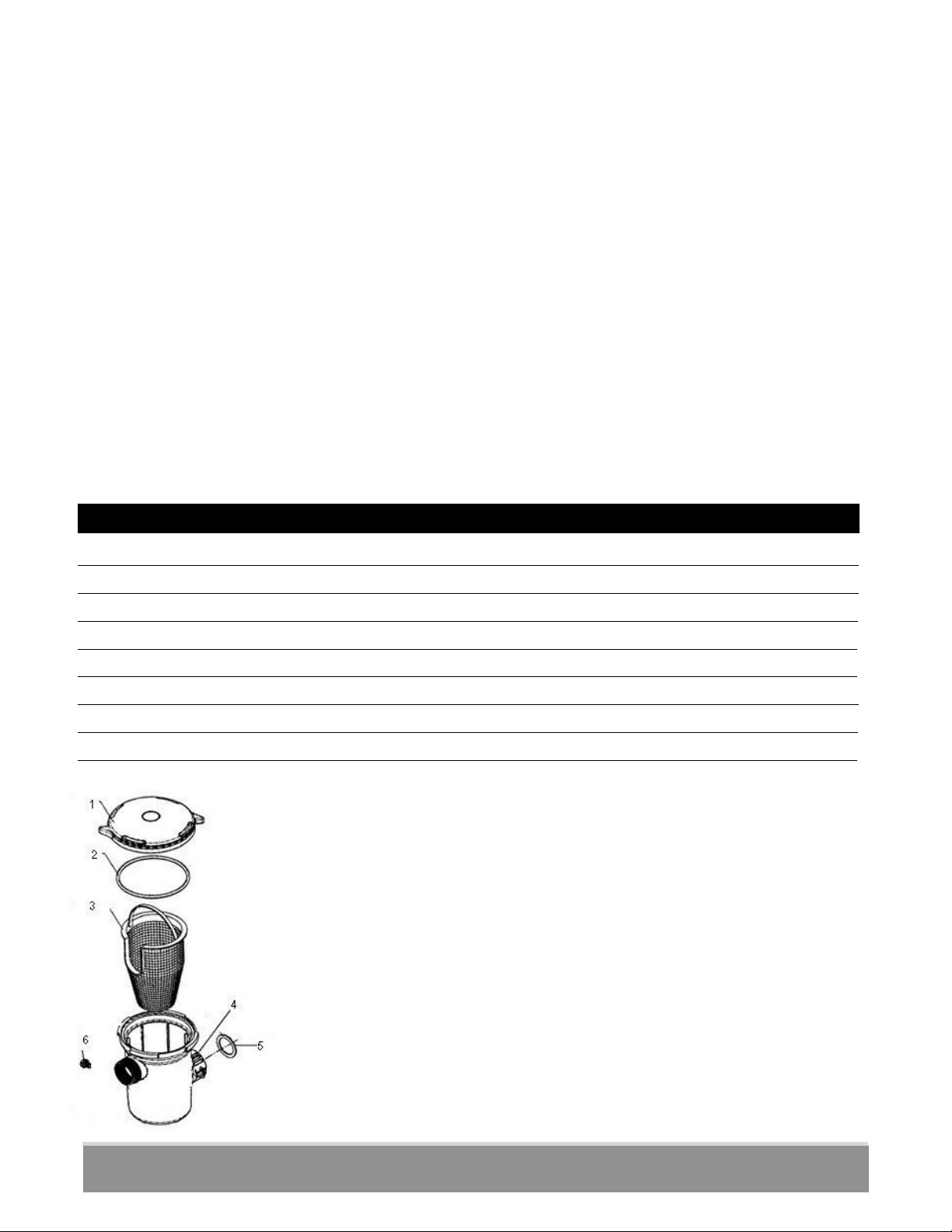

AVAILABLE REPLACEMENT PARTS - XUV16A/XUV40S/XUV80S/XUV120S
PART NO. DESCRIPTION
2” Discharge split nut (buttress Thd.)
Gasket w/ridge
Inlet Adapter For XBS200 (white)
1 1/2” Discharge split nut (Buttress Thd.)
Drain plug w/ O-ring
4
5
6
7
8
Lid O-ring
Strainer basket
Lid
1
2
3
PART NO.
BSSN1.5
BSLID
BSLOR
BSBSK
BSSN
711.4031
715.1202
IA200
