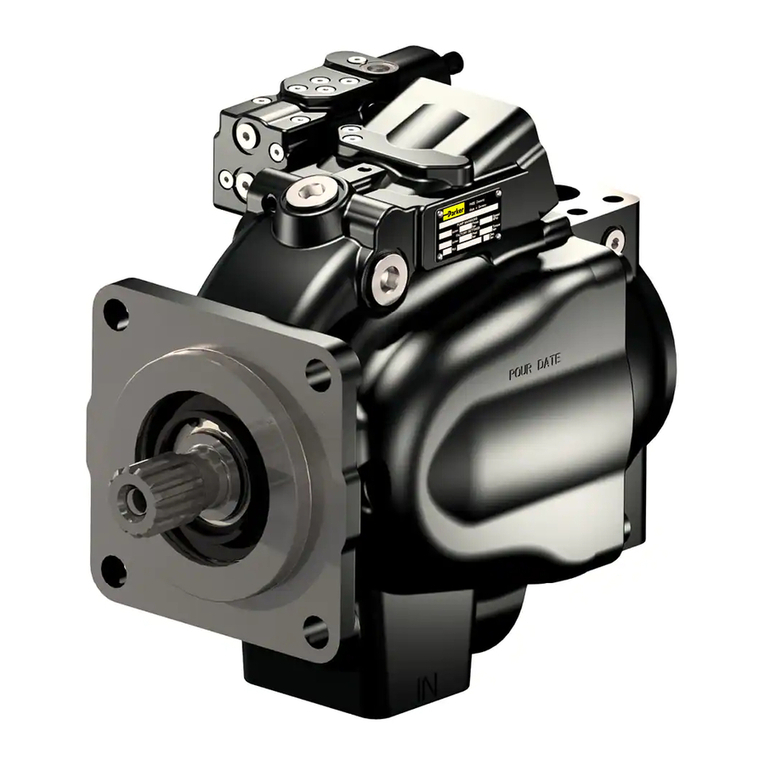

Parker COMPAX P1 Series Manual

P1/PD Series: 18cc to 140cc Medium
Pressure Axial Piston Pumps
Variable Displacement – Service Information
Bulletin HY28-2665-02/SVC/EN
Effective: February 19, 2015

2
WARNING - USER RESPONSIBILITY
FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS DESCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH,
PERSONAL INJURY AND PROPERTY DAMAGE.
This document and other information from Parker-Hannifin Corporation, its subsidiaries and authorized distributors provide product or system options for further investigation
by users having technical expertise.
The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance,
maintenance, safety and warning requirements of the application are met. The user must analyze all aspects of the application, follow applicable industry standards, and follow
the information concerning the product in the current product catalog and in any other materials provided from Parker or its subsidiaries or authorized distributors.
To the extent that Parker or its subsidiaries or authorized distributors provide component or system options based upon data or specifications provided by the user, the user is
responsible for determining that such data and specifications are suitable and sufficient for all applications and reasonably foreseeable uses of the components or systems.
OFFER OF SALE
The items described in this document are hereby offered for sale by Parker-Hannifin Corporation, its subsidiaries or its authorized distributor. This offer and its accepteance
are governed by the provisions stated in the detailed "Offer of Sale" elsewhere in this document.
The product information, specications, and descriptions contained in this publication have been compiled for
the use and convenience of our customers from information furnished by the manufacturer; and we can not,
and do not, accept any responsibility for the accuracy or correctness of any description, calculation, specica-
tion, or information contained herein. No such description, calculation, specication, or information regarding the
products being sold has been made part of the basis of the bargain, nor has same created or amounted to an
express warranty that the products would conform thereto. We are selling the goods and merchandise illustrated
and described on this publication on an “as is” basis, and disclaim any implied warranty, including any warranty
of merchantability or warranty of tness for any particular purpose whatsoever, with respect to the goods and
merchandise sold. All manufacturer warranties shall be passed on to our customers, but we shall not be respon-
sible for special, indirect, incidental, or consequential damages resulting from the use of any of the products or
information contained or described on this publication. Further, we reserve the right to revise or otherwise make
product improvements at any time without notication.

Parker Hannin Corporation
Hydraulic Pump and
Power Systems Division
Marysville, Ohio USA
Bulletin HY28-2665-02/SVC/EN Medium Pressure Axial Piston Pumps
P1/PD Maintenance
3
General Information……………………………………………………………………………………… .......................... 4
Start up procedure…………………………………………………………………………………………..... ................... 5
Troubleshooting……………………………………………………………………………………………......................... 6
18cc, Model Ordering Code…………………………………………………………..................................................... 8
28cc, Model Ordering Code…………………………………………………………..................................................... 9
45cc, Model Ordering Code…………………………………………………………................................................... 10
60cc, Model Ordering Code…………………………………………………………................................................... 11
75cc, Model Ordering Code…………………………………………………………................................................... 12
100cc, Model Ordering Code…………………………………………………………................................................. 13
140cc, Model Ordering Code…………………………………………………………................................................. 14
Technical data………………………………………………………………………………………………...................... 15
Parts Data
018 & 028 pump exploded view…………………………………………………………............................................. 16
045 pump exploded view…………………………………………………………………............................. ............... 17
Parts list for 018, 028, 045…………………………..………………………………………………….......................... 18
060, 075, 100 & 140 pump exploded view...……………………………………………............................................ 20
Parts list for 060, 075, 100, 140…………………………..…………………………………………….................... ..... 21
Electronic Control Exploded View...……………………………………………......................................................... 22
Parts list for Electronic Control…………………………..…………………………………………….................... ...... 23
Case to inlet check valves…………………………………………………………………........................................... 24
Volume stop…………………………………………………………………………………............................ ............... 25
Seal and parts kits……………….…………………………………………………………......................................26-27
L-compensator……………………………………………………………………………….....................................28-29
C-compensator…………………….…………………………………………………………..................... ................... 30
AE, AF, AL, AM,AN compensator.…………………………………………………………........................... ............... 31
Assembly/Disassembly information
Compensator disassembly/inspection.……………………………………………………......................................... 32
Compensator assembly………….………………………………………………………….......................................... 33
018, 028, 045 disassembly………………………………………………………………….......................................... 34
018, 028, 045 Inspection…………………………………………………………………............................................. 37
018, 028, 045 rework limits…………………………………………………………………............................ ............. 38
018, 028, 045 assembly…………………………………………………………………................................. ............. 39
018, 028, 045 assembly tools………………………………………………………………............................ ............. 42
018, 028, 045 test procedure.………………………………………………………………......................................... 44
060, 075, 100, 140 disassembly..…………………………………………………………........................................... 46
060, 075, 100, 140 inspection…..…………………………………………………………............................ .............. 48
060, 075, 100, 140 rework limits..…………………………………………………………............................ .............. 49
060, 075, 100, 140 assembly…...…………………………………………………………........................................... 50
060, 075, 100, 140 assembly tools..……………………………………………………….......................................... 54
060, 075, 100, 140 test procedure…………………………………………………………............................ ............. 56
Conversions and formulas………...…………………………………………………………........................................ 59
Offer of sale………………………....…………………………………………………………........................................ 63
Contents
Contents

Parker Hannin Corporation
Hydraulic Pump and
Power Systems Division
Marysville, Ohio USA
Bulletin HY28-2665-02/SVC/EN Medium Pressure Axial Piston Pumps
P1/PD Maintenance
4
General Information
MOUNTING
FLUID CONNECTIONS
FLUID CLEANLINESS
MAINTENANCE
TEMPERATURE
VISCOSITY INDEX
RECOMMENDED FLUIDS
SYSTEM RELIEF VALVES
SIDE LOAD CAPABILITY
SHAFT INFORMATION
These pumps are designed to operate in any position. The pump shaft must be in alignment
with the shaft of the source driver and should be checked with a dial indicator. The mating
pilot bore and coupling must be concentric. This concentricity is particularly important if the
shaft is rigidly connected to the driven load without a exible coupling.
Splined: The shafts will accept a maximum misalignment of 0.15mm, 0.005 inch, total
indicator reading. Angular misalignment at the external and internal spline axis must be
less than ± 0,002 mm per mm of shaft radius, ± 0.002 inches per inch of shaft radius.
The coupling interface must be lubricated. PARKER recommends lithium molydisulde
or similar grease. The internal coupling should be hardened to Rc 27-34 and must conform
to SAE-J498c, class 5 at root side t.
Keyed: High strength heat treated keys must be used. Replacement keys must be hardened
to 27-34 Rc. The key corners must be chamfered 0.81-1.0 mm, 0.032”-0.040”, at 45° to
clear radii that exist in the keyway.
The P1/PD series is designed for inline-drive. Side loading on the shaft is not recommended.
If this is unavoidable consult your nearest PARKER representative.
Connect inlet and outlet lines to the port block of the pump. The maximum case pressure is
2 bar (30 psi) continuous, 4 bar (60 psi) intermittent. The case pressure must never exceed
inlet pressure by more than .5 bar (7 psi). When connecting case drain line make certain that
drain plumbing passes above highest point of the pump before passing to the reservoir. The
case leakage line must be of sufcient size to prevent back pressure in excess of 2 bar (30
psi) and returned to the reservoir below the surface of the oil as far from the supply inlet as
possible. All uid lines, whether pipe, tubing, or hose must be adequate size and strength to
assure free ow through the pump. An undersize inlet line will prevent the pump from operat-
ing properly at full rated speed. An undersize outlet line will cause back pressure and cause
heat generation and increased noise. Flexible hose lines are recommended. If rigid piping is
used, the workmanship must be accurate to eliminate strain on the pump port block or to the
uid connections. Sharp bends in the lines must be eliminated wherever possible. All system
piping must be cleaned and ushed before installing pump. Make sure the entire hydraulic
system is free of dirt, lint, scale, or other foreign material.
Caution: Do not use galvanized pipe. Galvanized coating can ake off with continued use.
Although the P1/PD series pumps have very fast off-stroke compensator response, system
relief valves are recommended in all cases for safety considerations.
The uid recommended for use in these pumps has a petroleum base and contains agents
which provide oxidation inhibition and anti-rust, anti-foam and de-aerating properties as
described in PARKER standard HF-1. Where anti-wear additive uids are specied, see
PARKER standard HF-0.
90 V. I. minimum. Higher values extend the range of operating temperature but may reduce
the service life of the uid.
Determined by the viscosity characteristics of the uid used. Because high temperatures
degrade seals, reduce the service life of the uid and create hazards, uid temperature
should not exceed 110°C (230°F) at the case drain.
The pump is self-lubricating and preventative maintenance is limited to keeping system uid
clean by changing lters frequently. Keep all ttings and screws tight. Do not operate at
pressures and speeds in excess of the recommended limit. If the pump does not operate
properly, check the troubleshooting chart before attempting to overhaul the unit. Overhauling
may be accomplished by referring to the disassembly, rework limits of wear parts, and
assembly procedures as provided in this service manual.
Fluid must be cleaned before and continuously during operation, by lters that maintain a
cleanliness level of ISO 20/18/14. Better cleanliness levels will signicantly extend the life
of the components. As contaminant generation may vary with each application, each must
be analyzed to determine proper ltration to maintain the required cleanliness level.

Parker Hannin Corporation
Hydraulic Pump and
Power Systems Division
Marysville, Ohio USA
Bulletin HY28-2665-02/SVC/EN Medium Pressure Axial Piston Pumps
P1/PD Maintenance
5
General Information
• Read and understand the instruction manual.
• Identify components and their function.
• Visually inspect components and lines for possible damage.
• Insure that all necessary ports are properly connected.
• Check reservoir for cleanliness. Drain and clean as required.
• Check uid level and ll as required with ltered uid to a minimum ISO
cleanliness level of 20/18/14.
• Fill pump case with clean oil prior to starting.
• If pump is mounted vertically with the shaft up, bleed the air out the D1 drain
port located near the mounting ange.
• Check alignment of drive.
• Check oil cooler and activate it, if included in circuit. Check uid temperature.
• Reduce pressure settings of compensator and relief valve. Make sure accurate
pressure readings can be made at appropriate places.
• If solenoids in system, check for actuation.
• Jog the pump drive. Check for proper shaft rotation. Make sure pump lls properly.
• Start the pump drive.
• Bleed system of air. Recheck uid level.
• Cycle unloaded machine at low pressure and observe actuation (at low speed,
if possible).
• Increase pressure settings gradually in steps. Check for leaks in all lines
especially in pump and motor inlet lines.
• Make correct pressure adjustments.
• Gradually increase speed. Be alert for trouble as indicated by changes in sounds,
system shocks, and air in uid.
• Equipment is operational.
Typical Ajustment Ranges and Initial Settings (unless customer specified at time of order)
Function Adjustment range Adjustment value Recommended or Initial Setting
Pressure compensators
"C0" 80-280 bar (1160-4060 PSI) 40 bar/turn (580 PSI/turn) Factory supplied at minimum
"C1" 20-80 bar (290-1160 PSI) 18.6 bar/turn (260PSI/turn) Factory supplied at minimum
"AM" 80-280 bar (1160-4060 PSI) 40 bar/turn (580 PSI/turn) Factory supplied at minimum
Load sense pressure
"L0" 8-35 bar (116-500 PSI) 28 bar/turn (410 PSI/turn) 24 bar (350 PSI)
Differential pressure
"AM" 37 bar (540 PSI) Adjustment not recommended Factory Set do not adjust
Maximum Volume stop
018 100-40% 9% per turn (1.6 cc/turn) 100%
028 100-40% 8.2% per turn (2.3 cc/turn) 100%
045 100-20% 7.5% per turn (3.4 cc/turn) 100%
060 100-30% 6.8% per turn (4.1 cc/turn) 100%
075 100-35% 6.2% per turn (4.65 cc/turn) 100%
100 100-50% 5.5% per turn (5.5 cc/turn) 100%
140 100-50% 4.8% per turn (6.72 cc/turn) 100%
Minimum Volume stop
018 0-68% 10% per turn (1.8 cc/turn) 0%
028 0-40% 9% per turn (2.6 cc/turn) 0%
045 0-40% 8.2% per turn (3.7 cc/turn) 0%
060 0-50% 4.6% per turn (2.76 cc/turn) 0%
075 0-45% 4.3% per turn (3.23 cc/turn) 0%
100 0-45% 3.9% per turn (3.9 cc/turn) 0%
140 0-25% 3.3% per turn (4.62 cc/turn) 0%
STARTUP PROCEDURE FOR
NEW INSTALLATIONS

Parker Hannin Corporation
Hydraulic Pump and
Power Systems Division
Marysville, Ohio USA
Bulletin HY28-2665-02/SVC/EN Medium Pressure Axial Piston Pumps
P1/PD Maintenance
6
Trouble Shooting
Component problems and circuit problems are often interrelated. An improper circuit may operate with apparent success but
will cause failure of a particular component within it. The component failure can be the effect, not the cause of the problem.
This general guide is offered to help in locating and eliminating the cause of problems by studying their effects.
Effect of Trouble Possible Cause Fault Which Needs Remedy
noisy pump
air in uid
leak in inlet line
low uid level
turbulent uid
return lines above uid level
gas leak from accumulator
excessive pressure drop in the inlet line from a pressurized reservoir
inlet line strainer acting as air trap
cavitation in
rotating group
uid too cold
uid too viscous
uid too heavy
shaft speed to high
inlet line too small
inlet strainer too small
inlet strainer too dirty
operating altitude too high
inlet pressure too low
misaligned shaft
faulty installation
distortion in mounting
axial interference
faulty coupling
excessive overhung loads
mechanical fault in pump
piston and shoe looseness or failure
bearing failure
incorrect port plate rotation
eroded or worn parts in the displacement control
erosion on barrel ports
and port plate
air in uid see noisy pump above
cavitation see noisy pump above
pressure shocks
cogging load mechanical considerations
worn relief valve needed repairs
worn compensator replace
slow response in check
valves replace or relocate
excessive decompres-
sion energy rates improve decompression control
barrel blow-off rotating group worn, excessive case pressure
compensator instabil-
ity
excessive line
capacitance (line volume,
line stretch, acumulator
effects)
reduce line size or lengths
eliminate hose

Parker Hannin Corporation
Hydraulic Pump and
Power Systems Division
Marysville, Ohio USA
Bulletin HY28-2665-02/SVC/EN Medium Pressure Axial Piston Pumps
P1/PD Maintenance
7
Trouble Shooting
Effect of Trouble Possible Cause Fault Which Needs Remedy
high wear in pump
excessive loads reduce pressure settings
reduce speeds
contaminant particles
in uid
improper lter maintenance
lters too coarse
introduction of dirty uid to system
reservoir openings
improper reservoir breather
improper line replacement
improper uid
uid too thin or thick for operating temperature range
breakdown of uid with time/temperature/heating effects
incorrect additives in new uid
destruction of additive effectiveness with chemical aging
improper repair incorrect parts
incorrect procedures, dimensions, nishes
unwanted water in uid
condensation
faulty breather/strainer
heat exchanger leakage
faulty clean-up practice
water in makeup uid
heating of uid
excessive pump leakage
recheck case drain ow and repair as required
uid too thin
improper assembly, port timing
relief valve set too low (compared to load or to compensator)
instability caused by back pressure, worn parts
compensator set too high (compared to relief)
worn parts
pump too large for
uid needs select smaller pump displacement
heat exchanger
water turned off or too little ow
water too hot
fan clogged or restricted
efciency reduced by mud or scale deposits
intermittent hydraulic uid ow
reservoir
too little uid
improper bafes
insulating air blanket that prevents heat rejection
heat pickup from adjacent equipment

Parker Hannin Corporation
Hydraulic Pump and
Power Systems Division
Marysville, Ohio USA
Bulletin HY28-2665-02/SVC/EN Medium Pressure Axial Piston Pumps
P1/PD Maintenance
8
P1/PD 18cc, Model Ordering Code
018 P S 5 A 00
Adjustable
Displacement
Stops
Port
Type
Thru-Drive
Mounting
Pad/Coupling
Paint
Special
Features
Pump
Series
Displacement
18cc/rev.
(1.10 in³/rev)
Mounting
& Ports
Open Circuit
Port
Orientation
Shaft
Rotation
Design
Letter
Additional
Control
Options
Control
Options
Configuration
Single
Shaft
Seal
Shaft
Options
Fluorocarbon
Seal Material
P Electronic valve with zero displacement default
T Electronic valve with max displacement default
S Electronic valve with zero displacement default and hydromechanical Pmax
U Electronic valve with max displacement default and hydromechanical Pmax
W Electronic valve with zero displacement default (CANBUS compatible)
X Electronic valve with max displacement default (CANBUS compatible)
Y Electronic valve with zero displacement default and hydromechanical Pmax (CANBUS compatible)
Z Electronic valve with max displacement default and hydromechanical Pmax (CANBUS compatible)
*** W, X, Y and Z only available with *D* and *Y*
0 No ECU
D Proportional displacement control
Y Proportional pressure control
Electronic Control Options
# #
Paint
00 No Paint
PB Black Paint
Shaft Options
01 Splined shaft - SAE 19-4 11T
02 Keyed shaft - SAE 19-1 .75" Dia.
04 ISO keyed 20MM Dia.
06 Splined shaft - SAE A 9T*
*Not available with Thru-Drive
Shaft Rotation
RClockwise
LCounterclockwise
Pump Series
P1 Mobile
PD Industrial
Configuration
MMobile (P1)
SIndustrial (PD)
Mounting & Ports
SSAE A Pilot SAE Threaded Work Ports
with SAE Aux Ports
ASAE A Pilot Metric Work Ports
with BSPP Aux Ports
MISO - 80mm Pilot Metric Work Ports
with Metric Aux Ports
BISO - 80mm Pilot Metric Work Ports
with BSPP Aux Ports
Adjustable Displacement Stops
0None
1Adjustable maximum displacement stop
2Adjustable minimum displacement stop
3Adjustable maximum and minimum
displacement stop
Port Orientation
EEnd Ports
RSide ported with ripple chamber
TSide ported with Thru-Drive
Thru-Drive Mounting Pad/Coupling
0No Thru-Drive
ASAE 82-2(A), 16(A), 9T coupling
HSAE 82-2(A), 19(--), 11T coupling
Port Type
0Flange Ports*
2Threaded Ports
*With Thru-Drive Only
Control Options
C0
Pressure limiter
1160.30 - 4061.05 PSI (80 - 280 bar)
C1
Pressure limiter
290.08 - 1160.30 PSI (20 - 80 bar)
L0
Load sensing 145.04 - 435.11 PSI ∆P
(10 - 30 bar ∆P) with pressure limiter
1160.30 - 4061.05 PSI (80 - 280 bar)
L1
Load sensing 145 - 435 PSI ∆P
(10 - 30 bar ∆P) with pressure limiter
290 - 1450 PSI (20 - 100 bar)
L2
Load sensing 145.04 - 435.11 PSI ∆P
(10 - 30 bar ∆P) with bleed & pressure limiter
1160.30 - 4061.05 PSI (80 - 280 bar)
AN*
Pilot operated pressure limiter with
ISO4401 interface & SAE 4 Vent Port
AM
Pilot operated pressure limiter with
mechanical adjustment and SAE 4 Vent
Port
AE
Pilot operated pressure limiter with
mechanical and electrical adjustment 12 VDC
AF
Pilot operated pressure limiter with
mechanical and electrical adjustment 24 VDC
## See chart below for electronic control options
*Not functional control as such
Additional Control Options
0 No other options
2 Displacement sensor **
**Mandatory with “W**”, “X**”,
“Y**”, “Z**” “*D*” and “*Y*”

Parker Hannin Corporation
Hydraulic Pump and
Power Systems Division
Marysville, Ohio USA
Bulletin HY28-2665-02/SVC/EN Medium Pressure Axial Piston Pumps
P1/PD Maintenance
9
P1/PD 28cc, Model Ordering Code
028 P S 5 A 00
Adjustable
Displacement
Stops
Port
Type
Thru-Drive
Mounting
Pad/Coupling
Paint
Special
Features
Pump
Series
Displacement
28cc/rev.
(1.71 in³/rev)
Mounting
& Ports
Open Circuit
Port
Orientation
Shaft
Rotation
Design
Letter
Additional
Control
Options
Control
Options
Configuration
Single
Shaft
Seal
Shaft
Options
Fluorocarbon
Seal Material
P Electronic valve with zero displacement default
T Electronic valve with max displacement default
S Electronic valve with zero displacement default and hydromechanical Pmax
U Electronic valve with max displacement default and hydromechanical Pmax
W Electronic valve with zero displacement default (CANBUS compatible)
X Electronic valve with max displacement default (CANBUS compatible)
Y Electronic valve with zero displacement default and hydromechanical Pmax (CANBUS compatible)
Z Electronic valve with max displacement default and hydromechanical Pmax (CANBUS compatible)
*** W, X, Y and Z only available with *D* and *Y*
0 No ECU
D Proportional displacement control
Y Proportional pressure control
Electronic Control Options
# #
Paint
00 No Paint
PB Black Paint
Shaft Options
01 Splined shaft - SAE B-B 15T
02 Keyed shaft - SAE B-B 1" Dia.
04 ISO keyed 25MM Dia.
08 Splined shaft - SAE B 13T
Shaft Rotation
RClockwise
LCounterclockwise
Pump Series
P1 Mobile
PD Industrial
Configuration
MMobile (P1)
SIndustrial (PD)
Mounting & Ports
SSAE B Pilot SAE Work Ports
with SAE Aux Ports
ASAE B Pilot Metric Work Ports
with BSPP Aux Ports
MISO - 100MM Pilot Metric Work Ports
with Aux Ports
BISO - 100MM Pilot Metric Work Ports
with BSPP Aux Ports
Adjustable Displacement Stops*
(For E & R Port Orientation Only)
0None
1Adjustable maximum displacement stop
2Adjustable minimum displacement stop
3Adjustable maximum and minimum
displacement stop
*Not available with Thru-Drive
Port Orientation
EEnd Ports
RSide ported with ripple chamber
TSide ported with through drive
Control Options
C0
Pressure limiter
1160.30 - 4061.05 PSI (80 - 280 bar)
C1
Pressure limiter
290.08 - 1160.30 PSI (20 - 80 bar)
L0
Load sensing 145.04 - 435.11 PSI ∆P
(10 - 30 bar ∆P) with pressure limiter
1160.30 - 4061.05 PSI (80 - 280 bar)
L1
Load sensing 145 - 435 PSI ∆P
(10 - 30 bar ∆P) with pressure limiter
290 - 1450 PSI (20 - 100 bar)
L2
Load sensing 145.04 - 435.11 PSI ∆P
(10 - 30 bar ∆P) with bleed & pressure limiter
1160.30 - 4061.05 PSI (80 - 280 bar)
AN*
Pilot operated pressure limiter with
ISO4401 interface & SAE 4 Vent Port
AM
Pilot operated pressure limiter with
mechanical adjustment and SAE 4 Vent
Port
AE
Pilot operated pressure limiter with
mechanical and electrical adjustment 12 VDC
AF
Pilot operated pressure limiter with
mechanical and electrical adjustment 24 VDC
## See chart below for electronic control options
*Not functional control as such
Thru-Drive Mounting Pad/Coupling
0 No Thru-Drive
A SAE 82-2 (A), 16 (A), 9T coupling
H SAE 82-2 (A), 19 (--), 11T coupling
B SAE 101-2 (B), 22 (B) , 13T coupling
Q SAE 101-2 (B), 25 (B-B), 15T coupling
Port Type
0 Flange Ports
2 Threaded Ports
Additional Control Options
0 No other options
2 Displacement sensor **
**Mandatory with “W**”, “X**”,
“Y**”, “Z**” “*D*” and “*Y*”

Parker Hannin Corporation
Hydraulic Pump and
Power Systems Division
Marysville, Ohio USA
Bulletin HY28-2665-02/SVC/EN Medium Pressure Axial Piston Pumps
P1/PD Maintenance
10
P1/PD 45cc, Model Ordering Code
045 P S 5 A 00
Adjustable
Displacement
Stops
Port
Type
Thru-Drive
Mounting
Pad &
Coupling
Paint
Special
Features
Pump
Series
Displacement
45cc/rev.
(2.75 in³/rev)
Mounting
& Ports
Open Circuit
Port
Orientation
Shaft
Rotation
Design
Letter
Additional
Control
Options
Control
Options
Configuration
Single
Shaft
Seal
Shaft
Options
Fluorocarbon
Seal Material
P Electronic valve with zero displacement default
T Electronic valve with max displacement default
S Electronic valve with zero displacement default and hydromechanical Pmax
U Electronic valve with max displacement default and hydromechanical Pmax
W Electronic valve with zero displacement default (CANBUS compatible)
X Electronic valve with max displacement default (CANBUS compatible)
Y Electronic valve with zero displacement default and hydromechanical Pmax (CANBUS compatible)
Z Electronic valve with max displacement default and hydromechanical Pmax (CANBUS compatible)
*** W, X, Y and Z only available with *D* and *Y*
0 No ECU
D Proportional displacement control
Y Proportional pressure control
Electronic Control Options
# #
Paint
00 No Paint
PB Black Paint
Thru-Drive Mounting Pad/Coupling
0
No Thru-Drive
A
SAE 82-2 (A), 16 (A), 9T coupling
H
SAE 82-2 (A), 19 (--), 11T coupling
B
SAE 101-2 (B), 22 (B), 13T coupling
Q
SAE 101-2 (B), 25 (B-B), 15T coupling
Shaft Options
01
Splined shaft - SAE B-B 15T
02
Keyed shaft - SAE B-B 1" Dia.
04
ISO keyed 25MM Dia.
08
Splined shaft - SAE B 13T
Shaft Rotation
RClockwise
LCounterclockwise
Pump Series
P1 Mobile
PD Industrial
Conguration
MMobile (P1)
SIndustrial (PD)
U
Universal (SAE Mounting Option, S, Only)
Mounting & Ports
S
SAE B Pilot with SAE
Threaded or Flange Work Ports
with SAE Aux Ports
A
SAE B Pilot with Metric
Threaded or Metric Flange Work Ports
with BSPP Aux Ports
M
ISO - 100MM Pilot Metric
Threaded or Metric Flange Work Ports
with Aux Ports
B
ISO - 100MM Pilot Metric
Threaded or Metric Flange Work Ports
with Aux Ports
Additional Control Options
0
No other options
2
Displacement sensor **
T
Torque Limiter Control
(Used with AM, AN or AL control options)
**Mandatory with “W**”, “X**”,
“Y**”, “Z**” “*D*” and “*Y*”
Port Type
0
Flange Ports
2
Threaded Ports
Adjustable Displacement Stops*
(For E & R Port Orientation Only)
0None
1Adjustable maximum displacement stop
2Adjustable minimum displacement stop
3Adjustable maximum and minimum
displacement stop
*Not available with Thru-Drive
Port Orientation
EEnd Ports
RSide ported with ripple chamber
TSide ported with through drive
Control Options
C0
Pressure limiter
1160.30 - 4061.05 PSI (80 - 280 bar)
C1
Pressure limiter
290.08 - 1160.30 PSI (20 - 80 bar)
L0
Load sensing 145.04 - 435.11 PSI ∆P
(10 - 30 bar ∆P) with pressure limiter
1160.30 - 4061.05 PSI (80 - 280 bar)
L1
Load sensing 145 - 435 PSI ∆P
(10 - 30 bar ∆P) with pressure limiter
290 - 1450 PSI (20 - 100 bar)
L2
Load sensing 145.04 - 435.11 PSI ∆P
(10 - 30 bar ∆P) with bleed & pressure limiter
1160.30 - 4061.05 PSI (80 - 280 bar)
AN*
Pilot operated pressure limiter with
ISO4401 interface & SAE 4 Vent Port
AL
Pilot operated pressure limiter with Load
sensing (only available with “T” Torque
Limiter option, i.e. “ALT”)
AM
Pilot operated pressure limiter with
mechanical adjustment and SAE 4 Vent Port
AE
Pilot operated pressure limiter with
mechanical and electrical adjustment 12 VDC
AF
Pilot operated pressure limiter with
mechanical and electrical adjustment 24 VDC
##
See chart below for electronic control options
*Not functional control as such

Parker Hannin Corporation
Hydraulic Pump and
Power Systems Division
Marysville, Ohio USA
Bulletin HY28-2665-02/SVC/EN Medium Pressure Axial Piston Pumps
P1/PD Maintenance
11
P1/PD 60cc, Model Ordering Code
060 5 A 00
Adjustable
Displacement
Stops
Port
Type
Thru-Drive
Mounting
Pad &
Coupling
Paint
Special
Features
Pump
Series
Displacement
60cc/rev.
(3.66 in³/rev)
Mounting
& Ports
Open Circuit
Port
Orientation
Shaft
Rotation
Design
Letter
Additional
Control
Options
Control
Options
Configuration
Single
Shaft
Seal
Shaft
Options
Fluorocarbon
Seal Material
P Electronic valve with zero displacement default
T Electronic valve with max displacement default
S Electronic valve with zero displacement default and hydromechanical Pmax
U Electronic valve with max displacement default and hydromechanical Pmax
W Electronic valve with zero displacement default (CANBUS compatible)
X Electronic valve with max displacement default (CANBUS compatible)
Y Electronic valve with zero displacement default and hydromechanical Pmax (CANBUS compatible)
Z Electronic valve with max displacement default and hydromechanical Pmax (CANBUS compatible)
*** W, X, Y and Z only available with *D* and *Y*
0 No ECU
D Proportional displacement control
Y Proportional pressure control
Electronic Control Options
# #
Additional Control Options
0
No other options
2
Displacement sensor **
T
Torque Limiter Control
(Used with AM, AN or AL control options)
**Mandatory with “W**”, “X**”,
“Y**”, “Z**” “*D*" and “*Y*”
Control Options
C0
Pressure limiter
1160.30 - 4061.05 PSI (80 - 280 bar)
C1
Pressure limiter
290.08 - 1160.30 PSI (20 - 80 bar)
L0
Load sensing 145.04 - 435.11 PSI ∆P
(10 - 30 bar ∆P) with pressure limiter
1160.30 - 4061.05 PSI (80 - 280 bar)
L1
Load sensing 145 - 435 PSI ∆P
(10 - 30 bar ∆P) with pressure limiter
290 - 1450 PSI (20 - 100 bar)
L2
Load sensing 145.04 - 435.11 PSI ∆P
(10 - 30 bar ∆P) with bleed & pressure limiter
1160.30 - 4061.05 PSI (80 - 280 bar)
AN*
Pilot operated pressure limiter with
ISO4401 interface & SAE 4 Vent Port
AL
Pilot operated pressure limiter with Load
sensing ( only available with “T” Torque
Limiter option, i.e. “ALT”)
AM
Pilot operated pressure limiter with
mechanical adjustment and SAE 4 Vent Port
AE
Pilot operated pressure limiter with
mechanical and electrical adjustment 12 VDC
AF
Pilot operated pressure limiter with
mechanical and electrical adjustment 24 VDC
##
See chart below for electronic control options
*Not functional control as such
Shaft Options
01 Splined shaft - SAE C 14T
02 Keyed shaft - SAE C 32-1 KEY
04 Keyed shaft - ISO / DIN KEY 32MM Dia.
Shaft Rotation
RClockwise
LCounterclockwise
Pump Series
P1 Mobile
PD Industrial
Conguration
MMobile (P1)
SIndustrial (PD)
UUniversal
Mounting & Ports
SSAE C Pilot SAE Flange
Connection Ports with SAE Aux Ports
ASAE C Pilot Metric Flange
Connection Ports with BSPP Aux Ports
MISO - 125MM Pilot Metric Flange
Connection Ports with Metric Aux Ports
BISO - 125MM Pilot, Metric Flange
Connection Ports with BSPP Aux Ports
CSAE C 2-Bolt Pilot SAE Flange
Connection Ports with SAE Aux Ports
DSAE C 2-Bolt Pilot SAE Flange
Connection Ports with BSPP Aux Ports
Open Circuit
POpen Circuit (One Side of Center)
XOpen Circuit (100% over Center)
Port Type
0Flange Ports
2SAE Threaded Ports (Available only
on “E” port and “S” or "C" mount)
4BSPP Threaded Ports
(Available only on “E” port and “D” mount)
Adjustable Displacement Stops*
(For E & S Port Orientation Only)
0None
1Adjustable maximum displacement stop
2Adjustable minimum displacement stop
3Adjustable maximum and minimum
displacement stop
*Not available with Thru-Drive
Port Orientation
EEnd Ports
SSide Ports
TSide Ports with Thru-Drive
Paint
00 No Paint
PB Black Paint
Thru-Drive Mounting Pad/Coupling
0
No Thru-Drive
A
SAE 82-2 (A), 16 (A), 9T coupling
H
SAE 82-2 (A), 19 (--), 11T coupling
B
SAE 101-2 (B), 22 (B), 13T coupling
Q
SAE 101-2 (B), 25 (B-B), 15T coupling
J
SAE 101-2 (B), rotated 45 degrees,
22 (B), 13T coupling
KSAE 101-2 (B), rotated 45 degrees,
25 (B-B), 15T coupling
C
SAE 127-4 (C), 32 (C), 14T coupling

Parker Hannin Corporation
Hydraulic Pump and
Power Systems Division
Marysville, Ohio USA
Bulletin HY28-2665-02/SVC/EN Medium Pressure Axial Piston Pumps
P1/PD Maintenance
12
P1/PD 75cc, Model Ordering Code
075 S 5 A 0 00
Adjustable
Displacement
Stops
Thru-Drive
Mounting
Pad &
Coupling
Paint
Special
Features
Pump
Series
Displacement
75cc/rev.
(4.58 in³/rev)
Mounting
& Ports
Open Circuit
Port
Orientation
Shaft
Rotation
Design
Letter
Additional
Control
Options
Control
Options
Configuration
Single
Shaft
Seal
Shaft
Options
Fluorocarbon
Seal Material
Flange
Ports
P Electronic valve with zero displacement default
T Electronic valve with max displacement default
S Electronic valve with zero displacement default and hydromechanical Pmax
U Electronic valve with max displacement default and hydromechanical Pmax
W Electronic valve with zero displacement default (CANBUS compatible)
Y Electronic valve with max displacement default (CANBUS compatible)
X Electronic valve with zero displacement default and hydromechanical Pmax (CANBUS compatible)
Z Electronic valve with max displacement default and hydromechanical Pmax (CANBUS compatible)
*** W, X, Y and Z only available with *D* and *Y*
0 No ECU
D Proportional displacement control
Y Proportional pressure control
Electronic Control Options
# #
Paint
00 No Paint
PB Black Paint
Thru-Drive Mounting Pad/Coupling
0
No Thru-Drive
A
SAE 82-2 (A), 16 (A), 9T coupling
H
SAE 82-2 (A), 19 (--), 11T coupling
B
SAE 101-2 (B), 22 (B), 13T coupling
Q
SAE 101-2 (B), 25 (B-B), 15T coupling
J
SAE 101-2 (B), rotated 45 degrees,
22 (B), 13T coupling
KSAE 101-2 (B), rotated 45 degrees,
25 (B-B), 15T coupling
C
SAE 127-4 (C), 32 (C), 14T coupling
Control Options
C0
Pressure limiter
1160.30 - 4061.05 PSI (80 - 280 bar)
C1
Pressure limiter
290.08 - 1160.30 PSI (20 - 80 bar)
L0
Load sensing 145.04 - 435.11 PSI ∆P
(10 - 30 bar ∆P) with pressure limiter
1160.30 - 4061.05 PSI (80 - 280 bar)
L1
Load sensing 145-435 PSI ∆P
(10 - 30 bar ∆P) with pressure limiter
290 - 1450 PSI (20 - 100 bar)
L2
Load sensing 145.04-435.11 PSI ∆P
(10 - 30 bar ∆P) with bleed & pressure limiter
1160.30 - 4061.05 PSI (80 - 280 bar)
AN*
Pilot operated pressure limiter with
ISO4401 interface & SAE 4 Vent Port
AM
Pilot operated pressure limiter with
mechanical adjustment and SAE 4 Vent Port
AE
Pilot operated pressure limiter with
mechanical and electrical adjustment 12 VDC
AF
Pilot operated pressure limiter with
mechanical and electrical adjustment 24 VDC
##
See chart below for electronic control options
*Not functional control as such
Shaft Options
01 Splined shaft - SAE C 14T
02 Keyed shaft - SAE C 32-1 KEY
04 Keyed shaft - ISO / DIN KEY 32MM Dia.
Shaft Rotation
RClockwise
LCounterclockwise
Pump Series
P1 Mobile
PD Industrial
Open Circuit
POpen Circuit (One Side of Center)
XOpen Circuit (100% over Center)
Conguration
MMobile (P1)
SIndustrial (PD)
UUniversal
Mounting & Ports
SSAE C Pilot SAE Flange
Connection Ports with SAE Aux Ports
ASAE C Pilot Metric Flange
Connection Ports with BSPP Aux Ports
MISO - 125MM Pilot Metric Flange
Connection Ports with Metric Aux Ports
BISO - 125MM Pilot, Metric Flange
Connection Ports with BSPP Aux Ports
CSAE C 2-Bolt Pilot SAE Flange
Connection Ports with SAE Aux Ports
DSAE C 2-Bolt Pilot SAE Flange
Connection Ports with BSPP Aux Ports
Adjustable Displacement Stops*
(For E & S Port Orientation Only)
0None
1Adjustable maximum displacement stop
2Adjustable minimum displacement stop
3Adjustable maximum and minimum
displacement stop
*Not available with Thru-Drive
Port Orientation
EEnd Ports
SSide Ports
TSide Ports with Thru-Drive
Additional Control Options
0
No other options
2
Displacement sensor **
T
Torque Limiter Control
(Used with AM, AN or L0 control options)
**Mandatory with “W**”, “X**”,
“Y**”, “Z**” “*D*” and “*Y*”

Parker Hannin Corporation
Hydraulic Pump and
Power Systems Division
Marysville, Ohio USA
Bulletin HY28-2665-02/SVC/EN Medium Pressure Axial Piston Pumps
P1/PD Maintenance
13
P1/PD 100cc, Model Ordering Code
100 S 5 A 0 00
Adjustable
Displacement
Stops
Thru-Drive
Mounting
Pad &
Coupling
Paint
Special
Features
Pump
Series
Displacement
100cc/rev.
(6.1 in³/rev)
Mounting
& Ports
Open Circuit
Port
Orientation
Shaft
Rotation
Design
Letter
Additional
Control
Options
Control
Options
Configuration
Single
Shaft
Seal
Shaft
Options
Fluorocarbon
Seal Material
Flange
Ports
P Electronic valve with zero displacement default
T Electronic valve with max displacement default
S Electronic valve with zero displacement default and hydromechanical Pmax
U Electronic valve with max displacement default and hydromechanical Pmax
W Electronic valve with zero displacement default (CANBUS compatible)
Y Electronic valve with max displacement default (CANBUS compatible)
X Electronic valve with zero displacement default and hydromechanical Pmax (CANBUS compatible)
Z Electronic valve with max displacement default and hydromechanical Pmax (CANBUS compatible)
*** W, X, Y and Z only available with *D* and *Y*
0 No ECU
D Proportional displacement control
Y Proportional pressure control
Electronic Control Options
# #
Paint
00 No Paint
PB Black Paint
Thru-Drive Mounting Pad/Coupling
0
No Thru-Drive
A
SAE 82-2 (A), 16 (A), 9T coupling
H
SAE 82-2 (A), 19 (--), 11T coupling
B
SAE 101-2 (B), 22 (B), 13T coupling
Q
SAE 101-2 (B), 25 (B-B), 15T coupling
J
SAE 101-2 (B), rotated 45 degrees,
22 (B), 13T coupling
KSAE 101-2 (B), rotated 45 degrees,
25 (B-B), 15T coupling
C
SAE 127-4 (C), 32 (C), 14T coupling
N
SAE 127-4 (C), 38 (C-C), 17T coupling
Shaft Options
01
Splined shaft - SAE C-C 17T
02
Keyed shaft - SAE C-C 38-1
04
Keyed shaft - ISO / DIN 40MM Dia.
06
Splined shaft - SAE C 14T
Pump Series
P1 Mobile
PD Industrial
Mounting & Ports
SSAE C Pilot SAE Flange
Connection Ports with SAE Aux Ports
ASAE C Pilot Metric Flange
Connection Ports with BSPP Aux Ports
MISO - 125MM Pilot Metric Flange
Connection Ports with Metric Aux Ports
BISO - 125MM Pilot, Metric Flange
Connection Ports with BSPP Aux Ports
Control Options
C0
Pressure limiter
1160.30 - 4061.05 PSI (80 - 280 bar)
C1
Pressure limiter
290.08 - 1160.30 PSI (20 - 80 bar)
L0
Load sensing 145.04 - 435.11 PSI ∆P
(10 - 30 bar ∆P) with pressure limiter
1160.30 - 4061.05 PSI (80 - 280 bar)
L1
Load sensing 145 - 435 PSI ∆P
(10 - 30 bar ∆P) with pressure limiter
290 - 1450 PSI (20 - 100 bar)
L2
Load sensing 145.04 - 435.11 PSI ∆P
(10 - 30 bar ∆P) with bleed & pressure limiter
1160.30 - 4061.05 PSI (80 - 280 bar)
AN*
Pilot operated pressure limiter with
ISO4401 interface & SAE 4 Vent Port
AM
Pilot operated pressure limiter with
mechanical adjustment and SAE 4 Vent Port
AE
Pilot operated pressure limiter with
mechanical and electrical adjustment 12 VDC
AF
Pilot operated pressure limiter with
mechanical and electrical adjustment 24 VDC
##
See chart below for electronic control options
*Not functional control as such
Shaft Rotation
RClockwise
LCounterclockwise
Conguration
MMobile (P1)
SIndustrial (PD)
UUniversal
Adjustable Displacement Stops*
(For E & S Port Orientation Only)
0None
1Adjustable maximum displacement stop
2Adjustable minimum displacement stop
3Adjustable maximum and minimum
displacement stop
*Not available with Thru-Drive
Port Orientation
EEnd Ports
SSide Ports
TSide Ports with Thru-Drive
Open Circuit
POpen Circuit (One Side of Center)
XOpen Circuit (100% over Center)
Additional Control Options
0
No other options
2
Displacement sensor **
T
Torque Limiter Control
(Used with AM, AN or L0 control options)
**Mandatory with “W**”, “X**”,
“Y**”, “Z**” “*D*” and “*Y*”

Parker Hannin Corporation
Hydraulic Pump and
Power Systems Division
Marysville, Ohio USA
Bulletin HY28-2665-02/SVC/EN Medium Pressure Axial Piston Pumps
P1/PD Maintenance
14
P1/PD 140cc, Model Ordering Code
140 S 5 A 0 00
Adjustable
Displacement
Stops
Thru-Drive
Mounting
Pad &
Coupling
Paint
Special
Features
Pump
Series
Displacement
140cc/rev.
(8.54 in³/rev)
Mounting
& Ports
Open Circuit
Port
Orientation
Shaft
Rotation
Design
Letter
Additional
Control
Options
Control
Options
Configuration
Single
Shaft
Seal
Shaft
Options
Fluorocarbon
Seal Material
Flange
Ports
P Electronic valve with zero displacement default
T Electronic valve with max displacement default
S Electronic valve with zero displacement default and hydromechanical Pmax
U Electronic valve with max displacement default and hydromechanical Pmax
W Electronic valve with zero displacement default (CANBUS compatible)
Y Electronic valve with max displacement default (CANBUS compatible)
X Electronic valve with zero displacement default and hydromechanical Pmax (CANBUS compatible)
Z Electronic valve with max displacement default and hydromechanical Pmax (CANBUS compatible)
*** W, X, Y and Z only available with *D* and *Y*
0 No ECU
D Proportional displacement control
Y Proportional pressure control
Electronic Control Options
# #
Thru-Drive Mounting Pad/Coupling
0
No Thru-Drive
A
SAE 82-2 (A), 16 (A), 9T coupling
B
SAE 101-2 (B), 22 (B), 13T coupling
Q
SAE 101-2 (B), 25 (B-B), 15T coupling
J
SAE 101-2 (B), rotated 45 degrees,
22 (B), 13T coupling
KSAE 101-2 (B), rotated 45 degrees,
25 (B-B), 15T coupling
C
SAE 127-4 (C), 32 (C), 14T coupling
N
SAE 127-4 (C), 38 (C-C), 17T coupling
D
SAE 152-4 (D), 44 (D), 13T coupling
Shaft Options
01
Splined shaft - SAE D 13T
02
Keyed shaft - SAE D 44-1
04
Keyed shaft - ISO / DIN 50MM Dia.
Mounting & Ports
SSAE D Pilot SAE Flange
Connection Ports with SAE Aux Ports
ASAE D Pilot BSPP Flange
Connection Ports with BSPP Aux Ports
MISO - 180MM Pilot Metric Flange
Connection Ports with Metric Aux Ports
BISO - 180MM Pilot Metric Flange
Connection Ports with BSPP Aux Ports
Paint
00 No Paint
PB Black Paint
Pump Series
P1 Mobile
PD Industrial
Control Options
C0
Pressure limiter
1160.30 - 4061.05 PSI (80 - 280 bar)
C1
Pressure limiter
290.08 - 1160.30 PSI (20 - 80 bar)
L0
Load sensing 145.04 - 435.11 PSI ∆P
(10 - 30 bar ∆P) with pressure limiter
1160.30 - 4061.05 PSI (80 - 280 bar)
L1
Load sensing 145 - 435 PSI ∆P
(10 - 30 bar ∆P) with pressure limiter
290 - 1450 PSI (20 - 100 bar)
L2
Load sensing 145.04 - 435.11 PSI ∆P
(10 - 30 bar ∆P) with bleed & pressure limiter
1160.30 - 4061.05 PSI (80 - 280 bar)
AN*
Pilot operated pressure limiter with
ISO4401 interface & SAE 4 Vent Port
AM
Pilot operated pressure limiter with
mechanical adjustment and SAE 4 Vent Port
AE
Pilot operated pressure limiter with
mechanical and electrical adjustment 12 VDC
AF
Pilot operated pressure limiter with
mechanical and electrical adjustment 24 VDC
##
See chart below for electronic control options
*Not functional control as such
Shaft Rotation
RClockwise
LCounterclockwise
Conguration
MMobile (P1)
SIndustrial (PD)
UUniversal
Port Orientation
EEnd Ports
SSide Ports
TSide Ports with Thru-Drive
Adjustable Displacement Stops*
(For E & S Port Orientation Only)
0None
1Adjustable maximum displacement stop
2Adjustable minimum displacement stop
3Adjustable maximum and minimum
displacement stop
*Not available with Thru-Drive
Open Circuit
POpen Circuit (One Side of Center)
XOpen Circuit (100% over Center)
Additional Control Options
0
No other options
2
Displacement sensor **
T
Torque Limiter Control
(Used with AM, AN or L0 control options)
**Mandatory with “W**”, “X**”,
“Y**”, “Z**” “*D*” and “*Y*”

Parker Hannin Corporation
Hydraulic Pump and
Power Systems Division
Marysville, Ohio USA
Bulletin HY28-2665-02/SVC/EN Medium Pressure Axial Piston Pumps
P1/PD Maintenance
15
Typical Characteristics
Model P1/PD 018 P1/PD 028 P1/PD 045 P1/PD 060 P1/PD 075 P1/PD 100 P1/PD 140
Maximum Displacement, cm3/rev
cu.in./rev
18
1.10
28
1.71
45
2.75
60
3.66
75
4.58
100
6.01
140
8.54
Outlet Pressure – Continuous, bar
psi
280
4000
Intermittent*, bar
psi
320
4500
Peak, bar
psi
350
5000
P1 Maximum Speed (1.3 bar abs inlet), rpm 3600 3400 3100 2800 2700 2500 2400
P1 (1.0 bar abs inlet), rpm 3300 3200 2800 2500 2400 2100 2100
P1 (0.8 bar abs inlet), rpm 2900 2900 2400 2200 2100 1900 1800
PD Maximum Speed (1.0 bar abs inlet), rpm 1800
PD (0.8 bar abs inlet), rpm 1800
Minimum Speed, rpm 600
Inlet Pressure – Maximum, bar
psi
10 (gage)
145
Rated, bar
psia
1.0 absolute (0.0 gage)
14.5
Minimum, bar
psia
0.8 absolute (-0.2 gage)
11.6
Case Pressure – Peak, bar 4.0 absolute (3.0 gage)
and less than 0.5 bar above inlet pressure
Rated, bar 2.0 absolute (1.0 gage)
and less than 0.5 bar above inlet pressure
Fluid Temperature Range, °C
°F
-40 to +95
-40 to +203
Fluid Viscosity – Rated, cSt 6 to 160
Max. Intermittent, cSt 5000 (for cold starting)
Min. Intermittent, cSt 5
Fluid Contamination – Rated, ISO 20/18/14
Maximum, ISO 21/19/16
SAE Mounting – Flange 82-2 (A) 101-2 (B) 101-2 (B) 127-2 (C) or 127-4 (C) 127-4 (C) 152-4 (D)
ISO Mounting - Flange 80 mm 100 mm 100 mm 125 mm 125 mm 125 mm 180 mm
SAE Keyed Shafts 19-1, A 25-1, BB 25-1, BB 32-1, C 32-1, C 38-1, CC 44-1, D
ISO Keyed Shafts 20 mm 25 mm 25 mm 32 mm 32 mm 40 mm 50 mm
SAE Spline Shafts 9T, A
11T, A
13T, B
15T, BB
13T, B
15T, BB 14T, C 14T, C 17T, CC 13T, D
Weight – End Port, kg (lb) 13.4 (29.5) 17.7 (39.0) 23 (50) 29 (64) 30 (66) 51 (112) 66 (145)
Side Port, kg (lb) 14.2 (31.3) 18.1 (40.0) 24 (52) 30 (67) 31 (68) 53 (117) 67 (147)
Thru-Drive, kg (lb) — 22 (48) 27 (59) 34 (75) 35 (77) 55 (121) 82 (180)
Moment of Inertia kg·mm2760 1555 3208 4548 5041 12027 21400
Moment of Inertia Thru-Drive kg·mm2793 1618 3268 4687 5207 12402 22343
*Intermittent pressure is dened as less than 10% of operation time, not exceeding 6 successive seconds.
Technical Data
Typical Control Reponse Times*
Typical Control
Response Time (ms)
Control Description Pump Operating Condition
018 028 045 060 075 100 140
”C” Pressure Limiter Maximum Displacement to Zero 25 25 25 37 21 26 30
Zero Displacement to Maximum 80 80 106 119 89 108 125
”L” Load Sensing Maximum Displacement to Zero 40 40 30 54 40 43 45
Zero Displacement to Maximum 70 70 120 186 97 189 280
”A” Pilot Operated
Control
Maximum Displacement to Zero 25 25 46 43 37 39 40
Zero Displacement to Maximum 80 80 131 125 115 123 130
* Based on NFPA testing standards
For max volume stops:
Pump Size % Stroke reduction per turn
P*060 6.76 P*018 9
P*075 6.2 P*028 8.2
P*100 5.5 P*045 7.5
P*140 4.8
Control Adjustment Sensitivity:
• Load Sense 28 Bar/Turn
• Pressure Compensator 80 to 280
bar range (C0) = 40 Bar/Turn
• Pressure Compensator 20 to 80
bar range (C1) = 18.6 Bar/Turn
• Pressure compensator (AM) 10 to
40 bar range = 20 Bar/Turn

Parker Hannin Corporation
Hydraulic Pump and
Power Systems Division
Marysville, Ohio USA
Bulletin HY28-2665-02/SVC/EN Medium Pressure Axial Piston Pumps
P1/PD Maintenance
16
18cc & 28cc Pump Exploded View
25
26
43
27
28
31
32
35
47 38
34
46
33
39
1
4
3
8
7
14
19
20
21
31
23
22
24
5
41
42
9
11
13
12
32
40
15
44
45

Parker Hannin Corporation
Hydraulic Pump and
Power Systems Division
Marysville, Ohio USA
Bulletin HY28-2665-02/SVC/EN Medium Pressure Axial Piston Pumps
P1/PD Maintenance
17
45cc Pump Exploded View
25
26
43
27
28
31
32
35
47 38
34
46
33
39
1
3
41
4
8
7
14
19
20
21
31
23
22
24
5
42
9
11
13
12
32
40
15
44
45
10
10

Parker Hannin Corporation
Hydraulic Pump and
Power Systems Division
Marysville, Ohio USA
Bulletin HY28-2665-02/SVC/EN Medium Pressure Axial Piston Pumps
P1/PD Maintenance
18
018, 028, 045 Pump Parts
ITEM # QTY 018 PART # 028 PART # 045 PART # DESCRIPTION
1 4 210 x209 210 x 211 361-12229-0 Socket head cap screw
3 1 Contact Factory for port block ordering information Port Block
4* 1 2050V-7 2160V-7 675-00162-0 Port block O-Ring
5 2 108X2V 108X2V 108X2V Boss Plug (not shown)
7 1 299X67 324-30014-0 324-30014-0 Port Plate Pin
8* 3 605-10077-0 605-10077-0 605-10077-0 O-Ring
9 1
03E-94415-0 03E-94969-0 03E-94339-0 Port plate, clockwise, industrial (PD)
03E-94414-0 03E-94970-0 03E-94340-0 Port plate, counter clockwise, industrial (PD)
03E-94413-0 03E-94969-0 03E-94341-0 Port plate, clockwise, mobile (P1)
03E-94416-0 03E-94970-0 03E-94342-0 Port plate, counter clockwise, mobile (P1)
03E-94963-0 03E-94376-0 03E-95374-0 Port plate, CW, industrial (PD), ripple chamber
03E-94964-0 03E-94377-0 03E-95080-0 Port plate, CCW, industrial (PD), ripple chamber
03E-94965-0 03E-94378-0 03E-95374-0 Port plate, clockwise, mobile (P1), ripple chamber
03E-94966-0 03E-94379-0 03E-95375-0 Port plate, CCW, mobile (P1), ripple chamber
10* 2 ** ** 695-00912-0 Bias and control rod O-ring
11 1 03E-94427-0 03E-94390-0 03E-94355-0 Bias Guide
12 1 03E-94428-0 03E-94391-0 03E-94354-0 Bias Piston
13 1 03E-94430-0 03E-94393-0 03E-94356-0 Bias Spring
14 1 03E-94427-0 03E-94390-0 03E-94353-0 Control guide
15 1 03E-94426-0 03E-94389-0 03E-94352-0 Control piston
19 1 256X521 256X525 356-65144-0 Retaining ring, internal
20 1 787635 03E-94387-0 03E-94350-0 Barrel hold down spring
21 2 786996 03E-94388-0 03E-94351-0 Barrel hold down washer
22 3 787000 03E-94386-0 03E-95903-0 Barrel hold down pin
23 1 03E-94717-0 03E-94375-0 03E-94338-0 Barrel
24 1 787002 03E-94385-0 03E-94348-0 Spherical washer
25 1 786994 03E-94384-0 03E-94347-0 Retainer plate
26 9 789641 S2E-18415-0 S2E-18413-0 Piston and shoe assembly
27 1
03E-94409-0 03E-94372-0 03E-94335-0 01 shaft option, no thru drive
03E-94411-0 03E-94374-0 03E-94337-0 01 shaft option with thru drive
03E-94410-0 03E-94373-0 03E-94948-0 02 shaft option, no thru drive
03E-94806-0 03E-94900-0 03E-94908-0 02 shaft option with thru drive
03E-94800-0 03E-94903-0 03E-94923-0 04 shaft option, no thru drive
03E-94801-0 03E-94904-0 03E-94922-0 04 shaft option with thru drive
03E-94718-0 ** ** 06 shaft option, no thru drive
** ** ** 06 shaft option with thru drive
03E-94804-0 03E-95166-0 03E-94990-0 08 shaft option, no thru drive
03E-94762-0 03E-95492-0 03E-95197-0 08 shaft option with thru drive
28 1 S2E-19079-0 S2E-18414-0 S2E-18412-0 Cam
31 2 03E-94359-0 03E-94359-0 03E-94359-0 Bearing retainer Orice
32 2 03E-94432-0 03E-94395-0 03E-94358-0 Cam bearing
33 1 ** ** ** Housing (not sold seperatley)
34 2
108X6 108X8 488-35055-0 Plug, SAE ORB
Consult Parker Rep. Plug, BSPP
Consult Parker Rep. Plug, ISO
35* 2 695-00908-0 695-00908-0 695-00910-0 SAE O-ring
38* 1 787140 P2-060-3304 620-82125-5 Shaft Seal
39 1 256X535 256X544 356-65158-0 Seal Retainer
40 1 see separate compensator ordering information Compensator
41 2 324-30024-0 324-30024-0 324-30014-0 Cover dowel pin
42 1 216-10013-0 789814 230-82227-0 Port block bushing
43 1 230-82514-0 789815 230-82516-0 Cylindrical roller bearing
44 1 256X222 256X222 356-65159-0 External retaining ring (shaft)
45 1 256X544 256X544 356-65144-0 Internal retaining ring (housing)
46 1 108X4 108X4 108X4 Boss plug
47* 1 695-00904-0 695-00904-0 695-00904-0 O-ring
* Denotes item is included in the seal kit

Parker Hannin Corporation
Hydraulic Pump and
Power Systems Division
Marysville, Ohio USA
Bulletin HY28-2665-02/SVC/EN Medium Pressure Axial Piston Pumps
P1/PD Maintenance
19
Notes

Parker Hannin Corporation
Hydraulic Pump and
Power Systems Division
Marysville, Ohio USA
Bulletin HY28-2665-02/SVC/EN Medium Pressure Axial Piston Pumps
P1/PD Maintenance
20
Pump Exploded View 060, 075, 100, 140
5 6
1
2
3
4
7
9
1110
13
10
14
12
16
18
15
17
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34 35
38
39
40
36 37
8
