Teufel Cinebar 50 Special Edition User manual

Technical specifications and operating instructions
Virtual surround active speaker with subwoofer
Cinebar 50 Special Edition

2· Cinebar 50
For your information
The information in this document may be chan-
ged without advance notication and does not
represent any obligation on the part of Lautspre-
cher Teufel GmbH.
No part of these operating instructions may be
copied in any way, whether electronically, mecha-
nically, using photocopies or recordings, or trans-
ferred without the prior written agreement of
Lautsprecher Teufel GmbH.
© Lautsprecher Teufel GmbH
Version 1.2
August 2011
Trademark
® All trademarks are the property of their re-
spective owners.
Dolby
Manufactured under licence from Dolby Labora-
tories. » Dolby«,»Pro Logic« and the DD symbol are
trademarks of Dolby Laboratories.
DTS
Manufactured under licence under U.S. pa-
tent numbers: 5,451,942 5,956,674; 5,974,380;
5,978,762; 6,487,535 and additional patents, both
issued and pending, in the U.S.A and worldwi-
de. DTS and DTS Digital Surround are registered
trademarks; and the DTS logos and the DTS sym-
bol are trademarks of DTS, Inc. ©1996–2008 DTS,
Inc. All rights reserved.
Warranty terms
12-year warranty for speakers and 2-year war-
ranty for power ampliers and electronics (from
purchase date) on materials and work time, with
the exception of damage caused by incorrect use
or electrical or mechanical overload. An original
copy of our invoice is required as the warranty
document. This warranty is exclusively valid for
speakers, power ampliers and electronics that
have been purchased from Teufel for private use
by end customers. The warranty is not valid for
speakers, power ampliers and electronics that
the end user has purchased from a different dis-
tributor. For third-party products, the warranty
conditions of the respective manufacturers shall
apply.If the Teufel product is sold on privately,the
warranty may be transferred to the purchaser,
providing that the original proof of purchase is
also transferred.
Returns
Teufel provides an eight-week right of exchange
or return with reimbursement of the product
purchase price paid.
The return of individual components from a set
is only possible if these components are also of-
fered for sale separately by Lautsprecher Teufel.
If individual components are returned, any price
discount given by Lautsprecher Teufel on all com-
ponents in a set as part of the price for the set is
waived. When returning a component, the custo-
mer will be reimbursed for the price difference
between the set price and the purchase price of
the individual components retained by him/her.
The nancial outcome for customers is as if they
had bought the remaining components at the in-
dividual price from the outset.
You can nd more information on the subject of
returns on the returns form that accompanies
the delivery or online in the support area of our
website www.teufel.eu.
If you need to return an item, do not act without
the prior agreement of Lautsprecher Teufel.
We can only process and accept returns if you
have informed us first by phone and discussed
the procedure with us!
Complaints
If you have a complaint, it is essential that you
provide the following information so that we can
respond:
1. Invoice number
Found on the sales receipt (enclosed with the pro-
duct) or the order conrmation that you received
as a PDF le, e.g. 4322543.
2. Serial number
Can be found at the rear of the device,
e.g. serial #: CB 04007480121A
Thank you for your support.
Contact
Please contact our service department if you
have any questions, suggestions or if there is
anything you think we could do better.
Lautsprecher Teufel GmbH
Gewerbehof Bülowbogen
Bülowstraße 66
10783 Berlin(Germany)
Tel.: [phone]
Fax: +49(30) - 30 09 30 30
www.teufel.eu
Original packaging
We recommend keeping the
packaging if you want to take
advantage of the eight-week
right of return, because we can
only accept the speakers IN
THEIR ORIGINAL PACKAGING.
We are unable to supply empty
boxes!
Technical data
Technical data can be found in
the product description on our
website at www.teufel.eu.

3
· Cinebar 50
Contents
Operating instructions Version 1.2
Tableofcontents....................................................................3
Safetyandcareinstructions..........................................................4
IntroducingCinebar50·Generalfunctions.............................................5
Unpacking·Contents................................................................6
Set-up·Assembly ...................................................................7
Cinebar50front....................................................................8
Cinebar50back·Subwooferconnection...............................................9
DVDplayerandTVsetconnection.....................................................10
CB50RCremotecontrol.............................................................11
Volumeadjustment·Soundsourceselection............................................12
Volumecontrol·Modesetting ........................................................13
USBplayback·Repeatfunction .......................................................14
Troubleshooting.....................................................................15
Glossary
Dolby Digital (ATSC A/52) is
the digital multichannel audio
format created by Dolby Labo-
ratories. It was developed for
efciently storing lm sound with up to 5.1 sound
channels. The data is compressed using psychoa-
coustic processes and transferred in a single data
ow. The format supports various data rates. The
format also has options for automatic adjustment
of volume differences (dynamic compression) and
also the possibility of allowing playback via a two-
channel speaker system using stereo downmix.
Dolby Virtual Speaker simulates the surround
sound playback provided by ve speakers and an
LFE effect channel in systems using a two-channel
speaker combination. In contrast to stereo down-
mix by Dolby Digital, which only places the missing
channel information of 5.1 audio material in the
existing speakers, the Dolby Virtual Speaker pro-
cedure uses psychoacoustic room modelling to
create pseudo-sound sources that suggest the
existence of speakers in the appropriate room po-
sitions.
MP3(MPEG-1 Layer 3) is a wide-
ly used digital data format for
saving audio data (mono/two-
channel stereo) in a compressed
form using psychoacoustic processes. MP3 les
may exist in various– and sometimes variable– bit
rates, which can have a direct inuence on play-
back quality.
USB (Universal Serial Bus) is
a widely used serial, digital in-
terface protocol. A USB host ap-
pliance can request data from terminals and also
transmit data to them.

4· Cinebar 50
Safety and care instructions
Please note
Packaging materials
(e.g. plastic bags) should be
kept out of the reach and sight
of children to avoid the risk of
suffocation.
Safety information
Set-up
Please refer to the label on the back of the Ci-
nebar 50 Unit. This provides information on the
required mains voltage.
In order to make sure that heat dissipates, please
set up your Cinebar 50 Unit either freestanding
or leave a ventilation gap of at least 7–10cm. Do
not block any of the ventilation openings on the
appliance itself. You can nd more information on
the best way to set up your appliance on page 7.
ĚDo not stack this appliance on top of other
appliances.
ĚSwitch off attached devices and the Cinebar 50
Unit before moving them.
ĚSwitch off all components and the Cinebar 50
unit before connecting or changing the cables.
ĚPlease switch the Cinebar 50 Unit to standby
or disconnect it completely from the power
supply, especially if you are not using the
appliance for a long time.
ĚAvoid high temperatures caused by direct
sunlight or radiators/heaters and protect
your speakers from humidity.
ĚPlace the subwoofer on a level surface, because
the appliance emits sound downwards.
For your safety
Never open the appliances or try to make any
repairs. None of the parts inside the appliances
require maintenance. As a result of the internal
operating voltage, opening the appliance may
result in death. Always contact qualied service
staff.
Caution
ĚThe Cinebar 50 System is not designed for
industrial use, only for domestic/personal use.
ĚPlease do not place items containing liquids on
the appliance or the subwoofer.
Ě External inuences such as storms and static
discharges can affect the functioning of the
appliance. If this occurs, please switch off the
Cinebar 50 Unit and the subwoofer and then
switch them on again. Alternatively,please remove
the mains plug from the socket and then
insert it again.
Ě Signicant temperature uctuations can cause
condensation to form in the Cinebar 50 System
which may impair its functions. If this happens,
please leave the appliances switched off at
room temperature for several hours and then
check whether the appliances work properly.
ĚUnder no circumstances should you bridge or
splice the earth wire of the electricity supply.
Please do not place items containing liquids on
the appliance or the subwoofer.
In case of emergency
If any of the following occur,disconnect the appli-
ance from the mains and consult our technicians:
ĚIf the plug or cable are damaged
ĚIf foreign bodies or liquid have got into the
appliance
ĚIf an appliance has been in direct contact with
rain or other water
ĚIf an appliance does not play, even though you
have followed the instructions for use
ĚIf one of the appliances has been dropped or
damaged in some other way.
Ě If foreign objects have entered one of the
appliances.
We cannot accept any responsibility for incidents
that occur because safety information has not
been adhered to.
Information on protecting the environment
The batteries used in this product contain envi-
ronmentally damaging chemicals. Please dispose
of used batteries in line with the currently appli-
cable laws and directives.
Care instructions and cleaning
To make sure you are able to enjoy your Laut-
sprecher Teufel product for a long time, please
note the following tips:
ĚPlease only use a lightly dampened or dry
cloth to clean the Cinebar 50 System.
Ě Abrasive products and cleaners (benzine,
thinners) that contain alcohol should be
avoided.
Note
This product and its operating
instructions include third-party
licences. These licenses are re-
stricted to private and non-com-
mercial use. The usage licence is
also exclusively restricted to this
product. The licence only covers
the appliance’s ability to encrypt
and decipher audio les in line
with ISO/IEC 11172-3 or ISO/IEC
13818-3. No usage rights are
issued for functions that do not
match these specications.
Please note
Risk of electrocution – do not
leave children unsupervised with
electrical devices!

5
· Cinebar 50
Introducing Cinebar 50 · General functions
Dear Lautsprecher Teufel customer,
Thank you for choosing the Cinebar 50 System
from Lautsprecher Teufel. Cinebar 50 is a com-
plete system for playing sound and lm tracks.
The Cinebar 50 combined receiver speaker unit
combines a two-channel amplier with two high-
quality speakers (Cinebar 50 Unit). This unit is
completed by a matching subwoofer that has its
own integrated high-performance amplier. You
can connect various sound sources directly to the
Cinebar 50 Unit via analogue and digital inputs.
Thanks to the integrated USB interface, the Cine-
bar 50 System even allows you to connect mobile
MP3 media players and USB data storage devices.
The integrated Dolby Digital Downmix Matrix and
additional support from “bass redirection logic”
ensure that media encoded for surround sound,
such as 5.1 sound, are reproduced accurately on
your 2.1 speaker system. Thanks to Dolby Virtu-
al Speakers, the unit can also be used to create
surround sound in 2.1 speaker conguration. In
terms of sound quality, the system lives up to all
the expectations you could have of a Lautspre-
cher Teufel home cinema system.
Please read these instructions carefully before
operating the unit and store the manual in a safe
place for future reference. If you have any fur-
ther questions, please contact our engineers on
tel. [phone] – or use the e-mail contact
form on our website: www.teufel.eu. Please have
your invoice number ready, so we can immediately
locate your product and provide the best possible
support.
Before contacting us with a question, please read
the »Problems and solutions« section on page 15
of these operating instructions and visit our web-
site (www.teufel.eu) where you will nd answers to
many questions in the »FAQ/Support« section.
Please refer to our safety information on page 4
of these operating instructions and only use the
system once you have read the safety informa-
tion.
Please make a note of the invoice and serial
numbers for your device on the last page, so that
you have the available information to hand in the
event that you require service.
Outstanding sound playback
You can enjoy music in crystal-clear sound with
the Teufel Cinebar 50 System. The Dolby Digital
technology developed by Dolby Laboratories ena-
bles the playback of 5.1 surround sound sources
via a 2.1 amplier/speaker system.
Dolby Virtual Speaker technology
The Cinebar 50 System supports the Dolby Vir-
tual Speaker, developed by Dolby Laboratories.
This simulates surround sound playback from ve
speakers and the LFE effect channel in systems
using a two-channel speaker combination with a
subwoofer. Psychoacoustic room modelling pro-
cedures are used to create pseudo-sound sour-
ces that suggest the existence of speakers in the
corresponding room positions. Please see set-up
information on page 7.
Playback from USB storage media
You can use the Cinebar 50 to play back audio les
in MP3 and WMA format from USB storage media.
USB sticks with up to 8 GB capacity and hard
drives up to 160 GB are supported.
External audio inputs
Analogue and digital signal sources can be con-
nected to the Cinebar 50 Unit. There are two
analogue stereo inputs and two digital inputs in
optical and coaxial format on the back, where you
can connect DVD players, CD players or satellite
receivers.
Repeat
You can repeat one or all tracks on a connected
USB medium, just by pressing the repeat button.
General functions

CR2025
3V
+
CR2025
3V
+
Warning
Explosion hazard with inap-
propriate replacement of the
battery.
Replacement only by the same or
an equivalent type. Not expose
batteries to excessively warms as
sunshine, re or like.
6· Cinebar 50
Unpacking · Contents
Please note
Please keep the boxes for the
eight-week return period at
least, as we can ONLY repay
the full purchase price if the
products are returned in the
ORIGINAL PACKAGING in which
they were supplied!
Unpacking
Fold back the aps on the top of
the box, remove the polystyrene
pieces and lift each item out of
the box carefully. We recommend
keeping the boxes and packaging
that came with the Cinebar
50 Unit in order to ensure safe
transport for any later servicing.
Note
The remote control battery is
protected by plastic lm. Pull the
ap sticking out of the back of
the remote control before use.
Before start-up
The Teufel Cinebar 50 System is supplied as a
complete system in two boxes. The subwoofer is
delivered in its own carton. Check that all of the
contents are there before installation.
Contents
Ě 1 x Cinebar 50 amplier/speaker
Ě1 x base for Cinebar 50
Ě 1 x wall bracket for Cinebar 50 (pre-assembled)
Ě 1 x CB 50 RC remote control (battery type
CR2025)
Ě1 x audio connection cable for subwoofer
Ě6 x cinch angle adapters
Ě1 x angle adapter for the optical cable
(rotating)
Ě1 x mains power cables for Cinebar 50 Unit
Ě1 x set of operating instructions
Ě1 x return form
QOpen the battery compartment cover on the
back of the remote control.
WInsert a CR 2025 coin battery. Please ensure
that the poles (plus and minus) are correct.
EClose the battery compartment.
Please note
If the batteries have leaked, wipe
up the liquid in the battery com-
partment carefully with a cloth
and replace the batteries.
Note
Remove the batteries from the
appliance if you do not intend to
use it for a long time. Never try
to recharge the batteries.
Inserting new batteries into the remote control
3Cinebar 50 receiver/speaker
3Base for Cinebar 50
3CB 50 RC remote control
3Connection cable for
subwoofer
3Wall bracket for Cinebar 50
(pre-assembled)
3Angle adapter for optical cable
3Cinch angle adapter
Q W E

7
· Cinebar 50
Note
The positioning illustrated may
not be possible, depending on
the TV set construction.
Note
If colour changes occur in the
TV picture (e.g. on tube sets),
increase the distance between
the Cinebar 50 Unit and the
TV set until the colour changes
completely disappear. For wall
mounting, please check for
any changes in colour before
assembly.
Using the angle adapter
When wall-mounting the Cinebar
50 Unit, please use the angle
adapters supplied. These ensure
that the cables lie correctly.
Connect the cinch adapter to
the corresponding colour-coded
jacks on the back. The jacks
should always point downwards
(with the exception of any
connections to the TV set).
The optical angle adapter can
be swivelled. This adapter should
also point downwards.

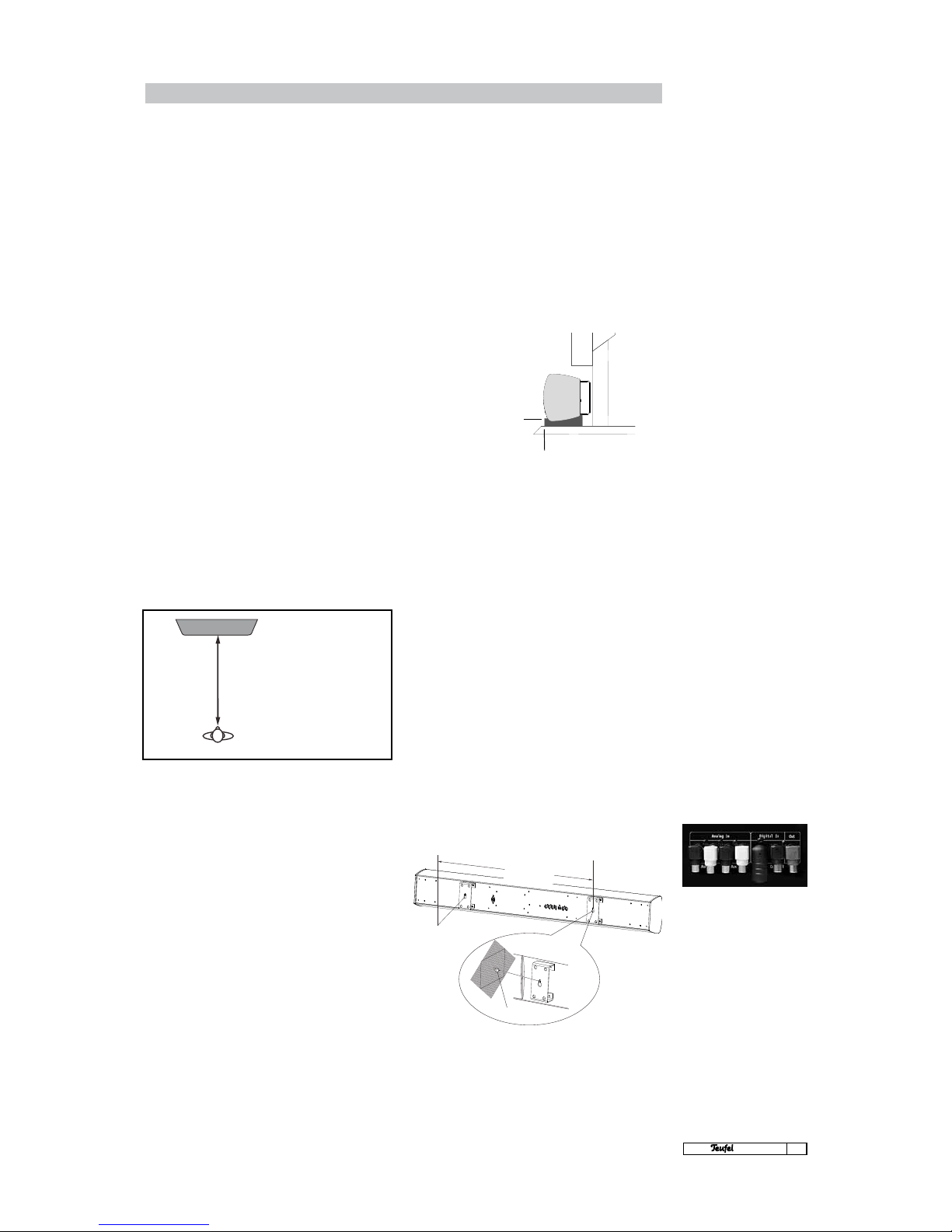

Set-up · Assembly
548 mm
Each side of the bracket is attached to the
wall using a screw.
Optimum distance to
the listening position
Cinebar 50 Base
TV base
Wall mounting the Cinebar 50
The Cinebar 50 Unit can be xed directly to a wall
using the rear bracket. Before doing so, ensure
that the wall is sturdily constructed and capable
of supporting the load! Please use strong screws
in combination with the wall plugs supplied to gu-
arantee a secure hold. For perfect sound, set up
the Cinebar 50 Unit below the TV set.
Please note:
Ě Do not place or lean any objects on or against
the Cinebar 50 Unit.
ĚAttach the connecting cables to the wall to
avoid any possible trip hazards that could cause
the Cinebar 50 Unit to fall.
ĚAfter assembly, please check that the Cinebar 50
Unit is mounted securely and recheck at
regular intervals. Lautsprecher Teufel accepts
no responsibility for damage caused because
of incorrect assembly.
Setting up the speakers
The Cinebar 50 System is a high-quality stereo
and surround playback set suitable for reprodu-
cing lm and music sound in rooms up to 30m2.
The sound is automatically in perfect symmetry
with the picture thanks to the satellite speakers
that form an integral part of the Cinebar 50 Unit,
which is attached or set up below or above your
atscreen TV.
ĚSet-up height should be between 40 centimetres
and 2.0 metres, ideally at ear height to the
sitting position. Your listening position should
be central and in front of the Cinebar 50 Unit.
It also helps to position the Cinebar 50 Unit in
a central position between the two side walls.
When set up correctly, the Cinebar 50 System
simulates surround sound realistically, using a
front speaker alone.
You can achieve optimum effects at the following
listening distances, for example:
Ě Room size 10 m2 Listening distance: 1.5 m
Ě Room size 16 m2 Listening distance: 2.1 m
Ě Room size 20 m2 Listening distance: 2.7 m
Assembling the base
The Cinebar 50 Unit can be positioned as a stan-
ding appliance on the base supplied. For optimum
sound, please place the Cinebar 50 Unit right in
the centre, above or below the TV.
Ě Do not place or lean any objects on or against
the Cinebar 50 Unit.
ĚAvoid placing the Cinebar 50 Unit in front of
the TV’s remote control receiver.
Setting up the subwoofer
You can locate the subwoofer anywhere: this will
not affect the other speakers. It is usually bene-
cial to position the subwoofer near the Cinebar
50 Unit. To adjust the levels between the Cinebar
50 Unit and the subwoofer, please read the rele-
vant section on page 12.

8· Cinebar 50
QStandby
Switches the appliance on and off.
When you switch off the appliance, the Standby
message appears for a short while in the appliance
display.
WSource
Switches through the available inputs, one after
the other. Aux 1, Aux 2, Optical, Coaxial and USB.
When the appliance has been switched on, the
last signal source selected will automatically be
selected again.
EUSB port
Supports storage media with a USB 1.1/2.0 in-
terface. USB sticks with up to 8 GB capacity are
supported.
RDisplay
The display is used as a clear text display for the se-
lected sound source and the activated operations.
In USB player mode, the display shows the current
track number and the playing time.
In this mode, the display also shows small symbols
for recognised MP3 les and Play and Pause modes.
TVolume -/+
Use these buttons to control the amplier volume.
The control range is from 0 to 40 (maximum volu-
me).
YLED power light
Indicates that a power supply is present.
This LED lights up red in standby mode. During
normal operation, the LED doesn’t light up. Instead
the last active signal source is shown on the display
and selected when the device is switched on.
Cinebar 50 front
QWET
R Y

T
U
I
O
O
9
· Cinebar 50

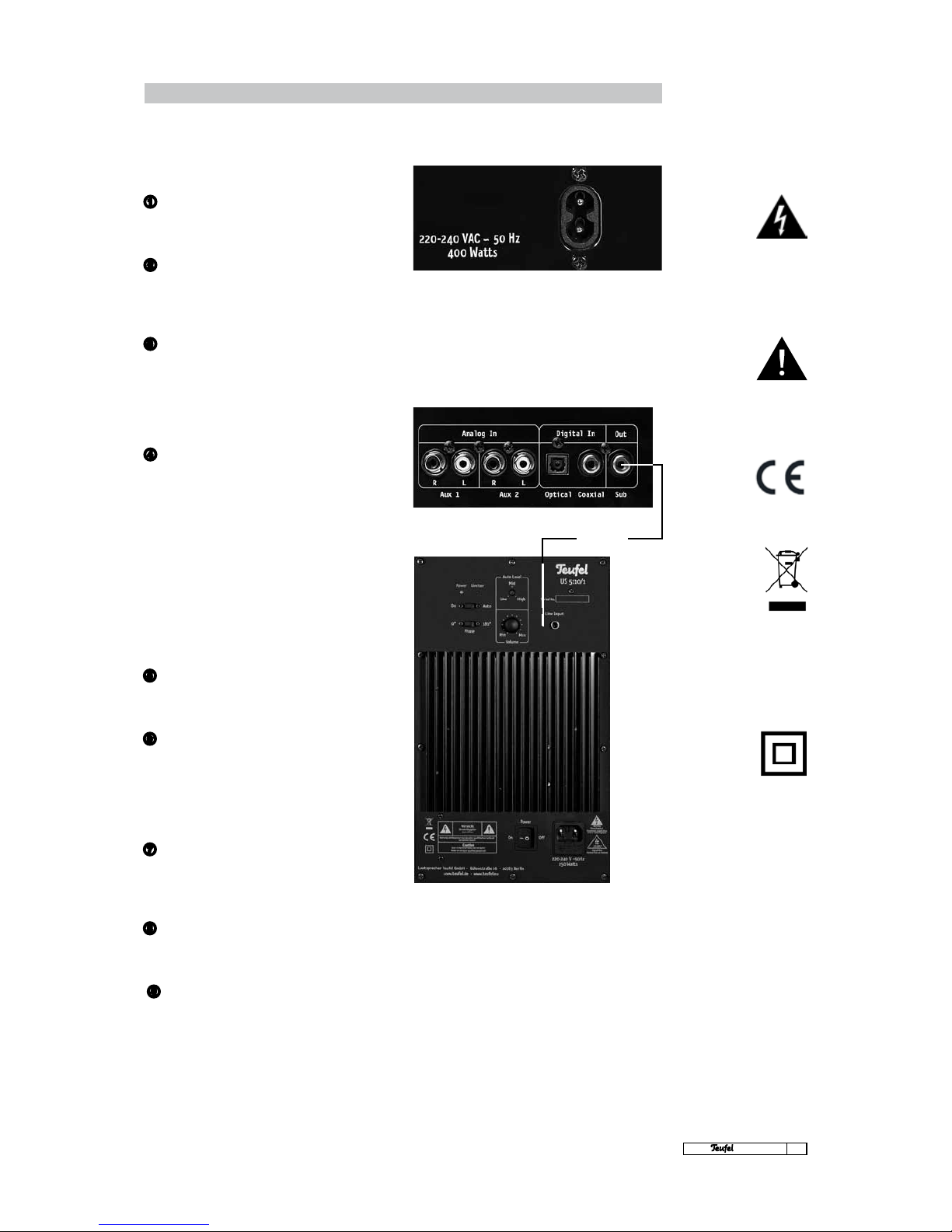

Cinebar 50 back · Subwoofer connection
Please note
The Cinebar 50 System inde-
pendently recognises whether
the subwoofer output is being
used. If the jack is being used,
the sound will be adjusted
accordingly. If you are using the
subwoofer, this should always
also be switched on.
Note
If you want more powerful bass
effects, you can connect a larger
or second active subwoofer to
the subwoofer output.
Cinebar 50 Unit back
Q Power supply
Connect the appropriate power supply cable to
supply the Cinebar 50 Unit with power.
W Analogue audio inputs
Use the Aux 1 and Aux 2 stereo inputs to connect
analogue signal sources. Use normal cinch cables
for the connection.
EDigital audio inputs
You can connect compatible digital audio appli-
ances here. You can use either a coaxial or an
optical cable connection. You can also feed in en-
coded, multichannel surround data using these
inputs.
R Subwoofer output
Connect the subwoofer to the Cinebar 50 System
here. The cut-off frequency is set at 150 Hz.
Connection to the subwoofer
The subwoofer is directly connected to the Cine-
bar 50 Unit using the cinch cable supplied. If the
cable isn’t long enough you can use a longer, pre-
ferably high-quality cinch cable.
Subwoofer back
T Cinebar In
Connect this jack to the subwoofer output of the
Cinebar 50 unit.
YAuto
This switch activates the automatic switch-on
function of the subwoofer. If there is an audio si-
gnal at the input, the subwoofer will switch on. If
there is no signal for a few minutes, the subwoo-
fer will switch to standby mode.
U Volume
You can adjust the global output volume of the sub-
woofer using the level control. Please read the “Sub-
woofer volume” section on page 12.
IPower
This rocker switch is used to switch the subwoo-
fer on and off.
O Power supply
Connect the appropriate power supply cable to
supply the subwoofer with power.
Explanation of symbols
The arrow-headed lightning
symbol in an equilateral triangle
indicates the presence of a
dangerous non-insulated elec-
trical voltage within the system
housing and therefore a risk of
electrical shock.
The exclamation mark in an
equilateral triangle, as afxed
to the appliance, is to make
the user aware of important
operating and maintenance
instructions.
This product complies with
European Community guidelines
2004/108/EC and 2006/95/EC
The dustbin symbol printed
on our products’ type plates
and ampliers states that
Lautsprecher Teufel guarantees
proper disposal of these speakers
and subwoofers in line with the
Electrical and Electronic
Appliance Act.
This product is a safety class II
product in accordance with DIN
standard EN 61140 (VDE 0140-1)
and IEC 60417 and does not re-
quire a safety plug, only the plug
supplied (2-pole). The casing has
reinforced or double insulation
against electric shock.
Attention
The separating equipment of
this equipment is the mains
plug, this separating equipment
must be usable without
difculties.
W E R
Audio cable
Q

10 · Cinebar 50
Before start-up
Always switch off the Cinebar 50 System, the te-
levision and all other connected components be-
fore changing the cabling.
Connection to a TV set
Connect the sound output of your TV to the ana-
logue input of the Cinebar 50 Unit. Use a standard
high-quality cinch cable for this purpose. You can
also use a digital connection, if available. If your
television sound comes from an external receiver,
connect it as a sound source instead.
For more information on connecting external
components to the Cinebar 50 Unit, please see
the relevant operating instructions for these
products.
DVD player connection
Connect the sound output of your DVD player to
the Cinebar 50 Unit. We recommend using digi-
tal audio interfaces, because they are capable of
transferring encoded surround formats. The DVD
player also needs to be connected to the TV set
for picture playback.
Alternatively or in addition to a DVD player, you
can also connect Blu-Ray players, games consoles,
CD players and other appliances to the free jacks
on the Cinebar 50 Unit. However, record players
cannot be connected to the Cinebar 50 System
without an external preamplier.
Note
Remove the cover from the
socket and the jacks before you
use the optical cable.
Note
If you are playing TV sound via
the Cinebar 50 System, you can
control the volume from the TV
appliance.
This also applies to peripheral
appliances such as DVD players
whose sound is reproduced
through the TV set.
DVD player and TV set connection
1
NOTE
5
Coaxial In
SUB Out
Optical In
L R L R
AUX 2 InAUX 1 In
R
L
Audio
Out
Optical
Out
Coaxial
Out
Audio
TV
Or
Stereo audio cable or or digital audio
cable
Coaxial In
SUB Out
Optical In
L R L R
AUX 2 InAUX 1 In
DVD-Player
Audio
Out
L R
Optical
Out
Coaxial
Out
Audio
Or
Stereo audio cable or or digital audio
cable

11
· Cinebar 50
CB 50 RC remote control
QStandby
Switches the appliance on and off.
WUSB
Press this button to select playback from USB
storage media. MP3 and WMA le formats are
supported.
EMute
Switches sound playback on and off. The display
shows the active mute function.
RAUX 1/2
Press this button to select audio inputs Aux 1
and Aux 2 as sound sources. Pressing the button
repeatedly switches between the two inputs.
TOptical
Press this button to select the optical digital
audio input as a sound source.
YCoaxial
Press this button to select the coaxial digital
audio input as a sound source.
U I VOL+/-
These two buttons are used to control the
volume.
O Prev
During USB playback, use this button to jump
back to the start of the track. Pressing it again
will take you back to the start of the previous
track.
PNext
Use this button to jump to the start of the next
track during USB playback.
{Play/Pause
Use this button to start playback of a connected
USB medium or to pause playback.
} Sub +/-
These two buttons are for controlling the volume
of the subwoofer channel.
qMode
Switch between the various stereo operating
modes by pressing this button repeatedly.
wRepeat
During USB playback, use this button to repeat
one or all tracks or to switch off the repeat
function.
eTone
Press this button to control the bass and treble
sound during music playback. Pressing this but-
ton repeatedly switches between the bass and
treble menu options.
rEQ
Switch between the various EQ presets by pres-
sing this button repeatedly.
Range of functions of the CB 50 RC remote control
Always point the remote control towards the re-
ceiver on the Cinebar 50.
The Cinebar 50 System is primarily operated
using the CB 50 RC remote control supplied. You
can clearly see the status of the selected func-
tions on the appliance display, even from a di-
stance.
Note
Under some circumstances, the
remote operability of the Cinebar
50 System may be impaired.
Possible causes for this are
direct sunlight, strong sources of
articial light or infrared lights.
Around 7m
Fernbedienung
+/-30°
Q W E
R T Y
U
O P
I
{
}
e r
q w

12 · Cinebar 50
Adjusting the volume · Selecting the sound source
Setting the sound levels on the subwoofer
As the subwoofer has its own sound level control,
this should be in the maximum position. If you use
this position as a starting point, you can make
ne adjustments later using the remote control,
depending on the current sound programme.
This is done as follows:
First set the subwoofer level to position “0” using
the remote control (see above).
Now play a high-quality CD on the Cinebar 50 Sy-
stem. Adjust the volume control on the subwoofer
until you achieve a harmonious sound.
Selecting the sound source
The Cinebar 50 System can choose between ve
possible sound sources (inputs).
ĚAux 1
ĚAux 2
ĚCoaxial
ĚOptical
ĚUSB
The sound source is selected either by repeated-
ly pressing the source button on the Cinebar 50
Unit or on the CB 50 RC remote control.The coaxi-
al, optical and USB inputs have their own buttons.
Aux 1 and Aux 2 share a button. You can switch
between the two inputs by repeatedly pressing
on the Aux 1/2 button.
The display on the Cinebar 50 Unit shows you the
input that has been selected.
Note
The closer you place the subwoo-
fer to a wall or corner, the louder
you can hear the bass playback.
Note
Use the mute button on the CB
50 RC to completely stop sound
playback at any time.
Setting up the subwoofer
Use the Sub +/Sub - buttons to adjust the sub-
woofer volume within the working range of +/-
12dB. The display shows the corresponding value.
Use this button to adjust the subwoofer to the
current sound program.
Adjusting the volume
Press the (+) button to increase the volume. Use
the (-) button to reduce the volume. Alternatively,
you can also use the appropriate operating controls
on the Cinebar 50 Unit (Vol -/+).
Please refer to the information below about setting
the volume on the subwoofer.
Note
We recommend that you buy a
Teufel sound level meter (from
our online shop) to measure the
level precisely. You can determine
the exact output level from both
sound sources using this appli-
ance and the usual test signals.
Sub+
Sub-
Aux 1/2 Optical Coaxial
+
–

13
· Cinebar 50
Volume control · Mode setting
Note
There may be a slight pause in
playback when changing the
operating mode (Mode) and
sound settings (EQ).
Sound settings
Pressing the sound button branches the sound
control. By pressing the button once you can ac-
cess the bass control, whose working area can be
controlled by +/- 6 dB using the “+/-” buttons. By
pressing the button again you can access the tre-
ble control of the treble component. You can also
adjust the value up to +/- 6dB using the “+/-” but-
tons. The display shows the value that has been set.
EQ set-up
Pressing the EQ button repeatedly switches bet-
ween the sound presets “Flat”, “Rock”, “Pop”, “Clas-
sic” and “Jazz”. The selected mode is shown on the
screen.
Mode setting
Press the mode button during playback to se-
lect the required stereo mode. Pressing the but-
ton repeatedly will switch between “Reference”,
“Stereo” and “Wide” modes (presets). The se-
lected mode will be shown on the display. Select
“stereo” for conventional two-channel playback.
“Reference” and “Wide” are alternative operating
modes with virtual surround playback.
Tone
Mode
EQ

14 · Cinebar 50
USB playback · Repeat function
Playback from USB storage media
You can select a USB medium as a sound source by
pressing the USB button. USB sticks with a capaci-
ty of up to 8 GB and hard drives up to 160 GB are
supported. The storage device must be formatted
in FAT 16/32 format. MP3 and WM3 les can be read,
but not WAV format. Subfolders on the USB device
are also recognised. The tracks are played or se-
lected according to the le hierarchy, and in alpha-
betical order within a level of the le structure.
Depending on the USB device and the quantity
of MP3/WMA les it contains, the reading process
may take a while. The reading process is indicated
on the display with the message “Loading”.
Start playback by pressing the play button, which
also functions as a pause button. The display
shows the track number currently selected and
the play time. The display also shows a small sym-
bol for the playback and pause functions as well
as an MP3 symbol.
Repeat function
Press the repeat button to switch the repeat
function on or off. You can choose between no
repeats, repeating the current track or repea-
ting all tracks. The display shows you the selected
mode:
ĚRe Off No repeats
ĚRe 1 The current track will be repeated.
ĚRe All All tracks will be repeated
Note
When you insert a USB device
into the selected USB port, the
“Loading” message will be shown
in the display. The rst track will
then start to play automatically.
The same applies if you switch
on the Cinebar 50 System with
a USB device inserted and if the
USB port was the last selected
source.
Track selection
Use the “Prev” and “Next” buttons to select
tracks.
Press the “Next” button to skip to the beginning
of the next track.
Press “Prev” to select the beginning of the cur-
rent track and press it again to jump back to the
beginning of the previous track.
Ě
||
ĚĚ
|
ĚĚ
|
USB

15
· Cinebar 50
If a problem should occur, please check through
the following advice before contacting our ser-
vice staff.
No power
ĚPlease check whether the plug is properly
inserted in the mains socket.
ĚCheck whether the corresponding electric
circuit is live.
No sound or poor sound output
ĚYou may have inserted an incompatible disc.
To test this, insert an audio CD into your playback
appliance and use the remote control to select
the correct input.
ĚCheck whether the television and Cinebar 50
are switched on and ensure the correct
programme source is selected.
ĚCheck the cable connection between the TV,
player and Cinebar 50.
ĚCheck whether the mute function has been
activated.
ĚCheck whether the subwoofer is switched on.
ĚThe USB device is not recognised or does not
contain any readable data. First try to play
other tracks or another medium.
ĚCondensation may have formed in the appliance.
Remove the USB device and leave the appliance
switched on for one to two hours.
Malfunctions
ĚIf the Cinebar 50 System malfunctions,
disconnect the device from the power supply
for at least 30 minutes. Then connect the
Cinebar 50 unit again. The internal restore
function should reset the appliance.
No surround sound playback
ĚThe transfer of surround-encoded data requires
a digital connection to the Cinebar 50 Unit.
ĚCheck whether the operating mode has been
set to “Reference” or “Wide” (mode button).
ĚNot every DVD has surround sound. Try inserting
another DVD to test this.
The remote control does not work
ĚFirst check whether the batteries are still
charged and if necessary replace them.
ĚPoint the remote control at the sensor on the
Cinebar 50 Unit.
ĚMake sure that there are no obstacles between
the remote control and Cinebar 50 Unit. Remove
these, if necessary.
ĚCheck whether the batteries in the remote
control have been inserted with the correct
polarity.
ĚCheck whether the batteries have leaked.
Ě Check whether there are uorescent lamps
close by.
The appliance does not react to input com-
mands
Switch the appliance to standby and switch it on
again. If this doesn’t help, switch the system off
completely and then on again. To do this, switch
the Cinebar 50 Unit to standby. Now switch the
subwoofer off and disconnect the power supply
to the Cinebar 50 Unit. Follow this procedure in
reverse to switch the system on again.
The USB stick is not recognised
Due to the wide variety of USB sticks on the mar-
ket, it is not possible to guarantee 100% compa-
tibility with all sticks. We have had the best test
results with the latest USB memory sticks (using
the USB 2 standard).
No MP3 playback/noisy MP3 playback
Ě If data les and MP3 les are mixed together
on the same data storage device, playback
may be noisy or even blocked altogether.
Ě Check to see whether all of the les on the
storage medium are MP3 les. If necessary
skip les and try to play other MP3s.
Troubleshooting

Technical description and operating instructions for the Cinebar 50
All information is provided without gua-
rantee of correctness. Subject to technical
changes, typing errors and mistakes. The
information provided regarding weight
and dimensions is approximate and sub-
ject to change.
Please contact our service department if you have any questions, suggestions or if there is anything
you think we could do better.
Lautsprecher Teufel GmbH
Gewerbehof Bülowbogen · Bülowstraße 66
10783 Berlin · Germany
Tel.: [phone]
Fax: [phone]
www.teufel.eu
Please note the serial number displayed on the
sticker on the box (e.g. SY05007200216A) and
this invoice number:
My INVOICE NUMBER is:
....................................................................................
My SERIAL NUMBER is:
....................................................................................
This serial number and the invoice number make
it easier for us to process your request quickly if
you require service.
