Tevion DHT-3105 User manual
N13275
Outdoor Speakers
Instruction Manual • Model Number DHT-3105
1300 886 649
2After Sales Support
Telephone: 1300 886 649
Warranty 3
Welcome 4
General Safety Instructions 5
Parts and Features 6
Instructions 7
Other Useful Information 8
Contents
3
After Sales Support
Telephone: 1300 886 649
Outdoor Speakers
Warranty Details
The product is guaranteed to be free from defects in workmanship and parts for
a period of 12 months from the date of purchase. Defects that occur within this
warranty period, under normal use and care, will be repaired, replaced or refunded
at our discretion, solely at our option with no charge for parts and labour. The
benefits conferred by this warranty are in addition to all rights and remedies
in respect of the product that the consumer has under the Competition and
Consumer Act 2010 and similar state and territory laws.
4After Sales Support
Telephone: 1300 886 649
Congratulations on choosing to buy a TEVION® product.
All products brought to you by TEVION® are manufactured to the highest
standards of performance and safety and, as part of our philosophy of customer
service and satisfaction, are backed by our comprehensive 1Year Warranty. We
hope you will enjoy using your purchase for many years to come.
Welcome
5
After Sales Support
Telephone: 1300 886 649
General Safety Instructions
Read this manual thoroughly before first use and keep it in a safe place for future
reference, along with the completed warranty card, purchase receipt and carton.
• Install these speakers in accordance with these instructions.
• Before connecting and turning on these speakers, ensure the electrical voltage
and circuit frequency correspond to those indicated on the product rating label.
• These speakers are not video shielded. Do not place them within 60cm of a
television or computer screen.
• These outdoor speakers are not waterproof, so if you want to install them
outdoors, position them so they are not exposed to the elements.The
undersides of most eaves and overhangs provide the best protection for indoor/
outdoor loudspeakers.
• Improper installation may result in the risk of fire, electric shock and/or injury to
persons.We assume no liability for any eventual damages caused by improper or
faulty use.
• These speakers are not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instructions concerning
use of the appliance by a person responsible for their safety.
• Supervise young children to ensure they do not play with these speakers. Close
supervision is necessary when any appliance is used by or near children.
• To reduce the risk of electrocution, never touch these speakers with wet hands,
submerge them in water or spill liquids into the speakers.
• Do not insert any objects into the speakers.
• These speakers have no user-serviceable parts contained within. Do not attempt
to repair, disassemble or modify them.
• At the end of their working life, do not throw these speakers out with your
household rubbish. Electrical and electronic products contain substances that
can have a detrimental effect on the environment and human health if disposed
of inappropriately. Observe local regulations and dispose of them appropriately
for recycling. Contact your local authorities for advice on recycling facilities in
your area.
6After Sales Support
Telephone: 1300 886 649
Parts and Features

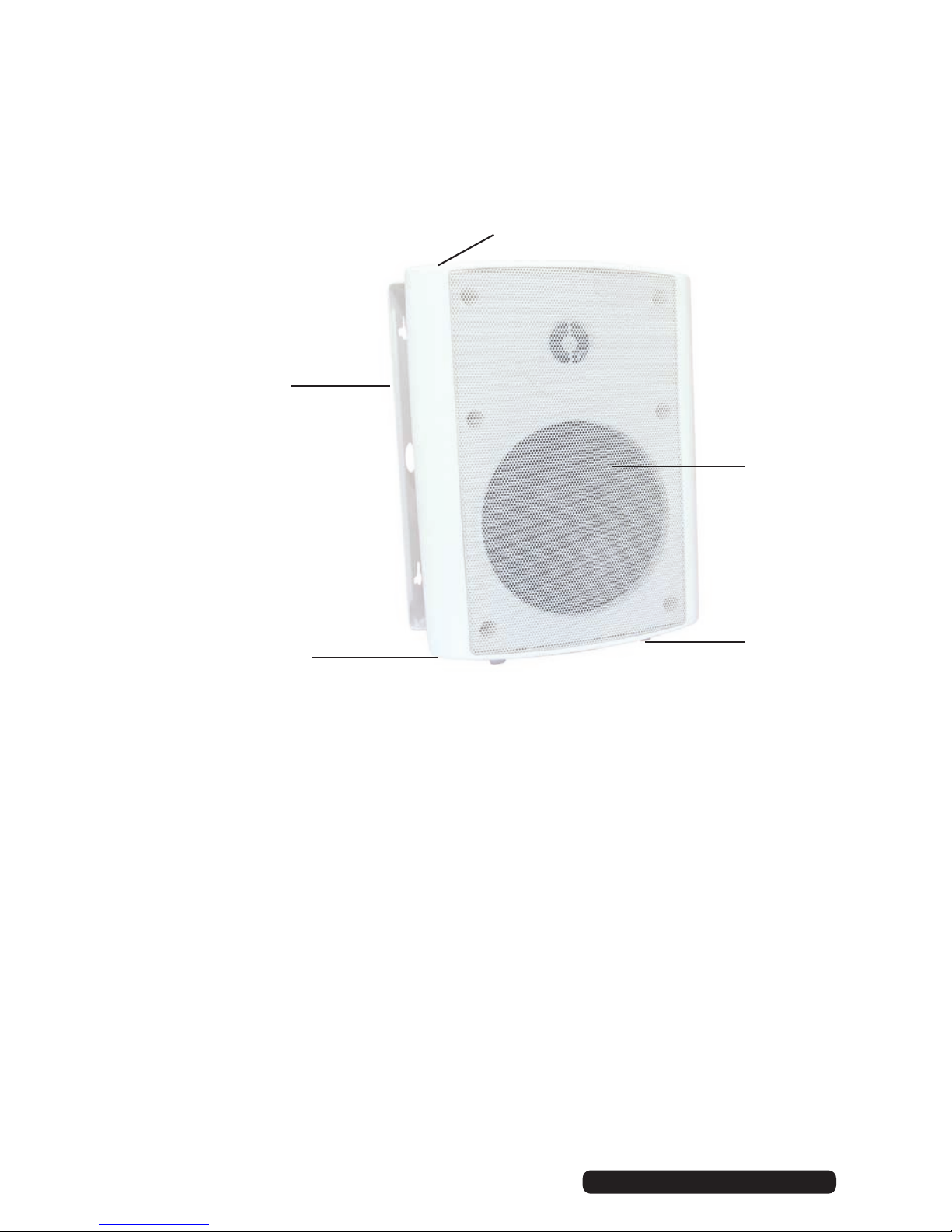

Bracket for wall
mounting
Speaker
Base
Large plastic knob
Large plastic knob
Features
• Designed to accurately reproduce high fidelity music in a variety of applications,
including home theatre
• Weather-resistant for outdoor use
• Colour matched brackets included for mounting in almost any environment
Parts
7
After Sales Support
Telephone: 1300 886 649
Instructions
The best location
These speakers are manufactured to resist a variety of weather conditions. However,
they are not waterproof, so if you decide to place your speakers outdoors, position
them so they are not exposed to the elements.The undersides of most eaves and
overhangs provide the best protection for indoor/outdoor loudspeakers.
Like all speakers, these speakers will sound best when placed no more than 2m
apart at ear level to the listener. If they are placed more than 2m apart, turn them in
toward the centre of the room.
Do not place the speakers within 60cm of a television or computer screen, as these
speakers are not video shielded.
Mounting the speakers
If the speakers are to be wall-mounted, make sure the wall is sturdy, solid and can
support the weight of the speakers. Find the most suitable location (see the points
above), then attach the supplied bracket to the wall using appropriate screws/plugs.
After connecting the speakers (see below), attach the speakers to the brackets
using the large plastic knobs supplied.
NOTE: * Never mount a speaker on a wall made of non-reinforced plasterboard
(gyprock). If you are unsure about your set-up, consult a professional
contractor.
* If the speakers are to be placed on a bookshelf, they can simply stand on
their base.
Positive terminalNegative terminal
Back of the speakers
Connecting the speakers
The binding post speaker terminals on these speakers will accommodate up to
12-gauge wire.When connecting the speakers, it is very important to observe the
correct polarity. So make sure to connect:
* the wire attached to the positive (+) or red
terminal on one component to the positve (+) or
red terminal on the corresponding component’s
speaker output terminals, and
* the negative (-), black or ground terminal to the
respective negative (-), black or ground terminal
on the corresponding unit.
Simply follow the colour, stripe or rib marking that
appears on most wires.
8After Sales Support
Telephone: 1300 886 649
Technical specifications
Principle 2-way, weather resistant
Woofer 5-1/4”polypropylene cone
Tweeter 3/4”Ferrofluid cooled PEI dome
Power handling 120W (35W RMS output per speaker)
Frequency response 50Hz - 20KHz
Sensitivity 88dB @ 1W/1M
Impedance 8 Ohm
Dimension (W x H xD) 180 x 244 x 153mm
Net weight 1.8kg
Other Useful Information
Table of contents
Other Tevion Speakers manuals
