INSTALLATION MANUAL OF THE TMD MK3 EDR
ACCESSORIES
REVIEW OF THE MANUAL
This document is revision 08 of the TMD MK3 EDR accessories technical
manual.
Issue date: 30/03/2018
5
en

Introduction
Dear Installer,
Please read the instructions in this manual carefully and keep it for future
reference.
Reading and understanding the following manual will help you avoid damages
to things or personal injury caused by improper use of the product.
TEXA S.p.A reserves the right to make any changes deemed necessary to
improve the manual for any technical or marketing requirement; the company
may do so at any time without prior notice.
This manual is to be considered an essential part of the product it refers to. If it
is resold, the original buyer is therefore required to forward the manual to the
new owner.
Reproduction, partial or whole, of this manual in any form without written
authorisation by the manufacturer is strictly forbidden.
© copyright and database rights 2015. The material contained in this
document is protected by copyright and database rights. All rights are reserved
according to law and international agreements.
6

1 OPERATION OF THE TOOL'S RADIO DEVICES
Wireless connection with Bluetooth, WiFi and HSUPA technology
Wireless connectivity through Bluetooth, WiFi and HSUPA is a technology that
supplies a standard, reliable method for exchanging information between
different devices using radio waves. Many other products besides those built
by TEXA use this technology, such as mobile phones, portable devices,
Computers, printers, cameras, Pocket PCs etc.
The Bluetooth, WiFi and HSUPA interfaces search for compatible electronic
devices based on the radio signals they emit and establish a connection. TEXA
tools only select and prompt compatible TEXA devices. This does not exclude
the presence of other sources of communication or disturbance.
THE EFFICIENCY AND QUALITY OF BLUETOOTH, WiFi AND HSUPA
COMMUNICATION MAY BE AFFECTED BY THE PRESENCE OF RADIO
DISTURBANCE. THE COMMUNICATION PROTOCOL IS DESIGNED TO
MANAGE THESE TYPES OF ERRORS; HOWEVER, IN SUCH CASES
COMMUNICATION MAY BE DIFFICULT AND CONNECTION MAY REQUIRE
SEVERAL ATTEMPTS.
SHOULD THE WIRELESS CONNECTION ENCOUNTER SERIOUS
PROBLEMS AND COMPROMISE REGULAR COMMUNICATION, THE
SOURCEOFTHEENVIRONMENTALELECTROMAGNETICDISTURBANCE
MUST BE IDENTIFIED AND ITS INTENSITY REDUCED.
Position the tool so that the radio devices it is equipped with can work properly.
In particular, do not cover it with any shielding or metallic materials in general.
7
en

2 SAFETY RULES
Follow the indications in the TMD MK3 EDR installation manual regarding
safety.
8

3 ACCESSORIES FOR TMD MK3 EDR
ThismanualillustratestheinstallationoftheaccessoriesavailableforTMDMK3
EDR.
9
en

4 TMD MK3 SOS
The TMD MK3 SOS button is a device through which you can use TMD MK3
EDR to send an assistance request to the Operations Centre.
The device can be used in case of an emergency, a panic attack, a sudden
illness of the driver.
TMD MK3 SOS is equipped with:
•a built-in red LED,
•a warning buzzer,
•a connection cable.
Do not use aggressive cleansers, especially alcohol, to clean the
device.
10

4.1 Technical Features
Model: TMD MK3 SOS
Manufacturer: TEXA S.p.A.
CPU: ARM Cortex M0 with LIN BUS type
interface
Visible warnings: Adjustable intensity red LED
Audible warnings: Built-in electronic buzzer
Power supply: 12 Vdc
Length of connection cable: 2.5 m
Consumptions: 0.75 mAdc in standby mode (no LED)
Maximum consumption 20 mAdc
Storage and operation humidity: 10% ÷ 80 % without condensation.
Operating temperature: - 30 ÷ 70 °C
Storage temperature: - 40 ÷ 85 °C
Safety: EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + AC:2011 +
A2:2013
Electromagnetic compatibility:
EN 55022
EN 55024
ISO 7637-1
ISO 7637-2
Regulations / Directives:
UN ECE R10
R&TTE 1999/05/EC (complete system
analysis)
ROHS 2011/65 EU

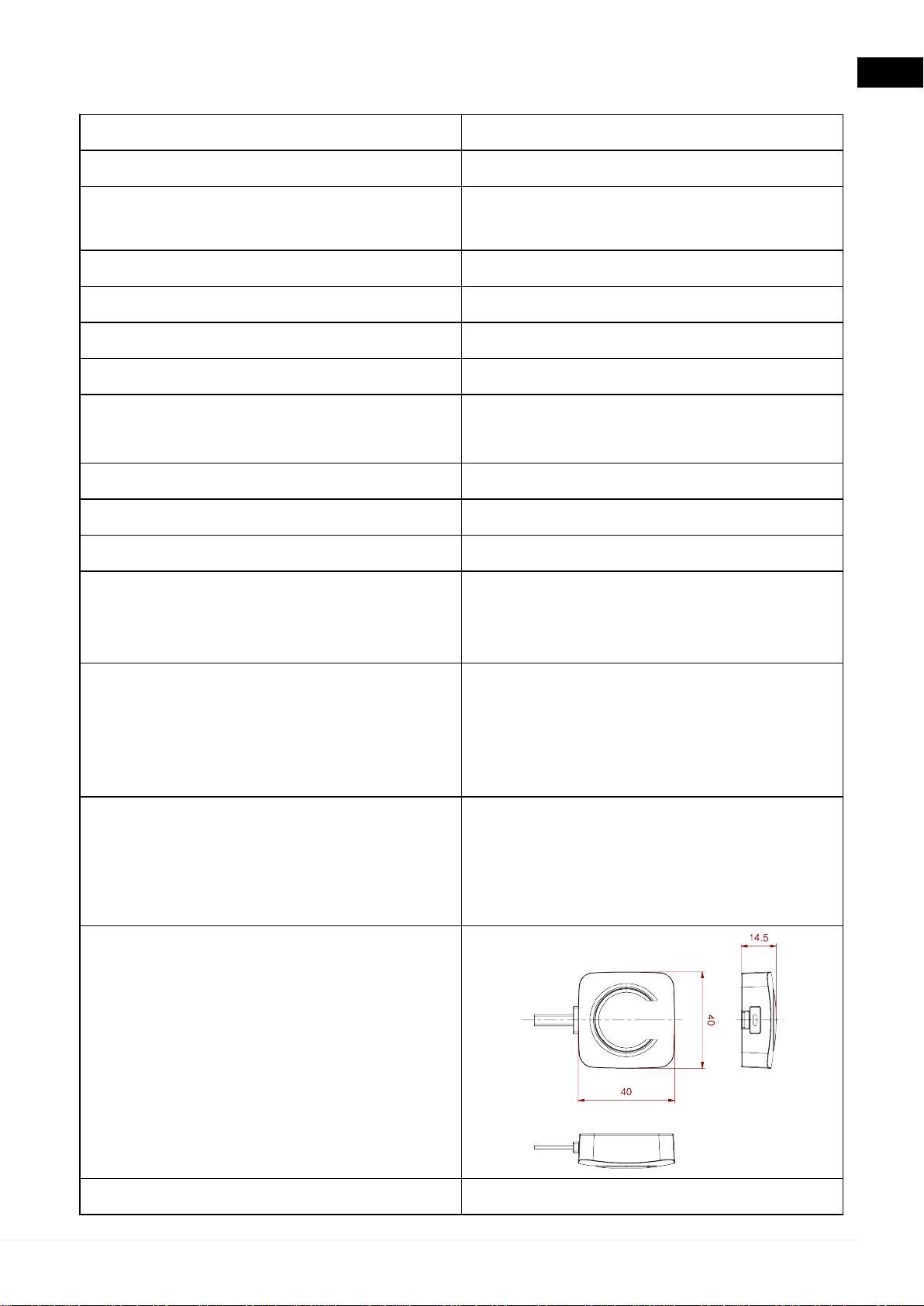

Dimensions:
Weight: 12 g
11
en

4.2 Regulatory Information
Declaration of conformity
Texa S.p.A. hereby declares that this TMD MK3 SOS device
complies with the essential requirements and with all further
provisions defined by the R&TTE 1999/5/EC (complete system
analysis) and RoHS 2011/65/EU directives.
A complete copy of the Declaration of Conformity can be found at
TEXA S.p.A., Via 1 Maggio 9, 31050 Monastier di Treviso (TV), Italy
12

4.3 Installation
The additional Y-shaped cable (code 3904674) is needed for the installation.
Position the device in a way it does not compromise or interfere with
driving, but also easy to reach in case of an emergency.

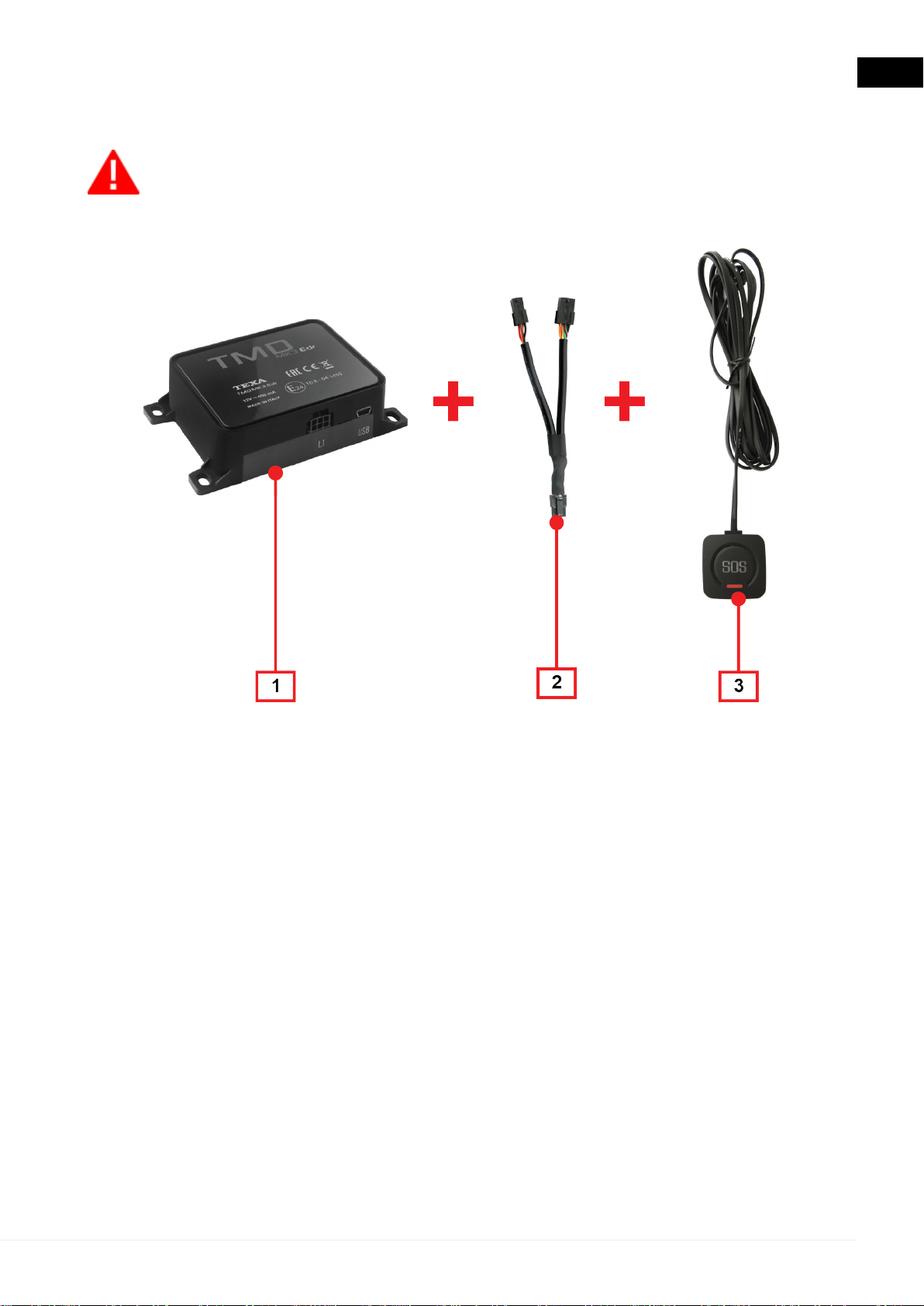

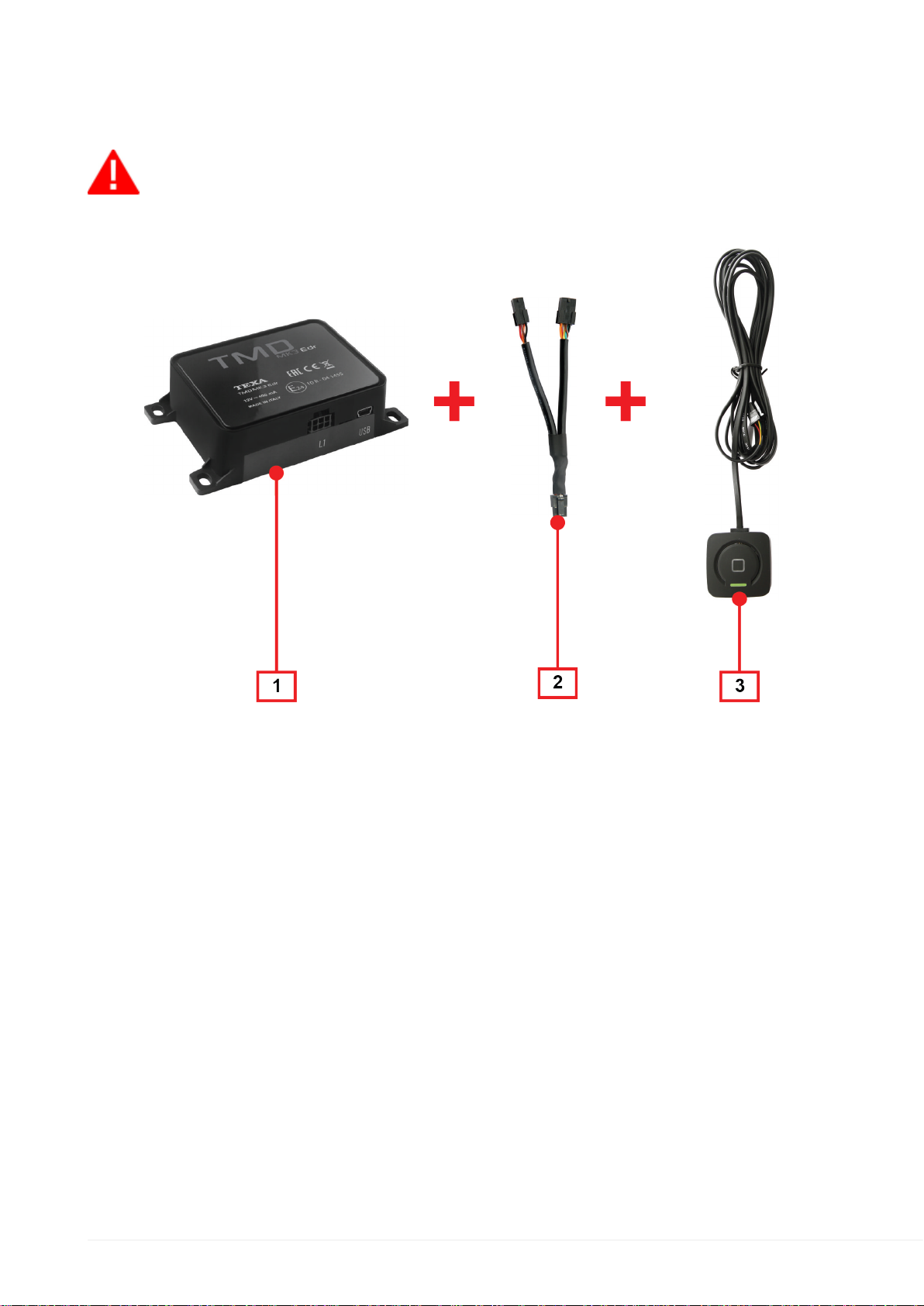

1. TMD MK3 EDR
2. Y-shaped cable
3. TMD MK3 SOS
Proceed as follows:
1. Secure TMD MK3 SOS in the most appropriate position*.
2. Connect the TMD MK3 SOS cable to the Y-shaped cable.
3. Insert the connector of the Y-shaped cable into the L1 input of TMD MK3 EDR.
(*) See the specific installation sheet for the vehicle you are working on.
13
en

4.4 Use
The transmission of an assistance request through TMD MK3 SOS is subject
to the following limitations:
•only 1 time between the vehicle's ignition (instrument panel on) and shutdown
(instrument panel off),
•at the most 99 times within a day (24 h).
PROCEDURE WITH THE VEHICLE ON
Proceed as follows:
1. Press the SOS button for more than two seconds.
PROCEDURE WITH THE VEHICLE OFF
Proceed as follows:
1. Press the SOS button for approximately 2 seconds.
2. Release the button.
3. Make sure the backlighting of the button turned on (weak backlighting).
4. Press the SOS button for more than two seconds.
In both cases, once the button is pressed, the following occurs:
•intermittent activation of the backlighting,
•a single tone audible warning.
At this point TMD MK3 EDR sends the request for assistance to the operations
centre.
The confirmation that the assistance request was sent is indicated by:
•fixed activation of the button's backlighting (strong backlighting),
•a single tone audible warning.
14

5 TMD MK3 PRIVACY

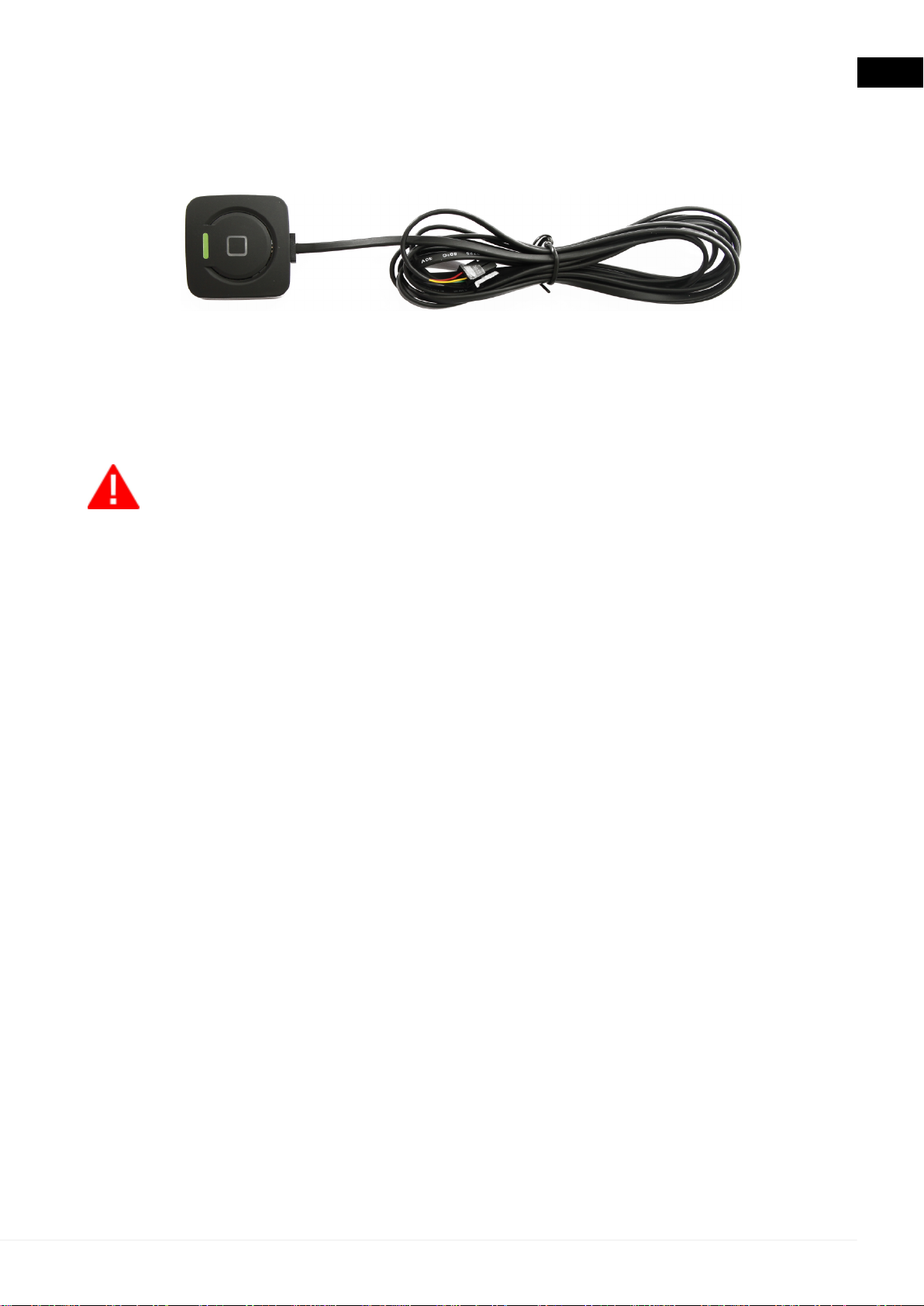

The TMD MK3 PRIVACY button is a device through which you can disable the
geolocation using TMD MK3 EDR.
TMD MK3 PRIVACY is equipped with:
•built-in green LED,
•a warning buzzer,
•a connection cable.
Do not use aggressive cleansers, especially alcohol, to clean the
device.
15
en

5.1 Technical Features
Model: TMD MK3 PRIVACY
Manufacturer: TEXA S.p.A.
CPU: ARM Cortex M0 with LIN BUS type
interface
Visible warnings: Adjustable intensity green LED
Audible warnings: Built-in electronic buzzer
Power supply: 12 Vdc
Length of connection cable: 2.5 m
Consumptions: 0.75 mAdc in standby mode (no LED)
Maximum consumption 20 mAdc
Storage and operation humidity: 10% ÷ 80 % without condensation.
Operating temperature: - 30 ÷ 70 °C
Storage temperature: - 40 ÷ 85 °C
Safety: EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + AC:2011 +
A2:2013
Electromagnetic compatibility:
EN 55022
EN 55024
ISO 7637-1
ISO 7637-2
Regulations / Directives:
UN ECE R10
R&TTE 1999/05/EC (complete system
analysis)
ROHS 2011/65 EU
Dimensions:
Weight: 12 g
16

5.2 Regulatory Information
Declaration of conformity
Texa S.p.A. hereby declares that this TMD MK3 PRIVACY device
complies with the essential requirements and with all further
provisions defined by the R&TTE 1999/5/EC (complete system
analysis) and RoHS 2011/65/EU directives.
A complete copy of the Declaration of Conformity can be found at
TEXA S.p.A., Via 1 Maggio 9, 31050 Monastier di Treviso (TV), Italy
17
en

5.3 Installation
The additional Y-shaped cable (code 3904674) is needed for the installation.
Position the device in a way it does not compromise or interfere with
driving, but also easy to reach in case of an emergency.
1. TMD MK3 EDR
2. Y-shaped cable
3. TMD MK3 PRIVACY
Proceed as follows:
1. Secure TMD MK3 PRIVACY in the most appropriate position*.
2. Connect the TMD MK3 PRIVACY cable to the Y-shaped cable.
3. Insert the connector of the Y-shaped cable into the L1 input of TMD MK3 EDR.
(*) See the specific installation sheet for the vehicle you are working on.
18

5.4 Use
Simply press the button to activate / deactivate the geolocation.
When pressing the button, you will see visible warnings through the LED and
hear audible warnings through the built-in electronic buzzer.
The device's functionality and the way it is used can be customised based on
specific needs.
19
en

6 TMD MK3 ACTUATOR LOCK
TMD MK3 ACTUATOR LOCK is a device that, if active, inhibits the actuator it
is connected to.
For example, the device can be connected in order to inhibit the vehicle's
ignition.
In this case, the device is activated automatically by TMD MK3 through the
interaction with the Driver Recognition Kit.
The recognition process can be take place through a badge or smartphone.
If the recognition is successful, the device allows vehicle ignition.
Otherwise, the engine cannot be started.
SHORT STOPS
Short stop means that the vehicle is restarted within 5 minutes from the last
shutdown.
In these circumstances, it is not necessary that the recognition be carried out
again.
This function can be configured.
UNLOCK BY AN OPERATOR
If the badge is lost, the vehicle can be unlocked remotely by an operations
centre.
TAMPERING
In case of a tampering attempt, the device activates automatically inhibiting
vehicle ignition.
20
