TEXA TMD MK5 User manual

SUMMARY
1 Revision of the Manual.......................................................................................3
INTRODUCTION.....................................................................................................4
2 LEGEND OF THE SYMBOLS USED.................................................................5
3 SPECIFIC SAFETY RULES FOR INSTALLING TMD MK5 FPT.......................6
3.1 Glossary..................................................................................................................6
3.2 General Rules..........................................................................................................7
3.3 Operator Safety.......................................................................................................8
3.4 Device Safety..........................................................................................................9
3.5 Safety during the Installation.................................................................................11
4 OPERATION OF THE RADIO DEVICES.........................................................13

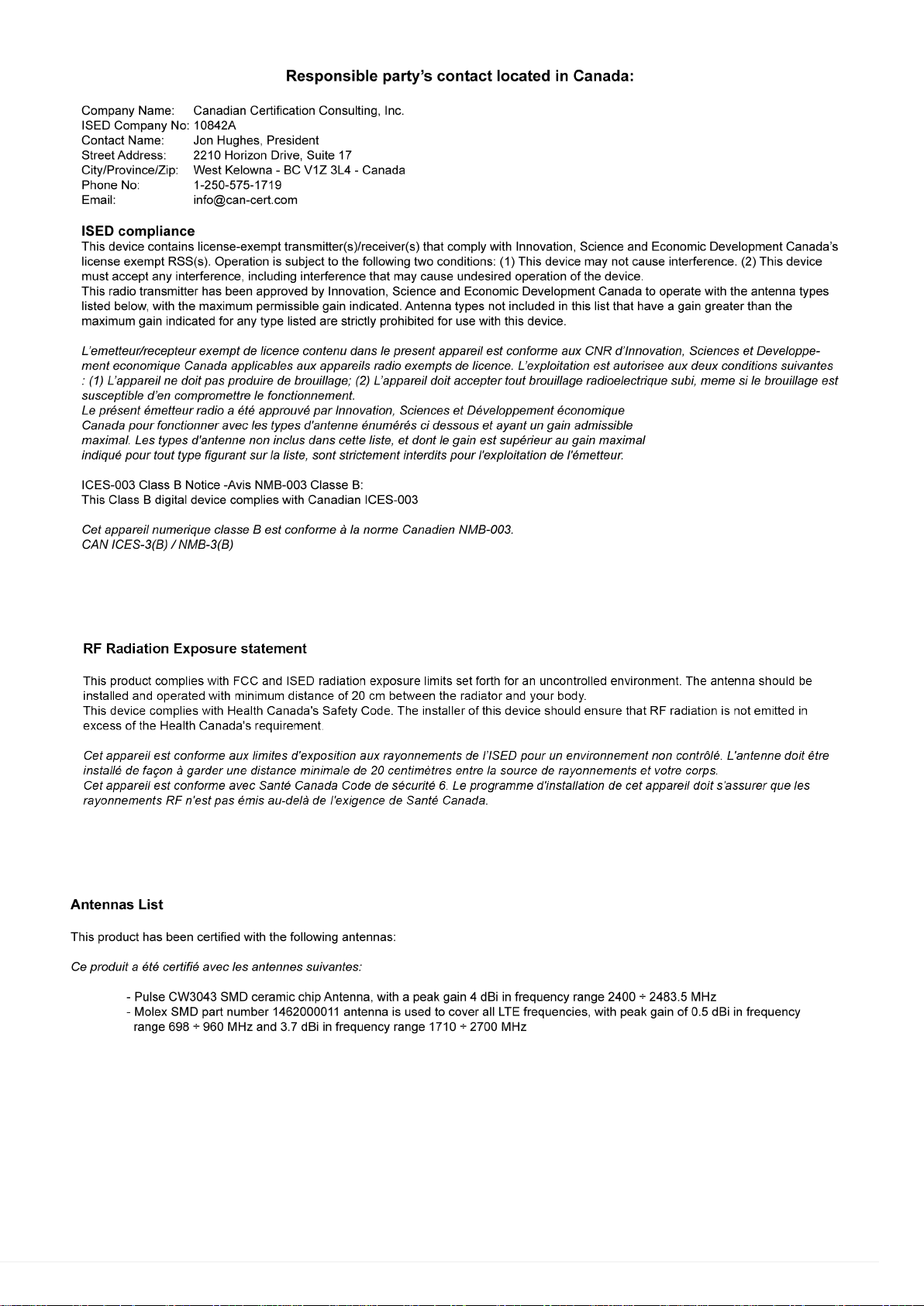

5 NORMATIVE INFORMATION..........................................................................14

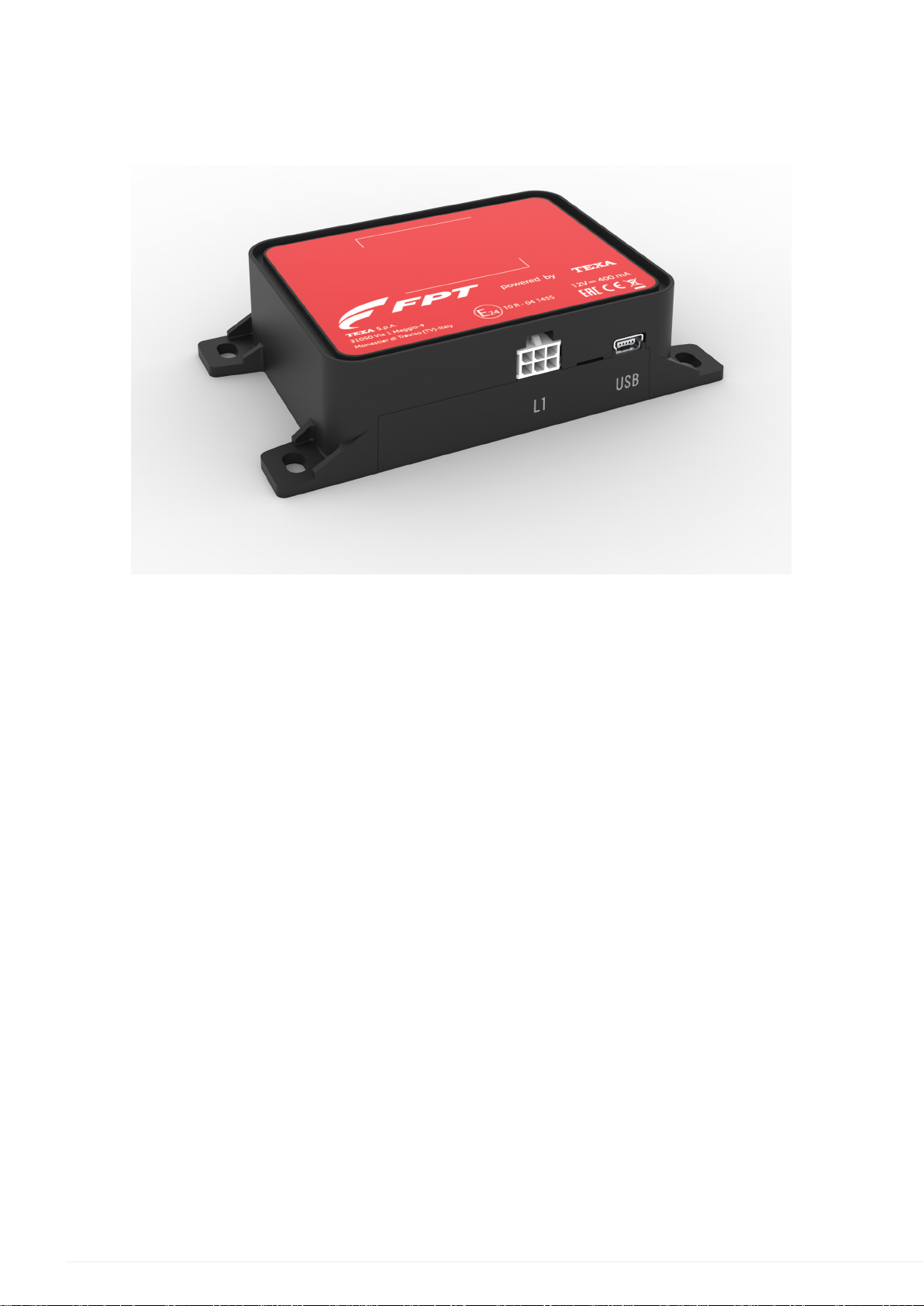

6 TMD MK5 FPT..................................................................................................16
7 DESCRIPTION.................................................................................................17
8 TECHNICAL FEATURES.................................................................................18
9 INSTALLATION................................................................................................20
9.1 Suggestions for a Correct Installation....................................................................21
9.2 Positioning TMD MK5 FPT....................................................................................22
9.3 Power Supply Connections...................................................................................23
9.4 Checking the Installation.......................................................................................24
10 BLINK CODES...............................................................................................25
10.1 LED flashes with the Instrument panel On..........................................................25
10.2 Flashes of the Blue LED......................................................................................26
11 INDICATIONS IN CASE THE VEHICLE IS NOT USED FOR A LONG TIME
...............................................................................................................................27
12 MAINTENANCE.............................................................................................28
13 ENVIRONMENTAL INFORMATION..............................................................29
14 LEGAL NOTICES...........................................................................................30
1

2

TMD MK5 FPT INSTALLATION MANUAL
1 Revision of the Manual
This document includes the assembly instructions for the product: TMD MK5 .
Document Review Number: 02
Date of Issue: 31/05/2021
3

INTRODUCTION
Dear Customer,
We would like to thank you for choosing a TEXA product for your workshop.
We are certain that you will get the greatest satisfaction from it and receive a great deal of help in
your work.
Please read through the instructions in this manual carefully and keep it for future reference.
Reading and understanding the following manual will help you to avoid damage or personal injury
caused by improper use of the product to which it refers.
TEXA S.p.A reserves the right to make any changes deemed necessary to improve the manual
foranytechnicalormarketingrequirement;thecompanymaydosoatanytimewithoutpriornotice.
This product is intended for use by technicians specialized in the automotive field only. Reading
and understanding the information in this manual cannot replace adequate specialized training in
this field.
The sole purpose of the manual is to illustrate the operation of the product sold. It is not intended
to offer technical training of any kind and technicians will therefore carry out any interventions
under their own responsibility and will be accountable for any damage or personal injury caused
by negligence, carelessness, or inexperience, regardless of the fact that a TEXA S.p.A. tool has
been used based on the information within this manual.
Any additions to this manual, useful in describing the new versions of the program and new
functions associated to it, may be sent to you through our TEXA technical bulletin service.
This manual should be considered an integral part of the product to which it refers. In the case it
is resold the original buyer is therefore required to forward the manual to the new owner.
Reproduction, whole or in part, of this manual in any form whatsoever without written authorization
from the producer is strictly forbidden.
The original manual was written in Italian, every other language is a translation of the original
manual.
© copyright and database rights 2021. The material contained in this publication is protected
by copyright and database rights. All rights are reserved by law and under international
conventions.
4

2 LEGEND OF THE SYMBOLS USED
Toxic material hazard Risk of crushing hands
Explosive material hazard Floor level obstacle warning
Electric shock hazard Laser beam hazard
Electromagnetic field hazard Low temperature danger - freezing
Flammable material hazard General Risk
Hot surface hazard Obligation to read the instructions
Corrosive substance hazard Safety glasses required
Risk of noise level above 80 dbA Protective gloves required
Moving Parts Risk Disconnect mains plug from electrical outlet
This is not a safety symbol.
It indicates a hazardous situation which, if not avoided, will result in
serious permanent injury or death.
This is not a safety symbol.
It indicates a hazardous situation which, if not avoided, may result in
serious permanent injury or death.
This is not a safety symbol.
It indicates a hazardous situation which, if not avoided, may result in
minor injury.
This is not a safety symbol.
It indicates a hazardous situation which, if not avoided, may result in
material damage.
This is not a safety symbol.
It indicates important information.
5

3 SPECIFIC SAFETY RULES FOR INSTALLING TMD MK5 FPT
The technology used for the design and manufacturing control of the TMD MK5 FPT makes it a
reliable, simple and safe device to install and use.
The personnel in charge of installing the remote diagnostic tools are required to follow the general
safety rules, to use TMD MK5 FPT devices for their intended use only and to carry out the
maintenance as described in this manual.
All the requirements based on the following must be assessed and applied:
•Labour inspectorate.
•Trade associations.
•Vehicle manufacturers.
•Anti-pollution regulations.
3.1 Glossary
Operator: a qualified person responsible for installing the remote diagnostic device.
Device: any TMD MK5 FPT device.
Wiring: specific electric cables needed to connect TMD MK5 FPT to its accessories, to the power
supply, to the antenna.
The definition of "operator" cannot be applied to minors or to people
with reduced physical, sensory or mental capabilities or without any
experience or knowledge required.
6

3.2 General Rules
The operator must have carefully read all the information and instructions in the
technical documents provided with the tool.
If the operator is not able to read this manual, the operating instructions and safety
indications must be read and discussed in the operator's native language.
•The operator that works on vehicles must have basic qualifications and knowledge of
mechanics, automotive engineering, car repair and of the potential dangers that may arise
during self-diagnosis operations.
•The operator must be completely clear-headed and sober when installing and using the
device; taking drugs or alcohol before or when installing and operating the device is strictly
forbidden.
•The operator must follow all the instructions provided in the technical documents.
•The operator is required to wear adequate personal protective equipment (PPE) throughout
the installation of the device.
•The operator must periodically check the electrical connections of the device, making sure
they are in good condition and immediately replacing any damaged cables.
•The operator must periodically check the parts that are subject to wear and replace them if
necessary, using only original spare parts or spare parts approved by the manufacturer.
•The operator must stop using the device immediately should any failure occur, and promptly
contact the technical assistance.
•Donotremoveordamagethelabelsandthewarningsonthedevice;donotinanycasemake
them illegible.
7

3.3 Operator Safety
Carefully evaluate the device's installation position.
An improper installation may cause severe damage and injuries.
Safety Measures:
•Make sure the installation does not compromise the correct functioning of the vehicle's
controls, in particular the brakes and, in general, the safety devices.
The device was manufactured to be electrically safe and
insulated and to work with specific supply voltage levels.
Improper use may expose the operator to the risk of electric
shock, even though of low intensity.
Safety Measures:
•Wear adequate personal protective equipment during all the operating phases.
•Do not handle or touch the device or any accessories (e.g. cables) with wet hands.
•If liquid should penetrate inside the device, immediately disconnect the power supply wiring
and contact technical assistance.
•Make sure the electric power supply devices (auxiliary batteries) are disconnected and that
they remain so during the entire installation before proceeding with the installation itself.
•Do not wear metal rings or bracelets when working on batteries.
The device was manufactured to be electrically safe and
mechanically resistant.
However, it is necessary to reduce the risk of damages to the
device that may cause burns.
Safety Measures:
•Avoid sparks or flames near the installation.
•Do not use the device if the antenna is damaged.
•Do not touch the damaged antenna with bare hands.
•Do not short-circuit the battery terminals.
8

3.4 Device Safety
The device was manufactured to be mechanically resistant.
Careless use and excessive mechanical strain may impair its
efficiency.
Safety Measures:
•Do not drop, shake or knock the device.
•Do not place objects over the cables nor bend them.
•Do not carry out any type of intervention that may damage the device.
•Do not open or disassemble the device.
•Do not fold the device's antenna.
•Use the device only with the antenna it is provided with or with one authorised by the device's
manufacturer.
•Make sure the device and any accessory connected to it are firmly secured before moving
the vehicle they are installed on.
The device was manufactured to be electrically safe and to work with
specific supply voltage levels.
Failure to comply with the specifications related to the power supply
may impair its efficiency.
Safety Measures:
•Do not wet the device with water or other liquids.
•The device's power supply must always be connected following the indications provided in
this manual.
•Do not use external batteries to power the device.
•Wear the most suitable personal protective equipment to avoid static electricity.
The device was designed to be used in specific environmental
conditions.
Installing and using the device in environments with temperatures
and humidity that differ from those indicated may impair its efficiency.
Safety Measures:
•Position the device as indicated in this manual.
•Do not expose or install the device near sources of heat.
•Position the device in order to guarantee its proper ventilation.
•Do not use corrosive chemicals, solvents or harsh detergents to clean the device.
9

The electromagnetic compatibility tests carried out on the device
guarantee that it can be adapted to the technologies normally used
on vehicles (e.g. engine control, ABS, airbag, etc.). Nevertheless, if
malfunctions occur, contact the vehicle's dealer.
In particular, the device's proper operation could be compromised by
covering the antenna with shielding objects and/or materials.
Such materials force the device to work with a higher power
compared to what is normally required.
Safety Measures:
•Do not cover the antenna with shielding objects or materials.
10

3.5 Safety during the Installation
The installation of the device was carefully tested by qualified
personnel in TEXA.
You must follow some indications provided by the vehicle
manufacturer in order to install the device correctly.
Safety Measures:
•Follow the indications provided in the vehicle's manual carefully to disassemble the plastic
parts and the access to the compartments.
•Respect the safety distances from the systems with the following functions:
•airbag;
•ABS;
•speed limiter;
•seat belt pretensioners.
The installation of the device requires a connection to the vehicle's
electrical system.
Performtheconnection to the vehicle's electrical system making sure
not to compromise the safety and its correct functioning.
Safety Measures:
•Insulate each of the device's connections to the vehicle's electrical system.
•Equip the openings crossed by cables with fairleads.
•Do not compromise in any way the quality of the electrical and mechanical OEM wiring.
•Make sure the electric cables, the wiring in general, the fuel hydraulic pipes and the safety
pneumatic devices of the vehicle are not damaged during the installation.
•Do not change the current flow of an OEM circuit by cutting it off, increasing it or mechanically
changing it cables if not permitted by the vehicle manufacturer.
•Make sure the installation does not compromise the correct functioning of the vehicle's
controls, in particular the brakes and, in general, the safety devices.
•Do not connect to the electric circuits of systems with the following functions:
•airbag;
•ABS;
•speed limiter;
•seat belt pretensioners.
Thedevicemustbeinstalledso as to ensure it can work correctly and
safely.
Safety measures:
•Avoid contact between the device and vibrating parts of the vehicle;
11

•Do not spread out the wiring with the cables stretched.
•Do not spread out the wiring in walkable areas or in areas that are subject to friction without
the necessary protections;
•Fortheinstallation youmustuseonlythewiringand thecomponentsprovidedwiththedevice.
•Put the antenna at a minimum distance of 20 cm from the positions of the vehicle's
passengers.
At the end of the installation, you must restore the initial conditions of
the vehicle.
Safety Measures:
•Restore each OEM device (ex.: compartment covers).
•Restore each OEM electrical connection.
•Replace the fastening elements that are damaged.
•Restore any OEM anti-corrosion system.
12

4 OPERATION OF THE RADIO DEVICES
Wireless connection with Bluetooth and LTE technology
The wireless connectivity with the Bluetooth and LTE technology is a technology that supplies a
standard, reliable method to exchange information between different devices, using radio waves.
Other than TEXA tools, many products use this technology, such as mobile phones, portable
devices, Computers, printers, cameras, Pocket PCs, etc.
The Bluetooth and LTE interfaces look for compatible electronic devices according to the radio
signal they emit and establish a connection between them. TEXA tools select and only prompt you
with compatible TEXA devices. This does not exclude the presence of other sources of
communication or disturbance.
THE EFFICIENCY AND THE QUALITY OF THE BLUETOOTH AND LTE COMMUNICATION
MAY BE INFLUENCED BY THE PRESENCE OF RADIO DISTURBANCE SOURCES. THE
COMMUNICATION PROTOCOL HAS BEEN DEVELOPED TO MANAGE THESE TYPES OF
ERRORS; HOWEVER, IN THESE CASES COMMUNICATION MAY BECOME DIFFICULT AND
CONNECTION MAY REQUIRE SEVERAL ATTEMPTS.
SHOULD THE WIRELESS CONNECTION ENCOUNTER SERIOUS PROBLEMS THAT MAY
COMPROMISE A REGULAR COMMUNICATION, THE SOURCE OF THE ENVIRONMENTAL
ELECTROMAGNETIC INTERFERENCE MUST BE IDENTIFIED AND ITS INTENSITY
REDUCED.
Position the tool so that the radio devices it is equipped with can work properly. In particular, do
not cover it with any shielding or metallic materials in general.
13

5 NORMATIVE INFORMATION
Simplified EU Declaration of Conformity
The manufacturer, TEXA S.p.A., declares that the type of TMD MK5 FPT radio
equipment is compliant with the following directives:
•RED 2014/53/UE
The complete text of the EU declaration of conformity is available at the following
Internet address http://www.texa.it/download.
A minimum separation distance of 20 cm is required; it must be supported by the installation and
operating configurations of the transmitter and of the related antenna/s.
14

15

6 TMD MK5 FPT
TMD MK5 FPT is a GPS tracking device able to communicate via Bluetooth with other diagnostic
devices.
The TMD MK5 FPT Kit includes:
•TMD MK5 FPT.
•Wiring for the electrical connection.
•Installation manual.
16

7 DESCRIPTION
1. Fixing hole
2. L1 - Accessory and power connector
3. LED:
a) red LED
b) Blue LED
c) green LED
4. USB device connector
5. Fixing hole
6. Fixing hole
To install additional devices, consult the user and installation manual provided in
the packages of the individual devices.
17

8 TECHNICAL FEATURES
Manufacturer: TEXA S.p.A.
Brand: FPT
Model: TMD MK5 FPT
CPU: AM3352 CORTEX A8
RAM: 256 MB
FLASH: 256 MB
GPRS module: GPRS 2G and CAT-M1
GPS module: GPS, GLONASS, Galileo and QZSS
module
Interfaces: service device type USB 2.0, BT 4.2, LIN
bus
Sensors: 16 g sensor, barometric, gyroscope
Operating System: Linux
Battery: 3.7 V - 850 mAh
Power: direct from 12-24 V vehicle battery 400mA
@12Vdc
Operating temperature: - 30 ÷ 60 °C
- 30 ÷ 65 °C without internal battery
Storage temperature: - 30 ÷ 70 °C
Battery recharging temperature: 0 ÷ 45 °C
Operation moisture: 10 ÷ 80 %
Dimensions:
Weight: 100 g
Dust/liquid protection: IP 40
18

Regulations and Directives: ECE / ONU R10 RED 2014/53/EU
RoHS 2011/65/EU
Electromagnetic Compatibility:
ETSI EN 301-489-1
ETSI EN 301-489-19
ETSI EN 301-489-52
ETSI EN 301-489-17
ISO 7637-1
ISO 7637-2
Radio Systems:
ETSI EN 300 328
ETSI EN 301 511
ETSI EN 303 413
ETSI EN 301 908-13
EN 62311
Electrical Safety: EN 62368
19

9 INSTALLATION
The following chapters describe the device's installation phases.
Please read this manual thoroughly before proceeding with the installation.
The installation must be performed by qualified personnel only.
The installation must be carried out following the indications
provided in the specific installation sheet for the vehicle you are
working on.
For the installation you need:
•Scissors and a wire stripper.
•Flat-tip and Phillips screwdriver (medium).
•A 12mm hole saw for the hole, if required, to pass the wiring cable pass from the engine
compartment to the passenger compartment.
•5mm drill bit for the assembly screws.
•Plastic cable ties.
•Pliers for cable terminals.
•Square tip pliers.
•PC connected to Internet in order to program the device.
The installation requires the following phases:
1. Reading of the installation and user manual.
2. Planning and positioning of the device.
3. Power supply connections.
4. Connection of the wiring to the device.
5. Configuration.
20
