Car-Interface v.LOGiC V5-CIC-F-PNP User manual

Version 26.11.2019 V5-CIC-F-PNP
v.LOGiC Intelligent Solution
Interface
V5-CIC-F-PNP
Compatible with the F-series BMW with
navigation system or radio and 7” or 10.2”
monitor with 4pin HSD
LVDS connector

Version 26.11.2019 V5-CIC-F-PNP
Page1"
Product features
• Own on-screen display and setup
• Rear-view camera input
• Automatic switching to rear-view camera input on engagement of reverse gear from
all operation modes
• Front camera input / SMART-LINK input
• Control of SMART-LINK module over iDrive control panel
• Manual switching to rear-view camera (only for vehicles with PDC button)
• Manual return from rear-view and front camera (cancellation of automatic switching)
• 2 trigger outputs (+12V max. 1A), separately adjustable switching events (CAN, ACC,
camera, reverse gear)
• Picture-in-picture mode combining after-market rear-view and front camera
picture(s) with factory parking sensor graphics
• Compatible with all factory video accessories (e.g. rear-view camera, Top-View,
nightvison, DVD-changer, TV-tuner)
• USB update-port for software-updates by consumer

Version 26.11.2019 V5-CIC-F-PNP
Page2"
Contents
1. Prior to Installation

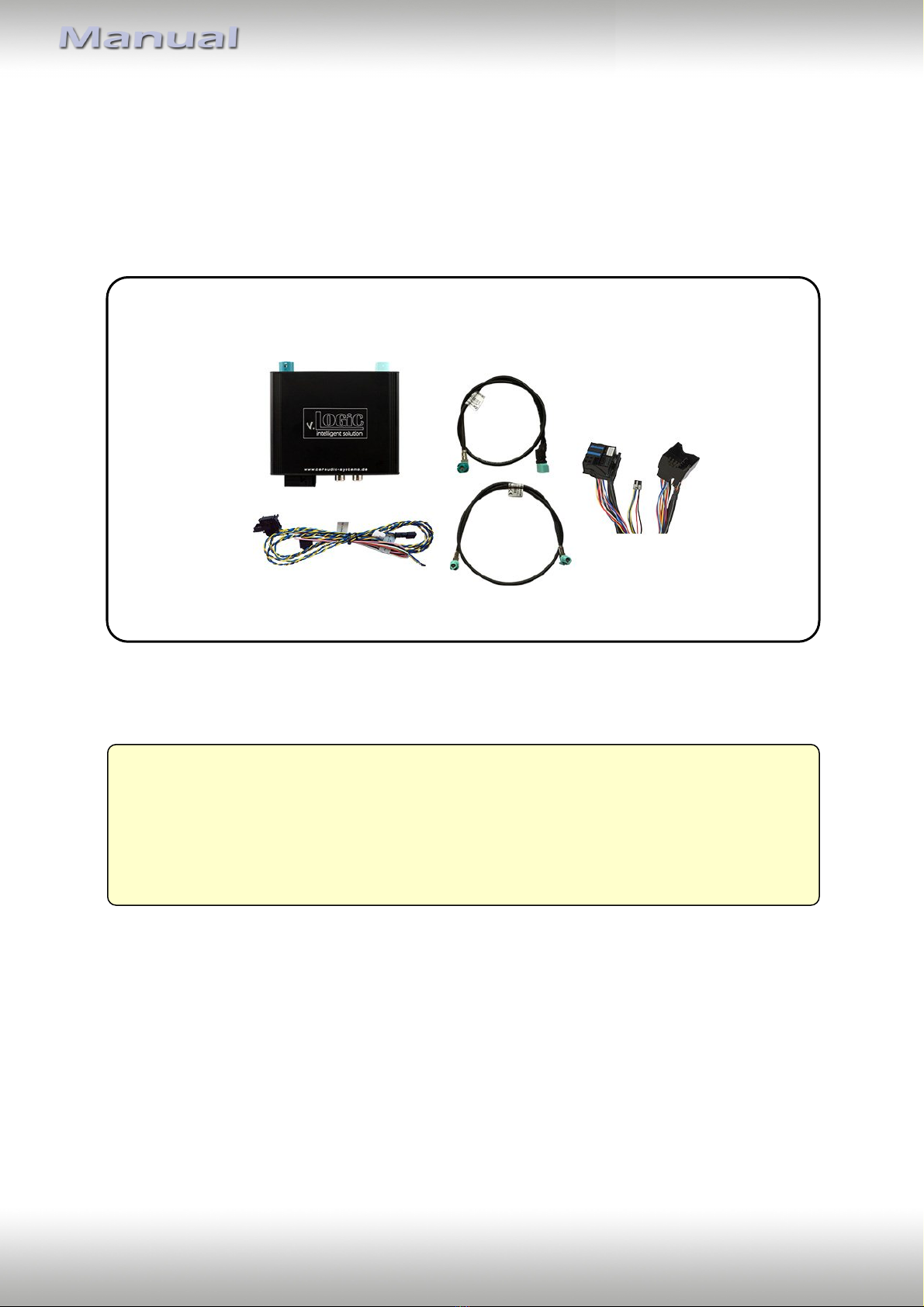

1.1. Delivery contents
1.2. Check compatibility of vehicle and accessories
1.3. Setting the dip switches of the interface-box V5C-M636
1.4. LED’s of the interface-box V5C-M636
2. Connection schema
3. Installation
3.1. Connecting interface-box and harnesses
3.2. LVDS connection
3.3. Connection to the iDrive
3.3.1. After-market front camera
3.3.1.1. Connection to the after-market front camera
3.3.1.2. Settings for connecting an after-market front camera
3.3.2. After-market rear-view camera
3.3.2.1. Connection to the after-market rear-view camera
3.3.2.2. Settings for connecting an after-market rear-view camera
3.3.2.3. Settings for OEM rear-view camera
3.3.3. SMART-LINK
3.3.3.1. SMART-LINK video and control connection
3.3.3.2. SMART-LINK audio connection
3.3.3.3. Settings for SMART-LINK connecting
3.3.4. Configurable trigger outputs
3.4. Picture settings
3.5. Picture format settings
4. Operation
4.1. OSD – On-screen display
4.1.1. OSD – Operation
4.1.1.1. 8-button iDrive
4.1.1.2. 2-button iDrive in Mini
4.1.2. OSD – Additional setting options
4.2. Video-in-motion function
4.3. Selecting the interface as current video-source
4.4. Controlling of the connected SMART-LINK module
5. Specifications
6. Connections (interface-box)
7. Technical support

Version 26.11.2019 V5-CIC-F-PNP
Page3"
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle’s software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.

Version 26.11.2019 V5-CIC-F-PNP
Page4"
1. Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The
place of installation must be free of moisture and away from heat sources.
1.1. Delivery contents
1.2. Check compatibility of vehicle and accessories
Requirements
Navigation F-series with navigation system or radio with 7“ or 10“ monitor
(F-series) with 4pin HSD LVDS connector
Interface-box
V5C-M636
HW_____ SW_____
Take down the SW-version and HW-version of the interface boxes, and store this
manual for support purposes.
V5C-UNI02
harness
LVDS cable
CAB-HSD-MG060-OZ
LVDS cable
CAB-HSD-DD075-O
TV-BM01
harness

Version 26.11.2019 V5-CIC-F-PNP
Page5"

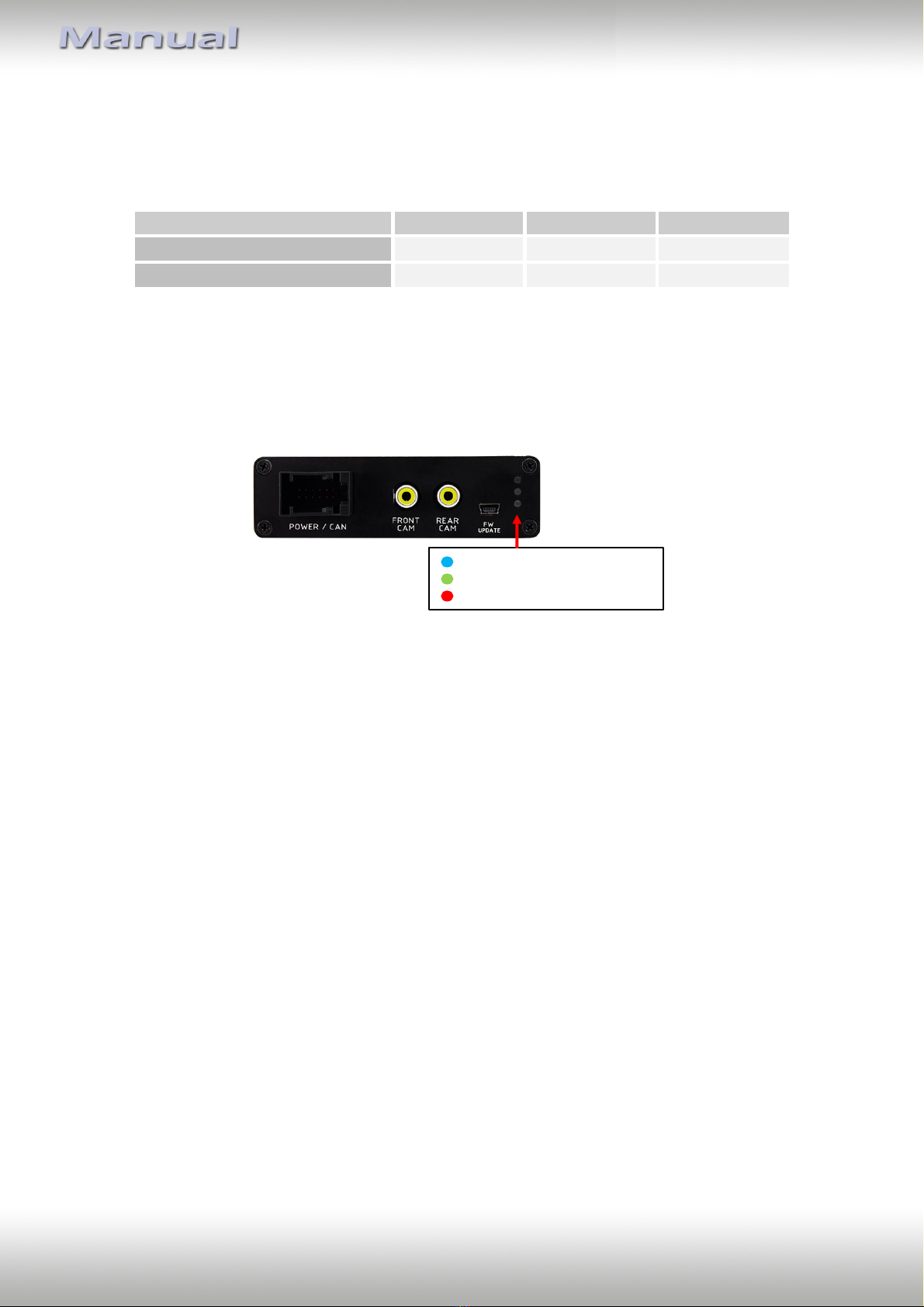

1.3. Setting the dip switches of the interface-box V5C-M636
Dip 1 and 2 on the back of the interface-box V5C-M636 are used to set the monitor type. The
default setting is:
Vehicle/ navigation
Dip 1
Dip 2
Dip 3
CIC-F (F-series), 7“ monitor
ON
OFF
No function
CIC-F (F-series), 10“ monitor
ON
ON
No function
After each change of the dip switch settings you have to execute a power reset of the
interface-box!
1.4. LED‘s of the interface-box V5C-M636
Valid%input source
CAN%ok
Power

Version 26.11.2019 V5-CIC-F-PNP
Page6"

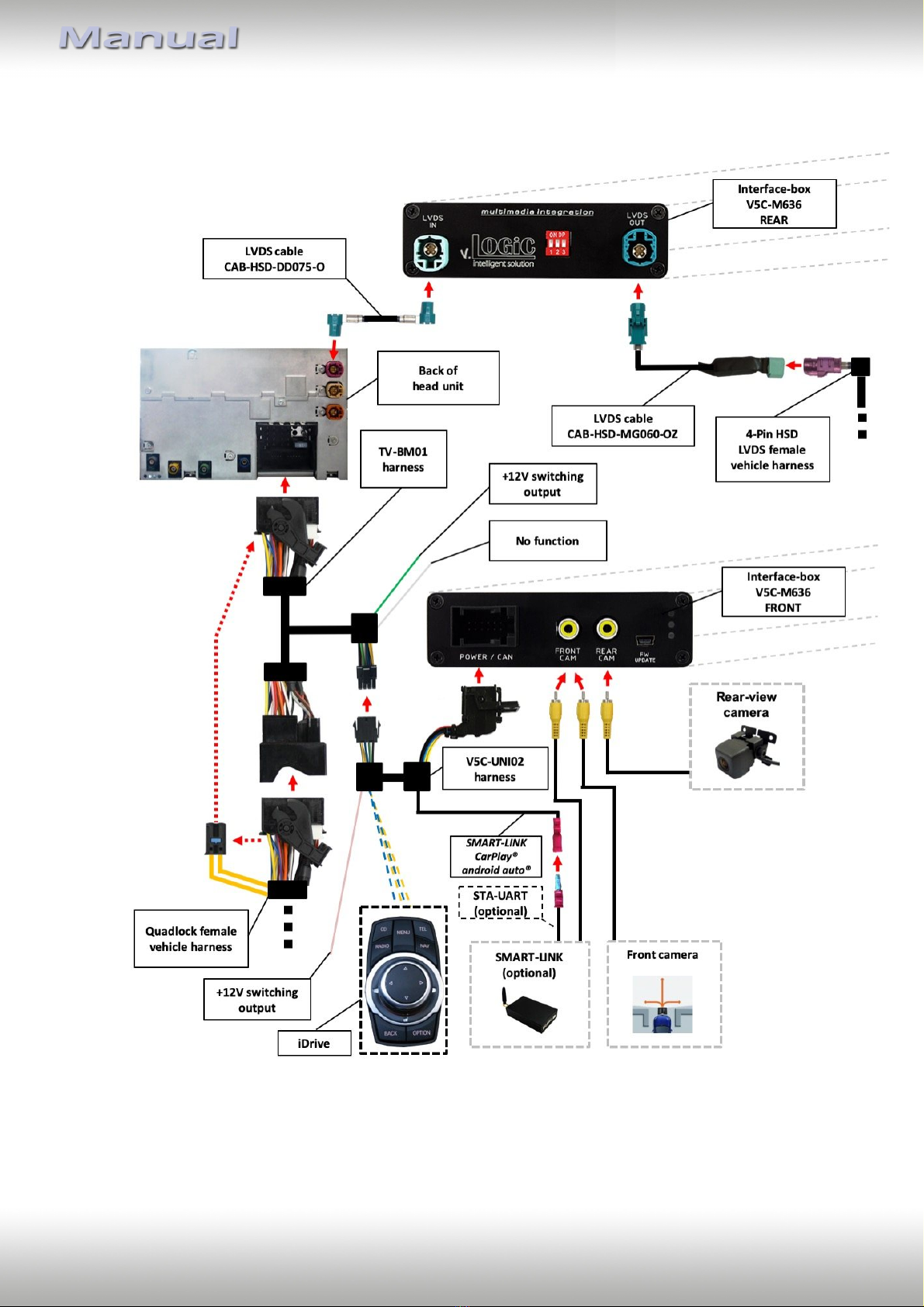

2. Connection schema

Version 26.11.2019 V5-CIC-F-PNP
Page7"
3. Installation
Switch off ignition and disconnect the vehicle’s battery! The interface needs a permanent
12V source. If according to factory rules disconnecting the battery is to be avoided, it is
usually sufficient to put the vehicle is sleep-mode. In case the sleep-mode does not show
success, disconnect the battery with a resistor lead.
If power source is not taken directly from the battery, the connection has to be checked
for being start-up proven and permanent.
Prior to wire and device installation we suggest to connect and test correct function of all
after-market and factory infotainment equipment!
The interface is installed on the backside of the head unit.
3.1. Connecting interface-box and harnesses
Remove the female Quadlock connector of the vehicle harness from the rear of the
navigation computer.
Remove optical leads from the female Quadlock connector of the vehicle harness and
insert them into the female Quadlock connector of harness TV-BM01 at the same
position.
Connect female Quadlock connector of vehicle harness to the male Quadlock
connector of harness TV-BM01.
Connect female Quadlock connector of harness TV-BM01 to the male Quadlock
connector of the navigation computer
1
2
3
4

Version 26.11.2019 V5-CIC-F-PNP
Page8"
Connect female 8 pin molex connector of the harness TV-BM01 to the
male 8 pin molex connector of the harness TV-BM01.
Connect female 12pin AMP connector of the harness TV-BM01 to the
front site of the V5C-M636 interface box.
3.2. LVDS connection
Connect the female 4pin HSD LVDS connector of the LVDS cable CAB-HSD-DD075-O
to the male 4pin HSD LVDS connector (LVDS-IN) on the rear of the
interface-box V5C-M636.
Remove the pink female 4pin HSD LVDS connector of the vehicle harness at the back
of the head unit and connect it to the male 4pin HSD LVDS of the
CAB-HSD-MG060-OZ LVDS cable.
Connect the female 4pin HSD LVDS connector of the LVDS cable CAB-HSD-MG060-OZ
to the male 4pin HSD LVDS connector (LVDS-OUT) on the rear of the
interface-box V5C-M636.
Connect the female 4pin HSD LVDS connector of the LVDS cable CAB-HSD-DD075-O
to the pink male 4pin HSD LVDS connector on the rear of the head unit.
5
6
1
2
3
4

Version 26.11.2019 V5-CIC-F-PNP
Page9"
3.3. Connection to the iDrive
Remove the iDrive from the centre console and unplug the existing flat female 10pin
or 4pin cable connector.
Remove pin 3 green/orange CAN-high and pin 4 green CAN-low of vehicle harness
from the female cable connector.
Pin yellow (blue) pin of harness V5C-UNI02 into pin 3 CAN-high (pin 4 CAN-low) of the
female cable connector.
Pin the green/orange cable CAN-high (green cable CAN-low) of the vehicle harness
into pin 1 of the included female 2pin AMP connector.
Connect female 2pin AMP connector to 2pin AMP connector (yellow/black and
blue/black cable) of harness V5C-UNI02.
Inte rface)box
V5C)M636
FRONT
V5C)UNI02;
harness
5
Female 10pin;
of iDrive
2
34
1
CAN$Low
CAN$High
CAN$Low,Pin,4
CAN$High,Pin,3
1
2
3
4
5

Version 26.11.2019 V5-CIC-F-PNP
Page10"
3.3.1. After-market front camera
3.3.1.1. Connection to the after-market front camera
Connect the video RCA of the after-market front camera to the female RCA connector
“FRONT CAM” of the interface box V5C-M636.
- The pink wire of harness V5C-UNI02 can be used
for +12V electric power supply (max. 1A) of the
after-market front camera. Configure in the OSD-
menu “MISC”, menu item “POWER OUT 2” the
designated electric power supply (see chapter
“Configurable switching outputs”).
-
Inte rface)box
V5C)M636
FRONT
Front8camera
+12V8camera
power
V5C)UNI028
harness
Power&Out&1&(max.&1A)
1
2
1
2

Version 26.11.2019 V5-CIC-F-PNP
Page11"

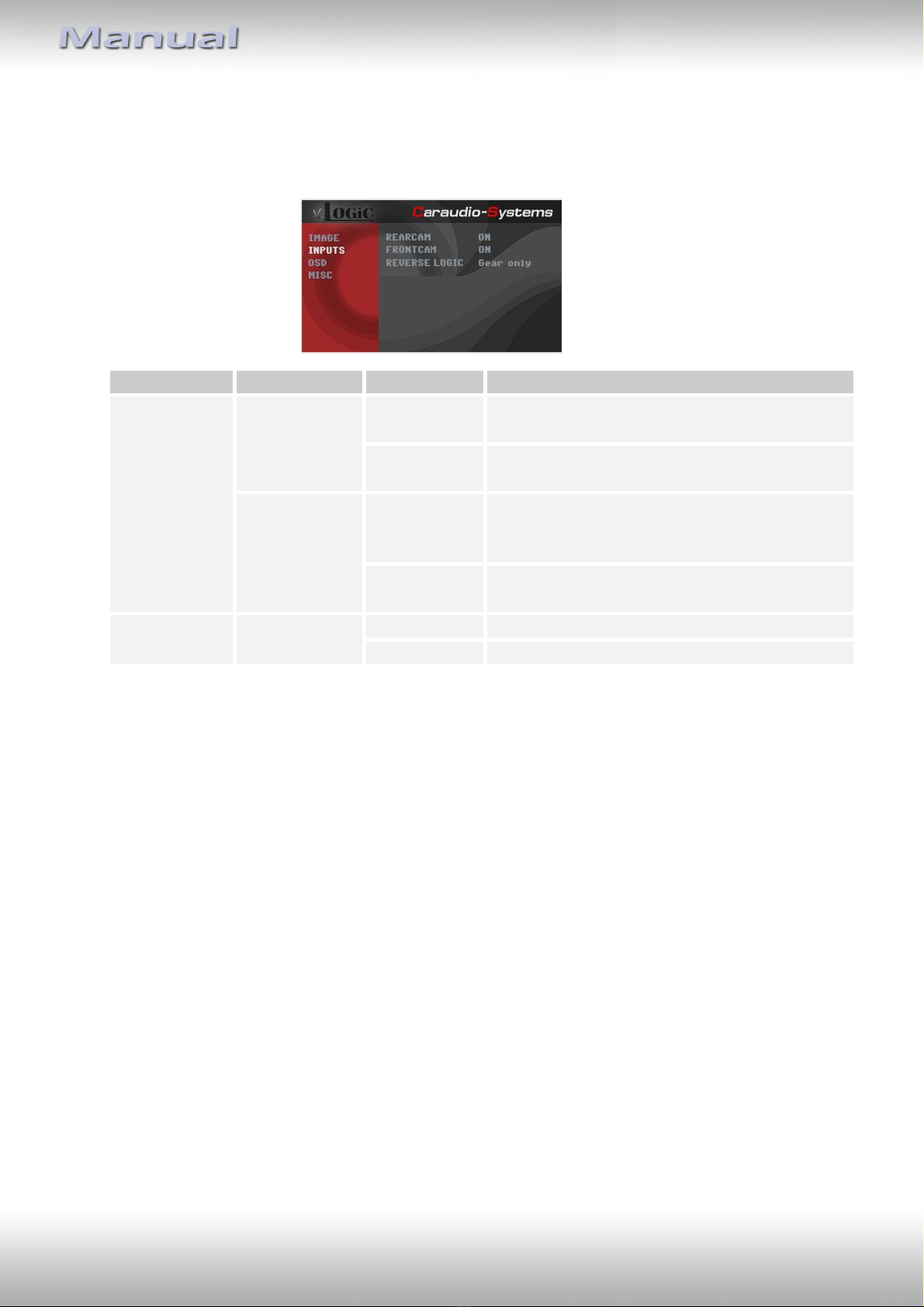

3.3.1.2. Settings for connecting an after-market front camera
You have to configure some settings in the OSD-menus INPUTS and MISC if you want to
connect an after-market front camera (Operation of the OSD: see chapter “OSD-Operation”).
OSD-menu
Menu item
Setting
Explication
INPUTS
FRONT CAM
OFF
No front camera connected
ON
Switches to front camera if parking process is
enabled and reverse gear is released
ReverseLogic
Intelligent
For vehicles with PDC button. Enabled while
parking process and up to 20 km/h or
together with PDC if existing
Gear only
For vehicles without PDC button. Enabled
while parking process and up to 20 km/h.
MISC
OEM PDC CAR
Horizontal
PDC-display of the vehicle is horizontal
Vertical
PDC-display of the vehicle is vertical
-
Note: You can deactivate the enabled parking process by pressing the iDrive or by enabling
other modes (e.g. radio). After deactivation you can’t enable the parking process again until
the vehicle is diving faster than 20km/h, the ignition is switched off and on or the PDC will be
disabled and enabled again, if existing.

Version 26.11.2019 V5-CIC-F-PNP
Page12"
3.3.2. After-market rear-view camera
3.3.2.1. Connection to the after-market rear-view camera
Connect the video RCA of the after-market rear-view camera to the female RCA
connector “REAR CAM” of the interface box V5C-M636.
- The green wire of harness TV-BM01 can be used for
+12V electric power supply (max. 1A) of the after-
market rear-view camera. Configure in the OSD-
menu “MISC”, menu item “POWER OUT 2” the
designated electric power supply (see chapter
“Configurable switching outputs”).
1
2

Version 26.11.2019 V5-CIC-F-PNP
Page13"
3.3.2.2. Settings for connecting an after-market rear-view camera
You have to configure some settings in the OSD-menus INPUTS and MISC if you want to
connect an after-market rear-view camera (Operation of the OSD: see chapter “OSD-
Operation”).
OSD-menu
Menu item
Setting
Explication
INPUTS
REAR CAM
OFF
No rear-view camera connected
ON
Switches to rear-view camera if reverse gear
is engaged and/or PDC-display is displayed
OEM
If a factory rear-view camera is existing!
Interface turns off, if PDC or reverse gear is
enabled and it displays factory rear-view
camera and/or PDC-display
ReverseLogic
Intelligent
For vehicles with PDC button. Enabled while
parking process and up to 20 km/h or
together with PDC if existing
Gear only
For vehicles without PDC button. Enabled
while parking process and up to 20 km/h.
MISC
OEM PDC CAR
Horizontal
PDC-display of the vehicle is horizontal
Vertical
PDC-display of the vehicle is vertical
-
Note: You can deactivate the enabled parking process by pressing the iDrive or by enabling
other modes (e.g. radio). After deactivation you can’t enable the parking process again until
the vehicle is diving faster than 20km/h, the ignition is switched off and on or the PDC will be
disabled and enabled again, if existing.
3.3.2.3. Settings for OEM rear-view camera
OSD-menu
Menu item
Setting
Explication
INPUTS
RVC
OEM
If a factory rear-view camera is existing!
The interface turns off, if PDC or reverse gear
is enabled and it displays factory rear-view
camera and/or PDC-display
Reverse Logic
Intelligent
For vehicles with PDC button. Enabled while
parking process and up to 20 km/h or
together with PDC if existing

Version 26.11.2019 V5-CIC-F-PNP
Page14"
Interface-box
V5C-M636
FRONT
V5C-UNI01
harness
Power Out 1 (max. 1A)
1
2
+12V switching
output
SMART-LINK
(optional)
SMART-LINK
CarPlay®
android auto®
STA-UART (optional)
3
3.3.3. SMART-LINK
The front camera input can alternatively be used for SMART-LINK set (CarPlay® & Android
Auto® module) connection. In addition, the interface has the option of controlling the
connected SMART-LINK module over the iDrive control panel.

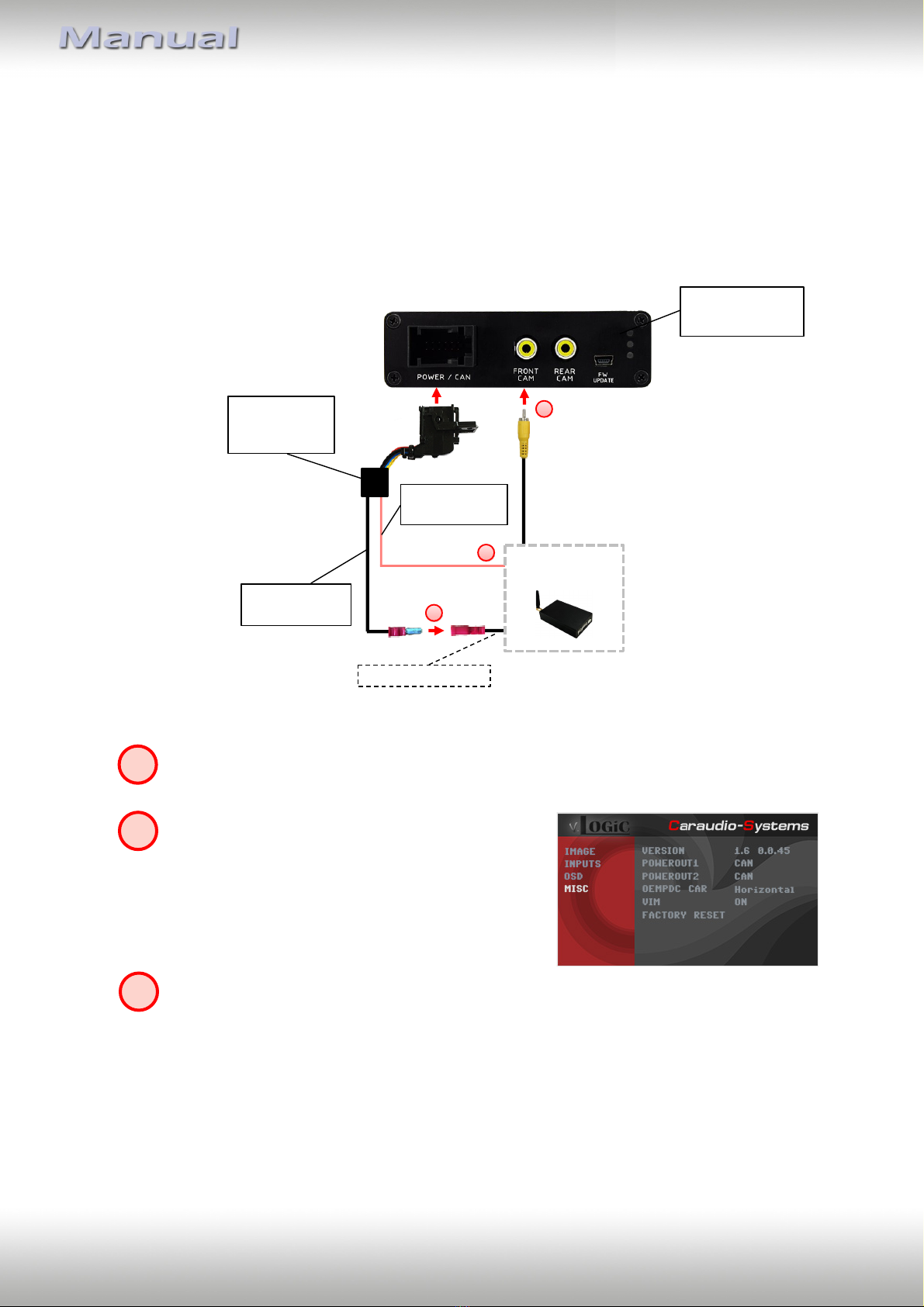

3.3.3.1. SMART-LINK video and control connection
Connect the video RCA of the SMART-LINK module to the female RCA connector
“FRONT CAM” of the interface box V5C-M636.
Connect the pink cable (+12V Power OUT 1) of
the V5C-UNI01 harness to the +12V ACC power
input of the SMART-LINK module. Configure in
the OSD-menu “MISC”, menu item “Power Out 1”
the setting “CAN” (see also chapter “Configurable
switching outputs”).
Connect the SMART-LINK interface control port “STA-UART” (available separately) to
the "SMART-LINK CarPlay® Android Auto®" socket of V5C-UNI01 harness.
1
2
3

Version 26.11.2019 V5-CIC-F-PNP
Page15"

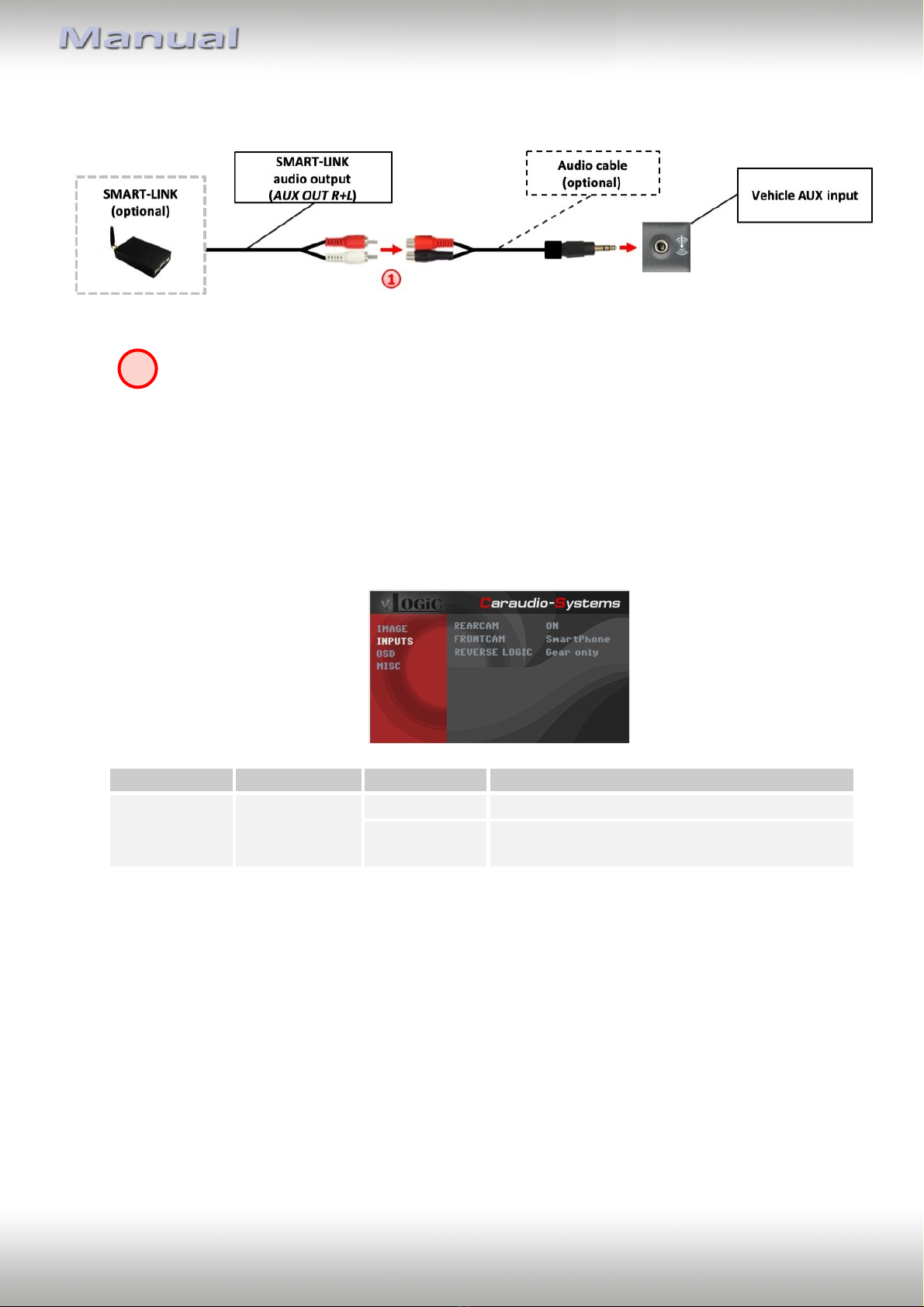

3.3.3.2. SMART-LINK audio connection
By using an audio cable (sold separately), connect the audio output of the SMART-
LINK module to the vehicle AUX input.
3.3.3.3. Settings for SMART-LINK connecting
You have to configure some settings in the OSD-menu INPUTS if you want to connect the
SMART-LINK module (Operation of the OSD: see chapter “OSD-Operation”).
OSD-menu
Menu item
Setting
Explication
INPUTS
FVC
OFF
No front camera/SMART-LINK connected
SmartPhone
Enables the " FRONT CAM" input and control
for the SMART-LINK set
1

Version 26.11.2019 V5-CIC-F-PNP
Page16"
3.3.4. Configurable trigger outputs
You can configure the both +12V trigger outputs separately. The pink wire is POWER
OUT 1 and the green wire is POWER OUT 2.
Note: You can configure the both trigger outputs in the OSD-menu MISC separately
(Operation of the OSD: see chapter “OSD-Operation”).
OSD-menu
Menu item
Setting
Explication
MISC
POWER OUT1
(pink)
POWER OUT2
(green)
CAN
+12V when the interface is on (red LED on)
Ignition
+12V when ignition is on
RearCam
+12V when the rear-view camera input is
activated
Reverse Gear
+12V when reverse gear is engaged
OFF
Trigger putput deactivated
1

Version 26.11.2019 V5-CIC-F-PNP
Page17"
3.4. Picture settings
You can change the picture settings in the OSD-menu IMAGE (activation by
long pressing the OPTION -button).
◦ Brightness
◦ Contrast
◦ Saturation
◦ Hue
◦ Sharpness
Note: The picture settings will be retained for each video input separately.
3.5. Picture format settings
The picture format can be changed in the SMART-LINK video level by
long pressing the OPTION -button).
- 8.8” and 10.2” 24:10 ultrawide monitor:
-FULL = 24:10 video full screen mode
-16:9 = 16:9 video in the center
-AV+LVDS = 16:9 video on left side, factory picture on right side
- 6.5” and 7” 16:9 monitor:
-FULL = 16:9 video full screen mode
-ZOOM = 16:9 video full screen mode - zoom

Version 26.11.2019 V5-CIC-F-PNP
Page18"
4. Operation
4.1. OSD – On-screen display
You can change the basic configurations of the interface in the OSD (on screen display).
4.1.1. OSD – Operation
You can control the OSD by iDrive.
4.1.1.1. 8-button iDrive

Version 26.11.2019 V5-CIC-F-PNP
Page19"
4.1.1.2. 2-button iDrive in Mini
4.1.2. OSD – Additional setting options
The following settings in the OSD-menus OSD and MISC can be configured over and above
the described settings in this manual (Operation of the OSD: see chapter “OSD-Operation”):
OSD-menu
Menu item
Setting
Explication
H POSITION
0-xxx
Horizontal position of the OSD
V POSITION
0-xxx
Vertical position of the OSD
MISC
VERSION
X.XX.XX
Displays the current SW-version
FACTORY RESET
Resetting to factory settings
OK
Options
Back + leaving
OSD
OK
Options
Options
Long press = enter/ leave OSD
Short press = leave OSD + back to the main
menu
