User's GuideSLAU126A – December 2003 – Revised September 2004
ADS8402/ADS8406/ADS8412 EVM User's Guide
This user's guide describes the characteristics, operation, and use of theADS8402/ADS8406/ADS8412 16-bit, high-speed, parallel interface, analog-to-digital converterevaluation board. A complete circuit description, schematic diagram, and bill of materials areincluded.
Contents1 EVM Overview .............................................................................................. 22 Analog Interface ............................................................................................ 23 Digital Interface ............................................................................................. 44 Power Supplies ............................................................................................. 65 Using the EVM .............................................................................................. 76 ADS8402/ADS8406/ADS8412EVM BOM ................................................................ 87 ADS8402/ADS8406/ADS8412EVM Layouts .......................................................... 108 ADS8402/ADS8406/ADS8412EVM Schematic ....................................................... 13
List of Figures
1Input Buffer Circuit ........................................................................................ 32Top - Layer 1 ............................................................................................... 103Ground Plane - Layer 2 .................................................................................. 114Power Plane - Layer 3 ................................................................................... 125Bottom - Layer 4 .......................................................................................... 13
List of Tables
1Analog Input Connector .................................................................................. 22Solder Short Jumper Setting ............................................................................ 43Pinout for Parallel Control Connector P2 ............................................................. 44Jumper Settings for Decoder Outputs ................................................................. 55Data Bus Connector P3 ................................................................................... 56Pinout for Converter Control Connector J3 .......................................................... 67Power Supply Test Points ................................................................................ 68Power Connector, J1, Pinout ............................................................................ 69Bill of Materials ............................................................................................. 8
TMS320C5000, TMS320C6000 are trademarks of Texas Instruments.
ADS8402/ADS8406/ADS8412 EVM User's GuideSLAU126A – December 2003 – Revised September 2004 1

www.ti.com
1 EVM Overview
1.1 Features
2 Analog Interface
EVM Overview
•Full-featured evaluation board for the ADS8402 (1.25 MHz), ADS8406 (1.25 MHz), and ADS8412(2 MHz) high-speed 16-bit, single channel, parallel interface SAR-type analog-to-digital converters.•Onboard Signal Conditioning•Onboard Reference•Input and Output Digital Buffers•Onboard Decoding for Stacking Multiple EVMs
The ADS8402/ADS8406/ADS8412EVM analog-to-digital converter has pseudo-bipolar differential input. Apseudo-bipolar differential input is a differential signal (inverting and noninverting input is 180 degrees outof phase) that is level shifted such that the signals levels are always equal to or above zero volts. Thepeak-to-peak amplitude on each input pin can be as large as the reference voltage. See the respectiveproduct data sheet for more information.
The ADS8402/ADS8406/ADS8412EVM comes installed with the unity gain buffer (U2) wired forsingle-ended into differential-out configuration. The common-mode voltage is derived from REF3040reference IC and adjustable using a potentiometer (R9). The common mode voltage pin of the THS4503 isset to 2.0 V on the evaluation module. A single-ended input signal can be applied at pin-connector P1 orvia SMA connectors J2 (noninverting input). The buffer circuit can be reconfigured for a differential inputby installing resistor R6 and R8 and removing R1. The inverting leg of the differential signal should beapplied
to either connector P1 pin 1 or SMA connector J4 (inverting input). See Table 1for pinout ofanalog
connector, P1. See Section 8for the EVM schematic.
Table 1. Analog Input Connector
Description Signal Name Connector.pin# Signal Name Description
Inverting Input (–) P1.1 P1.2 (+) Noninverting InputReserved N/A P1.3 P1.4 N/A ReservedReserved N/A P1.5 P1.6 N/A ReservedReserved N/A P1.7 P1.8 N/A ReservedPin tied to Ground AGND P1.9 P1.10 N/A ReservedPin tied to Ground AGND P1.11 P1.12 N/A ReservedReserved N/A P1.13 P1.14 N/A ReservedPin tied to Ground AGND P1.15 P1.16 N/A ReservedPin tied to Ground AGND P1.17 P1.18 N/A ReservedReserved N/A P1.19 P1.20 REF+ External Reference Input
ADS8402/ADS8406/ADS8412 EVM User's Guide2 SLAU126A – December 2003 – Revised September 2004

www.ti.com
2.1 Signal Conditioning
1 kΩ
1 kΩ
+VCC
VI
0.1 µF
1 µF
25 Ω(+) IN
(−) IN
6800 pF
1 µF
0.1 µF
1 kΩ
−VCC
−
+
68 pF
1 kΩ
68 pF
VOCM 25 Ω
−
+
THS4503
+2.048 V
Analog Interface
It is recommended that the analog input to any SAR-type converter be buffered. The amplifier circuit inFigure 1 is the buffer circuit used on the ADS8402/ADS8406/ADS8412EVM. This circuit consists of theTHS4503, a high-speed fully differential amplifier configured as a single-ended into differential-out, unitygain buffer. The circuit shown in Figure 1 was optimized to achieve the ac (i.e., SNR, THD, SFDR, etc)specifications listed in the ADS8402, ADS8406, and ADS8412 data sheets. The 68-pF and 6800-pFcapacitors in the signal path are polypropylene type, manufactured by WIMA Corporation. Polypropylenecapacitors cause the least distortion of the input signal; therefore, they provide good dynamic performancefrom the converter. A low-cost alternative for the polypropylene type are C0G capacitors by TDKCorporation.
Figure 1. Input Buffer Circuit
ADS8402/ADS8406/ADS8412 EVM User's GuideSLAU126A – December 2003 – Revised September 2004 3

www.ti.com
2.2 Reference
3 Digital Interface
Digital Interface
The EVM allows users to select from three reference sources. The ADS8402/ADS8406/ADS8412EVMprovides an onboard 4.096-V reference, U3. The EVM also has the provision for users to supply areference voltage via connector P1 pin 20. The user reference voltage and onboard reference voltagescan be filtered by installing amplifier U1. The ADS8402, ADS8406, and ADS8412 analog-to-digitalconverters have a integrated onboard reference buffer; therefore, it is not necessary to buffer the voltageexternally. The reference buffer circuit on the EVM is not populated with an amplifier for this reason. TheEVM comes installed with on-chip internal reference tied directly to the reference pin of the converter. SeeSection 8 for a full schematic.
Table 2. Solder Short Jumper Setting
(1)
Jumper SettingsReference
DescriptionDesignator
1-2 2-3
On-chip internal reference applied to A/D reference pin Installed
(2)SJP2
Apply reference voltage from external source InstalledSJP3 Apply voltage to amplifier, U2, common-mode voltage pin Installed
(2)
N/ABuffer onboard reference, REF3040 Installed Not installedSJP4
Buffer user reference voltage applied at P1 pin 20 Not installed installedSelect REF3040 for reference voltage Installed Not installedSJP5
Select buffered reference voltage Not Installed Installed
(1) Designator SJP1 is not used on the EVM.(2) Factory installed
The ADS8402/ADS8406/ADS8412 EVM is designed for easy interfacing to multiple platforms. Samtec partnumbers SSW-110-22-F-D-VS-K and TSM-110-01-T-DV-P provide a convenient dual-row header/socketcombination at P2 and P3. Consult Samtec at www.samtec.com or 1-800-SAMTEC-9 for a variety ofmating connector options.
Table 3. Pinout for Parallel Control Connector P2
(1)
Connector.Pin Signal Description
P2.1 DC_CS Daughtercard board-select pinP2.3
P2.5
P2.7 A0 Address line from processorP2.9 A1 Address line from processorP2.11 A2 Address line from processorP2.13
P2.15
P2.17
P2.19 INTc Set jumper to select BUSY or inverted signal to be applied to this pin.
(1) All even numbered pins of P2 are tied to DGND.
4ADS8402/ADS8406/ADS8412 EVM User's Guide SLAU126A – December 2003 – Revised September 2004

www.ti.com
Digital Interface
Read ( RD), conversion start ( CONVST) and reset ( RESET) signals to the converter can be assigned totwo different addresses in memory via jumper settings. This allows for the stacking of up to twoADS8402EVM, ADS8406EVM, and/or ADS8412EVMs into processor memory. See Table 4 for jumpersettings. Note that the evaluation module does not allow the chip select ( CS) line of the converter to beassigned to different memory locations. It is therefore suggested that the CS line be grounded or wired toan appropriate signal of the processor.
Table 4. Jumper Settings for Decoder Outputs
Reference Description Jumper SettingsDesignator
1-2 2-3
Set A[2..0]= 0x1 to generate RD pulse Installed
(1)W2
Set A[2..0]=0x2 to generate RD pulse InstalledSet A[2..0]=0x3 to generate convst pulse Installed
(1)W5
Set A[2..0]=0x4 to generate convst pulse InstalledSet A[2..0]=0x5 to generate RESET pulse Installed
(1)W4
Set A[2..0]=0x6 to generate RESET pulse Installed
The data bus is available at connector P3; see Table 5 for pinout information.(1) Factory Installed
Table 5. Data Bus Connector P3
(1)
Connector.Pin Signal Description
P3.1 D0 Buffered Data Bit 0 (LSB)P3.3 D1 Buffered Data Bit 1P3.5 D2 Buffered Data Bit 2P3.7 D3 Buffered Data Bit 3P3.9 D4 Buffered Data Bit 4P3.11 D5 Buffered Data Bit 5P3.13 D6 Buffered Data Bit 6P3.15 D7 Buffered Data Bit 7P3.17 D8 Buffered Data Bit 8P3.19 D9 Buffered Data Bit 9P3.21 D10 Buffered Data Bit 10P3.23 D11 Buffered Data Bit 11P3.25 D12 Buffered Data Bit 12P3.27 D13 Buffered Data Bit 13P3.29 D14 Buffered Data Bit 14P3.31 D15 Buffered Data Bit 15
This evaluation module provides direct access to all the analog-to-digital converter control signals viaconnector J3; see Table 6 .(1) All even-numbered pins of P3 are tied to DGND.
SLAU126A – December 2003 – Revised September 2004 ADS8402/ADS8406/ADS8412 EVM User's Guide 5

www.ti.com
4 Power Supplies
Power Supplies
Table 6. Pinout for Converter Control Connector J3
(1)
Connector.Pin Signal Description
J3.1 CS Chip Select pin. Active LowJ3.3 RD Read Pin. Active LowJ3.5 CONVST Convert start pin. Active LowJ3.7 BYTE BYTE mode pin. Used for 8-bit busesJ3.9 RESET Reset pin. Active LowJ3.11 BUSY
(2)
Converter Status Output. High when a conversion is in progress
(1) All even-numbered pins of J3 are tied to DGND.(2) Error on silkscreen of Rev A evaluation module. J3 pin 11 reads BUS16/18. The signal connected isBUSY, as shown in Section 8 .
The EVM accepts four power supplies.•A dual ±Vs dc supply for the dual supply operational amplifiers. Maximum voltage recommended is ±7VDC
•A single 5-V dc supply for analog section of the board (A/D + Reference).•A single 5-V or 3.3-V dc supply for digital section of the board (A/D + address decoder + buffers).
There are two ways to provide these voltages.1. Wire in voltages at test points on the EVM. See Table 7
Table 7. Power Supply Test Points
Test Point Signal Description
TP14 +BVDD Apply 3.3 VDC or 5 VDC. See ADC data sheet for full range.TP11 +AVCC Apply 5 VDCTP12 +VA Apply 7 VDC. Positive supply for amplifierTP13 –VA Apply -7 VDC. Negative supply for amplifier
2. Use the power connector J1, and derive the voltages elsewhere. The pinout for this connector isshown in Table 8 . If using this connector, then set W1 jumper to connect 3.3 VD or 5 VD from theconnector to +BVDD. Short between pins 1-2 to select 5 VD, or short between pins 2-3 to select 3.3VD as the source for the digital buffer voltage supply (+BVDD).
Table 8. Power Connector, J1, Pinout
Signal Power Connector - J1 Signal
+VA (7 V) 1 2 –VA (–7V)5 VA 3 4 N/CDGND 5 6 AGNDN/C 7 8 N/C3.3 VD 9 10 5 VD
6 SLAU126A – December 2003 – Revised September 2004ADS8402/ADS8406/ADS8412 EVM User's Guide

www.ti.com
5 Using the EVM
5.1 As a Reference Board
5.2 As a Prototype Board
5.3 As a Software Test Platform
Using the EVM
The ADS8402/ADS8406/ADS8412 EVM serves three functions1. As a reference design2. As a prototype board and3. As software test platform
As a reference design, the ADS8402/ ADS8406/ADS8412EVM contains the essential circuitry toshowcase the analog-to-digital converter. This essential circuitry includes the input amplifier, referencecircuit, and buffers. The EVM analog input circuit is optimized for 100-kHz sine wave; therefore, users mayneed to adjust the resistor and capacitor values of the A/D input circuit. In ac-type applications wheresignal distortion is concern, polypropylene capacitors should be used in the signal path.
As a prototype board, the buffer circuit consists of resistor pads for configuring the input as eithersingle-ended or differential input. The input circuit can be modified to accommodate user prototype needs,whether it be evaluating another differential amplifier or limiting noise for best performance. The analog,power, and digital connectors can be made to plug into a standard 0.1-inch breadboard or cables made upto interface direct to a FPGA or processor.
As a software test platform, connectors P1, P2, and P3 plug into the parallel interface connectors of the5-6K interface card. The 5-6K interface card sits on the TMS320C5000 ™ and TMS320C6000 ™ DSPPlatform starter kit (DSK). The ADS8402/ADS8406/ADS8412EVM is then mapped into the processor'smemory space. This card also provides an area for signal conditioning. This area can be used to installapplication circuit(s) for digitization by the ADS8402/ADS8406/ADS8412 analog-to-digital converter. Seethe 5-6K interface card user’s guide ( SLAU104 ) for more information.
The ADS8402/ADS8406/ADS8412EVM provides a simple platform for interfacing to the converter. TheEVM provides standard 0.1-inch headers and sockets to wire into prototype boards. The user need onlyprovide 3 address lines (A2, A1, A0) and address valid line (DC_ CS) to connector P2. To choose whichaddress combinations generates RD, CONVST, and RESET, set jumpers as shown in Table 5 . Recall thatthe chip select ( CS) signal is not memory mapped or tied to P2; therefore, it must be controlled via ageneral-purpose pin or shorted to ground at J3 pin 1. If address decoding is not required, the EVMprovides direct access to converter data bus via P3 and control via J3.
SLAU126A – December 2003 – Revised September 2004 7ADS8402/ADS8406/ADS8412 EVM User's Guide

www.ti.com
6 ADS8402/ADS8406/ADS8412EVM BOM
ADS8402/ADS8406/ADS8412EVM BOM
Table 9 contains a complete bill of materials for the ADS8402/ ADS8406/ADS8412 EVM. The schematicdiagram is also provided for reference. Contact the Product Information Center or e-mail[email protected] for questions regarding this EVM.
Table 9. Bill of Materials
Used Part Type Designator Footprint MFG MFG's Part Number Description
Panasonic - ECG2 0 R15 R21 805 ERJ-6GEY0R00V Resistor 0.0 Ω1/8W 5% 0805 SMDor Alternate
Panasonic - ECG2 24.9 R12 R13 805 ERJ-6ENF24R9V Resistor 24.9 Ω1/10W 1% 0805 SMDor Alternate
Panasonic - ECG3 100 R5 R14 R25 805 ERJ-6ENF1000V Resistor 100 Ω1/10W 1% 0805 SMDor Alternate
Panasonic - ECG1 910 R4 805 ERJ-6GEYJ911V Resistor 910 Ω1/8W 5% 0805 SMDor Alternate
Panasonic - ECG Resistor 1.00 k Ω1/10W 1% 08053 1k R1 R7 R10 805 ERJ-6ENF1001Vor Alternate SMD
R16 R17 R18 Panasonic - ECG Resistor 10.0 k Ω1/16W 1% 06035 10k 603 ERJ-3EKF1002VR19 R20 or Alternate SMD
Panasonic - ECG Resistor 10.0 k Ω1/10W 1% 08051 10k R24 805 ERJ-6ENF1002Vor Alternate SMD
R6 R8 R11 R26 NI 805 Not Installed Not InstalledR3 R22
Panasonic - ECG1 49.9 R23 805 ERJ-6ENF49R9V Resistor 49.9 Ω1/10W 1% 0805 SMDor Alternate
C3 C5 C11 TDK Corporation Capacitor 1000 pF 50V ceramic NPO4 1 nF 1206 C3216C0G1H102JTC23 or Alternate 1206
2 68 pF C34 C35 TH WIMA FKP2 68/100/1 68 pF Polypropylene capacitor
1 6800 pF C17 TH WIMA FKP2 6800/100/1 6800 pF Polypropylene capacitor
C13 C21 C41C44 C46 C48 TDK Corporation Capacitor 10000 pF 50V ceramic X7R10 0.01 µF 603 C1608X7R1H103JTC53 C56 C65 or Alternate 0603C50
C10 C18 C20 TDK Corporation Capacitor 10000 pF 50V ceramic X7R4 0.01 µF 805 C2012X7R1H103KTC66 or Alternate 0805
TDK Corporation Capacitor 10000 pF 50V ceramic X7R2 0.01 µF C4 C26 1206 C3216X7R1H103JTor Alternate 1206
C8 C25 C40C42 C43 C47
TDK Corporation Capacitor 0.1 µF 25V ceramic X7R15 0.1 µF C51 C52 C54 603 C1608X7R1E104KTor Alternate 0603C55 C57 C58C62 C63 C64
C7 C9 C15
TDK Corporation Capacitor 0.10 µF 50V ceramic X7R7 0.1 µF C22 C32 C36 805 C2012X7R1H104JTor Alternate 0805C45
C16 C31 C33 TDK Corporation6 1 µF 805 C2012X7R1C105KT Capacitor 1 µF 16V ceramic X7R 0805C37 C59 C60 or Alternate
TDK Corporation Capacitor 1.0 µF 25V ceramic X7R2 1 µF C2 C28 1206 C3216X7R1E105KTor Alternate 1206
C1 C6 C12 TDK Corporation Capacitor 10 µF 16V ceramic X5R4 10 µF 1206 C3216X5R1C106MTC19 or Alternate 1206
Capacitor tantalum 10 µF 16V 10%1 10 µF C49 3528 Kemet or Alternate T491B106K016AS
SMT
C14 C24 C27 Panasonic - ECG Capacitor 10 µF 25V tantalum TE4 10 µF 6032 ECS-T1EC106RC29 or Alternate SMD
TDK Corporation1 22 µF C30 805 C2012X5R0J226MT Capacitor CER 22 µF 6.3V X5R 20%or Alternate
3 NI C38 C39 C61 805
Resistor array 1 k Ω16TERM 8RES2 1K RP1 RP3 CTS_742 CTS Corporation 742C163102JTR
SMD
ADS8402/ADS8406/ADS8412 EVM User's Guide8 SLAU126A – December 2003 – Revised September 2004

www.ti.com
ADS8402/ADS8406/ADS8412EVM BOM
Table 9. Bill of Materials (continued)Used Part Type Designator Footprint MFG MFG's Part Number Description
Resistor array 100 Ω16TRM 8RES1 100 RP2 CTS_742 CTS Corporation 742C163101JTR
SMD
BOURNS_1 10k R9 Bourns 3214W-1-103E Trimpot 10 k Ω4 mm Top ADJ SMD32X4W
4 BLM21AJ601SN1L L1 L2 L3 L4 1206 TDK Corporation MPZ2012S601AT Chip ferrite beads - 600 Ωat 100 MHz
REF3040 50 ppm/ °C, 50 µA in2 REF3040 U1 U3 3-SOT-23 Texas Instruments REF3040AIDBZT
SOT23-3 CMOS voltage reference
1 THS4503 U2 8-SOP(D) Texas Instruments THS4503ID High-speed fully-differential amplifiers
SOCKET_1 ADS8402 U4 Texas Instruments ADS8402IPFBT
(1)
ADS8402 16-bit 1.25 MSPS48QFP
1 OPA627AU U8 8-SOP(D) NOT INSTALLED NOT INSTALLED Amplifier
Footprint for 8 pin SOIC reference that1 NI U9 8-SOP(D)
operates from 5 V
1 SN74AHC1G04DBV U10 5-SOT(DBV) Texas Instruments SN74AHC1G04DBVR Single inverter gate
1 SN74AHC138PWR U11 16-TSSOP(PW) Texas Instruments SN74AHC138PWR 3-line to 8-line decoder / demultiplexer
3 SN74AHC245PWR U5 U6 U7 20-TSSOP(PW) Texas Instruments SN74AHC245PWR Octal bus transceiver, 3-state
5X2X.1_SMT_1 5X2X.1 J1 Samtec TSM-105-01-T-D-V-P 0.025" SMT plug - top side of PWBSOCKET
6X2X.1_SMT_
0.025" SMT socket - bottom side of1 6X2X.1 J3 PLUG_&_ Samtec SSW-106-22-S-D-VS
PWBSOCKET
Samtec TSM-106-01-T-D-V-P 0.025" SMT plug - top side of PWB
MaCom #5002-5003-10 /2 SMA_PCB_MT J2 J4 SMA_JACK AMPHENOL 901-144-4
Amphenol #901-144
10X2X.1_SMT_
0.025" SMT socket - bottom side of2 10X2X.1 P1 P2 PLUG_&_ Samtec SSW-110-22-S-D-VS
PWBSOCKET
Samtec TSM-110-01-T-D-V-P 0.025" SMT plug - top side of PWB
16X2X.1_SMT_16X2X.1_SMT_PLU 0.025" SMT socket - bottom side of1 P3 PLUG_&_ Samtec SSW-116-22-S-D-VSG_&_SOCKET PWBSOCKET
Samtec TSM-116-01-T-D-V-P 0.025" SMT plug - top side of PWB
1 SJP2 SJP3 SJP2 NOT INSTALLED NOT INSTALLED Pad 2 position Jumper
SJP2 SJP43 SJP3 SJP3 NOT INSTALLED NOT INSTALLED Pad 3 Postion JumperSJP5
1 SW-PB S1 EVQ-PJ Panasonic EVQ-PJU04K Switch
W1 W2 W35 3POS_JUMPER 3pos_jump Samtec TSW-103-07-L-S 3 Position Jumper _0.1" spacingW4 W5
TP1 TP2 TP3TP4 TP5 TP6TP7 TP8 TP9 Keystone Elec-14 TP_0.025 test_point2 5000K–ND Test Point - Single 0.025" PinTP10 TP11 tronicsTP12 TP13TP14
(1) On ADS8412EVM, the ADS8412IPFBT is installed instead of ADS8402IPFBT. On ADS8406EVM, theADS8406IPFBT is installed instead of ADS8402IPFBT.
ADS8402/ADS8406/ADS8412 EVM User's GuideSLAU126A – December 2003 – Revised September 2004 9

www.ti.com
7 ADS8402/ADS8406/ADS8412EVM Layouts
ADS8402/ADS8406/ADS8412EVM Layouts
This section contains the EVM layouts.

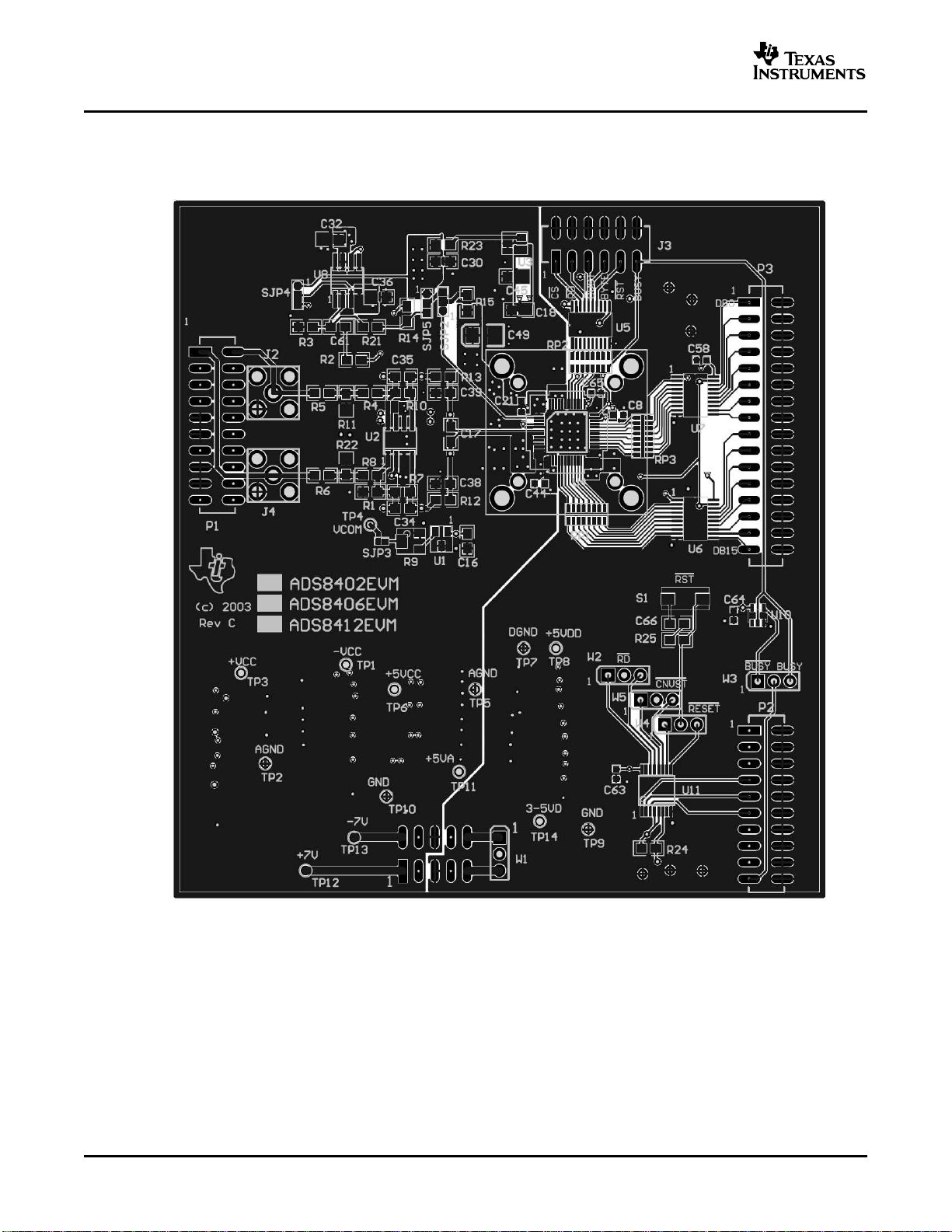

Figure 2. Top - Layer 1
ADS8402/ADS8406/ADS8412 EVM User's Guide10 SLAU126A – December 2003 – Revised September 2004

www.ti.com
ADS8402/ADS8406/ADS8412EVM Layouts

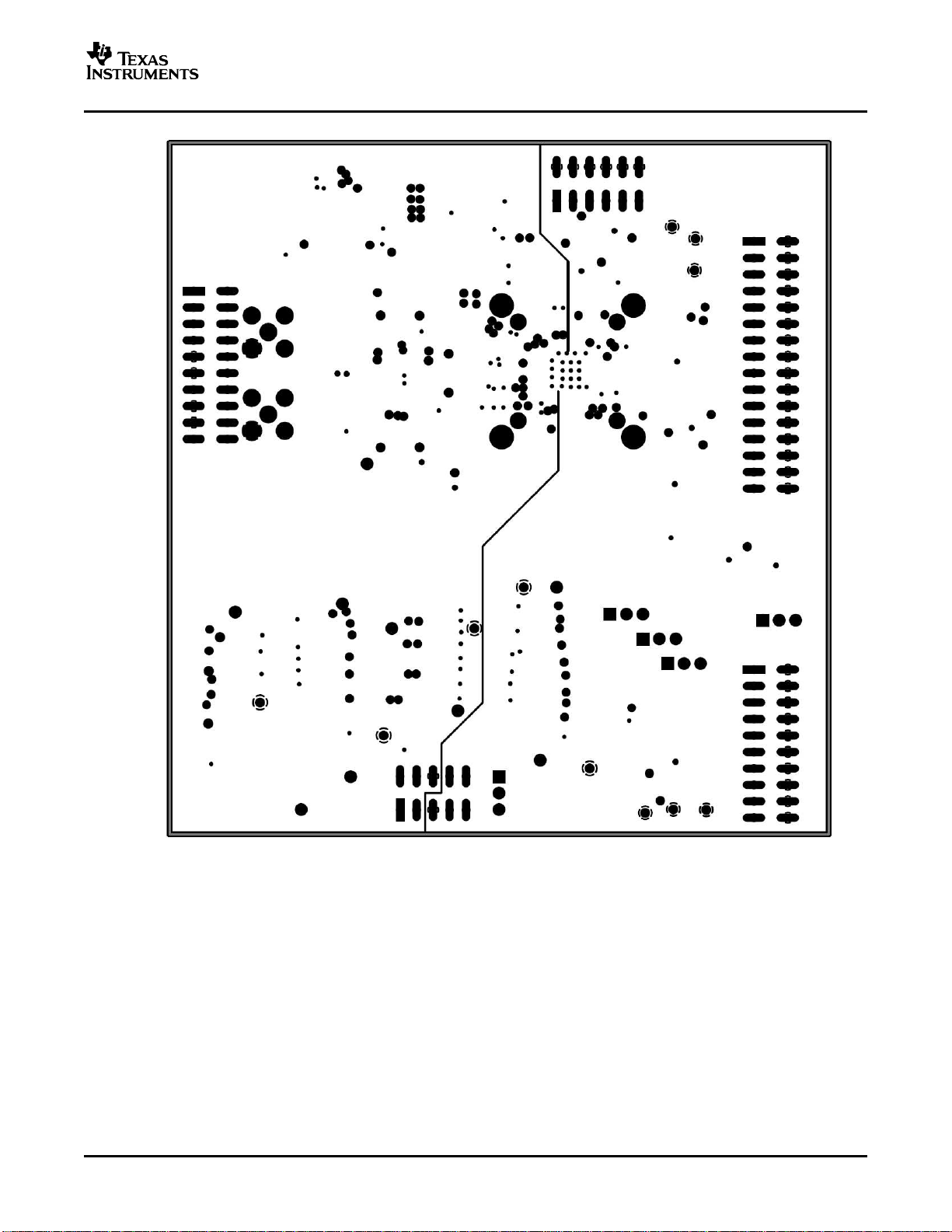

Figure 3. Ground Plane - Layer 2
ADS8402/ADS8406/ADS8412 EVM User's GuideSLAU126A – December 2003 – Revised September 2004 11

www.ti.com
ADS8402/ADS8406/ADS8412EVM Layouts

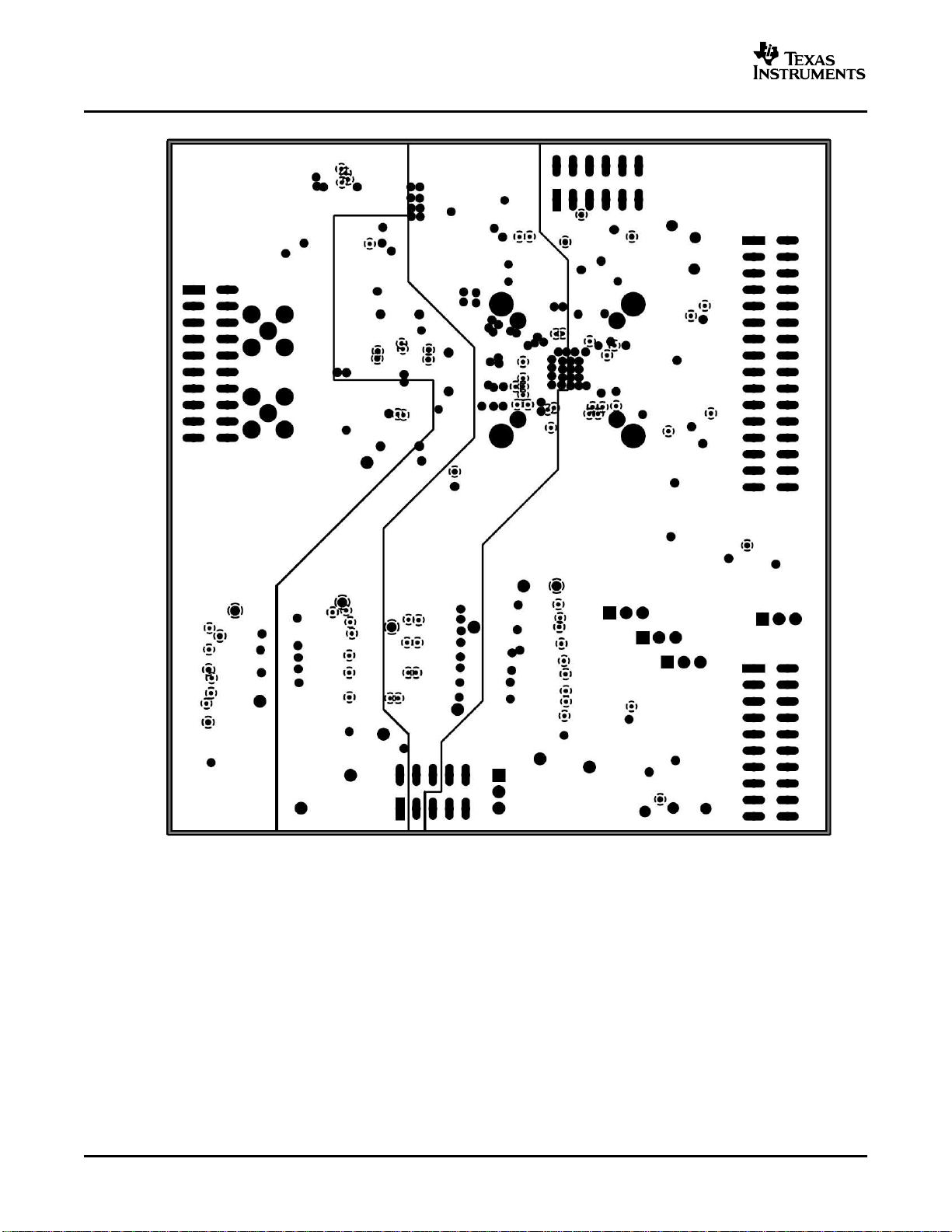

Figure 4. Power Plane - Layer 3
ADS8402/ADS8406/ADS8412 EVM User's Guide12 SLAU126A – December 2003 – Revised September 2004

www.ti.com
8 ADS8402/ADS8406/ADS8412EVM Schematic
ADS8402/ADS8406/ADS8412EVM Schematic
Figure 5. Bottom - Layer 4

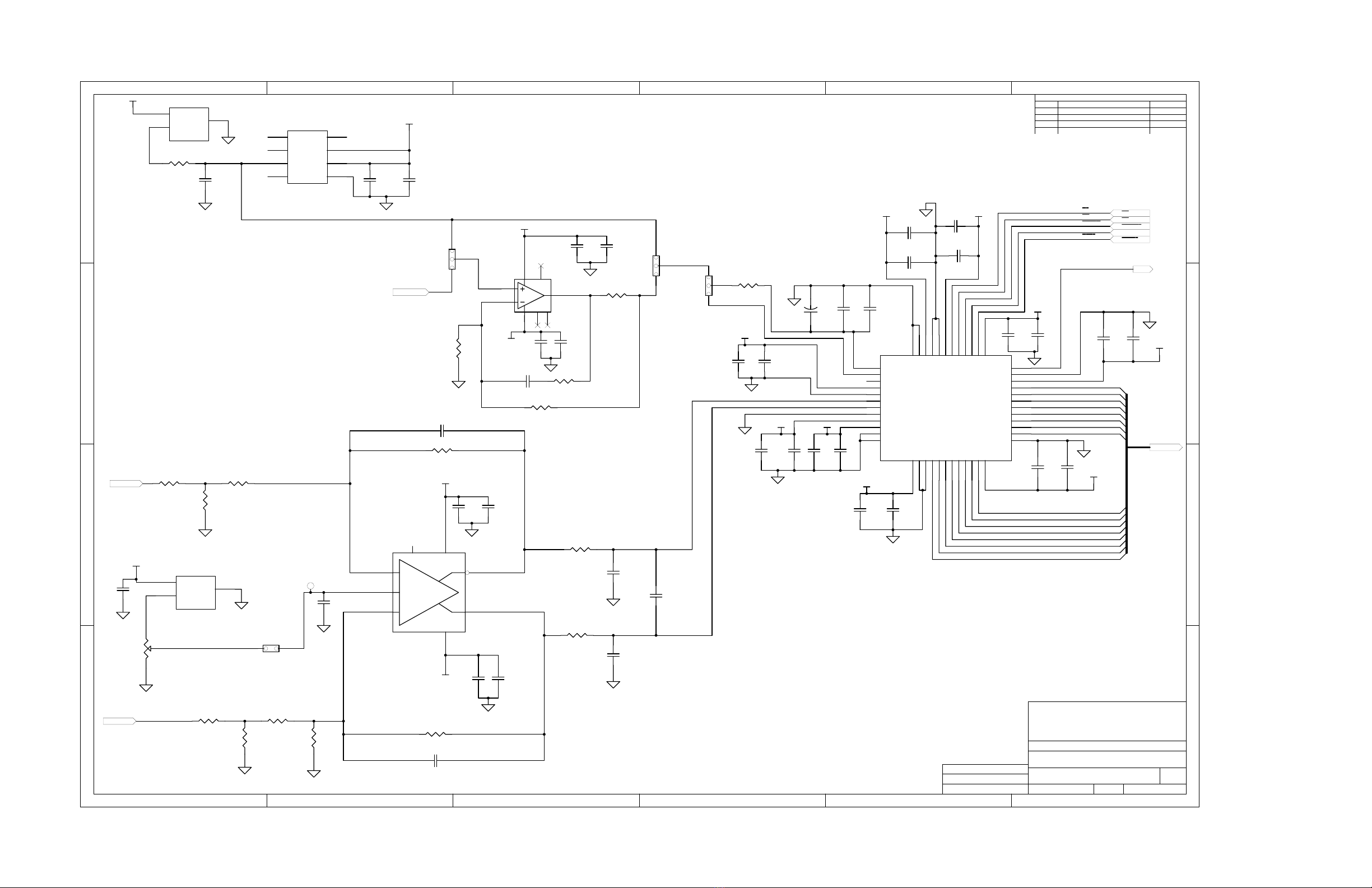

The schematic is located on the following pages.
SLAU126A – December 2003 – Revised September 2004 13ADS8402/ADS8406/ADS8412 EVM User's Guide

123456
A
B
C
D
6
54321
D
C
B
A
ti
12500 TI Boulevard. Dallas, Texas 75243
TITLE:
SHEET: OF:
FILE: SIZE:
REV:
Drawn By:
Engineer:
Revision History
REV ECN Number Approved
DOCUMENT CONTROL #:
13
BlockDiagram.sch
C
DATE: 29-Jul-2004

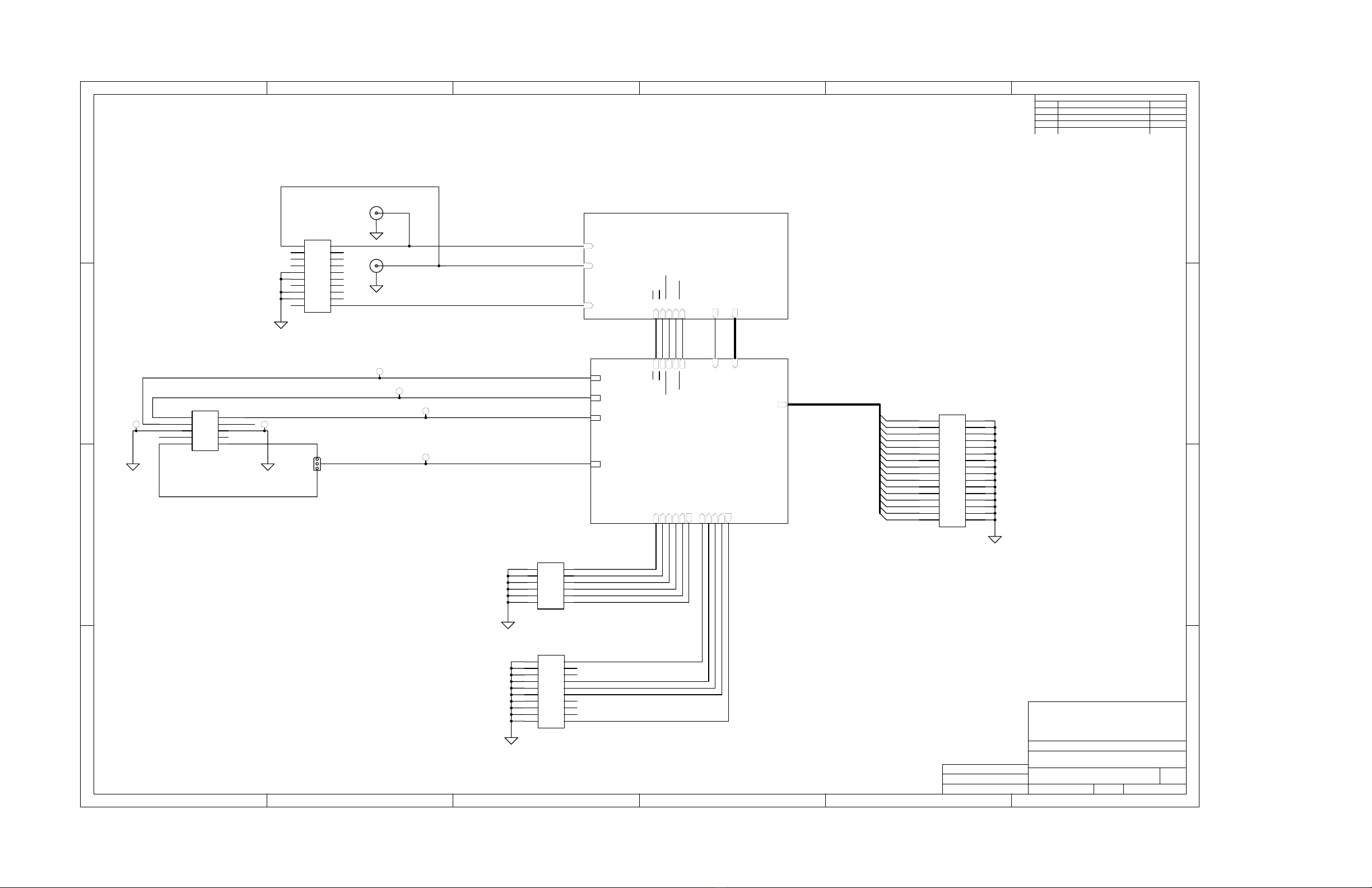

ADS8402/ADS8406/ADS8412EVM Block Diagram
6446998
-IN
+IN
EXT_REF
B_CS B_RD B_CONVST B_BYTE B_RESET BUSY DB[15...0]
Analog-to-Digital Converter
ADC Data Bus
Analog Input
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
P1
B_DB[15...0]
DB[15...0]
CS RD CONVST BYTE RESET B_BUSY
BUSY
B_CS
B_RD
B_CONVST
B_BYTE
B_RESET
+AVCC
+VA
-VA
+BVDD
DC_CS A0 A1 A2 INTc
Power & Digital Buffer
J2
B_DB[15...0]
DB[15..0]
B_DB0
B_DB1
B_DB2
B_DB3
B_DB4
B_DB5
B_DB6
B_DB7
B_DB8
B_DB9
B_DB10
B_DB11
B_DB12
B_DB13
B_DB14
B_DB15
J4
+BVDD
TP11
TP14
TP13
TP12
CS
RD
CONVST
BYTE
RESET
B_BUSY
ADC Control
12 34 56 78 9
11
10
12
J3
1
122
3
344
5
566
7
788
9
910 10
11
11 12 12
13
13 14 14
15
15 16 16
17
17 18 18
19
19 20 20
21
21 22 22
23
23 24 24
25
25 26 26
27
27 28 28
29
29 30 30
31
31 32 32
P3
TP9 TP10
1 2
3 4
5 6
7 8
910
J1
+VA -VA
+5VD
AGND
+5VA
DGND
+3.3VD
W1
DC_CS
A0
A1
A2
INTc
Lijoy Philipose
Lijoy Philipose
12 34 56 78 910 1112 1314 1516 1718 1920
P2
Parallel Control

1 2 3 4 5 6
A
B
C
D
6
54321
D
C
B
A
ti
12500 TI Boulevard. Dallas, Texas 75243
TITLE:
SHEET: OF:
FILE: SIZE:
REV:
Drawn By:
Engineer:
Revision History
REV ECN Number Approved
DOCUMENT CONTROL #:
23
Analog-to-Digital Converter
C
DATE: 29-Jul-2004
Analog-to-Digital Converter
6446998
C21
0.01uF
C43
0.1uF
C42
0.1uF
C48
0.01uF
C41
0.01uF
C47
0.1uF
C52
0.1uF
C44
0.01uF
C55
0.1uF
C56
0.01uF
+5VCC
+5VCC
+5VCC
+5VCC
C54
0.1uF
C50
.01uF
+5VCC
C51
0.1uF
C53
0.01uF
+VBD
B_CS
B_RD
B_CONVST
B_BYTE
BUSY
B_RESET
+VBD
DB0
DB1
DB2
DB3
DB4
DB5
DB6
DB7
DB8 DB9 DB10 DB11 DB12 DB13 DB14 DB15
C46
0.01uF
C40
0.1uF
+5VCC
BUSY
DB[15...0]
B_CS
B_RD
B_BYTE
B_CONVST
B_RESET
-IN
-VCC
+VCC
C34
68pF
R7
1k
C7
0.1uF
C31
1uF
C37
1uF C15 0.1uF
R12
25
C38
NI
R10
1k
R13
25
C39
NI
+IN
C33
1uF
R5
100
EXT_REF
R4
910
DB[15...0]
R11
NI
R1
1k
TP4
31
2
SJP2
+
C49
10uF
C8
0.1uF
C13
0.01uF
+VBD
5
4
8
1
2
+
-
VOCM
VOUT-
VOUT+
36
+VCC
-VCC
7
NC
U2
THS4503
12
SJP3
IN
1
OUT
2GND 3
U1
REF3040
+5VCC
C16
1uF C17
6800pF
NC 1
+VIN 2
EN 3
GND 4 NC
5
VREF
6
NC
7
NC
8
U9
NI
+5VCC
C18
0.01uF
C45
0.1uF
C30
22uF
R21
0
R14
100
C61
NI
-VCC
C59
1uF C36 0.1uF
+VCC
C32
0.1uF
C60
1uF
IN
1
OUT
2GND 3
U3
REF3040
+5VCC
R3
NI
3 1
2
SJP5
3 1
2
SJP4
R2
NI
3
26
7 4 5 18
U8NI
R9
10k
R15
0
R6
NI
R8
NI
R22
NI
REFIN
1
REFOUT
2
NC
3
+VA
4
AGND
5
+IN
6
-IN
7
AGND
8
+VA
9
+VA
10
AGND
11
AGND
12
AGND
14
AGND
15
DB15
16
DB14
17
DB13
18
DB12
19
DB11
20
DB10
21
DB9
22
DB8
23
+VBD
24
BDGND 25
DB7 26
DB6 27
DB5 28
DB4 29
DB3 30
DB2 31
DB1 32
DB0 33
+VBD 34
BDGND 35
BUSY 36
+VBD 37
RESET 38
BYTE 39
CONVST 40
RD 41 CS 42
+VA 43
AGND 44 AGND 45
+VA 46
REFM 47 REFM 48
+VA
13
U4
ADS8402/ADS8412
C35 68pF
C62
0.1uF
C65
0.01uF
R23
50
Lijoy Philipose
Lijoy Philipose

123456
A
B
C
D
6
54321
D
C
B
A
ti
12500 TI Boulevard. Dallas, Texas 75243
TITLE:
SHEET: OF:
FILE: SIZE:
REV:
Drawn By:
Engineer:
Revision History
REV ECN Number Approved
DOCUMENT CONTROL #:
33
Power & Digital Buffer
C
DATE: 29-Jul-2004
Power Supply & Digital Buffer Circuit
6446998
L4
BLM21AJ601SN1L
L2
BLM21AJ601SN1L
L1
BLM21AJ601SN1L
C28
1uF
C2
1uF
C4
0.01uF
C26
0.01uF
L3
BLM21AJ601SN1L
TP6 +5VCC
C10
0.01uF
C9
0.1uF
TP5
TP8 +VBD
C20
0.01uF
C22
0.1uF
TP7
TP3
TP1
TP2
+VCC
-VCC
C12
10uF
C19
10uF
C6
10uF
C1
10uF
C5
1nF
C3
1nF
C23
1nF
C11
1nF
B_DB[17...0]
116
215
314
413
5
9
12
6
810
11
7
RP1
1K
+VBD
/OE
DIR
A1
A2
A3
A4
A5
A6
A7
A8
B1
B2
B3
B4
B5
B6
B7
B8
VCC
GND
U6
SN74AHC245PWR
+VBD
C57
0.1uF
116
215
314
413
5
9
12
6
810
11
7
RP3
1K
+VBD
/OE
DIR
A1
A2
A3
A4
A5
A6
A7
A8
B1
B2
B3
B4
B5
B6
B7
B8
VCC
GND
U7
SN74AHC245PWR
+VBD
C58
0.1uF
DB[17...0]
DB15
DB14
DB13
DB12
DB11
DB10
DB9
DB8
DB7
DB6
DB5
DB4
DB3
DB2
DB1
DB0
B_DB15
B_DB14
B_DB13
B_DB12
B_DB11
B_DB0
B_DB10
B_DB1
B_DB9
B_DB2
B_DB8
B_DB3
B_DB7
B_DB4
B_DB6
B_DB5
CS
RD
CONVST
BYTE
RESET
B_BUSY
116
215
314
413
5
9
12
6
810
11
7
RP2
100
/OE
DIR
A1
A2
A3
A4
A5
A6
A7
A8
B1
B2
B3
B4
B5
B6
B7
B8
VCC
GND
U5
SN74AHC245PWR
+VBD
C25
0.1uF
CS
RD
CONVST
BYTE
RESET
R20
10k R19 10k R18 10k
+VBD
R17
10k
R16
10k
BUSY
B_CS
B_RD
B_CONVST
B_BYTE
B_RESET
+AVCC +VA
-VA
DB[17...0]
B_DB[17...0]
+BVDD
B_CS
B_BYTE
B_CONVST
B_RD
B_RESET
+
C14
10uF
+
C24
10uF
+
C27
10uF
+
C29
10uF
A1
B2
C3
G1 6
G2A 4
G2B 5
Y0
15 Y1
14 Y2
13 Y3
12 Y4
11 Y5
10 Y6
9Y7
7
VCC 16
GND
8
U11
SN74AHC138PWR
A0
A1
A2
A0
A2
A1
+VBD
C63
0.1uF
+VBD
1
3
2
W2
1
3
2
W5
W4
2 4
53
U10
SN74AHC1G04DBV
+VBD
C64
0.1uF
W3
DC_CS
R24
10k
+VBD
RESET#
S1
R25
100
C66
0.01uF
INTc
DC_CS
Lijoy Philipose
Lijoy Philipose

www.ti.com
ADS8402/ADS8406/ADS8412EVM Schematic
Related Documentation from Texas Instruments
To obtain a copy of any of the following TI documents, call the Texas Instruments Literature ResponseCenter at [phone] or the Product Information Center (PIC) at [phone]. When ordering,identify this document by its title and literature number. Updated documents can also be obtainedthrough the TI Web site at www.ti.comData Sheets: Literature Number:ADS8402 SLAS154ADS8406 SLAS426ADS8412 SLAS384REF3040 SBVS032SN74AHC138 SCLS258SN74AHC245 SCLS230SN74AHC1G04 SCLS318THS4503 SLOS352
ADS8402/ADS8406/ADS8412 EVM User's Guide SLAU126A – December 2003 – Revised September 200414

www.ti.com
ADS8402/ADS8406/ADS8412EVM Schematic
FCC Warnings
This equipment is intended for use in a laboratory test environment only. It generates, uses, and can radiate radio frequencyenergy and has not been tested for compliance with the limits of computing devices pursuant to subpart J of part 15 of FCC rules,which are designed to provide reasonable protection against radio frequency interference. Operation of this equipment in otherenvironments may cause interference with radio communications, in which case the user at his own expense will be required totake whatever measures may be required to correct this interference.
EVM IMPORTANT NOTICE
Texas Instruments (TI) provides the enclosed product(s) under the following conditions:This evaluation kit being sold by TI is intended for use for ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLYand is not considered by TI to be fit for commercial use. As such, the goods being provided may not be complete in terms ofrequired design-, marketing-, and/or manufacturing-related protective considerations, including product safety measures typicallyfound in the end product incorporating the goods. As a prototype, this product does not fall within the scope of the European Uniondirective on electromagnetic compatibility and therefore may not meet the technical requirements of the directive.Should this evaluation kit not meet the specifications indicated in the EVM User's Guide, the kit may be returned within 30 daysfrom the date of delivery for a full refund. THE FOREGOING WARRANTY IS THE EXCLUSIVE WARRANTY MADE BY SELLERTO BUYER AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING ANYWARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user indemnifies TI from allclaims arising from the handling or use of the goods. Please be aware that the products received may not be regulatory compliantor agency certified (FCC, UL, CE, etc.). Due to the open construction of the product, it is the user's responsibility to take any and allappropriate precautions with regard to electrostatic discharge.EXCEPT TO THE EXTENT OF THE INDEMNITY SET FORTH ABOVE, NEITHER PARTY SHALL BE Liable to the other FORANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.TI currently deals with a variety of customers for products, and therefore our arrangement with the user is not exclusive.TI assumes no liability for applications assistance, customer product design, software performance, or infringement ofpatents or services described herein.
Please read the EVM User's Guide and, specifically, the EVM Warnings and Restrictions notice in the EVM User's Guide prior tohandling the product. This notice contains important safety information about temperatures and voltages. For further safetyconcerns, please contact the TI application engineer.Persons handling the product must have electronics training and observe good laboratory practice standards.No license is granted under any patent right or other intellectual property right of TI covering or relating to any machine, process, orcombination in which such TI products or services might be or are used.EVM WARNINGS AND RESTRICTIONS
It is important to operate this EVM within the input voltage range of ±6 V and the output voltage range of 0 V and 5.5 V.Exceeding the specified input range may cause unexpected operation and/or irreversible damage to the EVM. If there arequestions concerning the input range, please contact a TI field representative prior to connecting the input power.Applying loads outside of the specified output range may result in unintended operation and/or possible permanent damage to theEVM. Please consult the EVM User's Guide prior to connecting any load to the EVM output. If there is uncertainty as to the loadspecification, please contact a TI field representative.During normal operation, some circuit components may have case temperatures greater than 60 °C. The EVM is designed tooperate properly with certain components above 60 °C as long as the input and output ranges are maintained. These componentsinclude but are not limited to linear regulators, switching transistors, pass transistors, and current sense resistors. These types ofdevices can be identified using the EVM schematic located in the EVM User's Guide. When placing measurement probes nearthese devices during operation, please be aware that these devices may be very warm to the touch.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265Copyright © 2004, Texas Instruments Incorporated
Important NoticesSLAU126A – December 2003 – Revised September 2004 15

IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements,improvements, and other changes to its products and services at any time and to discontinue any product or service without notice.Customers should obtain the latest relevant information before placing orders and should verify that such information is current andcomplete. All products are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’sstandard warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support thiswarranty. Except where mandated by government requirements, testing of all parameters of each product is not necessarilyperformed.
TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products andapplications using TI components. To minimize the risks associated with customer products and applications, customers shouldprovide adequate design and operating safeguards.TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, maskwork right, or other TI intellectual property right relating to any combination, machine, or process in which TI products or servicesare used. Information published by TI regarding third-party products or services does not constitute a license from TI to use suchproducts or services or a warranty or endorsement thereof. Use of such information may require a license from a third party underthe patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI.Reproduction of information in TI data books or data sheets is permissible only if reproduction is without alteration and isaccompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is anunfair and deceptive business practice. TI is not responsible or liable for such altered documentation.Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or servicevoids all express and any implied warranties for the associated TI product or service and is an unfair and deceptive businesspractice. TI is not responsible or liable for any such statements.TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product wouldreasonably be expected to cause severe personal injury or death, unless officers of the parties have executed an agreementspecifically governing such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramificationsof their applications, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-relatedrequirements concerning their products and any use of TI products in such safety-critical applications, notwithstanding anyapplications-related information or support that may be provided by TI. Further, Buyers must fully indemnify TI and itsrepresentatives against any damages arising out of the use of TI products in such safety-critical applications.TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products arespecifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet militaryspecifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade issolely at the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements inconnection with such use.TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI productsare designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use anynon-designated products in automotive applications, TI will not be responsible for any failure to meet such requirements.Following are URLs where you can obtain information on other Texas Instruments products and application solutions:
Products Applications
Amplifiers amplifier.ti.com Audio www.ti.com/audioData Converters dataconverter.ti.com Automotive www.ti.com/automotiveDSP dsp.ti.com Broadband www.ti.com/broadbandInterface interface.ti.com Digital Control www.ti.com/digitalcontrolLogic logic.ti.com Military www.ti.com/militaryPower Mgmt power.ti.com Optical Networking www.ti.com/opticalnetworkMicrocontrollers microcontroller.ti.com Security www.ti.com/securityRFID www.ti-rfid.com Telephony www.ti.com/telephonyLow Power www.ti.com/lpw Video & Imaging www.ti.com/videoWireless
Wireless www.ti.com/wireless
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265Copyright © 2007, Texas Instruments Incorporated

Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Texas Instruments:
ADS8402EVM ADS8412EVM ADS8406EVM
