Thales KPG-opt 4FSM-IN User manual

Optical Multi Meter
KPG-opt 4FSM-IN
General Product Information KPG-opt 4FSM

KPG-opt
Table of content
1Introduction 2
1.1 Purpose 2
1.2 Description 2
2Material 4
3Technical Data 5
3.1 Electrical Data 5
3.2 Mechanical and climatic data 6
4 7
4.1 Front View 7
4.2 Design 10
4.3 Operation 11
5Main Functions 12
5.1 Operations construction team 12
5.1.1 Cable drum test 12
5.1.2 Measurement of a deployed cable 13
5.2 Measurements Diagnosticians 15
5.2.1 Power meter 16
5.2.2 Testframe 17
5.2.3 Optical Source 18
6Safety regulations 19
6.1 Operator protection 19
6.2 Protection of equipments 19
1

KPG-opt
1 Introduction
1.1 Purpose
1 The Optical Multi Meter KPG-opt is designed to test
fiber optic cable drums and entire fiber optic links.
2 The KPG-opt supports diagnosticians to detect
possible failures in the fiber optic link.
1.2 Description
The following main measurements are foreseen:
3 Construction teams:
- Attenuation measurement of an optical cable drum
with 2 or 4 fibers, single mode.
- Attenuation measurement of an optical signal of a
complete optical link.
- The KPG-opt automatically generates a Good/Bad
calculation of the measured values.
4 Diagnostic:
- Power measurement of an optical signal
2

KPG-opt
- Optical power source with selectable power level
- Optional transmission of user specific data frames
3

KPG-opt
2 Material
5
Figure 1 – KPG-opt Material
6 No QTY Description
1 1 KPG-opt
2 6 Batteries (AA-Type, LR6)
4

KPG-opt
3 Technical Data
3.1 Electrical Data
7 Transmitter (Single Mode) 1310 nm ± 40 nm
Tx Power Level for cable
test – 5 dBm
Tx Level for optical power
source
– 3 ... – 12 dBm
Stability of Tx Level ± 1 dBm
Rx measurement range – 35 dBm … 0 dBm
Accuracy ± 1 dBm
max. Input Level + 3 dBm
Resolution 0.1 dB
Autonomy (Battery life):
- Cable test
- Optical Transmitter
at + 20°C
400 Tests
4 h
Battery life at - 10°C is reduced to approx. 50 %
5

KPG-opt
3.2 Mechanical and climatic data
8
Dimensions
Equipment
L x B x H
270 x 145 x 80 mm
Weight
Equipment 1.6 kg
Temperature
Operation
Storage
– 10 to + 50 °C
– 30 to + 60 °C
Humidity IP 64
6

KPG-opt
4 Outline
4.1 Front View
9
Off >2sec
Reset
AUXMAIN
Laser on
2
1
3
4
5
7
6
Figure 2 – KPG-opt front view
7

KPG-opt
10 No Description
1 LCD – Display
2 Sensor (Brightness control for display)
3 LED Laser on
4 optical Connector "MAIN" with protection cap
5 optical Connector "AUX" with protection cap
6 Keypad
7 Rubber bumper (Shock absorber)
8

KPG-opt
11
1
2
3

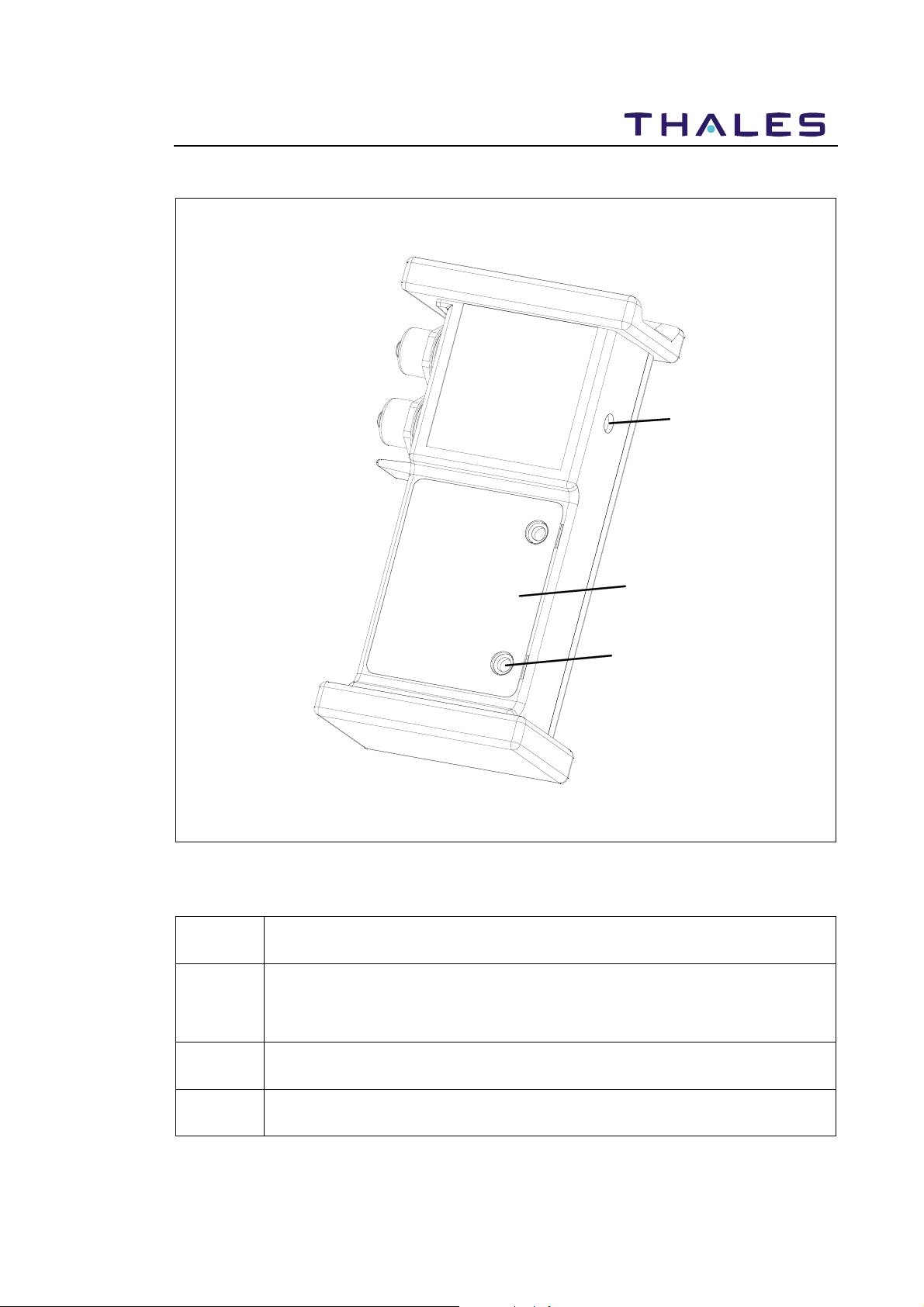

Figure 3 – KPG-opt Back view
12 No Description
1 Connector external power supply 10-36
VDC
2 Battery cover
3 Quick lock for battery cover
9

KPG-opt
4.2 Design
13 The KPG-opt is built in an shock resistant plastic
housing with a ruggedized keypad with four keys.
14 An LCD display with four lines shows the functions
and the results of the measurements. The menu
guidance simplify the operations.
15 Two optical connectors are mounted at the side to
enable easy connection of the fiber optical cable.
16 The KPG-opt is battery operated. The battery cover
is secured with two quick-lock screws which can be
easily opened with a coin, knife or screw driver.
On some versions of the KPG-opt a jack is located at
the side to connect an external power supply.
10

KPG-opt
4.3 Operation
17 The KPG-opt is operated with four keys. The
available menus are shown in the display and the
required functions can be easily selected with the
menu keys.
The results of the measurements are shown in the
display and some tests are rated with a good/bad
indication.
The device is switched off by pressing the power
button for approx. 3 seconds or, in case of non-use,
the automatic switch-off is activated after 3 minutes.
<Select>
READ
18 Key Function
- Switch on - / off
- Menu change
- Function change (scroll)
- Function leave
- Function start (select)
- Menu select
<Select>
START
<Return>
Function
<Home>
Power
11

KPG-opt
5 Main Functions
5.1 Operations construction
team
5.1.1 Cable drum test
19
Reset
AUXMAIN
Laser on
<Select> <Select>
READ
START
<Return>
Function
off>2sec
Power
<Home>
K
PG
Figure 4 – Drum test
20 Attenuation measurement of a cable drum in dB
using the „CABLEDRUM“ - test. To test 4 fibers, a
loop connector is required.
12

KPG-opt
5.1.2 Measurement of a
deployed cable
21
KPG-opt
LOCAL
Loop
connector
Figure 5 – Cable test
13

KPG-opt
22 Test of a fiber optical cable before, during and after
field deployment.
Attenuation:2323
Attenuation of the entire link in dB.
14

KPG-opt
5.2 Measurements Diagnosti-
cians
2424
Reset
AUXMAIN
Laser on
<Select> <Select>
READ
START
<Return>
Function
off>2sec
Power
<Home>
K
PG

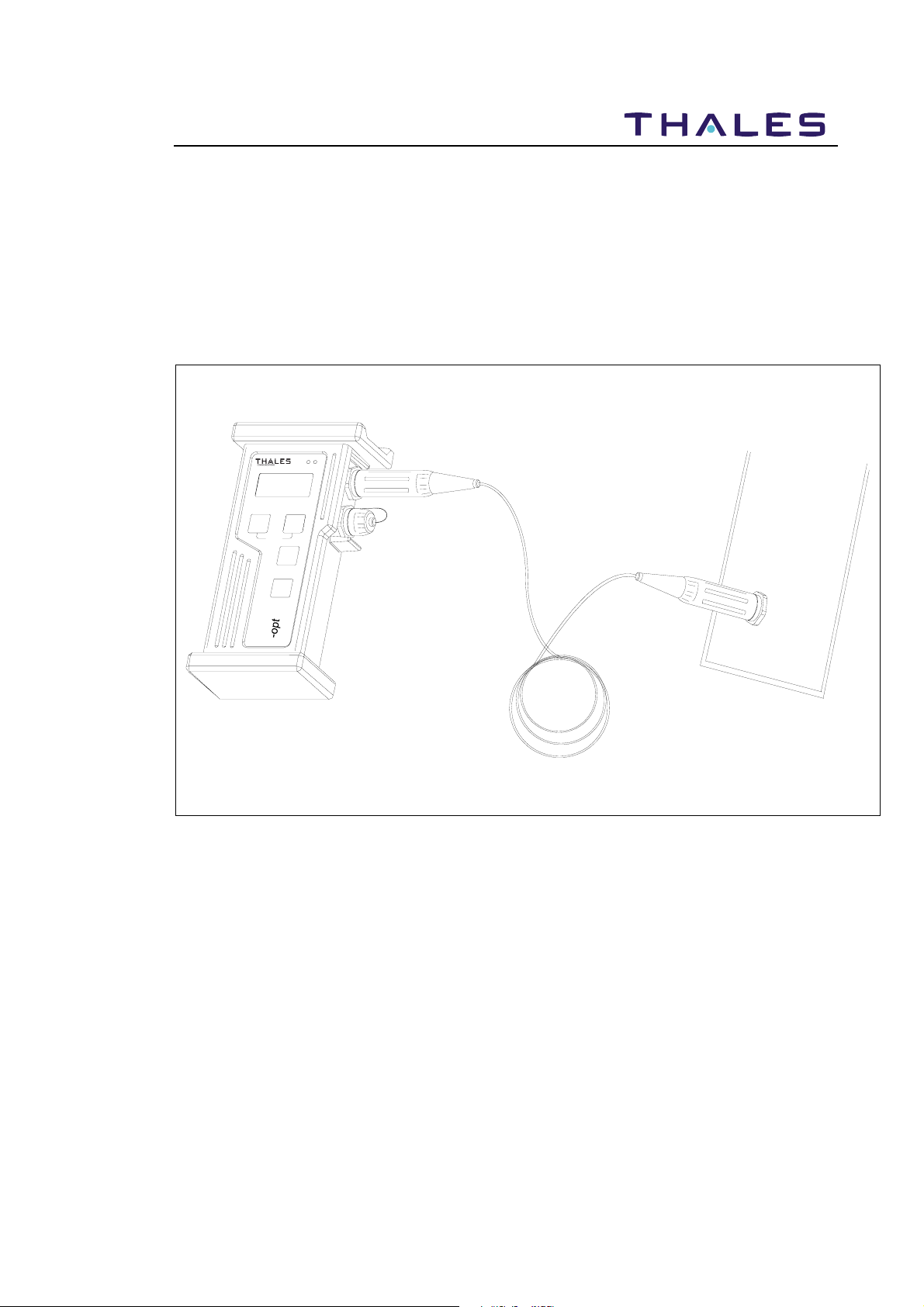

Figure 6 - KPG-opt with optical interface cable
Measurements and diagnostics on the equipment:
2525
- Power meter function
- Optical source (unmodulated)
15

KPG-opt
5.2.1 Power meter
The KPG-opt measures the optical power which is
received through the optical cable.
2626
2727
2828
The Receiver is calibrated between a range of −35
dBm to 0 dBm to measure optical power at the main
connector.
An optional attenuator cable can be used to lower
the signal.
16

KPG-opt
5.2.2 Test frame (option)
The KPG-opt can be optionally prepared to generate
„Test Frames“ which can be detected by the
equipment in the system. This feature can be used
for diagnostics and function checks.
2929
3030 The output power can be adjusted with the <Select>
key within the range of −5 to −15 dBm in 1 dB Steps.
31 The max. data rate for test frames is limited to <34
Mbps.
17

KPG-opt
5.2.3 Optical Source
KPG-opt used as optical source (Laser transmitter).3232
3333
3434
3535
A continuous optical signal is generated and sent to
the main connector with constant power.
The output power can be adjusted with the <Select>
key within the range of –3 to –12dBm in 1 dB Steps.
An optional attenuator cable (PK-opt -18 dB) can be
used to lower the signal by 18dB.
18
