THE BOLD LOOK OF KOHLER K-1188 User manual

Installation Guide
Overflowing Bath
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de Mcorresponden a México
(Ej. K-12345M)
Français, page “Français-1”
Español, página “Español-1”
K-1188, K-1189
1019731-2-A

Important Information
WARNING: When using electrical products, basic precautions should always be followed, including
the following:
DANGER: Risk of electric shock. Connect only to a circuit protected by a Ground-Fault
Circuit-Interrupter (GFCI) or Earth-Leakage Circuit-Breaker (ELCB).
WARNING: Risk of electric shock. A licensed electrician should make all electrical connections.
WARNING: Risk of electric shock. Disconnect power before servicing.
WARNING: Risk of injury or property damage. Please read all instructions thoroughly before
beginning installation, including the following requirements.
NOTICE: Follow all local plumbing and electrical codes.
Install to permit access for servicing.
A green with yellow stripe lead wire is provided within the wiring compartment. To reduce the risk of
electrical shock, connect this wire to the grounding terminal of your electric service or supply panel with
copper wire equivalent in size to the circuit conductor supplying this equipment.
A pressure wire connector is provided on the exterior of the pump or control within this unit to permit
connection of a bonding conductor between this unit and all other exposed metal in the vicinity, as needed to
comply with local requirements.
Grounding is required. The unit should be installed by a qualified service representative, and grounded.
Building materials and wiring should be routed away from the pump body and other heat-producing
components of the unit.
Important Product Information
Product Notices
WARNING: Unauthorized modification may cause unsafe operation and poor performance of the
overflowing bath. Do not relocate the pump, or make other modifications to the circulating system, as
this could adversely affect the performance and safe operation of your overflowing bath. Kohler Co.
shall not be liable under its warranty or otherwise for personal injury or damage caused by any such
unauthorized modification.
Product Inspection
Carefully unpack the product, and inspect the unit for damage. Return the unit to the carton during
construction to prevent damage.
NOTICE: Make sure the union connections to the pump, in-line heater, and butterfly valves are securely
tightened. Do not overtighten.
Factory-Assembled Features
Factory installed components include pump, level sensors, in-line heater, submerged chromatherapy lights
(optional), control and switch. The pump and piping are factory-assembled.
Connections and Service Access
1019731-2-A 2 Kohler Co.

Important Product Information (cont.)
NOTICE: Provide unrestricted service access to the pump and heater. Provide unrestricted service access
to the pump, in-line heater, adjustable feet, and control box. You must construct an access panel to provide
sufficient clearance for servicing the pump, in-line heater, and control box. The access panel must be
located immediately next to the pump and in-line heater. Study the roughing-in information.
Electrical Requirements
The installation must have two Class A Ground-Fault Circuit-Interrupters (GFCI’s) or Earth-Leakage
Circuit-Breaker (ELCB’s). The GFCI/ELCB protects against line-to-ground shock hazard. Use a 240V, 20A,
50/60 Hz dedicated service for the pump controls. Use a separate 240V, 20A, 50/60 Hz dedicated service for
the heater.
An equipment grounding terminal is provided in the field wiring compartment. To reduce the risk of
electrical shock, this terminal must be connected to the grounding means provided in the electrical supply
panel with a conductor equivalent in size to the circuit conductors supplying this equipment.
Install this unit in accordance with the Canadian Electric code, Part I.
Kohler Co. 3 1019731-2-A

Thank You For Choosing Kohler Company
We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before
you start installation. If you encounter any installation or performance problems, please don’t hesitate to
contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing Kohler
Company.
Recommended Tools and Materials
Introduction
Please read these instructions carefully to familiarize yourself with the required tools, materials, and
installation sequences. Follow the sections that pertain to your particular installation. This will help you
avoid costly mistakes. In addition to proper installation, read all operating and safety instructions.
All information in this manual is based upon the latest product information available at the time of
publication. At Kohler, we constantly strive to improve the quality of our products; we therefore reserve the
right to make changes in product characteristics, packaging, or availability at any time without notice.
Before You Begin
Your overflowing bath is designed for drop-in island installation. Undermount and alcove installations are
also possible.
You must install the overflowing bath onto an adequately supported, level subfloor to permit adequate
leveling during installation.
Provide properly dimensioned framing.
Choose a fill spout which will provide adequate reach and a minimum 2” (5cm) air gap above the bathing
well rim of the overflowing bath. You may need to build up the deck material to obtain adequate air space
because the outer rim may be lower than the bathing well rim depending on the specific area of the
overflowing bath.
Follow local plumbing codes.
The overflowing bath must be filled with water through the bathing well, not the overflow channel.
If you plan to install a deck-mounted, hand-held shower, the diverter vacuum breaker must maintain a
minimum 1” (2.5cm) air gap above the outer rim.
When using the K-922 or K-923 Laminar Bath Spout with drip tray K-924, the distance from the finished
wall to the outside wall of overflow channel should not exceed 2” (5cm).
1019731-2-A 4 Kohler Co.

List of Terms
Bathing well - The deep portion of the overflowing bath used by the bather.
Bathing well rim - The high rim between the bathing well and the overflow channel. Water will evenly
cascade over the bathing well rim and into the overflow channel during operation.
Cavitation - When air is drawn into the pump instead of water to a point where it impairs or stops the
pump’s ability to circulate water.
Chromatherapy control pad - Turns the chromatherapy lights on and off (if equipped).
Chromatherapy lights - Lights provided in the basin of the overflowing bath (if equipped) to enhance
your bathing experience.
Heater - Designed to automatically help maintain the temperature of the water up to 104ºF (40ºC) to
enhance your hydro-massage experience. The heater turns on automatically when the whirlpool is
operating, and turns off when the pump motor is turned off.
Master control - This unit is located beneath the pump. It provides the ″brains″of the system, interpreting
all incoming and outgoing signals.
Metal suction screen - The removable metal screen located over the suction cover in the overflow channel.
The suction screen must always be clean and in place when the overflowing bath is running to prevent
debris from entering the water intake port and to prevent cavitation and poor operation.
Outer rim - The rim along the outside of the overflowing bath.
Overflow channel - The overflow water collection channel surrounding the bathing well. The overflow
channel collects the water overflowing the bathing well rim during normal operation, and channels the
water back into the piping system for recirculation.
Overflow channel sensors - The two metal probes located in the wall of the overflow channel beneath the
drain overflow hood. These sensors prevent activation of the pump if insufficient water is available, and
will automatically shut off the pump if the water level drops below them. The pump will only operate
when these two sensors are completely submerged.
Pump control switch - Turns the pump on and off.
Plastic suction cover - The plastic guard attached over the water intake port located in the overflow
channel. The suction cover must always be installed during product use to ensure user safety.
Pump - The pump circulates the water.
Wire harness - The wire harness connects all powered peripheral components (valves, pump, heater,
switches, lights) to the master control.
Overflow Channel
Sensors

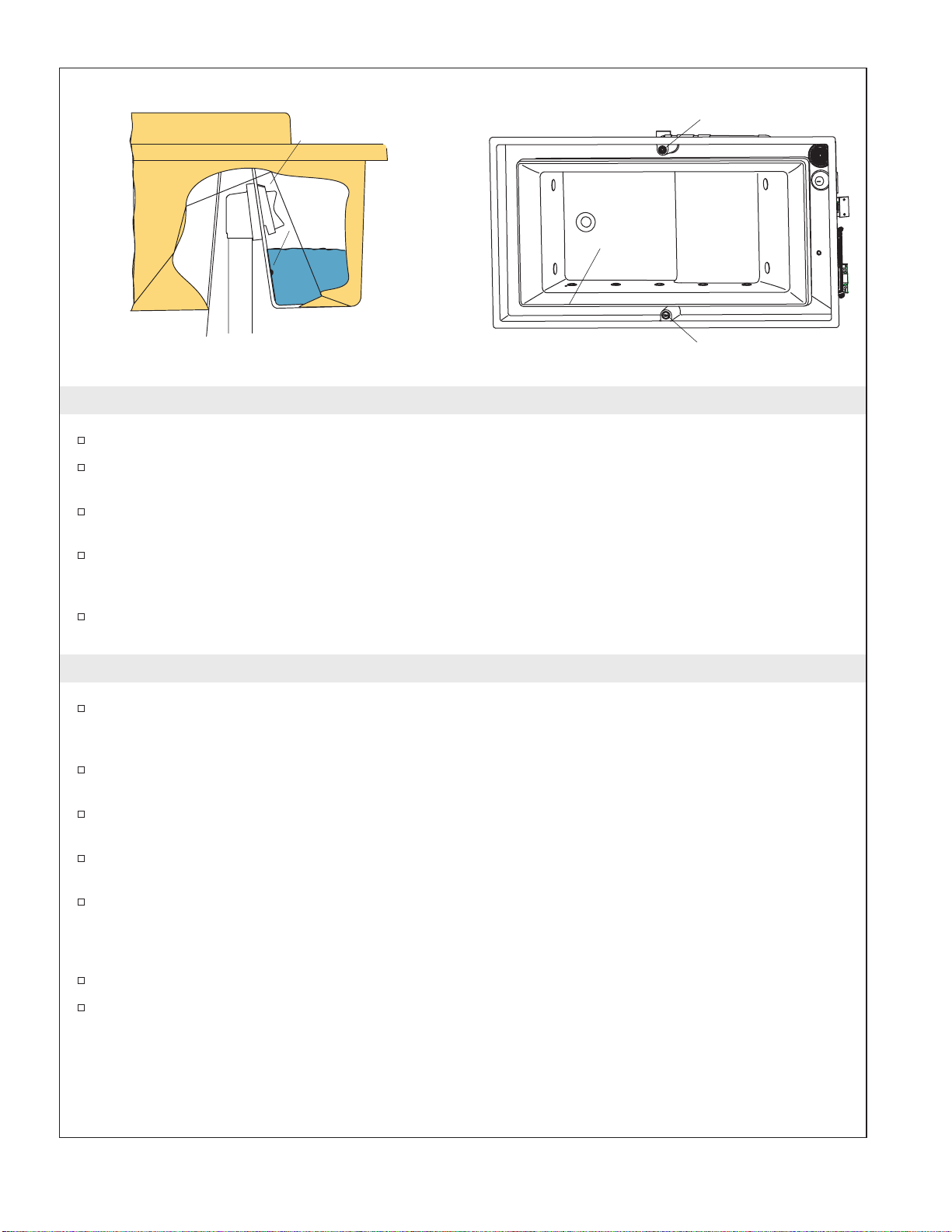

Overflow
Channel
Outer Rim
Bathing Well
Rim
Bathing Well
Metal Suction
Screen Plastic
Suction Cover
Kohler Co. 5 1019731-2-A

1. Roughing In Information
NOTICE: The floor support under the whirlpool must provide for a minimum of 2000 lbs. (907.2kg).
Two separate 240 V electrical services are required: one for the pump/control, and one for the heater.
Consult local and national codes for minimum air gap requirements when installing a spout on the faucet
deck.
The overflowing bath must be filled through the bathing well.
Hot water supply should be 70% of the capacity or greater.
The fixture conforms to ANSI Standard Z124.1. All dimensions are nominal.
There is no change in measurements if connected with the drain illustrated (K-7193, K-7193M).
Cut-Out = 73–1/2” (186.7cm) x 39–1/2” (100.3cm).
An access panel is required. The recommended dimensions for this access panel are 40” (101.6cm)Wx15”
(38.1cm) H. Refer to the roughing-in diagram for suggested access panel location.
Make sure the flooring is in good condition and offers adequate support for your bath.
IMPORTANT! Verify that the subfloor is flat and level. This will help minimize the leveling adjustments
necessary for proper product performance.
No change in measurements if connected with drain
illustrated. (K-7193 or K-7193M)
Cut-out 73-1/2" (186.7cm) x 39-1/2" (100.3cm)
Minimum access:
Pump/control 40" W (101.6cm) x 15" H (38.1cm) required
PUMP/CONTROL ACCESS
2" (5cm) 31-1/2" (80cm)
25"
(63.5cm)
16-13/16"
(42.7cm)
41"
(104.1cm)
20-1/2"
(52.1cm)
7-1/4"
(18.4cm)
5-1/2" (14cm)
1-1/2" N.P.S.
1-1/2" O.D.
3" (7.6cm)
2-7/8"
(7.3cm)
1" (2.5cm)
75" (190.5cm)
63" (160cm)
1" (2.5cm)
1019731-2-A 6 Kohler Co.

2. Construct the Stud Framing
NOTICE: Provide unrestricted service access to the pump, in-line heater, adjustable feet, and control box.
You must construct an access panel to provide sufficient clearance for servicing the pump, in-line heater,
and control box.
Construct stud framing designed for your particular installation. The overflowing bath can be installed in
a deck, undermount, or alcove installation.
Frame the floor, or construct a frame for a raised installation in accordance with the roughing-in
information.
When constructing the framing, allow for the thickness of sub and finished deck materials.
Framing should be of 2x4 construction.
For undermount installation, allow for the thickness of the planned deck material, and provide proper
support. Do not support the overflowing bath by the rim.
When planning the stud framing, take into account the required 2″(5cm) air gap between the end of the
fill spout and the top of the bathing well rim. Take into account the thickness of your planned finished
deck material, and construct the framing and deck material with this minimum air gap in mind.
Alcove
Kohler Co. 7 1019731-2-A

3. Install the Rough Plumbing

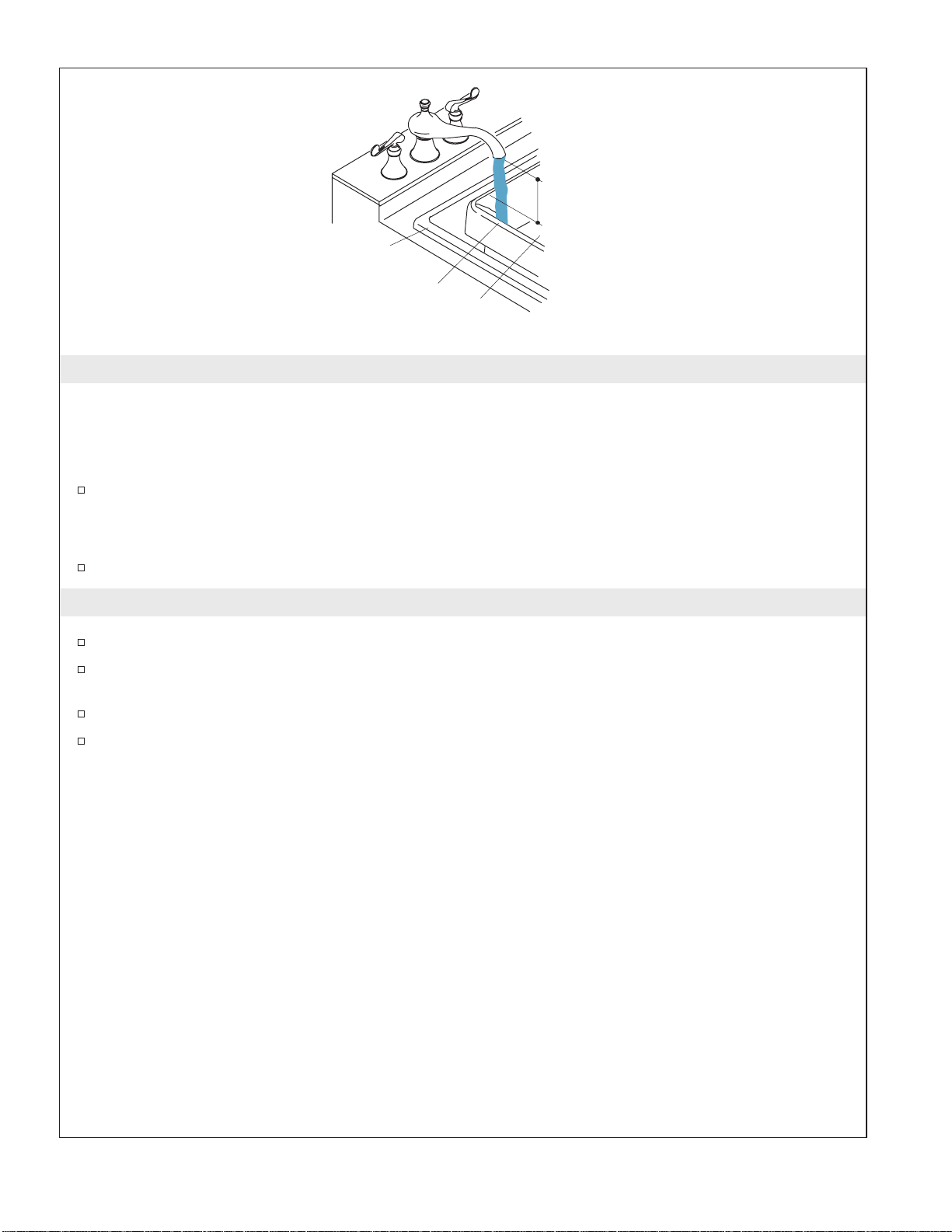

IMPORTANT! Choose a fill spout which will provide a minimum 2″(5cm) air gap above the basin rim of
the overflowing bath. In addition, if you plan to install a deck-mounted, hand-held shower, the diverter
vacuum breaker must maintain a minimum 1″(2.5cm) air gap above the outer rim of the overflowing
bath.
Position the plumbing. Position the fill spout supply so the spout will reach beyond both the outer rim
and the bathing well rim. Water from the fill spout must be directed into the bathing well to fill the
overflowing bath. The overflowing bath should never be filled by directing water into the overflow
channel.
Cap the supplies, and check for leaks.
4. Prepare the Unit
Carefully lift the overflowing bath out of the carton.
Identify the box located inside the overflow channel. This box contains the metal suction screen, and must
be saved for use with this product.
Install the drain according to the drain manufacturer’s instructions. Do not connect the trap at this time.
Position a clean drop cloth or similar material in the bottom of the bath. Be careful not to scratch the
surface of the overflowing bath.

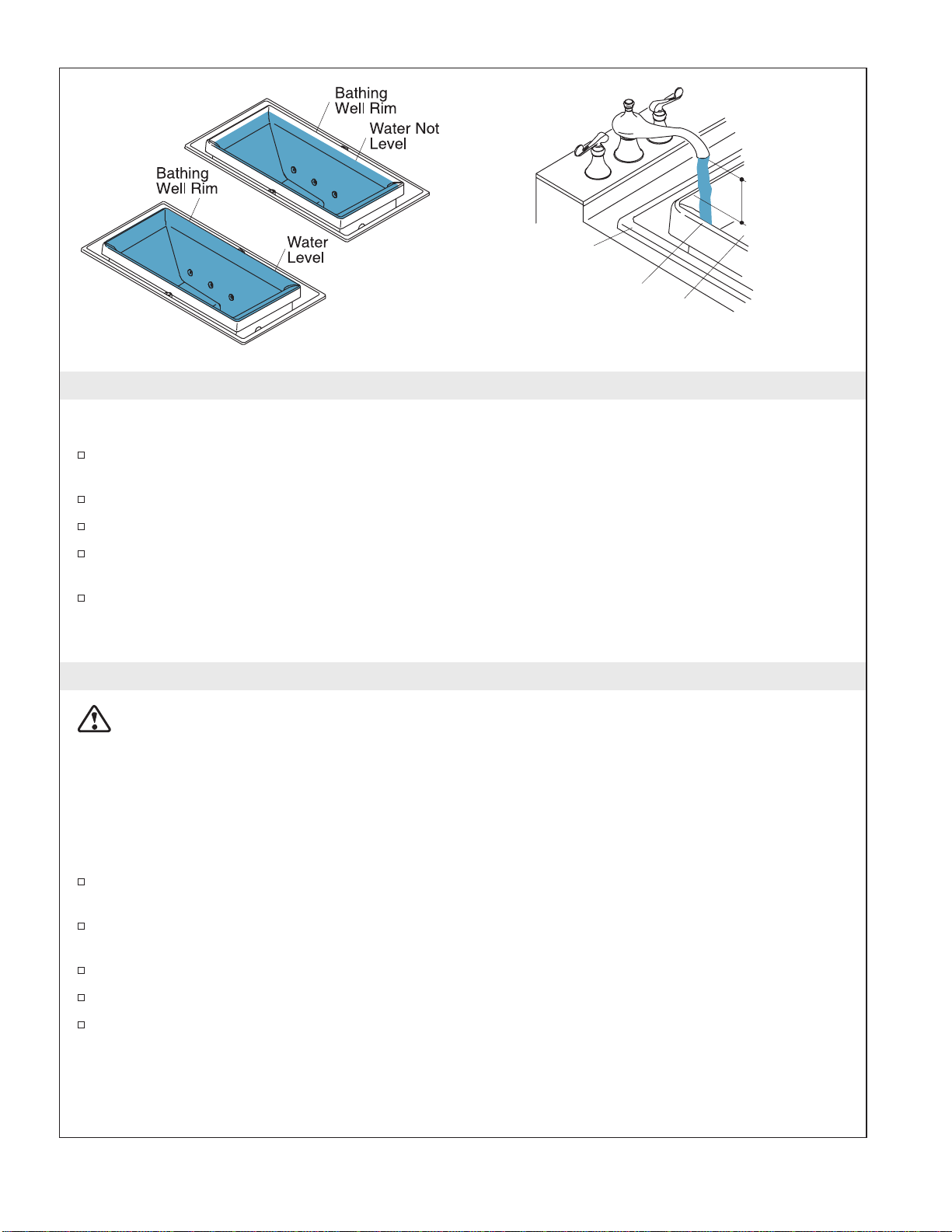

Outer
Rim Bathing
Well Rim Bathing
Well
2 MIN.
(5cm)
1019731-2-A 8 Kohler Co.

5. Position the Unit
CAUTION: Risk of product damage. Do not lift or support the overflowing bath by the pump or
piping.
NOTE: Do not use adhesive or a cement or mortar bed to secure this product to the subfloor.
With help, carefully lift the overflowing bath into place.
NOTE: If you do not have a 4’ (1.2 m) level, go to the next section.
Level by turning the adjustable feet up or down with the wrench (7/8″) attached to the harness near the
pump. Make sure all four adjustable feet rest directly on the subfloor, and make sure the bathing well rim
is level within 1/8″(3mm) in all directions.
After the overflowing bath is level, adjust the leveling foot located underneath the pump. Turn the foot
until it rests directly on the subfloor. Use an accurate 4’ (1.2m) level, if available. Taking the time to
carefully level the overflowing bath now minimizes the need to make leveling adjustments later in the
installation.
Cut and discard the banding straps from the pump.
Make sure the rubber isolation feet are in place.
Insert the drain tailpiece into the trap.
Adjustable Foot
Wrench
Pump Banding
Straps
Kohler Co. 9 1019731-2-A

6. Level the Overflowing Bath (without level)
NOTICE: You do not need electrical power for the unit for the following leveling procedure.
Insert the drain tailpiece into the trap, and connect the drain to the trap according to the drain
manufacturer’s instructions.
Close the drain, and plug or cover the suction cover to temporarily make them watertight.
Use a hose and fresh water supply to fill the bathing well to the bathing well rim.
Observe the water level in relation to the bathing well rim, and use the wrench to turn the adjustable feet
up or down as needed to obtain a uniform water level at each of the four corners.
Open the drain, and unplug the suction cover to drain the bathing well.
IMPORTANT! Allow adequate access to each of the four adjustable feet until after you have test run your
overflowing bath.
7. Install the Plumbing
CAUTION: Risk of property damage. Ensure a watertight seal on the drain connections.
IMPORTANT! Choose a fill spout which will provide adequate air space above the bathing well rim of the
overflowing bath. You may need to build up the deck material to obtain adequate air space because the
outer rim may be lower than the bathing well rim. In addition, if you plan to install a deck-mounted,
hand-held shower, the diverter vacuum breaker must maintain a minimum 1″(2.5cm) air gap above the
outer rim.
NOTE: An access panel will simplify future maintenance.
If you have not yet done so, connect the drain to the trap according to the drain manufacturer’s
instructions.
Install the faucet valving according to the faucet manufacturer’s instructions. Do not install the faucet trim
until instructed.
Make sure all butterfly valves and supply connections are tightened securely.
Open the hot and cold water supplies, and check the supply connections for leakage.
Run water into the bathing well, and check the drain connections for leakage.
Outer
Rim Bathing
Well Rim Bathing
Well
2 MIN.
(5cm)
1019731-2-A 10 Kohler Co.

8. Make the Electrical Connections
NOTE: The whirlpool model number is printed on a label near the whirlpool pump. This label also
identifies the electrical rating of the whirlpool. All whirlpools come equipped with a wiring junction box
and will only operate at 220 V/240 V and at 50 Hz or 60 Hz.
WARNING: Risk of electric shock. To reduce the risk of electric shock, connect the pump to a
properly grounded Ground-Fault Circuit-Interrupter (GFCI) or Earth-Leakage Circuit-Breaker (ELCB).
This will provide additional protection against line-to-ground shock hazard. A 220/240 V, 20 A, 50/60
Hz dedicated circuit is required for the pump, and a second 220/240 V, 50/60 Hz, 20 A dedicated
circuit is required for the heater.
CAUTION: Risk of electric shock. All services must have a Class A Ground-Fault Circuit-Interrupter
(GFCI) or ELCB which will provide additional protection against line-to-ground shock hazard. A
dedicated service is required for the overflowing bath.
The overflowing bath controls and system have been pre-wired at the factory using 220/240 V hardwire. A
licensed electrician should make one routine service connection to the junction box located adjacent to the
pump, and a second routine service connection for the heater junction box.
Connect service to the junction box.
Provide a separate equipment earthing conductor for the earth lug located inside the junction box. The
earthing conductor must not be connected to any current-carrying conductor. Follow local electrical codes.
Bond in accordance with national and local codes.
One 220/240 V, 50/60 Hz, 20 A dedicated circuit is required for the pump control. A second 220/240 V,
50/60 Hz, 20 A dedicated circuit is required for the heater. Provide a Class A Ground-Fault
Circuit-Interrupter (GFCI) or ELCB.
Follow all local electrical codes.
NOTE: Your wiring harness includes an antenna for the remote control. Do not alter or damage this
antenna during installation.
Bond in accordance with
national and local codes
Wire Connectors
From Control
or Heater
From Control
or Heater
60 Hz 50 Hz
Brown
BrownL1L1 NL2
Supply
Blue
Blue
Electrician to
provide suitable
strain relief
Ground (Green with
Yellow Stripe)
Both junction boxes
should be wired as shown.
Each requires a separate
supply.
Heater (models may
vary) inline (shown) or
T-style (not shown)
Pump Electrical
Cord
Heater
Electrical Cord
Wiring
Harness
Junction
Box
Control
Heater
Junction Box
Kohler Co. 11 1019731-2-A

9. Test Run the Overflowing Bath
Check all electrical connections, and make sure the electrical power to the unit is turned on.
Make sure union connections to the pump, butterfly valves, and in-line heater are securely hand tightened.
Make sure the bathing well and overflow channel are clean and free of debris.
Position the metal suction screen over the plastic suction cover (see illustration, previous page). The pump
may cavitate if the metal screen is not in place.
Fill the overflowing bath bathing well with water so it overflows the bathing well rim and flows into the
overflow channel. Continue filling the bathing well until both overflow channel sensors are completely
covered with water, and the water level is at the drain overflow.
Verify that the green light in the pump control switch starts to blink automatically within 1/2 minute after
the overflow channel sensors are completely submerged.
10. Test the Control Switch
Press the pump control switch to start the pump/motor and begin the hydro-therapy cycle. As the
pump/motor turns on and the water begins to circulate, the light will turn to constant green, and will stay
on as long as the overflowing bath is running.
With the unit running, check all harness (piping) connections for leaks.Visually observe the cascading
water flow over the bathing well rim to verify that it is smooth and even along all four sides and corners.
If the water is cascading uniformly over all four sides of the bathing well rim, you do not need to make
further leveling adjustments.
If further leveling is necessary, keep the overflowing bath running and turn the adjustable feet up or down
with the 7/8” wrench provided. Make sure the unit is resting on all four adjustable feet.
Verify that the chromatherapy lights (if applicable) are operating. Press the chromatherapy control switch
(located directly across the bath from the power switch) to turn on the lights. Upon start-up the lights
should be changing through the color sequence. Press the light control switch a second time. The lights
should stop sequencing and stay one color. Press the light control switch again and lights will deactivate.
Check the harness connections for leakage one more time.
Press the pump control switch again to turn off the overflowing bath. The green light in the pump control
switch will then start to blink automatically (after approximately 1/2 minute) until the overflowing bath is
drained or restarted.
NOTE: For additional information on operation of your overflowing bath, see the “Using Your
Overflowing Bath” section.

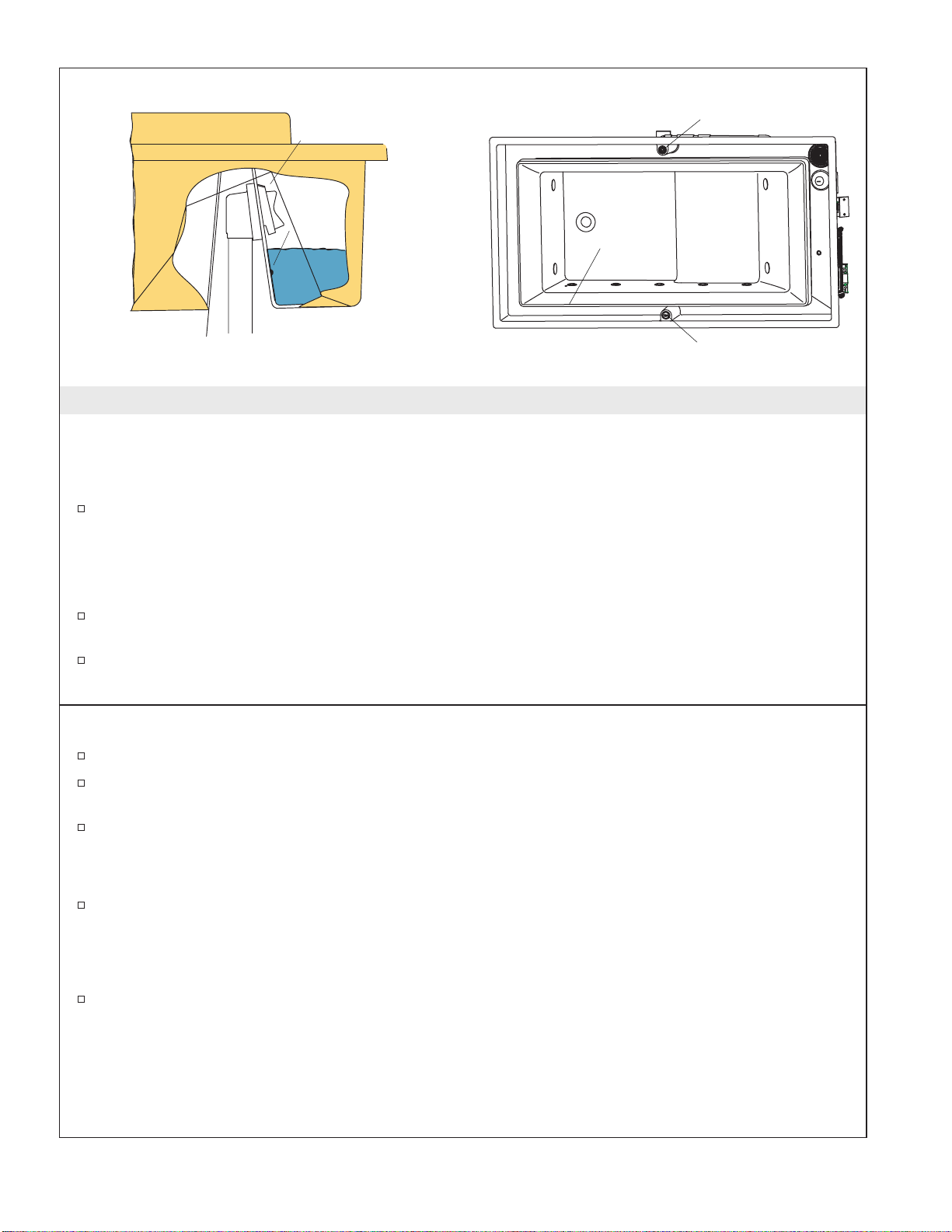

IMPORTANT! Allow adequate access to each of the four adjustable feet until test run is complete.
Overflow
Channel
Drain
Overflow
Channel
Sensors
Water
Control Pad
Bathing
Well Rim
Control Pad
1019731-2-A 12 Kohler Co.

11. Test the Remote Control
NOTE: There are two types of remote controls available: a basic unit and a unit with controls for
chromatherapy and effervescence. Determine which unit you have and follow the corresponding
directions.
NOTE: Your remote requires two AAA batteries. To install or replace them simply unscrew the base of the
remote.
Your overflowing bath is equipped with a waterproof remote.
To turn the pump and the chromatherapy lights on and off, press the power button.
To reheat the water in the overflowing bath as it circulates, turn the heater on by pressing the heater icon
(the heater defaults to ″On″when the pump is turned on). Press the heater icon again to turn the heater off.
The heater will not operate if the pump is off. If the heater is on the pump switch will be dark green. If the
heater is off it will be yellow-green.
To cycle the chromatherapy lights through the spectrum of colors, press the chromatherapy cycle icon.
To lock an individual chromatherapy color in, press the chromatherapy specific color icon.
Heater
On/Off Power
On/Off
Heater
On/Off
Power
On/Off
Effervescence
Mode
Chromatherapy
Specific Color
Selection
Chromatherapy
Cycle
Kohler Co. 13 1019731-2-A

12. Complete the Finished Wall or Deck
NOTICE: Provide unrestricted service access to the pump, in-line heater, adjustable feet, and control box.
You must construct an access panel to provide sufficient clearance for servicing the pump, in-line heater,
and control box.
Protect the product surface. Cover the framing with water-resistant wall material.
Keep the entire overflow channel area exposed to allow access to the drain overflow, and to permit easy
cleaning of the overflow channel surfaces.
Seal the joints between the rim edge and the water-resistant wall or deck material with silicone sealant.
Tape and mud the water-resistant wall material.
Install the finished wall to the water-resistant wall material.
Seal the joints between the product rim and the finished wall material with silicone sealant.
13. Install the Faucet Trim
Install the faucet trim according to the instructions packed with the trim.
14. Clean-Up After Installation
When cleaning up after installation, do not use abrasive cleansers, as they may scratch and dull the bath
surface. Use warm water and a liquid detergent to clean the surface.
Remove stubborn stains, paint, or tar with turpentine or paint thinner. Do not allow cleaners containing
petroleum distillates to remain in contact with any bath surfaces for long periods of time. Remove
plaster by carefully scraping with a wood edge. Do not use metal scrapers, wire brushes, or other metal
tools. Use a powder-type detergent on a damp cloth to provide mild abrasive action to any residual
plaster.
Undermount
Water-Resistant
Wall Material
Silicone
Sealant
2x4
Studding
Finish
Deck
1019731-2-A 14 Kohler Co.

15. Using Your Overflowing Bath
Fill the Overflowing Bath
NOTE: Please read these steps carefully before you operate your overflowing bath.
Make sure the metal suction screen is clean, and is correctly in place over the plastic suction cover.
NOTE: The water temperature in the bath should not exceed 104° F (40° C) or the heater will not operate.
IMPORTANT! Like any other bath, prevent flooding the area around the unit by entering the filled
bathing well slowly. This will allow the system to properly drain excess water.
Fill the unit with water so the bathing well overflows into the overflow channel to the drain. The channel
sensors should be completely covered with water.
The green light in the pump control switch will start to blink automatically within 1/2 minute after the
sensors are submerged to let you know the unit is ready to start.
Operating Sequence
Press the pump control switch to start the pump/motor and begin operation.
As the pump/motor turns on and water begins to circulate, the light on the pump control switch will
change to solid green, and will stay on as long as the overflowing bath is running.
Verify that the indicator light for the heater is on when the overflowing bath is in operation. This indicator
light is located on the underside of the heater box, and is near the subfloor at the pump end of
overflowing bath. If the light is not on when the overflowing bath is running, try and reset the
GFCI/ELCB.
Press the pump control switch again to turn off the overflowing bath. The green light in the pump control
switch will then start to blink automatically for approximately 1/2 minute until the overflowing bath is
drained below the overflow channel sensors or restarted.
NOTE: A built-in timer automatically stops the bath after approximately 20 minutes of operation.
Press the pump control switch again to start the pump/motor and begin operation.
Overflow
Channel
Drain
Overflow
Channel
Sensors
Water
Control Pad
Bathing
Well Rim
Control Pad
Kohler Co. 15 1019731-2-A

16. Chromatherapy Light Operation (if equipped)
NOTE: These directions pertain to the use of the mounted control pad only. For more information, see the
″Test the Remote Control″section.
If the chromatherapy lights are turned off, press the button on the control pad (located on the opposite side
of the overflowing bath. The chromatherapy lights will begin to cycle through each of the colors (sweep
mode).
When the chromatherapy lights are in sweep mode, you can lock in one color light by pressing the control
button.
When an individual color is locked in, press the control button to turn the chromatherapy lights off.
1019731-2-A 16 Kohler Co.

Troubleshooting Procedures
Troubleshooting Table
For warranty service, contact your dealer or wholesale distributor. This Troubleshooting Guide is for general
aid only. Contact a Kohler Authorized Service Representative or a qualified electrician to correct all electrical
problems. For warranty service, contact your dealer or wholesale distributor.
Symptoms Probable Causes Recommended Action
1. Green light in
“On/Off” control
switch flashes before
the bathing well is
full of water.
A. Spout fills directly into
overflow channel.
A. Adjust/reinstall the spout
to fill directly into the
bathing well. Refer to the
installer/dealer.
B. One or both butterfly
valves do not work.
B. Check the butterfly valve
wiring or replace the
butterfly valves. Refer to
the installer/dealer.
C. Control does not work. C. Check the wiring or replace the control. Refer
to the installer/dealer.
2. Product does not
start. A. No power to unit.
A. Turn on the power to the
unit, or correct the source
of the power loss. Refer to
the installer/dealer.
B. Water does not cover the
overflow channel sensors.
B. Fill the bathing well until
water flows over the
bathing well rim, into the
overflow channel, and
covers the overflow
channel sensors.
Suggested fill level is to
the drain overflow.
C. ”On/Off” control switch
does not light up or flash
when the unit is running
or filled as required.
C. Check the wiring or
replace the “On/Off”
control switch. Refer to
the installer/dealer.
D. Pump/motor does not
work.
D. Rebuild or replace the
pump/motor. Refer to the
installer/dealer.
E. Control does not work. E. Check the wiring or replace the control. Refer
to the installer/dealer.
3. Water does not
cascade evenly over
the entire bathing
well rim.
A. Unit is not level.
A. Level the unit by using
the wrench provided to
turn the adjustable feet up
or down as needed.
B. Bathing well ports are
blocked. B. Remove blockage.
C. Metal suction screen is
blocked. C. Clean the metal suction screen.
4. Unit stops
automatically before
18 minutes. A. GFCI/ELCB trips. A. Identify the source of the
fault and correct. Refer to
the installer/dealer.
Kohler Co. 17 1019731-2-A

Troubleshooting Procedures (cont.)
Symptoms Probable Causes Recommended Action
B. Motor overheated and
protection device activated.
B. Check for blockage of the
motor vent. Allow the
motor to cool, then
remove the blockage.
Check for a plugged metal
suction screen, and allow
the motor to cool before
restarting.
Check for blockage of the
bathing well ports.
Remove the blockage, and
allow the motor to cool
before restarting.
C. Water level drops below
the overflow channel
sensors during operation
(″yellow″ring will be
flashing on pump switch).
C. Fill the bathing well until
water flows over the
bathing well rim, into the
overflow channel, and
covers the overflow
channel sensors.
Suggested fill level is to
the drain overflow. Make
sure the bath drain seals
properly.
5. Noisy operation. A. Metal suction screen is not in place over the plastic
suction cover.
A. Position the metal suction
screen over the plastic
suction cover to prevent
cavitation.
B. Insufficient water level in
the overflow channel.
B. Fill the bathing well until
water flows over the
bathing well rim, into the
overflow channel, and
covers the overflow
channel sensors.
Suggested fill level is to
the drain overflow. Make
sure the bath drain seals
properly.
C. Pump/motor rattles. C. Make sure the pump/motor banding
straps have been cut.
6. Water temperature
drops significantly
over 20 minutes of
operation.
A. Heater limit switch
tripped. Indicator light
should be “On” during
operation.
A. Reset the GFCI/ELCB.
B. Heater does not work. B. Check the wiring or replace the heater. Refer to
the installer/dealer.
7. Chromatherapy
lights do not work. A. Damaged wiring harness. A. Check the wiring or
replace the control. Refer
to the installer/dealer.
B. Control does not work. B. Replace wiring harness. Refer to the
installer/dealer.
8. Remote control does
not work A. Batteries improperly installed or dead. A. Replace the batteries.
B. Control does not work. B. Replace wiring harness. Refer to the
installer/dealer.
C. Remote control is not
programmed correctly. C. See homeowners guide or service manual.
1019731-2-A 18 Kohler Co.

Troubleshooting Procedures (cont.)
Symptoms Probable Causes Recommended Action
D. Faulty remote control. D. Replace the remote
control.
E. Faulty control. E. Replace the control.
9. Water does not
reach bath rim upon
filling. A. No power to the unit. A. Turn on the power.
B. Level probe wires loose. B. Check/reconnect wires.
C. Butterfly valves faulty. C. Check wiring; replace butterfly valves if
necessary.
D. Faulty control. D. Replace control.
Kohler Co. 19 1019731-2-A

Guide d’Installation
Baignoire á D’Ébordement
Renseignements importants
AVERTISSEMENT : Les précautions de base seront observées pour l’installation des équipements
électriques, incluant ce qui suit :
DANGER : Risque d’électrocution. Connectez uniquement á un circuit protégé par un disjoncteur
coupe-circuit (GFCI) ou á un coupe-circuit de fuite á la terre (ELCB).
AVERTISSEMENT : Risque d’électrocution. Tout raccords électriques doivent être réalisés par un
électricien qualifié.
AVERTISSEMENT : Risque d’électrocution. Débrancher l’alimentation avant de procéder à l’entretien.
AVERTISSEMENT : Risque de blessures ou de dommages matériels. Veuillez lire avec attention cette
notice avant de commencer l’installation, incluant ci-aprés:
AVIS : Respecter les codes de plomberie et de bâtiment locaux.
Installer de façon à permettre l’accès pour l’entretien.
Un câble électrique vert avec une rainure jaune et fournit dans le compartiment du câblage. Afin de réduire
les risques délectrocution, raccordez le câble de sortie à la borne de terre du panneau de service électrique,
avec un câble en cuivre ayant la même calibre que celui du fil conducteur qui alimente cet équipement.
Un connecteur à pression par câbles est prévu à l’extérieur de la pompe ou de la commande de cet appareil
afin de permettre la connection entre l’appareil et les surfaces de métal avoisinantes, tel que requis par les
normes locale.
Une mise à la terre est requise. L’unité doit être installée et mise à la terre par un électricien qualifié.
Les matériaux de construction et le câblage doivent être posés loin de la pompe et d’autres composants
conducteurs de chaleur de l’unité.
Renseignements importants
Notices du Produit
AVERTISSEMENT : Des modifications non approuvées pourraient provoquer un fonctionnement
dangereux ou un mauvais rendement de la Baignoire débordante. Ne pas relocaliser les pompes
d’hydromassage ou effectuer d’autres modifications au système car il pourrait en résulter á une
dégradation du rendement de la Baignoire Débordante et cela pourrait affecter son fonctionnement
dans des conditions de sécurité. La société KOHLER décline toute responsabilité quant à toute blessure
ou endommagement causés par toutes modifications non autorisées.
Inspection du Produit
Déballez le produit et examinez soigneusement pour déceler tout dommage. Remettre l’unité dans le carton
au cours de la construction pour prévenir tout dégâts.
AVIS : S’assurer que tous les raccords de la pompe, chauffe-eau en ligne et vannes papillon soient
correctement serrés. Ne pas trop serrer.
Kohler Co. Français-1 1019731-2-A
