The Handy THEPHT500 User manual

04-04-2017
500W ELECTRIC
POLE HEDGE
TRIMMER
Model No: THEPHT500 -- Product No: 1938142001
ASSEMBLY REQUIRED
SAVE THESE INSTRUCTIONS
SPARES & SUPPORT: 01793 333212
Please read & understand this manual, payingattention to the safety instructions, before use.
Subject to change without notice.
INSTRUCTION MANUAL

CONTENTS
SPECIFICATION
IMPORTANT INFORMATION
GENERAL SAFETY INSTRUCTIONS
SET UP & PREPARATION FOR OPERATION
OPERATION
MAINTENANCE & STORAGE
TROUBLE SHOOTING

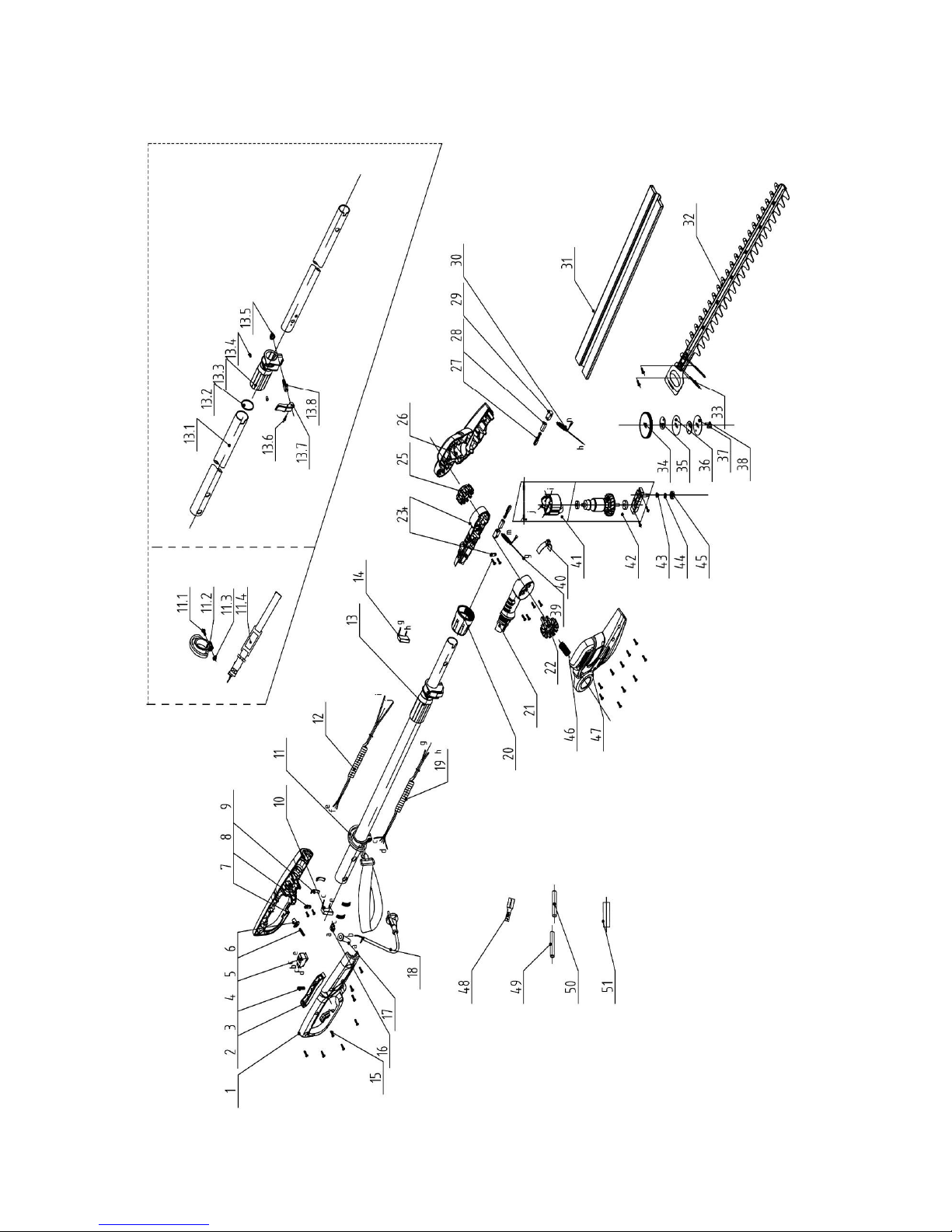

PARTS DIAGRAM & LIST
EC DECLARATION OF CONFORMITY
WARRANTY
If you require any assistance with regards to the contents or operation of
your machine, please contact us:
Tel: [phone]
Email: [e-mail]
Monday to Friday 8.00am to 5.30pm (excl. Bank Holidays)

SPECIFICATION
The manufacturer reserves the right to change the product specification and livery according to
continued product improvements.
Model
THEPHT500
Product No.
1938142001
Motor Rated Voltage
230-240V ~50HZ
Rated Input
500W
No-load Speed
3800/min
Max. Extended Length
2.25 m
Blade Length
500 mm
Max. Cutting Length (Blade)
466 mm
Max. Cutting Width
28 mm
Electric Cable Length
8 m
Weight
N.W 5.5 kg –G.W 6.0 kg
Guaranteed Sound Power Level
(According to 2000/14/EC)
(LWA): 101 dB(A)
Hand Arm Vibration
Front Handle 2.763 m/s²
Rear Handle 3.096 m/s²
Uncertainty K=1.5 m/s²
IMPORTANT INFORMATION
WARNING
Read this instruction manual carefully before operating this machine. Make sure that you are familiar with
the controls and properly operate the machine. Following these instructions can reduce the risk of fire,
electric shock and personal injury.
IF NOT USED PROPERLY THIS MACHINE CAN BE DANGEROUS!
This machine can cause serious injury to the operator and others, the warning and safety instructions
must be followed to ensure reasonable safety and efficiency in using this product. The operator is
responsible for following the warning and safety instructions in this manual and on the machine. Never
use the product unless the blades or guards are correctly positioned.
DESIGNED FOR DOMESTIC USE ONLY.
The Pole Hedge Trimmer is designed for use in private gardens, whose annual use does not generally
exceed 50 hours & are primarily used for tending hedges or bushes, but not in public facilities, parks or
sports grounds and not for agricultural or forestry use.
Compliance with this manual supplied by the manufacturer is a prerequisite for the proper usage of the
machine. The operating manual contains servicing & maintenance instructions as well as directions for
use.
TRAINING
Read the instructions carefully: Be familiar with the controls and the proper use of the equipment.
Never allow children or people unfamiliar with these instructions to use the product. Local regulations
can restrict the age of the operator.
Never operate while people, especially children, or pets are nearby.
Keep in mind that the operator or user is responsible for accidents or hazards involving the machine that
occur to other people or their property.

GENERAL SAFETY INSTRUCTIONS
It is important that you read and understand the owner’s manual and labels affixed to the machine.
Learn its application and limitations as well as the specific potential hazards. Retain these instructions
for future reference. The operator is responsible for following the warnings & instructions in this
manual and on the product.
SYMBOLS
Read & understand operator’s manual
before using the machine. Failure to
follow instructions could result in
death or serious injury.
Keep fingers away from a moving
cutting blades!
Wear gloves to protect your hands.
Wear sturdy non-slip foot protection
for falling debris.
Check your machine before turning it
on. Keep guards in place and in
working order. Frequently check to
see that foreign objects are removed
from the tool area before turning it
on. Replace damaged, missing or
failed parts with genuine
replacements, before operating.
Whenever the machine is in use,
safety glasses/goggles must be worn
to safeguard against flying objects.
Hearing protection must also be used
to protect the operators hearing.
Face masks are also recommended to
avoid inhalation of debris.
Lock
Unlock
Before working or undertaking any
servicing or cleaning of the machine,
ensure the electrical cable is removed
from the power source.
This product is of protection class II.
That means it is equipped with
enhanced or double insulation.
Do not expose to rain or damp
conditions
WARNING!
Danger from overhead electric-power
lines!
10m
Objects thrown by the product could
hit the user or bystanders. Keep all
bystanders & animals at least
10 metres away from the machine
during operation.
If approached, stop the machine
immediately.
If cable is damaged, remove plug from
mains supply before inspecting
Safety alert symbol. Used to alert you
to potential personal injury hazards.
Obey all safety messages that follow
this symbol to avoid possible injury.
DANGER
Indicates an imminently hazardous
situation which, if not avoided, will
result in serious injury.
WARNING
Indicates a potentially hazardous
situation which, if not avoided, could
result in serious injury.
CAUTION
Indicates a potentially hazardous
situation which, if not avoided, may
result in minor or moderate injury.
CAUTION
Used without the safety alert symbol,
indicates a potentially hazardous
situation which, if not avoided, may
result in property damage.
WEEE Symbol
This product may not be treated as
household waste. Instead it shall be
handed over to the applicable
collection point for the recycling of
electrical & electronic equipment.
For more detailed information about
recycling of this product, please
contact your local council office, your
household waste disposal service or
shop where you purchased the
product.
Conforms to all relevant EU Directives

STAY ALERT
Do not operate the machine while under the influence of drugs, alcohol, or any medication that could
affect your ability to use it properly. Do not use this machine when you are tired or distracted from the
job at hand. Always be aware of what you are doing. Use common sense.
AVOID DANGEROUS CONDITIONS
Make sure there is adequate surrounding workspace. Cluttered areas invite injuries.
Keep your work area clean with sufficient light. Keep the area around the machine clear of obstructions,
grease, oil, rubbish & other debris which could cause persons to fall onto moving parts.
INSPECT YOUR MACHINE
Check all bolts, nuts, and screws for tightness before each use, especially those securing guards and drive
mechanisms. Vibration during use, may cause these to loosen.
Form a habit of checking to see that all other tools/equipment are removed from the working area before
turning it on. Replace damaged, missing or failed parts before using it. Warning labels carry important
information. Replace any missing or damaged warning labels.
DRESS PROPERLY
Do not wear loose clothing, gloves, scarfs, neckties or jewellery (rings, wrist watches etc.), which can be
caught in moving parts. Protective electrically non-conductive gloves & non-slip, heavy duty protection
footwear are highly recommended when working. Wear a face or dust mask if the operation is dusty.
Always wear safety glasses/goggles and/or face shields. Everyday eyeglasses have only impact resistant
lenses; they are not safety glasses/goggles. Wear protective hair covering to contain long hair, preventing
it from getting caught in machinery.
KEEP BYSTANDERS AND CHILDREN AWAY
Keep bystanders, children & animals a minimum distance of 10 metres away from the machine. If
approached, stop the machine immediately. Do not allow children to handle the machine.
DO NOT OVERREACH
Always keep proper footing and balance when using the machine. Never stand on the machine. Serious
injury could occur if the machine is tipped or if the moving parts are unintentionally contacted. Do not
store anything above or near the machine, where anyone might stand on the machine to reach them.
AVOID INJURY FROM UNEXPECTED ACCIDENT
Keep hands & feet out of the way of all moving parts. Do not place any part of your body or any tool in
the machine during operation.
DO NOT FORCE TOOL
Always work within the rated capacity. Do not use the machine for a purpose for which it was not
intended.
NEVER LEAVE MACHINE RUNNING UNATTENDED
Do not leave the machine unattended until it has come to a complete stop and has been unplugged from
the electrical source.
MAINTAIN YOUR MACHINE WITH CARE
Clean the machine immediately after use. Keep the machine clean to ensure it operates to its full & safest
performance. When maintaining this machine, only the manufacturer’s original replacement parts should
be used. The use of non-original manufacturer parts may invalidate your warranty.
PROTECT THE ENVIRONMENT
Take left over materials to an authorised collection point or follow the stipulations in the country where
the machine is used. Do not discharge into drains, soil or water.

STORE IDLE EQUIPMENT
When not in use, the machine should be stored in a dry location with no access to direct sunlight. Keep the
machine away from children and others not qualified to use it.
PREPARATION
▪ Thoroughly inspect the area where the equipment is to be used and remove all objects which can be
thrown by the machine.
▪ Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not
worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance.
▪ Only use accessories approved by the manufacturer (if applicable).
▪ Do not operate the machine while under the influence of alcohol or drugs.
▪ Never operate the machine in wet grass or conditions. This could cause you to slip while using.
ELECTRICAL SAFETY
▪ Power plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs
with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
▪ Avoid unintentional starting. Always check that the switch is in the Off position before plugging in the
product to the power supply. Do not carry a plugged-in product with your finger on the switch.
▪ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▪ Do not expose the product to rain or wet conditions.
▪ Water entering an appliance will increase the risk of electric shock.
▪ Electrical power should be supplied via a residual current device (RCD) with a tripping current of not
more than 30 mA.
▪ Before use, check the supply and power cable for signs of damage or aging. If the power cable
becomes damaged during use, disconnect it from the supply immediately. Do not touch the power
cable before disconnecting the supply. Do not use the product if the power cable is damaged or worn.
▪ If you need to use an extension cable, ensure it is suitable for outdoor use and has a current capacity
rating, sufficient to supply your product. Check it before every use for damage, always uncoil it
completely during use because coiled cables can overheat. Damaged extension cables should not be
repaired; they should be replaced with an equivalent type.
▪ Make sure the power cable is positioned so that it cannot be damaged by the cutting blade & will not
be stepped on, tripped over or otherwise subjected to damage or stress.
▪ Never pick up or carry the product by the power cable.
▪ Never pull by the power cable to disconnect from the power supply.
▪ Keep the power cable away from heat, oil and sharp edges.
▪ Make sure voltage is correct for your product. A nameplate on the product indicates the product’s
voltage. Never connect the product to an AC voltage that differs from this voltage.
▪ Always ensure the power cable from the handlebar to the body is never trapped, pinched or otherwise
damaged during assembly or operation. Never apply power to the machine if this power cable is
damaged. Return to authorised service centre for professional repair.
OPERATION
▪ Only operate the machine in daylight or in good artificial light.
▪ Avoid operating the equipment in wet grass.
▪ Always be sure of your footing on slopes. Exercise extreme caution when changing direction on slopes.
Do not mow excessively steep slopes, which exceed 15°.
▪ Never run while using the machine, always walk.
▪ Use extreme caution when reversing or pulling the product towards you.
▪ Stop the blade(s) if the machine must be transported to & from the area to be machined.
▪ Never operate the product with defective guards, or without safety devices, for example deflectors in
place.

▪ Always stop the motor and disconnect the power cable from the power source:
✓ before clearing blockages or unclogging the blades;
✓ before checking, cleaning or working on the machine;
✓ after striking a foreign object inspect the product for damage and make repairs before restarting and
operating,
✓ if machine starts to vibrate abnormally (check immediately).
▪ Shut the motor off and wait until the motor and the blade come to a complete stop.
▪ Do not cut/trim near drop-offs, ditches or embankments. The operator could lose footing or balance.
▪ Be alert and turn the machine off if children enter the area.
▪ Never tamper with safety devices. Check their proper operation regularly.
GENERAL CUTTING TIPS
▪ It is recommended that you cut longer foliage in stages. Start at a higher cutting height and go over the
same area a second time with a lower cutting height.
▪ Do not expose to rain. Do not operate the product on a wet hedge.
▪ New or thick hedges may require a higher cutting height.
▪ Use the product only in daylight or good artificial light.
▪ Prolonged use of the product exposes the user to vibrations that can cause a range of conditions
collectively known as hand-arm vibration syndrome (HAVS) e.g. fingers going white; as well as specific
diseases, such as carpal tunnel syndrome. Therefore, limit your usage to a comfortable level and
include breaks if necessary between cutting operations.
MAINTENANCE AND STORAGE
▪ Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition.
▪ Replace worn or damaged parts for safety.
▪ Keep the machine free of leaves, or other debris build-up.
▪ Allow the machine to cool before storing.
▪ Blades are sharp and can be dangerous. Wrap the blade(s) or wear gloves, and use extra caution when
servicing them.

SET UP & PREPARATION FOR OPERATION
Follow the operating instructions step-by-step and use the pictures provided as a visual guide to easily
assemble the machine. Do not operate the machine until assembly has been completed.
Please ensure that you have all the below necessary parts, before commencing with the assembly. In
the unlikely event that you are missing a component, please do contact us on 01793 333212, option 2
or email [e-mail] for assistance.
ASSEMBLY
WARNING!
A one-time assembly is required. Once assembled the product should not be disassembled again!
1. Align the telescopic pole with the trimmer head.
2. Insert the telescopic pole into the trimmer head locking base, until the lock holes click into place
(Fig. 1). NOTE: The grooves must be aligned with the arrow positions near the locking base.
3. Slide the locking sleeve onto the locking base & rotate the locking sleeve clockwise to secure (Fig. 2).
4. Make sure the rear handle is properly aligned with the blade.
WARNING
Ensure the telescopic pole is inserted fully and the locking sleeve is properly tightened before
operating. Failure to lock the telescopic pole as instructed could result in serious injury.
Locking Sleeve
Telescopic Pole
Trimmer Head
Locking
Base
Lock
Hole
Locking Base
Locking Sleeve

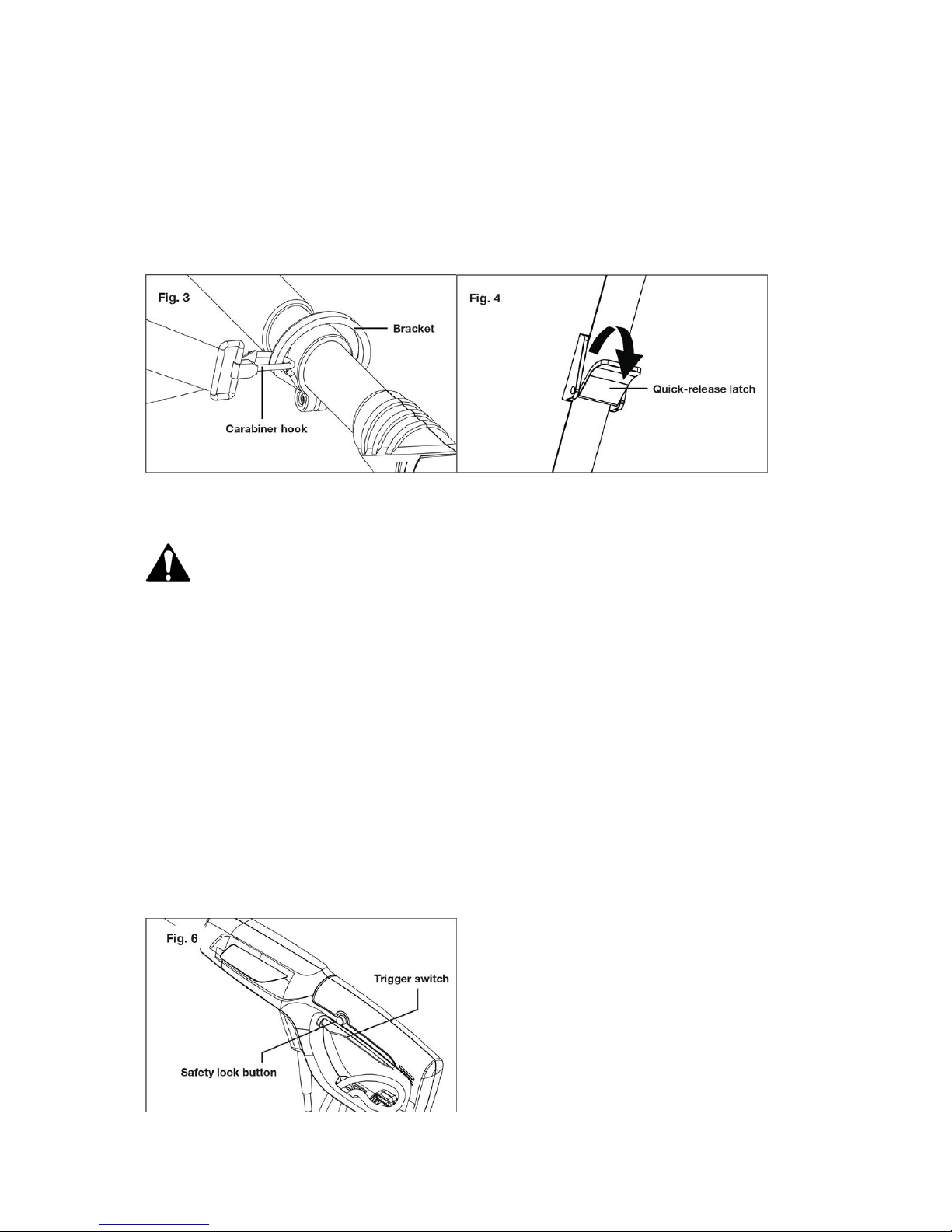

ATTACHING THE SHOULDER STRAP
1. Fasten the carabiner hook onto the bracket on the pole (Fig. 3).
2. Adjust the length of the strap to attain a comfortable working position.
To use the machine with the shoulder strap
3. Enter your right arm and head through the shoulder strap,
4. Rest the strap on your left shoulder and the machine against your right thigh/hip.
WARNING
In case of emergency, tug the quick-release latch on shoulder strap to release machine (Fig. 4).
OPERATION
POWER CONNECTION
WARNING!
Before operating the product, ensure that the fastening elements are undamaged.
To reduce the risk of injuries, always switch off the motor & pull out the mains plug from the electrical
socket, before working on the machine.
The product can be connected to any socket (with 230-240V alternating current). We recommend to
always use the appliance via a Residual Current Device (RCD) with a tripping current of max. 30mA.
1. Power cables on hedge trimmers are susceptible to damage. The causes of this include the following:
❖The cable may be cut if the hedge trimmer blade passes over it.
❖Damage through crushing, if the mains lead becomes stuck under doors or windows.
❖Cracks caused by ageing of the insulation sheath.
❖Kinks caused by incorrect fastening of the power cable.
2. Damaged power cables should not be used under any circumstances. They may cause fatal injuries.
3. Always check the plug & power cable, making sure they are in good condition before operation.
SWITCHING ON/OFF
1. Ensure that the blade is not touching any objects before switching the machine on.
2. To turn the tool ON, push & hold the safety lock button with your thumb & then squeeze the trigger
switch with your fingers. Once the tool is running, release the safety lock button (Fig. 6).
3. To turn the tool OFF, release the trigger switch (Fig. 6).

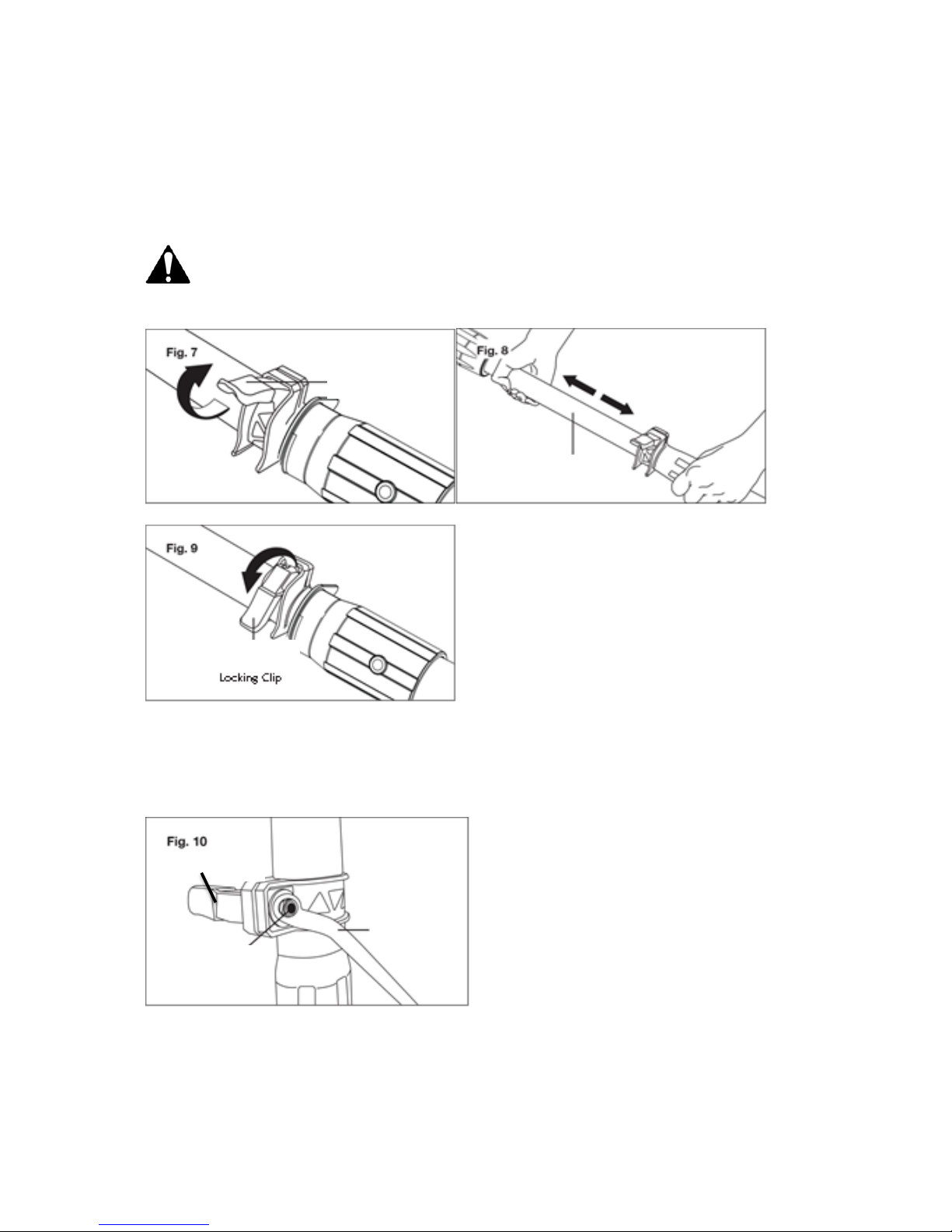

ADJUSTING THE TELESCOPIC POLE
1. Always disconnect the pole trimmer from the power supply before adjusting.
2. Unlock the pole by opening locking clip to release the pole (Fig. 7).
3. Extend the telescopic pole to the desired length (Fig. 8).
4. Lock the pole in position by closing the locking clip (Fig. 9) and ensure the pole is secure. If the pole
moves whilst the locking clip is closed, the nut on the locking clip may need tightening (See tightening
the locking clip instructions below).
WARNING!
Failure to lock the telescopic pole as instructed, may result in injury.
TIGHTENING THE LOCKING CLIP
Open the locking clip. Using the hex key tool, tighten the locking clip nut and then close the locking
clip. You may be required to loosen the locking clip nut using the hex key tool, if you need to adjust
the telescopic pole to a different height (Fig 10.).
Locking Clip Nut
Hex Key
Tool
Locking Clip
Locking Clip
Telescopic Pole
Locking Clip

ADJUSTING THE PIVOTING HEAD
1. Always disconnect the pole trimmer from the power supply before adjusting.
2. Place the pole trimmer on a sturdy flat surface.
3. Press the pivot button and adjust the trimmer head to the desired angle (Fig. 11).
4. Ensure the trimmer head is locked in position when the button is released.
WARNING!
The trimmer head can be adjusted to six positions, always ensure that it is locked into position
before using.

USING THE POLE HEDGE TRIMMER
•We recommend the use of the shoulder strap at all time, to assist with distributing the weight of the
machine.
•Hold unit firmly with both hands.
•Always keep your left hand on the telescopic pole and your right hand on the rear handle.
•The unit is used for cutting in either direction in a slow, sweeping action from side to side.
•Stand so that you are stable and balanced on both feet.
•Inspect and clear the area of any hidden objects.
•To protect yourself from electrocution, do not operate within 33 feet (10m) of overhead electrical
lines.
•Never use the pole hedge trimmer near power lines, fencing, posts, buildings or other immovable
objects.
•Never use a blade after hitting a hard object without first inspecting it for damage. Do not use if any
damage is found.
1. To use the pole hedge trimmer for trimming tall, hard-to reach hedges or shrubs, hold the trimmer at
the position shown (Fig.12). Pivot the power head to several different positions to shape or sculpt
shrubs or hedges.
2. To use the pole hedge trimmer for trimming the bottoms & sides of hedges or shrubs, hold the pole
trimmer at the position shown (Fig. 13).
3. To use the pole hedge trimmer for trimming low-lying foliage or ground cover, hold the pole hedge
trimmer at the position as shown (Fig. 14).
Use the pole hedge trimmer only for cutting normal shrubbery found around houses and buildings.
Do not force the pole hedge trimmer through dense growth. A slight back and forth sawing action may
ease the cutting of larger, more dense growth. If the pole hedge trimmer begins to slow down, reduce
the rate of speed at which you are trying to cut. If the pole hedge trimmer becomes jammed,
immediately turn the trimmer off. Disconnect the plug from the power source and clear the jammed
debris from the cutter blades.

CUTTING TIPS
WARNING!
Always hold the pole hedge trimmer with both hands. Never hold shrubs with one hand and operate
pole hedge trimmer with the other. Failure to follow this warning can result in serious injury.
WARNING!
Clear the area to be cut before each use. Remove all objects such as cables, lights, wire, or loose string
which can become entangled in the cutting blade and create a risk of serious injury.
▪When operating the pole trimmer with an extension lead, keep the extension lead behind the pole
hedge trimmer and user.
▪Never drape the machine and extension cables over the hedge being trimmed.
▪Do not force the pole hedge trimmer through heavy shrubbery. This can cause the blades to bind and
slow down. If the blades slow down, reduce the pace.
▪Do not attempt to cut stems or twigs that are larger than 20mm thick or those obviously too large to
feed into the cutting blade. Use a hand saw or pruning saw to trim large stems.
▪If blades do become jammed, stop the motor, allow the blades to stop & disconnect the plug from
the power source before attempting to remove the obstruction.
▪Wear gloves when trimming thorny or prickly growth. When trimming new growth, use a wide
sweeping action, so that the stems are fed directly into the cutting blade. Older growth will have
thicker stems and will be trimmed easiest by using a sawing movement.
1. Adjust the pole to the required length as described in Adjusting the Telescopic Pole in this manual.
2. Cut & remove branches exceeding the cutting capacity of this product using a pruner before
operation.
3. Always hold the product firmly with both hands, on the gripping surface & handle. Never operate
this product using only one hand.
4. Cut from the bottom to the top. This will prevent any of the cuttings falling into the path of the area
still to be cut.
5. After cutting the sides, proceed to the top.
6. When cutting wide hedges, with the cutting area in sight, move the cutting blade lightly through the
cutting surface in a sweeping motion following the shape of the hedge or shrub. A slight tilt
downwards of the cutting blade in the direction of motion is recommended for optimum cutting
performance.
7. Move the product slowly forward when cutting higher hedges, if the cutting area is out of sight.
8. Do not rush & do not attempt to cut too much with one stroke of the cutting blade.
9. Cut in a number of stages, if the area being cut is particularly long to achieve a better result; smaller
cuttings will allow for easy composting.
NOTE: When shaping, it is advisable to achieve a trapezoidal shape. A trapezoidal cut corresponds to the
natural growth of plants and results in optimal hedge growth, as it will expose more light to the lower
end of the hedge

MAINTENANCE & STORAGE
WARNING!
Before carrying out any repairs or servicing work, you must ensure that the product has been
disconnected from the power supply. Repairs and maintenance work other than those described within
this instruction manual, may be performed only by an authorised service dealer.
AFTER USE
Switch the product off, disconnect it from the power supply and let it cool down.
Check, clean and store the product as described below.
STORAGE
To ensure long and reliable service, carry out the following storage & maintenance regularly.
Check that covers and guards are undamaged and correctly fitted. Carry out necessary maintenance or
repairs before using the product.
▪If the cutting device should happen to fail despite the care taken in manufacturing and testing, repair
should be carried out by an authorised service agent.
▪Do not clean the product while it is running.
▪Ensure that all the fastening elements (screws, nuts, etc.) are always tight, so that you can safely
work with the product.
▪Check the product frequently for signs of wear. Replace worn or damaged parts.
▪Store your product in a dry place & away from immediate sunlight.
▪Clean the product with a brush or cloth. Do not use any solvents or water to remove dirt.
▪The component that is subject to most wear is the cutting blade. You should therefore check the
condition of the blade and its mounting at regular intervals.
MAINTENANCE
▪To ensure a long service life, all screw parts should be cleaned and then oiled (Multi-purpose oil is
recommended).
▪If the blade is worn or blunt it must be replaced immediately.
▪If the product starts to vibrate excessively, this means that the blade has not been balanced correctly
or has suffered deformation due to impacts. In this case, it must be repaired or replaced.
TRANSPORTATION
▪Switch the product off and disconnect it from the power supply before transporting it anywhere.
▪Always attach blade guards.
▪Always transport the product using its handle.
▪Protect the product from any heavy impact or strong vibrations which may occur during
transportation in vehicles.
▪Secure the product to prevent it from slipping or falling over.

TROUBLESHOOTING
WARNING!
Only perform the steps described in these instructions! All further inspection, maintenance and repair
work must be performed by an authorised service dealer. Contact your local authorised service dealer
if the problem cannot be solved by yourself.
WARNING!
If the product does not perform properly, makes unusual sounds, the motor does not start or stop as
described, the cutting device does not work properly, or any other irregularity or malfunction occurs,
do not attempt to repair the product by yourself. Please contact customer services or your local
authorised service dealer.
Problem
Possible cause
Fault correction
Product does not start
Not connected to power supply
Connect to power supply
Power cable or plug is defective
Check by a specialist electrician.
Another electrical defect to the
product
Check by a specialist electrician.
Lock-off button not pressed
Press lock-off button first, then the
trigger switch
Product does not reach full
power
Power source’s (e.g. generator)
voltage is too low
Connect to another power source
Air vents are blocked
Clean the air vents
Poor results
Blade is dull/damaged
Replace with a new one
Density of foliage to thick
Cut at shorter and then make second
cut over same area.

PARTS DIAGRAM –THEPHT500 (1938142001)

PARTS LIST –THEPHT500 (1938142001)
Item
No.
Part No.
Description
Qty
Item
No.
Part No.
Description
Qty
1
TH232-1
Right Handle (Lower)
1
20
TH232-20
Sleeve
1
2
TH232-2
Trigger
1
21
TH232-21
Right Handle
(Upper)
1
3
TH232-3
Trigger Spring
1
22
TH232-22
Head Adjuster
Chuck
1
4
TH232-4
Switch
1
23
TH232-23
Cable Clamp
1
5
TH232-5
Safety Lock Button
Spring
1
24
TH232-24
Left Handle (Upper)
1
6
TH232-6
Safety Lock Button
1
25
TH232-25
Head Adjuster
Button
1
7
TH232-7
Left Handle (Lower)
1
26
TH232-26
Left Housing
1
8
TH232-8
Cable Clamp
1
27
TH232-27
Carbon Brush
2
9
TH232-9
Shock Pad
1
28
TH232-28
Copper Brush
Holder
2
10
TH232-10
Capacitor A
1
29
TH232-29
Brush Shell
2
11
TH232-11
Shoulder Strap
Assembly
1
30
TH232-30
Inductor
1
11.1
TH232-11-1
Screw
1
31
TH232-31
Blade Cover
1
11.2
TH232-11-2
Shoulder Strap Ring
1
32
TH232-32
Blade Assembly
1
11.3
TH232-11-3
Nut
1
33
TH232-33
Fixed Pin
2
11.4
TH232-11-4
Shoulder Strap
1
34
TH232-34
Big Gear
1
12
TH232-12
Spring Line A
1
35
TH232-35
Wobbler
2
13
TH232-13
Telescopic Shaft
Assembly
1
36
TH232-36
Blade Separator
1
13.1
TH232-13-1
Telescopic Shaft
1
37
TH232-37
Clamp
1
13.2
TH232-13-2
Large Ring
1
38
TH232-38
Pin
2
13.3
TH232-13-3
Connecting Bracket
1
39
TH232-39
Inductor
1
13.4
TH232-13-4
Fixed Pin
2
40
TH232-40
Sliding Block
1
13.5
TH232-13-5
Lock Nut
1
41
TH232-41
Motor Assembly
1
13.6
TH232-13-6
Cylindrical Pin
1
42
TH232-42
Drive Assembly
1
13.7
TH232-13-7
Quick Clamp Adjuster
1
43
TH232-43
Washer
1
13.8
TH232-13-8
Quick Clamp Adjusting
Bolt
1
44
TH232-44
Washer
1
14
TH232-14
Capacitor B
1
45
TH232-45
Screw Sleeve
1
15
TH232-15
Self-Tapping Screw
27
46
TH232-46
Button Spring
1
16
TH232-16
Connector
1
47
TH232-47
Right Housing
1
17
TH232-17
Cable Sheath
1
48
TH232-48
Female Terminal
1
18
TH232-18
8m Power Cable
(BS Plug)
1
49
TH232-49
Heat Shrinkable
Tube
1
19
TH232-19
Spring Line B
1
50
1
51
TH232-51
Copper Strip
1

EC DECLARATION OF CONFORMITY
We Handy Distribution Ltd - SN3 5HY (Importer) declare that the product:
Designation: Electric Pole Hedge Trimmer 500 Watt
Model(s): THEPHT500
Product Number: 1938142001
Type/Serial No: As per rating label on machine
Complies with the following directives:
2006/42/EC –Machinery Directive
2014/30/EU –EMC Directive
The conformity assessment procedure followed was in accordance with
EN 60745-1:2009+A11, EN ISO 10517:2009+A1, EN ISO 12100:2010, EN 55014-1:2006+A1+A2,
EN 55014-2:2015, EN 61000-3-2:2014, EN 61000-3-3:2013
Notified Bodies:
TÜV Rheinland LGA Products GmbH
Address(es):
Tillystrabe 2, 90431 Nürnberg, Germany
Guaranteed Sound Power Level:
(LWA): 101 dB(A)
Vibration Emission
Front Handle 2.763 m/s²
Rear Handle 3.096 m/s²
(Uncertainty K=1.5 m/s²)
Authorised signatory & technical file holder
Date:
04/04/2017
Signature:
Name: Mr Simon Belcher
Position: Managing Director
Company: Handy Distribution Ltd
Address: Murdock Rd, Dorcan, Swindon, Wiltshire, SN3 5HY.

GJ HANDY & CO LTD USER WARRANTY POLICY
Users Statement of Warranty
Each new machine is warranted against defective material or assembly of material under normal
usage. The warranty applies to the original purchaser and covers faulty parts and the labour involved
in replacing and repairing those parts, which are of original manufacture.
Period of Warranty
All Webb & Webb Pro machines plus Sanli engines.
a) 2 years from the original date of sale to the first domestic user.
b) 90 days from the original date of sale to the professional/commercial user.
c) 90 days from the original date of sale when used for hire.
d) A reduced warranty period of 90 days applies to those items which are subject to normal wear
and tear (e.g. but not limited to wheels, tyres, cutter bars, cylinders, bottom blades, belts,
cables, grass bags, spark plugs).
e) Engines as per the manufacturer’s warranty statement which will be supplied with the machine.
f) 90 days from the original date of purchase for Replacement Spare Parts (unless normal wear &
tear component, which are covered for 30 days).
g) All machines’ must be serviced within the first 12 months from the original date of purchase to
comply with the warranty, failure to do so will invalidate the 2nd year of the warranty.
All Handy, Mowerland and Q-Garden products.
a) 1 year from the original date of sale to the first domestic user.
b) 90 days from the original date of sale to the professional/commercial user.
c) 90 days from the original date of sale when used for hire.
d) A reduced warranty period of 90 days applies to those items which are subject to normal wear
and tear (e.g. but not limited to wheels, tyres, cutter bars, cylinders, bottom blades, belts,
cables, collection bags, spark plugs).
e) Engines as per the manufacturer’s warranty statement which will be supplied with the machine.
f) 90 days from the original date of purchase for Replacement Spare Parts (unless normal wear &
tear component, which are covered for 30 days).
All warranty repairs must be undertaken by an authorised service dealer. These dealers have been
accredited by GJ Handy & Co Ltd and agree to only use genuine parts and follow our repair
procedures.
Version 04 (10-16)
