The Siemon Company MT-RJ User manual

WWW.SIEMON.COM
FIBRE PRODUCTS
Siemon provides a complete line of MT-RJ Small Form Factor (SFF) interconnect
products — providing the utmost in versatility and performance. Siemon MT-RJ
connectors pack all the benefits of duplex fibre optic performance in a compact “RJ”
style design. Two key features have been incorporated into Siemon’s MT-RJ system.
The first is the hinged adapter latch which allows for easy corrections of polarity
errors. The second feature is the lead-in tube of both the 62.5 and 50 micron
connectors which utilizes a dual entrance tube to facilitate easier routing of fibres
into the connector.
No one offers a wider variety of MT-RJ solutions for the work area or the
telecommunications room. Siemon MT-RJ work area adapter products are
compatible with our current line of MAX® and CT®products, MX-SM®Boxes, and
Fibre Outlet Boxes (FOB2), providing a range of solutions as well as the ability to
mix copper and fibre in a single faceplate or service box. In the
telecommunications room, our MT-RJ Quick-Pack™adapter plates fit into our
popular line of RIC3, SWIC3, and FCP3 fibre enclosures.
MT-RJ CONNECTOR PRODUCTS
The Siemon MT-RJ Field Termination Kit (FTERM-
MT) is used to terminate connectors in the field
Higher density — MT-RJ connectors are one-third
the size of duplex SC connectors, providing
significantly higher density
MT-RJ MAX Modules with MT-RJ Jumper
Proven no epoxy/no polish termination
method terminates in less than 2 minutes —
less than 1 minute per fibre
Optical performance meets
ANSI/TIA/EIA-568-B.3 and
ISO/IEC 11801 Ed 2.0
requirements
Two boots are included to enable
termination of either 3.0mm
round duplex cable or 900µm
buffered fibre
Snagless latch — MT-RJ
connectors use the familiar “RJ”
style latch found on modular plugs
Factory-polished connectors assure
optimum performance and reliability

FIBRE PRODUCTS
WWW.SIEMON.COM
SIEMON MT-RJ SYSTEM
WORK AREA SOLUTIONS
MAX Flat & Angled
MT-RJ Modules in
MAX Faceplate
[MX-FP-S-04-(XX) shown]
CT®Flat & Angled
MT-RJ Couplers in
CT Faceplate
[CT8-FP-(XX) shown]
FOB MT-RJ Bezels in
FIBRE Outlet Box
[FOB2-(XX) shown]
A Flat MT-RJ MAX® Module
in MX-SM®Box
[SM2-(XX) shown]
MT-RJ — MT-RJ MT-RJ
MT-RJ Duple
MAX & CT MT-RJ
Modules in Multi-user
Telecommunications
Outlet (MuTOA)
[MX-MMO-(XX) shown]
MT-RJ Field-Insta

FIBRE PRODUCTS
WWW.SIEMON.COM
SIEMON MT-RJ SYSTEM

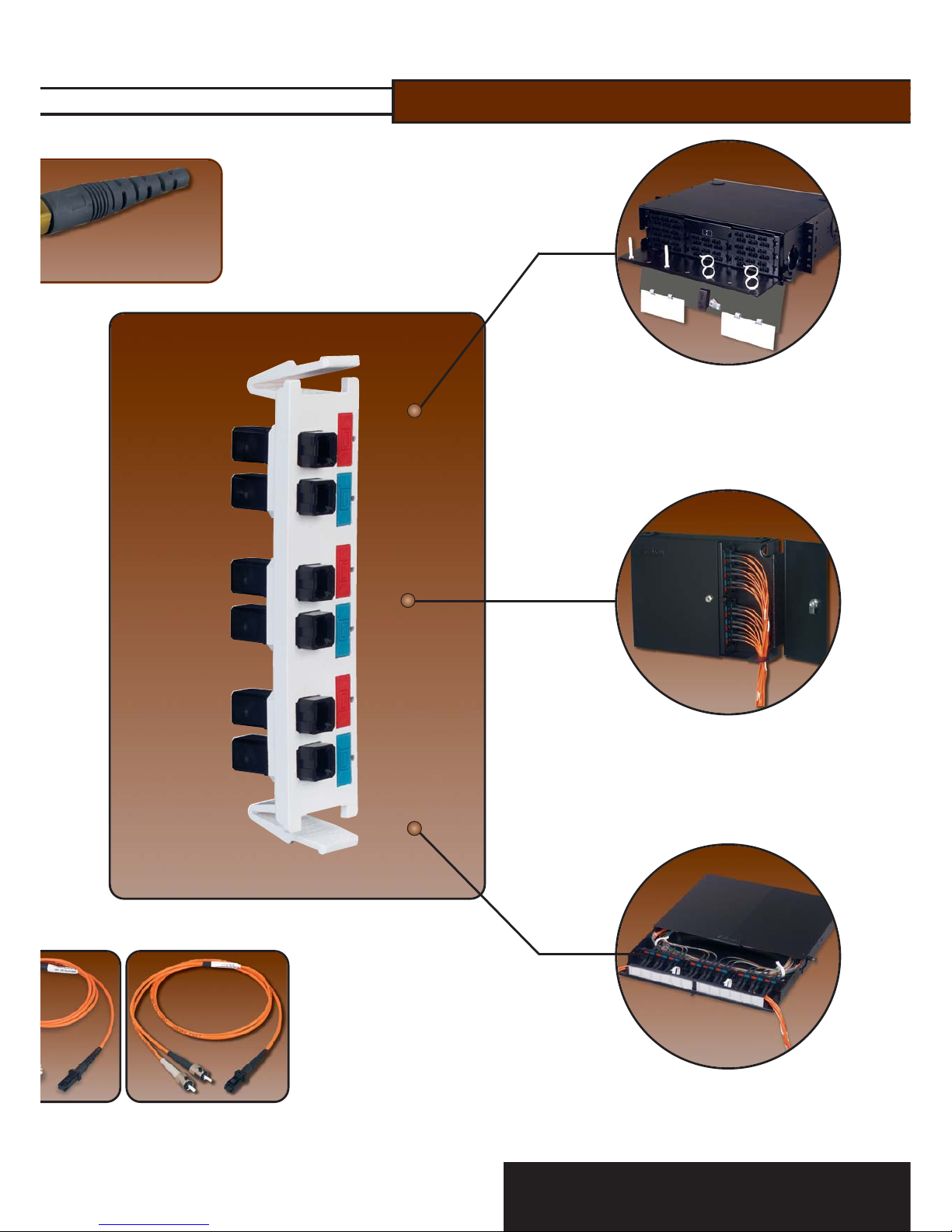

TELECOMMUNICATION ROOM SOLUTIONS
MT-RJ Quick-Pack™
Adapter Plate in
RIC3-48
MT-RJ Quick-Pack
Adapter Plate in
SWIC3
MT-RJ Quick-Pack
Adapter Plate in
FCP3-DWR
— SC MT-RJ — ST
ex Jumpers
The Rack Mount Interconnect Center provides high-density
fibre management and distribution for up to 288 fibres in just
4 RMS. Available in 24- to 96-port, 36- to 144-port, 48- to
192-port and 72- to 288-port.
The Wall Mount Interconnect Center is designed to manage
and connect up to 48 fibres. Available with or without
integrated jumper guard and with various lock or latch
options. A Mini-SWIC3 (SWIC3-M) is also available.
The Fibre Connect Panel rack mount enclosures economically
connect, protect and manage up to 36 fibres within one Rack
Mount Space (RMS).
allable Connector

For related product information request Spec Sheet(s):
CT Faceplates (PROD-SS-CTF)
CT Patch Panels (PROD-SS-CTP)
Fibre Outlet Box (PROD-SS-FOB)
MAX Modular Faceplates (PROD-SS-MXP)
Rack Mount Interconnect Center (PROD-SS-RIC)
Wall Mount Interconnect Center (PROD-SS-WI3)
MX-SM Surface Mount Box (PROD-SS-MXSM)
Multi-User Telecommunications Outlet (PROD-SS-MMO)
PROD-SS-MTR Rev. F 9/05
© 2005 Siemon
FIBRE PRODUCTS
WWW.SIEMON.COM
Because we continuously improve our products, Siemon reserves the right to
change specifications and availability without prior notice.
CT
®
, MAX
®
, SM
®
and Quick-Pack
™
are trademarks of Siemon

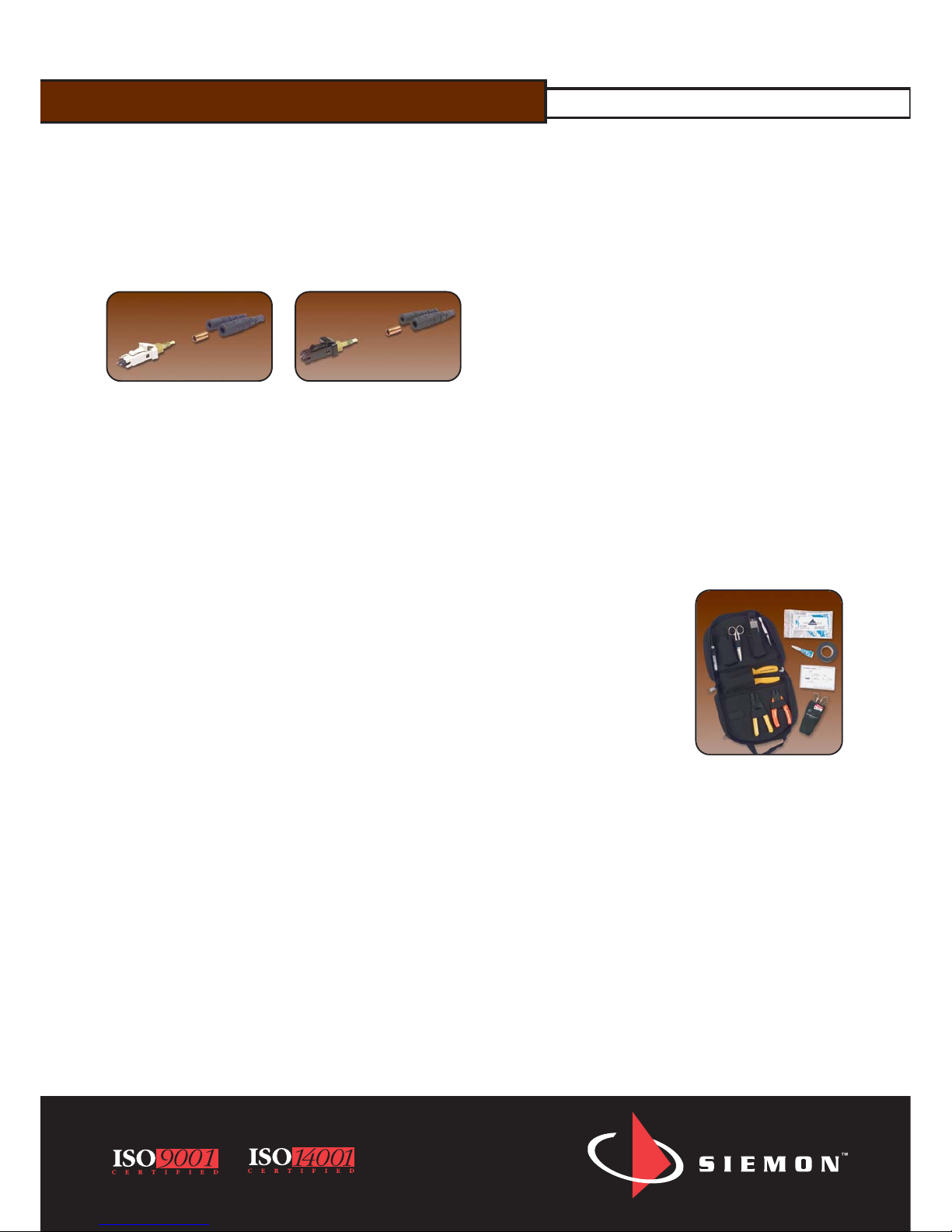

ORDERING INFORMATION
Tools:
Siemon MT-RJ Termination Kit
The Siemon MT-RJ Termination Kit
makes field-termination of MT-RJ
connectors quick and easy. MT-RJ
duplex connectors can be
terminated in less than 1 minute per
fibre! The kit employs proven no-
epoxy/no-polish termination
technology. All tools required to
terminate MT-RJ connectors are
included in a durable canvas
carrying case.
FTERM-MT....................MT-RJ Termination Kit
MT-RJ Modular Patching Solutions:
MT-RJ Flat Quick-Pack™Adapter Plates
RIC-F-MT12-01.............6 duplex MT-RJ adapters (12 fibres)
RIC-F-MT16-01.............8 duplex MT-RJ adapters (16 fibres)
RIC-F-MT24-01.............12 duplex MT-RJ adapters (24 fibres)
Each adapter plate with icon pockets includes red, blue, colour-
matching, and clear icons with paper labels.
MT-RJ Duplex Jumpers
Siemon MT-RJ duplex jumpers are factory terminated and
100% optically tested assuring optimum performance. All
jumpers comply with TIA/EIA-568-B.3 and ISO/IEC 11801
fibre performance specifications.
FJ2R-MTMT(X)MM-(XX) .....MT-RJ to MT-RJ orange jumper,
multimode (62.5/125 or 50/125µm)
FJ2R-MTSA(X)MM-(XX) .....MT-RJ to ST orange jumper,
multimode (62.5/125 or 50/125µm)
FJ2R-MTSC(X)MM-(XX)......MT-RJ to SC orange jumper,
multimode (62.5/125 or 50/125µm)
Use (X) to specify fibre type:
“—” = 62.5/125µm, orange jacket,
5 = 50/125µm, orange jacket
Use (XX) to specify cable length:
01=1m, 02=2m, 03=3m, 05= 5m
Note: All jumpers are manufactured using the finest quality
connectors and OFNR riser grade cable
Insertion loss = 0.15dB typical; Return loss = 30dB typical
MT-RJ Field-Installable Connector
FC2-MT6MM................MT-RJ duplex connector with pins (male),
multimode 62.5/125µm, beige
FC2-MT5MM................MT-RJ duplex connector with pins (male),
multimode 50/125µm, black
Note: Siemon MT-RJ connectors are compatible with 3.0mm
round duplex jacketed or buffered fibre cables
MT-RJ Work Area Solutions:
MT-RJ MAX®Modules
MX-MT-(XX)..................Angled module with 1 duplex MT-RJ
adapter (2 fibres)
MX-F-MT-(XX) ...............Flat module with 1 duplex MT-RJ
adapter (2 fibres)
Use (XX) to specify colour: 01=black, 02=white, 04=grey,
20=ivory, 25 = bright white, 80=light ivory
MT-RJ CT®Couplers
CT-A-MT-(XX)................Angled coupler with 1 duplex MT-RJ
adapter (2 fibres)
CT-A-MT-MT-(XX) ..........Angled coupler with 2 duplex MT-RJ
adapters (4 fibres)
CT-MT-(XX) ...................Flat coupler with 1 duplex MT-RJ
adapter (2 fibres)
CT-MT-MT-(XX)..............Flat coupler with 2 duplex MT-RJ
adapters (4 fibres)
Use (XX) to specify colour: 01=black, 02=white, 04=grey,
20=ivory, 80=light ivory
MT-RJ Fibre Outlet Box (FOB) Bezels
Siemon MT-RJ FOB bezels are designed to fit into our low-
profile Fibre Outlet Box.
FOB-BZL-MT1-01..........Fibre Outlet Box bezel with 1 duplex
MT-RJ adapter (2 fibres)
FOB-BZL-MT-01 ............Fibre Outlet Box bezel with 2 duplex
MT-RJ adapters (4 fibres)
