The Singing Machine SMDigital iSM-1010 User manual

WARNINGSCAUTIONRISK OF ELECTRIC SHOCKDO NOT OPENE1TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.THIS APPLIANCE SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING WATER AND THAT NO OBJECT FILLED WITH LIQUIDS SUCH AS VASES SHALL BE PLACED ON APPARATUS.The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of unisulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to people. WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVIC-ABLE PART S INSID E. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.2. Keep these instructions.3. Heed all warnings.4. Follow all instructions.5. Do not use this apparatus near water.6. Clean only with dry cloth.7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.11. Only use attachments/accessories specified by the manufacturer.12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.13. Unplug this apparatus during lightning storms or when unused for long periods of time.14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
ENGLISH

E215. Grounding or Polarization - This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. Alternate Warnings - This product is equipped with a three-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.16. Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.17. The MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSUREClass ll equipment symbol This symbol indicates that the unit has a double insulation system.CAUTION: Invisible laser radiation when open and inter locks defeated. Avoid exposure to beam.Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device , pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an experienced radio TV technician for help.
ENGLISH

INTRODUCTIONYour Singing Machine Pedestal CD/CDG Karaoke System will provide you with fun and entertainment. You will be the “star” while singing with your favorite recordings as well as listening to your voice with the music through the system’s speakers.This karaoke center is compact and designed to include many features, yet it is easy to use. After just a few simple instructions, you will become an expert. Before you attempt to use your unit, please read this manual thoroughly to familiarize yourself with all the features available and the sections of the manual that describe their operation. Next, go to the section for the specific operation you wish to perform.For your easy reference, listed here are some of the main features of this karaoke center:Lyrics on TV screen - displays the lyrics with the tempo of the music when playing CD+G discs.Auto Voice Control (A.V.C.) - allows you to replace the original singer's voice with your own voice when any prerecorded, multiplex disc is played. To activate, just rotate mic volume to a comfortable listening level, and Auto Voice Control for the best balance between playback and microphone levels.Balance Control - allows you to adjust the balance between the prerecorded original singer's voice and the music when using a multiplex karaoke disc.Echo Control - allows you to add an echo to enrich your voice for a concert hall effect.Master Volume Control - allows you to turn the volume control clockwise or counter - clockwise until desired volume level is obtained. built-in camera lens will display your image on the Singing Machine’s monitor or TV.Built - In Speaker - allows you to share the music with your family or friends.Auxiliary Output Jacks - allows you to connect another audio output component, such as an equalizer/booster or a PA system. Headphone Jacks - allows you to connect headphones as an alternative for listening through the system's built-in speaker. iPod Docking Station - the iPod docking station is compatible with iPod with video models, the cradle audio system for the iPod allows you to simply plug in and press play to stream the entire library of stored music from your iPod music player. Your Singing Machine's speaker system will provide a pleasurable sound. -E3
ENGLISH

INSTALLATIONE41.Join the speaker (middle) into the stand (bottom) according to the installation illustration.2.Tighten a self tapping screw at the bottom of the speaker (middle).STEP 112STEP 2
ENGLISH

3.Join the control panel (top) into the speaker (middle) according to the installation illustration.Following the labels (A to A & B to B) to plug the connectors.INSTALLATIONE5STEP 3STEP 44.Tighten a self tapping screw at the control panel (top).ABBB12AA
ENGLISH

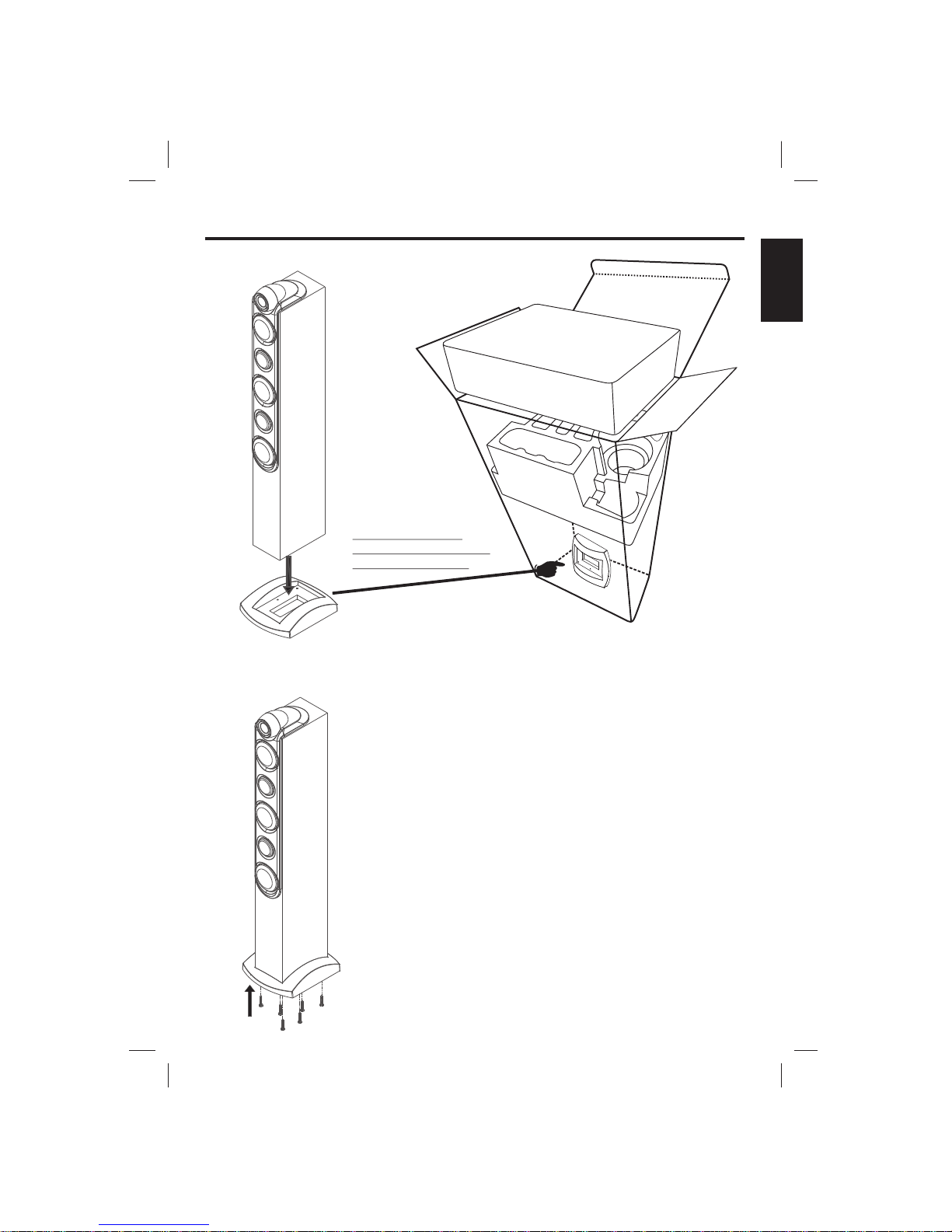

INSTALLATION INSTRUCTIONS FOR TOWER SPEAKERS5.Join the speaker into the stand according to the installation illustration.STEP 56.Tighten six screws at the bottom of the speaker.STEP 6E6Stands are located at the bottom of gift box under the polyfoam.Gift BoxPolyfoam at the topPolyfoam at the bottomStands
ENGLISH

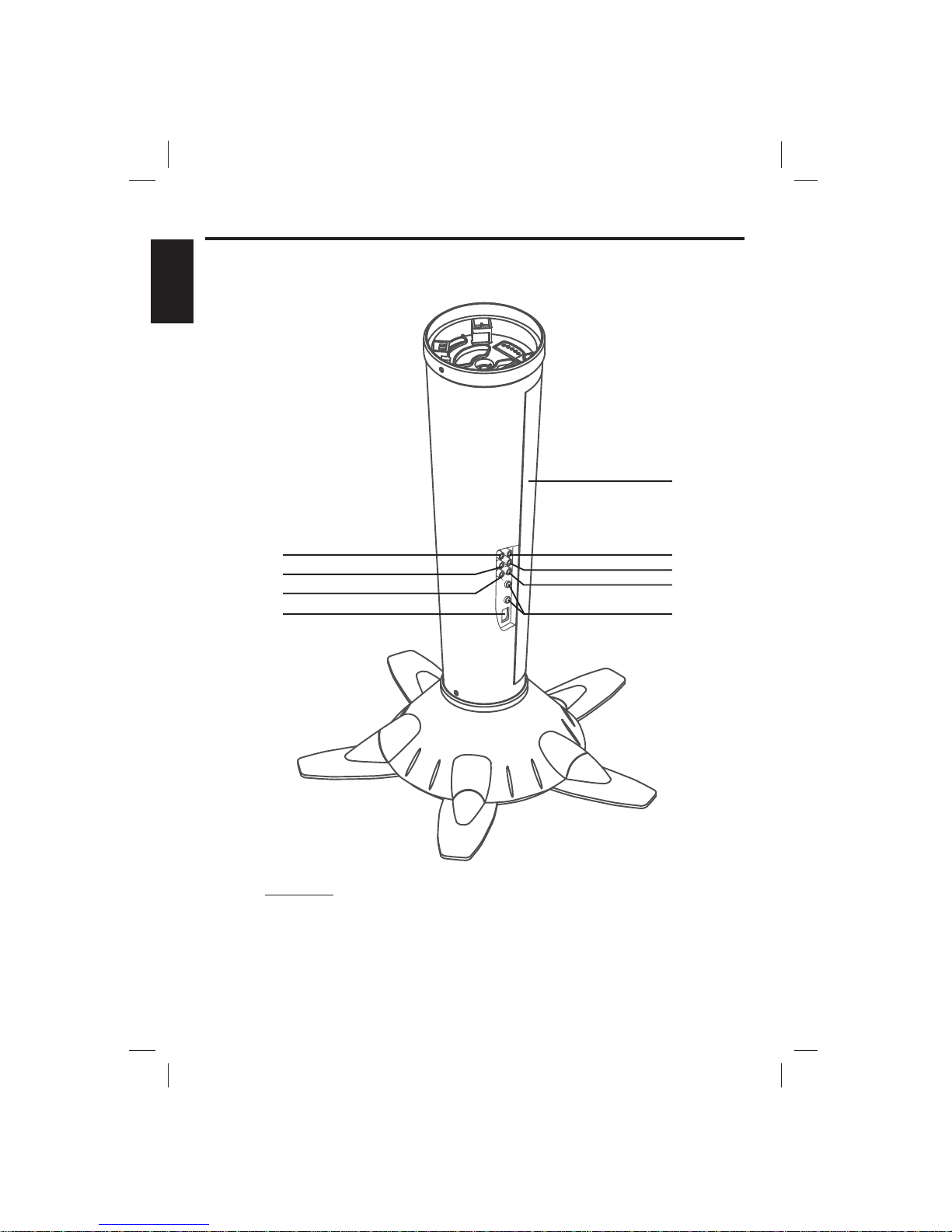

See control locations as indicated on the next few pages.CONTROL LOCATIONSE7FRONT VIEWWIRELESS MICROPHONESIDE VIEW
ENGLISH

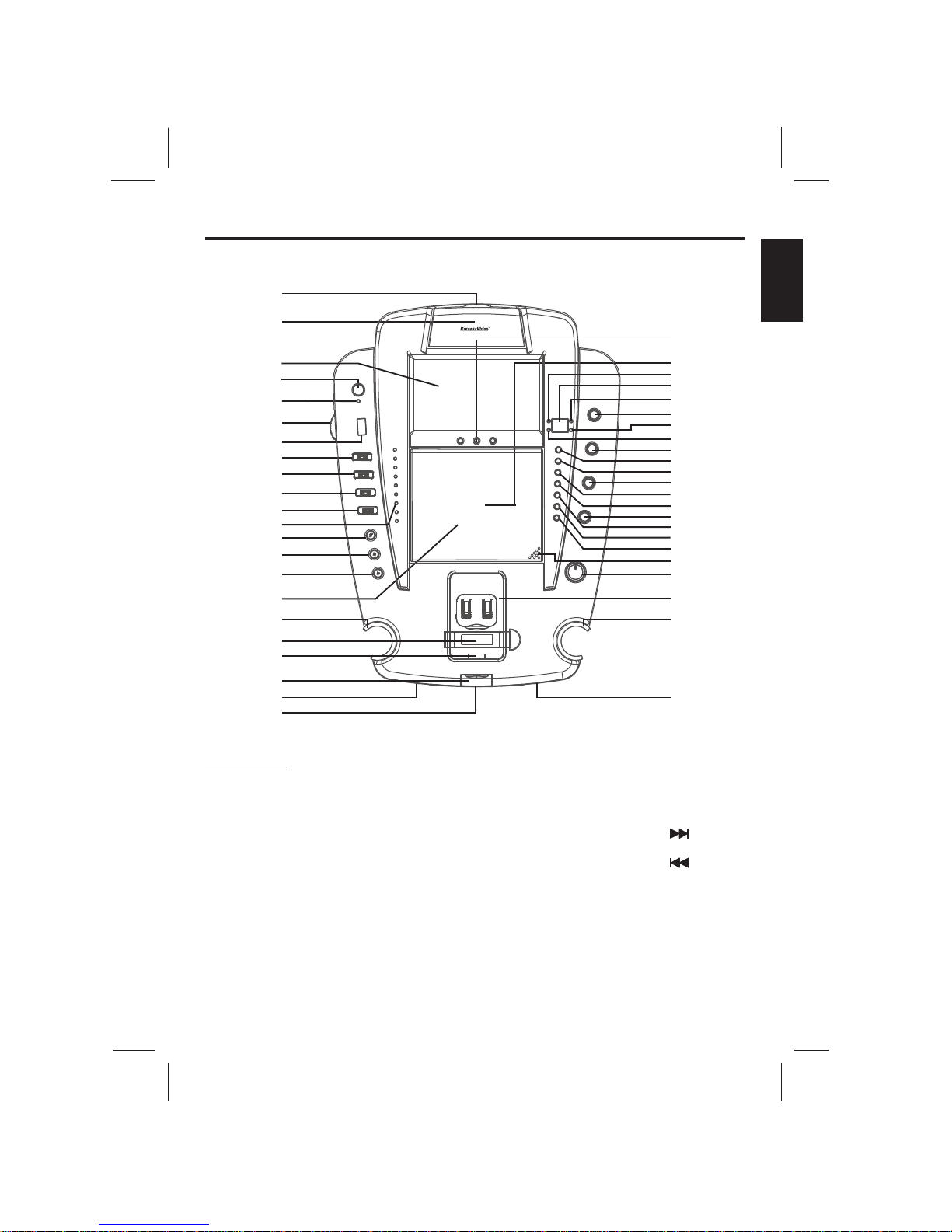

CONTROL LOCATIONSFRONT VIEW 1.Camera Lens Open 16.CD Door32.REPEAT ButtonButton17.MIC Holder33.PROGRAM Button2.Adjustable Camera Lens18. Release iPod Buckle 34.AUTO VOICE CONTROL19.iPod Docking Station35.RANDOM Button3.7" TFT LCD Color Screen36.SKIP Button20. iPod dock Releaser4.ON/OFF Button37.BALANCE Control5.ON/OFF LED21.MIC 1 Jack38.SKIP Button6.TUNING Knob22.HEADPHONE Jack39.STOP Button7.Dial Pointer23.LCD ADJ. Buttons40.PLAY/PAUSE Button8.BAND Selector 24.Model Number41.OPEN/CLOSE Point9.Monitor Selector25.PROGRAM LED42.MASTER VOLUME 10.Video Out Selector26.LED DisplayControl11.Function Selector 27.PLAY/PAUSE LED43.iPod Compartment12.Key Control LEDs28.MIC VOLUME Control44.MIC Holder13.Key High29.CDG LED45.MIC 2 Jack14.Key Flat30.REPEAT LED15.Key Low31.ECHO ControlE81245678910111214151617212223
24
25
2728
29
31
32
33
34
35
36
3738394041434445iSM-1010132630318192042
ENGLISH

CONTROL LOCATIONSSIDE VIEW46.51.AUX OUTPUT Jack (R)47.AUX INPUT Jack (L)52.AUX OUTPUT Jack (L) 48.VIDEO IN Jack53.VIDEO OUT Jack49.AC Power Cord Jack54.Speaker Jack (R/L)50.SpeakerAUX INPUT Jack (R)E947484953
