THE WORLD MODELS MIDGET MUSTANG User manual

Wing Span
Wing Area
Flying Weight
Fuselage Length
59.5 in / 1510 mm
667 sq in / 43.0 sq dm
7.5 lbs / 3400 g
51.0 in / 1290 mm
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual
at hand for quick reference.
0.61 cu.in. displacement 2-cycle
0.91 cu.in. displacement 4-cycle
Radio required : 4 - channels radio w/ 5 standard servos
* Specifications are subject to change without notice.*
MIDGET MUSTANG
INSTRUCTION MANUAL
Specifications
E
A
D
R
-
Y
T -
T
S
O
O
-
F
M
L
L
Y
A
The World Models
Manufacturing Co., LTD.
www.thewor ldmodels .com
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA
FACTORY PRE-FABRICATED
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P. 1
INDEX
BEFORE YOU BEGIN
PARTS LIST
ASSEMBLY
SAFETY PRECAUTIONS
P. 1
P. 2
P. 3 - 10
P. 11
BEFORE YOU BEGIN
Do not overlook this symbol!
Cut off shaded portion.
Ensure smooth non-binding
movement while assembling.
Apply instant glue
(C.A.glue, super glue.)
Assemble left and right
sides the same way.
Peel off shaded portion
covering film.
Pay close attention here!
Apply epoxy glue.
Pierce the shaded portion
covering film.
Must be purchased separately!
Drill holes with the specified
diameter (here: 3mm).
3mm
MIDGET MUSTANG
Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT
and check for defects for all parts that will require CA or Epoxy for final assembly. Any parts you
find to be defective after the gluing process may be difficult to remove for warranty replacement. The
manufacturer will replace any defective parts but will extend to the parts that are good before
, not
gluing to defective parts during assembly. Warranty will not cover any parts modified by customer.
Read through the manual before you begin, so you will have an overall idea of what to do.
Symbols used throughout this instruction manual comprise of the following : -
1
2
3
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

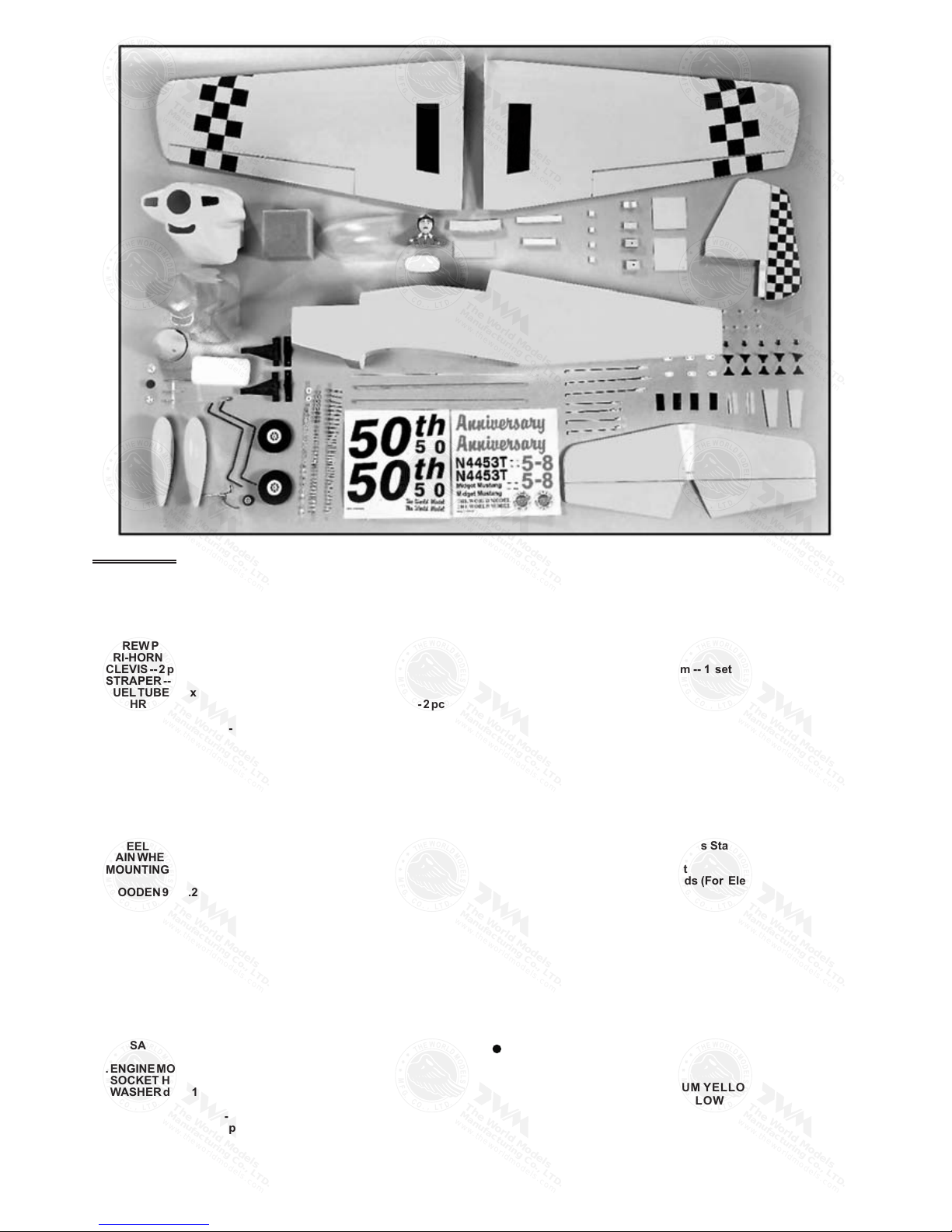

Parts List
P. 2
1. MAIN WING -- 1 pair
2.PLYWOOD 3x76 x68mm ( Aileron Servo Cover ) -- 1 pair
BALSA 8 x18x21mm ( For Aileron Servo Stand ) -- 4 pcs
SCREW PWA2x12mm -- 8 pcs
3.SCREW PM2 x 20mm -- 6 pcs
TRI-HORN M 3 x 14mm (L) -- 2 sets
CLEVIS -- 2 pcs
STRAPER -- 2 pcs
FUEL TUBE Φ6 x 5mm -- 4 pcs
PUSHROD Φ1.8 x 110mm w/ Threads ( For Aileron Servo ) -- 2 pcs
4.MAIN LANDING GEAR--1 pair
MAIN LANDING GEAR COVER--1
pair
MOUNTING PLATE PL4114020
--
4
pcs
SCREW PA2.6x10mm -- 8 pcs
SCREW PM2 x 8mm-- 8 pcs
WASHER d2xD5mm -- 16 pcs
M2 NUT -- 8 pcs
5.SCREW PA2.6x 10mm -- 4 pcs
COLLAR Φ4.1mm w/ set screw -- 4 sets
WHEEL P
ANTS--1 p air
MAIN WHEEL Φ80mm -- 2 pcs
MOUNTING PLATE PL4114020
--2 pcs
6.WOODEN 9x25.2 x124.5mm ( Wing Joiner ) -- 1 pc.
7.STABILIZER & ELEVATOR -- 1 set
FUSELAGE- - 1 pc.
8.VERTICAL FIN & RUDDER -- 1 set
TAIL LANDING GEAR -- 1 set
TAIL WHEEL Φ25mm -- 1 pc.
SCREW PA3x12m-- 2 pcs
COLLAR Φ2.1mm w/ set screw -- 1 set
9. FUEL TANK 380cc -- 1 set
PLYWOOD 3x15x105mm ( For Fixing Fuel Tank ) -- 1 pc.
BALSA 6x15x78mm ( For Fixing Fuel Tank ) -- 1 pc.
10. ENGINE MOUNT PL5111070 -- 1 set
SOCKET HEAD SCREW M4x25mm -- 4 pcs
WASHER d4xD15mm -- 4 pcs
11. SCREW PM4x30mm -- 4 pcs
SPINNER Φ82 mm -- 1 pc.
THROTTLE PUSHWIRE Φ1.2 x 460mm
w/ Plastic Tube d2 x D3 x 240mm -- 1 set
WASHER d4xD9mm -- 8 pcs
M4 NUT -- 8 pcs
12. COWLING -- 1 pc.
TRANSPARENT DUMMY COWLING .
-- 1 pc
SILICON GROMMET d1.5xD6.5mm -- 5 pcs
SCREW PWA2.6 x 12mm -- 5 pcs
13.LINKAGE CONNECTOR Φ2.1 mm -- 1 set
14.SCREW PM2
x16mm -- 3 pcs
TRI-HORN
M3x14mm (L) -- 1 set
CLEVIS -- 1 pc.
FUEL TUBE Φ6 x 5mm -- 1 pc.
PUSHROD Φ1.8x615mm w/ Threads (For Rudder ) -- 1 pc.
15.SCREW PM2x16mm -- 6 pcs
TRI-HORN M3x14mm (L) -- 2 sets
CLEVIS --2 pcs
FUEL TUBE Φ6x5mm -- 2 pcs
PUSHROD Φ1.8x525mm w/ Threads (For Elevator) -- 2 pcs
16. BALSA 6x6x143mm ( For Servos Stand ) -- 2 pcs
PLYWOOD 3x116x172.5mm ( Servos Stand ) -- 1 pc.
FUEL TUBE Φ6x5mm -- 1 pc.
PUSHROD CONNECTOR -- 1 set
PUSHROD Φ1.8x90mm w/ Threads (For Elevator) -- 1 pc.
SPONGE 60x70x110mm -- 1 pc.
17.CANOPY -- 1 set
SCREW PWA2.3X8mm -- 5 pcs
SILICON GROMMET d1.5xD6.5mm -- 5 pcs
PILOT ( #PC001085 A
/ B ) -- 1 pc.
18.SCREW PM4x35mm -- 2 pcs
WASHER d4xD15mm -- 2 pcs
PLYWOOD 2x40x110mm ( Wing Protection ) -- 1 pc.
19.DECALS -- 1 set
COVERING:--
LIGHTEX STL 100 WHITE
LIGHTEX STL 201 BLACK
LIGHTEX STL 330 CADMIUM YELLOW
LIGHTEX STL 331 CUB YELLOW
LIGHTEX STL 350 CORSAIR BLUE
LIGHTEX STL 432 CHECKER(BLACK/YELLOW)
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P.3

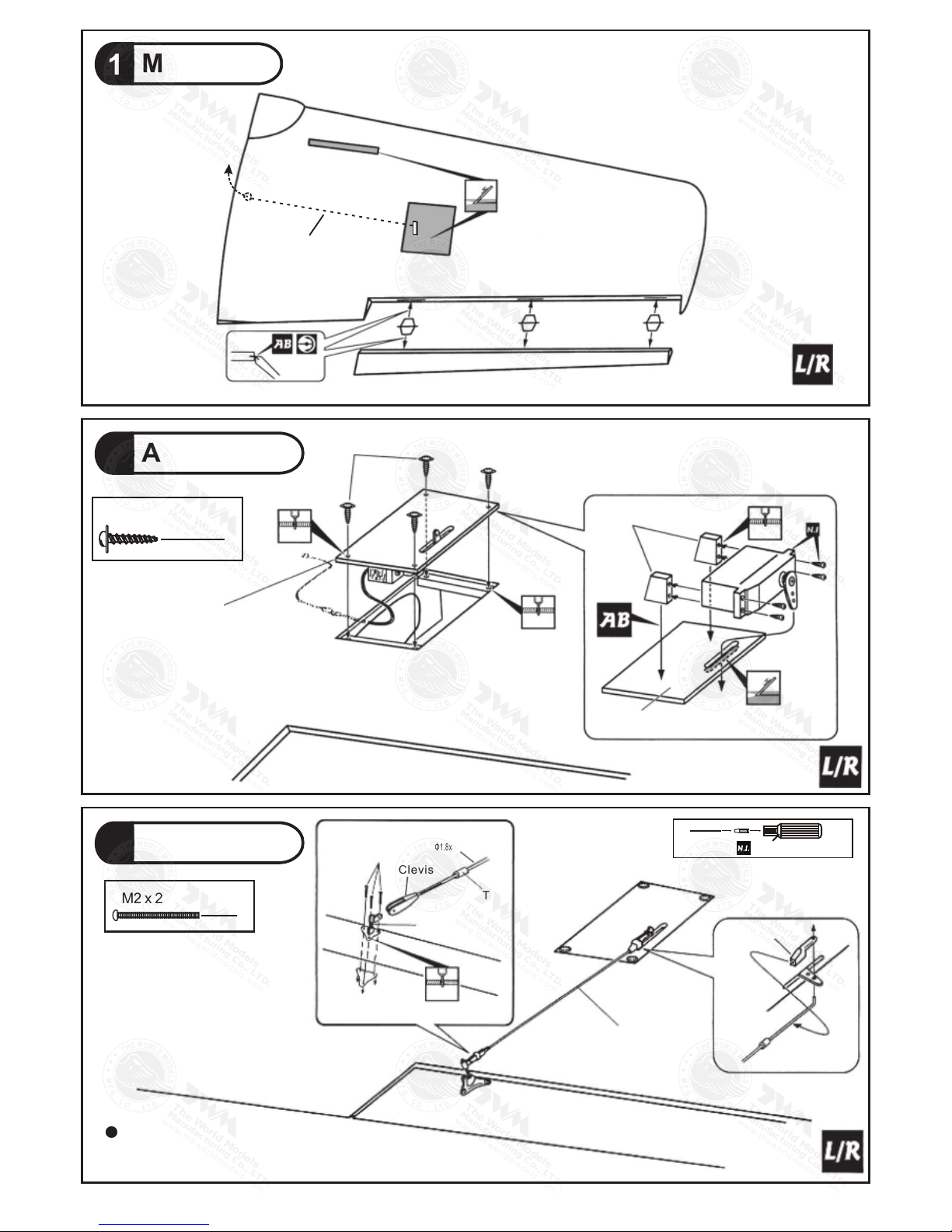

Main Wing
1
Aileron Servo
2
Pre-glued
Peel off shaded portion
covering film.
Aileron Servo
3
PWA 2 x 12mm Screw
8
PWA 2 x 12mm
2mm
Aileron Servo Cover
3 x 76 x 68mm 1mm
1mm
Balsa
8 x 18 x 21mm
Plywood
3 x 76 x68mm
Peel off shaded
portion covering
film.
PM2 x 20mm Screw
6
PM2 x 20mm
Fuel Tube
Φ6 x 5mm
Tri-horn
3 x 14mm
2mm
Aileron Pushrod
Φ1.8 x 105mm
Fuel Tube
Φ6 x 5mm
Straper
Aileron Servo Lead
Φ1mm pilot holes for The World
Models tri-horn are pre-drilled. Please look
for pin-hole marks at under side of control surfaces.
Clevis
Bottom View
Bottom View
Bottom View
Rudder Pushrod
Φ1.8x105mm
TWM Pl8210010
CLEVIS WRENCH
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

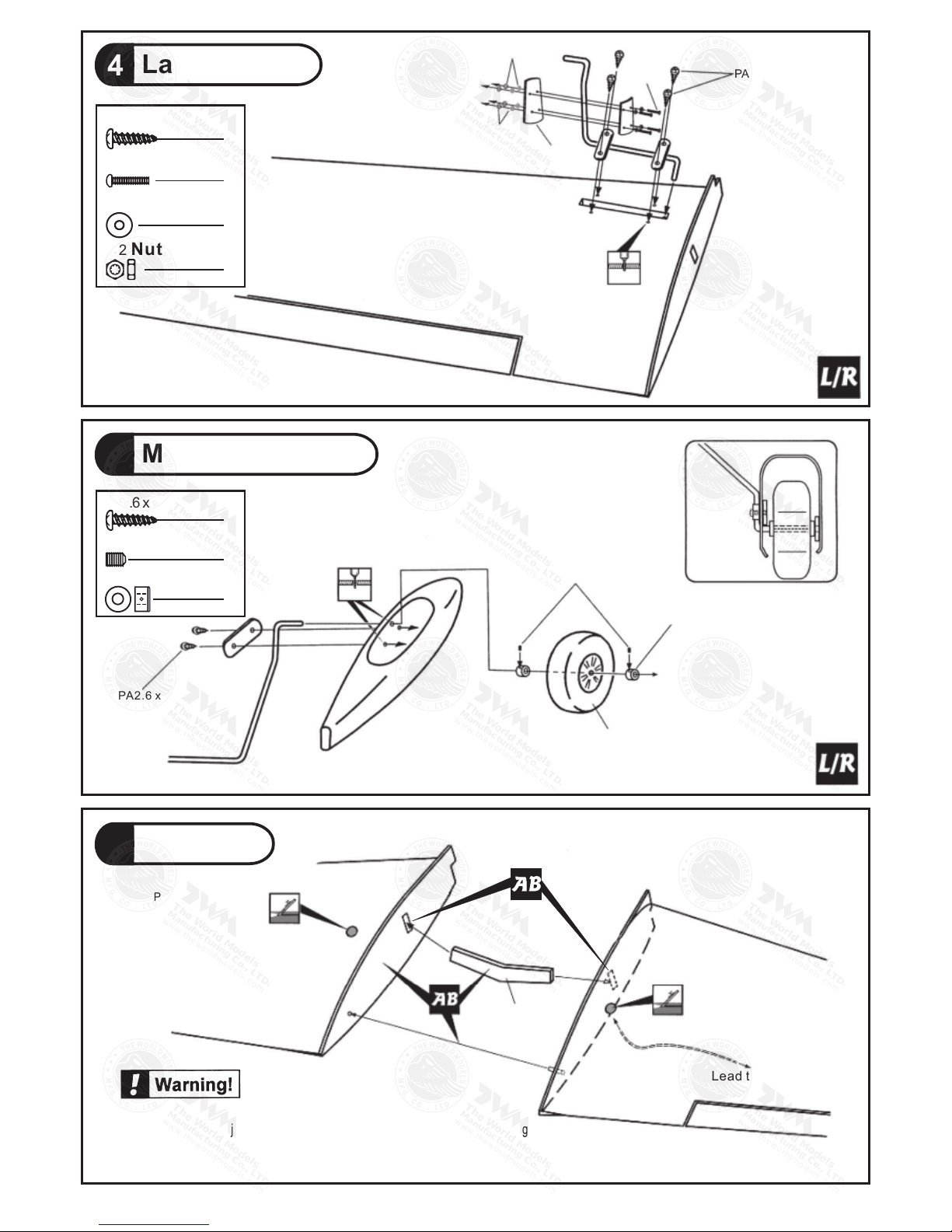

P.4
Main Wing
6
Landing Gear
4
Main Landing Gear
5
PA2.6 x 10mm Screw
PM2 x 8mm Screw
d2xD5mm Washer
M2 Nut
8
8
16
8
M2 Nut
Main Landing Gear Cover
PM2 x 8mm PA2.6 x 10mm
1mm
PA2.6 x 10mm Screw
4
4
4
3mm Set Screw
4.1mm Collar
PA2.6 x 10mm
1.5mm
3mm Set Screw
4.1mm Collar
Mail Wheel Φ 80mm
Completed
Peel off shaded portion
covering film for lead to
another aileron servo.
Peel off shaded
portion covering film.
Lead to aileron Servo.
Apply glue to both sides of all surfaces in contact. Use a stick to apply glue
to inner side of wing joiner sleeve, and apply glue to wing joiner before putting
them together. Wing joiner not glued properly will lead to wing failure and plane crash.
M2 Nut
Bottom View
Wing Joiner
9x25.2x124.5mm
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

Pre-glued
C = C'
C C'
2mm
PA3 x 12mm
Tail Wheel Φ25mm
2.1mm Collar
3mm Set Screw
1mm
PA3X12mm
P.5

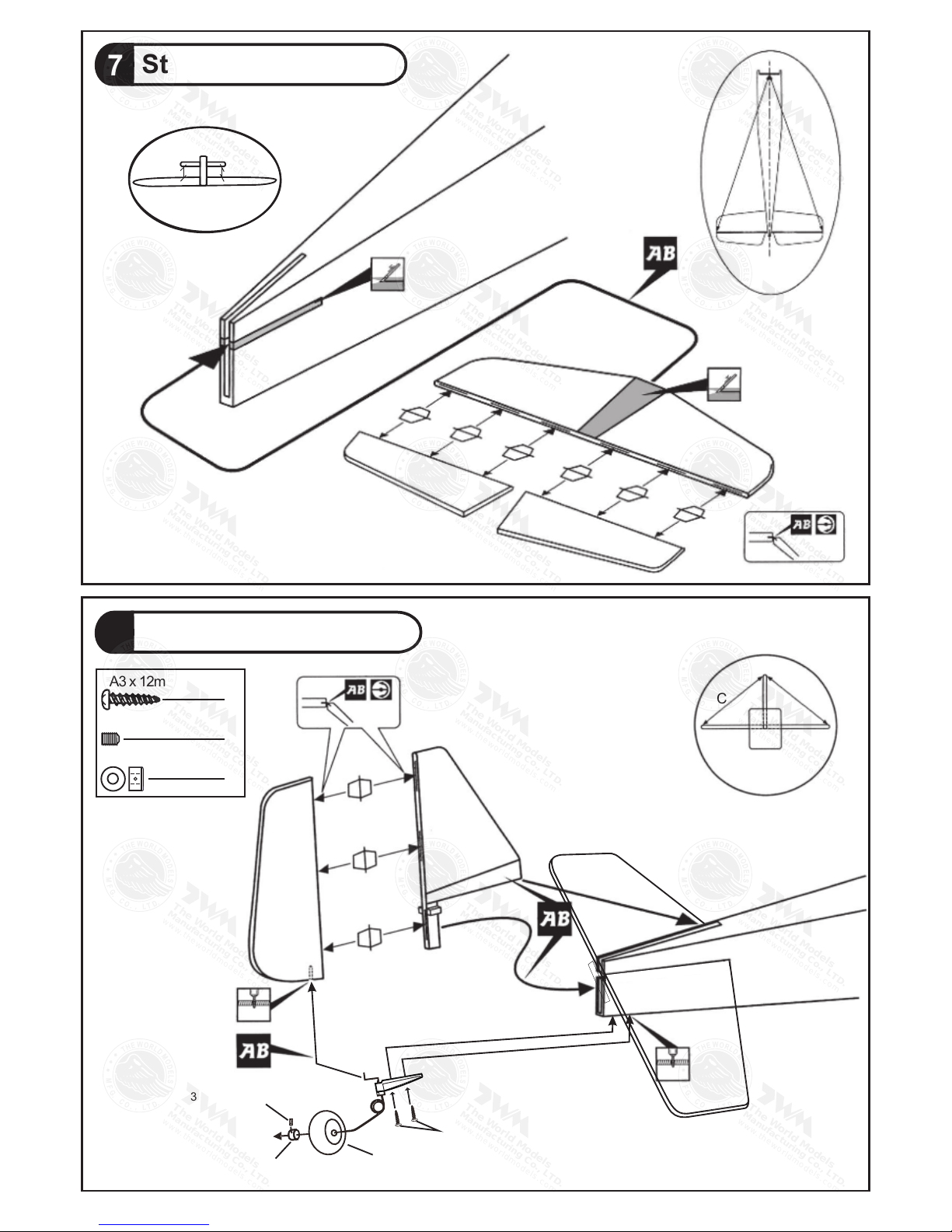

Stabilizer & Elevator
7
Vertical Fin & Rudder
8
A = A'
A A'
Pre-glued
PA3 x 12mm Screw
3mm Set Screw
2.1mm Collar
2
1
1
Temporary install the main wing,
adjust leveling of the stabilizer to make
it as parallel to the main wing as possible.
(Stabilizer)
(Main Wing)
B B'
B=B'
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

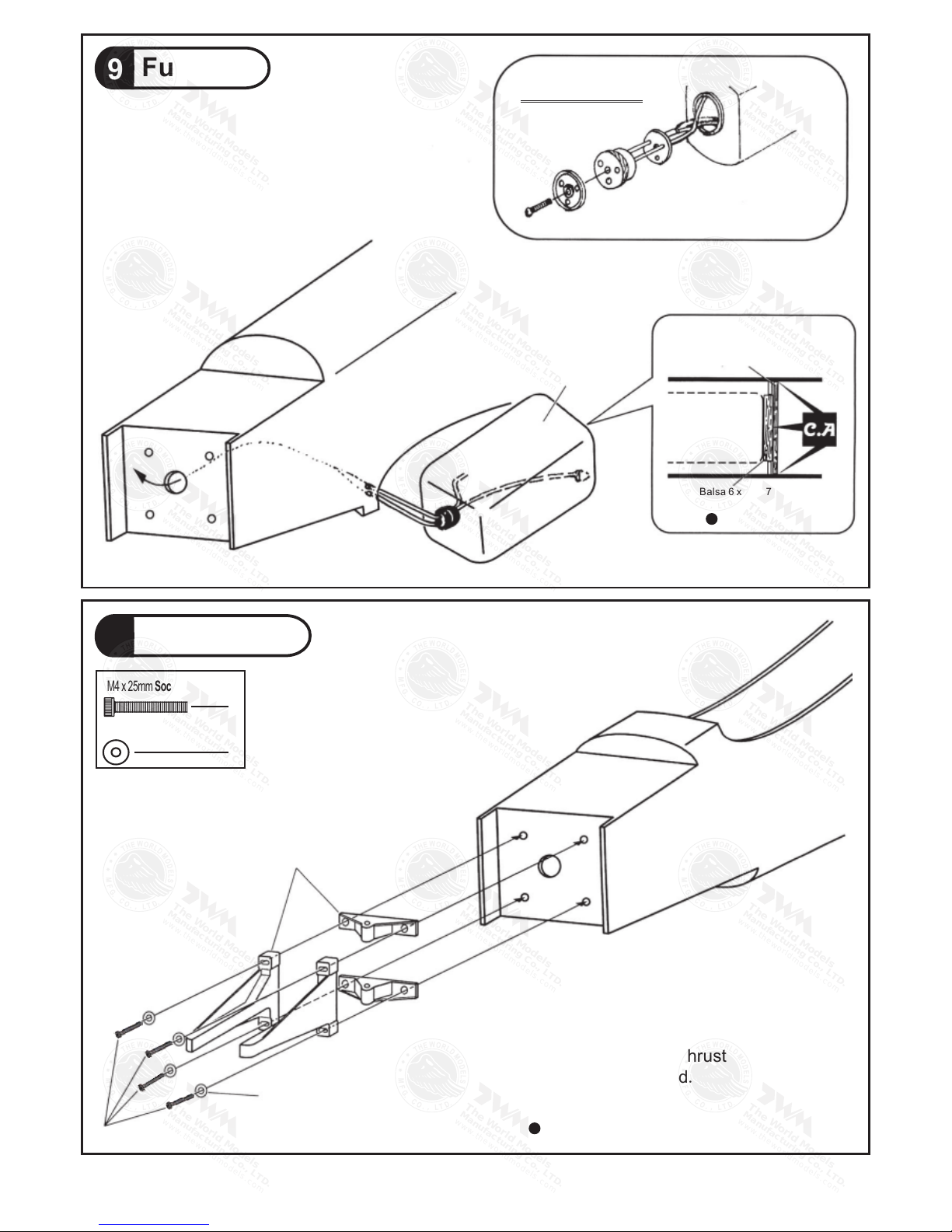

Fuel Tank
9
Engine Mount
10
P.6
Fuel Tank Setup
380cc
Fuel Tank
380cc
Fuel Tank
Install Plywood & Balsa
(For fixing fuel tank)
Plywood 3 x 15 x 110mm
Balsa 6 x 15 x 78mm
Bottom View
d4xD15mm Washer
4
Engine Mount
PL 5111070
Bottom View
Illustration is for inverted mount.
You can mount your engine upright
or sideways simply by rotating the
engine mount,thrust angles will
not be affected.
M4 x 25mm
4mm
M4 x 25mm ScrewSocket Head
4
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P.7
Engine
11
Cowling
12
PM4 x 30mm Screw
d4xD9mm Washer
M4 Nut
4
8
8
M4 Nut
4mm
PM4 x 30mm
Install Engine position
Spinner
Φ82mm
128mm
5.04in.
Fire
Wall
PWA2.6 x 12mm Screw
d1.5 x D6.5mm Silicon Grommet
5
5
d1.5 x D6.5mm
Silicon Grommet PWA2.6 x 12mm
1mm
3.5mm
d1.5 x D6.5mm
Silicon Grommet
PWA2.6 x 12mm
M4 Nut
Washer
d4xD9mm
Washer
d4xD9mm
First insert the grommet to the cowling then apply screw.
Throttle Pushwire d1.2 x 460mm
w/ plastic tube d2 x D3 x 240mm Washer
d4xD9mm
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

14
PM2 x 16mm Screw
3
Bottom View
Rudder
Tri-horn
PM2 x 16mm
Fuel Tube
Tri-horn
3 x14mm
2mm
P.8
Servo Set
13
LINKAGE CONNECTOR
3 x 3mm Set Screw
1
1
1
2
Linkage Connector
M2 Nut
d2xD5mm Washer
Throttle Pushwire
3mm
2mm
2mm
2mm
Included with the Radio Set.
Throttle Servo
Please refer to attached sheet for linkage connector installation.
Rudder Pushrod
Φ1mm pilot holes for The World Models tri-horn are pre-drilled.
Please look for pin-hole marks at side of control surfaces.
Φ1mm pilot holes for The World Models tri-horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
PM2 x 16mm Screw
6
Elevator Tri-horn
Fuel Tube
Φ6 x 5mm
PM2 x 16mm
Tri-horn
3 x 14mm 2mm Bottom View
15 Elevator Pushrod
Rudder Pushrod
Φ1.8x615mm
Elevator Pushrod
Φ1.8x525mm
TWM Pl8210010
CLEVIS WRENCH
TWM Pl8210010
CLEVIS WRENCH
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P.9
Canopy
17
PWA2.3 x 8mm Screw
d1.5 x D6.5mm Silicon Grommet
5
5
Pilot #PC001085B
PWA2.3 x 8mm
3.5mm
PWA2.6 x 8mm
1mm
1mm
d1.5 x D6.5mm Silicon Grommet
Main Wing
18
PM4 x 35mm Screw
2
2
d4 x D15mm
PM4 x 35mm
4mm
d4 x D15mm Washer
Radio Equipment
16 Install and arrange the servo as shown in the diagram.
Balsa 6 x 6 x143mm
Rudder
Servo
Elevator
Servo
Fuel Tube
Φ6 x 5mm
Throttle
Servo
Battery
Receiver
Plywood 3 x 120 x 173mm
Bottom View
Elevator Servo
Elevator Pushrod
1.8X90mm
M2
KAX8mm
Wing Protection
2 x 40 x 110mm
First insert the grommet to the cowling then apply screw.
Throttle Pushwire d1.2 x 460mm
w/ Plastic Tube d2 x D3 x 240mm
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P.10

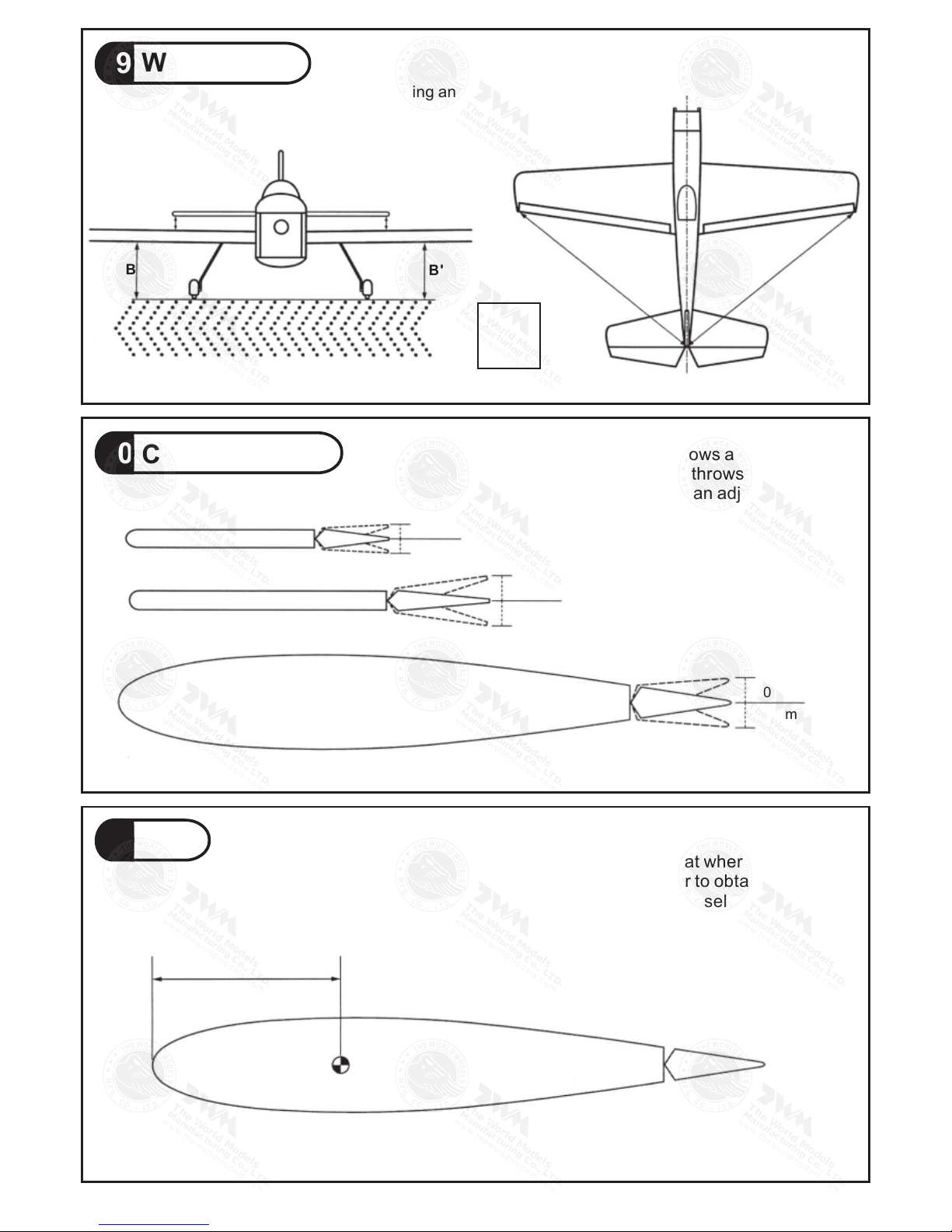

Control Throws
20
Wing Setting
19
Adjust the wing and fuselage configuration
as shown in the diagrams.
A A'
B B' C C'
Elevator
Rudder
Aileron
20mm
20mm
30mm
30mm
10mm
10mm
Adjust the control throws as shown in
the diagram. These throws are good for
general flying. You can adjust according
to your personal preference.
A = A'
B = B'
C = C'
C.G.
21
90mm
3.54 in.
The ideal C.G. position is 90mm(3.54 in)behind
the leading edge measured at where the wing
meets the fuselage. In order to obtain the C.G.
specified, add weight to the fuselage or move
the battery position. Check the C.G. before
flying.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com

P.11
Important Safety Precautions
#First time flyer should never fly by himself / herself. Assistance from experienced flyer is
absolutely necessary.
#Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly
pre-adjusted aircraft.
#MIDGET MUSTANG is specially designed to be powered by 2C 0.61 or 4C 0.91engine,
using a more powerful engine does not mean better performance. In fact, over powered
engine may cause severe damage and injuries.
#Make sure the air field is spacious, never fly the plane too close to people and never get
too close to a running propeller.
#If you find wrinkles on the covering as a result of weather changes, you can use hot iron
to remove the wrinkles. Please begin with lower temperature setting and gradually raise
the temperature until the wrinkles are gone. Too hot an iron may damage the covering.
#Check and re-tighten up all factory assembled screws, use thread locker if applicable.
A0720705
Product Registration Form (US Customers)
We would like to share with you any relevant information regarding your model, including
product news and free upgrade parts when applicable. Please fill in the following and send to
1.Name:
2.Address:
3.Phone #: e-mail:
4.Model:
Wing QC# Fuselage QC#
(QC numbers are stamped on wing and fuselage)
5.Date of Purchase:
6.Store Name:
Please call AirBorne Models at 925 371 0922 for any assistance in filling this form.
Thank you very much for purchasing our product.
Air orne Models, 4749-K,Bennett Drive, Livermore, CA 94551 USAB .
LINKAGE CONNECTOR
HW7111050 & HW7111060
After fastening the round nut, make sure that
the linkage connector can rotate freely.
Drill 2mm hole at servo horn.
Insert linkage connector
into servo horn.
Make sure shoulder of
screw is cleared from
servo horn.
Add washer to reduce
play if necessary.
Shoulder
Tighten up the round nut
against the shoulder. Apply
CA or permanent thread
locker.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
