THE WORLD MODELS P-51 MUSTANG EP User manual

Wing Span
Wing Area
Flying Weight
Fuselage Length
49 in / 1250 mm
434 sq in / 28 sq dm
3.6 Ib / 1650 g
43 in / 1090 mm
Specifications
*Specifications are subject to change without notice.*
INSTRUCTION MANUAL
P-51 MUSTANG EP (40)
450W Motor System
Requires: 5-channel radio w/ 5 mini servos,
Outrunner Motor KM0374810,
w/ Propeller Adaptor HW2340300, 40A
Brushless ESC with 11x8E propeller, 4 cells
14.8V 3200 mAh Li - Po battery & charger.
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY(ARF)SERIES
MADE IN CHINA
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of electric powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
E287XMPO17530807
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com

P. 1
INDEX
BEFORE YOU BEGIN
P. 1
PARTS LIST
P. 2
SAFETY PRECAUTIONS
P. 11
BEFORE YOU BEGIN
ASSEMBLY
P.3-P.11
Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT
and check for defects for all parts that will require CA or Epoxy for final assembly. Any parts you
find to be defective after the gluing process may be difficult to remove for warranty replacement. The
manufacturer will replace any defective parts, but will not extend to the parts that are good before
gluing to defective parts during assembly.
Warranty will not cover any parts modified by customer.
Read through the manual before you begin, so you will have an overall idea of what to do.
Symbols used throughout this instruction manual comprise of the following : -
1
2
3
3mm
Do not overlook this symbol!
Cut off shaded portion.
Peel off shaded portion
covering film.
Pay close attention here!
Pierce the shaded portion
covering film.
Must be purchased separately!
Drill holes with the specified
diameter (here: 3mm).
Ensure smooth non-binding
movement while assembling.
Apply instant glue
(C.A.glue, super glue.)
Assemble left and right
sides the same way.
Apply epoxy glue.
Applythreadlocker
P-51 MUSTANG EP (40)
E287XMPO17530807
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com

P. 2
Parts List
1. MAIN WING -- 1 pair
2. RETRACT GEAR COVER-- 1 pair
3. WING JOINER 6x16x126 -- 1 pc.
4. LINKAGE CONNECTOR Ø2.1mm w/ set screw -- 2 sets
5. SCREW PA1.7x8mm -- 8 pcs
SCREW PB2x12mm -- 4 pcs
HORN -- 2 sets
STRAPER -- 2 pcs
CLEVIS -- 2 pcs
FUEL TUBE d2xD4x4mm -- 4 pcs
BALSA 7x8x13mm (For Aileron Servo) -- 4 pcs
PLYWOOD 2x48x48mm (For Aileron Servos) -- 2 pcs
PUSHROD Ø1.4x108mm w/ Threads (For Aileron) -- 2 pcs
6. STABILIZER & ELEVATOR -- 1 set
FUSELAGE -- 1 pc.
7. VERTICAL FIN & RUDDER -- 1 set
8. TAIL LANDING GEAR -- 1 set
TAIL WHEEL Ø23mm -- 1 pc.
SCREW PA2.6x12mm -- 2 pcs
SCREW PM2x10mm -- 1 pc.
M2 NUT -- 1 pc.
COLLAR Ø1.7mm w/ set screw -- 1 set
STEERING BRACKET 0.3x8x22mm -- 1 pc.
9. HORN -- 2 sets
CLEVIS -- 2 pcs
FUEL TUBE d2xD4x4mm -- 2 pcs
SCREW PB2x10mm -- 4 pcs
PUSHROD Ø1.4x452mm w/ Threads (For Elevator) -- 2 pcs
10. HORN -- 1 set
CLEVIS -- 1 pc.
FUEL TUBE d2xD4x4mm -- 1 pc.
SCREW PB2x10mm -- 2 pcs
PUSHROD Ø1.4x558mm w/ Threads (For Rudder) -- 1 pc.
11. SOCKET HEAD SCREW M3x12mm -- 4 pcs
WASHER d3xD7mm -- 4 pcs
COWLING -- 1 pc.
SPINNER Ø78mm-- 1 set
SCREW PWA2.3x8mm -- 4 pcs
12. STRAPER -- 2 pcs
FUEL TUBE d2xD4x4mm-- 2 pcs
SPONGE 10x50x150mm -- 1 pc.
BATTERY TIE 200mm -- 1 pc.
DOUBLE-SIDED TAPE 30x35mm -- 1 pc.
PUSHROD Ø1.4x65mm (For Elevator) -- 1 pc.
PUSHROD CONNECTOR PL4410020 -- 1 set
13. AIR SCOOP -- 1 pc.
SCREW PM2.5x25mm -- 2 pcs
SCREW PWA2x8mm -- 1 pcs
WASHER d2.5xD8mm -- 2 pcs
PVC PLATE 1x16x62mm(Wing Protection) -- 1 pc.
14. PILOT -- 1 pc.
CANOPY -- 1 pc.
SCREW PWA2x8mm -- 4 pcs
15. DECALS:
E287XMDEC -- 2 pcs
COVERING:--
LIGHTEX SGX 100 WHITE
LIGHTEX SGX 201 BLACK
LIGHTEX SGX 312 BRIGHT RED
LIGHTEX SGX 331 CUB YELLOW
LIGHTEX SGX 340 OLIVE DRAB
LIGHTEX SGX 570 BRIGHT SILVER
E287XMPO17530807
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com

P. 3
Main Wing
1
2
Apply instant type CA glue to both sides of each hinge.
Completed
Bottom View
Bottom View
Aileron Servo Lead
Retractable Landing Gear
Main Wing
3
Completed
Please dry fit wing joiner into left and right wing to make sure they fit with the
proper dihedral angle, mark the wing joiner if necessary. Apply epoxy glue to
both sides of all surfaces in contact. Use a stick to apply the glue to inner side
of wing joiner sleeve, and apply the glue to wing joiner before putting them
together. Wing joiner not glued properly will lead to wing failure and plane crash.
Wing Joiner
6x16x126mm
E287XMPO17530807
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com

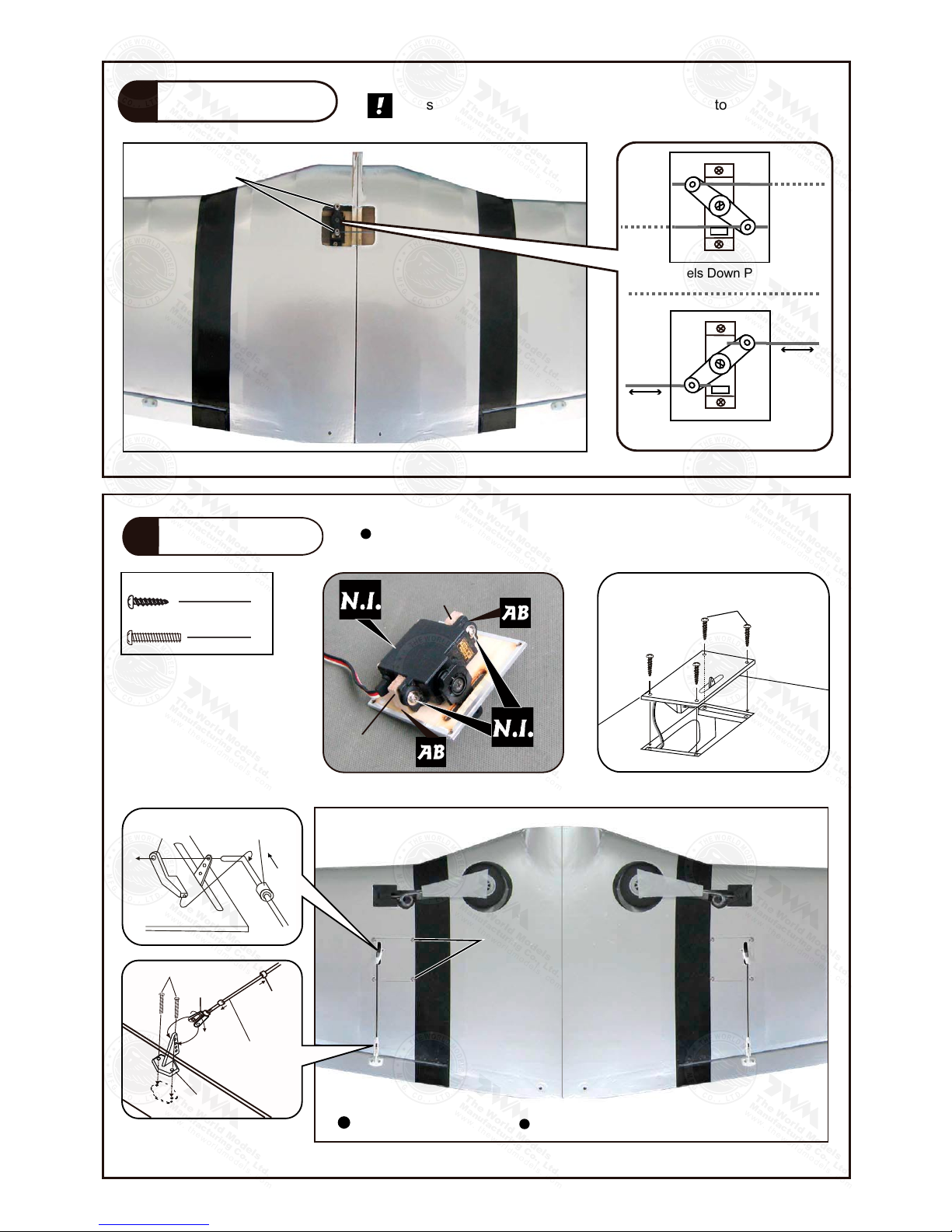

Retract Servo
4
Aileron Servo
5
Bottom View
Completed
PA1.7x8mm Screw
8
PB2x12mm
Clevis
Horn
Pushrod
Ø1.4x108mm
Fuel Tube
d2xD4x4mm
Straper
Fuel Tube
d2xD4x4mm
PA1.7x8mm
Ø1mm pilot holes for World Models tri-horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
P. 4
PA1.7x8mm
Balsa Wood
7x8x13mm
Balsa Wood
7x8x13mm
PB2x12mm
Screw
4
To L-Side
Wheels Up Position
16mm
Travel
16mm
Travel
Wheels Down Position
To R-Side
Linkage connector
Please refer to attached sheet for linkage connector installation.
E287XMPO17530807
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com

P. 5
Stabilizer & Elevator
6
Completed
Apply instant type CA glue to both sides of each hinge.
A A'
A=A'
(Stabilizer)
(Main Wi ng)
BB'
B=B'
Temporary install the main
wing, adjust leveling of the
stabilizer to make it as
parallel to the main wing as
possible.
Vertical Fin & Rudder
7
Apply instant type CA glue to both sides of
each hinge.
Completed
C C'
C=C'
E287XMPO17530807
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com

P. 6
Tail Landing Gear
8
PM2x10mm Screw
PA2.6x12mm
Screw
PA2.6x12mm
M2 Nut
1
1
2
Bottom View
PM2x10mm
M2 Nut
Steering Bracket
1.7mm Collar
1
Rudder Pushrod
10
Bottom View
PB2x10mm Screw
2
Ø1mm pilot holes for World Models tri-horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
≈75mm
≈29mm
Clevis
Fuel Tube
d2xD4x4mm
PB2x10mm
Pushrod
Ø1.8x558mm
Elevator Pushrod
9
PB2x10mm Screw
4
Ø1mm pilot holes for World Models tri-horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
≈125mm
≈29mm
PB2x10mm
Fuel Tube
d2xD4x4mm
Clevis
Pushrod
Ø1.4x452mm
Horn
Horn
Bottom View
3mm
set screw
PA2.6x12mm
E287XMPO17530807
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com

P. 7

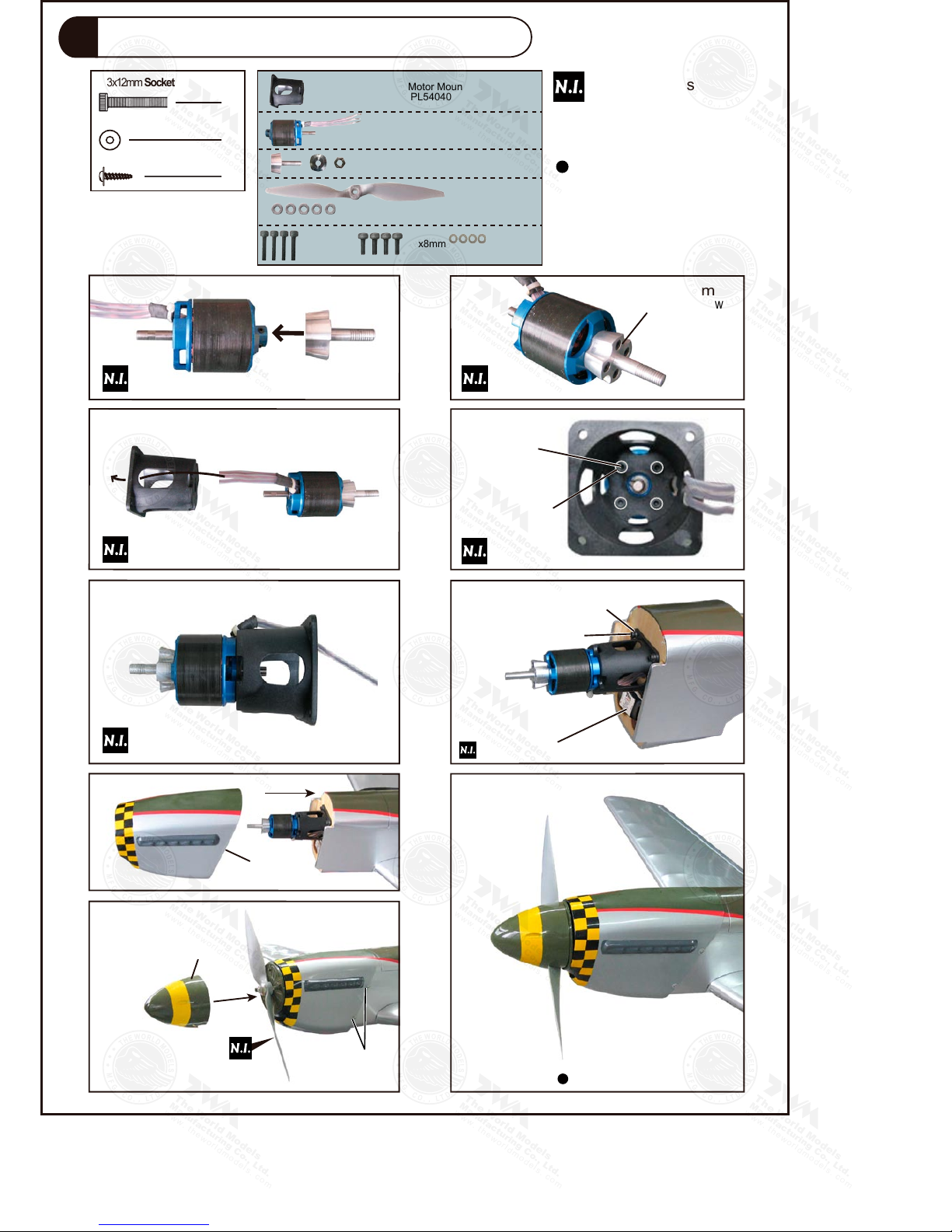

Outrunner Motor / Cowling / Spinner
11
d3xD7mm
Washer
M3x8mm
M2.5x12mm
Socket Head Screw
M3x12mm
Socket Head Screw
d3xD7mm
Washer
Socket Head Screw
Make sure the rotating
motor casing is not in
contact with wirings or
anything.
Optional Parts
Completed
PWA2.3x8mm Screw
4
Cowling
Spinner
Ø78mm
PWA2.3x8mm
Outrunner 37/48 Deluxe
KM0374810
Radial Mount Adaptor Set
HW2340300
Propeller Set (11x8E)
PL6211108
d3xD7mm Washer
4
4
M3x12mm Socket Head Screw
Motor Mount
PL5404000
M3x8mm d3xD7mm
Washer
M2.5x12mm
40A Brushless ESC
E287XMPO17530807
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com

P. 8
Radio Equipment
12
Completed
Bottom View
Front
Install and arrange the servo as shown in the diagram.
ReceiverRudder Pushrod
Fuel Tube
d2xD4x4mm
Elevator Servo
Pushrod Connector
Elevator Servo
Rudder Servo Battery Tie
200mm
KA1.7x6mm
Elevator Pushrod
Ø1.4x65mm
Battery
J1
J2
J1(Pushrod Ø1.4x65mm)
J2(Pushrod Ø1.4x452mm)
Sponge10x50x150mm
Straper
E287XMPO17530807
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com

P. 9

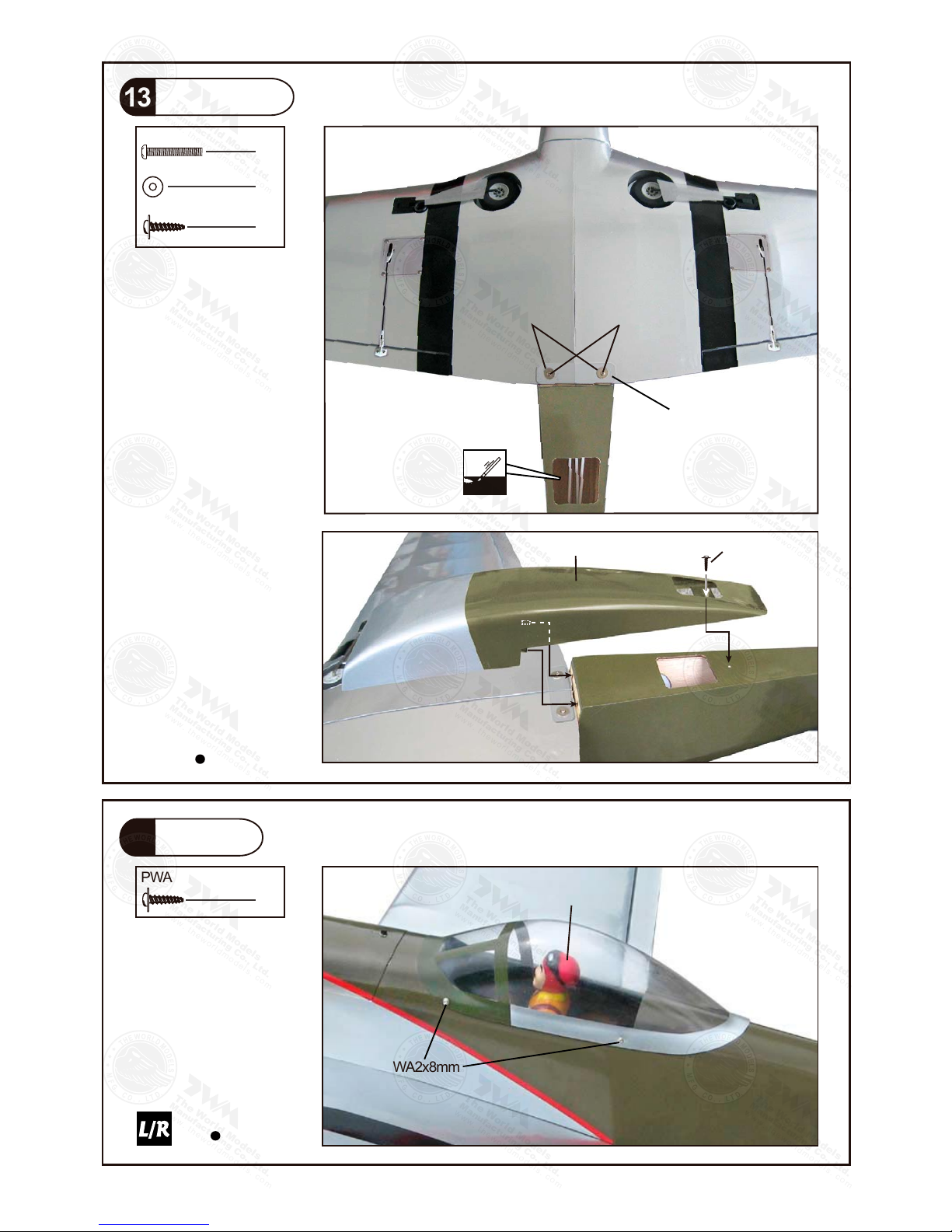

Main Wing
13
d2.5xD8mm Washer
PM2.5x25mm Screw
PWA2x8mm Screw
2
2
1
Canopy
14
PWA2x8mm Screw
4
Completed
Bottom View
PWA2x8mm
Pilot
PWA2x8mm
Air Scoop
d2.5xD8mm
PM2.5x25mm
PVC Plate
1x16x62mm
E287XMPO17530807
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com

P. 1 0
Wing Setting
15 Adjust the wing and fuselage configuration as shown in the diagrams.
A=A’ B=B’ C=C’ D=D’
BB’
AA’
D C C ’
D ’
E287XMPO17530807
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com

P. 11

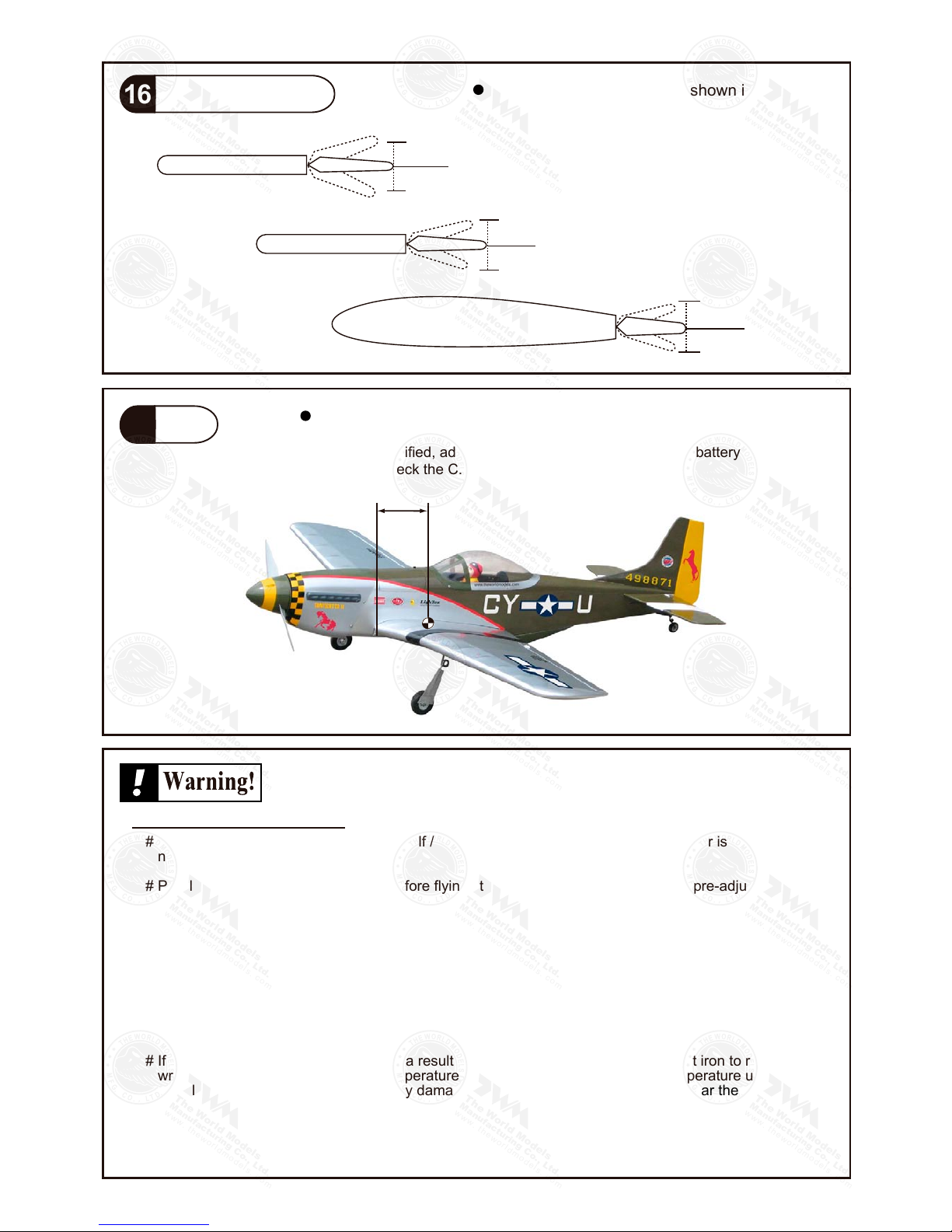

Control Throws
16
C.G.
17
Adjust the control throws as shown in the
diagram. These throws are good for general
flying. You can adjust according to your
personal preference.
The ideal C.G. position is 105 mm ( 4.13 in ) behind the leading
edge measured at where the wing meets the fuselage. In order to obtain
the C.G. specified, add weight to the fuselage or move the battery
position. Check the C.G. before flying.
Rudder
15 mm
15 mm
Elevator 10 mm
10 mm
6 mm
6 mm
Aileron
Important Safety Precautions
# First time flyer should never fly by himself / herself. Assistance from experienced flyer is absolutely
necessary.
# Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly pre-adjusted aircraft.
# is specially designed to be powered by 450W Motor System.
# Make sure the air field is spacious, never fly the plane too close to people and never get too close to
a running propeller. Extreme caution should be exercised when working with electric powered models.
Make sure the propeller is cleared of all objects, especially your hands before connecting the battery
to the model. Make sure you understand the operation of the ESC (Electronic Speed Control) by
studying the ESC manual. Once you plug in the battery for electric powered model, always treat the
propeller as a rotating one, as accidental movement of the throttle stick will spin the propeller and
could cause injuries.
# If you find wrinkles on the covering as a result of weather changes, you can use hot iron to remove the
wrinkles. Please begin with lower temperature setting and gradually raise the temperature until the
wrinkles are gone. Too hot an iron may damage the covering. Don,t use hot iron near the seams or
edges,hot iron will melt the glue and shrink the covering at the same time, causing the seams to pull
away.
# Check and re-tighten up all factory assembled screws, use thread locker if necessary.
105 mm
C.G.
4.13 in
MUSTANG EP (40)
E287XMPO17530807
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com

Drill 2mm hole at servo horn.
Insert linkage connector
into servo horn.
Make sure shoulder of
screw is cleared from
servo horn.
Add washer to reduce
play if necessary.
Shoulder
Tighten up the round nut
against the shoulder. Apply
CA or permanent thread
locker.
After fastening the round nut, make sure that
the linkage connector can rotate freely.
LINKAGE CONNECTOR
HW7111050 & HW7111060
E287XMPO17530807
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com

Product Registration Form (US Customers)
We would like to share with you any relevant information regarding your model, including
product news and free upgrade parts when applicable. Please fill in the following and send to
AirBorne Models, 4749-K, Bennett Drive, Livermore, CA 94551 USA.
1. Name:______________________________________________
2. Address:____________________________________________
3. Phone #:____________________ E-mail:__________________
4. Model:______________________________________________
Wing QC#__________ Fuselage QC# _______________________
(QC numbers are stamped on wing and fuselage)
5. Date of Purchase:_____________________________________
6. Store Name: _________________________________________
Please call AirBorne Models at 925 371 0922 for any assistance in filling this form.
Thank you very much for purchasing our product.
E287XMPO17530807
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com

This transparent 3D template
is used for position guidance
of the actual cutting of the
pre-painted cowling.
Usage of the transparent 3D template
Simply cut the transparent 3D template to fit your engine and
exhaust pipe, then slide onto the actual cowling and use as
template to mark the openings required for final cutting.
1 2
3 4
E287XMPO17530807
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com

The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
E287XMPO17530807
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
