Theatrixx XVISION TH-HDMI2SDI-T1 User manual

USER MANUAL
XVISION CONVERTER HDMI TO SDI
PowerCON True1 in/out
TXVV-HDMI2SDI-TRUE1
Theatrixx Technologies
version 2.2
August 2017

User Manual – xVision Converter HDMI to SDI True1
Congratulations on your new acquisition of an xVision Video Converter. It has
been designed for years of trouble-free use in the harshest of environments.
Should you have any questions regarding this product, feel free to contact us
using our website at www.theatrixx.com, or by phone at 1-800-939-3077.
The xVisionVideo Converter HDMI to SDI converts HMDI video and audio signal
to SD, HD and 3G-SDI to reach your SDI-compatible equipment in a rugged,
tour-ready enclosure with built-in power supply.There are no settings to fumble
with – it just works.
Features
- Integrated power supply with locking PowerCON True1 connector. Never
rely on a cluster of wall-warts again.
- Built-in convenience outlet to power nearby projector,TV, laptop, small video
projector... Power bar to power both the converter and device not required
anymore.
- Magnetic stacking system and non-skid rubber pad saves at least 10 gaffer
tape rolls a year.
- Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount
adapter and belt adaptor.
- Rugged, Tour-ready and aesthetic enclosure : The sexiest widget in your
toolbox that will keep looking good for years to come.
- Plug-n-play operation; No dipswitches, buttons or menus to fumble with: It
just works.
- Clear and ample status LED indicators for quick troubleshooting.
- HDMI input tested and compatible with Apple computers and iPad.
- Easy on-the-field identification with unique color and alphabetic coding
system.
- Locking HDMI port prevents accidental disconnection. Integrated SDI splitter :
Dual SDI outputs.
- Proudly designed and assembled in Canada.

Safety and compliance
cQPSus
This equipment has been
tested and meets the following conformance standards :
- CAN/CSA-C22.2 NO. 60950-1-07 - InformationTechnology Equipment
- Safety - Part 1: General Requirements - Second Edition; including
AMD 1 :2011 and AMD 2 :2014
- UL 60950-1 - UL Standard for Safety : Information Technology
Equipment - Safety - Part 1 : General Requirements - Second
Edition; Reprint with Revisions Through and Including October
14, 2014
FCC Class A Notice
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions :
1. This device may not cause harmful interference.
2. This device must accept any interference received, including inter-
ference that may cause undesired operation.
Note : This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial envi-
ronment. This equipment generates, uses, and can radiate radio frequency energy, and if it is not
installed and used in accordance with the instruction manual, it may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference, in which case the user will be required to correct the interference at his own expense.
European Union
This equipment has been tested and meets the following conformance
standards :
- IEC 60950-1 :2006 : Safety of information technology equipment
+ A11 :2009 + A1 :2010 + A12 :2011 + A2 :2013
- EN 55022 :2010 : Information technology equipment - Radio dis-
turbance characteristics - Limits and methods of measurement
ICES-003 Class A Notice - Avis NMB-003, Classe A
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-
003 du Canada.
WARNING
Changes or modifications not expressly
approved by Theatrixx Technologies could void
the user’s authority to operate the equipment.

Before operation, read these general warnings
IMPORTANT SAFETY INSTRUCTION
This equipment must be connected to an earthed socket-outlet.
VIGTIGE SIKKERHEDSINSTRUKTIONER
Dette udstyr skal tilsluttes en jordet stikkontakt.
TURVALLISUUOSOHJEITA
Tämä laite on kytkettävä maadoitettuun pistorasian.
VIKTIG SIKKERHETSINSTRUKS
Dette utstyret må kobles til en jordet stikkontakt.
- The unit is intended for professional use only. Not for domestic use.
- Read and follow all instructions and information marked on the product or
in this manual.
- Do not use this unit near water and clean only with a dry cloth.
- Install the unit in accordance with this manual.
- Do not install near any heat sources.
- Do not modify any part of the power cord. If the provided plug does not fit
into your outlet, please consult an electrician.
- In the event the AC cable appears damaged, do not plug the unit in AC power
and return it to your dealer for repair.
- Turn off the power before plugging or unplugging the PowerCon connector.
The PowerCon has no breaking capacity and should not be connected or
disconnected under load or live.
- Protect the power cord from being walked on.
- The Mains plug is used as the disconnection for the unit, it must remain
accessible and operable.
- Unplug this unit during lightning storms or when unused for a long period.
- Servicing must be performed by a qualified and certified technician.
- Do not open the chassis. Opening the chassis will void the warranty unless
performed by an authorized Theatrixx Service Center.
- Disconnect the AC Power Plug before moving the unit.
- Electrical grounding must be observed at any time to avoid electrical shock.
- Make sure that all devices plugged in the outlet connector of the device do
not exceed 10A.
- Contains Neodymium magnets.

1. Unpacking
After opening the box, remove the unit from its protective plastic bag, and
unpack the included accessory box. Ensure the package contains the following:
- xVision Converter HDMI to SDI, PowerCON True1 in/PowerCON True1 out
- DVI male to HDMI male cable with locking screw (1 meter)
- Edison Nema 5-15 Male to PowerCON True1 or CEE 7/7 to PowerCON True1
cable (1.5 meter)
- Warranty card
- This user manual

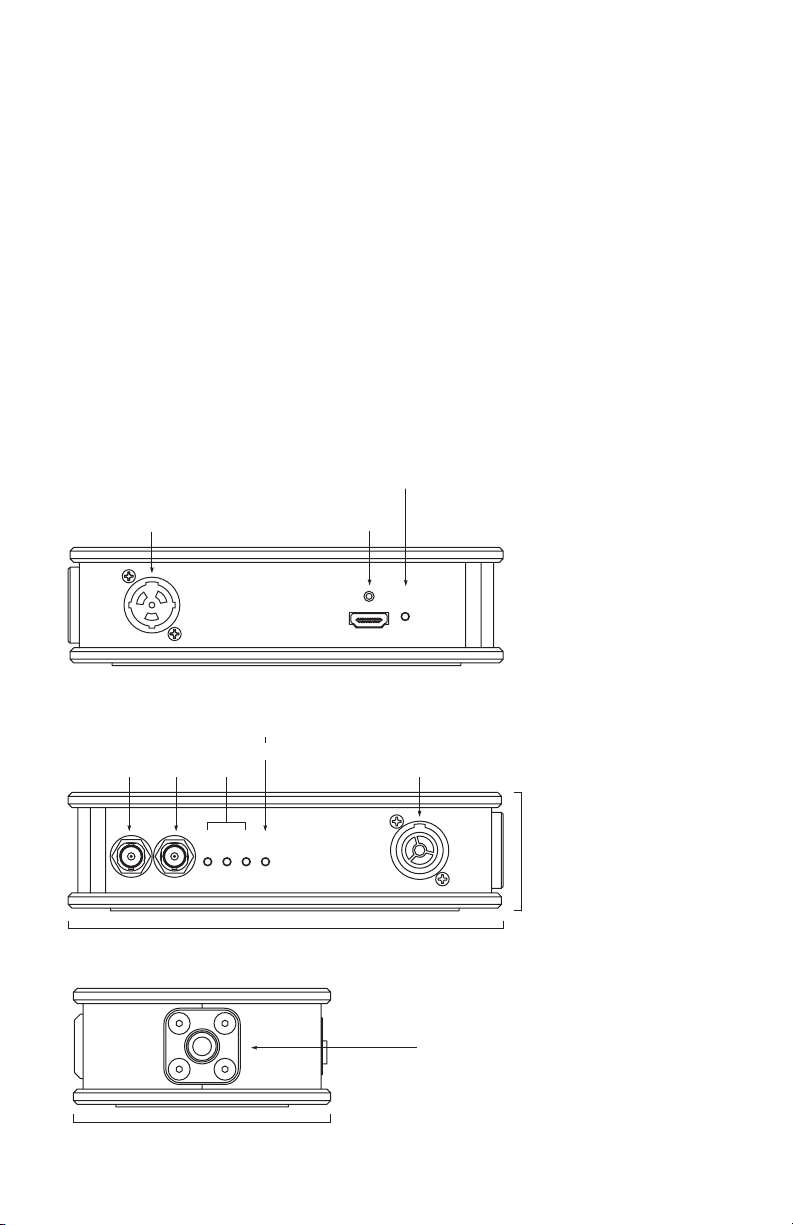

Familiarize yourself with the unit connections and indicators :
50 mm (1.97 in)
180 mm (7.08 in)
PowerCON True1 output
SDI out
1 2
HDCP LED
Signal Type LEDs
HDMI in
Standby / Signal LED
PowerCON True1 input
Mounting Plate
(M10 thread)
107 mm (4.21 in)

WARNING
THIS EQUIPMENT MUST BE USEDWITH POWER SUPPLY CORD PROVIDED
ONLY OR PURCHASE FROM THEATRIXX TECHNOLOGIES. PLEASE
CONTACT THEATRIXX TECHNOLOGIES IF YOU NEED A DIFFERENT POWER
SUPPLY CORD THAN THE NEMA 5-15 OR THE CEE 7/7. PLEASE CONTACT
THEATRIXX TECHNOLOGIES TO ORDER YOUR CABLES TO USE WITH THE
POWERCON TRUE1 OUTLET.
2. Installation
The unit can be mounted in different ways using the threaded mounting plate
on its side. Any standard C-clamp type device (sold separately) or bolt using a
M10 thread may be used. The unit may also be placed on a stable horizontal
surface with no other attachment needed. Using the built-in magnets, multiple
units may be stacked easily.
WARNING
- Never use the magnets as the sole attachment method. The magnets
are designed to facilitate stacking and should not be used to attach the
unit to metallic bulkheads.
- Always use rated mounting hardware and accessories to avoid fatal
accidents.
- This product must be installed in accordance with the applicable instal-
lation code by a person familiar with the construction and operation of
the product and the hazards involved.
- Make sure mounting hardware is attached securely to all components
of the installation.
- Always use a safety cable to secure the unit in case the main attachment
device fails.
- The mounting means of equipment intended for wall or ceiling mounting
shall be adequate for min 50N.
- Authorities Having Jurisdiction should be consulted as to conformance
with applicable building codes.

3. Operation
The unit has automatic input format detection and adjusts the output to match
the input. The unit is not equipped with scaling technology and will not change
the format of the signal in any way.
1. Connect unit to power and (if applicable) connect auxiliary equipment to
the converter’s AC outlet.
2. The unit will boot and LEDs may flash in a random sequence.
3. If no video input is detected, the Power/Signal LED will light up Red
4. As soon as a valid video signal is detected on the input connector, the Power/
Signal LED will turn Green and the SignalType LEDs will indicate the detected
signal type (3G/HD/SD).
5. The output plugs become active immediately after a valid signal has
been detected.
TIP :
- Your unit includes dual SDI output connectors, which means you have a
built-in distribution amplifier to feed your video signal to two sources at the
same time.
- This unit has been tested and is compatible with all Apple equipment, includ-
ing Mac, iPad and iPhone. However, HDCP-protected content like iTunes
movies will not play through this unit.
IMPORTANT NOTICE REGARDING HCDP
The HDMI output of a Blu-ray player or other HDMI devices may have HDCP
encryption intended for content protection. HDCP protection may be active
only for certain video files, depending on the device. The HDCP standard only
allows for HDCP encrypted material to be converted to another format if that
format also supports HDCP and the material is re-encrypted. The only interface
formats that support HDCP are HDMI, DVI, Display Port and UDI. SDI does not
support HDCP and therefore the conversion from HDMI with HDCP to SDI is
against the HDCP standard.
Circumventing HDCP is against US law
In order to convert from HDMI with HDCP to HD-SDI the HDCP encryption will
have to be removed. Removing HDCP and outputting the signal in a different
format that does not support HDCP is circumventing the copyright protection.
Circumventing any form of digital copy right protection is prevented by the
Digital Millennium Copyright Act (DMCA) and is against US law.

Warranty
Limited warranty
Your xVision Video Converter includes a 2-year limited warranty. Please see the
included warranty card for more information.
Appendix A : Specifications
Connections
- Video input: HDMI 1.4 type A with lock system
- Video Ouput: 2 x 3G/HD/SD SDI auto switching
Standards
- 3G : 1080p50/60
- HD : 1080p24/25/30, 1080i50/60, 720p50/60
- SD : 625i (PAL) 525i (NTSC)
Audio
- Up to 8 channels, 24bit, 48kHz
Physical Specifications
- Height : 50mm (1.97in)
- Depth : 180mm (7.08in)
- Width : 107mm (4.21in)
- Weight : 1kg (2.2lbs)
Power Requirements
- Power Supply : Built-in power supply, PowerCon TRUE1
input, PowerCon TRUE1 output
- Current Consumption : 0.15A Standalone, 10A with AC Outlet
- Operational Voltage Range : 100-240V
Environnemental Specifications
- Relative Humidity : 0% to 90% non-condensing
- Working temperature: 0 to 40°C

Notices
Trademarks and copyright
xVision is a registred trademark of Theatrixx Technologies Inc.
Copyright © 2015-2017TheatrixxTechnologies Inc. All rights reserved.The infor-
mation contained in this document is the sole property of TheatrixxTechnologies
Inc. Any reproduction in part or as whole without the written permission of
Theatrixx Technologies Inc. is prohibited.
Recycling notice
The unit must not be disposed of with your other household waste. It
is your responsibility to dispose of your waste equipment by handing
it to a designated center for the recycling of electrical equipment.
Contact
To contact Theatrixx Technologies for sales or support, use any of the following
methods :
Tel : [phone]
Fax : [phone]
Web : www.theatrixx.com
Support Email : [email protected]
Sales Email : [email protected]

www.theatrixx.com
