Operation Manual
Operation Manual
HDMI to VGA Video Converter
CP-1262HAT

DISCLAIMERS
The information in this manual has been carefully checked and is believed
to be accurate. Cypress Technology assumes no responsibility for any
infringements of patents or other rights of third parties which may result from
its use.
Cypress Technology assumes no responsibility for any inaccuracies that
may be contained in this document. Cypress also makes no commitment to
update or to keep current the information contained in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express written
permission and consent from Cypress Technology.
© Copyright 2018 by Cypress Technology.
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document are trademarks of
the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply. Please keep the
following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain, moisture
or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings
or empty slots in the unit, as you may damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it
is damaged.
• Do not allow anything to rest on the power cabling or allow any weight to
be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or openings
in the unit housing that provide ventilation and allow for su󰀩cient space
for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in use to
avoid wasting electricity.
VERSION HISTORY
REV. DATE SUMMARY OF CHANGE
RDV1 2020/07/28 Preliminary release

CONTENTS
1. Introduction...................................................... 1
2. Applications ..................................................... 1
3. Package Contents ........................................... 1
4. System Requirements..................................... 1
5. Features............................................................ 1
6. Operation Controls and Functions ................ 2
6.1 Front Panel.................................................. 2
6.2 Rear Panel................................................... 3
7. Connection Diagram ....................................... 4
8. Specications .................................................. 5
8.1 Technical Specications .............................. 5
8.2 Video Specications .................................... 6
8.3 Audio Specications .................................... 8
8.3.1 Digital Audio ....................................... 8
8.3.2 Analog Audio ...................................... 8
8.4 Cable Specications.................................... 9
9. Acronyms ....................................................... 10

1
1. INTRODUCTION
Despite the widespread adoption and popularity of HDMI video sources and
displays, many specialist elds continue to need, and use, legacy display
technology such as VGA. This HDMI to VGA Video Converter can take any
standard HDMI source, without HDCP, and output it as either an RGBHV
or YPbPr signal. A standard HDMI EDID is provided to help ensure that the
connected source remains within the specication limits of the unit and a
simple two-position switch provides control over the output format.
2. APPLICATIONS
• HDMI to Analog RGBHV or YPbPr conversion
3. PACKAGE CONTENTS
• 1× HDMI to VGA Video Converter
• 1× 5V/1.2A DC Power Adapter
• 1× Operation Manual
4. SYSTEM REQUIREMENTS
• HDMI source equipment such as a media player, video game console or
set-top box.
• VGA (HD-15) or YPbPr (3-wire component) receiving equipment such as a
PC monitor or HDTV.
5. FEATURES
• Supports HDMI input and analog PC/RGBHV or HD/YPbPr output
Note: HDCP encrypted sources are not supported and will be blacked out.
• Supports stereo audio output extracted from the HDMI source (2 channel
LPCM only)
• Supports output selection between YPbPr and RGBHV
• Supports standard resolutions up to WUXGA (PC) and 1080p (HDTV)
Note: Provides signal format conversion only. No scaling or resolution
change options are supported.
• Built-in standard HDMI EDID

2
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
L/R
PC/YPbPr
Out
12
1PC/YPbPr Out Port: Connect to a VGA or component video monitor or
display for analog video output.
Note: Connection to a component video display may require a 15-pin to
3-RCA adapter.
2L/R Out Port: Connect to powered speakers or an amplier for stereo
L/R audio output.
Note: Only 2 channel LPCM sources are supported.

3

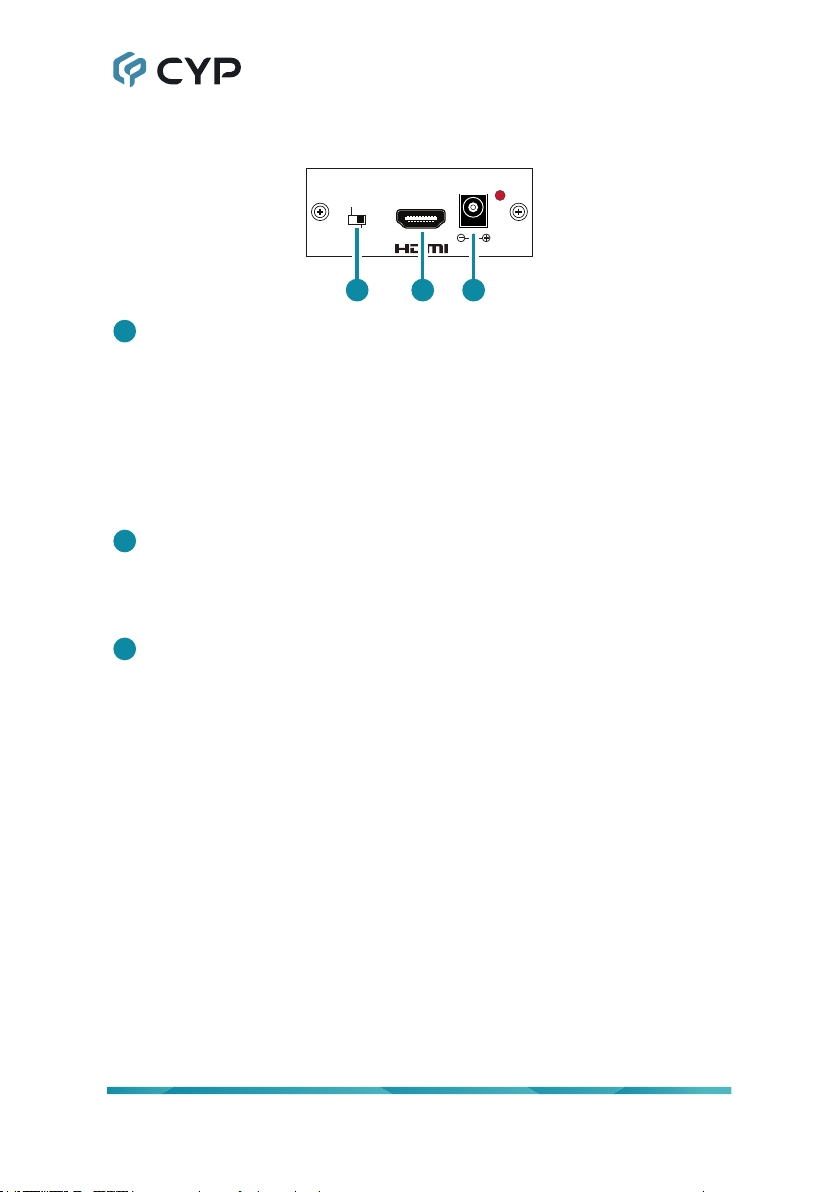

6.2 Rear Panel
DC 5V
RGB
YPbPr
Out HDMI In
HDMI to PC/HD
123
1OUTPUT YPbPr/RGB Switch: Set the switch to RGB to output a
standard PC signal (RGBHV format). Set the switch to YPbPr to output
a component video signal (YPbPr format). Switching between formats
takes roughly 20 seconds to complete.
Note 1: It is strongly suggested to only select YPbPr output when the
input is a standard video resolution such as 720x480 or 1280x720.
Note 2: When outputting YPbPr the H and V sync signals are still present
on their respective pins.
2HDMI In Port: Connect to HDMI source equipment such as a media
player, game console or set-top box.
Note: HDCP encrypted sources are not supported and will be blacked
out.
3DC 5V Port and LED: Plug the non-locking 5V DC power adapter into
this port and connect it to an AC wall outlet for power. The LED will
illuminate to indicate the unit is on and receiving power.

4
7. CONNECTION DIAGRAM
L/R
PC/YPbPr
Out
DC 5V
RGB
YPbPr
Out HDMI In
HDMI to PC/HD
Laptop
Monitor Active Speaker
Power Supply
L/R Output
VGA Output
HDMI Input

5
8. SPECIFICATIONS
8.1 Technical Specications
HDMI Bandwidth 4.95Gbps
VGA Bandwidth 165MHz
Input Port 1×HDMI (Type-A)
Output Ports 1×VGA (HD-15)
1×Analog Stereo (3.5mm)
Power Supply 5V/1.2A DC
(US/EU standards, CE/FCC/UL certied)
ESD Protection (HBM) ±8kV (Air Discharge)
±4kV (Contact Discharge)
Dimensions (W×H×D) 76.5mm×94mm×30mm [Case Only]
76.5mm×99.5mm×30mm [All Inclusive]
Weight 190g
Chassis Material Metal (Aluminum)
Chassis Color Silver
Operating Temperature 0˚C – 40˚C/32˚F – 104˚F
Storage Temperature -20˚C – 60˚C/-4˚F – 140˚F
Relative Humidity 20 – 90% RH (Non-condensing)
Power Consumption 2.14W

6
8.2 Video Specications
Supported Resolutions (Hz)
Input Output
HDMI VGA YPbPr
720×400p@70/85   
640×480p@60/72/75/85   
720×480i@60   
720×480p@60 
720×576i@50   
720×576p@50 
800×600p@56/60/72/75/85   
848×480p@60   
1024×768p@60/70/75/85   
1152×864p@75   
1280×720p@50/60 
1280×768p@60/75/85   
1280×800p@60/75/85   
1280×960p@60/85   
1280×1024p@60/75/85   
1360×768p@60   
1366×768p@60   
1400×1050p@60   
1440×900p@60/75   
1600×900p@60RB   
1600×1200p@60   
1680×1050p@60   
1920×1080i@50/60   
1920×1080p@24/25/30 
1920×1080p@50/60 
1920×1200p@60RB   

7
Supported Resolutions (Hz)
Input Output
HDMI VGA YPbPr
2560×1440p@60RB 
2560×1600p@60RB 
2048×1080p@24/25/30 
2048×1080p@50/60 
3840×2160p@24/25/30 
3840×2160p@50/60 (4:2:0) 
3840×2160p@24, HDR10 
3840×2160p@50/60 (4:2:0), HDR10 
3840×2160p@50/60 
4096×2160p@24/25/30 
4096×2160p@50/60 (4:2:0) 
4096×2160p@24, HDR10 
4096×2160p@50/60 (4:2:0), HDR10 
4096×2160p@50/60 

8
8.3 Audio Specications
8.3.1 Digital Audio
HDMI Input
LPCM
Max Channels 2 Channels
Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96
Bitstream
Supported Formats None
8.3.2 Analog Audio
Analog Output
Max Audio Level 1.2Vrms
THD+N < −80dB@0dBFS 1kHz (A-wt)
SNR > 70dB@0dBFS
Frequency Response < ±3dB@20Hz~20kHz
Crosstalk < −60dB@10kHz
Impedance 470Ω
Type Unbalanced

9
8.4 Cable Specications
Cable Length
1080p 4K30 4K60
8-bit 12-bit
(4:4:4)
8-bit
(4:4:4)
8-bit
High Speed HDMI Cable
HDMI Input 10m 
VGA Cable
VGA Output 2m 
Bandwidth Category Examples:
• 1080p (FHD Video)
-Up to 1080p@60Hz, 12-bit color
-Data rates lower than 5.3Gbps or below 225MHz TMDS clock
• 4K30 (4K UHD Video)
-4K@24/25/30Hz & 4K@50/60Hz (4:2:0), 8-bit color
-Data rates higher than 5.3Gbps or above 225MHz TMDS clock but
below 10.2Gbps
• 4K60 (4K UHD+Video)
-4K@50/60Hz (4:4:4, 8-bit)
-4K@50/60Hz (4:2:0, 10-bit HDR)
-Data rates higher than 10.2Gbps

10
9. ACRONYMS
ACRONYM COMPLETE TERM
AV Audio/Video
DAC Digital-to-Analog Converter
dB Decibel
DVI Digital Visual Interface
EDID Extended Display Identication Data
Gbps Gigabits per second
HD High-Denition
HDCP High-bandwidth Digital Content Protection
HDMI High-Denition Multimedia Interface
HDR High Dynamic Range
HDTV High-Denition Television
LED Light-Emitting Diode
LPCM Linear Pulse-Code Modulation
MHz Megahertz
SNR Signal-to-Noise Ratio
THD+N Total Harmonic Distortion plus Noise
TMDS Transition-Minimized Di󰀨erential Signaling
4K UHD 4K Ultra-High-Denition (10.2Gbps max)
4K UHD+4K Ultra-High-Denition (18Gbps max)
UHDTV Ultra-High-Denition Television
USB Universal Serial Bus
VGA Video Graphics Array
WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduced
Blanking)
XGA Extended Graphics Array
ΩOhm
