USER MANUAL
XVISION® CONVERTER FIBER TO SDI
PowerCON True1 in/out
TXVV-FIBER2SDI-TRUE1
Theatrixx Technologies
version 2.2
August 2017

User Manual – xVision® Converter FIBER to SDI True1
Congratulations on your new acquisition of an xVision® Video Converter. It has
been designed for years of trouble-free use in the harshest of environments.
Should you have any questions regarding this product, feel free to contact us
using our website at www.theatrixx.com, or by phone at 1-800-939-3077.
The xVision® Video Converter Fiber to SDI converts an optical 3G-SDI video
signal to electrical format on BNC, to all in a rugged, tour-ready enclosure with
built-in power supply. There are no settings to fumble with – it just works.
Features
- Integrated power supply with locking PowerCON True1 connector. Never
rely on a cluster of wall-warts again.
- Built-in convenience outlet to power nearby projector, TV, laptop, small
video projector... Power bar to power both the converter and device not
required anymore.
- Magnetic stacking system and non-skid rubber pad saves at least 10 gaffer
tape rolls a year.
- Multiple mounting options : C-Clamp, wall-mount adapter, LCD mount
adapter and belt adaptor.
- Rugged, Tour-ready and aesthetic enclosure : The sexiest widget in your
toolbox that will keep looking good for years to come.
- Plug-n-play operation; No dipswitches, buttons or menus to fumble with:
It just works.
- Clear and ample status LED indicators for quick troubleshooting.
- Easy on-the-field identification with unique color and alphabetic coding system.
- Available with singlemode or multimode fiber and 3 optical connector options.
- Dual video output.
- Proudly designed and assembled in Canada.

Safety and compliance
cQPSus
This equipment has been
tested and meets the following conformance standards :
- CAN/CSA-C22.2 NO.60950-1-07-InformationTechnologyEquipment
- Safety - Part 1: General Requirements - Second Edition ; including
AMD 1 :2011 and AMD 2 :2014
- UL 60950-1 - UL Standard for Safety : Information Technology
Equipment - Safety - Part 1 : General Requirements - Second
Edition ; Reprint with Revisions Through and Including October
14, 2014
FCC Class A Notice
This device complies with Part 15 of the FCC Rules. Operation is sub-
ject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including inter-
ference that may cause undesired operation.
Note : This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial envi-
ronment. This equipment generates, uses, and can radiate radio frequency energy, and if it is not
installed and used in accordance with the instruction manual, it may cause harmful interference
to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference, in which case the user will be required to correct the interference at his
own expense.
European Union
This equipment has been tested and meets the following confor-
mance standards :
- IEC 60950-1:2006 : Safety of information technology equipment
+ A11 :2009 + A1 :2010 + A12 :2011 + A2 :2013
- EN 55022:2010 : Information technology equipment - Radio dis-
turbance characteristics - Limits and methods of measurement
ICES-003 Class A Notice - Avis NMB-003, Classe A
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-
003 du Canada.
WARNING
Changes or modifications not expressly appro-
ved by Theatrixx Technologies could void the
user’s authority to operate the equipment.

Before operation, read these general warnings
IMPORTANT SAFETY INSTRUCTION
This equipment must be connected to an earthed socket-outlet.
VIGTIGE SIKKERHEDSINSTRUKTIONER
Dette udstyr skal tilsluttes en jordet stikkontakt.
TURVALLISUUOSOHJEITA
Tämä laite on kytkettävä maadoitettuun pistorasian.
VIKTIG SIKKERHETSINSTRUKS
Dette utstyret må kobles til en jordet stikkontakt.
- The unit is intended for professional use only. Not for domestic use.
- Read and follow all instructions and information marked on the product or
in this manual.
- Do not use this unit near water and clean only with a dry cloth.
- Install the unit in accordance with this manual.
- Do not install near any heat sources.
- Do not modify any part of the power cord. If the provided plug does not fit
into your outlet, please consult an electrician.
- In the event the AC cable appears damaged, do not plug the unit in AC
power and return it to your dealer for repair.
- Turn off the power before plugging or unplugging the PowerCon connec-
tor. The PowerCon has no breaking capacity and should not be connected
or disconnected under load or live.
- Protect the power cord from being walked on.
- The Mains plug is used as the disconnection for the unit, it must remain
accessible and operable.
- Unplug this unit during lightning storms or when unused for a long period.
- Servicing must be performed by a qualified and certified technician.
- Do not open the chassis. Opening the chassis will void the warranty unless
performed by an authorized Theatrixx Service Center.
- Disconnect the AC Power Plug before moving the unit.
- Electrical grounding must be observed at any time to avoid electrical shock.
- Make sure that all devices plugged in the outlet connector of the device do
not exceed 10A.
- Contains Neodymium magnets.

1. Unpacking
After opening the box, remove the unit from its protective plastic bag, and
unpack the included accessory box. Ensure the package contains the following:
- xVision® Converter FIBER to SDI, PowerCON True1 in/PowerCON True1 out
- Edison Nema 5-15 Male to PowerCON True1 or CEE 7/7 to PowerCON True1
cable (1.5 meter)
- Warranty card
- This user manual

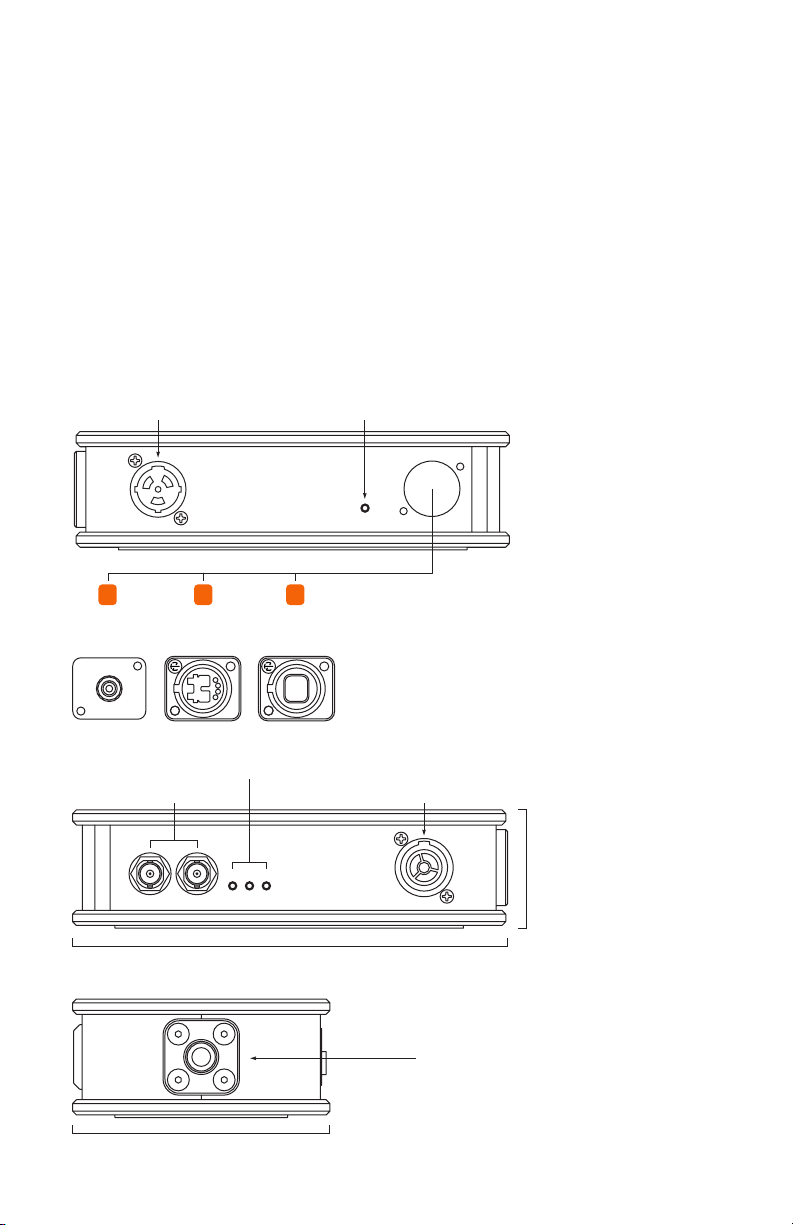

Familiarize yourself with the unit connections and indicators :
107 mm (4.21 in)
Mounting Plate
(M10 thread)
50 mm (1.97 in)
180 mm (7.08 in)
PowerCON True1 output
Signal Type LEDs
3G - SDI outputs
PowerCON True1 input Standby/Signal LED
1
ST
Connector
2
OpticalCON
DUO
3
OpticalCON
QUAD

WARNING
THIS EQUIPMENT MUST BE USEDWITH POWER SUPPLY CORD PROVIDED
ONLY OR PURCHASE FROM THEATRIXX TECHNOLOGIES. PLEASE
CONTACT THEATRIXX TECHNOLOGIES IF YOU NEED A DIFFERENT
POWER SUPPLY CORD THAN THE NEMA 5-15 OR THE CEE 7/7. PLEASE
CONTACT THEATRIXX TECHNOLOGIES TO ORDER YOUR CABLES TO USE
WITH THE POWERCON TRUE1 OUTLET.
2. Installation
The unit can be mounted in different ways using the threaded mounting plate
on its side. Any standard C-clamp type device (sold separately) or bolt using a
M10 thread may be used. The unit may also be placed on a stable horizontal
surface with no other attachment needed. Using the built-in magnets, multiple
units may be stacked easily.
WARNING
- Never use the magnets as the sole attachment method. The magnets
are designed to facilitate stacking and should not be used to attach the
unit to metallic bulkheads.
- Always use rated mounting hardware and accessories to avoid fatal
accidents.
- This product must be installed in accordance with the applicable ins-
tallation code by a person familiar with the construction and operation
of the product and the hazards involved.
- Make sure mounting hardware is attached securely to all components
of the installation.
- Always use a safety cable to secure the unit in case the main attach-
ment device fails.
- The mounting means of equipment intended for wall or ceiling moun-
ting shall be adequate for min 50N.
- Authorities Having Jurisdiction should be consulted as to conformance
with applicable building codes.

3. Operation
The unit has automatic input format detection and adjusts the output to match
the input. The unit is not equipped with scaling technology and will not change
the format of the signal in any way.
1. Connect unit to power and (if applicable) connect auxiliary equipment to
the converter’s AC outlet.
2. The unit will boot and LEDs may flash in a random sequence.
3. If no video input is detected, the Power/Signal LED will light up Red
4. As soon as a valid video signal is detected on the input connector, the
Power/Signal LED will turn Green and the Signal Type LEDs will indicate the
detected signal type (3G/HD/SD).
5. The output plugs become active immediately after a valid signal has
been detected.
TIP : Treat all your fiber optic equipment with care and perform frequent
cleaning of the optical contact surface to ensure a degradation-free
performance over time.
Warranty
Limited warranty
Your xVision® Video Converter includes a 2-year limited warranty. Please see
the included warranty card for more information.

Appendix A : Specifications
Connections
- Video input : 1 x 3G/HD/SD SDI BNC with reclocked loop-thru
- Video Ouput: Optical SDI on ST/OpticalCON DUO/
OpticalCON QUAD, Multimode or Singlemode
Standards
- 3G : 1080p50/60
- HD : 1080p24/25/30, 1080i50/60, 720p50/60
- SD : 625i (PAL) 525i (NTSC)
Audio
- Up to 8 channels, 24bit, 48kHz
Physical Specifications
- Height : 50mm (1.97in)
- Depth : 180mm (7.08in)
- Width : 107mm (4.21in)
- Weight : 1kg (2.2lbs)
Power Requirements
- Power Supply : Built-in power supply, PowerCon TRUE1
input, PowerCon TRUE1 output
- Current Consumption : 0.15A Standalone, 10A with AC Outlet
- Operational Voltage Range : 100-240V
Environnemental Specifications
- Relative Humidity : 0% to 90% non-condensing
- Working temperature : 0 to 40°C

Notices
Trademarks and copyright
xVision® is a registred trademark of Theatrixx Technologies Inc.
Copyright © 2015-2017 Theatrixx Technologies Inc. All rights reserved. The
information contained in this document is the sole property of Theatrixx
Technologies Inc. Any reproduction in part or as whole without the written
permission of Theatrixx Technologies Inc. is prohibited.
Recycling notice
The unit must not be disposed of with your other household waste. It
is your responsibility to dispose of your waste equipment by handing
it to a designated center for the recycling of electrical equipment.
Contact
To contact Theatrixx Technologies for sales or support, use any of the following
methods:
Tel : [phone]
Fax : [phone]
Web : www.theatrixx.com
Support Email : [email protected]
Sales Email : [email protected]
