ADF Web HD67C52-2-B2 User manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
M
odbus
Slave
Document code: MN67C52_ENG Revision 1 000 Page 1 of 30
User Manual
Revision 1 000
English
EnOcean / Modbus Slave - Converter
(Order Code: HD67C52-2-B2, HD67C52-5-B2)
For Website information:
www adfweb com?Product=HD67C52-2-B2
www adfweb com?Product=HD67C52-5-B2
For Price information:
www adfweb com?Price=HD67C52-B2
Benefits and Main Features:
Very easy to configure
Power Supply 18…35V DC and 8…24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
For others EnOcean products, see also the following links:
Converter EnOcean to
www adfweb com?Product=HD67C50 (Serial)
www adfweb com?Product=HD67C54 (Modbus TCP Slave)
www adfweb com?Product=HD67C56 (BACnet Slave)
www adfweb com?Product=HD67C57 (CA )
www adfweb com?Product=HD67C58 (CA open)
www adfweb com?Product=HD67C61 (Device et Slave)
www adfweb com?Product=HD67C63 (Ether et/IP Slave)
www adfweb com?Product=HD67C65 (IEC61850 Server)
www adfweb com?Product=HD67C66 (J1939)
www adfweb com?Product=HD67C67 (K X)
www adfweb com?Product=HD67C70 (MQTT)
www adfweb com?Product=HD67C72 ( MEA 0183)
www adfweb com?Product=HD67C73 ( MEA 2000)
www adfweb com?Product=HD67C75 (PROFIBUS Slave)
www adfweb com?Product=HD67C77 (PROFI ET Slave)
www adfweb com?Product=HD67C79 (S MP Agent)
Do you need to choose a device? Do you want help?
www adfweb com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
M
odbus
Slave
Document code: MN67C52_ENG Revision 1 000 Page 2 of 30
I DEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 7
CONFIGURATION 7
POWER SUPPLY 8
FUNCTION MODES 9
LEDS 10
ETHERNET 11
ENOCEAN 12
RS232 13
RS485 14
USE OF COMPOSITOR SW67C52 15
NEW CONFIGURATION / OPEN CONFIGURATION 16
SOFTWARE OPTIONS 17
SET COMMUNICATION 19
ENOCEAN ACCESS 20
UPDATE DEVICE 23
MODBUS MAP 25
MECHANICAL DIMENSIONS 27
ORDERING INFORMATIONS 28
ACCESSORIES 28
DISCLAIMER 29
OTHER REGULATIONS AND STANDARDS 29
WARRANTIES AND TECHNICAL SUPPORT 30
RETURN POLICY 30
UPDATED DOCUME TATIO :
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document
With this “Document Code” go to web page www adfweb com/download/
and search for the corresponding code on the page Click on the proper
“Document Code” and download the updates
REVISIO LIST:
WAR I G:
ADFweb com reserves the right to change information in this manual about
our product without warning
ADFweb com is not responsible for any error this manual may contain
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners
Revision Date Author Chapter Description
1 000 05/12/2019 Ff All First release version

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
M
odbus
Slave
Document code: MN67C52_ENG Revision 1 000 Page 3 of 30
SECURITY ALERT:
G E ERAL I FORMATIO
To ensure safe operation, the device must be operated according to the instructions in the manual When using the device, legal and
safety regulation are required for each individual application The same applies also when using accessories
I TE DED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i e
independent limit switches, mechanical interlocks, etc )
Q UALIFIED P ERSO EL
The device can be used only by qualified personnel, strictly in accordance with the specifications
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job
R ESIDUAL R ISKS
The device is state-of-the-art and is safe The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage
CE CO FORMITY
The declaration is made by our company You can send an email to support@adfweb com or give us a call if you need it

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
M
odbus
Slave
Document code: MN67C52_ENG Revision 1 000 Page 4 of 30

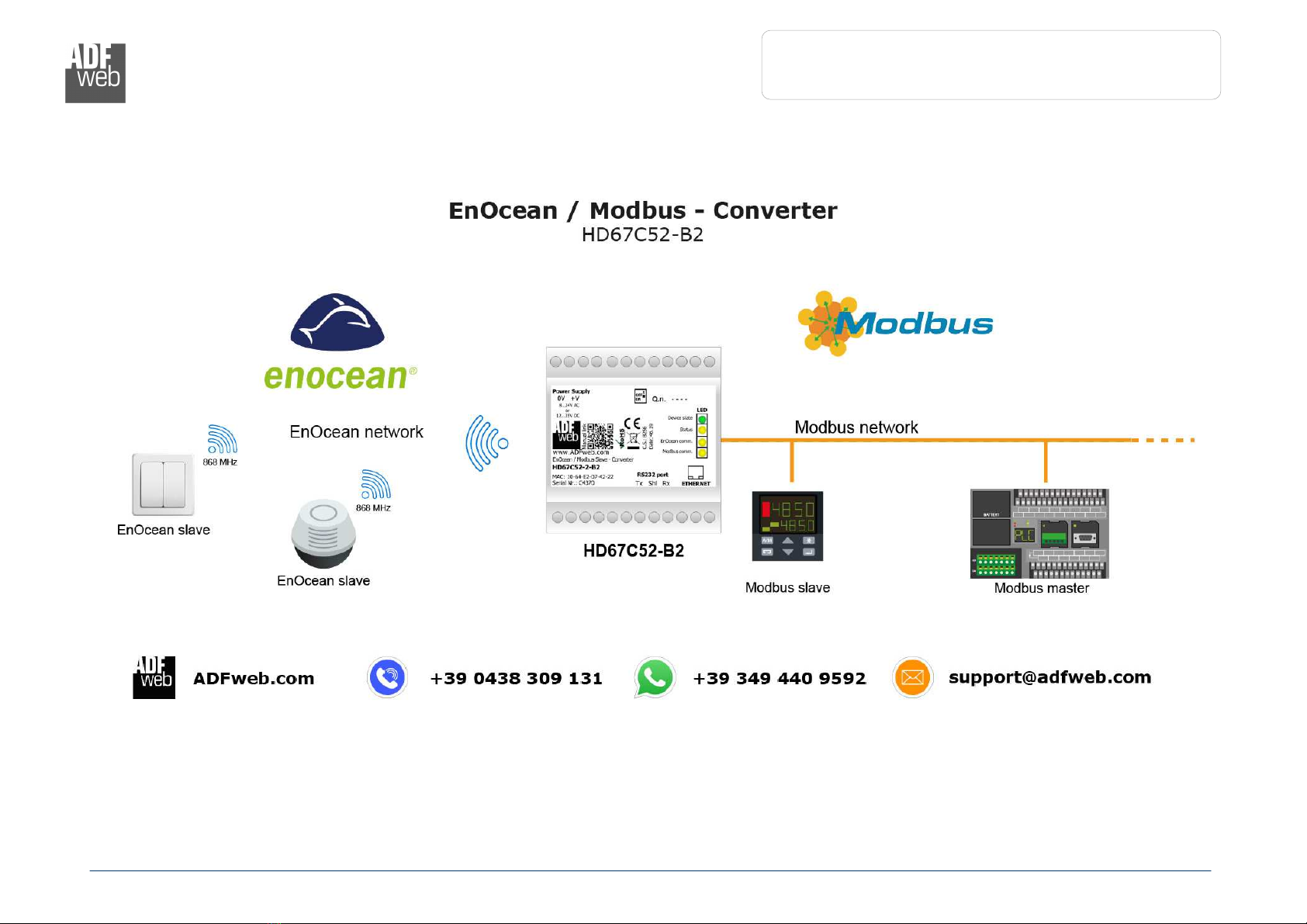

EXAMPLE OF CO ECTIO :

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
M
odbus
Slave
Document code: MN67C52_ENG Revision 1 000 Page 5 of 30
CO ECTIO SCHEME:
Figure 1a: Connection scheme for HD67C52 2 B2

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
M
odbus
Slave
Document code: MN67C52_ENG Revision 1 000 Page 6 of 30
Figure 1b: Connection scheme for HD67C52 5 B2

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
M
odbus
Slave
Document code: MN67C52_ENG Revision 1 000 Page 7 of 30
CHARACTERISTICS:
The HD67C52-B2 is a EnOcean / Modbus Slave Converter
It allows the following characteristics:
Electrical isolation between Modbus and Power Supply;
Mountable on 35mm Rail DIN;
Wide power supply input range: 18…35V DC and 8…24V AC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F]
CO FIGURATIO :
You need Compositor SW67C52 software on your PC in order to perform the following:
Define the parameter of Modbus line;
Define the parameter of EnOcean line;
Update the device

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
M
odbus
Slave
Document code: MN67C52_ENG Revision 1 000 Page 8 of 30

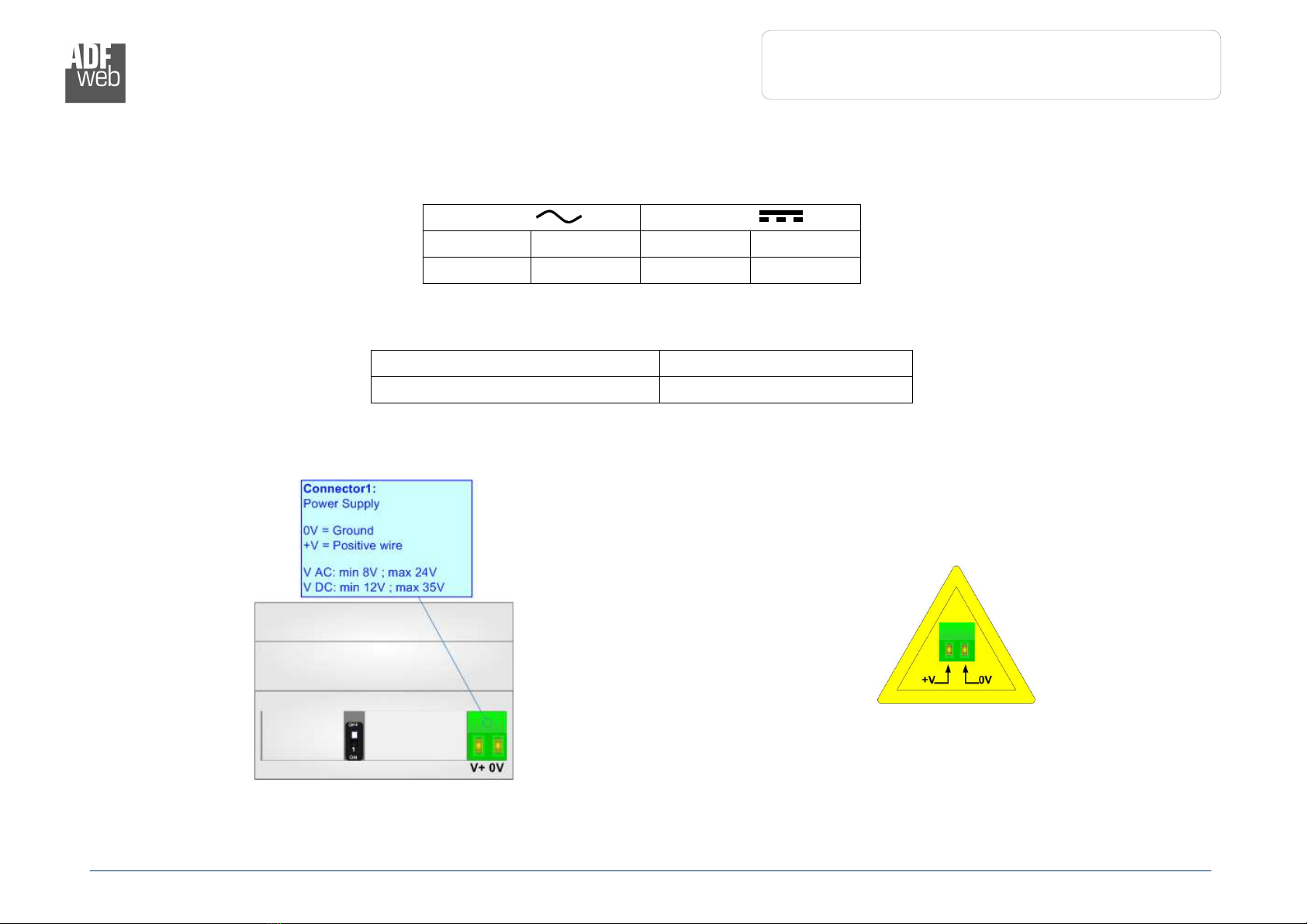

POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC For more details see the two tables below
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67C52-x-B2 3 5
HD67C52-x-B2
Caution: ot reverse the polarity power

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
M
odbus
Slave
Document code: MN67C52_ENG Revision 1 000 Page 9 of 30
FU CTIO MODES:

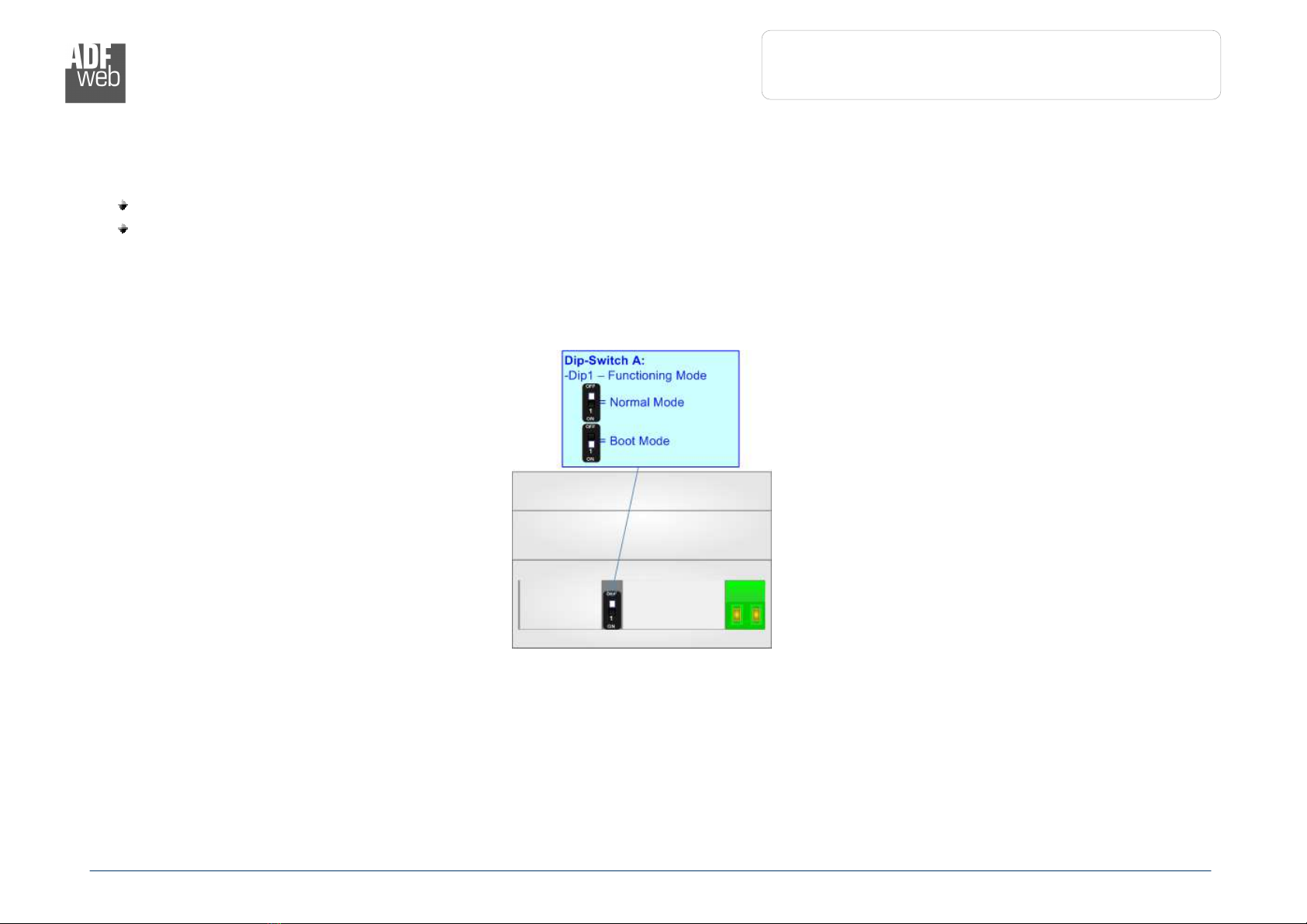

The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware
For the operations to follow for the updating, see ‘UPDATE DEVICE’ section
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
M
odbus
Slave
Document code: MN67C52_ENG Revision 1 000 Page 10 of 30
LEDS:
The device has got four LEDs that are used to give information of the functioning status
The various meanings of the LEDs are described in the table below
LED ormal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: EnOcean communication
(yellow) Blinks when EnOcean data is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: Modbus communication
(yellow) Blinks when Modbus communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Error state (yellow) O : An error in the communication busses occurs
OFF: No errors are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
M
odbus
Slave
Document code: MN67C52_ENG Revision 1 000 Page 11 of 30
ETHER ET:
The Ethernet port is used for programming the device
The Ethernet connection must be made using Connector2 of HD67C52-x-B2 with at least a Category 5E cable The maximum length of the
cable should not exceed 100m The cable has to conform to the T568 norms relative to connections in cat 5 up to 100 Mbps To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a cross cable

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
M
odbus
Slave
Document code: MN67C52_ENG Revision 1 000 Page 12 of 30
E OCEA :
EnOcean is a protocol designed for energy harvesting devices communication The main
fields of application are building automation and domotics, but it can also be potentially
used in the industrial field
EnOcean products include solutions for environment monitoring, smart metering and
lighting Each device uses a unique ID for identification and one of the standardized profiles
(EEPs) for data transmission Communication process may be secure or unsecure and may
be unidirectional or bidirectional (for devices that support Smart Acknowledge operating
mode)
EnOcean is based on wireless communication on 868 3 MHz ASK
It is possible to connect up to 100 EnOcean devices to a single converter, where up to 32
can be in Secure Mode and up to 19 with Smart Acknowledge
The Antenna connector is a SMA Female (‘Female Outer Shell’ and ‘Female Receptacle’) so
the Antenna must have a SMA Male connector

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
M
odbus
Slave
Document code: MN67C52_ENG Revision 1 000 Page 13 of 30
RS232:
The connection from RS232 socket to a serial port (example one from a personal computer) must be made with a NULL MODEM cable (a
serial cable where the pins 2 and 3 are crossed)
It is recommended that the RS232 cable not exceed 15 meters

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
M
odbus
Slave
Document code: MN67C52_ENG Revision 1 000 Page 14 of 30
RS485:

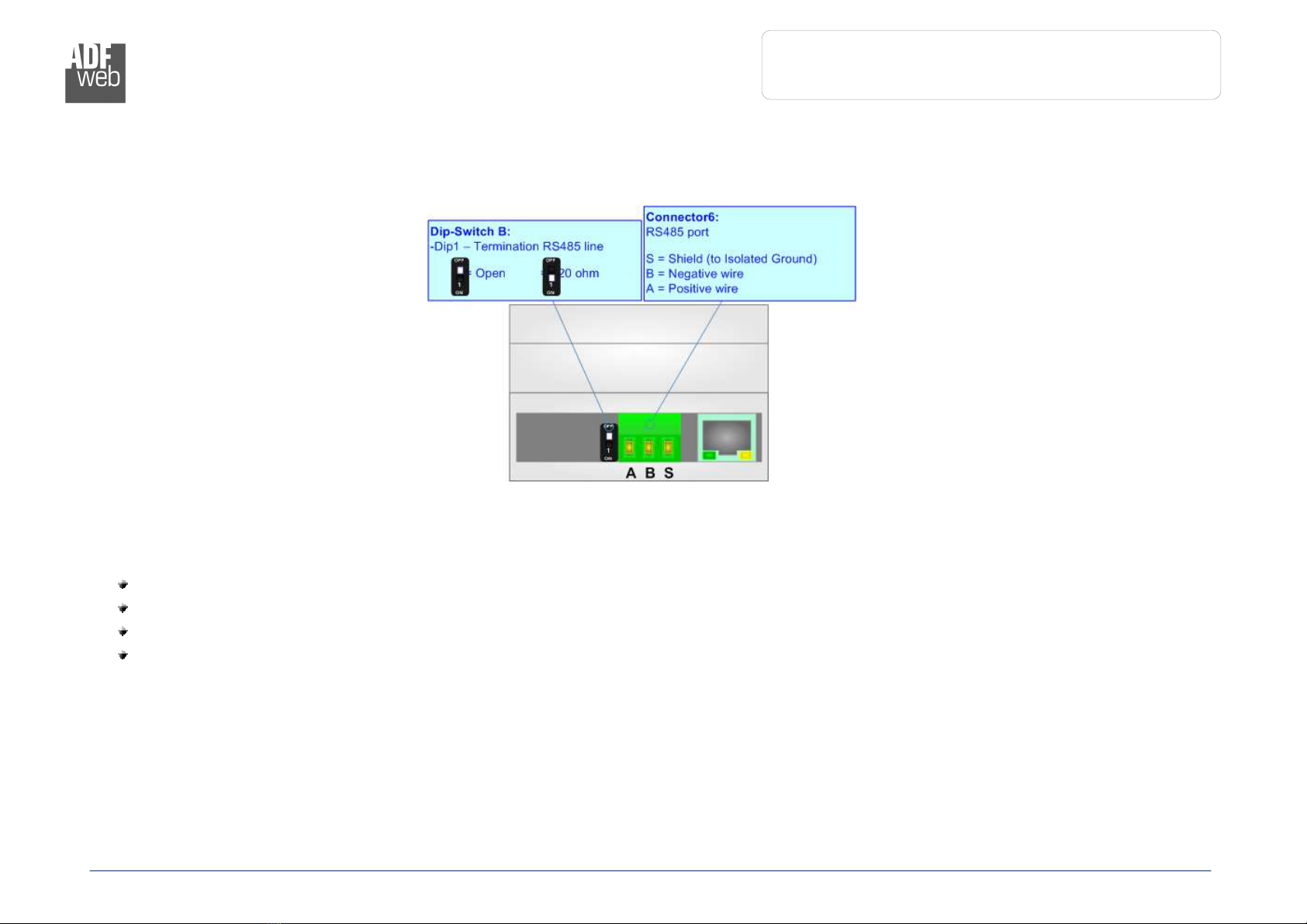

For terminate the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in figure
The maximum length of the cable should be 1200m (4000 feet)
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
M
odbus
Slave
Document code: MN67C52_ENG Revision 1 000 Page 15 of 30
USE OF COMPOSITOR SW67C52:
To configure the Converter, use the available software that runs with Windows called SW67C52 It is downloadable on the site
www adfweb com and its operation is described in this document The software works with MS Windows (XP, Vista, Seven, 8, 10; 32/64bit)
When launching the SW67C52, the window below appears (Fig 2)
Note:
It is necessary to have installed Net Framework 4
Figure 2: Main window for SW6
7
C52

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
M
odbus
Slave
Document code: MN67C52_ENG Revision 1 000 Page 16 of 30
EW CO FIGURATIO / OPE CO FIGURATIO :
The “ ew Configuration” button creates the folder which contains the entire device’s configuration
A device’s configuration can also be imported or exported:
To clone the configurations of a Programmable “EnOcean / Modbus Slave - Converter”
in order to configure another device in the same manner, it is necessary to maintain
the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
M
odbus
Slave
Document code: MN67C52_ENG Revision 1 000 Page 17 of 30
SOFTWARE OPTIO S:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor
In the section “Language” it is possible to change the language of the
software
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb com website
Checking the option “Check Software Update at Start of Program”, the
SW67C52 check automatically if there are updatings when it is launched

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
M
odbus
Slave
Document code: MN67C52_ENG Revision 1 000 Page 18 of 30
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
M
odbus
Slave
Document code: MN67C52_ENG Revision 1 000 Page 19 of 30
SET COMMU ICATIO :
By Pressing the “Set Communication” button from the main window for SW67C52
(Fig 2) the window “Set Communication” appears (Fig 3)
The means for the fields for the “Modus Slave” are:
In the field “Serial” the serial port to use is defined (RS232 or RS485);
In the field “Baudrate” the baudrate for the serial line is defined;
In the field “Parity” the parity of the serial line is defined;
In the field “Stop Bits” the number of Stop Bits of the serial line is defined;
In the field “ID Device” the ID of Modbus side of the converter is defined;
If the field “Read with Input Register / Status Function” is checked, it is
possible to read the Input bytes of EnOcean side with Input Registers (Function
04) and write the Output bytes of EnOcean side with Holding Registers
(Function 06/16) The Output bytes are readable with Function 03 Otherwise,
only Holding Registers will be used and the Output bytes of EnOcean side
cannot be read back
The means of the fields for “Ethernet” are:
In the fields “IP Address” the IP address for Ethernet side of the converter is
defined;
In the fields “Sub et Mask” the SubNet Mask for Ethernet side of the
converter is defined;
In the fields “Gateway” the default gateway of the net is defined This feature
can be enabled or disabled pressing the Check Box field This feature is used
for going out of the net;
Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
M
odbus
Slave
Document code: MN67C52_ENG Revision 1 000 Page 20 of 30
Figure 4: “
EnOcean
Access
” window
E OCEA ACCESS:
By Pressing the “EnOcean Set Access” button from the main window for SW67C52 (Fig 2) the window “EnOcean Set Access” appears (Fig
4) This section is used to define the list of the EnOcean devices to read/write
