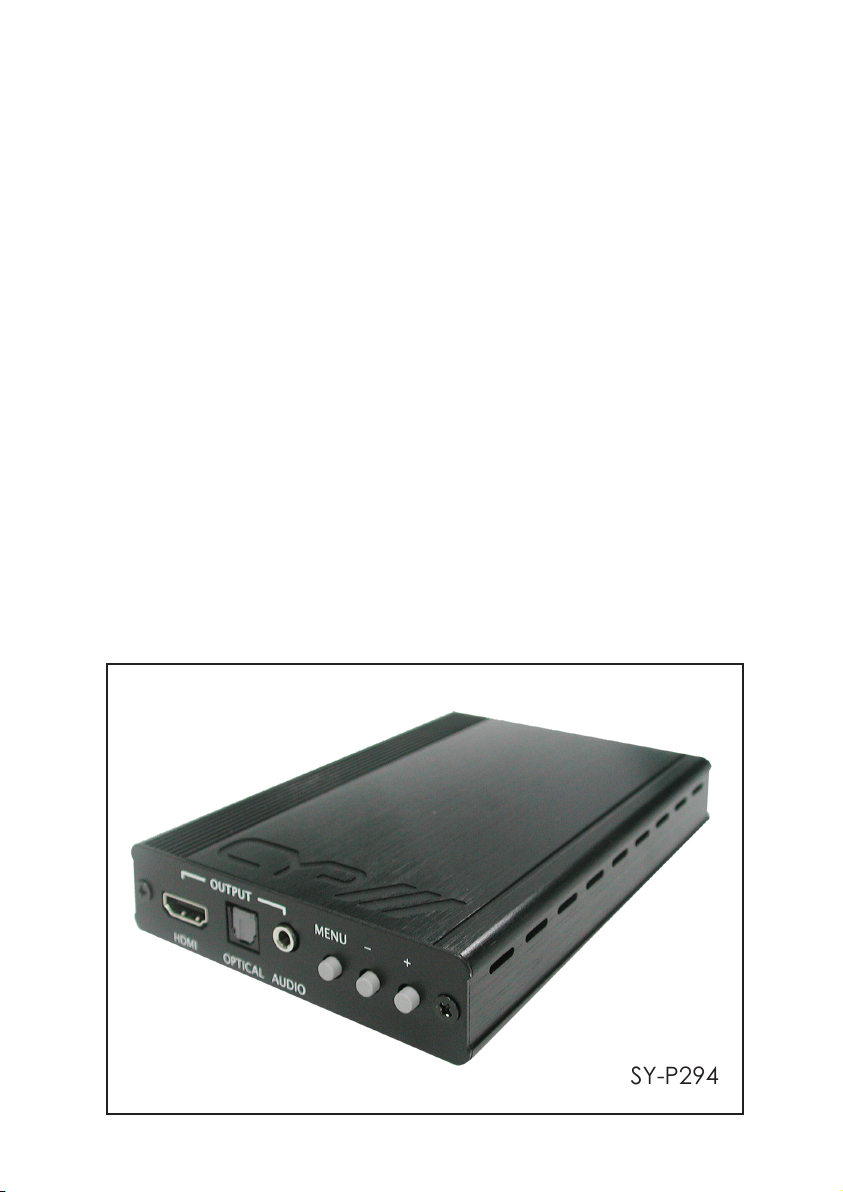

SY-P294 HD to HDMI

1080p Scaler Box

Operation Manual

SY-P294

1.Introduction

This Scaler Box is designed to upscale digital video signal from HD input source

to digital HDMI output of wide-range HDTV and PC resolutions, up to

1080p/WUXGA. Besides HD upscaling, the scaler box also converts

digital/analog audio signal to digital/analog format, then output to HDMI

combining with the video, TOSLink (Optical fiber), and phone jack (L/R audio)

simultaneously. This unit has a comprehensive OSD menu that allows user to

select a variety of output resolutions and adjust for best picture quality.

2. Features

 HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant.

 Scales any HD resolutions to PC (VGA ~ WUXGA)/ HD (480i ~ 1080p)

resolutions.

 Automatically detect the factory setting of the connected display and

output the corresponding resolution and refresh rate, when the NATIVE

output is selected.

 Provides output picture adjustment on contrast, brightness, hue, saturation,

sharpness, RGB (color tone) level and aspect ratio size.

 Supports high resolution output (See section “6.2. Support Resolution” for

reference.):

PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA.

SD/HD: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p

 Supports stereo LPCM analog/digital audio input and stereo LPCM

analog/digital output. Simply select among the audio input sources in the

OSD menu, then output the audio to HDMI, TOSLink and phone jack

simultaneously.

4. Operation Controls and Functions

4.1 Front Panel 4.2 Rear Panel

3. Package Contents

 HD to HDMI 1080p Scaler Box

 5VDC Power Supply Adaptor

 Operation Manual

SY-P294 HD to HDMI

1080p Scaler Box

Operation Manual

SY-P294

1.Introduction

This Scaler Box is designed to upscale digital video signal from HD input source

to digital HDMI output of wide-range HDTV and PC resolutions, up to

1080p/WUXGA. Besides HD upscaling, the scaler box also converts

digital/analog audio signal to digital/analog format, then output to HDMI

combining with the video, TOSLink (Optical fiber), and phone jack (L/R audio)

simultaneously. This unit has a comprehensive OSD menu that allows user to

select a variety of output resolutions and adjust for best picture quality.

2. Features

 HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant.

 Scales any HD resolutions to PC (VGA ~ WUXGA)/ HD (480i ~ 1080p)

resolutions.

 Automatically detect the factory setting of the connected display and

output the corresponding resolution and refresh rate, when the NATIVE

output is selected.

 Provides output picture adjustment on contrast, brightness, hue, saturation,

sharpness, RGB (color tone) level and aspect ratio size.

 Supports high resolution output (See section “6.2. Support Resolution” for

reference.):

PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA.

SD/HD: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p

 Supports stereo LPCM analog/digital audio input and stereo LPCM

analog/digital output. Simply select among the audio input sources in the

OSD menu, then output the audio to HDMI, TOSLink and phone jack

simultaneously.

4. Operation Controls and Functions

4.1 Front Panel 4.2 Rear Panel

3. Package Contents

 HD to HDMI 1080p Scaler Box

 5VDC Power Supply Adaptor

 Operation Manual

1. Introduction................................................................................

2. Features.....................................................................................

3. Package Contents....................................................................

4.Operation Controls and Functions.......................................... 2

4.1 Front Panel...........................................................................

4.2 Rear Panel............................................................................

4.3 OSD Operation.....................................................................

5. Reset Functionality.....................................................................

6. Specifications.............................................................................

6.1 General Specification..........................................................

6.2 Support Resolution................................................................

7. Connection and Installation.....................................................

TABLE OF CONTENTS

SY-P294 HD to HDMI

1080p Scaler Box

Operation Manual

SY-P294

1.Introduction

This Scaler Box is designed to upscale digital video signal from HD input source

to digital HDMI output of wide-range HDTV and PC resolutions, up to

1080p/WUXGA. Besides HD upscaling, the scaler box also converts

digital/analog audio signal to digital/analog format, then output to HDMI

combining with the video, TOSLink (Optical fiber), and phone jack (L/R audio)

simultaneously. This unit has a comprehensive OSD menu that allows user to

select a variety of output resolutions and adjust for best picture quality.

2. Features

 HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant.

 Scales any HD resolutions to PC (VGA ~ WUXGA)/ HD (480i ~ 1080p)

resolutions.

 Automatically detect the factory setting of the connected display and

output the corresponding resolution and refresh rate, when the NATIVE

output is selected.

 Provides output picture adjustment on contrast, brightness, hue, saturation,

sharpness, RGB (color tone) level and aspect ratio size.

 Supports high resolution output (See section “6.2. Support Resolution” for

reference.):

PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA.

SD/HD: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p

 Supports stereo LPCM analog/digital audio input and stereo LPCM

analog/digital output. Simply select among the audio input sources in the

OSD menu, then output the audio to HDMI, TOSLink and phone jack

simultaneously.

3. Package Contents

 HD to HDMI 1080p Scaler Box

 5VDC Power Supply Adaptor

 Operation Manual

SY-P294 HD to HDMI

1080p Scaler Box

Operation Manual

SY-P294

4. Operation Controls and Functions

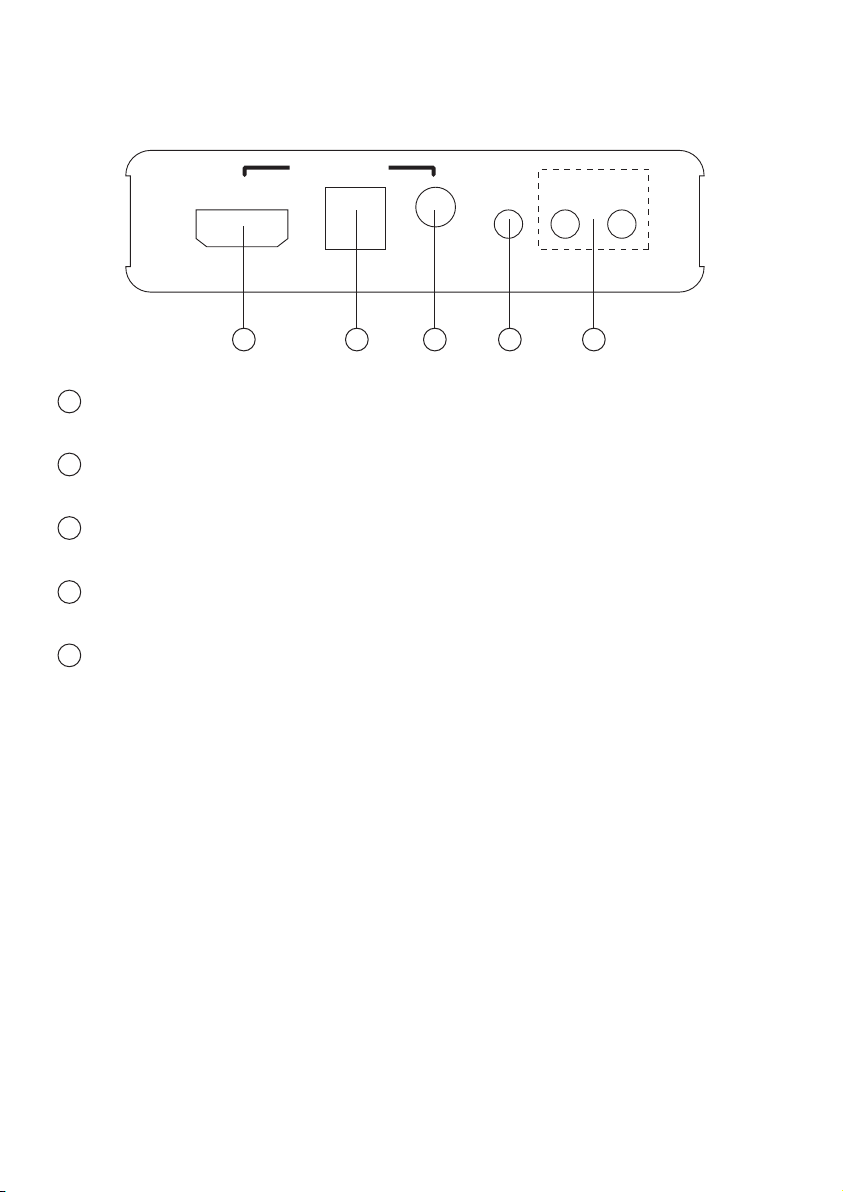

4.1 Front Panel

1 HDMI Output: Connect the HDMI output port to the HDMI input port of

your display such like HDTV.

2 TOSLink (optical fiber) Output: Connect the optical output port to the

digital audio input port of your amplifier.

3 Audio Output: Connect the PC3.5mm phone jack output port to the

analog audio input port of your equipment.

4 Menu Button: Press the MENU button to bring up OSD operation menu.

(See section “4.3 OSD Operation” for reference.)

5 +/- Button:

a. On the first tier of OSD menu, use + and – buttons to move up/down

the highlight item for selection.

b. Once the desired option is selected, use + and – buttons to toggle

between setting values.

1 2 3 4 5

HDMI AUDIO

MENU +

OPTICAL

OUTPUT

SY-P294 HD to HDMI

1080p Scaler Box

Operation Manual

SY-P294

4.2 Rear Panel

1 Cr/Pr, Cb/Pb, Y/HD Input: Connect the Cr/Pr, Cb/Pb, Y/HD input ports to

your source equipment such like DVD player.

2 Audio Input: Connect the PC in 3.5mm phone jack input port to the

analog audio output port of your source equipment.

3 TOSLink (optical fiber) Input: Connect the optical input port to the digital

audio output port of your source equipment.

4 Power: Plug the 5VDC power supply into the unit and connect the

adaptor to AC wall outlet.

1 2 3 4

AUDIOY/HD

Cb/PbCr/Pr OPTICAL

DC 5V

INPUT

SY-P294 HD to HDMI

1080p Scaler Box

Operation Manual

SY-P294

1.Introduction

This Scaler Box is designed to upscale digital video signal from HD input source

to digital HDMI output of wide-range HDTV and PC resolutions, up to

1080p/WUXGA. Besides HD upscaling, the scaler box also converts

digital/analog audio signal to digital/analog format, then output to HDMI

combining with the video, TOSLink (Optical fiber), and phone jack (L/R audio)

simultaneously. This unit has a comprehensive OSD menu that allows user to

select a variety of output resolutions and adjust for best picture quality.

2. Features

 HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant.

 Scales any HD resolutions to PC (VGA ~ WUXGA)/ HD (480i ~ 1080p)

resolutions.

 Automatically detect the factory setting of the connected display and

output the corresponding resolution and refresh rate, when the NATIVE

output is selected.

 Provides output picture adjustment on contrast, brightness, hue, saturation,

sharpness, RGB (color tone) level and aspect ratio size.

 Supports high resolution output (See section “6.2. Support Resolution” for

reference.):

PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA.

SD/HD: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p

 Supports stereo LPCM analog/digital audio input and stereo LPCM

analog/digital output. Simply select among the audio input sources in the

OSD menu, then output the audio to HDMI, TOSLink and phone jack

simultaneously.

4. Operation Controls and Functions

4.1 Front Panel 4.2 Rear Panel

3. Package Contents

 HD to HDMI 1080p Scaler Box

 5VDC Power Supply Adaptor

 Operation Manual

4.3 OSD Operation

Tier Option 2

Tier Option Adjustment

CONTRAST - 0 ~ 100 of Contrast Level

BRIGHTNESS - 0 ~ 100 of Brightness Level

- HUE 0 ~ 100 of Hue Level

- SATURATION 0 ~ 100 of Saturation Level

- SHARPNESS 0 ~ 100 of Sharpness Level

FINETUNE

- EXIT Back to 1

Tier

- RED 0 ~ 100 of Red Color Level

- GREEN 0 ~ 100 of Green Color Level

- BLUE 0 ~ 100 of Blue Color Level

COLOR

- EXIT Back to 1

Tier

SIZE -

OUTPUT

AUDIO - EAR PHONE / OPTICAL

- HPOSITION 0 ~ 100 of OSD Horizontal Position

- VPOSITION 0 ~ 100 of OSD Vertical Position

- TIMER 0 ~ 100 of OSD Existing Time (sec.)

- BACKGROUND 0 ~ 100 of OSD Transparent Level

OSD

- EXIT Back to 1

Tier

INFORMATION

EXIT - Close OSD Menu

FULL / OVERSCAN / UNDERSCAN /

LETTERBOX / PANSCAN

NATIVE / VGA / SVGA / XGA /

SXGA /UXGA / 480i / 480p /

720p@60Hz / 1080i@60Hz /

1080p@60Hz / 576i / 576p /

720p@50Hz / 1080i@50Hz /

1080p@50Hz / WXGA / WSXGA /

WUXGA

SOURCE (Input Interface) INPUT

(Input Resolution) OUTPUT

(Output Resolution) VERSION

(Firmware Version)

5. Reset Functionality

To reset the unit, press and hold the MENU button then re-plug the DC power

into the unit to set the unit back to factory default, with output resolution

as NATIVE. This feature is also useful when the output is scaled to a resolution

not supported by the connected TV/monitor so no picture is shown, because

the NATIVE resolution can guarantee the proper (might not be the best) output.

SY-P294 HD to HDMI

1080p Scaler Box

Operation Manual

SY-P294

1.Introduction

This Scaler Box is designed to upscale digital video signal from HD input source

to digital HDMI output of wide-range HDTV and PC resolutions, up to

1080p/WUXGA. Besides HD upscaling, the scaler box also converts

digital/analog audio signal to digital/analog format, then output to HDMI

combining with the video, TOSLink (Optical fiber), and phone jack (L/R audio)

simultaneously. This unit has a comprehensive OSD menu that allows user to

select a variety of output resolutions and adjust for best picture quality.

2. Features

 HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant.

 Scales any HD resolutions to PC (VGA ~ WUXGA)/ HD (480i ~ 1080p)

resolutions.

 Automatically detect the factory setting of the connected display and

output the corresponding resolution and refresh rate, when the NATIVE

output is selected.

 Provides output picture adjustment on contrast, brightness, hue, saturation,

sharpness, RGB (color tone) level and aspect ratio size.

 Supports high resolution output (See section “6.2. Support Resolution” for

reference.):

PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA.

SD/HD: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p

 Supports stereo LPCM analog/digital audio input and stereo LPCM

analog/digital output. Simply select among the audio input sources in the

OSD menu, then output the audio to HDMI, TOSLink and phone jack

simultaneously.

4. Operation Controls and Functions

4.1 Front Panel 4.2 Rear Panel

3. Package Contents

 HD to HDMI 1080p Scaler Box

 5VDC Power Supply Adaptor

 Operation Manual

6.2. Support Resolution

6. Specifications

6.1. General Specification

Input Ports

Output Ports

Power Supply

Dimensions (mm)

Weight(g)

Chassis Material

Silkscreen Color

Operating Temperature

1 x Component (Cr/Pr, Cb/Pb, Y/HD),

1 x 3.5mm Phone Jack,1 x TOSLink (optical fiber)

1 x HDMI, 1 x 3.5mm Phone Jack, 1 x TOSLink (optical fiber)

5V/2.6A DC (US/EU standards, CE/FCC/UL certified)

154(D) x 100(W) x 25(H)

340

Aluminum

Black

0°C ~ 40°C

7. Connection and Installation

DVD

HDMI

Amplifier

Component

Digital Audio / Optical

Analog Audio / L/R

through 3.5mm phone jack Audio / Optical

　HD INPUT HDMI OUTPUT

　SD/HD SD/HD PC

480I/576I (NTSC/PAL) V V

480P/576P V V

720P@(50/60) V V

1080I@(25/30) V V

1080P@(50/60) V V

VGA@(60/72/75/85) V

SVGA@(56/60/72/75/85) V

XGA@(60/70/75/85) V

SXGA@(60/75/85) V

UXGA@60 V

WXGA@60(1280x800) V

WSXGA@60(1680x1050) V

WUXGA@60(1920x1200) V
