THERMACUT EX-TRAFIRE 55SD User manual

THERMACUT®
EX-TRAFIRE®
55SD
PLASMA CUTTING POWER SUPPLY
Operator Manual
Revision: T-3
English
2020
BEFORE SWITCHING ON OR OPERATING THE SYSTEM,
READ THIS MANUAL, BECOME FAMILIAR WITH THE
CONTENT. KEEP THE MANUAL LOCAL TO THE JOB SITE
WITH EASY ACCESS TO ALL PERSONNEL. THE SYSTEM IS TO BE USED FOR METAL
CUTTING ONLY.
PLEASE, CHECK THE LATEST VERSION OF THE OPERATOR MANUAL ON OUR WEBSITE:
www.ex-trafire.com
!IMPORTANT!
EX-3-907-001
N-22160

EX-TRAFIRE®55SD
Operator Manual, Revision T-32
SECTION 1: SAFETY ��������������������������������������������������������������������������������������5
!Caution! ��������������������������������������������������������������������������������������������������������������������������������������6
Plasma arc rays can burn eyes and skin�����������������������������������������������������������������������������������6
Noise can damage hearing ������������������������������������������������������������������������������������������������������6
Flying sparks (arc spray) can cause injury, fire or explosion��������������������������������������������������6
Caution! Readoperator’smanual���������������������������������������������������������������������������������������������6
Cutting can cause fire or explosion �����������������������������������������������������������������������������������������7
Electric shock can kill������������������������������������������������������������������������������������������������������������������7
Plasma arc can injure������������������������������������������������������������������������������������������������������������������7
Flying sparks (arc spray) can cause injury, fire or explosion��������������������������������������������������7
Hot parts can cause severe burns���������������������������������������������������������������������������������������������7
Smoke and gases can be hazardous����������������������������������������������������������������������������������������8
Caution when cutting around gas cylinders����������������������������������������������������������������������������8
Do not exceed the recommended duty cycle, this can lead to overheating and cause
damage to the system����������������������������������������������������������������������������������������������������������������8
Magnetic field can affect pacemakers �������������������������������������������������������������������������������������8
Plasma cutting can cause interference�������������������������������������������������������������������������������������8
Safety Sticker �������������������������������������������������������������������������������������������������������������������������������9
SECTION 2: SPECIFICATIONS ����������������������������������������������������������������� 2-10

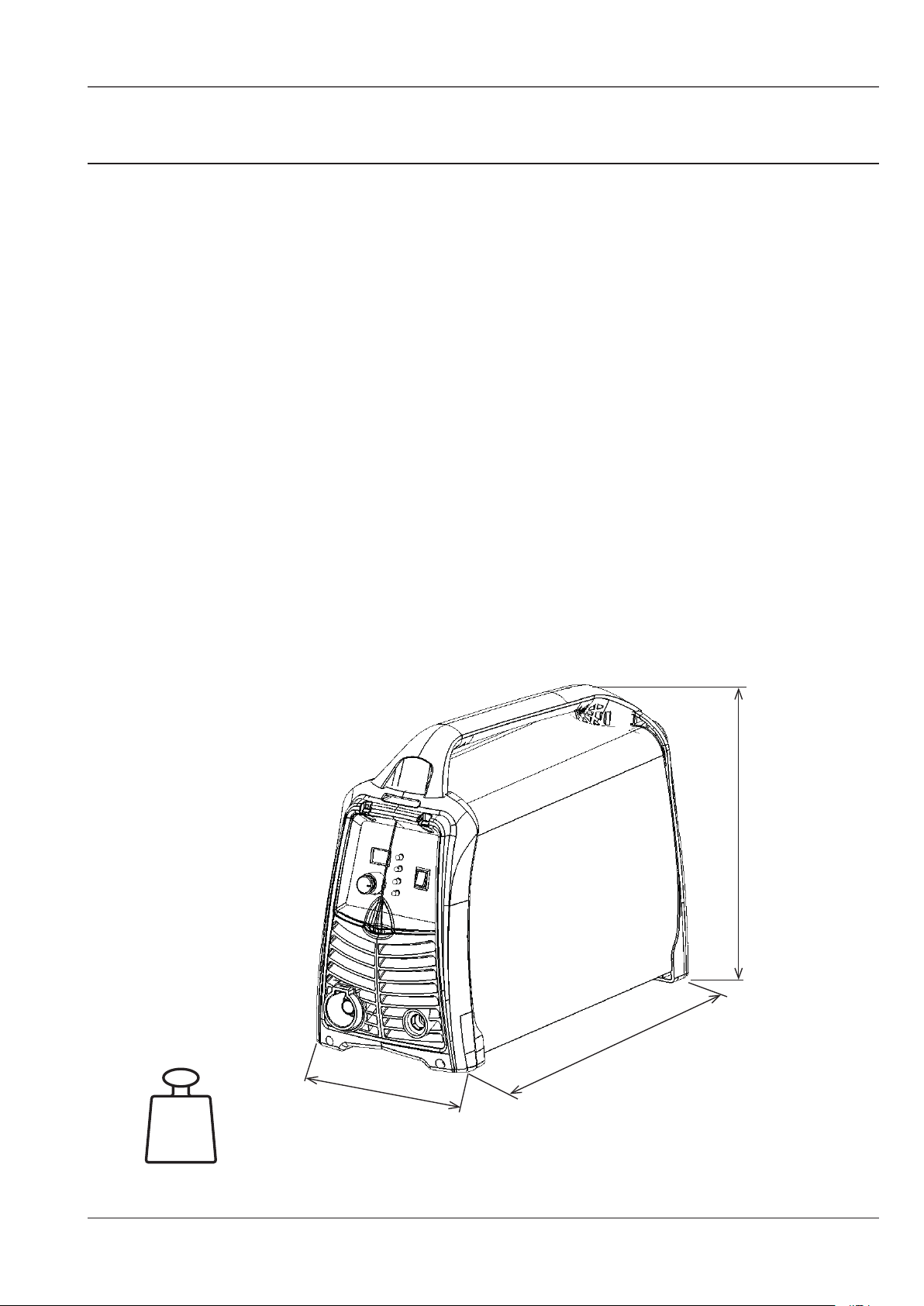

Dimensions and weight of the plasma arc power supply �����������������������������������������������2-11

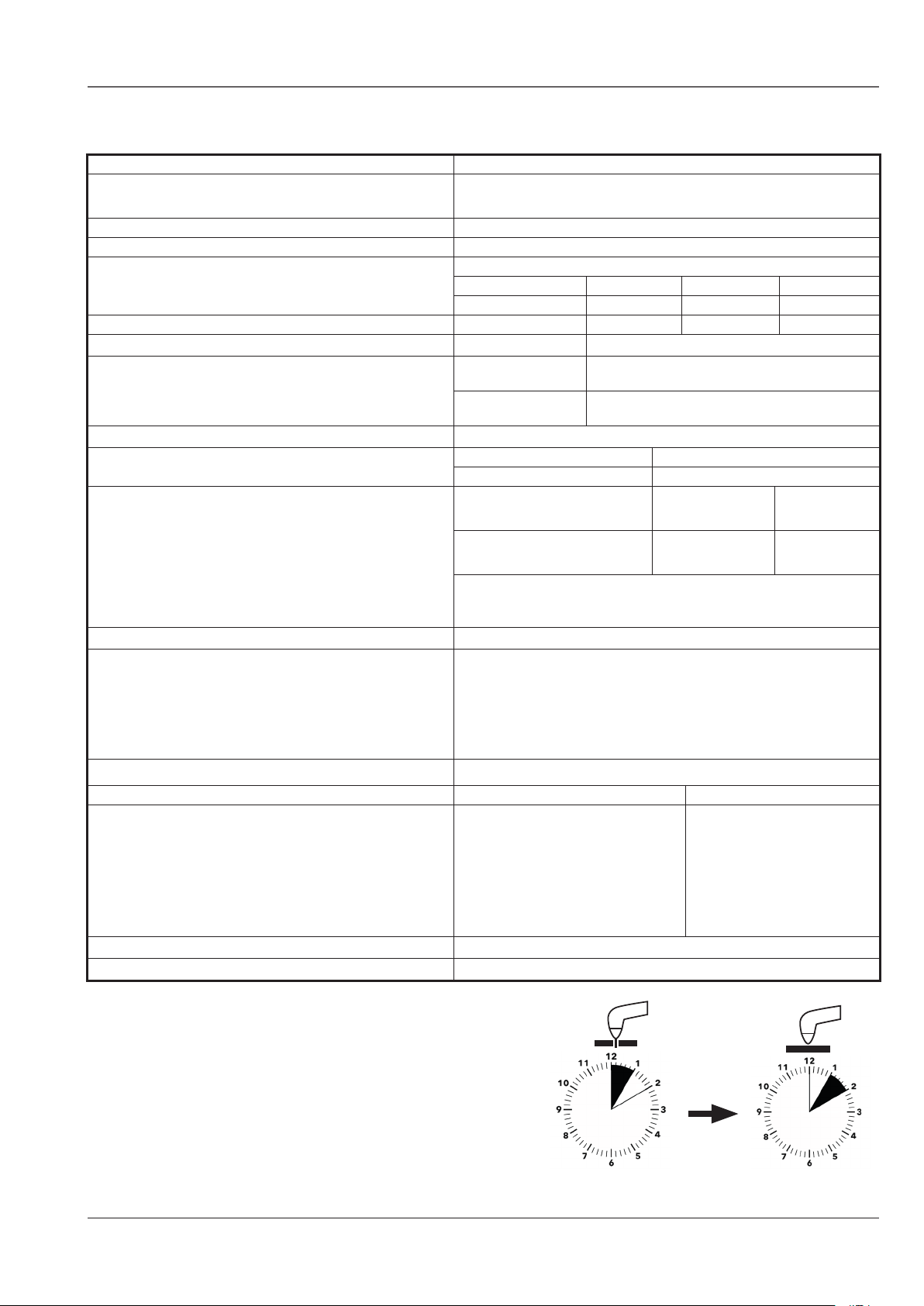

Specifications: plasma arc power supply 3 x 220 V����������������������������������������������������������2-12
Specifications: plasma arc power supply 3 x 400 V����������������������������������������������������������2-13
Hand torch setup ������������������������������������������������������������������������������������������������������������������2-15
Machine torch setup�������������������������������������������������������������������������������������������������������������2-16
Symbols and marking�����������������������������������������������������������������������������������������������������������2-17
SECTION 3: INSTALLATION��������������������������������������������������������������������� 3-18
Upon receipt of goods���������������������������������������������������������������������������������������������������������3-19
Claims�������������������������������������������������������������������������������������������������������������������������������������3-19

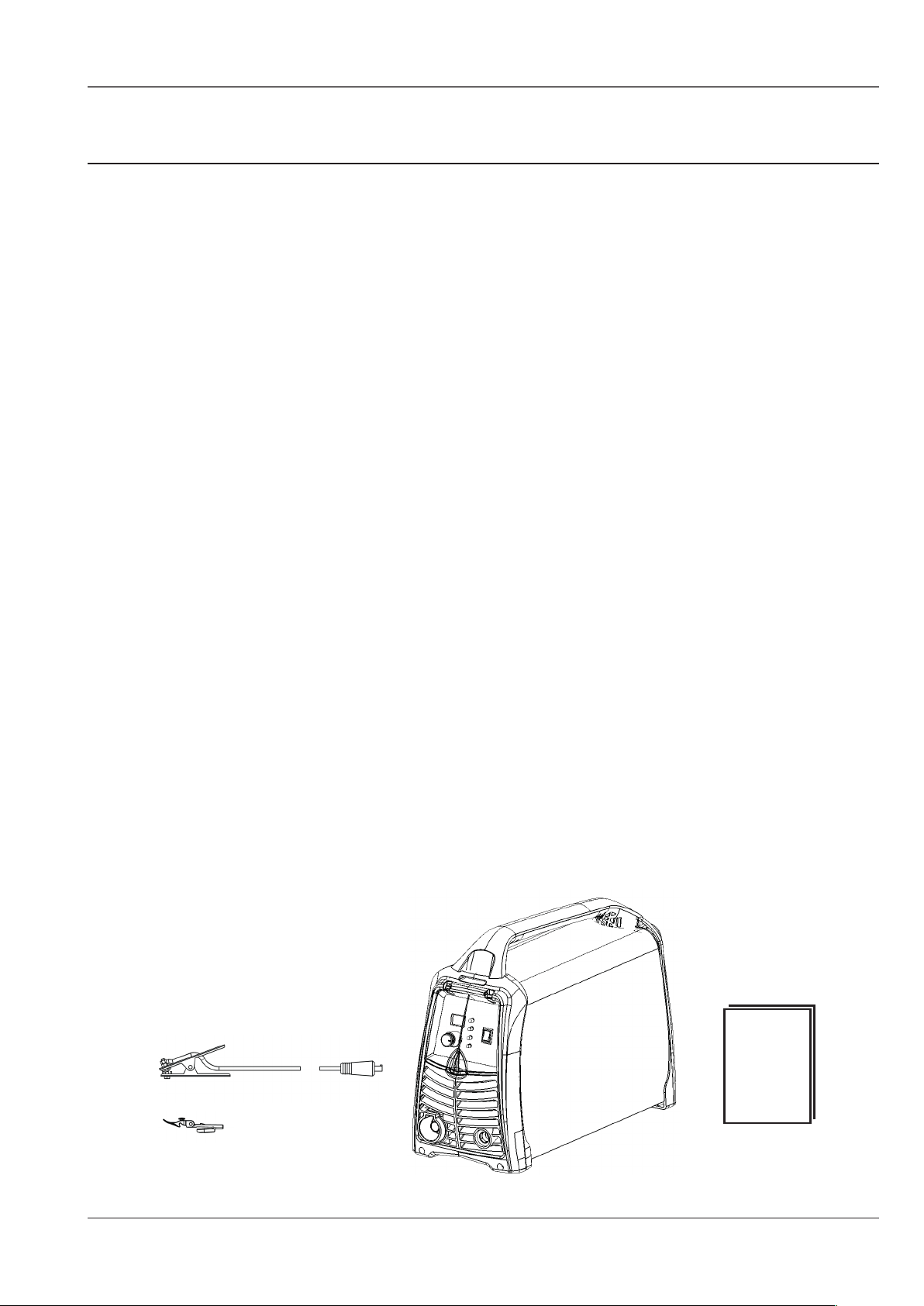

Box contents��������������������������������������������������������������������������������������������������������������������������3-19
Power supply location ����������������������������������������������������������������������������������������������������������3-20
Mains power connection �����������������������������������������������������������������������������������������������������3-20
Connecting to an engine drive power generator�������������������������������������������������������������3-20
Grounding �����������������������������������������������������������������������������������������������������������������������������3-20
Mains power lead �����������������������������������������������������������������������������������������������������������������3-21
Three-phases mains power lead�����������������������������������������������������������������������������������������3-21
Installation of three-phases mains power lead �����������������������������������������������������������������3-21
The mains power lead connection �������������������������������������������������������������������������������������3-22
Torch installation step by step���������������������������������������������������������������������������������������������3-22
INDEX

EX-TRAFIRE®55SD
Operator Manual, Revision T-3 3
Plasma gas supply ����������������������������������������������������������������������������������������������������������������3-25
Additional gas filtration��������������������������������������������������������������������������������������������������������3-25
Gas supply installation ���������������������������������������������������������������������������������������������������������3-26
System CNC interface connection��������������������������������������������������������������������������������������3-27
Set the DIP switches to one of the following settings� Basic settings is 50:1����������������������������3-27
Activating an external DC coil with an external power supply ���������������������������������������3-28
Activating an external AC coil with an external power supply����������������������������������������3-28
Activating an industrial isolated module with an external power supply����������������������3-29
SECTION 4: OPERATION ������������������������������������������������������������������������� 4-30
Front view�������������������������������������������������������������������������������������������������������������������������������4-31
Front control panel ���������������������������������������������������������������������������������������������������������������4-31
Rear view��������������������������������������������������������������������������������������������������������������������������������4-32
Rear control panel detail������������������������������������������������������������������������������������������������������4-32
Turn ON����������������������������������������������������������������������������������������������������������������������������������4-33
Check the LED indicators�����������������������������������������������������������������������������������������������������4-33
Operating the hand torch����������������������������������������������������������������������������������������������������4-34
Operating the torch safety trigger��������������������������������������������������������������������������������������4-34
Fit the work clamp ����������������������������������������������������������������������������������������������������������������4-35
Edge start cutting������������������������������������������������������������������������������������������������������������������4-35
Hand torch cutting technique ���������������������������������������������������������������������������������������������4-36
Piercing ����������������������������������������������������������������������������������������������������������������������������������4-37
Operating the machine torch����������������������������������������������������������������������������������������������4-38
Alignment of the machine torch�����������������������������������������������������������������������������������������4-38
SECTION 5: MAINTENANCE�������������������������������������������������������������������� 5-39
Routine maintenance �����������������������������������������������������������������������������������������������������������5-40
Purging/draining the built-in filter��������������������������������������������������������������������������������������5-41
SECTION 6: ADITIONAL ORDERING INFORMATION ������������������������������ 6-42
SECTION 7: TROUBLESHOOTING ����������������������������������������������������������� 7-43
SECTION 8: ACCESSORIES���������������������������������������������������������������������� 8-47
Filter-EX Compressed Air Filter with replacement filter cartridge����������������������������������8-47
Filter-EX Quick Connect Couplings������������������������������������������������������������������������������������8-47
O-Ring lubricant��������������������������������������������������������������������������������������������������������������������8-48
SECTION 9: SYSTEM CIRCUIT DIAGRAM ������������������������������������������������ 9-49
Power supply block diagram�����������������������������������������������������������������������������������������������9-49

EX-TRAFIRE®55SD
Operator Manual, Revision T-34
SECTION 10: DISPOSAL OF PRODUCT ������������������������������������������������� 10-50
Use and disposal of waste�������������������������������������������������������������������������������������������������10-50
End of lifetime product disposal���������������������������������������������������������������������������������������10-50
SECTION 11: WARRANTY ��������������������������������������������������������������������� 11-51
Notes:�����������������������������������������������������������������������������������������������������������������������������������11-52
Notes:�����������������������������������������������������������������������������������������������������������������������������������11-53
Revision history: ������������������������������������������������������������������������������������������������������������������11-54

EX-TRAFIRE®55SD
Operator Manual, Revision T-3 5
SECTION 1�
SAFETY:
SECTION 1: SAFETY ��������������������������������������������������������������������������������������5
!Caution! ��������������������������������������������������������������������������������������������������������������������������������������6
Plasma arc rays can burn eyes and skin�����������������������������������������������������������������������������������6
Noise can damage hearing ������������������������������������������������������������������������������������������������������6
Flying sparks (arc spray) can cause injury, fire or explosion��������������������������������������������������6
Caution! Read operator’s manual���������������������������������������������������������������������������������������������6
Cutting can cause fire or explosion �����������������������������������������������������������������������������������������7
Electric shock can kill������������������������������������������������������������������������������������������������������������������7
Plasma arc can injure������������������������������������������������������������������������������������������������������������������7
Flying sparks (arc spray) can cause injury, fire or explosion��������������������������������������������������7
Hot parts can cause severe burns���������������������������������������������������������������������������������������������7
Smoke and gases can be hazardous����������������������������������������������������������������������������������������8
Caution when cutting around gas cylinders����������������������������������������������������������������������������8
Do not exceed the recommended duty cycle, this can lead to overheating and cause
damage to the system����������������������������������������������������������������������������������������������������������������8
Magnetic field can affect pacemakers �������������������������������������������������������������������������������������8
Plasma cutting can cause interference�������������������������������������������������������������������������������������8

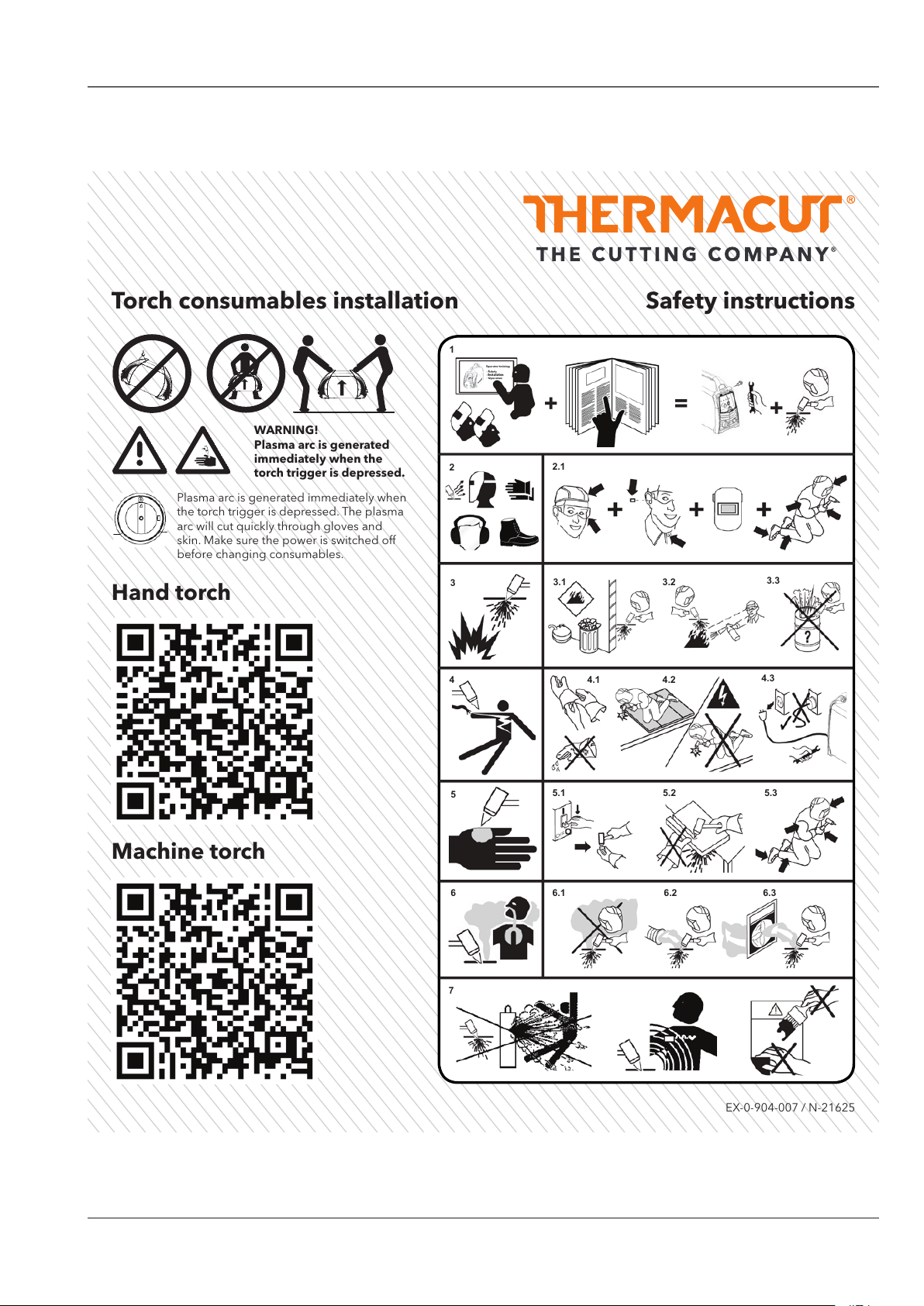

Safety Sticker �������������������������������������������������������������������������������������������������������������������������������9
SECTION 1: SAFETY

EX-TRAFIRE®55SD
Operator Manual, Revision T-36
SAFETY
The symbol shown in this section means: !Caution! !Beware!
¡There are possible hazards with this procedure!
When you find this symbol in the manual or on the system,
be cautious, and follow the related instructions to avoid the
hazard�
Follow the safety instructions to avoid danger�
Only qualified persons should install, operate, maintain and
repair the system�
Keep out of reach of children�
Prolonged exposure to noise from plasma cutting/gouging
can cause hearing damage�
• Use approved ear protection when operating the
plasma system�
• Warn others about the dangers of noise�
NOISE CAN DAMAGE HEARING
!CAUTION!
Arc rays from the cutting/gouging processes produce intense
visible and invisible rays that can burn eyes and skin�
Use protective clothing made from durable, flame-resistant
material, appropriate footwear and hand protection�
• Use face protection (welding helmet or shield) with
the correct shade of filter lens fitted to protect your
eyes and face (see Table 1�1)�
• Warn people of the dangers of looking at the arc, use
signs to warn/inform�
PLASMA ARC RAYS CAN BURN EYES AND SKIN
Flying sparks are created during the metal cutting/gouging
processes; the area around the cutting process should be kept
free from flammables�
• Use face shield/safety glasses with side protection�
• Wear flame resistant clothing, footwear and hand
protection�
• Use earplugs/defenders that are flame resistant to
prevent sparks entering the ear and to reduce the
noise level�
FLYING SPARKS (ARC SPRAY) CAN
CAUSE INJURY, FIRE OR EXPLOSION
1
2
CAUTION!
READOPERATOR’SMANUAL

EX-TRAFIRE®55SD
Operator Manual, Revision T-3 7
Touching electrical parts could cause a fatal shock or severe
burns�
• Do not touch live electrical components�
• Wear dry insulated gloves, shoes and protective clothing�
• Insulate yourself from the work and ground using dry
insulating material large enough for the work area�
• The working area should be clean and dry�
• Switch OFF the system for cleaning and maintenance
operations�
• Do not wrap cables around your body�
• Turn OFF the machine when not in use�
ELECTRIC SHOCK CAN KILL
• Periodically check the power supply cable, to insure
that the outer insulation is intact� Replace the power
supply cable immediately if damaged� DO NOT use
the system with bare or exposed wires, this is highly
dangerous�
• Before removing the cover or handling any of the
internal components of the system, wait 5 (FIVE)
minutes to ensure complete discharge of the
capacitors�
• Keep the system in good condition; repair or replace
damaged parts immediately� Maintain the system in
accordance with the manual�
FIRE PREVENTION
• Keep flammable items away from the work area�
• Ensure that there is a fully charged fire extinguisher in the
work area
• Ventilate the work area, check for flammable/combustible
gases, liquids and materials, remove prior to cutting as
they present a fire risk�
EXPLOSION PREVENTION
• Do not cut in areas containing explosives, flammable
gases or vapors�
• Do not place the system on, over, or near combustible
surfaces�
• Do not operate the system in areas with an atmosphere
containing high concentrations of dust, flammable gases
or vapors�
• Do not use the system to cut pressurized containers that
have not been de-pressurized, vented and cleaned�
Caution! After cutting, the work piece will be HOT!
• Do not touch hot parts bare handed, wear suitable
hand protection�
• Allow cooling time before handling�
CUTTING CAN CAUSE FIRE
OR EXPLOSION
Flying sparks are created during the metal cutting/gouging
processes; the area should be kept free from flammables�
• Use face shield/safety glasses with side protection�
• Wear flame resistant clothing, footwear and hand
protection�
• Use earplugs/defenders that are flame resistant to
prevent sparks entering the ear and to reduce the
noise level�
FLYING SPARKS (ARC SPRAY) CAN
CAUSE INJURY, FIRE OR EXPLOSION
The plasma arc is activated immediately after the torch trigger
is depressed�
• Turn off the power before changing the torch
consumables, the plasma arc can burn through skin and
gloves�
• Do not place your hand or hold the work piece near the
cutting path�
• Do not point the torch toward yourself or other persons�
PLASMA ARC CAN INJURE
3
4
5
HOT PARTS CAN CAUSE SEVERE BURNS

EX-TRAFIRE®55SD
Operator Manual, Revision T-38
Gas cylinders which contain gas under high pressure can
rupture and explode if damaged�
• Handle and use compressed gas cylinders in accordance
with local or national codes�
• Never allow electrical contact between the plasma arc
and a cylinder�
• Never expose cylinders to excessive heat, sparks, slag or
flames�
CAUTION WHEN CUTTING
AROUND GAS CYLINDERS
Plasma Arc Cutting
Current
Protection glass
shade number*
Up to 150A ISO (DIN) 11
150A to 250A ISO (DIN) 12
250A to 400A ISO (DIN) 13
OVER 400A ISO (DIN) 14
* According to ISO 4850:1979
Induction heating of certain materials, adhesives, and fluxes
may cause fumes or smoke�
Breathing the fumes and smoke can be hazardous to your
health
• Keep your face out of the smoke, do not breathe the
fumes�
• Use local exhaust ventilation for fume removal�
• If ventilation is poor, wear an approved air-supplied
respirator�
SMOKE AND GASES CAN
BE HAZARDOUS
• Work in a confined space only if it is well ventilated,
or while wearing an air-supplied respirator� The
smoke and gases from the cutting/gouging process
can displace air and lower the oxygen level causing
injury or death�
• Monitor the breathable air quality as required�
MAGNETIC FIELD CAN
AFFECT PACEMAKERS
• People with pacemakers/hearing aids should avoid
close contact with plasma arc power supply�
• People with pacemakers/hearing aids should consult
their doctor before operating plasma arc power
supply�
Do not exceed the recommended duty
cycle, this can lead to overheating
and cause damage to the system�
• Allow a suitable cooling off period with high demand
usage�
• Observe the duty cycle rating shown on the label
attached to the system�
PLASMA CUTTING CAN
CAUSE INTERFERENCE
• Electromagnetic energy can interfere with sensitive
electronic equipment such as computers, or
computer-driven equipment�
• Ensure that all equipment in the cutting area is
electromagnetically compatible�
• Ensure that the plasma arc cutting system is installed
and positioned in accordance with this manual�
6
7

EX-TRAFIRE®55SD
Operator Manual, Revision T-3 9
Safety Sticker
WARNING!
Plasma arc is generated
immediately when the
torch trigger is depressed.
Plasma arc is generated immediately when
the torch trigger is depressed. The plasma
arc will cut quickly through gloves and
skin. Make sure the power is switched off
before changing consumables.
Torch consumables installation Safety instructions
EX-0-904-007 / N-21625
Hand torch
Machine torch
+ = +
1
2
3
4
6
2.1
3.1 3.2 3.3
4.1 4.2 4.3
5.1 5.2 5.3
6.1 6.2 6.3
5
7

EX-TRAFIRE®55SD
Operator Manual, Revision T-32-10
SECTION 2�
SPECIFICATIONS:
SECTION 2: SPECIFICATIONS
Dimensions and weight of the plasma arc power supply �����������������������������������������������2-11
Specifications: plasma arc power supply 3 x 220 V����������������������������������������������������������2-12
Specifications: plasma arc power supply 3 x 400 V����������������������������������������������������������2-13
Hand torch setup ������������������������������������������������������������������������������������������������������������������2-15
Machine torch setup�������������������������������������������������������������������������������������������������������������2-16
Symbols and marking�����������������������������������������������������������������������������������������������������������2-17

EX-TRAFIRE®55SD
Operator Manual, Revision T-3 2-11
SPECIFICATIONS
Dimensions and weight of the plasma arc power supply
177 mm
469�9 mm
228�6 mm
* Weight of plasma arc power supply without torch�11�8 kg*
EX-TRAFIRE®55SD
• Is a portable plasma arc cutting system�
• Has been designed for handheld cutting�
• Uses compressed air or nitrogen for cutting electrically conductive metals (mild steel,
stainless steel and aluminium)�

EX-TRAFIRE®55SD
Operator Manual, Revision T-32-12
Specifications: plasma arc power supply 3 x 220 V
Open circuit voltage (U0) 400 VDC
Output characteristic*
* Curve is defined as the output voltage versus output current Drooping
Input voltage (U1) 3 x 220 VAC ± 15%
Rated output current (I2) 30 - 55 A
Standard rated output voltage (U2) @ 55A
140 VDC
X 60% 100%
U2 140 140
Cutting current at 60%/100% duty cycle (A) 3 x 220 VAC±15% 55 A 42 A
Maximum input power 3 x 220 VAC±15% 11�01 kVA
Duty cycle (X*) a 40º C at rated conditions (U1, I1, U2, I2)
*X=Ton/Tbase,
Ton = time, minutes
Tbase =10 minutes
U1-Volts AC rms X
3 x 220 VAC±15% 60%
Operating temperature −10º – +40º C
Rated AC phases (PH) and line frequency (Hz)
Model CE
PH Hz
3 50-60
Rated input voltage (U1), rated input current (I1)
and 1eff�* at rated output U2 y I2 cutting only�
*I1eff = (I1) √X used to determine rating of power cord�
rms = root mean square
eff� = effective
U1-Volts AC rms I1-Amps rms I1eff
3 x 220 VAC ± 15% 28�9*A 22�3*A
This equipment conforms to IEC 61000-3-12,
EN 60974-1
Isolation class H/F
IP Code – Degree of protection provided by enclosure
IP23S*
IP – “International Protection”
2 – No ingress foreign objects ≥ 12�5 mm
3 – No harmful ingress spraying water�
S – fan stationary during water test�
*WARNING: ! DO NOT OPERATE IN RAIN !
Toppling, tilting ( with or without Wheel kit) Up to 15º incline
Gas type Air Nitrogen
Gas quality specification
Recommended Air quality:
ISO 8573-1 Class 1�2�2�
Air max� particle size: 0�1 microns,
class 1 ref� to ISO 8573,
Air max� oil: 0�1 mg / m3,
class 2 ref�: ISO 8573,
Air max� dewpoint: +3° C,
class 4 ref� to ISO 8573
Purity ≥ 99�99%
Gas quality Clean, moisture-free, without oil
Gas input pressure and flow 7 bar / 101 psi 270 l/min

EX-TRAFIRE®55SD
Operator Manual, Revision T-3 2-13
Specifications: plasma arc power supply 3 x 400 V
Open circuit voltage (U0) 400 VDC
Output characteristic*
* Curve is defined as the output voltage versus output current Drooping
Input voltage (U1) 3 x 400 VAC ± 15%
Rated output current (I2) 30 - 55 A
Standard rated output voltage (U2) U1 = 400VAC±15%
170 V
X 50% 60% 100%
U2 170 170 170
Cutting current at 50%/60%/100% duty cycle (A) 3 x 400 VAC±15% 55 A 50 A 41 A
Maximum input power 3 x 400 VAC±15% 13�7 kVA
Duty cycle (X*) a 40º C at rated conditions (U1, I1, U2, I2)
*X=Ton/Tbase,
Ton = time, minutes
Tbase =10 minutes
U1-Volts AC rms X
3 x 400 VAC±15% 50%
Operating temperature −10º – +40º C
Rated AC phases (PH) and line frequency (Hz)
Model CE
PH Hz
3 50-60
Rated input voltage (U1), rated input current (I1)
and 1eff�* at rated output U2 y I2 cutting only�
*I1eff = (I1) √X used to determine rating of power cord�
rms = root mean square
eff� = effective
U1-Volts AC rms I1-Amps rms I1eff
3 x 400 VAC ± 15% 20�9*A 14�8*A
This equipment conforms to IEC 61000-3-12,
EN 60974-1
Isolation class H/F
IP Code – Degree of protection provided by enclosure
IP23S*
IP – “International Protection”
2 – No ingress foreign objects ≥ 12�5 mm
3 – No harmful ingress spraying water�
S – fan stationary during water test�
*WARNING: ! DO NOT OPERATE IN RAIN !
Toppling, tilting ( with or without Wheel kit) Up to 15º incline
Gas type Air Nitrogen
Gas quality specification
Recommended Air quality:
ISO 8573-1 Class 1�2�2�
Air max� particle size: 0�1 microns,
class 1 ref� to ISO 8573,
Air max� oil: 0�1 mg / m3,
class 2 ref�: ISO 8573,
Air max� dewpoint: +3° C,
class 4 ref� to ISO 8573
Purity ≥ 99�99%
Gas quality Clean, moisture-free, without oil
Gas input pressure and flow 10 bar / 145 psi 270 l/min
5 minutes cutting 5 minutes resting
Duty cycle
Duty cycle is the percentage of time,
during a period of 10 minutes,
that the power supply can continuously cut�
The following diagram represents a duty cycle of 50%�

EX-TRAFIRE®55SD
Operator Manual, Revision T-32-14
PARAMETERS EX-TRAFIRE®55SD
Supply voltage (VAC) 3 x 400±15% (3 x 220±15%)
Frequency (Hz) 50/60
Maximum input current 80%-100% (A) 20�9 (28�9)
Maximum input power (kVA) 13�7 (11)
Open circuit voltage (VDC) 400
Rated output voltage (VDC) 170
Cutting current at 50%-100% duty cycle (A) 55 - 41
Recommended cutting capacity (mm) 20
Maximum cutting capacity (mm) 30
Severance cutting capacity (mm) 30
Piercing capacity (mm) 20
Gouging capability (Kg/h) up to 6
Protection level IP23S
Isolation class H/F
Dimensions ( l x h x w ) (mm) 469�9 x 228�6 x 177
Weight (kg) 11�8
Gas pressure ( bar ) 5�5
Gas flow ( lpm) 270
It is recomended to unfold the cable, because of bigger heat generation if it‘s longer than 8 m�

EX-TRAFIRE®55SD
Operator Manual, Revision T-3 2-15
Hand torch setup
Ground Work lead Power lead Gas supply
Torch lead
Gas hose (min� Ø8 mm)
P
view P
Torch lead Work lead
Work piece
Work table
min� 270 LPM
min� 6 bar
max� 10 bar

EX-TRAFIRE®55SD
Operator Manual, Revision T-32-16
Machine torch setup
Ground Work lead Power lead Gas supply
Torch lead Machine
interface cable
P
view P
Torch lead Work lead
Work piece
Work table
min� 270 LPM
min� 6 bar
max� 10 bar
Gas hose (min� Ø8 mm)

EX-TRAFIRE®55SD
Operator Manual, Revision T-3 2-17
Symbols and marking
IEC symbols;
The following symbols may be present on the plasma arc power supply data plate, control labels
and switches�
Symbol Description Symbol Description
Alternating Current (AC) power ON Power is ON
V
Over-Current (OC),
Over-Temperature (OT) OFF Power is OFF
V
(GAS) Low inlet gas pressure alarm An inverter-based power supply
V
Direct Current (DC)
power - DC WORK
V
Cutting Mode
The terminal for the external
protective (earth) conductor
V
Grid Mode
For compliance with the European Norm, it is NOT permissible
to use unshielded consumables in Hand-Held applications�
S Mark;
This marking signifies the manufacturer’s declaration of conformity to
applicable European directives and standards (EMC & LVD)�
The mark indicates that the power supply and torch are suitable for
use in environments with danger of electrocution� The hand torches must
have shielded consumable parts fitted to mantain mark compliance�
CE Mark;
C-Tick Mark; This marking signifies compliance with appropriate Australian EMC standard�
V

EX-TRAFIRE®55SD
Operator Manual, Revision T-33-18
SECTION 3�
INSTALLATION:
SECTION 3: INSTALLATION
Upon receipt of goods���������������������������������������������������������������������������������������������������������3-19
Claims�������������������������������������������������������������������������������������������������������������������������������������3-19
Box contents��������������������������������������������������������������������������������������������������������������������������3-19
Power supply location ����������������������������������������������������������������������������������������������������������3-20
Mains power connection �����������������������������������������������������������������������������������������������������3-20
Connecting to an engine drive power generator�������������������������������������������������������������3-20
Grounding �����������������������������������������������������������������������������������������������������������������������������3-20
Mains power lead �����������������������������������������������������������������������������������������������������������������3-21
Three-phases mains power lead�����������������������������������������������������������������������������������������3-21
Installation of three-phases mains power lead �����������������������������������������������������������������3-21
The mains power lead connection �������������������������������������������������������������������������������������3-22
Torch installation step by step���������������������������������������������������������������������������������������������3-22
Plasma gas supply ����������������������������������������������������������������������������������������������������������������3-25
Additional gas filtration��������������������������������������������������������������������������������������������������������3-25
Gas supply installation ���������������������������������������������������������������������������������������������������������3-26
System CNC interface connection��������������������������������������������������������������������������������������3-27
Activating an external DC coil with an external power supply ���������������������������������������3-28
Activating an external AC coil with an external power supply����������������������������������������3-28
Activating an industrial isolated module with an external power supply����������������������3-29

EX-TRAFIRE®55SD
Operator Manual, Revision T-3 3-19
INSTALLATION
Upon receipt of goods
1� Verify that all ordered items have been received, for short shipment or damage to equipment,
contact the Authorized Supplier�
2� If there is evidence of damage, see Claims, below�
3� All communication relating to this plasma arc system should include the model and serial
number located on the bottom of the plasma arc power supply�
4� Read the information in the SAFETY section of this manual before installing and operating the
system�
Claims
Claims for shipping damage; If the unit has been damaged in transit, contact the carrier
immediately, take photographs of the packaging and areas of damage on the system� Inform
Authorized Supplier, who will provide copies of relevant documentation� For further assistance,
contact Customer Services, details are listed at the back of this manual�
Claims for defective or missing goods; All systems shipped from Authorized Supplier have been
subjected to a rigorous quality control procedure� If any of the parts are found to be defective or
missing, contact Authorized Supplier with the relevant information� For further assistance contact
Customer Services, details are listed at the back of this manual�
Box contents
Check the items that are shown in the illustration below� Packaging also includes an air line
connection DN7�2ES plug with male thread G1/4”�
OPERATOR
MANUAL

EX-TRAFIRE®55SD
Operator Manual, Revision T-33-20
Power supply location
Place the plasma arc power supply EX-TRAFIRE®55SD on a flat even surface with a minimum
distance of 0�5m of clear space all round to ensure good ventilation�
Mains power connection
The EX-TRAFIRE®55SD plasma arc power supply requires a 400 VAC ±15% three-phases mains
power source (or 220 VAC ±15% for 3 x 220 V power supply)� Use a circuit breaker for power
line input so that the operator can turn off the power supply quickly in an emergency� Locate the
switch so that it is easily accessible to the operator� The interrupt level of the switch must be equal
to or exceed the continuous rating of the fuses� Use slow blow fuses with a suitable capacity in
accordance with local and national electrical codes�
Connecting to an engine drive power generator
When using an engine drive generator to power the EX-TRAFIRE®55SD:
• Engine drive operation;
1� Set engine drive output to three-phases AC�
2� Plug the EX-TRAFIRE®55SD mains power lead in to the power outlet�
3� Hard wire connection (No plug fitted) should be performed by a certified electrician�
4� Set the engine drive to maximum output (see chart below)�
5� For optimum performance, do not share the engine drive with other equipment such as
welding plant, lighting systems or angle grinders�
Three-phases, 50/60 Hz, 400 VAC ±15%
Engine drive rating Current output EX-TRAFIRE 55SD Performance
19 kW 55 A Full arc stretch
17 kW 55 A Limited arc stretch
Grounding
To reduce electromagnetic interference (EMI) and to ensure personal safety and correct operation,
the EX-TRAFIRE®55SD must be properly grounded through the mains power lead in accordance with
local and national electrical codes of practice� The three-phases service must be of the 4-wire type
with a protective green-yellow wire for protective earth ground and must comply with national and
local electrical codes of practice�
Table of contents
Other THERMACUT Welding System manuals
Popular Welding System manuals by other brands

Thermal Dynamics
Thermal Dynamics Pak Master 100XL operating manual

Lincoln Electric
Lincoln Electric RED-D-ARC E500 Operator's manual

Leister
Leister WELDY foiler operating manual

GÜDE
GÜDE GIS 121 Translation of the original instructions

Paton
Paton MINI user manual

TER SRL
TER SRL Multi Synergic 280 instruction manual
