Thermador Ventilation User manual

i i ii ii
kSE VENTILATION
AN D CA_E MAN LA L ¸¸¸¸¸i(¸¸¸¸¸¸¸¸¸¸¸¸¸¸¸¸¸¸¸¸¸7¸¸¸¸¸¸¸¸¸¸¸¸¸¸¸¸¸¸¸
Thermador A,,A.....,.......g_,o,

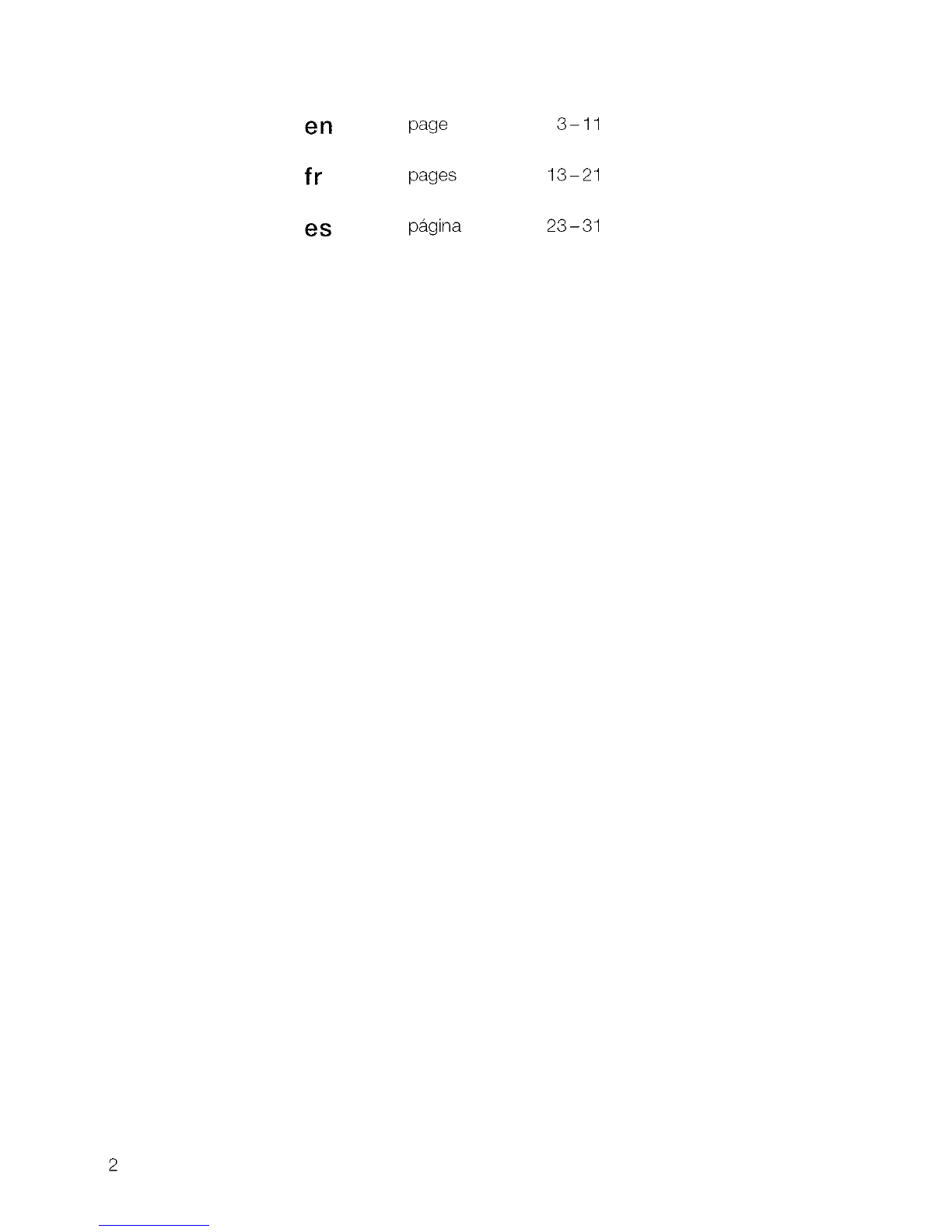

ell
fr
es
page
pages
pagina
3-11
13-21
23-31

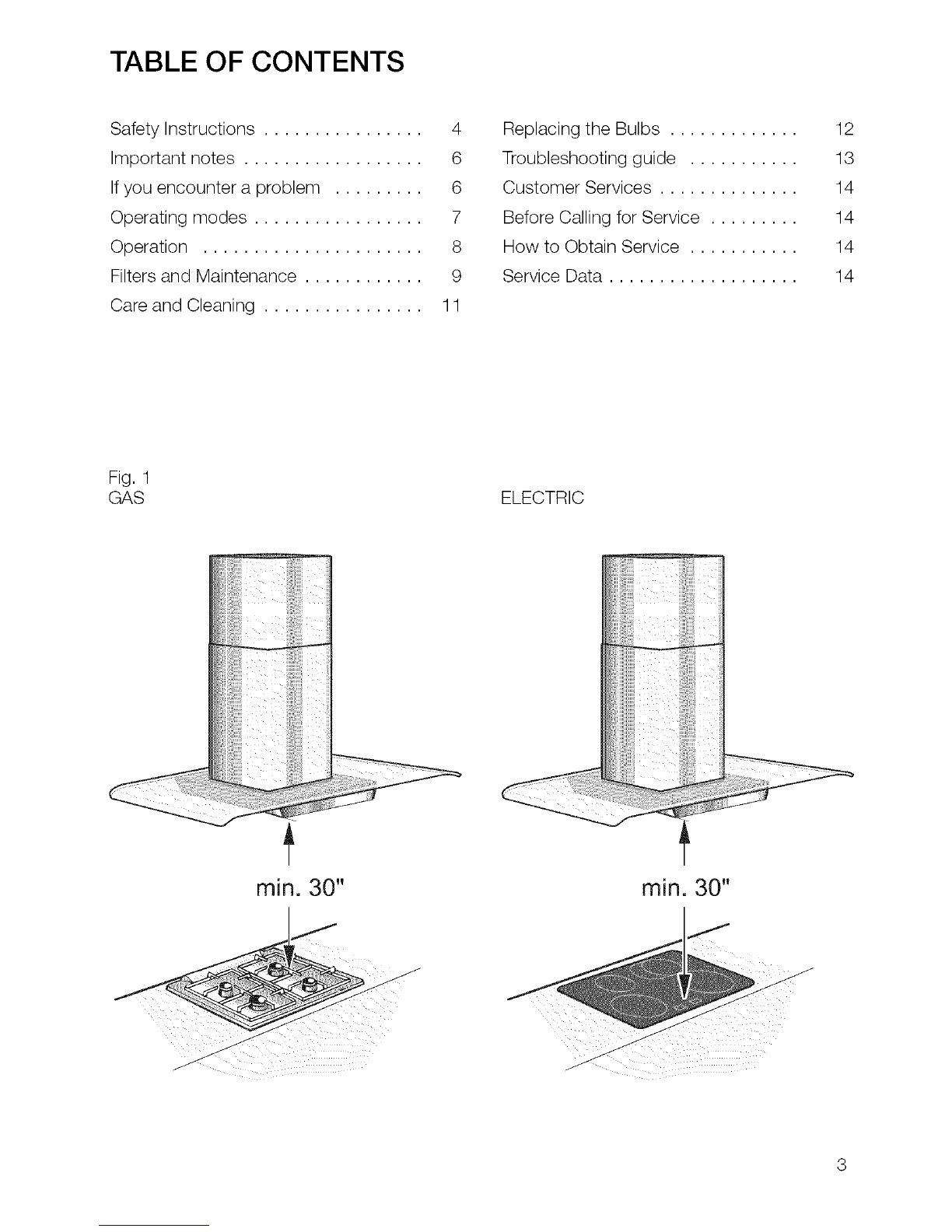

TABLE OF CONTENTS
Safety Instructions ................ 4
Important notes .................. 6
Ifyou encounter a problem ......... 6
Operating modes ................. 7
Operation ...................... 8
Filters and Maintenance ............ 9
Care and Cleaning ................ 11

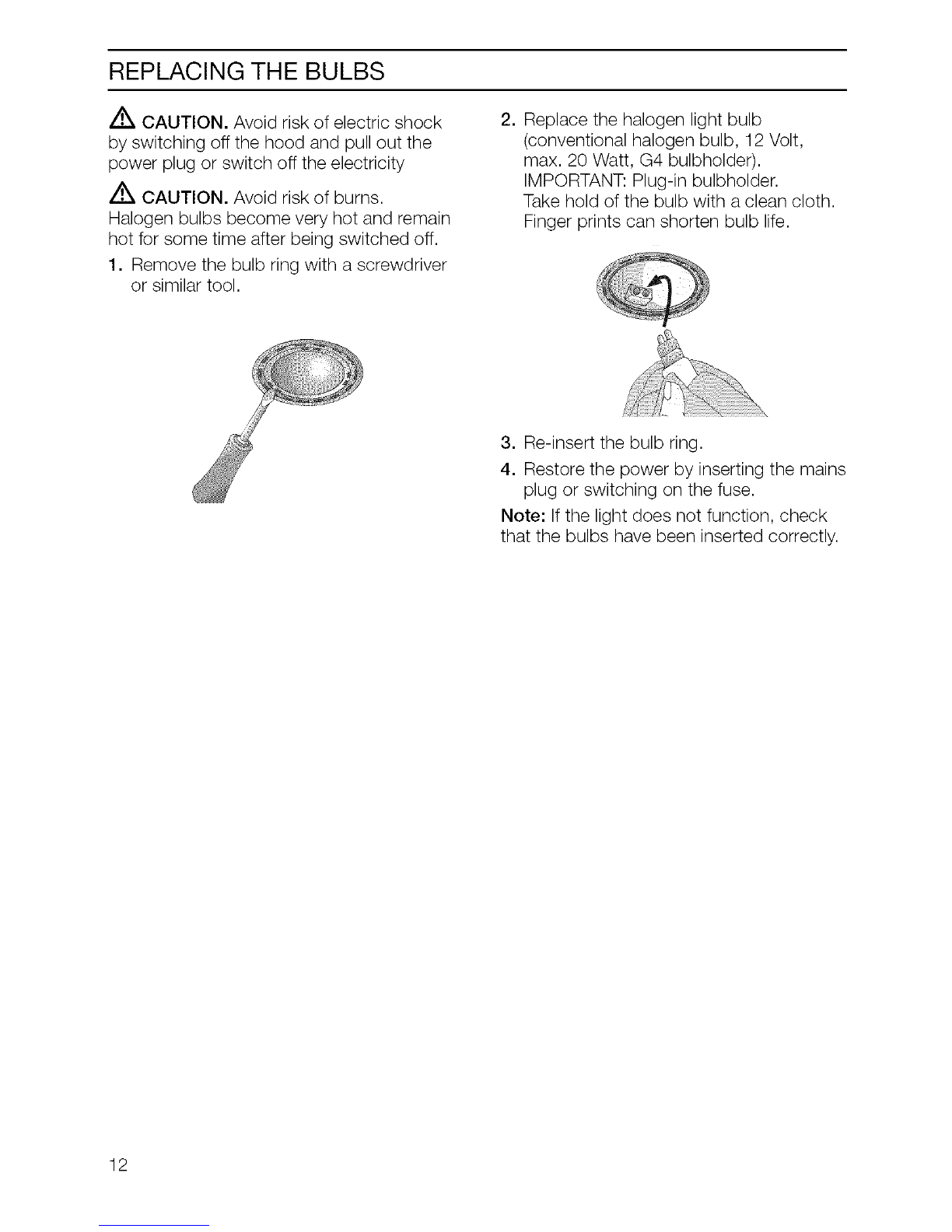

Replacing the Bulbs .............
Troubleshooting guide ...........
Customer Services ..............
Before Calling for Service .........
How to Obtain Service ...........
Service Data ...................
12
13
14
14
14
14
Fig. 1
GAS ELECTRIC
min. 30" min. 30"

Z_ IMPORTANTSAFETYINSTRUCTIONS
Read All Instructions Before Using the Appliance.
READ AND SAVE THESE INSTRUCTIONS
WARNING - TO REDUCE THE RISK OF A
RANGE TOP GREASE FIRE.
a) Never leave surface units unattended at
high settings. Boilovers cause smoking
and greasy spillovers that may ignite.
Heat oils slowly on low or medium
settings.
b) Always turn hood ON when cooking at
high or when flambeing food (i.e. Crepes
Suzette, Cherries Jubilee, Peppercorn
Beef Flambe).
c) Clean ventilating fans frequently.
Grease should not be allowed to
accumulate on fan or filter.
d Use proper pan size. Always use
cookware appropriate for the size of the
surface element.
In the event that personal clothing or hair
catches fire, drop and roll immediately to
extinguish flames.
Smother flames from food fires other than
grease fires with baking soda.
Never use water on cooking fires.
CAUTION: Grease left on filters can remett
and move into the vent.
Always have a working smoke detector
near the kitchen.
WARNING - TO REDUCE THE RISK OF
INJURY TO PERSONS IN THE EVENT OF
A COOKTOP GREASE FIRE,OBSERVE
THE FOLLOWING:
a) SMOTHER FLAMES with a closefitting
lid, cookie sheet, or metal tray, then turn
off the burner. BE CAREFUL TO
PREVENT BURNS. Ifthe flames do not
go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN. You
may be burned.
c) DO NOT USE WATER, including wet dish
cloths or towels. A violent steam
explosion will result.
d) Use an extinguisher ONLY if:
1)You know you have a Class ABC
extinguisher, and you already know
how to operate it.
2)The fire is small and contained in the
area where it started.
3) The fire department is being called.
4) You can fight the fire with your back to
an exit.
WARNING - Whenever possible, do not
operate blower during a cooktop fire.
However, do not reach through fire to turn
off blower.
When children become old enough to use
the appliance, it is the legal responsibility of
the parents or Iegai guardians to ensure
that they are instructed in safe practices by
qualified persons.
Do not allow children to use this appliance
unless closely supervised by an adult.
Children and pets should not be left alone
or unattended in the area where the
appliance is in use. They should never be
allowed to play in its vicinity, whether or not
the appliance is in use.

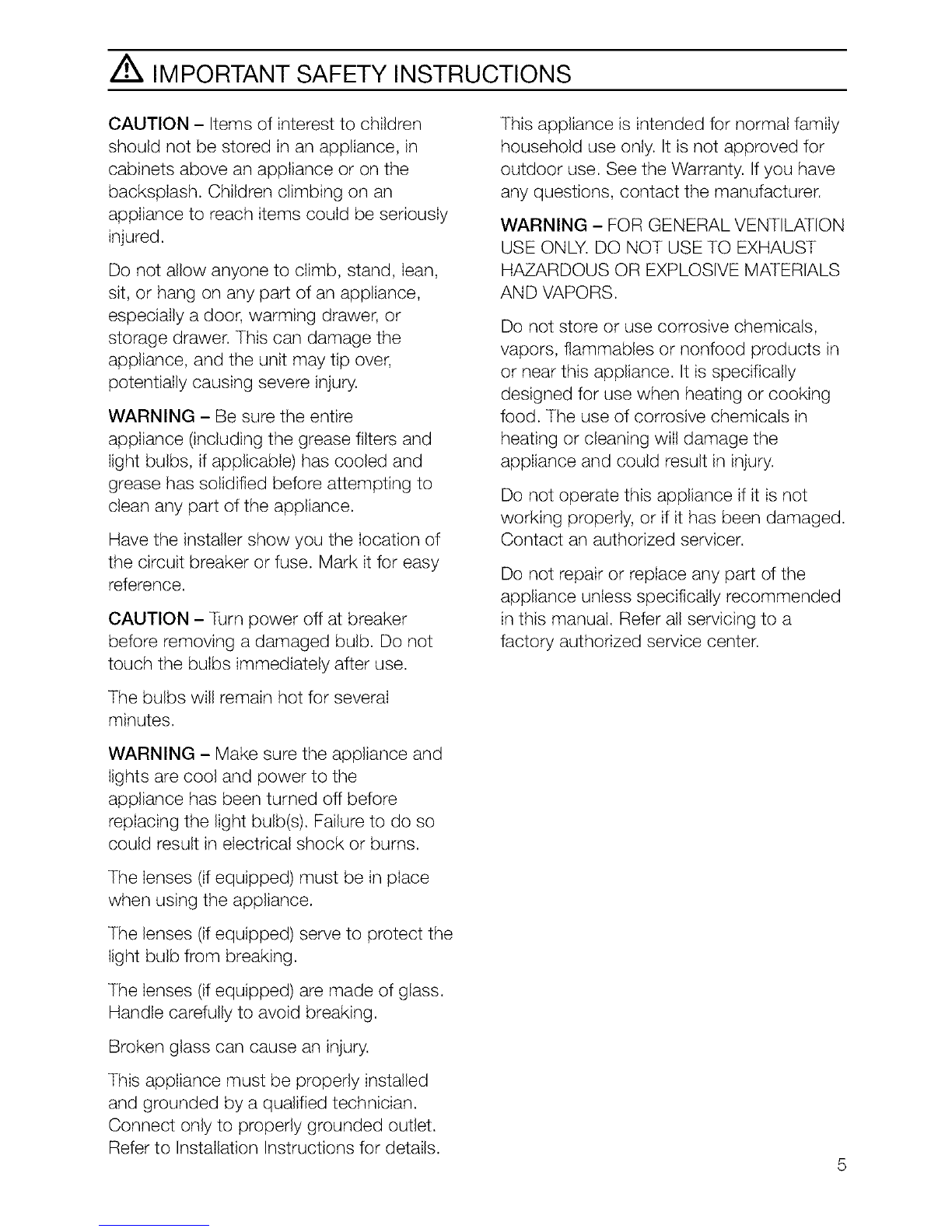

Z_ IM PORTANT SAFETY INSTRUCTIONS
CAUTION - Items of interest to children
should not be stored in an appliance, in
cabinets above an appliance or on the
backsplash. Children climbing on an
appliance to reach items could be seriously
injured.
Do not allow anyone to climb, stand, lean,
sit, or hang on any part of an appliance,
especially a door, warming drawer, or
storage drawer. This can damage the
appliance, and the unit may tip over,
potentially causing severe injury.
WARNING - Be sure the entire
appliance (including the grease filters and
light bulbs, if applicable) has cooled and
grease has solidified before attempting to
clean any part of the appliance.
Have the installer show you the location of
the circuit breaker or fuse. Mark it for easy
reference.
CAUTION - Turn power off at breaker
before removing a damaged bulb. Do not
touch the bulbs immediately after use.
The bulbs will remain hot for several
minutes.
WARNING - Make sure the appliance and
lights are cool and power to the
appliance has been turned off before
replacing the light bulb(s). Failure to do so
could result in electrical shock or burns.
The lenses (ifequipped) must be in place
when using the appliance.
The lenses (ifequipped) serve to protect the
light bulb from breaking.
The lenses (ifequipped) are made of glass.
Handle carefully to avoid breaking.
Broken glass can cause an injury.
This appliance must be properly installed
and grounded by a qualified technician.
Connect only to properly grounded outlet.
Refer to Installation Instructions for details.
This appliance is intended for normal family
household use only. It is not approved for
outdoor use. See the Warranty. If you have
any questions, contact the manufacturer.
WARNING - FOR GENERAL VENTILATION
USE ONLY. DO NOT USE TO EXHAUST
HAZARDOUS OR EXPLOSIVE MATERIALS
AND VAPORS.
Do not store or use corrosive chemicals,
vapors, flammables or nonfood products in
or near this appliance. It is specifically
designed for use when heating or cooking
food. The use of corrosive chemicals in
heating or cleaning wilI damage the
appliance and could result in injury.
Do not operate this appliance if it is not
working properly, or if it has been damaged.
Contact an authorized servicer.
Do not repair or replace any part of the
appliance unless specifically recommended
in this manual. Refer all servicing to a
factory authorized service center.

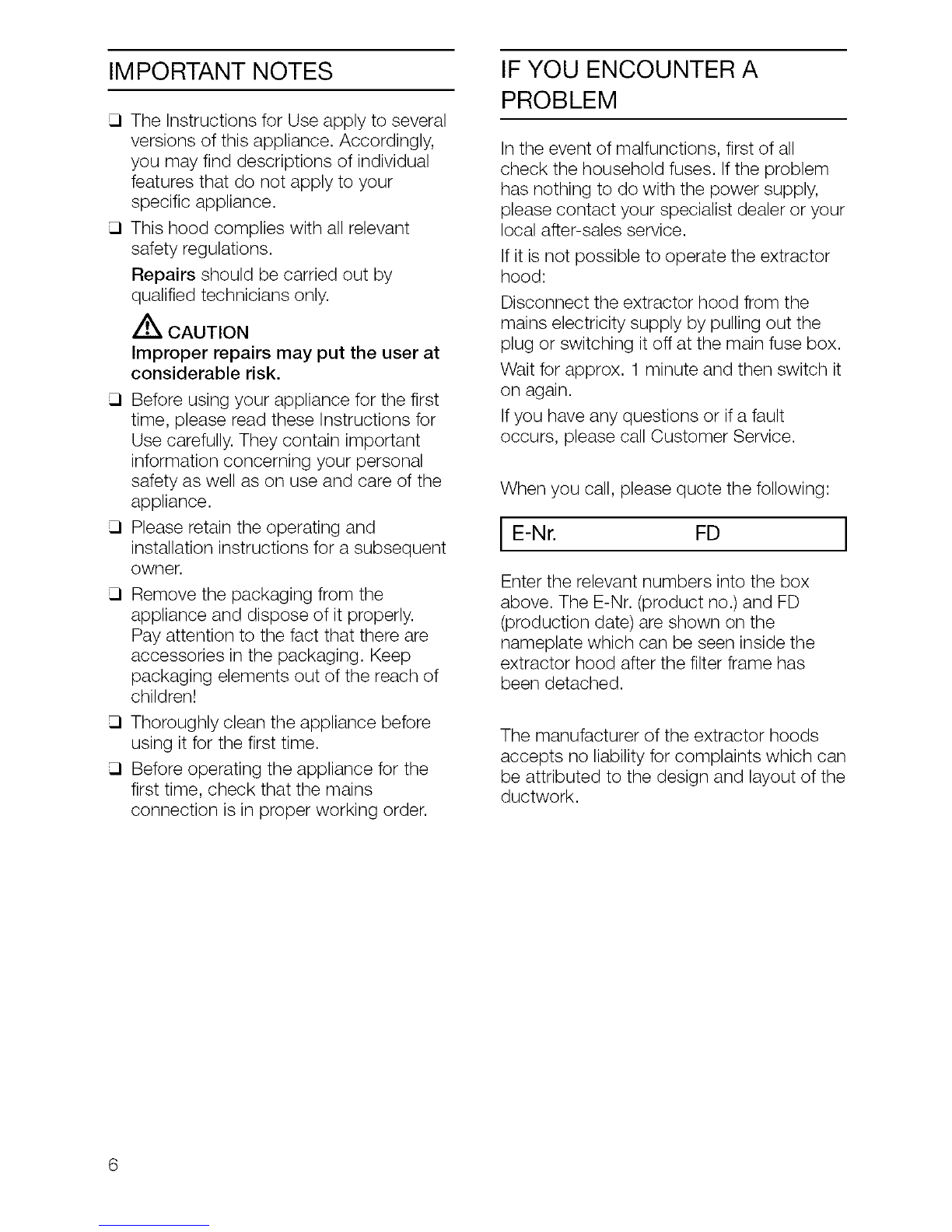

IM PORTANT NOTES
The Instructions for Use apply to several
versions of this appliance. Accordingly,
you may find descriptions of individual
features that do not apply to your
specific appliance.
This hood complies with all relevant
safety regulations.
Repairs should be carried out by
qualified technicians only.
Z_ CAUTION
Improper repairs may put the user at
considerable risk.
Before using your appliance for the first
time, please read these Instructions for
Use carefully. They contain important
information concerning your personal
safety as well as on use and care of the
appliance.
Please retain the operating and
installation instructions for a subsequent
owner.
Remove the packaging from the
appliance and dispose of it properly.
Pay attention to the fact that there are
accessories in the packaging. Keep
packaging elements out of the reach of
children!
Thoroughly clean the appliance before
using it for the first time.
Before operating the appliance for the
first time, check that the mains
connection is in proper working order.
IF YOU ENCOUNTER A
PROBLEM
In the event of malfunctions, first of all
check the household fuses. If the problem
has nothing to do with the power supply,
please contact your specialist dealer or your
local after-sales service.
Ifit is not possible to operate the extractor
hood:
Disconnect the extractor hood from the
mains electricity supply by pulling out the
plug or switching it off at the main fuse box.
Wait for approx. 1 minute and then switch it
on again.
Ifyou have any questions or if a fault
occurs, please call Customer Service.
Whenyou call,pleasequotethe following:
I E-Nr. FD
Enter the relevant numbers into the box
above. The E-Nr. (product no.) and FD
(production date) are shown on the
nameplate which can be seen inside the
extractor hood after the filter frame has
been detached.
J
The manufacturer of the extractor hoods
accepts no liability for complaints which can
be attributed to the design and layout of the
ductwork.

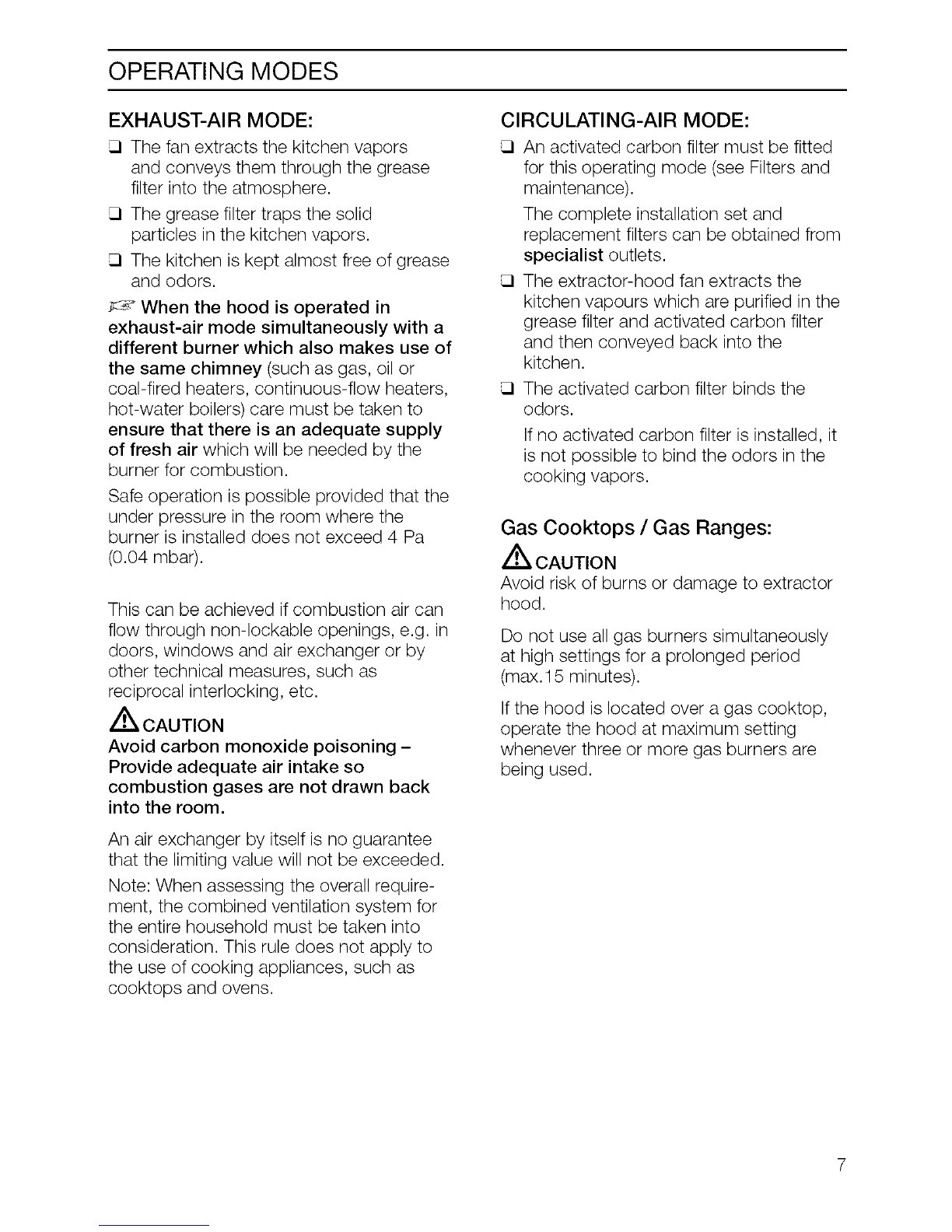

OPERATING MODES
EXHAUST-AIR MODE:
The fan extracts the kitchen vapors
and conveys them through the grease
filter into the atmosphere.
The grease filter traps the solid
particles in the kitchen vapors.
The kitchen is kept almost free of grease
and odors.
_c._ When the hood is operated in
exhaust-air mode simultaneously with a
different burner which also makes use of
the same chimney (such as gas, oil or
coal-fired heaters, continuous-flow heaters,
hot-water boilers) care must be taken to
ensure that there is an adequate supply
of fresh air which will be needed by the
burner for combustion.
Safe operation is possible provided that the
under pressure in the room where the
burner is installed does not exceed 4 Pa
(0.04 mbar).
This can be achieved if combustion air can
flow through non-lockable openings, e.g. in
doors, windows and air exchanger or by
other technical measures, such as
reciprocal interlocking, etc.
/_, CAUTION
Avoid carbon monoxide poisoning -
Provide adequate air intake so
combustion gases are not drawn back
into the room.
An air exchanger by itself is no guarantee
that the limiting value will not be exceeded.
Note: When assessing the overall require-
ment, the combined ventilation system for
the entire household must be taken into
consideration. This rule does not apply to
the use of cooking appliances, such as
cooktops and ovens.
CIRCULATING-AIR MODE:
An activated carbon filter must be fitted
for this operating mode (see Filters and
maintenance).
The complete installation set and
replacement filters can be obtained from
specialist outlets.
The extractor-hood fan extracts the
kitchen vapours which are purified in the
grease filter and activated carbon filter
and then conveyed back into the
kitchen.
The activated carbon filter binds the
odors.
If no activated carbon filter is installed, it
is not possible to bind the odors in the
cooking vapors.
Gas Cooktops /Gas Ranges:
/_, CAUTION
Avoid risk of burns or damage to extractor
hood.
Do not use all gas burners simultaneously
at high settings for a prolonged period
(max.15 minutes).
Ifthe hood is located over a gas cooktop,
operate the hood at maximum setting
whenever three or more gas burners are
being used.

OPERATION
IMPORTANT: The most effective method of
removing vapors produced during cooking
is to:
Switch the ventilator ON prior to
cooking or as soon as you begin
cooking.
Switch the ventilator OFF
a few minutes after you have finished
cooking.
Display for fan setting Delayed Shut
Off
Light Reduce fan Fan ON and
speed increase speed
Fan OFF
Acoustic signal:
When a button is pressed, this is verified
by an acoustic signal.
Switching off the acoustic signal:
Simultaneously press buttons 0 and +
until a signal is emitted after approx.
3 seconds.
Switching the fan OFF:
Press the 0 button.
The displayed L]goes out shortly
afterwards.
Or:
Keep pressing the - button until the fan
switches off.
The displayed L]goes out shortly
afterwards.
Intensive setting:
Maximum power is obtained at the
intensive setting.
It is only required for short intervals.
Keep pressing the + button until a P
appears in the display.
Ifthe intensive setting is not cancelled by
hand, the
fan will automatically switch back to step
2 after 10 minutes.
Delayed Shut Off:
Press the -->1button or push in the filter
drawer.
The fan runs for 10 minutes at setting 1.
At the same time a dot flashes in the
display.
Then the fan switches off automatically.
Switching on the acoustic signal:
Repeatthe process.
Switching the fan ON
Press the + button or pull out the filter
drawer.
Setting the required fan speed:
Press the + button.
The fan speed is increased by one step.
Press the - button.
The fan speed is reduced by one step.
Lighting:
Briefly press the ,,,6,button to switch the
light on and off.
The light can be switched on at any
time, even though the fan is switched off.
Adjusting the brightness:
Hold down the ,,,6,button until the
desired brightness is obtained.

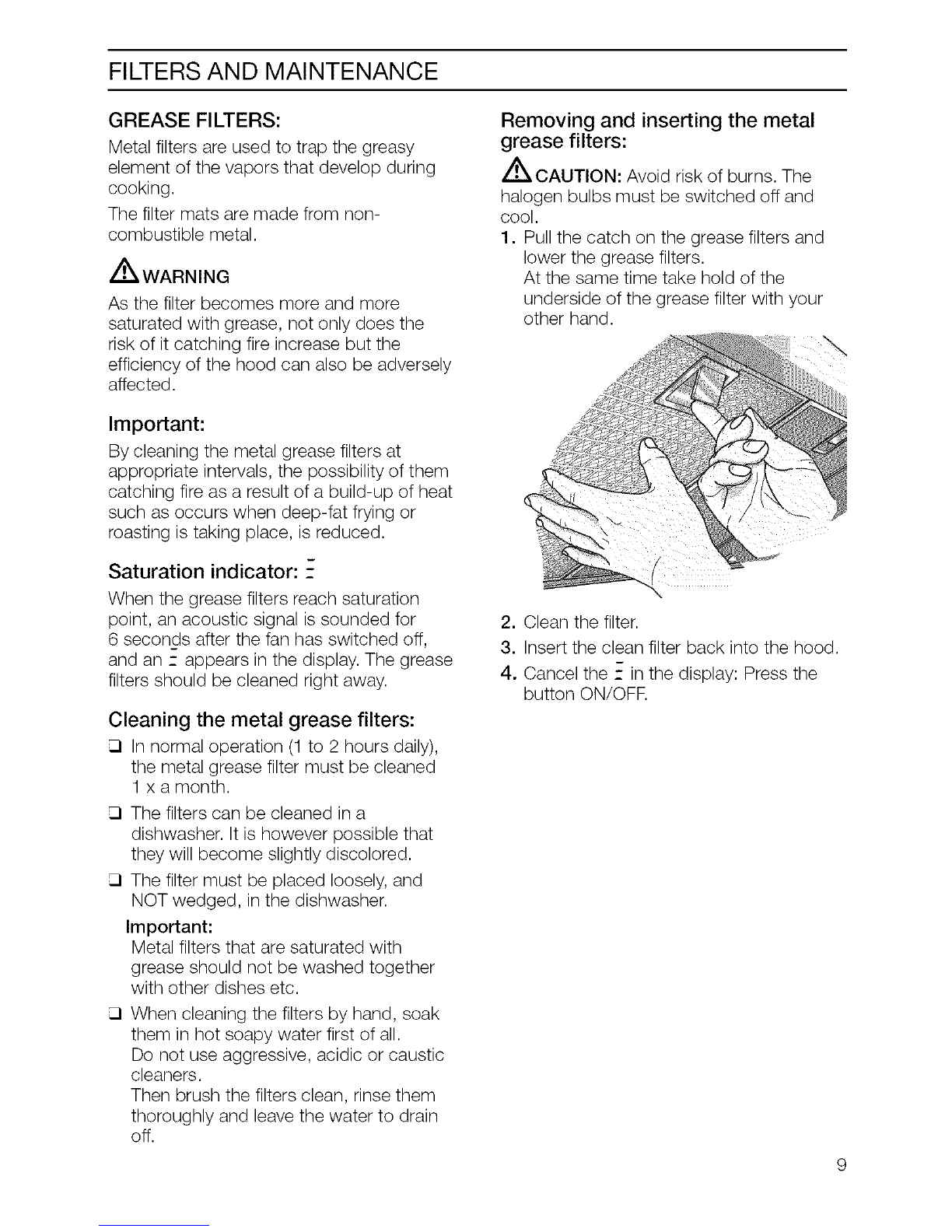

FILTERS AND MAINTENANCE
GREASE FILTERS:
Metal filters are used to trap the greasy
element of the vapors that develop during
cooking.
The filter mats are made from non-
combustible metal.
Z_WARNING
As the filter becomes more and more
saturated with grease, not only does the
risk of it catching fire increase but the
efficiency of the hood can also be adversely
affected.
Important:
By cleaning the metal grease filters at
appropriate intervals, the possibility of them
catching fire as a result of a build-up of heat
such as occurs when deep-fat frying or
roasting is taking place, is reduced.
w
Saturation indicator:
When the grease filters reach saturation
point, an acoustic signal is sounded for
6 seconds after the fan has switched off,
and an : appears in the display. The grease
filters should be cleaned right away.
Cleaning the metal grease filters:
In normal operation (1 to 2 hours daily),
the metal grease filter must be cleaned
1x a month.
The filters can be cleaned in a
dishwasher. It is however possible that
they will become slightly discolored.
The filter must be placed loosely, and
NOT wedged, in the dishwasher.
Important:
Metal filters that are saturated with
grease should not be washed together
with other dishes etc.
When cleaning the filters by hand, soak
them in hot soapy water first of all.
Do not use aggressive, acidic or caustic
cleaners.
Then brush the filters clean, rinse them
thoroughly and leave the water to drain
off.
Removing and inserting the metal
grease filters:
/_, CAUTION: Avoid risk of burns. The
halogen bulbs must be switched off and
cool.
1. Pull the catch on the grease filters and
lower the grease filters.
At the same time take hold of the
underside of the grease filter with your
other hand.
2. Clean the filter.
3. Insert the clean filter back into the hood.
4, Cancel the in the display: Press the
button ON/OFF.

FILTERS AND MAINTENANCE
Activated carbon filter:
For neutralizing odours in recirculating
mode.
,t_WARNING
As the filter becomes more and more
saturated with grease, there is an increased
risk of fire and the function of the extractor
hood may be impaired.
Important:
Change the activated carbon filter promptly
to prevent the risk of fire from the
accumulation of heat when deep-fat frying
or roasting.
Installation and removal:
Z_CAUTION: The halogen bulbs must be
switched off and left to cool.
1. Remove the metal-mesh filters
(see "Removing and inserting the metal-
mesh grease filters").
2. Insert the activated carbon filter.
3. Engage the catch.
4. Insert the metal grease filters (see
"Removing and inserting the metal
grease filters").
Replacing the activated carbon filter:
During normal operation (1 to 2 hours
per day) the activated carbon filters
should be replaced approximately 2 x
year.
A replacement filter can be obtained
from any authorized dealer (see optional
accessories).
Use original filters only.
By doing so you will obtain maximum
performance from your extractor hood.
Disposing of the old activated carbon
filter:
There are no pollutants in the activated
carbon filters. They can therefore be
disposed of as part of your normal
domestic refuse.
10

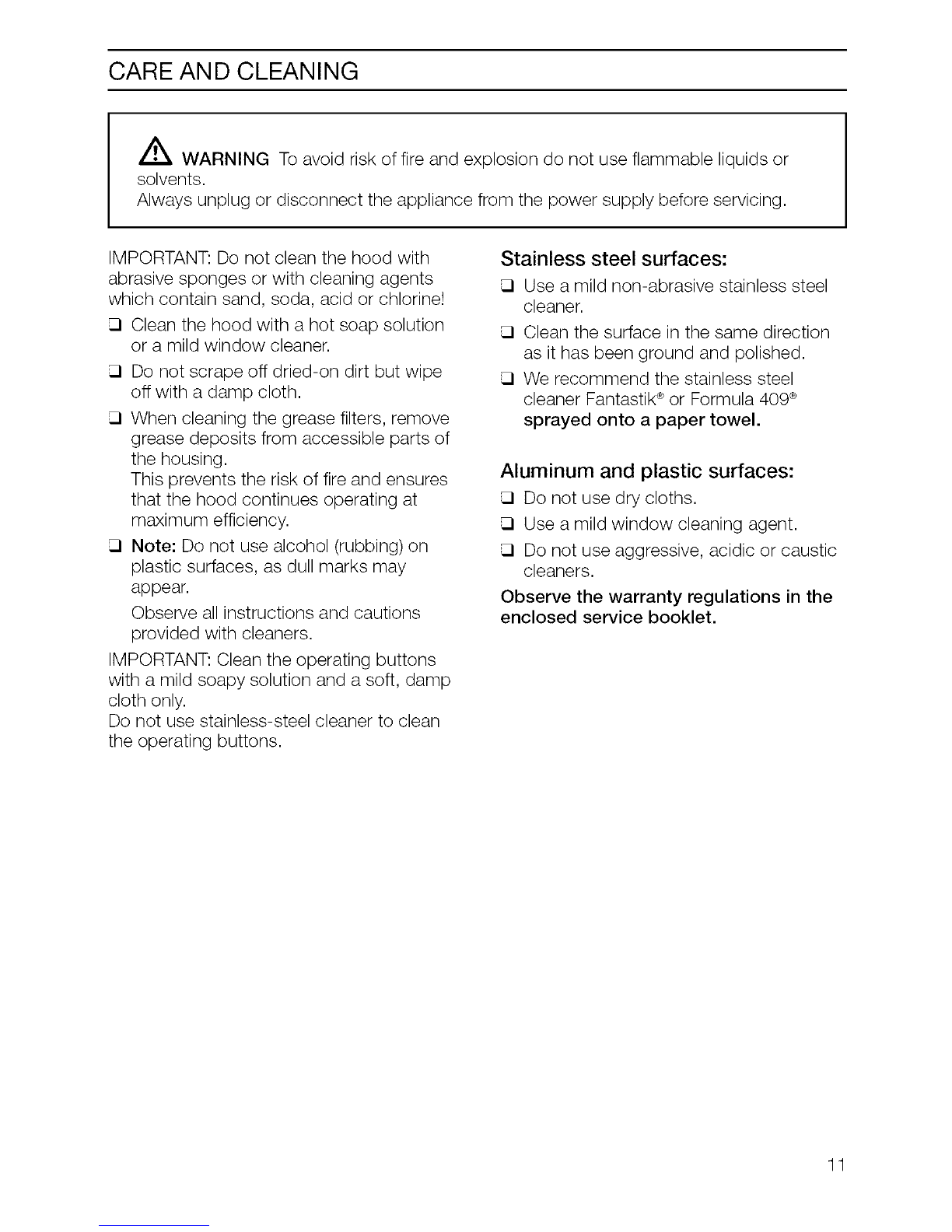

CARE AND CLEANING
/_k WARNING To avoid risk of fire and explosion do not use flammable liquids or
solvents.
Always unplug or disconnect the appliance from the power supply before servicing.
IMPORTANT: Do not clean the hood with
abrasive sponges or with cleaning agents
which contain sand, soda, acid or chlorine!
Clean the hood with a hot soap solution
or a mild window cleaner.
Do not scrape off dried-on dirt but wipe
off with a damp cloth.
When cleaning the grease filters, remove
grease deposits from accessible parts of
the housing.
This prevents the risk of fire and ensures
that the hood continues operating at
maximum efficiency.
Note: Do not use alcohol (rubbing) on
plastic surfaces, as dull marks may
appear.
Observe all instructions and cautions
provided with cleaners.
IMPORTANT: Clean the operating buttons
with a mild soapy solution and a soft, damp
cloth only.
Do not use stainless-steel cleaner to clean
the operating buttons.
Stainless steel surfaces:
Use a mild non-abrasive stainless steel
cleaner.
Clean the surface in the same direction
as it has been ground and polished.
We recommend the stainless steel
cleaner Fantastik ®or Formula 409®
sprayed onto a paper towel.
Aluminum and plastic surfaces:
Do not use dry cloths.
Use a mild window cleaning agent.
Do not use aggressive, acidic or caustic
cleaners.
Observe the warranty regulations in the
enclosed service booklet.
11

REPLACING THE BULBS
Z_ CAUTION. Avoid risk of electric shock
by switching off the hood and pull out the
power plug or switch off the electricity
Z_ CAUTION. Avoid risk of burns.
Halogen bulbs become very hot and remain
hot for some time after being switched off.
1. Remove the bulb ring with a screwdriver
or similar tool.
2. Replace the halogen light bulb
(conventional halogen bulb, 12 Volt,
max. 20 Watt, G4 bulbholder).
IMPORTANT: Plug-in bulbholder.
Take hold of the bulb with a clean cloth.
Finger prints can shorten bulb life.
3. Re-insert the bulb ring.
4. Restore the power by inserting the mains
plug or switching on the fuse.
Note: Ifthe light does not function, check
that the bulbs have been inserted correctly.
12

TROUBLESHOOTING GUIDE
Problem Possible Cause Remedy
Nothing works - display is Control button board has Contact qualified appliance
not illuminated become disconnected, service technician.
If an appears in the Filters saturated See "Filters and
display Maintenance" Section.
Power failure
If is not possible to operate
the hood Disconnect the hood from
the mains electricity supply
by pulling out the plug or
switching it off at the main
fuse box.
Wait for approx. 1 minute
and then switch it on again.
13

CUSTOMER SERVICES
Before Calling for Service
Ifthe blower does not operate:
Ensure that the electrical cord is properly connected and the supply circuit is energized.
Check that the intake is fully raised.
Make sure that the blower speed control knob is not in the OFF position.
How to Obtain Service
For authorized service or parts information, call 1-800-735-4328.
We want you to be a satisfied customer. If a situation arises that has not been resolved to
your satisfaction, please let us know.
Write: Customer Support, BSH Home Appliances, Corp. 5551 McFadden Ave.,
Huntington Beach, CA 92649, or call: 1-800-735-4328.
Please include the model number, serial number, and date of original purchase/installation.
Service Data
For handy reference, the serial tag information has been affixed below.
Keep your invoice for warranty validation. To obtain service, see previous page.
Serial Number/Data Plate Location: Above Electrical
Connection Box, See Page 10,
We reserve the right to change specifications or design without notice. Some models are
certified for use in Canada. BSH is not responsible for products which are transported from
the U.S. for use in Canada. Check with your local Canadian distributor or dealer.
14

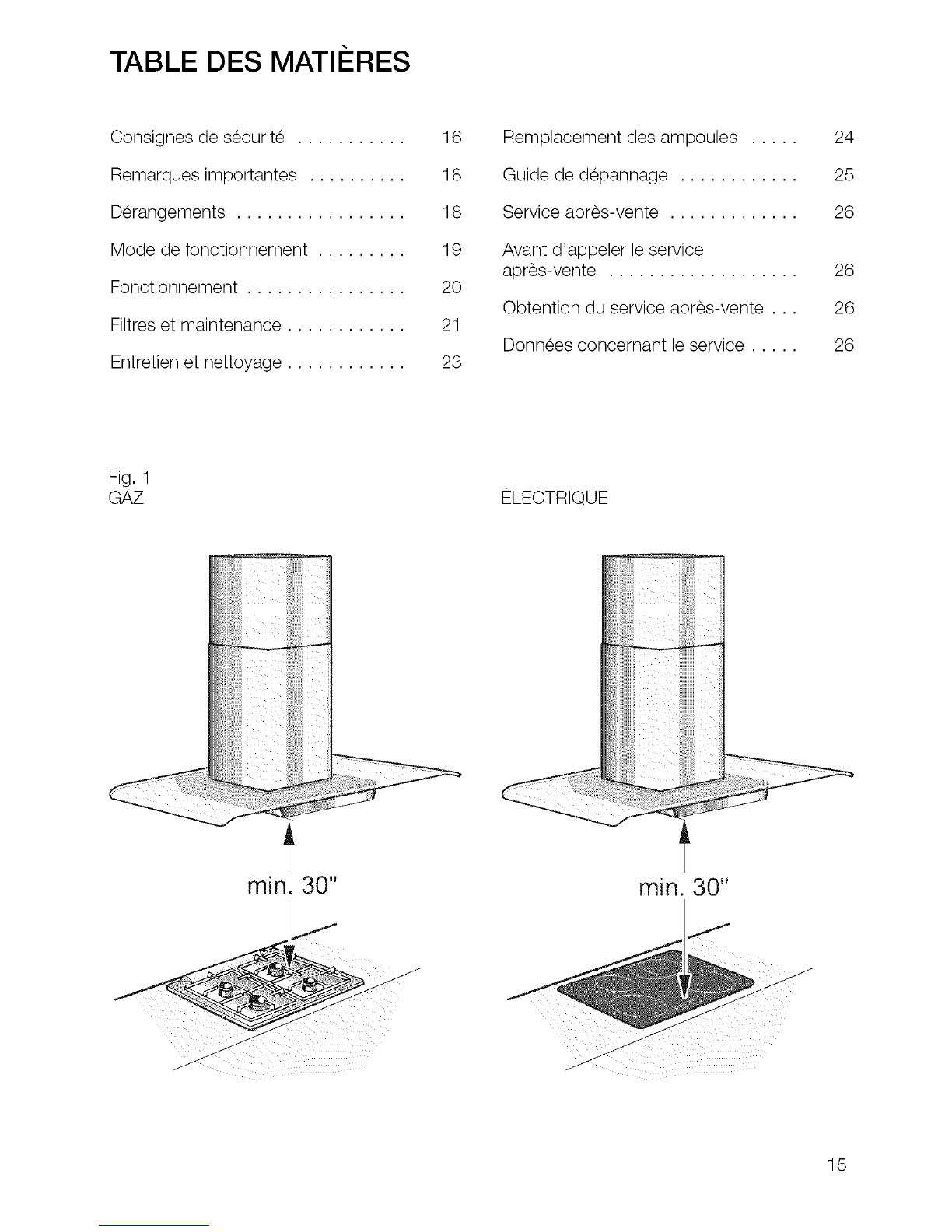

TABLE DES MATII RES
Consignes de securite ...........
Remarques importantes ..........
Derangements .................
Mode de fonctionnement .........
Fonctionnement ................
Filtres et maintenance ............
Entretien et nettoyage ............
16
18
18
19
2O
21
23
Remplacement des ampoules .....
Guide de depannage ............
Service apres-vente .............
Avant d'appeler le service
apres-vente ...................
Obtention du service apres-vente ...
Donnees concernant le service .....
24
25
26
26
26
26
Fig. 1
GAZ ELECTRIQUE
15

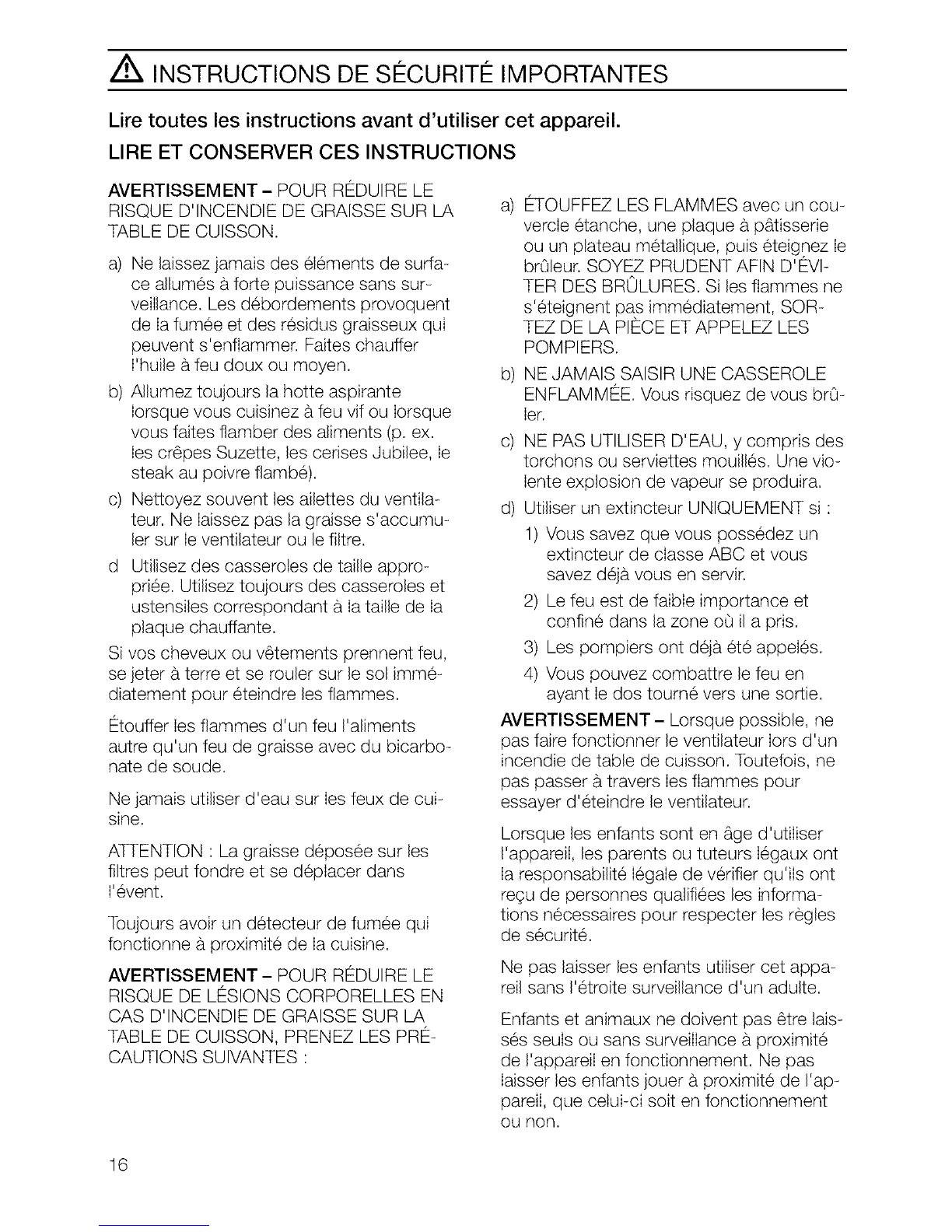

Z_ INSTRUCTIONS DE SECURITE IMPORTANTES
Lire toutes les instructions avant d'utiliser cet appareil.
LIRE ET CONSERVER CES INSTRUCTIONS
AVERTISSEMENT- POUR REDUIRE LE
RISQUE D'INCENDIE DE GRAISSE SUR LA
TABLE DE CUISSON.
a) Ne laissez jamais des elements de surfa-
ce allumes a forte puissance sans sur-
veiIlance. Les debordements provoquent
de Ia fumee et des residus graisseux qui
peuvent s'enflammer. Faites chauffer
I'huile a.feu doux ou moyen.
b) Allumez toujours la hotte aspirante
Iorsque vous cuisinez a feu vif ou Iorsque
vous faites flamber des aliments (p. ex.
Ies cr_pes Suzette, les cerises Jubilee, Ie
steak au poivre flambe).
c) Nettoyez souvent les ailettes du ventila-
teur. Ne iaissez pas la graisse s'accumu-
let sur Ie ventilateur ou le filtre.
d Utilisez des casseroles de taille appro-
priee. Utilisez toujours des casseroles et
ustensiles correspondant a.Iataille de Ia
plaque chauffante.
Si vos cheveux ou v_tements prennent feu,
se jeter _tterre et se fouler sur le sol imme-
diatement pour eteindre les flammes.
Etouffer Ies flammes d'un feu I'aliments
autre qu'un feu de graisse avec du bicarbo-
nate de soude.
Ne jamais utiliser d'eau sur Ies feux de cui-
sine.
ATTENTION : La graisse deposee sur les
filtres peut fondre et se depIacer dans
I'event.
Toujours avoir un detecteur de fumee qui
fonctionne a.proximite de Ia cuisine.
AVERTISSEMENT- POUR REDUIRE LE
RISQUE DE LESIONS CORPORELLES EN
CAS D'INCENDIE DE GRAISSE SUR LA
TABLE DE CUISSON, PRENEZ LES PRE-
CAUTIONS SUIVANTES :
a) ETOUFFEZ LES FLAMMES avec un cou-
verde etanche, une plaque a p_.tisserie
ou un plateau metallique, puis eteignez Ie
brOleur. SOYEZ PRUDENT AFIN D'EVl-
TER DES BROLURES. Si les flammes ne
s'eteignent pas immediatement, SOR-
TEZ DE LA PIECE ET APPELEZ LES
POMPIERS.
b) NE JAMAIS SAISIR UNE CASSEROLE
ENFLAMMEE. Vous risquez de vous brO-
Ier.
c) NE PAS UTILISER D'EAU, y compris des
torchons ou serviettes mouilles. Une vio-
Iente explosion de vapeur se produira.
d) Utiliser un extincteur UNIQUEMENT si :
1) Vous savez que vous possedez un
extincteur de cIasse ABC et vous
savez deja.vous en servir.
2) Le feu est de faibIe importance et
confine dans la zone oQ ila pris.
3) Les pompiers ont deja. ete appeles.
4) Vous pouvez combattre le feu en
ayant Ie dos tourne vers une sortie.
AVERTISSEMENT- Lorsque possible, ne
pas faire fonctionner le ventilateur Iors d'un
incendie de table de cuisson. Toutefois, ne
pas passer _ttravers Iesflammes pour
essayer d'eteindre le ventilateur.
Lorsque les enfants sont en _ge d'utiIiser
I'appareiI, les parents ou tuteurs Iegaux ont
Ia responsabilite IegaIe de verifier qu'iIs ont
regu de personnes quali%es les informa-
tions necessaires pour respecter les regles
de securite.
Ne pas laisser les enfants utiIiser cet appa-
reil sans I'etroite surveillance d'un adulte.
Enfants et animaux ne doivent pas _tre lais-
ses seuIs ou sans surveillance a proximite
de I'appareii en fonctionnement. Ne pas
Iaisser les enfants jouer a proximite de I'ap-
pareiI, que cetui-ci soit en fonctionnement
OU NOn,
16

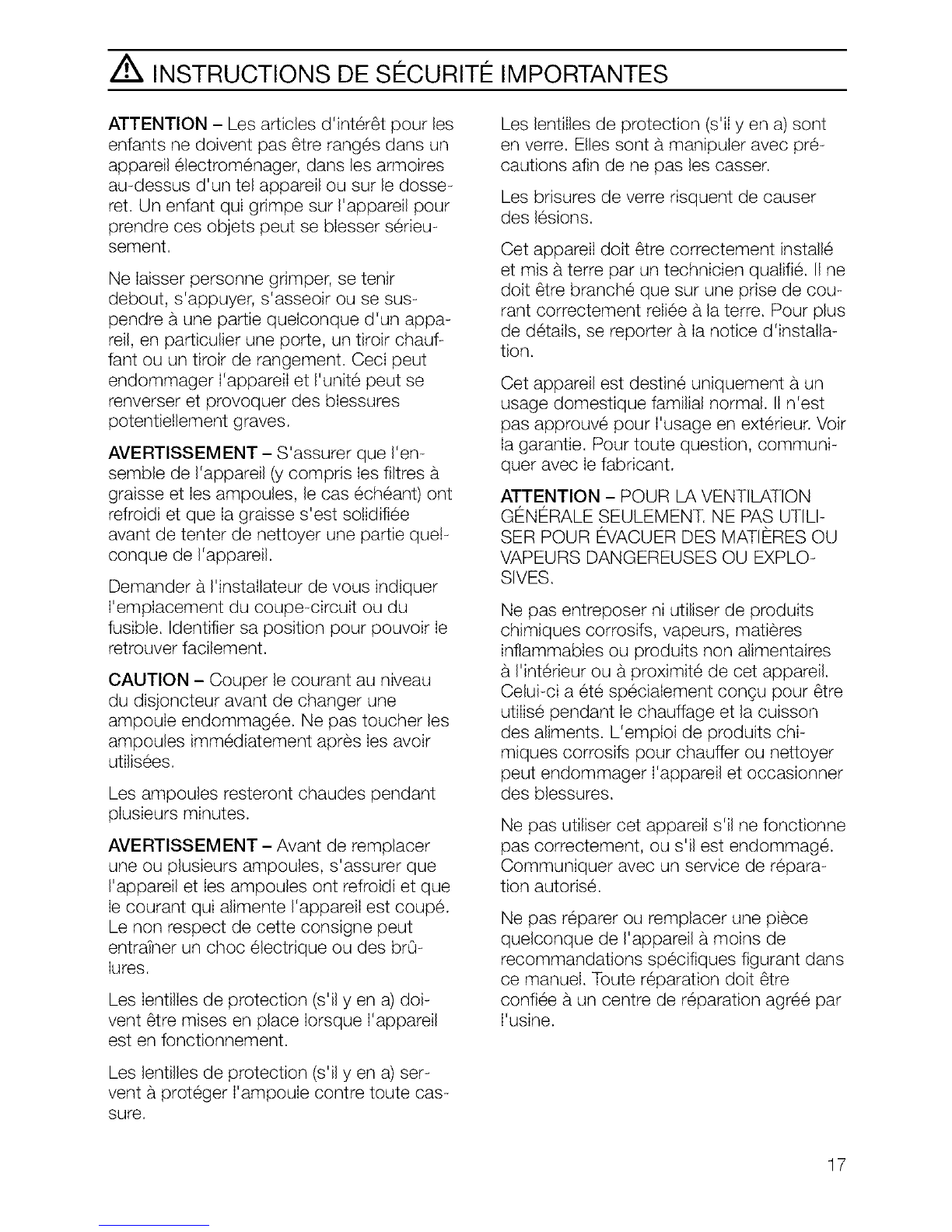

Z_ INSTRUCTIONS DE SECURITE IMPORTANTES
ATTENTION - Les articles d'inter_t pour les
enfants ne doivent pas _tre ranges dans un
appareil electromenager, dans les armoires
au-dessus d'un tel appareil ou sur le dosse-
ret. Un enfant qui grimpe sur I'appareil pour
prendre ces objets peut se bIesser serieu-
sement.
Ne Iaisser personne grimper, se tenir
debout, s'appuyer, s'asseoir ou se sus-
pendre a une pattie quelconque d'un appa-
tell, en particulier une porte, un tiroir chauf-
fant ou un tiroir de rangement. Ceci peut
endommager I'appareii et I'unite peut se
renverser et provoquer des bIessures
potentietlement graves.
AVERTISSEMENT - S'assurer que I'en-
semble de I'appareil (ycompris Ies filtres a.
graisse et Ies ampoules, le cas echeant) ont
refroidi et que Ia graisse s'est sotidi%e
avant de tenter de nettoyer une partie quet-
conque de I'appareil.
Demander a.I'installateur de vous indiquer
I'empIacement du coupe-circuit ou du
fusible. Identifier sa position pour pouvoir Ie
retrouver facilement.
CAUTION - Couper le courant au niveau
du disjoncteur avant de changer une
ampoule endommagee. Ne pas toucher les
ampoules immediatement apres Ies avoir
utilisees.
Les ampoules resteront chaudes pendant
pIusieurs minutes.
AVERTISSEMENT- Avant de remplacer
une ou plusieurs ampoules, s'assurer que
I'appareil et Ies ampoules ont refroidi et que
Iecourant qui alimente I'appareii est coupe.
Le non respect de cette consigne peut
entraTnerun choc electrique ou des brQ-
lures.
Les IentilIes de protection (s'il yen a) doi-
vent _tre mises en place Iorsque I'appareil
est en fonctionnement.
Les lentilles de protection (s'il yen a) ser-
vent a.proteger I'ampoule contre toute cas-
sure.
Les lentiIles de protection (s'iI yen a) sont
en verre. Elles sont a manipuler avec pre-
cautions afin de ne pas les casser.
Les brisures de verre risquent de causer
des lesions.
Cet appareii dolt _tre correctement installe
et mis a terre par un technicien quaIifie. IIne
dolt _tre branche que sur une prise de cou-
rant correctement reliee a la terre. Pour plus
de details, se reporter a.Ianotice d'instaIla-
tion.
Cet appareil est destine uniquement a un
usage domestique familial normal. IIn'est
pas approuve pour I'usage en exterieur. Voir
Iagarantie. Pour toute question, communi-
quer avec Ie fabricant.
ATTENTION - POUR LA VENTILATION
Gg:NERALE SEULEMENT. NE PAS UTILI-
SER POUR EVACUER DES MATIt_RES OU
VAPEURS DANGEREUSES OU EXPLO-
SIVES.
Ne pas entreposer ni utiliser de produits
chimiques corrosifs, vapeurs, matieres
inflammables ou produits non alimentaires
a.I'interieur ou a proximite de cet appareik
Celui-ci a ete speciaIement congu pour _tre
utiIise pendant Ie chauffage et la cuisson
des aliments. L'empIoi de produits chi-
miques corrosifs pour chauffer ou nettoyer
peut endommager I'appareil et occasionner
des blessures.
Ne pas utiliser cet appareil s'il ne fonctionne
pas correctement, ou s'il est endommage.
Communiquer avec un service de repara-
tion autorise.
Ne pas reparer ou remplacer une piece
quelconque de I'appareil a.moins de
recommandations specifiques figurant dans
ce manuel. Toute reparation dolt _tre
con%e a.un centre de reparation agree par
I'usine.
17

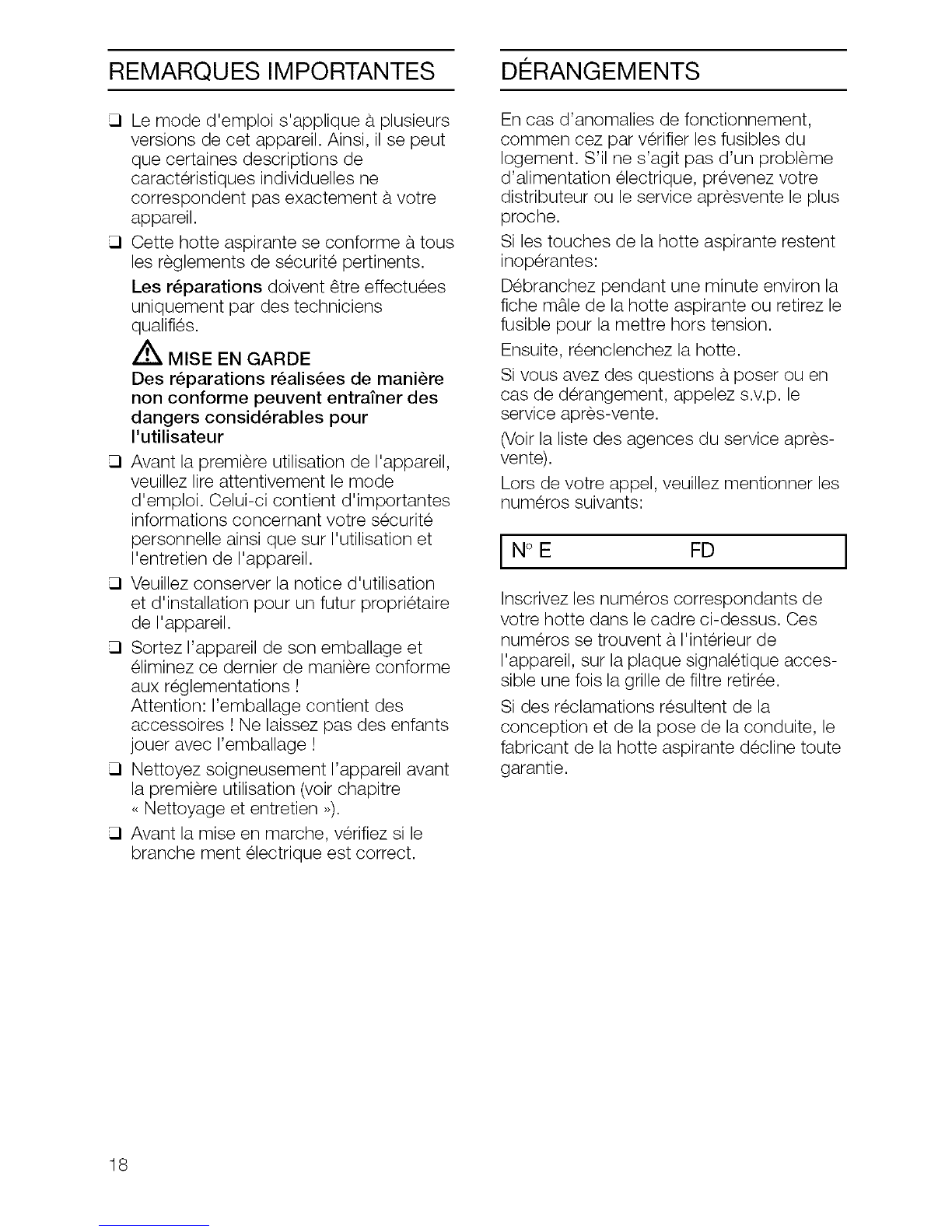

REMARQUES IMPORTANTES DERANGEMENTS
Le mode d'emploi s'applique a,plusieurs
versions de cet appareil. Ainsi, il se peut
que certaines descriptions de
caracteristiques individuelles ne
correspondent pas exactement a,votre
appareil.
Cette hotte aspirante se conforme a,tous
les reglements de securite pertinents.
Les r_parations doivent _tre effectuees
uniquement par des techniciens
qualifies.
MISE EN GARDE
Des r6parations r6alis6es de mani6re
non conforme peuvent entrainer des
dangers consid6rables pour
I'utilisateur
Avant la premiere utilisation de I'appareil,
veuillez lire attentivement le mode
d'emploi. Celui-ci contient d'importantes
informations concernant votre securite
personnelle ainsi que sur I'utilisation et
I'entretien de I'appareil.
Veuillez conserver la notice d'utilisation
et d'installation pour un futur proprietaire
de I'appareil.
Sortez I'appareil de son emballage et
eliminez ce dernier de maniere conforme
aux reglementations !
Attention: I'emballage contient des
accessoires ! Ne laissez pas des enfants
jouer avec I'emballage !
Nettoyez soigneusement I'appareil avant
la premiere utilisation (voir chapitre
<<Nettoyage et entretien >>).
Avant la mise en marche, verifiez si le
branche ment electrique est correct.
En cas d'anomalies de fonctionnement,
commen cez par verifier les fusibles du
Iogement. S'il ne s'agit pas d'un probleme
d'alimentation electrique, prevenez votre
distributeur ou le service apresvente le plus
proche.
Si les touches de la hotte aspirante restent
inoperantes:
Debranchez pendant une minute environ la
fiche m&le de la hotte aspirante ou retirez le
fusible pour la mettre hors tension.
Ensuite, reenclenchez la hotte.
Si vous avez des questions a,poser ou en
cas de derangement, appelez s.v.p, le
service apres-vente.
(Voir la liste des agences du service apres-
vente).
Lors de votre appel, veuillez mentionner les
numeros suivants:
N E FD J
Inscrivez les numeros correspondants de
votre hotte dans le cadre ci-dessus. Ces
numeros se trouvent a,I'interieur de
I'appareil, sur la plaque signaletique acces-
sible une fois la grille de filtre retiree.
Si des reclamations resultent de la
conception et de la pose de la conduite, le
fabricant de la hotte aspirante decline toute
garantie.
18

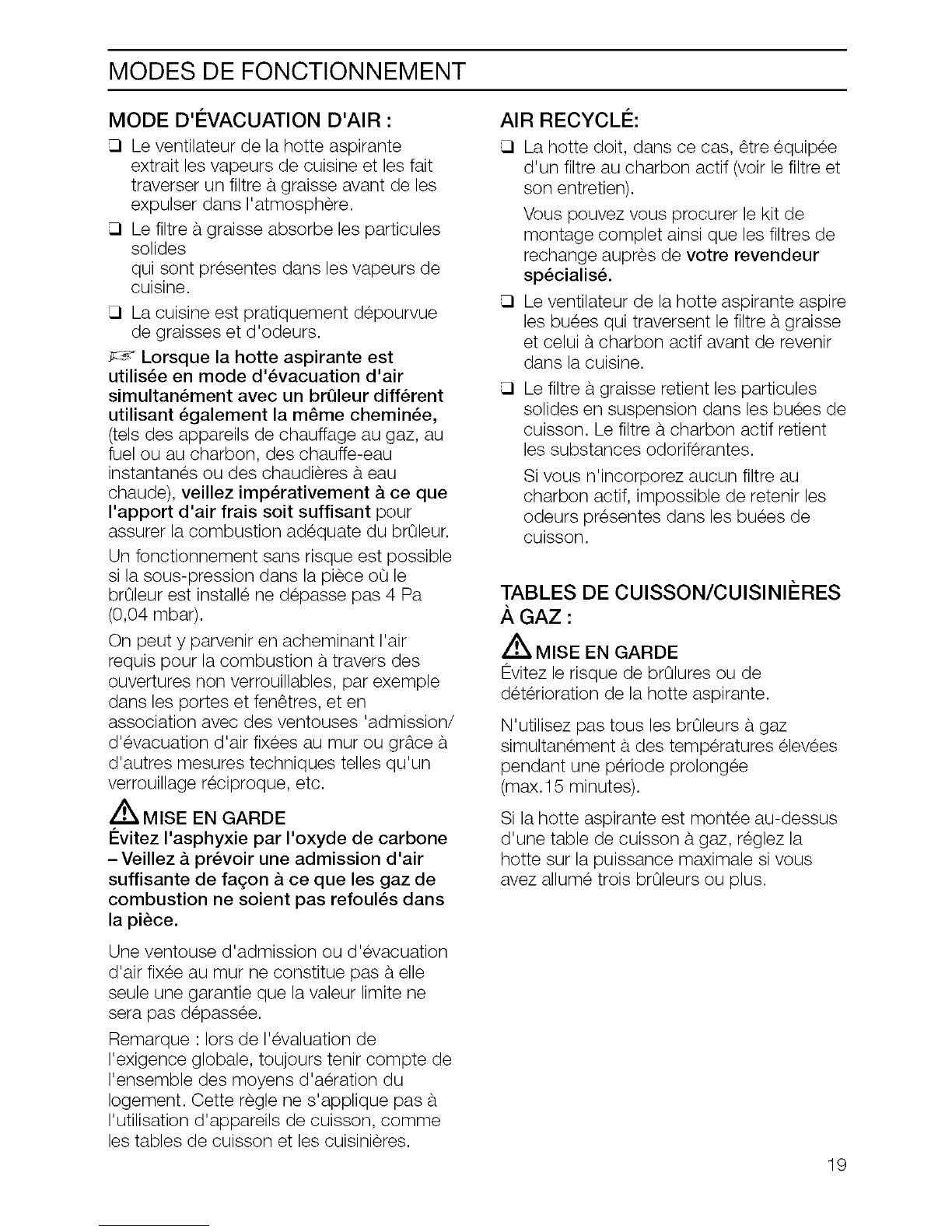

MODES DE FONCTIONNEMENT
MODE D'I_VACUATION D'AIR :
Le ventilateur de la hotte aspirante
extrait los vapeurs de cuisine et los fait
traverser un filtre a,graisse avant de les
expulser dans I'atmosphere.
Le filtre a,graisse absorbe les particules
solides
qui sent presentes dans les vapeurs de
cuisine.
La cuisine est pratiquement depourvue
de graisses et d'odeurs.
_:-_ Lorsque la hotte aspirante est
utilis_e en mode d'6vacuation d'air
simultan6ment avec un brQleur diff6rent
utilisant 6galement la m_me chemin6e,
(tels des appareils de chauffage au gaz, au
fuel ou au charbon, des chauffe-eau
instantanes ou des chaudieres a,eau
chaude), veillez imp6rativement &ce que
I'apport d'air frais soit suffisant pour
assurer la combustion adequate du brOleur.
Un fonctionnement sans risque est possible
si la sous-pression dans la piece o0 le
brOleur est installe ne depasse pas 4 Pa
(0,04 mbar).
On peut y parvenir en acheminant I'air
requis pour la combustion b,travers des
ouvertures non verrouillables, par exemple
dans les portes et fen_tres, et en
association avec des ventouses 'admission/
d'evacuation d'air fixees au mur ou gr&ce a,
d'autres mesures techniques telles qu'un
verrouillage reciproque, etc.
_MISE EN GARDE
levitez I'asphyxie par I'oxyde de carbone
-Veillez &pr6voir une admission d'air
suffisante de fa(2on & ce que les gaz de
combustion ne soient pas refoul6s dans
la piece.
Une ventouse d'admission ou d'evacuation
d'air fixee au mur ne constitue pas a,elle
seule une garantie que la valeur limite ne
sera pas depassee.
Remarque : Iors de I'evaluation de
I'exigence globale, toujours tenir compte de
I'ensemble des moyens d'aeration du
Iogement. Cette regle ne s'applique pas a,
I'utilisation d'appareils de cuisson, comme
les tables de cuisson et les cuisinieres.
AIR RECYCLI_:
La hotte doit, dans ce cas, _tre equipee
d'un filtre au charbon actif (voir le filtre et
son entretien).
Vous pouvez vous procurer le kit de
montage complet ainsi que les filtres de
rechange aupres de votre revendeur
sp6cialis6.
Le ventilateur de la hotte aspirante aspire
les buees qui traversent le filtre a,graisse
et celui a,charbon actif avant de revenir
dans la cuisine.
Le filtre a,graisse retient les particules
solides en suspension dans les buees de
cuisson. Le filtre a,charbon actif retient
les substances odoriferantes.
Si vous n'incorporez aucun filtre au
charbon actif, impossible de retenir les
odeurs presentes dans les buees de
cuisson.
TABLES DE CUISSON/CUISINII_RES
,ik GAZ :
MISE EN GARDE
Evitez le risque de brQlures ou de
deterioration de la hotte aspirante.
N'utilisez pas tousles brOleurs a,gaz
simultanement a,des temperatures elevees
pendant une periode prolongee
(max.15 minutes).
Si la hotte aspirante est montee au-dessus
d'une table de cuisson a,gaz, reglez la
hotte sur la puissance maximale si vous
avez allume trois brOleurs ou plus.
19

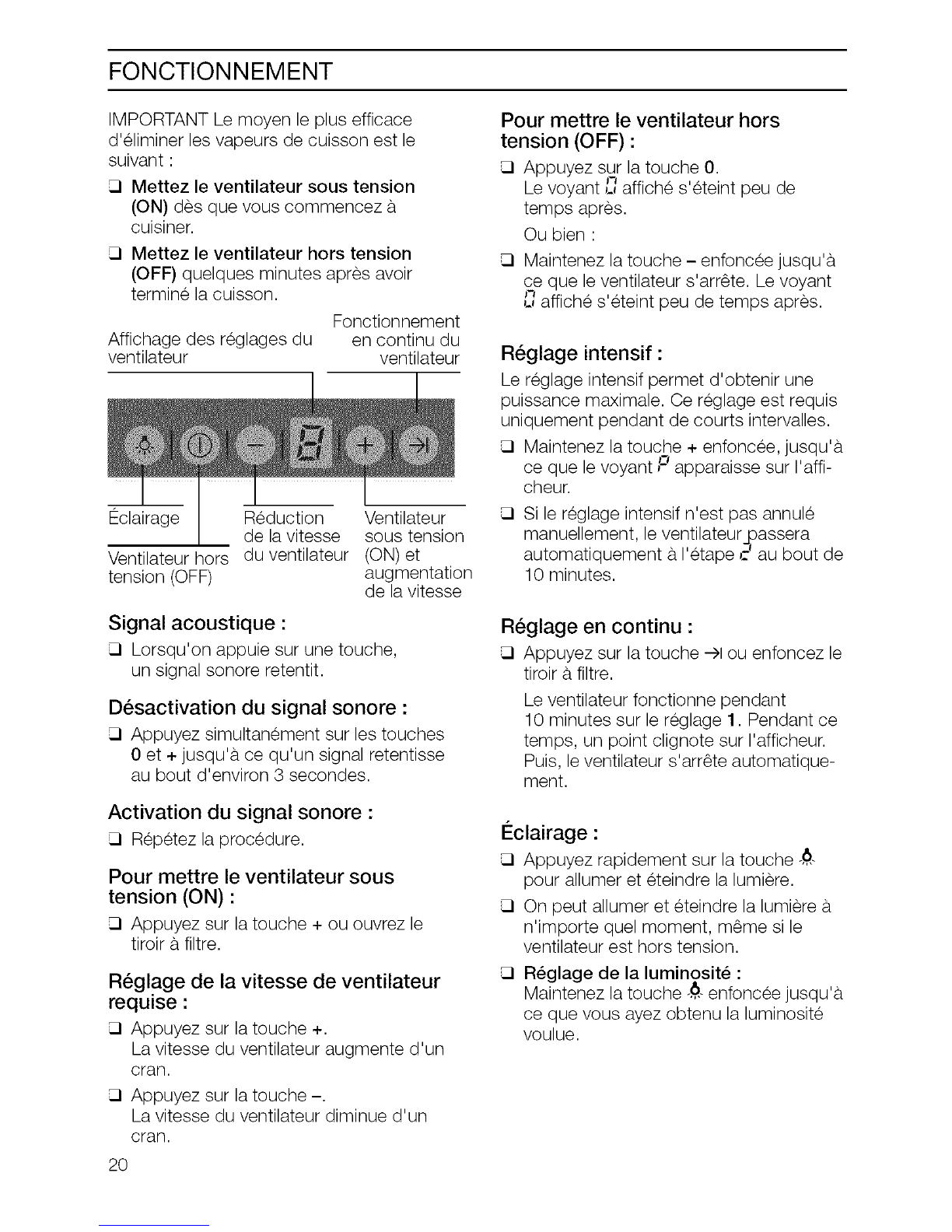

FONCTIONNEMENT
IMPORTANT Le moyen le plus efficace
d'eliminer les vapeurs de cuisson est le
suivant :
Mettez le ventilateur sous tension
(ON) des que vous commencez
cuisiner.
Mettez le ventilateur hors tension
(OFF) quelques minutes apres avoir
termine la cuisson.
Fonctionnement
Affichage des reglages du en continu du
ventilateur ventilateur
Eclairage Reduction Ventilateur
de lavitesse sous tension
Ventilateur hors du ventilateur (ON) et
tension (OFF) augmentation
de la vitesse
Signal acoustique :
Lorsqu'on appuie sur une touche,
un signal sonore retentit.
Desactivation du signal sonore :
Appuyez simultanement sur les touches
0 et + jusqu'a ce qu'un signal retentisse
au bout d'environ 3 secondes.
Activation du signal sonore :
Repetezlaprocedure.
Pour mettre le ventilateur sous
tension (ON) :
Appuyezsur la touche + ou ouvrezle
tiroira filtre.
Reglage de la vitesse de ventilateur
requise :
Appuyez sur la touche +.
La vitesse du ventilateur augmente d'un
cram.
Appuyez sur la touche -.
La vitesse du ventilateur diminue d'un
cram.
2O
Pour mettre le ventilateur hors
tension (OFF) :
Appuyez sur la touche 0.
Le voyant L_affiche s'eteint peu de
temps apres.
Ou bien :
Maintenez la touche - enfoncee jusqu'a
ce que le ventilateur s'arr_te. Le voyant
,_,affiche s'eteint peu de temps apres.
Reglage intensif :
Le reglage intensif permet d'obtenir une
puissance maximale. Ce reglage est requis
uniquement pendant de courts intervalles.
Maintenez la touche + enfoncee, jusqu'a
ce que le voyant P apparaisse sur I'affi-
cheur.
Si le reglage intensif n'est pas annule
manuellement, le ventilateur passera
automatiquement a I'etape ,_:_au bout de
10 minutes.
Reglage en continu :
Appuyez sur la touche ->1ou enfoncez le
tiroir a filtre.
Le ventilateur fonctionne pendant
10 minutes sur le reglage 1. Pendant ce
temps, un point clignote sur I'afficheur.
Puis, le ventilateur s'arr@teautomatique-
merit.
Eclairage :
Appuyez rapidement sur la touche -,,6,-
pour allumer et eteindre la lumiere.
On peut allumer et eteindre la lumiere
n'importe quel moment, m@mesi le
ventilateur est hors tension.
R@glage de la luminosit6 :
Maintenez la touche -,,6,-enfoncee jusqu'a
ce que vous ayez obtenu la luminosite
voulue.
