Thermador HCSW Guide

5551 McFadden Avenue, Huntington Beach, CA 92649 • 800/735-4328
ECO 71589 • 35-05-017F • © BSH Home Appliances Corp. 1997 • Litho in Italy 10/01
READ AND SAVE THESE INSTRUCTIONS
CARE AND USE FOR
WALL HOODS
(Turn Book Over for Installation
Instructions)
HTSW HCSW
HDW
HGSW
HSW

Page 2
WARNING
TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY
TO PERSONS, OBSERVE THE
FOLLOWING:
CAUTION
FOR GENERAL VENTILATING
USE ONLY. DO NOT USE TO
EXHAUST HAZARDOUS OR
EXPLOSIVE MATERIALS OR
VAPOR.
1. Use this unit only in the manner
intended by the manufacturer. If you
have questions, contact the
manufacturer (800/735-4328).
2. Before servicing or cleaning the unit,
switch power off at service panel and
lock service panel.This will prevent
power from being switched on
accidentally. When the service panel
cannot be locked, securely fasten a
prominent warning device,such as a
tag to the service panel.
WARNING
TO REDUCE THE RISK OF A
RANGETOP GREASE FIRE.
1. Never leave surface units unattended
at high settings. Boil-overs cause
smoking and greasy spill-overs that
may ignite. Heat oils slowly on low
or medium settings.
2. Always turn hood ON when cooking
on high heat or when flambéing
foods.
IMPORTANT SAFETY INSTRUCTIONS
3. Clean ventilating fans frequently.
Grease should not be allowed to ac-
cumulate on fan or filter.
4. Use proper pan size. Always use
cookware appropriate for the size
of the surface element.
WARNING
TO REDUCE THE RISK OF INJURY
TO PERSONS, IN
THE EVENT OF A
RANGE TOP GREASE FIRE,
OBSERVE
THE FOLLOWING:
a) SMOTHER FLAMES with a close-
fitting lid, cookie sheet, or other
metal tray, then turn off the gas
burner or the electric element. BE
CAREFUL TO PREVENT
BURNS. If the flames do not go out
immediately, EVACUATE AND
CALL THE FIRE
DEPARTMENT.
b) NEVER PICK UP A FLAMING
PAN, you may be burned.
c) DO NOT USEWATER, including
wet dish cloths or towels - a violent
steam explosion may result.
d) Use an extinguisher ONLY if:
1) You know you have a class ABC
extinguisher, and you already
know how to operate it.
2) The fire is small and contained
in the area where it started.
3) The fire department is being
called.
4) You can fight the fire with your
back to an exit.

Page 3
LES INSTRUCTIONS DE SÉCURITÉ IMPORTANTES
AVERTISSEMENT
POUR RÉDUIRE LE RISQUE
D’INCENDIE, DE CHOC
ÉLECTRIQUE, OU DE LA
BLESSURE AUX PERSONNES,
OBSERVER LE SUIVANT:
ATTENTION
SEULEMENT POUR
L’UTILISATION D’AÉRATION.
NE PAS L’UTILISER POUR
ÉPUISER LAVAPEUR OU LES
MATIÈRES EXPLOSIVES OU
DANGEREUSES.
1. Utiliser cet appareil seulement dans la
manière destinée par le fabricant. Si
vous avez des questions, contacter le
fabricant (800/735-4328).
2. Avant l’entretien ou le nettoyage de
l’appareil,couper le courant au tableau
de service, et fermer à clef le tableau
de service pour empêcher
l’alimentation d’être allumée par
hasard.
AVERTISSEMENT
POUR RÉDUIRE LE RISQUE D’UN
FEU DE GRAISSE DU SOMMET DE
LA CUISINIÈRE:
1. Garder le ventilateur, les filtres et les
surfaces chargées de la graisse
propres.
2. Toujours mettre le capot EN
MARCHE en cuisinant à la haute
chaleur.
3. Utiliser les hauts positionnements du
cuisinière sur la cuisinière seulement
quand c’est nécessaire. Chauffer l’huile
lentement sur un positionnement bas
à moyen.
4. Ne pas laisser la cuisinière sans
surveillance pendant la cuisson.
5. Utiliser toujours les batteries de
cuisine et les ustensiles appropriés
pour le type et la quantité de la
nourriture ayant préparée.
AVERTISSEMENT
POUR RÉDUIRE LE RISQUE DE
BLESSURE AUX PERSONNES
DANS L’ÉVÉNEMENT D’UN FEU
DE GRAISSE DU SOMMET DE LA
CUISINIÈRE, OBSERVER LES
SUIVANTS:
a) ÉTOUFFER LES FLAMMES avec un
couvercle ajusté, une tôle du biscuit
ou un plateau métallique, puis fermer
le bec. SOYEZ CERTAIN
D’EMPÊCHER LES BRÛLURES. Si les
flammes ne s’éteindront pas
immédiatement, ÉVACUER ET
APPELER LE SERVICE DES
INCENDIES.
b) NE JAMAIS RAMASSER UNE
CASSEROLE EN FLAMMES - Vous
pouvez être brûlé.
c) NE PAS UTILISER DE L’EAU, y
compris les torchons mouillés ou les
serviettes - une explosion violente
résultera.
d) Utiliser un extincteur SEULEMENT
si:
1) Vous savez que vous avez un
extincteur de ClasseABC et vous.
savez déjà comment le faire
fonctionner.
2) Le feu est petit et est contenu dans
la région où il a commencé.
3) Le service des incendies est appelé.
4) Vous pouvez combattre le feu avec
votre dos à une sortie.

CONTROL PANELS
MODELS: HDW, HTSW
ELECTRONICTOUCHCONTROLS
A. Motor OFF button
B. ON button and motor speed
selection button 1, 2, 3, 1,....
C. Speed 3 LED
D. Intensive 4th Speed LED
E. Speed 1 LED
F. Speed 2 LED
G. Intensive 4th speed ON
switch - this speed will run
for 10 minutes, and then
return to previous setting,
including OFF.
H. Light OFF button
I. Light ON button
Grease Filter Saturation LED
The flashing LED marked D
reminds you when the grease filter
needs to be cleaned after 40 hours
use. Follow the instructions for
cleaningfiltersinthisbooklet. Once
thegreasefiltershavebeencleaned,
reset reminder by pressing button
Aforabout 3 seconds until youhear
the signal (beep); the LED Dwill
now stop flashing.
MODELS: HGSW
MECHANICAL PUSH BUTTONS
MODELS: HCSW and HSW
ELECTRONIC PUSH BUTTONS
A. Motor OFF button
B. Motor ON button and speed
selector 1, 2, 3, 1.....
C. Speed 1 LED
D. Speed 2 LED
E. Speed 3 LED
F. Intensive 4th speed LED
G. Intensive4thspeedbutton- this
speed will run for 10 minutes,
and then return to previous
setting, including OFF.
H. Light ON, OFF button
ABFG
E
DH
C
O123
a.
b. c. d. e. f.
A. Hood "ON" indicator light
B. Light ON-OFF button
C. Motor OFF button
D. Motor speed button 1 (low)
E. Motor speed button 2 (med)
F. Motor speed button 3 (high)
Page 4

CLEANING INSTRUCTIONS
Be sure lights are cool before cleaning
the hood.
To Clean Filter/s
•It is recommended that the filters
be washed at least once a month;
they can be washed by hand or in
the dishwasher.
• Drainwaterthroughedgeholesand
leteachfilterdrythoroughlybefore
replacing it.
To Clean Hood Surface
• For general care, wipe the outside
of the stainless steel, white, black or
glass hood with sudsy water or
household cleaners such as
Fantastic® or Formula 409®, rinse
well and dry with clean soft cloth to
avoid water marks.
• Wipeanddrybrushedstainlesssteel
in the same direction as the grain.
• Do not use abrasive products.
• To remove finger prints and give
addedshineusespraycleanerssuch
as Stainless Steel Magic® and
Shimmer®
LIGHTS
NOTE: Disconnect the hood from
electricity and be sure the lights are
cool. If new lights do not operate,
check fuses (see page 7 Fuses) and be
surelightsareinsertedcorrectlybefore
calling service.
OPERATING
INSTRUCTIONS - HOOD
The blower should be turned on for
about 5minutesbeforecookinginorder
toestablishaircurrentsupwardthrough
the hood. Thus when heat, smoke,
moisture, grease and cooking odors are
produced, they will be carried outside
instead of drifting into other rooms.
Use the low speeds for normal use and
the higher speeds for strong odors or
fumes.
Drafts across the range or cooktop will
reduce the effectiveness of the hood.
Such drafts should be prevented when
possible.
FILTERS
Themetalgreasefilterswilllastforever.
They are made of anodized aluminum
To Remove The Metal Grease
Filter/s
•Disconnect the hood from
electricity.
for Models HSW, HCSW, HGSW
• Push clips towards the center and
pull the filters downward. Fig. 1.
for Models HDW, HTSW
• Push each handle towards the back
and pull downwards Fig. 2.
To Replace The Metal Grease
Filter/s
• Reverse procedure.
Page 5

Page 6
Replace Lights For Models HDW,
HGSW, HCSW36/42 (Fig. 3)
• Unscrew the light cover.
• Remove the damaged light and
replace with a new 12 Volt, 20 Watt
(maximum)halogen light made for a
G-4 base. Follow package directions
anddo not touch new lightwith bare
hands.
• Reinstall the light cover.

Page 7
Fig. 7

THERMADOR HOOD WARRANTY
Length of Warranty
FULL ONE YEAR WARRANTY
Covers one year from date of installation, or date of occupancy on a new, or
previously unoccupied dwelling. Save your dated receipt or other evidence of
installation/ occupancy date.
Thermador Will Not Pay For:
1. Service by an unauthorized agency. Damage or repairs due to service by an
unauthorized agency or the use of unauthorized parts.
2. Service visits to:
• Teach you how to use the appliance.
• Correct the installation. You are responsible for providing
electrical wiring and other connecting facilities.
• Reset circuit breakers or replace home fuses.
3. Damage caused from accident, alteration, misuse, abuse, improper installa-
tion or installation not in accordance with local electrical codes or plumbing
codes, or improper storage of the appliance.
4. Repairs due to other than normal home use.
Thermador Will Pay For:
All repair labor and replacement parts found to be defective due to materials and
workmanship.
Service must be provided by a Factory Authorized Service Agency, during nor-
mal working hours. For a Service Agency nearest you, please call 800/735-4328.
This warranty applies to appliances used in residential applications; it does not cover their
use in commercial installations.
The warranty is for products purchased and retained in the 50 states of the U. S. A., the
District of Columbia and Canada. Should the appliance be sold by the original purchaser
during the warranty period, the new owner continues to be protected until the expiration
date of the original purchaser's warranty period.
This warranty gives you specific legal rights. You may also have other rights which vary
from state to state.
We reserve the right to change specifications or design without notice. Some models are
certified for use in Canada. Thermador is not responsible for products which are trans-
ported from the U.S. for use in Canada. Check with your local Canadian distributor or
dealer.
Page 8

Page 1
READ AND SAVE THESE INSTRUCTIONS
WARNING-TOREDUCETHERISK
OFFIRE,ELECTRICSHOCK,OR
INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
CAUTION: FOR GENERAL
VENTILATING USE ONLY. DO
NOT USE TO EXHAUST
HAZARDOUS OR EXPLO–SIVE
MATERIALS OR VAPORS.
A. Use this unit only in the manner
intended by the manufacturer. If
you have questions, contact the
manufacturer.
B. Before servicing or cleaning the
unit, switch power off at service
panel and lock service panel
disconnecting means to prevent
power from being switched on
accidentally. When the service
disconnecting means cannot be
locked, attach a tag to the service
IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.
INSTALLATION MUST COMPLY WITH ALL LOCAL CODES.
IMPORTANT: Save these Instructions for the Local Electrical Inspector’s use.
INSTALLER: Please leave these Instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
Safety Warning: Turn off power circuit at the service entrance and
lock-out panel, before wiring this appliance.
Requirement: 120 V AC, 60 Hz. 15 Amp branch circuit (Appliance Rating see Table 1)
L933C Ed. 05/98
panel to indicate power has been
switched off for maintenance.
C. Installation Work and Electrical
WiringMustBeDoneByQualified
Person(s) In Accordance With All
Applicable Codes & Standards,
IncludingFire-ratedConstruction.
D. Sufficient air is needed for proper
combustion and exhausting of
gases through the flue (chimney)
of fuel burning equipment to
preventback-drafting. Followthe
heatingequipmentmanufacturers
guideline and safety standards
such as those published by the
National Fire Protection Assoc-
iation (NFPA), the American
Society for Heating, Refrigeration
and Air Conditioning Engineers
(ASHRAE), and the local code
authorities.
INSTALLATION INSTRUCTIONS
WALL HOOD SERIES:
HDW, HSW, HCSW, HGSW, HTSW
FOR RESIDENTIAL USE ONLY
NOT TO BE INSTALLED OVER GAS GRILLS

Page 2
vent to the attic or crawl space.
H. WARNING - TO REDUCE THE
RISK OF FIRE, USE ONLY
METAL DUCT WORK.
I. Installthishoodinaccordancewith
all requirements specified.
E. Due to size and weight of this unit
two installers are recommended.
F. When cutting or drilling into wall
orceiling,donotdamageelectrical
wiring and other hidden utilities.
G. Ducted fans must always be
vented to the outdoors. Do not
AVERTISSEMENT - POUR RÉDUIRE
LE RISQUE D’INCENDIE, DE CHOC
ÉLECTRIQUE, OU DE LA BLESSURE
AUX PERSONNES, OBSERVER LE
SUIVANT:
ATTENTION: SEULEMENT POUR
L’UTILISATION D’AÉRATION. NE
PAS L’UTILISER POUR ÉPUISER LA
VAPEUR OU LES MATIÈRES
EXPLOSIVES OU DANGEREUSES.
A. Utiliser cetappareilseulementdans
la manière destinée par le fabricant.
Si vous avez des questions,
contacter le fabricant.
B. Avant l’entretien ou le nettoyage
de l’appareil, couper le courant au
tableau de service, et fermer à clef
la moyenne de débrayage de ser-
vicepourempêcher l’alimentation
d’être allumée par hasard. Quand
la moyenne de débrayage de ser-
vice ne peut pas être fermée à clef,
attacher une étiquette au tableau
de service pour indiquer que
l'alimentation a été coupée pour
l'entretien.
C. Le Travail d’Installation et de
Câblage Électrique Doit Être
Fait Par les Personne(s)
Qualifiées Conformément à
Tous les Codes & Normes
Applicables, y Compris la Con-
struction Calculée à Feu.
D. L’écoulement comburant pour le
fonctionnement sûr du matériel
de la combustion du combustible
peut être affecté par le
fonctionnement de cet appareil.
Suivre la directive des fabricants
dumatérielchauffantetlesnormes
de sécurité tel que ceux publiées
par l’Association du Protection de
Feu National (NFPA), et la Société
AméricainepourlesIngénieursde
Chauffage, de Réfrigération et de
Climatisa- tion (ASHRAE), et les
autorités des codes locales.
E. Par suite de la dimension et le
poids de cet appareil, deux
installateurs sont recommandés.
F. En coupant ou en forant dans un
mur ou dans un plafond, ne pas
endommagerlecâblage électrique
et des autres utilités cachées.
G. Les ventilateurs canalisés doivent
être toujours déchargés à
l’extérieur et vers le haut. Ne pas
décharger au grenier ou au vide
sanitaire.
H. Pourréduirelerisqued’incendie,
utiliser seulement le travail du
conduit métallique.
I. Installer ce capot conformé- ment
auxtoutesexigencesspécifiéespar
le fabricant de votre cooktop/
cuisinière.
LES INSTRUCTIONS DE SÉCURITÉ IMPORTANTES

Page 3
H
WD
T
HDW
HTSW
HCSW
HGSW
HSW
H
WD
T
H
W
T
D
H
WD
T
WD
H
T

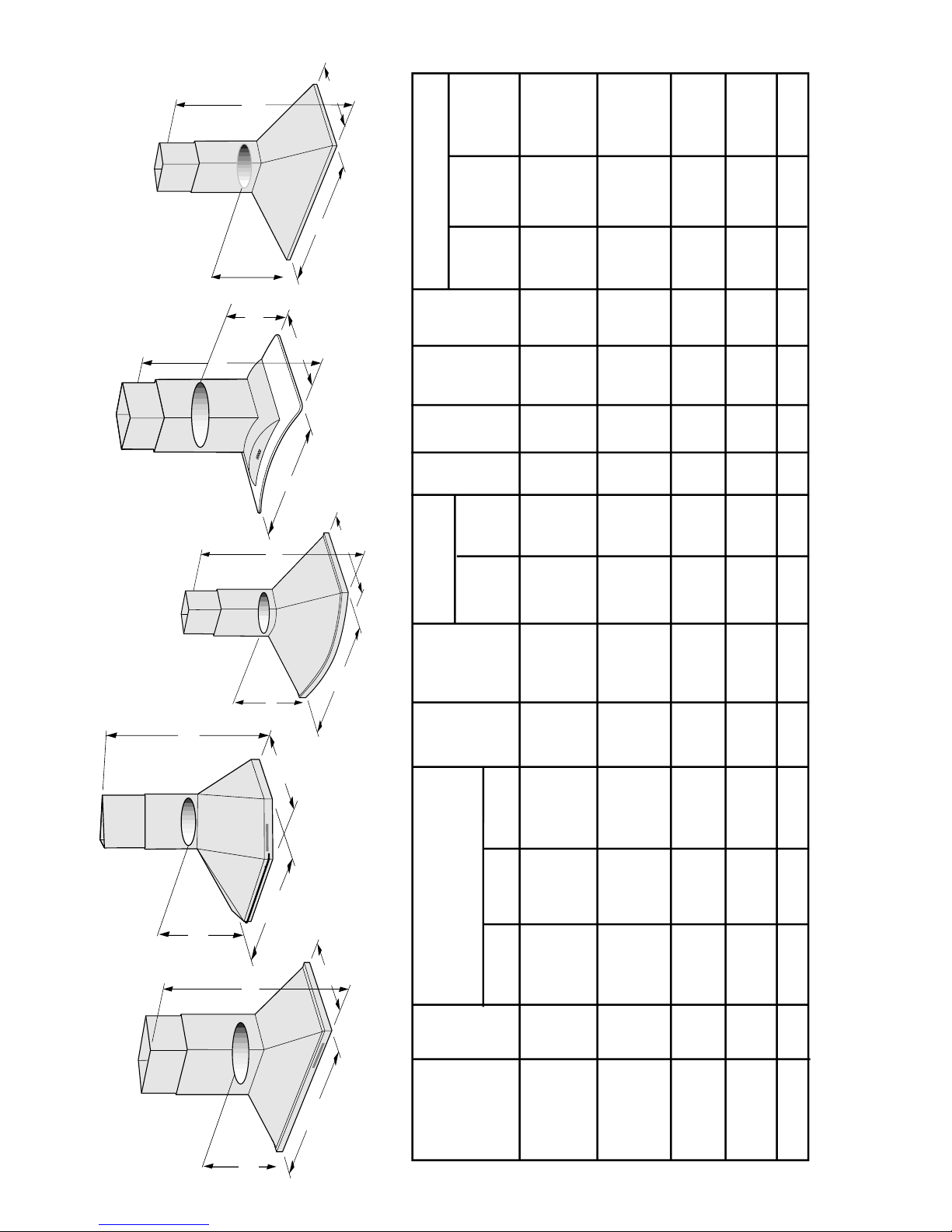

TABLE 1
HDW36 60 27
-1/4
" 33" 49
-1/4
" 36" 23-
1/4
"15
-7/8
"4
-7/8
" 8" 770 320 2 40W 440W 4.A
HDW42 64 27
-1/4
" 33" 49
-1/4
" 42" 23-
1/4
"15
-7/8
"4
-7/8
" 8" 770 320 4 80W 440W 4.33A
HDW48 73 27
-1/4
" 33" 49
-1/4
" 48" 23-
1/4
"15
-7/8
"4
-7/8
" 8" 770 427 4 80W 440W 4.33A
HCSW36 5 30
-3/4
" 33" 47
-1/4
" 36" 21
-5/8
"14
-3/4
"3
-3/4
" 6" 400 310 2 40W 220W 2.16A
HCSW42 62 30
-3/4
" 33" 47
-1/4
" 42" 21
-5/8
"14
-3/4
"3
-3/4
" 6" 400 310 2 40W 220W 2.16A
HCSW48 68 30
-3/4
" 33" 47
-1/4
" 48" 21
-5/8
"14
-3/4
"3
-3/4
" 6" 400 427 2 40W 220W 2.16A
HSW30 37 25
-5/
8
"33" 42
-1/
2
"30"20
-1/
4
"14
-3/4
"3
-3/4
" 6" 400 310 2 18W 220W 2.A
HSW36 42 25
-5/8
" 33" 42
-1/2
" 36" 20
-1/4
"14
-3/4
"3
-3/4
" 6" 400 310 2 18W 220W 2.A
HTSW36 57 29
-3/4
" 33" 45
-7/8
" 36" 18
-7/8
"19
-5/8
"3
-1/4
" 6" 400 312 2 40W 220W 2.16A
HTSW42 68 29
-3/4
" 33" 45
-7/8
" 42" 18
-7/8
"19
-5/8
"3
-1/4
" 6" 400 312 2 40W 220W 2.16A
HGSW36 88 25
-5/8
" 33" 54" 36" 19
-5/8
"18
-1/2
"6
-3/8
" 6" 400 166 2 40W 220W 2.16A
CARTON
HEIGHT
WIDTH DEPTH
TRANSITIION
DUCT CFM FILTER # OF ELECTRICAL
WEIGHT
H W D T
A**
SIZE SIZE
LIGHTS
Lights Motor Total
MODEL #
pounds
*
Min. Max.
sq inch
*Height if Upper Telescope Piece is Left Off.
** Distance from wall to centerline of transition Voltage 120V AC 60Hz

Page 4
PartsIncludedwithyour
Hood
•Hood Canopy Assembly with
Ventilator and Light Bulbs
Installed
• Care & Use /Installation
Instructions
• Registration Card.
• Filters, 1, 2, 3 or 4 depending on
model and size
• Plastic Transition with Back draft
dampers installed
• Screws and Drywall Anchors
• 2 Mounting Hooks
• Mounting Temple
• 2 Piece Duct Cover
• Rubber Tape (only for HSW and
HCSW model)
• 6" or 8" Starting Collar
• Contents Sheet
• 2 Rubber Gaskets
CONSIDERATIONS BEFORE INSTALLING HOOD
Parts Not Included with
your Hood
•Metal Transition if required
HGTR6 for HGSW model
HSTR6 for all other 400 CFM
hoods
HDTR8 for HDW models
• Duct Tape
• 1/2" Conduit
• Wire Nuts
• Plywood Wall Mounting Block
1. For the most efficient air flow
exhaust, use a straight run or as
few elbows as possible.
CAUTION: Vent unit to outside
of building, only.
2. Use flex ducting only to connect
rigid duct directly to transitions.
3. COLD WEATHER installations
should have an additional
backdraft damper installed to
minimize backward cold air flow
and a nonmetallic thermal break
tominimizeconductionofoutside
temperatures as part of the
ductwork.The damper shouldbe
on the cold air side of the thermal
break. The break should be as
close as possible to where the
ductingenters the heated portion
of the house.
4. Hood installation height above
cooktop is the users preference.
The lower the hood above the
cooktop, the more efficient the
capturing of cooking odors,
grease and smoke. Thermador
recommendsthehoodbeinstalled
30-36" above the countertop. The
lowerheightmaybeinconvenient
for tall people and large cooking
vessels.Checkyourceilingheight
and the hood height maximum
before you select your hood.

Page 5
Preparation of mounting
surface (Drywall)
1. Select a mounting height
comfortable for the user and
mark on wall behind cooktop.
2. Mark center line of cooktop and
draw vertical line from bottom
of hood to the ceiling.

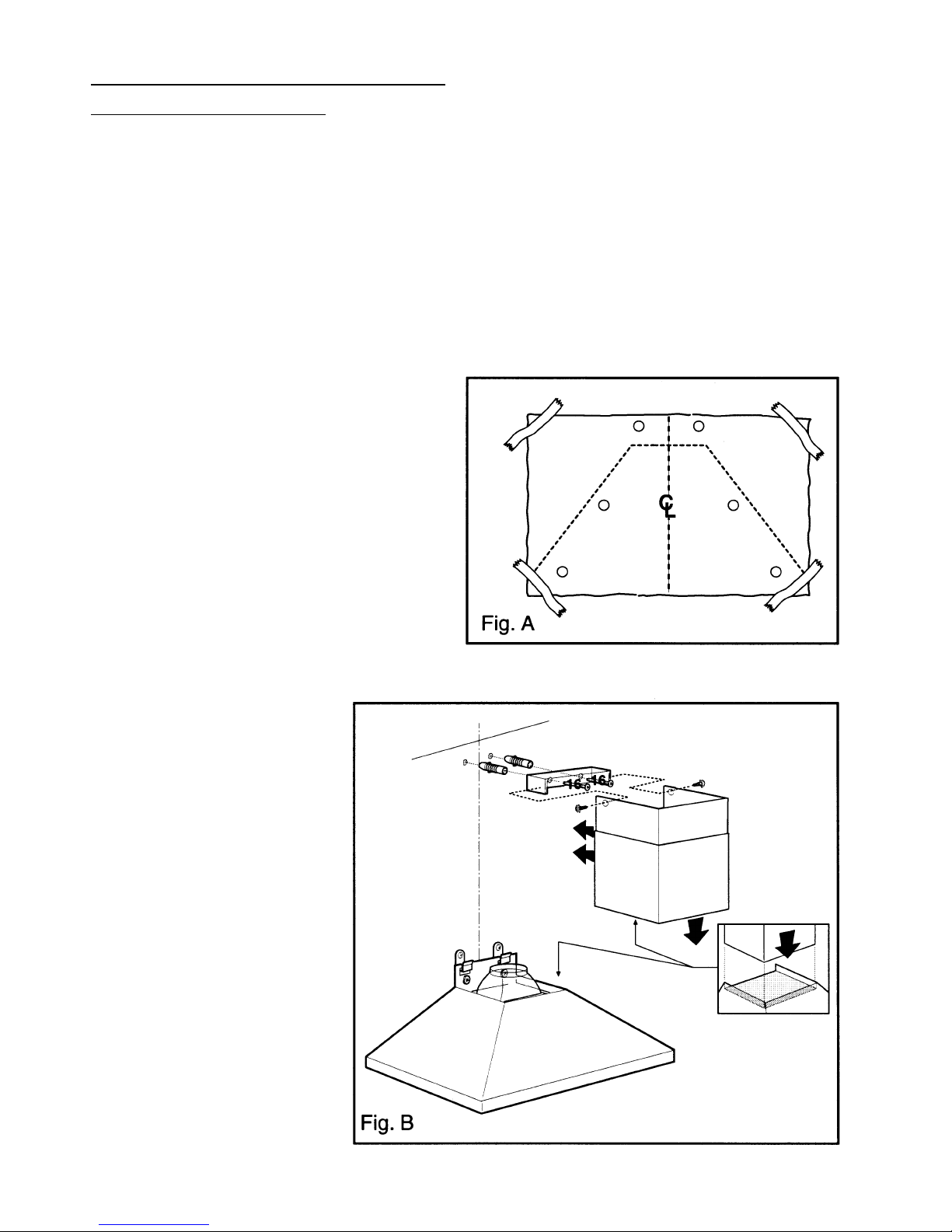

3. Tapetemplate,matchingcenter-
line and hood bottom as shown
in Fig. A.
4. Mark centers of the 6 fastener
locations through template on
wall then remove template.
5. Mark wall with horizontal line
1" above highest and 1" below
lowest fastener location.
6. Find studs behind drywall by
tapping wall or using a stud finder.
Mark the center of the studs with a
vertical line to the right and left of
the marked fastener location.
Note: Each 2 x 6 must span at
least 2 studs side to
side.
7. Cutout drywall
along marked lines.
Install each 2 x 6
between studs firm-
ly flush with stud
front. Make sure all
mounting screws
willanchortoadded
lumber. Replace
drywallandrefinish.
8. Remark center line
and hood bottom on
same location as
before and tape
template on wall as
in step 3 above.
9. Mount 2 mounting hooks with
wood screws (supplied in
mounting hardware kit) on
locations marked on template,
then remove template.
10. Install duct cover ceiling bracket
to wall flush to ceiling with
drywall anchors supplied. Fig.
B.

Page 6
C. Level the appliance, using a
carpenters level across bottom of
hood with leveling screws in
mounting hooks or rectangular
cutouts.
D. Secure hood with 2 screws on top
and 2 screws on bottom. See Fig.
D.
E. Connect ducting (Fig. C).
Note: for blower serviceability,
leave a gap of 1" minimum
between top of transition and
sheet metal duct and cover gap
with a starting collar wrapped
around duct and transition.
Locate collar screws so they fit
into corner of duct cover. Secure
collar to transition and duct with
three sheet metal screws
each. Seal with duct tape.
Appliance Installation:
A. Install transition on top of hood if
removed for shipping. Fig. C
B. Hang hood on 2 mounting hooks
through the rectangular cutouts
on back of hood. Fig. D

Page 7
Do not use duct smaller than the
transition.
Wiring:
Warning: Turn off power circuit at
the service panel before wiring this
unit.
Wiring to power supply
1. 120 V AC, 15 AMP branch circuit
required.
2. Remove the knockout and install
the conduit connector (1/2") in
junction box.
3. Run 3 wires; black, white and
green (wire gauge per code) in 1/
2" conduit from service panel to
junction box.

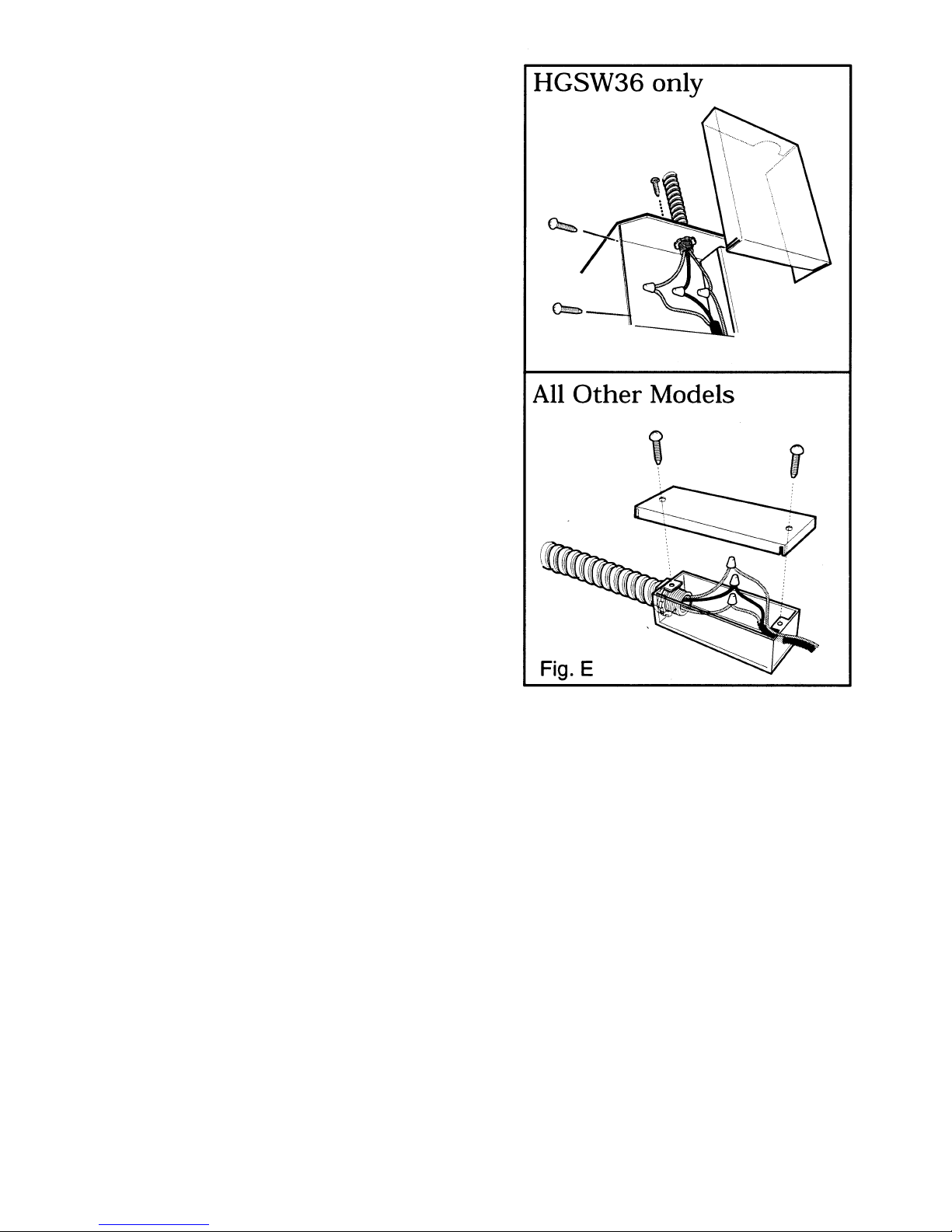

4. Connect black wire from service
panel to black or red in junction
box, white to white and green to
green-yellow. Fig. E.
5. Close junction box cover. Check
all light bulbs to make sure they
are secure in their sockets. Turn
power on in service panel. Check
lights and blower operation per
Care&Usesectionofthismanual.
Install filters.
6. Install duct cover per Fig. B.
Make sure to leave this manual
for the home owner.
Alternate - reduced ceiling height
Installation for HCSW and HSW
models:
The hood may be installed with only
the lower part of the duct cover to
reducetheoverallheight. Thishood
height is signified by *in Table 1.
Forthe duct cover to slidedownand
engage the top of the hood, the
ceiling bracket must be mounted 1/
4" below the ceiling. The resulting
space on top of the chimney can be
filled with a 1/4” thick piece of
plywood cut to the inside cross
section of the chimney cover and
finished to match the ceiling.
Cut the rubber tape in 4 identical
sections and put two of it each side
of the duct cover ceiling bracket to
fill space between bracket and
chimney cover.

Page 8
Alternate - reduced ceiling height
Installation for HDW and HTSW
and HGSW models:
The hood may be installed with only
the lower part of the duct cover to
reduce the overall height. This hood
height is signified by *in Table 1. For
the duct cover to slide down and
engagethetopofthehood,theceiling
bracket must be mounted 1/4" below
the ceiling. The resulting space on
top of the chimney can be filled with
a 1/4” thick piece of plywood cut to
theinsidecrosssectionofthechimney
cover and finished to match the
ceiling.
Copy the two mounting holes on the
sides of the upper cover to the lower
cover.
Rear discharge:
A 90°elbow may be installed
immediately above the hood. For
serviceability, a mounting similar to
the straight up discharge shown in
Fig. C should be used. In Table 1
dimension"T"signifiesdistancefrom
hood bottom to top of transition.
