Thermasol ThermaTouch TT7 Series User manual

OVER 60 YEARS OF STEAM SHOWER INNOVATION
Installation Manual
For Tutorials and Troubleshooting visit www.thermasol.com/solutions
Digital Shower Package

22
ThermaTouch Control
7 Inch Screen
Installation Manual
For Tutorials and Troubleshooting visit www.thermasol.com/solutions
TT7X-XX
OVER 60 YEARS OF STEAM SHOWER INNOVATION

PLEASE REVIEW WARNINGS BELOW AND LEAVE THIS MANUAL WITH HOMEOWNER
DO NOT USE THIS PRODUCT UNLESS YOU HAVE CONSULTED WITH YOUR DOCTOR AND RECEIVED WRITTEN PERMISSION TO DO SO.
USE OF THIS PRODUCT MAY BE HAZARDOUS TO YOUR HEALTH.
PLEASE CONSULT YOUR PHYSICIAN BEFORE USING. IF YOU ARE PREGNANT, ELDERLY, HAVE HIGH BLOOD PRESSURE, DIABETES,
SUFFERING FROM HEART DISEASE, ARE INTOXICATED, OR NOT IN GOOD HEALTH, DO NOT USE THIS STEAM BATH.
STEAM IS HOT! DO NOT TOUCH OR GO NEAR THE STEAMHEAD FROM THE TIME THE UNIT IS “ON,” UP TO ONE HOUR AFTER IT HAS SHUT
OFF. SEVERE BURNS WILL OCCUR IF YOU COME IN CONTACT WITH THE STEAMHEAD OR STEAM EMITTING FROM THE STEAMHEAD.
NEVER ATTEMPT TO FILL AROMA RESERVOIR ON THE STEAMHEAD WHEN UNIT IS IN THE "ON" POSITION. SEVERE BURNS WILL OCCUR.
DO NOT USE THERMASOL AROMATHERAPY OILS, SKIN CARE PRODUCTS OR ANY PRODUCT ASSOCIATED WITH YOUR THERMASOL UNIT
WITHOUT CONSULTING WITH YOUR ALLERGIST OR DOCTOR BEFORE USE. THESE PRODUCTS MAY BE HAZARDOUS TO YOUR HEALTH.
DO NOT USE STEAM ROOM WHILE UNDER THE INFLUENCE OF ALCOHOL OR DRUGS, AS THIS CAN BE HAZARDOUS TO YOUR HEALTH.
YOUR SHOWER MAY BE A SLIP-AND-FALL HAZARD. CHECK WITH YOUR CONTRACTOR OR FLOORING MANUFACTURER REGARDING THE
SAFE USE OF YOUR FLOORING IN A STEAM APPLICATION. SLIPPING AND FALLING INTO THE STEAMHEAD ITSELF OR INTO THE STREAM
OF STEAM EMITTING FROM THE STEAMHEAD WILL CAUSE SERIOUS BURNS OR PHYSICAL INJURY.
IF YOU ARE FEELING UNCOMFORTABLE, DIZZY, FAINT, OR STARTING TO FALL ASLEEP, IMMEDIATELY EXIT THE STEAM ROOM.
DO NOT USE STEAM ROOM IF YOU ARE UNDER THE AGE OF 16 UNLESS SUPERVISED BY AN ADULT.
THERMASOL STEAM BATH GENERATORS ARE NOT DESIGNED TO BE USED FOR SPACE HEATING PURPOSES.
THERMASOL STEAM BATH GENERATORS ARE FOR INDOOR USE ONLY. THEY SHOULD NEVER BE LOCATED OUTSIDE THE HOME.
All products must be installed in accordance with installation instructions provided. Failure to do so may invalidate warranty at
manufacturer’s discretion. ©2019 ThermaSol.
The ThermaTouch Control must be installed
inside the shower. The ThermaTouch control
will only function on the current TFX, SSA and
PRO Series generators.
The control should be installed 60" from
the oor of the shower and away from
the steamhead.
The steamhead should be installed 24" from
the oor and 6" from any wall. Locate as far
as possible from the bathing seating area
or location of the users and not below
any xtures.

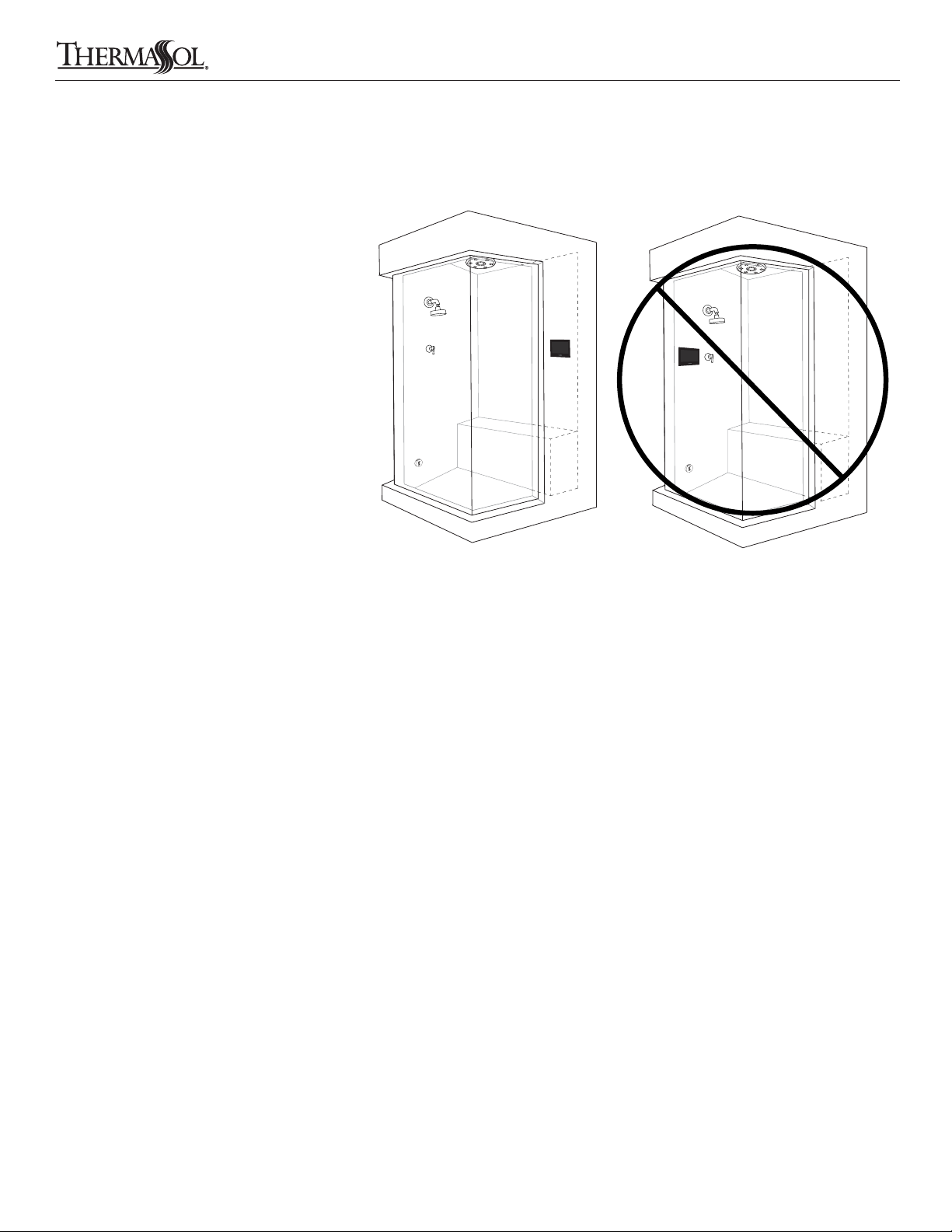

IMPORTANT: When locating and installing the
ThermaTouch, it is required to not place the
control under any water-outlets, shower heads
or in the direct path of owing water.
SEE DIAGRAM FOR LOCATION EXAMPLE.
1Important Information before You Install
THERMASOL.COM I800.776.0711 3
Digital Shower Package

7.5" W by 5.5" opening for recessed mount TTMR-BK Mud Ring
3Mud Ring Application
PDM
Item 10-8147
Silicone Installation instructions, warranty,
static cling warning label
25-foot Yellow M12 Cable
Item 03-7149-25
Mud Ring
Item 04-8544
2Tools and Materials
Controller
Item TT7X-XX
Shower wallShower wall
Mud Ring goes
inside wall opening
Finished wall must be ush
with the mud ring.
Power Supply Brick
Item 03-7142
Materials needed:
o ThermaTouch control
oM12 cable
o Silicone
o Power Distribution Module (PDM)
o Mud Ring
o Ethernet Cable with RJ-45 Connector (not supplied)
o Other materials as required
Back of Control
REMINDER
in order to receive software updates the unit must be plugged into
the internet using an Ethernet Cable connected to a Router
(Router and Ethernet Cable not supplied).
Power/Data
M12 connection
Audio Out
Plug in network cable RJ-45
for updates over the internet
Bluetooth
Antenna
THERMASOL.COM I800.776.0711
44
Digital Shower Package

THERMASOL.COM I800.776.0711
Shower wall Route the M12 cable through the nished wall
to the back side of the control. (The other end
of the cable runs to the PDM location.) NOTE:
It is recommended to run the cable through
electrical conduit. DO NOT STAPLE the cable!
Run the M12 cable so the 90-degree end
connection will connect to the ThermaTouch
control. Then connect the M12 Cable to
ThermaTouch control. Do not over tighten.
If the Serenity Light, Sound, Rain Head option is
not used then amplied speakers are required
for sound.
Connect the data cable to Power Distribution Module (PDM).
(The other end of the cable runs to the back of the control in the shower location.)
DO NOT pinch, nail, staple, wedge, or bind the
data cable.
DO NOT wrap the data cable around steam line
or route it in a manner so that the hot steam line
could melt
the cable.
Any damage to the control cable will result in
the control not working properly.
Carefully connect the data cable to the PDM
and control BEFORE turning power on to the
generator or PDM.
"ON"
Turn Clockwise
"OFF"
Turn Counter Clockwise
• Do not staple, strain or damage data cable
• Align pins to receptacle visually before tightening
• Do not force plug
• Hand tighten only
Connector
Detail
Contact
pins
TTC
SLS
Connect to PDM
PDM requires 110V power
Contact
pins
Cable
ends
3.5mm male audio cable
(not included unless Serenitiy Light,
Sound, Rain Head was purchased)
M12 Cable
Ethernet cable with RJ-45
(not included)
4Control Installation and Data Cable Connection
5
Digital Shower Package

Side View of Surface
Mount Control
Back Side of Surface
Mount Control
M12 Cable
Ethernet
Audio
THERMASOL.COM I800.776.0711
THESE STEPS MUST BE TAKEN FOR CORRECT INSTALLATION OF THE CONTROL. REMOVE MUD RING
FROM WALL CUTOUT BEFORE MAKING FINAL CABLE CONNECTIONS TO THE THERMATOUCH CONTROL.
TEST THAT ALL CONNECTIONS ARE WORKING BEFORE SEALING THE CONTROL TO THE WALL.
(Power on the control and see that it lights up).
Coat the entire groove on the control back with supplied waterproof silicone to fully seal the control to the wall.
Completely seal the control to the wall so moisture does not collect behind it.
Place the control on the wall pressing rmly.
(You may need to tape the control into place until the silicone dries.)
Be careful not to harm the wall or control with the tape. Let dry for 24 hours before using steam bath.
A
5Sealing Control
A
66
Digital Shower Package

TTC
SLS
TTC
SLS
110v
110v
M12 Cable
Audio Cable
M12 Cable
M8 Cable
M12 Cable
6a Connecting ThermaTouch to Generator
6b Connecting ThermaTouch to Serenity Light,
Sound, Rainhead
THERMASOL.COM I800.776.0711 7
Digital Shower Package

6c Connecting ThermaTouch to Digital Shower
6b Connecting Total Wellness Package
THERMASOL.COM I800.776.0711
TTC
SLS
110v
M12 Cable
M12 Cable
Audio Cable
TTC
SLS
110v
M12 Cable
M12 Cable
Audio Cable
M8 Cable
88
Digital Shower Package

Digital Shower Valve
OVER 60 YEARS OF STEAM SHOWER INNOVATION
Installation Manual
TDS-3000
9
Digital Shower Package

2Tools and Materials
10
Make sure the walls, ceiling and oor materials are suitable for use with this product. Ensure electrical power is turned off for the duration
of the installation.
PLEASE REVIEW WARNINGS BELOW AND LEAVE THIS MANUAL WITH HOMEOWNER
BEFORE USING THE SHOWER, TEST THE WATER TEMPERATURE WITH YOUR HAND BEFORE FULLY ENTERING THE SHOWER.
DO NOT USE THERMASOL AROMATHERAPY OILS OR SKIN CARE PRODUCTS OR ANY PRODUCT ASSOCIATED WITH YOUR THERMASOL
PRODUCT WITHOUT CONSULTING WITH YOUR ALLERGIST OR DOCTOR BEFORE USE. THESE PRODUCTS MAY BE HAZARDOUS TO
YOUR HEALTH.
DO NOT USE THIS PRODUCT WHILE UNDER THE INFLUENCE OF ALCOHOL OR DRUGS, AS THIS CAN BE HAZARDOUS TO YOUR HEALTH.
All products must be installed in accordance with installation instructions provided. Failure to do so may invalidate warranty at manufacturer’s
discretion.
©2018 ThermaSol.
Parts enclosed with the Digital Shower:
Digital Shower
10.9"x 6.93"x 2.95"
Set of screws,
2 × 5 × 50 mm
Set of connection nipples 50-foot CAN-bus cable Digital Interface Back up battery
1Important Information Before You Install
o Pencil
o Drill bit 8 mm
o Crosshead screwdriver
o Adjustable spanner / wrench
o Drill
o Spirit level
Tools needed:
THERMASOL.COM I800.776.0711
Digital Shower Package

11
3System Layout
Easy Start Control
(Outside Shower)
Water Inlets
(Hot/Cold)
Shower Outputs (3)
TDS-3000
Digital Shower Valve
Digital
Interface
110V Power
208/240VAC
Steam
Generator
110V Power
Serenity
Light and Sound
TTC AUDIO OUT
TTC INPUT
SLS INPUT
CONTROL 2 INPUT
CONTROL 1 INPUT
24 VDC INPUT
STEAM UNIT INPUT
ThermaTouch Control
(Inside Shower)
To LAN/ROUTER
PDM
THERMASOL.COM I800.776.0711
Digital Shower Package

12
4Scope of Application
IMPORTANT: The Digital Shower Valve must be
accessible and should not be sealed in the wall
TDS-3000
Digital Shower Valve
Digital Interface
PDM
THERMASOL.COM I800.776.0711
Digital Shower Package

5Remove Cover
6Inside Valve System Controller
13
15V ACCU EXT RS-232 MOTOR TLI AUX
15V ACCU TLI
Hot
Fixing Holes
Battery Compartment Power Supply
Connector
Block
Cold
Inlets
Outlets
THERMASOL.COM I800.776.0711
Digital Shower Package

14
7Mark and Drill Holes
235mm / 9.25"
235mm / 9.25" 8mm / 0.31"
THERMASOL.COM I800.776.0711
Digital Shower Package

8Install Valve System Controller
9Remove Inlet Retaining Bolt
15V ACCU EXT RS-232 MOTOR TLI AUX
15V ACCU EXT RS-232 MOTOR TLI AUX
THERMASOL.COM I800.776.0711 15
Digital Shower Package

10 Connect Hot and Cold Water Supply
11 Remove Outlet Retaining Bolt
15V ACCU EXT RS-232 MOTOR TLI AUX
15V ACCU EXT RS-232 MOTOR TLI AUX
1. Connect hot and cold
water supply
2. Insert inlet
connectors
3. re-insert
retaining bolt
15V ACCU EXT RS-232 MOTOR TLI AUX
IMPORTANT: Flush the pipework
before connection
1616 THERMASOL.COM I800.776.0711
Digital Shower Package

15V ACCU EXT RS-232 MOTOR TLI AUX
15V ACCU EXT RS-232 MOTOR TLI AUX
15V ACCU EXT RS-232 MOTOR TLI AUX
12 Connect Outlet Pipeworks
1. Connect outlet
pipeworks
2. Insert outlet
connectors
3. re-insert
retaining bolt
IMPORTANT: Flush the waterlines
prior to connecting to clear any debris.
1
2
3
1
3
2
17
THERMASOL.COM I800.776.0711
Digital Shower Package

18
13 Connect Back Up Battery
14 Connect The Digital Interface
15V ACCU EXT RS-232 MOTOR TLI AUX
15V ACCU EXT RS-232 MOTOR TLI AUX
15V ACCU EXT RS-232 MOTOR TLI AUX
15V ACCU EXT RS-232 MOTOR TLI AUX
RS232 Port
Connect the digital interface
to the RS232 port
THERMASOL.COM I800.776.0711
Digital Shower Package

19
15 Connect The PDM
15V ACCU EXT RS-232 MOTOR TLI AUX
15V ACCU EXT RS-232 MOTOR TLI AUX
THERMASOL.COM I800.776.0711
Digital Shower Package

20
16 Re-t Cover and Connect
15V ACCU EXT RS-232 MOTOR TLI AUX
IMPORTANT: Electrical connection must
be installed by a qualied electrician.
