General Information
Tables of Contents
This Parts Manual contains a numerical table of con-
tents listing each assembly name, its associated Grid
number and page number. The numerical table of con-
tents is arranged numerically by Grid number. There
are references in a parts list referring to other Grid num-
bers, the numerical table of contents is arranged to facil-
itate finding the referenced illustrations. At the rear of
this parts manual are two indexes, a numerical and
alphabetical. The indexes contain all of the part num-
bers and descriptions which appear in this manual.
Assemblies and Subassemblies
When parts are indented in the description list, they are
preceded with a bullet ( • ). This indicates that the
part(s) is available separately or included in an assem-
bly.
GRID NO. 67D6
SWITCH PANEL ASSEMBLY
For example: the switch panel nameplate (99-6280) is
available separately, available as part of the switch
panel (99-1960) and with the panel assembly (45-1239).
REF PART# DESCRIPTION QTY
45-1239 PANEL - assy, switch 1
1 99-1960 • PANEL 1
99-6280 • •NAMEPLATE - panel 1
2 33-743 •GASKET 1
Aac. . . . . . . . . . alternating
current
A/R . . . . . . . . as required
accum . . . . . . accumulator
adj . . . . . . . . . adjusting
al . . . . . . . . . . aluminum
alt. . . . . . . . . . alternator
amp . . . . . . . . ampere
assy. . . . . . . . assembly
Bbd . . . . . . . . . board
brg. . . . . . . . . bearing
brkr . . . . . . . . breaker
brkt . . . . . . . . bracket
CC . . . . . . . . . . Celsius
cw . . . . . . . . . clockwise
ccw . . . . . . . . counter-
clockwise
cam . . . . . . . . camshaft
compr . . . . . . compressor
cond. . . . . . . . condenser
conn. . . . . . . . connecting,
connector
cyl . . . . . . . . . cylinder
Ddef . . . . . . . . . defrost
deg . . . . . . . . degree
dehyd. . . . . . . dehydrator
dia . . . . . . . . . diameter
dc. . . . . . . . . . direct current
disc . . . . . . . . discharge
diff . . . . . . . . . differential
EEMI . . . . . . . . Extended
. . . . . . . . . . . Maintenance
Interval
EEC. . . . . . . . European
Economic
Community
eng . . . . . . . . engine
E(continued)
evap. . . . . . . . evaporator
exch . . . . . . . . exchanger
exp . . . . . . . . . expansion
ext . . . . . . . . . external
FF. . . . . . . . . . . Farenheit
fill . . . . . . . . . . fillister
fi . . . . . . . . . . . fuel injection
fl . . . . . . . . . . . flare
fpt. . . . . . . . . . female pipe
thread
ft. . . . . . . . . . . feet
ftg. . . . . . . . . . fitting
Hhex . . . . . . . . . hexagon
hh. . . . . . . . . . hexagon head
hd. . . . . . . . . . head
hp. . . . . . . . . . horsepower
hsg . . . . . . . . . housing
Iid . . . . . . . . . . inside diameter
in . . . . . . . . . . inch (2.54
centimeters)
incl . . . . . . . . . includes
inj . . . . . . . . . . injection
int . . . . . . . . . . internal
int th . . . . . . . . internal tooth
Lliq . . . . . . . . . . liquid
lg . . . . . . . . . . long
Mmm. . . . . . . . . milimeter
mpt. . . . . . . . . male pipe thread
mod . . . . . . . . modulating
Nneg. . . . . . . . . negative
No. . . . . . . . . . number
NS . . . . . . . . . not supplied
NSS . . . . . . . . not sold
separately
Oos . . . . . . . . . . oversized
od . . . . . . . . . . outside diameter
Ppcb . . . . . . . . . printed circuit
board
pkg . . . . . . . . . package
ph . . . . . . . . . . phase
pos . . . . . . . . . positive
psi. . . . . . . . . . pounds per
square inch
Rrad . . . . . . . . . radiator
rcvr . . . . . . . . . receiver
ref . . . . . . . . . . reference
reg . . . . . . . . . regulator
req . . . . . . . . . required
rpm . . . . . . . . . revolutions per
minute
Ssec . . . . . . . . . second
sld. . . . . . . . . . solder
soc hd. . . . . . . socket head
sol. . . . . . . . . . solenoid
spl. . . . . . . . . . special
sq . . . . . . . . . . square
ss . . . . . . . . . . stainless steel
std. . . . . . . . . . standard
stl . . . . . . . . . . steel
suct. . . . . . . . . suction
sw. . . . . . . . . . switch
Tterm . . . . . . . . terminal
temp . . . . . . . . temperature
thk. . . . . . . . . . thick
Uus . . . . . . . . . . undersize
Vvib. . . . . . . . . . vibrasorber
Ww. . . . . . . . . . . watt
w/ . . . . . . . . . . with
w/o . . . . . . . . . without
ABBREVIATIONS The following abbreviations appear in parts manuals

CF-II M19.7, M19.8, M19.9, M19.10
Contents
Name Grid Page
CF-II M19.7, M19.8, M19.9, M19.10 REFERENCE SHEET . . . . . . . . .2U27. . . . . . . . . . . . . . . . . . . . . .3
HUMIDITY CONTROLLER GROUP . . . . . . . . . . . . . . . . . . . . . . . . . . .98B11. . . . . . . . . . . . . . . . . . . .89
CONDENSER COIL & MOTOR GROUP . . . . . . . . . . . . . . . . . . . . . . .102B4. . . . . . . . . . . . . . . . . . . . .7
DEFROST GROUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102B10. . . . . . . . . . . . . . . . . . .81
REMOTE MONITOR BOX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102C2. . . . . . . . . . . . . . . . . . . .77
USDA HARNESS GROUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113A12. . . . . . . . . . . . . . . . . . .83
WEATHER PACK CONNECTORS . . . . . . . . . . . . . . . . . . . . . . . . . . . .115D14. . . . . . . . . . . . . . . . . . .55
COMPRESSOR JUNCTION BOX. . . . . . . . . . . . . . . . . . . . . . . . . . . . .117F5 . . . . . . . . . . . . . . . . . . . .49
CAP & CHAIN ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119E11. . . . . . . . . . . . . . . . . . .95
CONTACTOR ASSEMBLY (PHASE CORRECTION, 460V) . . . . . . . .119G3. . . . . . . . . . . . . . . . . . . .67
NOZZLE ASSEMBLY - HUMIDITY . . . . . . . . . . . . . . . . . . . . . . . . . . . .120A12. . . . . . . . . . . . . . . . . . .93
BOARD ASSEMBLY - PC/LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120G1. . . . . . . . . . . . . . . . . . . .61
MODULATION VALVE ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . .123A8. . . . . . . . . . . . . . . . . . . .33
AIR EXCHANGER GROUP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123B2. . . . . . . . . . . . . . . . . . . . .5
EVAPORATOR COIL & BLOWER GROUP . . . . . . . . . . . . . . . . . . . . .123B3. . . . . . . . . . . . . . . . . . . .11
ELECTRICAL COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123B4. . . . . . . . . . . . . . . . . . . .51
CONTROL BOX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123B5. . . . . . . . . . . . . . . . . . . .57
HIGH VOLTAGE TRAY (M37.3, M37.7) . . . . . . . . . . . . . . . . . . . . . . . .123B6. . . . . . . . . . . . . . . . . . . .63
MICROPROCESSOR CONTROLLER (M19.7, M19.8, M19.9,
M19.10) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123B7. . . . . . . . . . . . . . . . . . . .69
STRUCTURAL COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123B8. . . . . . . . . . . . . . . . . . . .97
NAMEPLATES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123B9. . . . . . . . . . . . . . . . . . .101
BATTERY & BATTERY CHARGER GROUP . . . . . . . . . . . . . . . . . . . .123B10. . . . . . . . . . . . . . . . . . .79
COMPOUND PRESSURE GAUGE (SUCTION TUBE) . . . . . . . . . . . .123B11. . . . . . . . . . . . . . . . . . .37
REFRIGERATION COMPONENTS (M19.7, M19.8). . . . . . . . . . . . . . .123B12. . . . . . . . . . . . . . . . . . .15
COMPRESSOR GROUP (M19.7, M19.8). . . . . . . . . . . . . . . . . . . . . . .123B13. . . . . . . . . . . . . . . . . . .39
HUMIDITY MOTOR, COMPRESSOR & TANK GROUP. . . . . . . . . . . .123B14. . . . . . . . . . . . . . . . . . .85
AIR COMPRESSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123D6. . . . . . . . . . . . . . . . . . . .91
VALVE ASSEMBLY - SOLENOID. . . . . . . . . . . . . . . . . . . . . . . . . . . . .124E2. . . . . . . . . . . . . . . . . . . .35
DOOR ASSEMBLY SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125B10. . . . . . . . . . . . . . . . . . .99
HARNESS GROUP - REMOTE MONITOR. . . . . . . . . . . . . . . . . . . . . .126G13. . . . . . . . . . . . . . . . . . .73
REFRIGERATION COMPONENTS (M19.9). . . . . . . . . . . . . . . . . . . . .129C1. . . . . . . . . . . . . . . . . . . .21
COMPRESSOR GROUP (M19.9, M19.10) . . . . . . . . . . . . . . . . . . . . . .129C2. . . . . . . . . . . . . . . . . . . .43
COMPRESSOR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .133D7. . . . . . . . . . . . . . . . . . . .45
COMPRESSOR OIL FILTER GROUP (Before 6/97) . . . . . . . . . . . . . .133D8. . . . . . . . . . . . . . . . . . . .47
REFRIGERATION COMPONENTS (M19.10). . . . . . . . . . . . . . . . . . . .135E4. . . . . . . . . . . . . . . . . . . .27
CIRCUIT BREAKER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135E5. . . . . . . . . . . . . . . . . . . .75

3

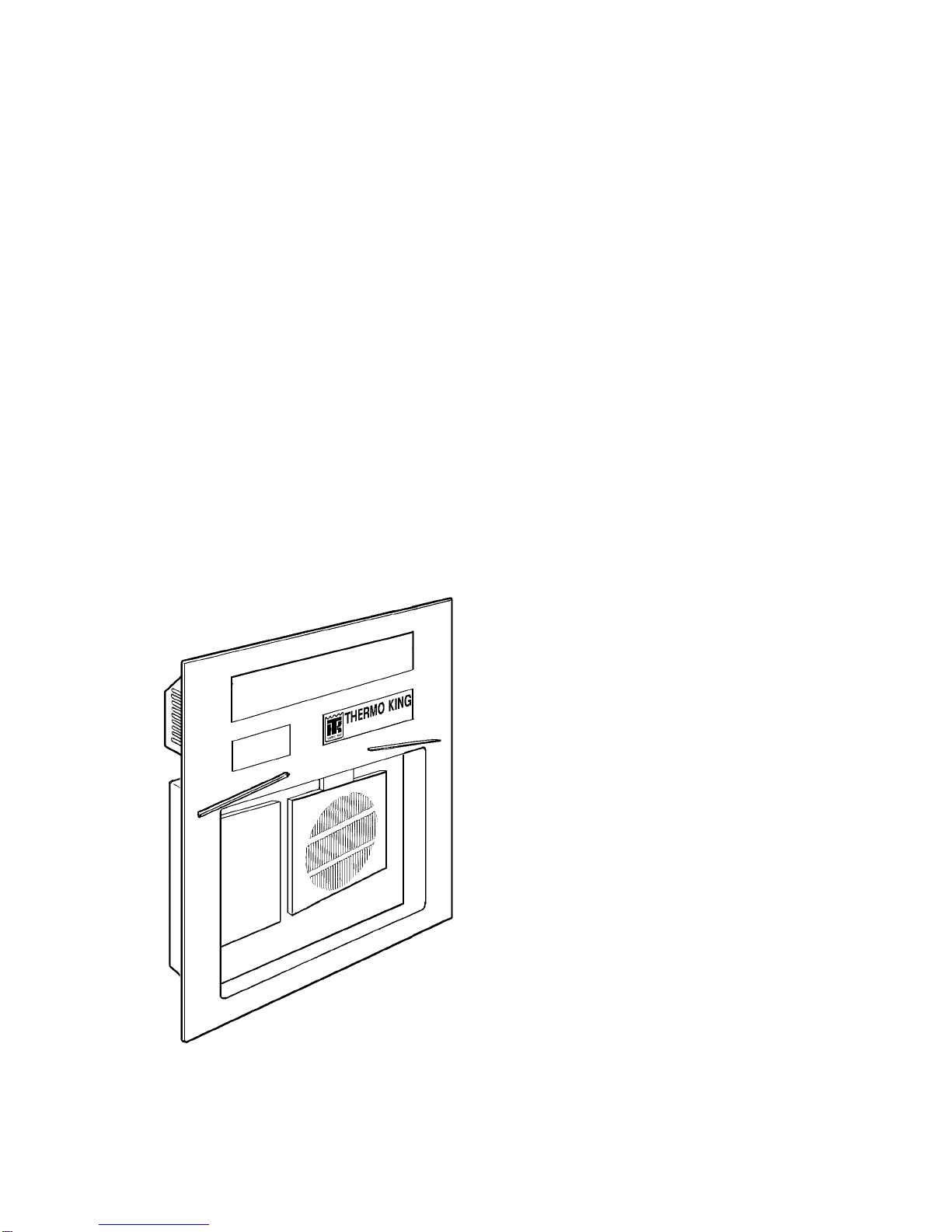

2U27 CF-II M19.7, M19.8, M19.9, M19.10 REFERENCE
SHEET Revised
12/12/96
CF-IIM19.7,M19.8,
M19.9, M19 .10
REFERENCE
SHEET
2U27
12/12/96

4
2U27
CF-II M19.7, M19.8, M19.9, M19.10 REFERENCE
SHEET
Revised
12/12/96
B/M DESCRIPTION Date
090205 CF-II M19.7 8/94
090208 CF-II M19.8 9/94
090225 CF-II M19.9 7/95
090239 CF-II M19.10 6/96

5

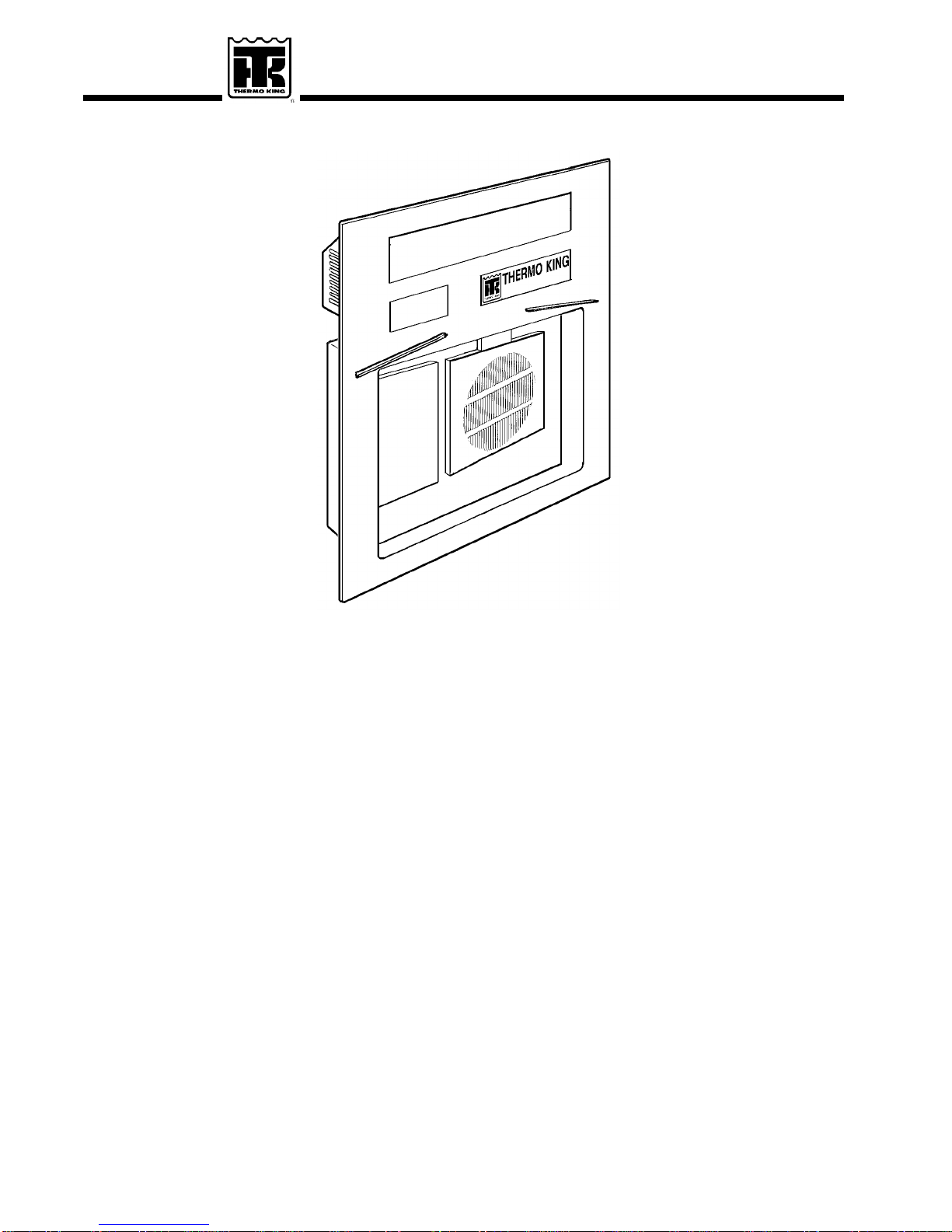

123B2 AIR EXCHANGER GROUP Revised
8/15/95
AIR EXCHANGER
GROUP
123B2
8/15/95

6
123B2
AIR EXCHANGER GROUP
Revised
8/15/95
REF PART# DESCRIPTION QTY
1 98-4044 DOOR - evaporator (upper) 1
2 98-3540 DOOR - air exchanger 1
55-2979 SCREW - door 28
55-2086 FLATWASHER 28
55-1800 LOCKWASHER 28
91-6206 COVER - air exchange 1
3 91-581 •COVER - air exchanger 1
4 33-2015 •GASKET - air exchanger 2
5 99-6748 •BRACKET - air exchanger 1
6 55-4012 •WASHER - special 1
7 55-2550 •PIN - cotter 1
8 55-5120 •SCREW - wing 1
9 98-2998 DUCT - air exchanger 1
10 99-7115 STRIP - gasket (door, 25 ft) A/R
11 99-6784 NAMEPLATE - Fresh Air Exchange Rate 1
12 33-1712 GASKET - air exchanger 1
13 99-6783 NAMEPLATE - arrow 1
14 91-374 BRACKET - duct 1
55-3049 SCREW - duct 3
55-2001 FLATWASHER 3
15 33-1318 GASKET - duct 3
16 NSS FRAME - Transfresh (Transfresh components are not avail-
able from Thermo King) 1

7

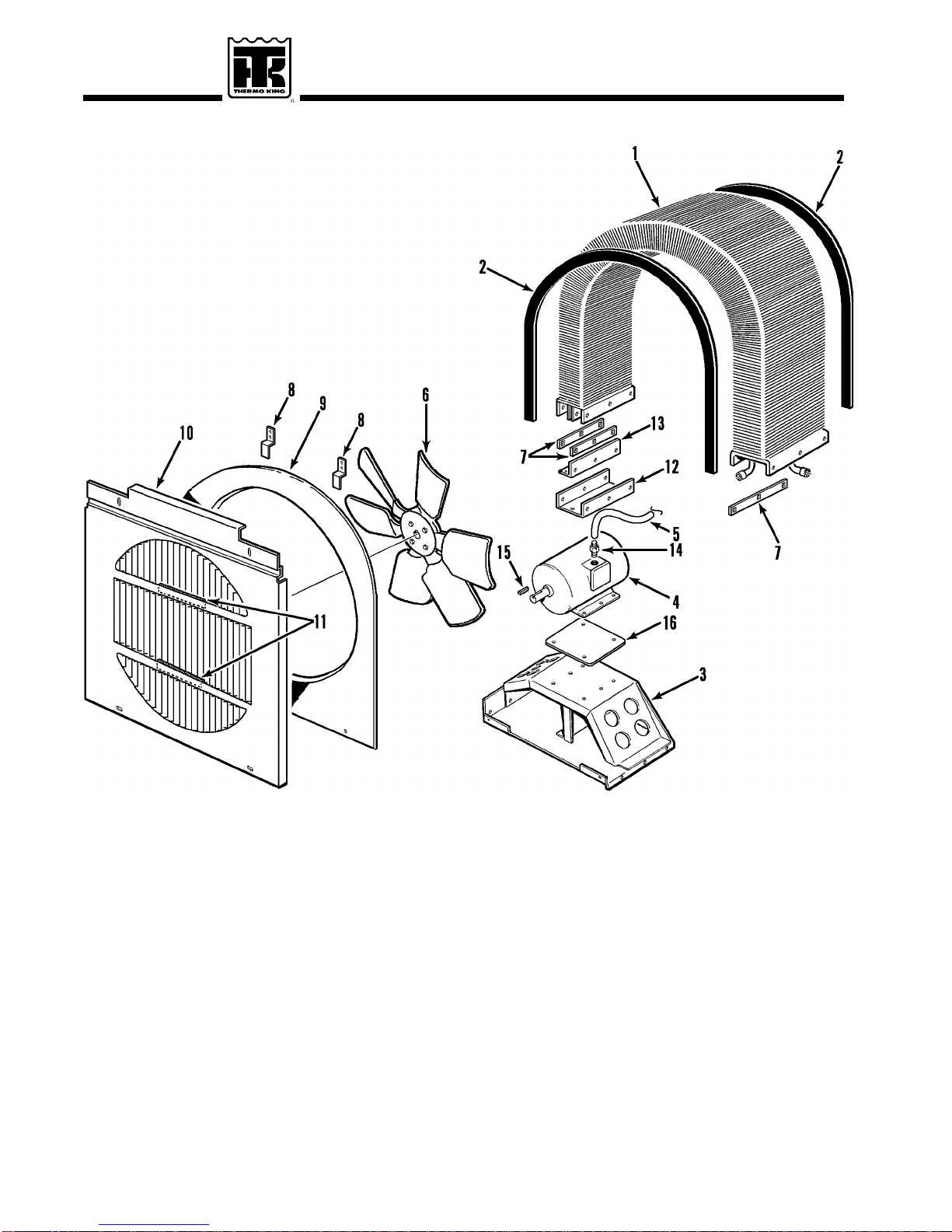

102B4 CONDENSER COIL & MOTOR GROUP Revised
6/5/97
CONDENSERCOIL
& MOTOR GROUP
102B4
6/5/97

8
102B4
CONDENSER COIL & MOTOR GROUP
Revised
6/5/97
REF PART# DESCRIPTION QTY
1 67-1383 COIL - condenser (incl 7, 12, 13) 1
67-1383 COIL - condenser (incl 7, 12, 13; M19.10 only) 1
55-2969 SCREW - coil 3
55-2959 LOCKWASHER 3
55-2958 FLATWASHER 3
2 99-5966 STRIP - gasket (condenser, 50 ft) A/R
3 98-4236 BRACKET - condenser motor 1
55-4931 WASHER - special 4
55-4955 NUT 4
55-7422 INSERT - threaded (1/4-20) 6
4 104-607 MOTOR - condenser (M19.9, M19.10) 1
44-6259 •PROTECTOR - motor 1
41-1778 •PROTECTOR - high speed 1
41-1779 •PROTECTOR - low speed 1
77-1498 •BEARING - motor 2
55-2969 SCREW - motor 4
55-4727 WASHER - special 4
55-2958 FLATWASHER 4
55-4954 NUT 4
5 44-7112 HARNESS - condenser 1
11-3305 SLEEVING - hose (25 ft, pvc) A/R
6 78-520 FAN - condenser 1
55-3089 •SCREW - hub 2
55-2959 •LOCKWASHER 2
55-2958 •FLATWASHER 2
7 99-7088 NUTSTRIP 3
55-3010 RIVET - nutstrip 6
8 91-7474 BRACKET - orifice 2
55-1587 SCREW - bracket 6
55-2086 FLATWASHER 4
55-1800 LOCKWASHER 4
9 98-3035 ORIFICE - condenser 1
10 98-3202 GRILLE - condenser (M19.1, M19.2, M19.4, M19.5, M19.7,
M19.8, M19.9, M19.10) 1
98-4292 GRILLE - condenser (M19.4) 1
55-2977 SCREW - grille (1.00 lg) 2
55-2979 SCREW - grille (1.25 lg) 2
55-4742 WASHER - special 2
55-2086 FLATWASHER 2
55-1800 LOCKWASHER 4
55-5691 INSERT - threaded 4
11 99-9702 STRIP - gasket (grille) 2

9
102B4 CONDENSER COIL & MOTOR GROUP Revised
6/5/97

10
102B4
CONDENSER COIL & MOTOR GROUP
Revised
6/5/97
REF PART# DESCRIPTION QTY
12 91-6153 BRACKET - coil 1
55-2969 SCREW - bracket 6
55-2959 LOCKWASHER 6
55-2958 FLATWASHER 6
13 99-9338 ANGLE - condenser coil 1
55-1587 SCREW - angle 4
55-1800 LOCKWASHER 4
55-2086 FLATWASHER 4
55-3059 NUT 4
14 44-5316 CONNECTOR - barb (1/2 mpt) 1
55-2788 FITTING - barb (3/4 mpt) 1
55-5018 LOCKNUT (3/4 mpt) 1
15 55-3264 KEY - motor 1
16 91-6961 INSULATION - motor 1

11
123B3 EVAPORATOR COIL & BLOWER GROUP Revised
6/2/98
EVAPORATOR
COIL & BLOWER
GROUP
123B3
6/2/98

12
123B3
EVAPORATOR COIL & BLOWER GROUP
Revised
6/2/98
REF PART# DESCRIPTION QTY
1 99-8958 ORIFICE - blower 4
55-1587 SCREW - orifice 12
55-2086 FLATWASHER 12
55-5223 WASHER - special 12
55-1800 LOCKWASHER 12
55-3059 NUT - captive 12
2 99-8960 DOOR - blower housing 2
55-2995 SCREW - door 8
55-2964 LOCKWASHER 8
55-2001 FLATWASHER 8
55-4526 NUT - captive 2
3 91-6210 PLATE - blower housing 2
55-1587 SCREW - plate 4
55-1800 LOCKWASHER 4
55-2086 FLATWASHER 4
55-1801 NUT 4
4 98-2982 HOUSING - blower (curbside) 1
55-1587 SCREW - housing 12
55-1800 LOCKWASHER 12
55-2086 FLATWASHER 12
55-7422 INSERT - threaded 12
5 78-551 WHEEL - blower (curbside) 1
55-2962 •SCREW - hub to shaft 2
55-2958 •FLATWASHER 6
55-2959 •LOCKWASHER 6
203-392 SEALER - antiseize A/R
6 99-7099 BAND - motor 2
55-2958 FLATWASHER 4
55-4954 NUT 4
7 104-608 MOTOR - evaporator blower (M19.7, M19.8) 2
44-6944 •PROTECTOR - high speed 1
44-6945 •PROTECTOR - low speed 1
104-608 MOTOR - evaporator blower (M19.9, M19.10) 1
41-1567 •PROTECTOR - high speed 1
41-1568 •PROTECTOR - low speed 1
77-1498 •BEARING - motor 2
55-2995 SCREW - motor 8
55-2001 FLATWASHER 8
55-2964 LOCKWASHER 8
8 78-550 WHEEL - blower (roadside) 1
55-2962 •SCREW - hub to shaft 2

13
123B3 EVAPORATOR COIL & BLOWER GROUP Revised
6/2/98

14
123B3
EVAPORATOR COIL & BLOWER GROUP
Revised
6/2/98
REF PART# DESCRIPTION QTY
55-2958 •FLATWASHER 6
55-2959 •LOCKWASHER 6
9 98-2983 HOUSING - blower (roadside, see item 4 for hardware) 1
10 33-1725 GASKET - evaporator 2
55-3035 RIVET - gasket 8
11 99-9529 MOUNT - motor 2
55-1587 SCREW - mount 8
55-1800 LOCKWASHER 8
55-2086 FLATWASHER 8
55-7422 INSERT - threaded 8
12 91-5659 BRACKET - support 2
13 98-4573 SUPPORT - motors/blowers 1
55-2969 SCREW - support 2
55-2959 LOCKWASHER 2
55-2958 FLATWASHER 10
55-4954 NUT 8
14 33-810 GROMMET 2
15 44-5316 CONNECTOR - barb (M19.7, M19.8) 2
55-2788 FITTING - barb (M19.9, M19.10) 2
55-5018 LOCKNUT - barb (M19.9, 19.10) 2
16 91-3371 PLATE - defrost switch access 1
17 33-1724 GASKET - plate 1
55-5636 SCREW - plate 4
18 67-1391 COIL - evaporator 1
67-1384 COIL - evaporator (M19.10 only) 1
55-2969 SCREW - coil 2
55-4954 LOCKNUT 10
55-2958 FLATWASHER 12
19 99-8963 BLOCK - air (neoprene, 5 wide x 62 lg) 1
20 99-5966 STRIP - gasket (.25 thk) A/R
99-6968 STRIP - gasket (.12 thk) A/R
21 55-6010 PLUG (black poly) 2
22 33-2511 GROMMET 2
23 99-9168 ANGLE - coil support 1
24 55-2324 KEY - blower 2

15
123B12 REFRIGERATION COMPONENTS (M19.7, M19.8) Revised
3/16/01
REFRIGERATION
COMPONENTS
(M19.7, M19.8)
123B12
3/16/01

16
123B12

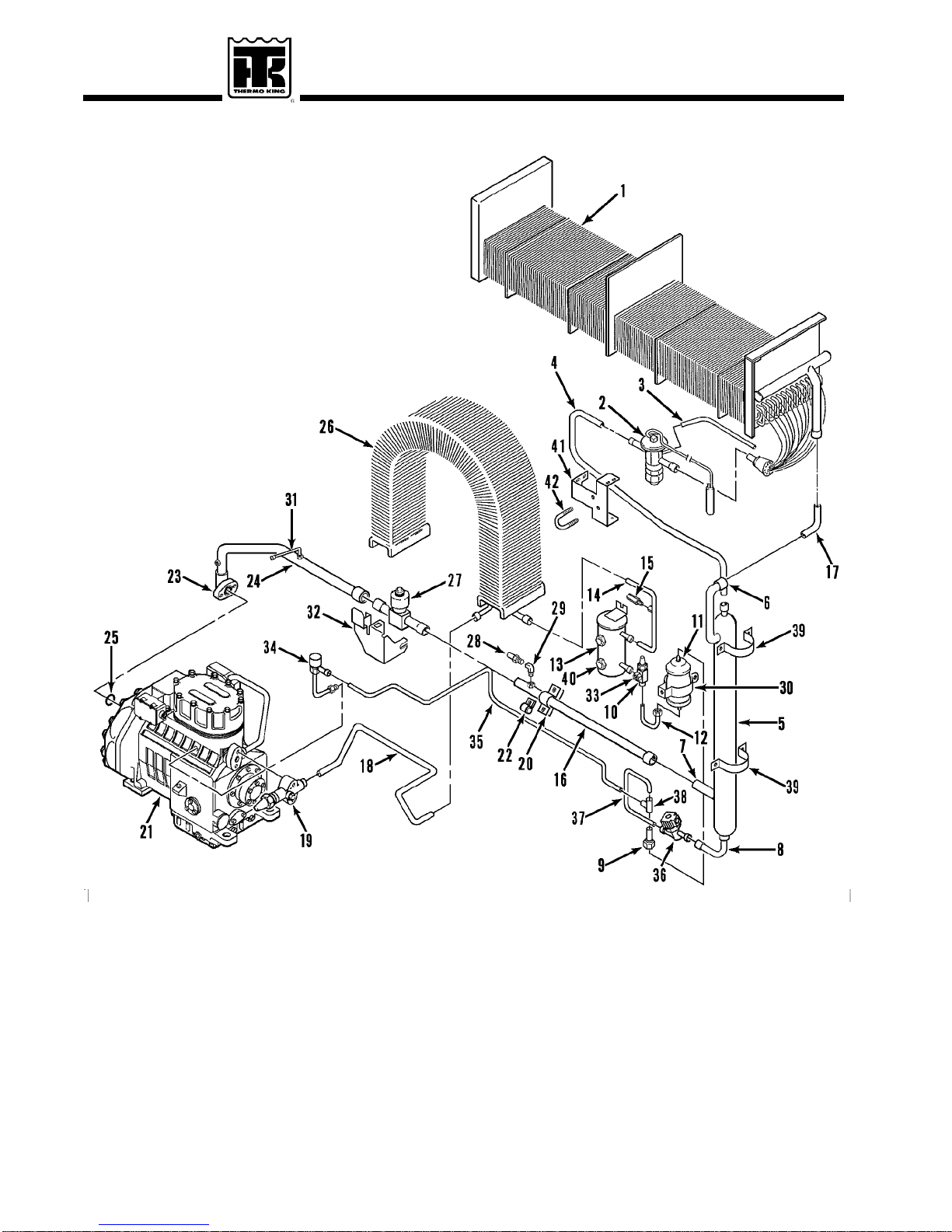

REFRIGERATION COMPONENTS (M19.7, M19.8)
Revised
3/16/01
REF PART# DESCRIPTION QTY
1 67-1391 COIL - evaporator 1
2 66-6601 VALVE - expansion 1
66-9378 •HOSE - engine to radiator 1
66-6567 •ELEMENT - power 1
3 66-5367 TUBE - equalizer 1
4 66-5366 TUBE - exchanger to expansion valve 1
5 67-1073 HEAT EXCHANGER (incl 6, 7, 8) 1
99-6968 STRIP - sealing (50 ft) A/R
6 66-4537 TUBE - exchanger to coil 1
7 66-6403 TUBE - suction 1
8 66-4466 TUBE - liquid 1
9 66-7621 TUBE - dehydrator to tee 1
55-302 NUT - tube 1
10 66-6603 VALVE - dehydrator inlet 1
11 66-9015 DEHYDRATOR 1
55-2070 GASKET - flare nut 2
12 66-5888 TUBE - receiver to dehydrator 1
13 N/A TANK - receiver (see note) 1
67-1343 TANK - receiver 1
55-1587 SCREW - tank 2
55-1800 LOCKWASHER 2
55-2086 FLATWASHER 2
14 66-7623 TUBE - condenser to receiver tank 1
55-3295 •FITTING 1
15 66-7392 VALVE - relief 1
33-1015 •O-RING - relief valve 1
16 66-6143 TUBE - exchanger to modulating 1
66-3615 •FITTING - saddle 1
17 66-4538 TUBE - exchanger to coil 1
18 66-7395 TUBE - valve to coil 1
19 66-3942 VALVE - discharge (see 123B13) 1
20 55-6020 CLAMP - suction tube (plastic) 1
91-1779 CLAMP - suction tube (stainless steel) 5
91-5790 SPACER - clamp 1
55-4811 SCREW - clamp 2
55-2086 FLATWASHER 2
55-1800 LOCKWASHER 2
21 8102-743 COMPRESSOR - service (see 133D7, 460V) 1
22 55-6388 CLAMP - tube (liquid injection) 4
55-2979 SCREW - clamp 4
55-2086 FLATWASHER 4
55-1800 LOCKWASHER 4

17
123B12 REFRIGERATION COMPONENTS (M19.7, M19.8) Revised
3/16/01

18
123B12
REFRIGERATION COMPONENTS (M19.7, M19.8)
Revised
3/16/01
REF PART# DESCRIPTION QTY
55-4953 NUT 4
23 66-1955 ELBOW - flange 1
55-2747 SCREW - flange 2
55-2159 LOCKWASHER 2
55-2173 FLATWASHER 2
24 66-7617 TUBE - suction (see 123B11) 1
25 33-920 O-RING - suction 1
26 67-1383 COIL - condenser (see 102B4) 1
27 66-5748 VALVE - modulation (for connectors see 115D14) 1
66-5749 •VALVE - modulation (see 123A8) 1
28 44-6930 SWITCH - low pressure cutout 1
33-768 GASKET - flare 1
29 55-308 ELBOW - low pressure cutout 1
30 55-4390 HANGER - dehydrator 1
55-3121 SCREW - dehydrator 1
55-1587 SCREW - hanger 1
55-2086 FLATWASHER 4
55-4953 NUT 2
31 66-7359 TUBE - compound gauge 1
66-5752 FITTING - tube 1
32 91-5627 BRACKET - solenoid 1
55-4954 NUT 1
33 66-6610 FITTING - charge port (highside) 1
66-7182 •CAP - fitting 2
34 66-7618 VALVE - solenoid (for connectors see 115D14) 1
41-767 •COIL - valve 1
35 66-7619 TUBE - tee to solenoid valve 1
36 66-7622 VALVE - solenoid (see 124E2, for connectors see 115D14) 1
37 66-7620 TUBE - solenoid to tee 1
38 55-2181 TEE (1/2 x 3/8 x 1/2) 1
39 91-6209 CLAMP - exchanger 2
55-3101 RIVET - clamp 4
40 66-6870 INDICATOR - liquid (for 67-995) 2
66-7420 INDICATOR - liquid (for 67-1343) 2
203-393 SEALER - Loctite A/R
41 91-1874 BRACKET - valve 1
55-1587 SCREW - bracket 2
55-2086 FLATWASHER 2
55-1800 LOCKWASHER 2
55-7422 INSERT - threaded 2
42 55-5211 U-BOLT - valve 2
55-2001 FLATWASHER - u-bolt 2

19
123B12 REFRIGERATION COMPONENTS (M19.7, M19.8) Revised
3/16/01
