Sirius Range Hoods SU906 User manual

INSTALLATION INSTRUCTIONS
Models covered by this instructions:
SU906 SUTC919 SUETC919
*** BEFORE INSTALLATION ***
ENSURE THERE IS NO VISIBLE OR HIDDEN DAMAGE SUSTAINED DURING SHIPPING
*** SHIPPING DAMAGE ***
MUST BE REPORTED WITHIN 5 DAYS OF RECEIPT
BUILT-IN RANGE HOODS
CARE AND USE MANUAL FOR:

3
1
4
1A
32

5
9
6
10
7 8
4

11 12
16
13 14
15
5

17 18
19 20
21
6
22

23 24
25 26
7
27

WARNING
Thank you for purchasing a Sirius Range Hood.
Please read all the instructions in this manual before
installing the appliance.
Save these instructions for future reference.
Only use this appliance as an exhaust ventilation system for the re-
moval of cooking vapors. DO NOT use to expel ammable substan-
ces or any other materials or vapors.
The installation procedures in this manual are intended for quali-
ed installers, service technicians or persons with similar qualied
background.
DO NOT attempt to install this appliance yourself.
Ensure that electrical power is turned off at source before commen-
cing installation. All electrical wiring must be properly installed, insula-
ted and grounded and conform to all applicable codes and standards.
Make sure all existing duct work is clean of grease build up, or duct
work should be replaced, if necessary, to avoid the possibility of a
grease re. Check all joints on ductwork to ensure proper connec-
tion and all joints should be properly taped. Be careful when cutting
through ceilings or walls not to damage any hidden pipes or electrical
wiring. Ensure your kitchen has sufcient air return vents to replace
the exhausted air.
The minimum distance between the cooker surface and the inferior
part of the cooker hood must be of 650 mm.
Fan ducts should always be vented to the outside of your home and
never into spaces within walls, ceilings, lofts or attics. Only use rigid,
smooth steel for ducting. The exhaust point of the blower requires a
6” round or 8” connection.
8

TABLE OF CONTENTS
BEFORE YOU BEGIN 10
DUCTING
External venting Requirements 10
ELECTRICAL
Electrical Supply 11
INSTALLATION
Installation SU906 12
Installation SUTC919 13
OPERATING PROCEDURES
General Advice 15
Functions 15
MAINTENANCE
Cleaning the Filter 17
Cleaning the Hood 17
Substitution of the LED bar 18
WARRANTY 19
9

BEFORE YOU BEGIN: It is advisable to
test run the range hood before installa-
tion.
BEFORE STARTING – please read this
entire document and ensure you are fully
conversant with the require-ments and li-
mitations. These units weigh approximately
125lbs and therefore require a minimum of
two people to install.
BEFORE YOU BEGIN
The manufacturer declines all responsibility
in the event of failure to observe the instruc-
tions given here for installation, maintenan-
ce and suitable operation of the product. The
manufacturer further declines all responsibi-
lity for injury due to negligence and the war-
ranty of the unit automatically expires due
to improper maintenance and/or installation.
Always fasten connections with sheet metal
screws and tape all joints with certied Sil-
ver Tape or Duct Tape. Do not use screws to
fasten ductwork to the hood, only use tape
as the screws will stop the dampers from
opening and your hood will not work. You
can increase the duct size of the duct run
but never decrease it. Use the shortest and
most direct route possible. Always, where-
ver possible, reduce the number of transi-
tions and turns with as few sharp angles as
possible. Two staggered 45 degree angles
are better than one 90 degree. Make these
turns as far away from the motor exhaust as
possible, with as much space between each
bend.
DUCTING
(Not applicable if the range hood is used in
re-circulating mode).
WARNING: Do not vent this appliance into
any other ductwork, spaces between walls,
ceilings, attics, garages or any other con-
ned space.
External Venting Requirements.
When planning new ductwork, always look
for the most direct route to the outside. Ven-
ting can be done through the roof or directly
through the back outside wall. (See Figure
28 and 29) Only use rigid type metal ducting
(plastic ducting is generally not permitted by
code). Flexible ducting could restrict airow
by up to 50%.
g. 28 g. 29
10

Electrical Supply.
This appliance requires 120V/60Hz, 3amp
electrical supply – ensure an appropriately
qualied person completes the electrical ho-
ok-up. The connection point for the electrical
supply is at the top of the unit, therefore the
electrical supply must be run down from the
ceiling alongside the ductwork.
All electrical and venting hook-ups must be in
place before commencing installation of the
hood-fan.
ELECTRICAL
WARNING: All electrical work must be
performed by a qualied electrician.
Please ensure that the appropriate electrical
codes or prevailing local building codes and
ordinances are adhered to.
Ensure that the electricity supply is discon-
nected at source. Do not use an extension
cord or adapter plug with this appliance.
This appliance must be grounded. Connect
to a properly grounded branch circuit, pro-
tected by a 15 amp circuit breaker.
The ducting connection to the hood must
be in line with the central vertical axis of the
range hood, 1” away from the back wall on
which the hood is to be mounted.
Range hoods may interrupt the proper ow
of combustion gases from replaces, gas
furnaces and gas water heaters.
To minimize the risk of drawing these lethal
gases back into the home, please follow the
heating equipment manufacturers safety
standards and guidelines carefully.
Refer to NFPA and ASHRAE for additional
information.
With gas range or gas cook top a 8” round
connection is recommended.
11

INSTALLATION
Installation SU906
Before installing the appliance, make sure
that none of the parts is damaged in any
way. In case of damaged parts, contact your
retailer and do not proceed with installation.
Read all of the following instructions with
care before installing the appliance.
The LED bar of the range hood are supplied
in the packaging and you need to assemble
them at the end of the installation.

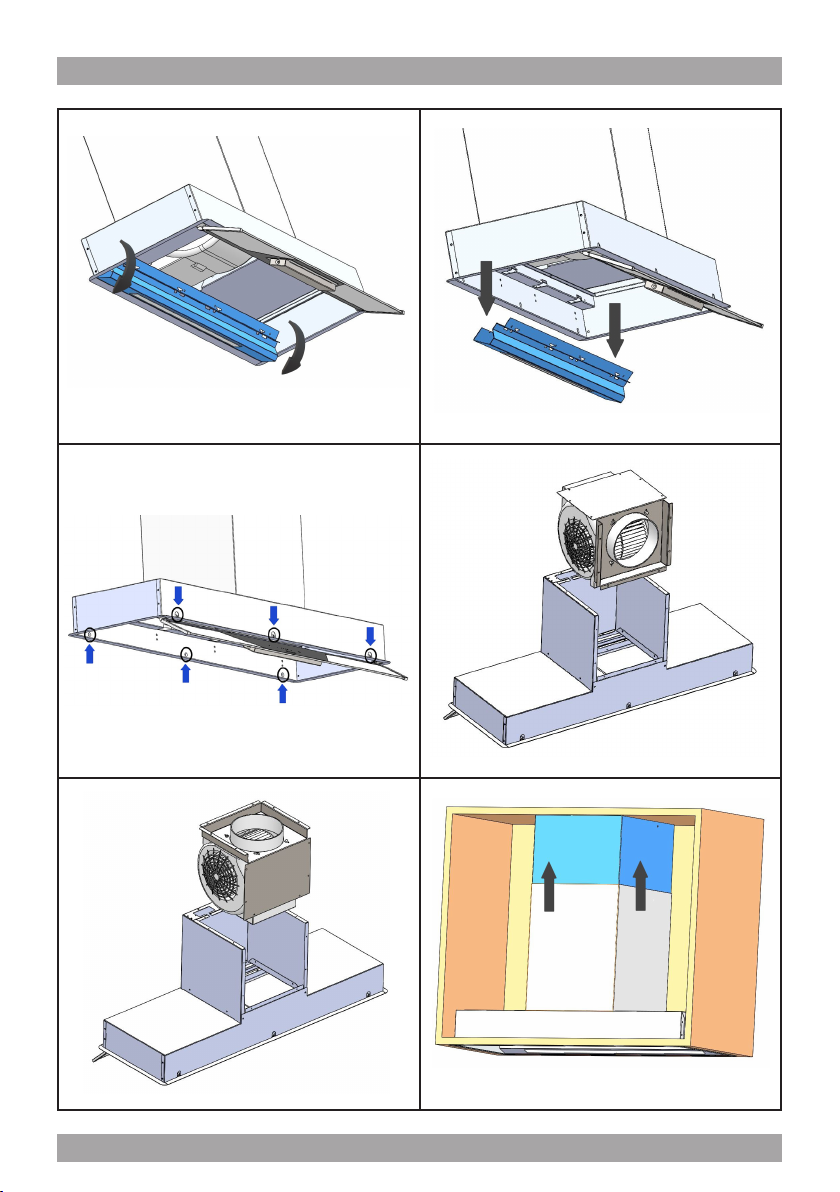

Before installing the appliance, remove the
metal grease lter and the oil collector. The-
se lters could be removed by pushing the
handles towards the back side of the cooker
hood and turning it downwards to unfasten it
from its slot. (Fig.1).
To remove the oil collector, loosen the two
screws as indicated in Fig. 1/A.
To install the appliance please respect the
following instructions.
The appliance must be installed by autho-
rised personnel. In order to do not damage
the electronic parts of the appliance please
do not use additional screws.
Essential precautions to respect before in-
stalling the appliance are the following:
- Prepare the power supply.
- Prepare a hole for the exhaust of the air
both in the ltering and in the exhausting
version.
- Use an exhausting pipe whose maximum
length does not exceed 5 meters.
- Do not use screws to x the outlet pipe to
the cooker hoods.
- Limit the no. of elbows in the piping , since
each elbow reduces the aspiration efciency
of 1 linear meter. (Ex.: if you use no. 2 x 90 °
elbows, the length of piping must not exceed
3 meters).
- Avoid abrupt direction changes.
- Use a 150 mm or 200 mm constant diame-
ter pipe for the whole length.
- Use piping approved by standards in force.
- In the units equipped with 2 motors please
use a 200mm constant diameter pipe for the
whole length
Make a cut-out on the bottom of the cabinet
which is suitable to hold the appliance in po-
sition (Fig. 2)
SU906 (520mm) 501 X 265mm - 19”23/32 X 10”14/32
SU906 (850mm) 835 X 265mm - 32”14/16 X 10”14/32
SU906 (27”) 670 X 265mm - 26”3/8 X 10”14/32

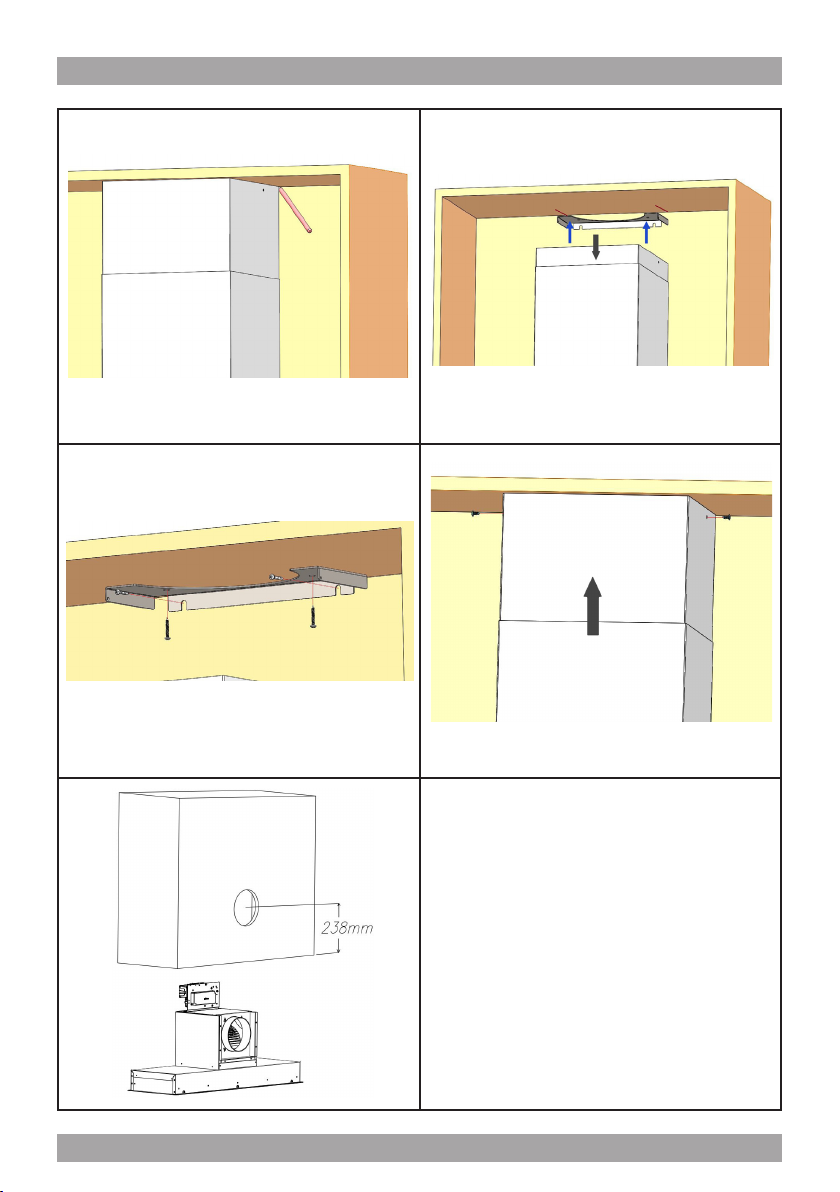

After drilling the kitchen cabinet having fol-
lowed carefully the instructions above, ca-
librate the xing spring depending on the
depth of the cabinet. (Fig. 3).
If the range hood has a single motor, the
pipe diameter must be 150mm. Otherwise
if the range hood has two motors, the pipe
diameter must be 200mm.
At this point, insert the range hood inside the
kitchen cabinet until the xed springs will be
hooked into.
Fix the range hood to the cabinet, in the front
and rear sides, using the screws equipped.
To x the hood on the rear side apply the
screws on the holes of oil container as on pics
indicated and fasten the screws (Fig. 4 - 5).
When the screws have been fastened, take
the LED bar and connect the two pin con-
nectors (Fig. 6).
Insert the LED bar on the appropriate hole
until it will be hooked into (Fig. 7).
At this point take the oil collector and hook
it on the appropriate hole of the hood. Plea-
se be careful not to scratch and damage the
product. (Fig. 8).
Fix the oil collector securing the pommels of
the range hood (Fig. 9).
At the end, place the grease lters that were
removed before (Fig. 10).
12

Warning!
Before connecting the exible exhausting
pipe to the motor, make sure the stop valve,
which is on the air outlet of the motor, can
swing.
Exausting version
Connect the ange to the exhausting hole
with an appropriate pipe. Make the electrical
connection through the supply cord.
Filtering version
Connect the ange with a pipe suitable to
convey the air to the top of the cabinet.
Make the electrical connection through the
supply cord.

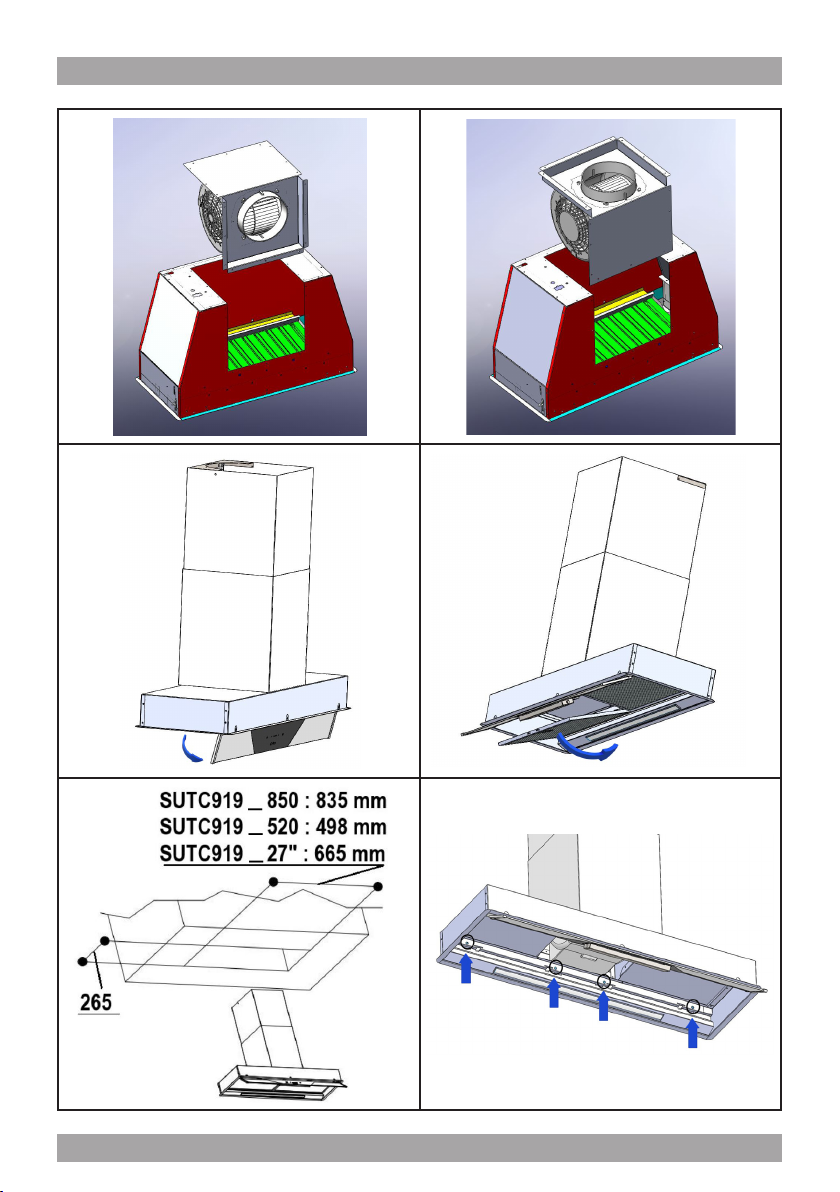

Rear vented version
All the models with one motor can be rear
vented; if the customer wants to use this op-
tion, it is necessary to remove the 18 screws
from the motor group support. Then take out
the metal support with motor included (Fig.
12). Turn the motor to have the air outlet on
the rear side (Fig. 11) and x the screws pre-
viously removed1
13
Installation SUTC919
Remove the grease lters before installing
the product, in order to avoid damage to the
appliance.
Open the glass by rotating it as shown in g.
13; then remove the grease lters by acting
on their specic handle and rotate them to
remove them from their seating (g. 14).
Make an opening on the bottom of the
kitchen cabinet having the following sizes:
(g. 15)
SUTC919 520: 265mm X 498mm - 10”7/16 X 19”39/64
SUTC919 850: 265mm X 835mm - 10”7/16 X 32”7/8
SUTC919 27”: 265mm X 665mm - 10”7/16 X 26”3/16
Make sure the cabinet structure and the ma-
terial used allow you to make this opening
without causing any damages, even during
the appliance installation.
Prepare the power supply inside the cabi-
net.
Prepare the air discharge hole for the pro-
duct being installed either in the sucking or
ltering mode.
Use an air discharge pipe whose maximum
length does not exceed 5 meters.
Limit the number of elbows in the piping, as
each elbow reduces the air capacity of the
hood of about 1 linear meter. (Eg.: if you use
no. 2 x 90° elbows, the length of the piping
should not exceed 3 meters).
Avoid abrupt direction changes.
Use a 150mm.
constant diameter pipe for the whole length.
Use piping approved by standards in force.
Remove the xing screws of the rear steel
bar, as shown in g. 16.
Rotate the steel bar, including the led bar, to
remove it from its seating (g. 17 - 18). You
can electrically disconnect the bar by acting
on the specic connector.

Filtering version
Connect the ange with a pipe suitable to
convey the air to the top of the cabinet. Con-
nect the appliance with the electrical mains
through the supply cord.
Chimney installation
Lift the internal steel chimney up to the top
of the wall unit (g. 22), draw with a pencil
the rear end of the internal chimney on both
sides (g. 23), lower the entire chimney and
position the xing bracket in corresponden-
ce with the marking made (g. 24), secure
the bracket with screws (g. 25).
Lift the internal chimney up to cover the bra-
cket and secure it with screws positioned on
both sides (g. 26).
14
Place the appliance inside the cabinet and
x it by inserting the screws supplied into the
holes, as shown in g. 19.
Both in the front and rear side of the applian-
ce, ret the stainless steel bar previously re-
moved, connect the led bar electrically by
means of the specic connector, and then
ret the grease lter.
Rear air outlet.
Models equipped with only one motor can
be installed having the motor air outlet orien-
ted towards the appliance rear side.
If you choose this option, you will need to
remove the motor support by removing the
12 screws (g. 21), taking out and rotating
the support, placing it in its housing , always
keeping the air outlet oriented towards the
appliance rear side. (g. 20).
Secure it by using the screws previously re-
moved.
If you intend to rotate the fan, in order to
orient the air outlet to the rear side of the
product, you must foresee the air outlet
channeling at 238mm distance from the lo-
wer surface of the wall unit (g. 27).
Blocking of the stop valve Warning!
Before connecting the exible exhausting
pipe to the motor, make sure the stop valve,
which is on the air outlet of the motor, can
swing.
Exausting version
Connect the ange to the exhausting hole
with an appropriate pipe. Connect the ap-
pliance with the electrical mains through the
supply cord.

FUNCTION
Mod. SU (Fig. 30).
A: Light ON/OFF button
B: Blower Speed 1 (low) or OFF
C: Blower Speed 2 (medium)
D: Blower Speed 3 (high)
E: Blower Speed 4 (intensive)
F: 10 Minute Timer
OPERATING PROCEDURES
Read all the instructions before operating
the appliance. Save these instructions for
future reference.
General Advice.
Ensure that the grease lters are in place.
Without these components, operating blo-
wers could catch on to hair, ngers and lo-
ose clothing. Keep fan, lters and surfaces
free from grease and fat. Always turn the
hood fan ON when cooking. NEVER leave
cooking unattended.
NEVER dispose cigarette ashes, ignitable
substances or any foreign objects into blo-
wers.
Cooking that generates ame is not recom-
mended as this hood is equipped with a
thermal overload that will shut down the mo-
tor if it senses excessive heat. When frying,
oil in the pan can easily overheat and igni-
te. Heat oil slowly in an appropriately sized
pot (covering the entire burner) to reduce
the risk of boiling over and burning.
In the event of a range top grease re, ob-
serve the following:
Switch OFF the range hood. Turn off the
cook top then smother ames with a close
tting lid, cookie sheet or other metal tray. If
the ames do not go out immediately
EVACUATE AND CALL THE FIRE DE-
PARTMENT.
Never pick up a aming pan - you may be
burned. DO NOT USE WATER including
wet dishcloths or towels, as a violent steam
explosion may occur.
g. 30
Mod. SUTC – Glass (Fig. 31)
A: Light switch On/Off
B: Reduce speed / OFF motor
C: Luminous telltale
D: ON motor/incrase speed
E: 10 - minute timer
The touch control key allows the function de-
sired by touching the relative key.
If the electrical power supply to the product
SUTC is cut, 15 seconds are needed for sel-
fdiagnostics after the functions are restored.
Meanwhile, its operation may be incorrect.
The products are endowed with an electronic
device which allows the automatic switching
off after 4 hours from the last operation.
g. 31
15

Filter requires washing indicator: after 30
hours of use, all the buttons will light up to
remind you that the grease lter should be
cleaned. Follow the instructions for cleaning
lters in this booklet. Once the grease lters
have been cleaned and replaced, reset by
pressing the timer button (F). Do not rely so-
lely on this indicator. Generally, the grease
lter should be washed on a regular basis to
avoid grease lter res.
The blower should be turned on for appro-
ximately 5 minutes before cooking in order
to establish air currents upward through the
hood. Use the low speeds for normal use
and the higher speeds for strong odors and
fumes.
16

MAINTENANCE
The hood-fan should provide many years of
trouble free service provided it is maintained
properly.
Cleaning the Filter.
Clean the grease lter either by carefully
hand washing, (so as not to damage the lter
design) or preferably in a dishwasher. De-
pending on use, the lters should be cleaned
at least every two weeks in a dishwasher.
If a carbon lter has been tted this must be
replaced at least every 6 months as a mini-
mum. Depending on cooking style and na-
ture of cooking (greasy foods, fry’s, curries
etc) would probably require more frequent
replacement - if odors start to manifest
themselves when cooking it is time to repla-
ce the carbon lter . We suggest you retain
a spare set. These can be ordered from the
supplier of your range hood. Cleaning the Hood.
Cleaning of the internal parts should be done
with a clean damp (not excessively wet) cloth
together with regular household detergent.
The external stainless steel elements should
be cleaned with a good quality foaming stain-
less steel cleaner. Read the manufacturers
directions. Generally they recommend that
the foam be sprayed onto a clean dry cloth
and then applied to the stainless steel. Allow
the foam to react on the surface for a few mi-
nutes and then wipe with a clean dry cloth.
It is advisable to clean the surfaces that are
exposed directly to heat from the cook-top on
a regular basis, to prevent the marks from be-
coming baked on.
Do not under any circumstances use an
abrasive type cleaner as this will scratch and
damage the stainless steel nish. Glass com-
ponents should be cleaned with a product
such as Windex.
17

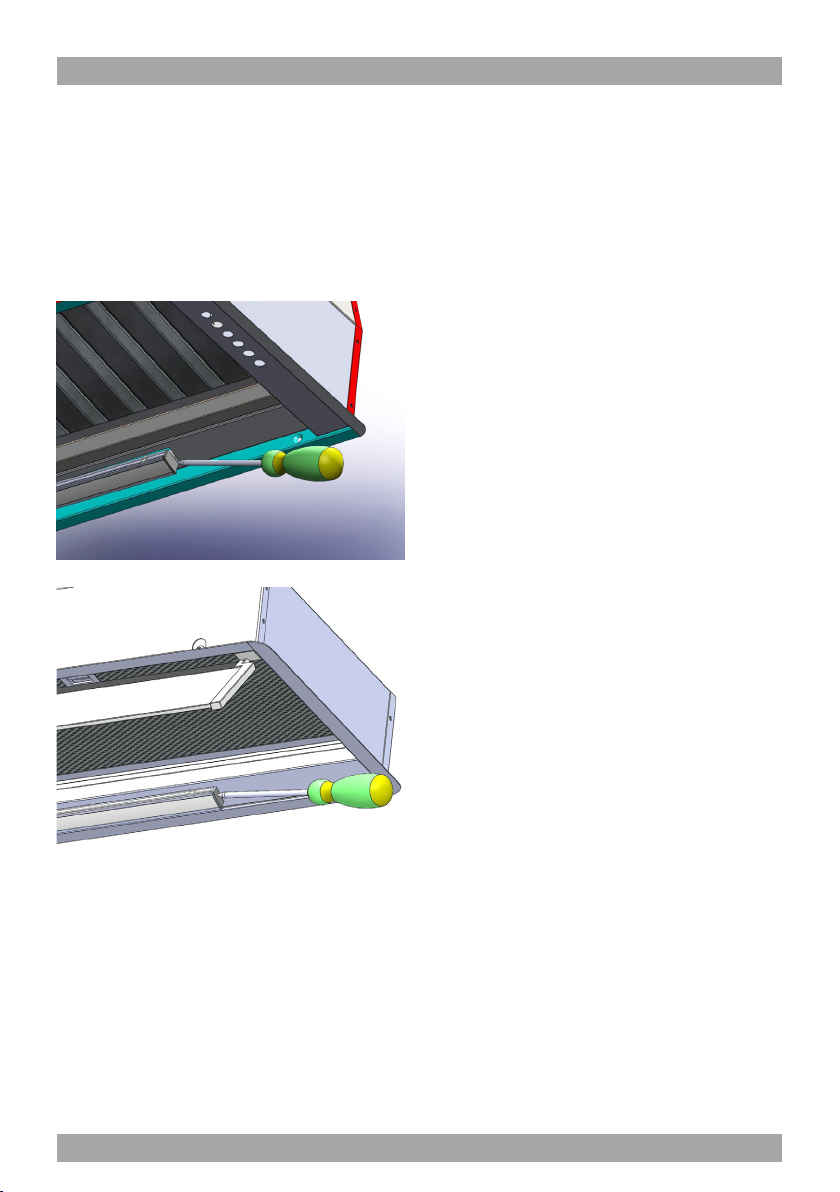

Substitution of the LED bar:
Using an appropriate tool, remove the LED
bar from its seat, disconnect it electronically
using the appropriate connector, then substi-
tute it with a LED bar with same characteri-
stics.
18

Three Year Limited Warranty
YOU MUST REGISTER THE PURCHASE OF YOUR PRODUCT ON LINE AT
www.siriuscappe.com/usa/warranty.htm TO CONVALIDATE YOUR WARRANTY.
YOU CAN FIND THE DATA OF YOUR HOODS ON A LABEL INSIDE THE HOOD. JUST REMOVE
THE GREASE FILTER TO READ IT.
Sirius S.P.A.
Zona industriale Berbentina 6/A
60041 SASSOFERRATO (AN)
ITALY
Sirius after sale service
Telephone (toll free): 1-877-474-8770
Email: [e-mail]
Register Online! www.siriuscappe.com/usa/warranty.htm
90009060919 - GM 05/19
WARRANTY SERVICE
To qualify for warranty service, you must notify Sirius After sale service at the email address
stated below or call toll free USA 1-877-474-8770 and provide the model number, description
of the fault or defect and original date of purchase. Sirius reserves the right to request proof
of original purchase. Sirius will at its sole option and discretion replace products that arrive
damaged through shipping, provided shipping damage is reported as stated above WITHIN 5
BUSINESS DAYS OF RECEIPT of the shipped product or products.
ONE YEAR SERVICE REPAIR WARRANTY:
During the rst year from date of original purchase, Sirius will, at its option, repair or replace, without
charge, any product or part which is found to be defective under normal use and service.
THREE YEAR PARTS WARRANTY:
For three years from date of purchase, Sirius will provide free of charge, non-consumable replacement
parts which are found to be defective under normal use and service.
WHO IS COVERED:
Sirius warrants to the original consumer purchaser of its products that such products will be free from
defects in materials and workmanship for a period of three years from the original date of purchase.
There are no other warranties, express or implied, including, but not limited to, implied warranties of
merchantability or tness for a particular purpose or application.
WHAT IS NOT COVERED:
This warranty does not extend to lters, lamps, batteries, ducts and ductwork components. This war-
ranty does not cover normal maintenance and service or products or parts which have been subject to
misuse, negligence, accident, improper maintenance or repair, faulty installation or installation contrary
to recommended installation instructions. The warranty on glass screens is limited to manufacturing
defects only and expressly excludes cracks and breakages as a result of faulty installation. Labor and
associated costs associated directly with removal and re-installation are expressly excluded.
The duration of any implied warranty is limited to the three year period as specied for the express
warranty. Some states and provinces do not allow limitation on how long an implied warranty lasts, so
the above limitation may not apply to you.
