Thermo Scientific ES Series User manual

1
ES Series Laboratory
Refrigerators User's Manual
Laboratory Freezer Range
Applicable models:
151F-AEV-TS
151F-AEW-TS
232F-AEV-TS
232F-AEW-TS

2
Contents
Intended Use and Special Warning 3
Before first use 3
Positioning of freezer 3
Transportation and moving of freezer 4
Energy saving tips 4
Important information 4
Product information 4
Product details 5
Controlleroverview 6
Viewing and resetting minimum and maximum temperatures 7
Changing the factory set point 8
Changing the temperature scale 9
Changing the remote alarm contacts 9
Alarms 10
Remote alarm contacts 10
Maintenance and Servicing 12
Defrosting 12
Cleaning 12
Reversing the door 13
Storage 14
Electrical Connection 15
Disposal 16
Troubleshooting 17
Warranty 18
Contact Information 18

3
Intended Use and Special Warning
This equipment is tested in compliance with established regulations and then shipped ready for
use. This equipment is intended for general purpose cold storage and is not to be used in the
presence of explosive gases or mixtures and / or close to sources with high magnetic or electric
fields. Not intended for flammable material storage.
If the equipment is used in a manner not specified by the manufacturer, the protection provided
by the equipment may be impaired.
Thank you for purchasing this ES series cold storage equipment. Before you first use this
laboratory freezer please carry out the following actions:
•Check that the freezer has not been damaged in any way during transportation.
•If any damage is found it must be reported your local dealer immediately.
•Ensure all packaging has been removed, including cardboard, polystyrene and any tape
used to hold shelves in place for transportation.
•The freezer has been cleaned prior to despatch; however, we advise that it should be
cleaned using lukewarm water containing a mild detergent and a soft cloth.
•We recommend that the freezer should be left in an upright position for 24 hours prior to
switching on.
•This equipment is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the equipment by a
person responsible for their safety.
•Children should not be allowed to play with the equipment.
Positioning and safely using your ES series Freezer
•Warning – to reduce risk of the unit falling over, do not tip any unit beyond 10 degrees
•Make sure the equipment is placed in a dry, well ventilated site, away from heat sources.
•The equipment must be placed on a level surface. If necessary, adjust the feet on the
product so the equipment remains level during operation.
•The equipment should have sufficient clearance around it to provide adequate ventilation
– 10cm at each side, 6cm at the rear and 2.5cm at the top.
•Before ANY maintenance activity, pull the plug out of the socket by gripping the plug,
DO NOT pull on the plug cord.
•DO NOT use double-wire extension cords. If an extension cord is necessary make sure it
is a cord, which possess a protection safety certificate.
•If the main power supply cord is damaged, it should be replaced by a qualified service
engineer.
•DO NOT attempt any repairs to the equipment yourself (apart from those highlighted in
the Maintenance and Service Section). Repairs carried out by someone without the
relevant training are putting their personal safety at risk and will invalidate your
warranty.
•Do not store explosive substances such as aerosol cans with a flammable propellant in
this equipment.
•WARNING: this equipment is only to be operated by authorised personnel or personnel
who have correct knowledge on how the equipment operates.

4
Transporting and moving your ES series Freezer
The freezer must always be moved in the vertical position. The cabinet must not be tilted
anymore than 10°. In the event that the cabinet is tilted more than 10°, the power supply must
not be connected until the equipment has stood upright for at least 24 hours.
Energy saving tips
This equipment is cooled by energy-efficient R600a refrigerant. To keep running costs as low as
possible always:
•Position the equipment away from heat sources.
•Make sure the air can circulate freely around the equipment, don’t block ventilation grid.
•Ensure that products being stored are below room temperature upon entry.
•Make sure the door is opened as little as possible whilst in use and closed as quickly as
possible to prevent unnecessary temperature fluctuations.
Important Information
The freezer contains environment-friendly, non ozone depleting refrigerant R600a. As R600a is
a flammable gas, it is important to avoid damage to the refrigeration circuit during transport and
installation. If the refrigeration circuit is damaged, avoid using a naked flame in the vicinity of
the freezer and connecting power to the freezer. Also make sure there is good ventilation in the
room. If you are in doubt please contact your supplier.
– WARNING: Keep ventilation openings, in the equipment enclosure or in the built-in
structure, clear of obstruction.
– WARNING: Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
– WARNING: Do not damage the refrigerant circuit
– WARNING: Do not use electrical equipments inside the food storage compartments of
the equipment, unless they are of the type recommended by the manufacturer.
Product Information
This freezer has been designed and built with the intention of the product being used within a
Laboratory and is designed to store contents between -12 and -20°C.

5
Please see below for specific product information:
Model Height
(mm) Width (mm) Depth (mm) Weight (Kg) Refrigerant type Ambient/Room working
temperature
Door
Type
151F 845 595 635 36 R600a +10°C
to
+32°C
Solid
232F 1565 595 670 60 Solid
Product details
1. Lock
2. Electronic Controller
3. Door Handle
4. Wire Shelf
5. Wire Basket
6. Adjustable foot (2 at front of equipment)
There are also 2 roller castors at the rear of the equipment to ease product movement.
Please contact your local representative for more information on replacement parts
1 2
4
5
6
3

6
Controller overview and operation
1. Menu
2. Lock keypad
3. Maximum temperature / Up
4. Power
5. Mute
6. Minimum temperature / Down
7. Set / Enter
1 2 3
4 5 6 7

7
Viewing & resetting minimum and maximum temperatures
The factory default maximum temperature is XXX oC and the minimum temperature is XXX oC.

8
Changing the factory set point
(the set point is the point at which the freezer normally holds the temperature at; in rare circumstances
such as high/low room temperatures it may be necessary to adjust this slightly. Changing the factory
setting is not recommended)
Function Press Holdbutton(s)
downfor Examplescreen
Tochangethesetpoint 3seconds
followedby Once
followedby 1second
(currentsetpoint)
followedby /
(Increase/Decrease)
upto10times
followedby 1second
Note:setpointcanbeincreasedordecreasedin+/‐0.1°incrementsbyaMAXIMUMof1°C

9
Changing the temperature scale between Celsius (°C) and Fahrenheit (°F)
Function Press Holdbutton(s)
downfor Examplescreen
Tochangetemperaturescale 3seconds
followedby Twotimes
followedby 1second
(currentscale)
followedby /Once
followedby 1second
Changing the remote alarm contacts
Function Press Holdbutton(s)
downfor Examplescreen
Tochangethealarmcontactstate 3seconds
followedby Threetimes
followedby 1second
(currentstate)
followedby /Once
followedby 1second
Note:NO=NormallyOpen,NC=NormallyClosed

10
Warning Alarms
This freezer has been designed to provide both an audible and visual alarm should any of the
following situations occur:
•Door is left open for a set period
•Internal air temperature goes outside the set parameters, either too high or too low
•Internal ‘load’ temperature goes outside the set parameters, either too high or too low
Should one of these alarms occur this can be muted by pressing on the controller.
The ‘load’ temperature is a simulated temperature which is intended to provide an indication of
the temperature of the freezer’s contents (e.g. a 5ml sample). The temperature of a freezer’s
contents will change more slowly (up or down) than the air temperature within that freezer
should there be a fault or the door is left open.

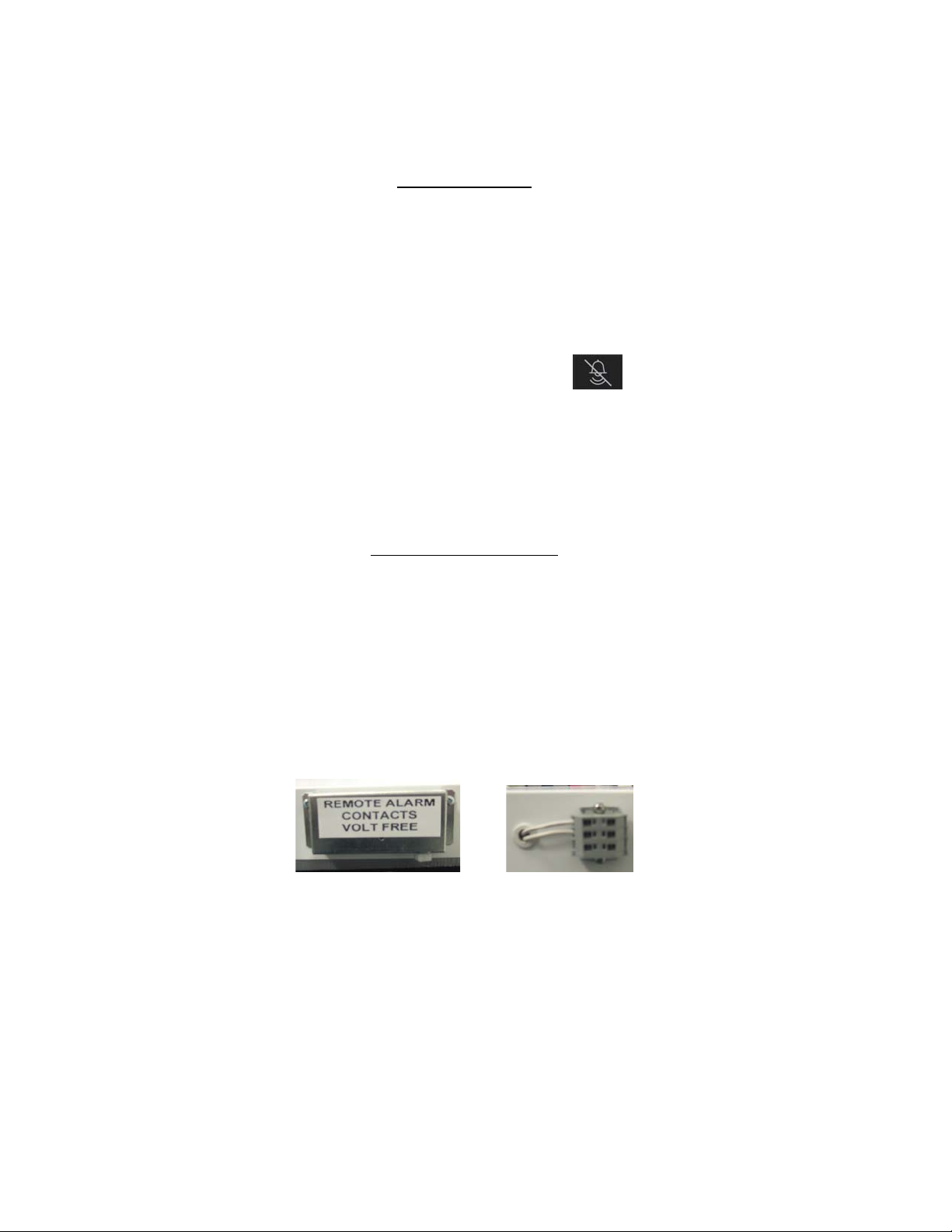

Remote alarm contacts
All ES series laboratory freezers include remote alarm contacts and these terminal contacts
enable the user to connect to a remote control station; these contacts can be found on the rear of
the cabinet. WARNING: These contacts must only be accessed by a competent electrician.
In order to use these contacts the following must be carried out:
1. The freezer MUST be disconnected from the power supply before removing the terminal
cover.
2. Unscrew the cover (figure 1) on the right hand side of the rear of the cabinet to expose
the connectors (figure 2).
3. Use the right hand outer positions that correspond to the left hand cable positions for
your connections using 0.75mm cable stripped to 0.6mm.
4. Depress the larger slot above the cable entrance on the right hand side with a small
electrical screwdriver. This allows the cable to be inserted into the slot directly below.
In the event of a door open alarm, high or low temperature alarm or power failure a remote relay
will switch within the controller to make an electrical circuit.
Figure 1 Figure 2

11
Please note that the contacts supplied are voltage free. A voltage of between 12V DC and 230V
AC can be connected at the contacts. The maximum load must not exceed 2A. The minimum
power rating is 500mA / 12V AC.
In a normal condition (i.e. no alarm) the relay OPENS the contact for the remote alarm facility.
In an alarm condition the relay CLOSES the contact for the remote alarm facility.

12
Maintenance and Service of your ES Series Freezer
Defrosting
All laboratory freezers require manual. In certain conditions (e.g. when the freezer is very full or
when any new items are stored in the freezer) frost may form on the rear wall as the compressor
must run for long periods of time.
Before manually defrosting the cabinet, make sure the power lead is disconnected from the
mains. Any loose frost found on the evaporator can be removed carefully using a wooden or
plastic scrapper.
WARNING: Do not use any knives or sharp metallic objects to remove frost.
Alternatively a non-scheduled defrost can sometimes be carried out as follows:
Cleaning
•Your freezer should be cleaned regularly.
•Before cleaning you MUST switch off and disconnect your freezer from the power
supply.
•The whole freezer except the door gasket can be cleaned with mild cleaning detergent.
•The door gasket should be cleaned with water only and wiped dry.
•The handle should be cleaned regularly with soap and water.
•Remove shelves/basket/door furniture and wipe with a soft cloth. DO NOT put then in a
dishwasher.
•Detergents containing abrasives or acids are not suitable for the cleaning.
•When all cleaning has been completed and accessories replaced, reconnect the plug with
dry hands.

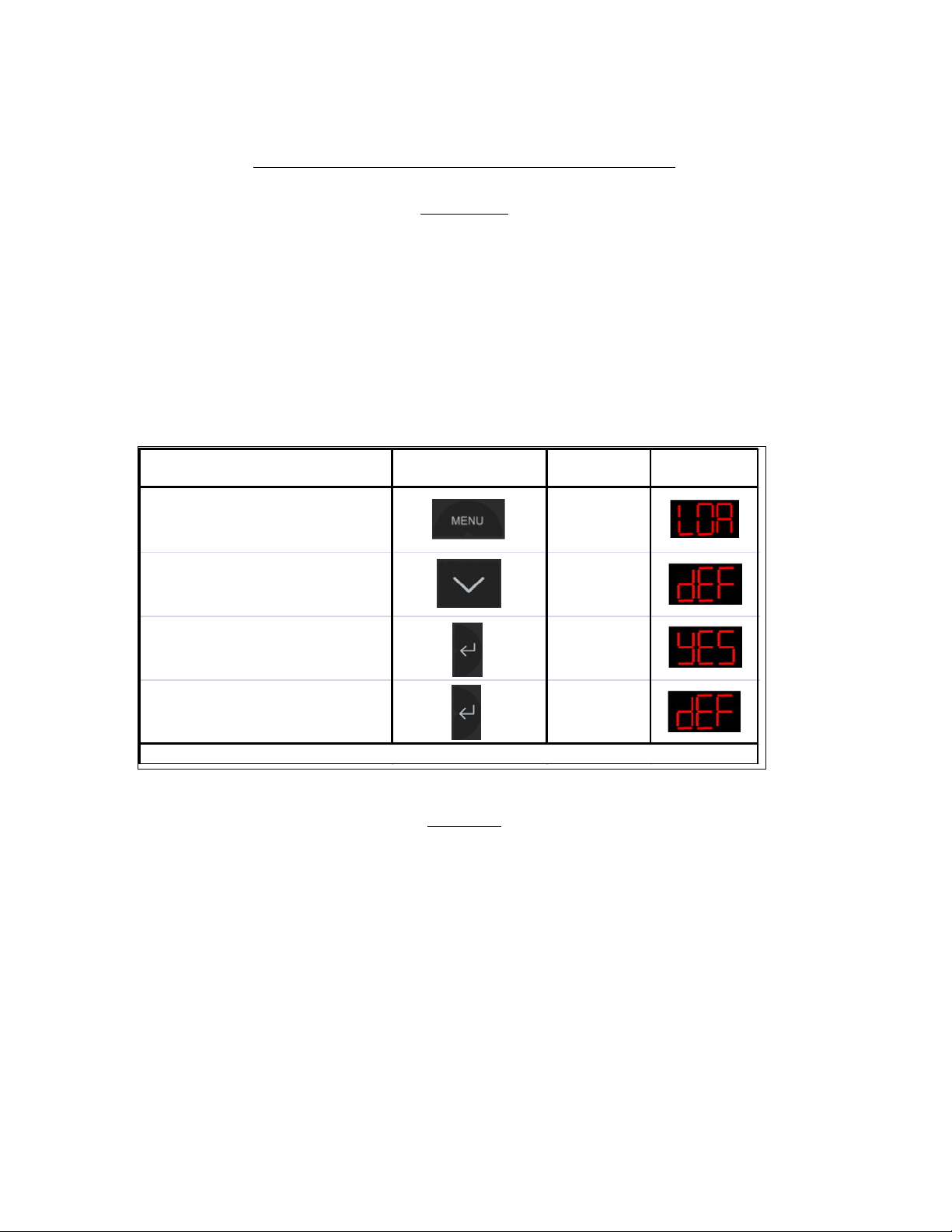

Function Press Holdbutton(s)
downfo
r
Examplescreen
Tocarryoutanon‐scheduleddefrost 3seconds
followedby Fourtimes
followedby 1second
followedby 1second
N.B.Thisdoesnotreplacetheautomaticdefrostfunctiononreleva ntmodels

13
Reversing the door
In order to reverse the door please follow the below instructions. This should be carried out by 2
people for safety purposes.
1. Tilt the freezer backwards by 45° and lean on a vertical, hard surface such as a wall.
2. Remove the feet from the bottom, right hand hinge (figures 1 and 2).
3. Remove the screws from the hinge (figure 3) and remove hinge.
4. Pull the door from the bottom to remove from the freezer.
5. Remove the top, right hand hinge (figure 4).
6. Install the hinge on the top, left hand side (figure 5).
7. Remove the bottom, left hand feet and base plate (figures 6 and 7).
Figure 1 Figure 2 Figure 3
Figure 4 Figure 5
Figure 6 Figure 7

14
8. Insert the door into the top, left hand hinge (figure 8).
9. Install the bottom, left hand hinge (figure 9) and screw in the feet.
10. Add the feet and base plate to the bottom, right hand side.
11. Remove the caps from the screws holding the handle in position.
12. Remove the handle screws.
13. Remove the caps on the opposite side of the door.
14. Screw the handle into position and add the caps to cover the screws.
Storage
If the freezer is to remain unused for a period of time (e.g. during refurbishment work) switch
the equipment off by pressing the power button and disconnect the power supply to the
cabinet at the wall socket. It is also advised that the equipment is unplugged from the power
supply. Empty, defrost and clean the freezer. Make sure the door is left slightly ajar to prevent
any bad odours forming within the cabinet.
Figure 8 Figure 9

15
Electrical Connection
The equipment is intended for connection to alternating current. The connection values for
voltage (V) and frequency (Hz) are declared on the name plate in the cabinet. Power must be
connected via a wall socket with a switch. It is strongly recommended that the wall socket is
easily accessible. All earthing requirements stipulated by the local electricity authority. The
cabinet plug and wall socket should give correct earthing. If in doubt, contact your local supplier
or an authorised electrician.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
WARNING: THIS EQUIPMENT MUST BE EARTHED
The flexible cord (mains lead) fitted to this equipment has three cores for use with a 3-pin 13
amp plug. If a BS 1363 (13-amp) fused plug is used it should be fitted with a 13-amp fuse.
The cores in the mains lead are coloured in accordance with the following code:
GREEN AND YELLOW: EARTH
BLUE: NEUTRAL
BROWN: LIVE
These colours might not correspond with the colour markings identifying the terminals in your
plug.
Note:
First Connection to the mains
The equipment provides information about the higher temperature (Hi alarm) till the moment of
cooling.
The alarm is signalised by a sound signal and “Hi” caption on the display. To cancel the alarm,
press any button.
Until the moment of cooling, the alarm is repeated every 15 minutes. Such an operating mode is
normal until the required temperature settings are reached.

16
Disposal of your freezer
When disposing your refrigerator do not take it to regular municipal waste containers.
Instead, take it to an electrical/electronic waste recycling and re-use centre. This refrigerator
contains insulation gases and refrigerant and must be disposed of in the appropriate manner.
Please contact the manufacturer or local authority for advice on how best to dispose of this
product.
A relevant label has been placed on the refrigerators packaging (see below). The product has
been manufactured of recyclable materials. Ask your local environmental care authority for
information concerning location of such facilities.
Green & Yellow
Blue
Brown
13 Amp Fuse
Cord clamp

17
Troubleshooting
PROBLEM REASON SOLUTION
The equipment does
not work
A gap in the electric system
circuit
1. Make sure the plug is properly
inserted into the socket
2. Make sure the socket is not faulty
3. Make sure the power supply cord is
not dama
g
ed
The compressor hardly
ever activates 1. Check to see if the ambient temperature is below +10C
The temperature
inside the equipment
is not low enough
(the compressor
operates
continuously)
The door doesn't shut tight
or is opened too often
1. Rearrange the products so they don't
hamper the door
2. Shorten the time the door is open for
The ambient temperature is
above that which has been
outlined in the product
specification
1. Check that the equipment is operating
at an ambient temperature that meets
the product specification
Air circulation at the back
of the equipment is
hampered
1. Move equipment further away from
the wall
The equipment is placed
such that it is subject to
constant sunlight, or
another heat source e.g.
Radiator
1. Move the equipment to a different
place away from heat sources or direct
sunlight
Water collects at the
bottom part of the
refrigerator
The contents touch the
back wall of the cabinet 1. Move the products so they aren't in contact with the back wall
The drain opening is
clogged 1. Take the cleaning plug and unclog the condensate opening
The equipment
makes too much
noise
The equipment is not level 1. Place the equipment on an even
surface or use adjustable feet
The equipment is touching
another object 1. Reposition the equipment so it is detached from any other objects

18
WARRANTY
Thermo Scientific ES Series
Refrigerators and Freezers
European Warranty Policy
Thermo Scientific ES Series Refrigerators • European Warranty • 12 Months Full Warranty Parts and
Labor
During the first twelve (12) months from shipment, Thermo Fisher Scientific Inc, through its authorized Dealer or service organizations, will at
its option and expense repair or replace any part found to be non-conforming in material or workmanship. Thermo Fisher Scientific Inc reserves
the right to use replacement parts, which are used or reconditioned. Replacement or repaired parts will be warranted for only the unexpired
portion of the original warranty.
This warranty does not apply to damage caused by (i) accident, misuse, fire, flood or acts of God; (ii) failure to properly install, operate or
maintain the products in accordance with the printed instructions provided, (iii) causes external to the products such as, but not limited to, power
failure or electrical power surges, (iv) improper storage and handling of the products, (v) use of the products in combination with equipment or
software not supplied by Thermo Fisher; or (vi) installation, maintenance, repair, service, relocation or alteration of the products by any person
other than Thermo Fisher or its authorized representative. To obtain proper warranty service, you must contact the nearest authorized service
center or Dealer. Thermo Fisher Scientific, Inc’s own shipping records showing date of shipment shall be conclusive in establishing the warranty
period. At Thermo Fisher’s option, all non-conforming parts must be returned to Thermo Fisher postage paid and replacement parts are shipped
FOB Thermo Fisher’s location.
Limitation of Liability
THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, WHETHER WRITTEN, ORAL, OR
IMPLIED. NO WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL APPLY. THERMO
FISHER DOES NOT WARRANT THAT THE PRODUCTS ARE ERROR-FREE OR WILL ACCOMPLISH ANY PARTICULAR RESULT.
THERMO FISHER SHALL NOT BE LIABLE FOR ANY INDIRECT OR CONSEQUENTIAL DAMAGES INCLUDING, WITHOUT
LIMITATION, DAMAGES TO LOST PROFITS OR LOSS OF PRODUCTS.
CONTACT INFORMATION
For technical or sales support please contact your local distributor or Thermo Scientific at the
following numbers:
Europe: Austria [phone], Belgium [phone], France [phone], Germany
national toll free 08001-536 376,
Germany international [phone], Italy [phone]-254-375, Netherlands +31
76 571 4440, Nordic/Baltic countries [phone],
Russia/CIS [phone], Spain/Portugal [phone], Switzerland [phone]
12, UK/Ireland [phone]

19
Laborkühlschränke der ES-Reihe -
Benutzerhandbuch
Labor-Gefrierschrank-Modelle
Zutreffende Modelle:
151F-AEV-TS
151F-AEW-TS
232F-AEV-TS
232F-AEW-TS

20
Inhalt
Vorgesehene Nutzung und besondere Warnhinweise 21
Vor der ersten Nutzung 21
Positionierung des Gefrierschranks 21
Transport und Bewegen des Gefrierschranks 22
Energiespartipps 22
Wichtige Informationen 22
Produktinformationen 23
Einzelheiten zum Produkt 23
Regler-Übersicht 24
Anzeige und Neueinstellung der Mindest- und Höchsttemperatur 25
Ändern der Werksvoreinstellung des Sollwerts 26
Ändern der Temperaturskala 27
Ändern der Fernalarmkontakte 27
Alarme 28
Fernalarmkontakte 28
Wartung und Service 30
Abtauen 30
Reinigung 30
Türanschlagumsetzen 31
Lagerung 32
Elektrischer Anschluss 33
Entsorgung 34
Fehlerbehebung 35
Garantie 36
Kontaktangaben 36
