Thermo Scientific Fisher Scientific Isotemp 50FREEFSA Quick start guide

Isotemp™ Flammable Materials
Storage Refrigerator
Model 50FREEFSA
Installation and Operational Manual

IMPORTANT Read this instruction manual. Failure to follow the instructions in this manual can result in
damage to the unit, injury to operating personnel, and poor equipment performance.
CAUTION All internal adjustments and maintenance must be performed by qualified service personnel.
Material in this manual is for informational purposes only. The contents and the product it describes are
subject to change without notice. The Fisher Scientific™ channel makes no representations or warranties
with respect to this manual. In no event shall the Fisher Scientific channel be held liable for any damages,
direct or incidental, arising from or related to the use of this manual.
© 2018 Thermo Fisher Scientific Inc. All rights reserved.

Contents
Safety Information ........................................................ 1
Alert Signals ............................................................. 1
Unpacking ................................................................... 2
Visible Loss or Damage............................................ 2
Concealed Loss or damage ..................................... 2
Performance Characteristics ........................................ 3
Temperature Ranges................................................ 3
Electrical Requirements............................................ 3
Installation.................................................................... 4
Selecting a Location................................................. 4
Leveling the Unit....................................................... 4
Shelves .................................................................... 4
Install External probe in Thermowell.......................... 4
Electrical Connection................................................ 5
Operation..................................................................... 6
Initial Startup ............................................................ 6
Temperature Control ................................................ 6
Temperature Display ................................................ 6
Material Compatibility ............................................... 6
Troubleshooting ........................................................... 7
Maintenance ................................................................ 8
Cabinet Cleaning...................................................... 8
Condenser ............................................................... 8
Warranty ...................................................................... 9

Isotemp Flammable Materials Storage Refrigerator Safety Information | 1
Safety Information
Your satisfaction and safety are important to the Fisher
Scientific channel and a complete understanding of this unit is
necessary to attain these objectives.
As the ultimate user of this apparatus, it is your responsibility
to understand its proper function and operational
characteristics. This instruction manual should be thoroughly
read and all operators given adequate training before
attempting to place this unit in service. Awareness of the
stated cautions and warnings, and compliance with
recommended operating parameters – together with
maintenance requirements – are important for safe and
satisfactory operation. The unit should be used for its
intended application; alterations or modifications will void the
Warranty.
This product is not intended, nor can it be used, as a sterile or
patient connected device. In addition, this apparatus is not
designed for use in Class I, II or III locations as defined by the
US National Electrical Code, unless otherwise noted.
Alert Signals
ON
OFF
Safety Alert: Important operating instructions.
To reduce the risk of injury or poor performance
of the unit. Read the user manual before putting
the equipment into operation.
WARNING: Indicates an immediately hazardous
situation, which if not avoided, will result in death
or serious injury.
CAUTION: Indicates an immediately hazardous
situation, which if not avoided, may result in
minor to moderate injury.
(No
symbol)
CAUTION: (Without Safety Alert Symbol)
indicates a situation that may result in property
damage.
Shock Hazard: Use of this equipment involves
power supplies which convert line voltage to low
voltage power. Do not modify or use power
supplies other than OEM equipment. Connection
of the power supply may require a properly
grounded receptacle. Potential for electrical
shock or equipment damage exists if
precautions are not followed.
Frost bite/ Low Temperature: Avoid contact
with cold freezer surfaces potential for cold
burns or skin sticking to cold surfaces.
DANGER RISK OF CHILD ENTRAPMENT
Before you throw away your old refrigerator or
freezer:
• Take off doors.
• Leave the shelves in the place so that
children may not easily climb inside.
If the equipment is used in a manner not
specified by the manufacturer, the protection
provided by the equipment may be impaired.

2 | Unpacking Isotemp Flammable Materials Storage Refrigerator
Unpacking
Save all packing material if apparatus is received damaged.
This merchandise was carefully packed and thoroughly
inspected before leaving our factory.
Responsibility for its safe delivery was assumed by the carrier
upon acceptance of the shipment; therefore, claims for loss
or damage sustained in transit must be made upon the carrier
by the recipient as follows:
Visible Loss or Damage
Note any external evidence of loss or damage on the freight
bill, or express receipt, and have it signed by the carrier’s
agent. Failure to adequately describe such external evidence
of loss or damage may result in the carrier’s refusing to honor
your damage claim. The form required to file such a claim will
be supplied by the carrier.
Concealed Loss or
Damage
Concealed loss or damage refers to loss or damage, which
does not become apparent until the merchandise has been
unpacked and inspected. Should either occur, make a written
request for the carrier’s agent within 15 days of the delivery
date; then file a claim with the carrier since the damage is the
carrier’s responsibility.
If you follow the above instructions carefully, we will guarantee
our full support of your claim to be compensated for loss from
concealed damage.
DO NOT – FOR ANY REASON – RETURN THIS UNIT
WITHOUT FIRST OBTAINING AUTHORIZATION.

Isotemp Flammable Materials Storage Refrigerator Performance Characteristics | 3
Performance Characteristics
Temperature Range
1°C to 12°C (34°F to 53.6°F)
Electrical Requirements
115 Volts ±10%, 60 Hz, 9.1 Amps

4 | Installation Isotemp Flammable Materials Storage Refrigerator
Installation
Selecting a Location
Choose a location for the refrigerator that will provide at least
three inches of clearance between the cabinet and any
adjacent vertical surface at the sides and rear. Twelve inches
of clearance is required above the grille.
Appropriate electrical power must be available. Locate the
refrigerator within eight feet of the power outlet so that no
extension cord is required.
Leveling the Unit
The refrigerator must be level in order to provide adequate
condensate drainage as well as proper door alignment and
operation. The refrigerator should be in its final operating
location and set so that it is firmly positioned on the floor.
There are four leveling legs – one for each corner. These legs
are packed in the accessory carton from which they must be
removed and installed onto the cabinet. In order to install the
legs, carefully tip the cabinet rearward and add (4) two inch
blocks underneath and simply screw the threaded leg studs
into the case bottom front leg holes. Repeat this procedure by
tilting the cabinet in the opposite direction and install the
remaining legs. Make sure that the legs are tightened
extremely well or the entire unit will sway or rock with each
opening or closing of the doors, possibly causing damage to
the case bottom. Level the cabinet front to rear and side-to-
side using the corner leveling screws located at the bottom of
the legs.
Shelves
Shipped inside each cabinet are shelves packed in plastic and
a bag of shelf supports. Two different types of shelf supports
are used. Refer to Figure 1 for installation. Shelf spacing is
adjustable to suit user requirements. Replacement shelves
are available individually for the Laboratory Refrigerators.

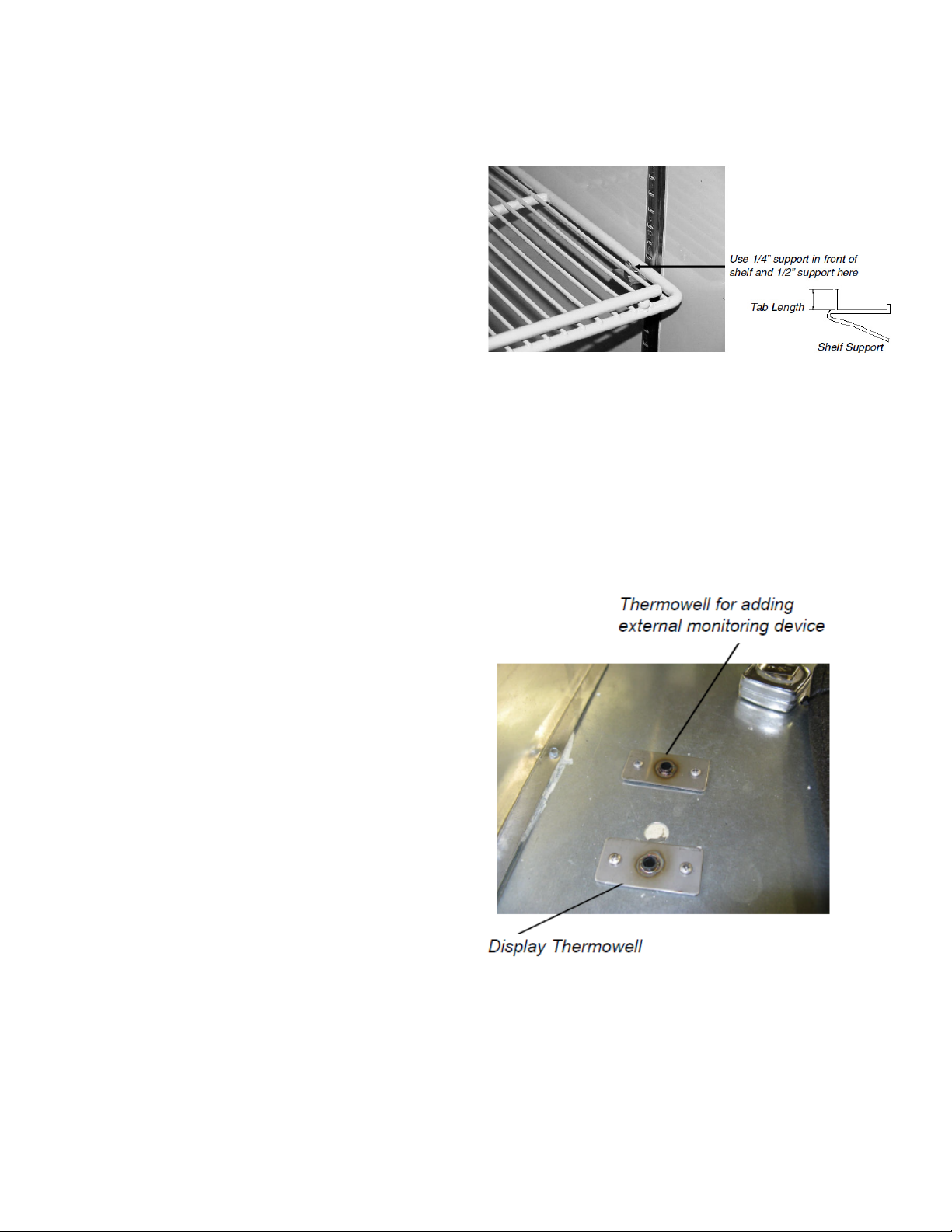

Figure 1. Shelf Support
Install External probe in
Thermowell
An external temperature monitoring device can be added to
the thermowell beside the display thermowell mounted on top
of the unit. See Figure 2 for location of the thermowell.
Figure 2. Thermowell location
The size of the sensor must be less than 0.3 diameter to fit
inside the thermowell.
Requirements to install the external probe:
• Glycol mixture (50-50% solution of glycerine & water)
• Permagum as required

Isotemp Flammable Materials Storage Refrigerator Installation | 5
• Cable clamp
Figure 3. Inserting sensor in thermowell
To install the external probe in thermowell:
1. Add 2-3 ml of glycol solution in thermowell.
2. Insert the sensor in thermowell as shown in Figure 3 and
seal the opening with permagum.
3. Place the external monitoring device on top/side as per
your convenience.
4. Secure the excess wire using a cable clamp as shown in
Figure 4.
Figure 4. Securing excess wire
Electrical Connection
Determine the total amount of current presently being used by
other apparatus connected to the circuit that will be used by
this refrigerator. It is critical that this added current demand
and other equipment on this circuit not exceed the rating of
the fuse or circuit breaker in use.
The frequency and nominal voltage requirements for the unit
are specified on the data plate, which is located on the
interiors upper left side. Only plug the unit into a power source
that meets these requirements. Low line voltage is often the
cause of service complaints. With the unit running, check that
the line voltage is within ±10% of that specified on the data
plate.
The power cord of this instrument is equipped with a three
prong (grounding) plug (NEMA 5-15P). This plug mates with a
standard three prong (grounding) wall receptacle (NEMA 5-
15R) to minimize the potential of an electrical shock hazard.
The customer should have the wall receptacle and circuit
checked by a qualified electrician to verify the receptacle is
properly grounded and is connected to a minimum 15 amp
service.
Where a two-prong wall receptacle is encountered, it is the
personal responsibility and obligation of the user to have it
replaced with a properly grounded three-prong receptacle.
CAUTION: Be sure that the power supply is the
same voltage that is specified on the refrigerator’s
data plate.
WARNING: For personal safety this unit must be
properly grounded.
CAUTION: Do not use an extension cord. Use of
an ungrounded cord or an overloaded circuit
VOIDS the compressor warranty.
WARNING: Do not under any circumstances cut
or remove the third (ground) prong from the
power cord.
Do not use a two-prong adapter plug.

6 | Operation Isotemp Flammable Materials Storage Refrigerator
Operation
Initial Startup
Turn power on and verify that the condenser fan is running.
This model has a condenser fan located on the condensing
unit on top of the cabinet.
Temperature Control
The thermostat is factory set to provide an interior
temperature of 38°F (4°C). To adjust the interior temperature,
there is a hole in the top of the case to allow access the
adjustment screw. For operation above an altitude of 3000 ft.,
have the thermostat adjusted by a technician.
See Figure 5 below.
Temperature Display
Interior temperature is indicated in degrees C by the solar
powered LCD display mounted in the header panel.
Figure 5. Temperature Adjustment Instructions-
Model 50FREEFSA FMS Refrigerator
Material Compatibility
The interior cabinet of this unit is constructed of anodized
aluminum. Care must be exercised when determining which
chemicals may be stored in the refrigerator and freezer
sections and which type of storage materials should be
employed.
ABS Plastic deteriorates when exposed to, but not limited to,
the following:
• Aliphatic Hydrocarbons
• Aromatic Hydrocarbons
• Fully and Partially Halogenated Hydrocarbons
• Alcohols Monohydric
• Phenols
• Ketones
• Esters
• Ethers
• Organic Acids (concentrates and dilute)
• and Concentrated Oxidizing Acids
This information is taken from Plastics Edition 8
Thermoplastics and Thermosets published by D.A.T.A. and
The International Plastics Selector, Inc.
Cordura Companies
9889 Willow Creek Road
P.O. Box 26637
San Diego, California 92126
Aluminum Alloys are susceptible to corrosion when exposed
to but not limited to most inorganic acids, bases and salts
with a pH outside of their passive range of pH 4 to 9. It is also
important to recognize that the compatibility of aluminum
alloys with mixtures of organic compounds cannot always be
predicted from their compatibility with each of the
compounds. For example, some aluminum alloys are
corroded severely in mixtures of carbon tetrachloride and
methyl alcohol, even though they are resistant to each
compound alone. This information is taken from Corrosion
and Corrosion Protection Handbook Second Edition
Published by
Marcel Dekker, Inc.
270 Madison Ave.
New York, NY 10016
WARNING: If the unit is tilted in excess of 30
degrees, do not apply electrical power for a
minimum of 12 hours.

Isotemp Flammable Materials Storage Refrigerator Troubleshooting | 7
Troubleshooting
This table is intended to assist in resolving user-correctable
Refrigerator problems by relating symptoms to their likely
causes.If services beyond the scope of this table is required,
contact Customer Service at 1-800-438-4851.
Symptom Probable cause of Problem Action
Does Not Run Unit Unplugged
Blown fuse or tripped circuit breaker
Plug in Unit
Check fuse or circuit breaker at breaker box
Runs Continuously Frost buildup on refrigeration coils Defrost unit
Clicking Sound The compressor is equipped with a thermal
protector.This device shuts off the
compressor when it becomes too hot. A
clicking sound occurring about every 30
seconds indicates this protector is working
Disconnect power and call for service.
Insufficient Cooling Thermostat set too high
Condenser coil dirty
Unit frosted
Reduce thermostat setting
Clean condenser coil with a vacuum
cleaner
Defrost unit

8 | Maintenance Isotemp Flammable Materials Storage Refrigerator
Maintenance
Cabinet Cleaning
The cabinet interior should be cleaned frequently. Any spilled
liquid should be wiped off immediately. Stains resulting from
some spills can be permanent if not quickly removed. The
most convenient time to clean the interior is after defrosting.
The cabinet exterior should be cleaned occasionally. A mild
detergent and lukewarm water or a solution of bicarbonate of
soda (1 tablespoon per gallon of water) is recommended for
cleaning the interior and exterior of the cabinet. All surfaces
should be rinsed and thoroughly dried.
Condenser
The condenser coil is located behind the header panel. This
should be cleaned at least once a year. Disconnect the
refrigerator’s electrical power. Remove the header panel and
vacuum the condenser coil to remove any dirt build-up that
may have accumulated there.
WARNING: When servicing the unit, disconnect
from the electrical power source.
CAUTION: Do not use any type of abrasive such
as steel wool, or fluids such as gasoline,
Naphtha, and thinner.These materials could be
harmful to aluminum, plastic materials, door
gasket, and painted surfaces.

Isotemp Flammable Materials Storage Refrigerator Warranty | 9
Warranty
Laboratory instruments and equipment manufactured by
Fisher Scientific Company L.L.C. – Laboratory Equipment
Division (hereinafter called “the Company”) are warranted only
as stated below.
Subject to the exceptions and upon the conditions specified
below, the Company agrees, at its election, to correct by
repair, by replacement, or by credit to the purchaser, any
defect of materials or workmanship which develops within
one year (13 months for refrigerator and freezer products)
from the date of purchase by the original purchaser by the
Company or by an authorized dealer of the Company
provided that investigation or factory inspection by the
Company discloses that such defect developed under normal
and proper use
The exceptions and conditions mentioned above are
the following:
a. The Company makes no warranty concerning
components or accessories not manufactured by it, such
as tubes, batteries, etc. However, in the event of the
failure of any component or accessory not manufactured
by the Company, the Company will give reasonable
assistance to the purchaser in obtaining from the
respective manufacturer whatever adjustment is
reasonable in the light of the manufacturer’s own
warranty.
b. The Company shall be released from all obligations under
its warranty in the event repairs or modifications are made
by persons other than its own service personnel or
authorized dealer personnel unless such repairs by others
are made with the written consent of the Company.
c. THE COMPANY MAKES NO WARRANTY OF
MERCHANTABILITY, FITNESS FOR ANY
PARTICULAR PURPOSE, OR ANY OTHER
WARRANTY, EXPRESS OR IMPLIED, EITHER IN
FACT OF BY OPERATION OF LAW,…STATUTORY
OR OTHERWISE.
d. The above warranty and the above obligations to repair,
replace, or credit are complete and exclusive and the
Company expressly disclaims liability for lost profits or for
special, indirect, incidental, consequential, or exemplary
damages of any nature whether attributable to contract,
warranty, negligence, strict liability, or otherwise even if
the Company has been advised of the possibility of such
damages.
e. Representations and warranties made by any person,
including dealers and representatives of the Company,
which are inconsistent or in conflict with the foregoing
warranty shall not be binding upon the Company unless
reduced to writing and signed by an officer of the
Company.

Important
For your future reference and when contacting the factory,
please have the following information readily available:
The above information can be found on the dataplate
attached to the equipment. If available, please provide the
date purchased, the source of purchase (manufacturer or
specific agent/rep organization), and purchase order number.
If you need assistance:
The Fisher Scientific brand products are backed by a global
technical support team ready to support your applications.
We offer cold storage accessories, including remote alarms,
temperature recorders, and validation services.
Visit fishersci.com or call:
Model Number :
Serial Number :
Date Purchased :
SALES DIVISION
Phone [phone]
1-800-252-7100
FAX [phone]
LABORATORY PARTS and SERVICE
Phone [phone]
FAX [phone]
TECHNICAL SUPPORT
Phone [phone]

© 2018 Thermo Fisher Scientific Inc. All rights reserved.
Trademarks used are owned as indicated at fishersci.com/trademarks.
In the United States:
For customer service, call 1-800-766-7000
To fax an order, use 1-800-926-1166
To order online: fishersci.com
Fisher Scientific Company L.L.C
275 Aiken Road
Asheville, NC 28804
United States
104519 Rev.C July 2018
