Thermo Scientific 10ECEETSA User manual

Thermo Scientific
General Purpose, Flammable
Storage, and Explosion Proof
Laboratory Refrigerators and
Freezers
Installation and Operation Manual
057-196-00 Rev. E June 2016
Visit us online to register your warranty
www.thermoscientific.com/labwarranty

IMPORTANT Read this instruction manual. Failure to follow the instructions in this manual can result
in damage to the unit, injury to operating personnel, and poor equipment performance.
CAUTION All internal adjustments and maintenance must be performed by qualified service personnel.
Material in this manual is for informational purposes only. The contents and the product it describes are
subject to change without notice. Thermo Fisher Scientific makes no representations or warranties with
respect to this manual. In no event shall Thermo be held liable for any damages, direct or incidental,
arising from or related to the use of this manual.
© 2016 Thermo Fisher Scientific Inc. All rights reserved.

Refrigerators, Refrigerator-Freezers and Freezers
Explosion Proof Flammable Material Storage General Purpose
10ECEETSA 10FCEETSA 05LCEETSA
10ECEETSV 10FCEETSV 05LCEETSV
05EREETSA 05FREETSA 05LREETSA
05LREETSV
04LFEETSA
02LFEETSA
10LCEETSV
10LCEETSA
12LCEETSA

Table of Contents
Thermo Scientific Installation and Operation Manual 1
Table of Contents
Safety Information...................................................................1
Alert Signals......................................................................... 1
Intended Use Statement ....................................................... 2
Explosion-Proof Refrigerators and Freezers ........................3
Overview.............................................................................. 3
Flammable Materials Storage Refrigerators and Freezers .6
Overview.............................................................................. 6
General-Purpose Laboratory Refrigerators/Freezers..........9
Overview.............................................................................. 9
Unpacking and Installation...................................................15
Shipping Carton ................................................................. 15
Unpacking .......................................................................... 15
Location ............................................................................. 15
Clearance............................................................................ 15
Electrical ............................................................................ 16
Electrical Schematic........................................................... 16
Be Advised......................................................................... 16
Operation................................................................................20
Environmental Operating Conditions ................................ 20
Start-Up Procedure............................................................. 20
Restart Procedure ............................................................... 20
Control Panel Lights .......................................................... 21
How to Save Energy...............................................................23
Safety Tips ..............................................................................24
Troubleshooting .....................................................................25
Maintenance ...........................................................................26
Cleaning of Units ............................................................... 26
Interior/Exterior and Door Gaskets.................................... 26
Condenser........................................................................... 26
Manual Defrost Procedure ................................................. 26
Reversing the Front Door
(Model 10ECEETSA).......................................................... 28
Reversing the Front Door
(Model 05FREETSA, 05EREETSA and 05LREETSA) ..... 28
Reversing the Front Door
(Model 12LCEETSA).......................................................... 29
Reversing the Front Door
(Model 02LFEETSA) .......................................................... 31
Replacement Parts .................................................................32
Ordering Procedures .............................................................33
One Year Limited Warranty ................................................34

Safety Information
Thermo Scientific Laboratory Refrigerators and Freezers Installation and Operation Manual 1
1 Safety
Information
Your satisfaction and safety are important to Thermo Scientific and a complete
understanding of this unit is necessary to attain these objectives.
As the ultimate user of this apparatus, it is your responsibility to understand its
proper function and operational characteristics. This instruction manual should
be thoroughly read and all operators given adequate training before attempting
to place this unit in service. Awareness of the stated cautions and warnings, and
compliance with recommended operating parameters – together with
maintenance requirements – are important for safe and satisfactory operation.
The unit should be used for its intended application; alterations or
modifications will void the Warranty.
This product is not intended, nor can it be used, as a sterile or patient connected
device. In addition, this apparatus is not designed for use in Class I, II or III
locations as defined by the US National Electrical Code, unless otherwise noted.
1.1 Alert Signals
ON
OFF
Safety Alert Important operating instructions. To reduce the risk of injury or poor performance of the unit.
Read the user manual before putting the equipment into operation.
WARNI N G Indicates an immediately hazardous situation, which if not avoided, will result in death or
serious injury.
CAUTION Indicates an immediately hazardous situation, which if not avoided, may result in minor to
moderate injury.
(No Symbol) CAUTION (Without Safety Alert Symbol) indicates a situation that may result in property damage.
Shock Hazard
Use of this equipment involves power supplies which convert line voltage to low voltage
power. Do not modify or use power supplies other than OEM equipment. Connection of the
power supply may require a properly grounded receptacle.
Potential for electrical shock or equipment damage exists if precautions are not followed.
Frost
bite/Low
Temperature
Avoid contact with cold freezer surfaces potential for cold burns or skin sticking to cold
surfaces.

Safety Information
2 Installation and Operation Manual Thermo Scientific Laboratary Referigerators and Freezers
DANGER RISK OF CHILD ENTRAPMENT
Before you throw away your old refrigerator or freezer:
• Take off doors.
• Leave the shelves in the place so that children may not easily climb
inside.
If the equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired.
1.2 Intended Use
Statement
The Refrigerators/Freezers described in this manual are for professional use
only. These products are intended for use in research for the storage of
samples or inventory in the following temperature ranges:
General Purpose Freezers: -12°C to -25°C
General Purpose Refrigerators: 1°C to 12°C
Explosion proof & FMS Freezers: -12°C to -20°C
These are not considered medical devices and have therefore not been
registered with a medical device regulatory body (e.g. FDA): that is, it has
not been evaluated for the storage of samples for diagnostic use or for
samples to be re-introduced to the body.
WARNING: Only Explosion Proof Units or Flammable Material Storage
Units are to be used for the storage of flammable inventory/samples.
Note Do not store corrosive materials in these units. Any damage which occurs
due to storage of corrosives will not be covered under warranty claims.

Explosion-Proof Refrigerators and Freezers
Thermo Scientific Laboratory Refrigerators and Freezers Installation and Operation Manual 3
2 Explosion-Proof
Refrigerators and
Freezers
2.1 Overview Conventional refrigerators and freezers are not suitable for storing
flammable materials. Such units have components in their electrical and
refrigeration systems that can trigger explosions of flammable air-vapor
mixtures inside the unit and/or in the immediate surrounding area.
The Authority Having Jurisdiction (AHJ) determines if work areas are
designated as a hazardous location with respect to the presence of flammable
gases or vapors. Such locations are defined in (National Fire Protection
Agency) NFPA 70 Articles 500- 501 and OSHA 29 CFR1910.307. Some of
these classified areas are expected to experience concentrations of flammable
gases and/or vapors at or above their lower flammability limits for extended
periods of time.
The construction of our explosion-proof units has been evaluated by
Underwriters Laboratories (UL) and are suitable for use in classified areas
requiring Class I, Groups C and D* protected equipment. The electrical
components such as thermostats, wiring, splices, relays and compressor
motors on explosion-proof units are safely housed within explosion-proof
enclosures and conduit. Compressor surface temperatures have been
evaluated and determined to remain below the flash point of materials
found in Class I, Groups C and D. All models have heavy-gauge, rigid, steel
construction with a durable enamel finish. Interiors have epoxy enamel or
ABS plastic construction. Each unit is insulated throughout for
energy-efficient operation.
These units are ideal for storing cyclopropane, ethyl ether, ethylene, acetone,
alcohol, benzene, butane, gasoline, hexane, lacquer solvent vapors, naphtha,
natural gas or propane along with many other potentially hazardous
materials.
*The notation Class 1, Groups C and D is an accepted abbreviation for
Class I, Div 1, Groups C and D; Class I Zone 1 Group IIB.

Explosion-Proof Refrigerators and Freezers
4 Installation and Operation Manual Thermo Scientific Laboratary Referigerators and Freezers
MODEL 10ECEETSA, 10ECEETSV
23.63" Wide, Two-door Refrigerator/Freezer
Features:
• Overall 10.1 cu.ft.
• Three adjustable shelves
• Four door shelves
• Mechanical thermostat
• Adjustable natural air-flow vent
• Manual defrost
• ABS plastic interior
• White color
Note Amps listed are at normal run mode, starting amps may be higher.
Model
Refrigerator Chamber
Dimensions H x W x D
inches (cm)
Freezer Chamber
Dimensions H x W x D
inches (cm)
Total
Vol.
Cu. Ft.
Exterior Dimensions
H x W x D
inches (cm)
10ECEETSA 38.25" x 19.75" x 18.25"
(97.2 x 50.2 x 46.4 cm)
11.25" x 18" x 18.25"
(28.6 x 45.7 x 46.4 cm) 10.1 59.75" x 23.63" x 28.6" (151.77 x 60 x 72.64 cm)
10ECEETSV 38.25" x 19.75" x 18.25"
(97.2 x 50.2 x 46.4 cm)
11.25" x 18" x 18.25"
(28.6 x 45.7 x 46.4 cm) 10.1 59.75" x 23.63" x 28.6" (151.77 x 60 x 72.64 cm)
Model
Electrical
Characteristics
Volts/Hz, Amps
Refrig.Temp.
Range °C (°F)
Freezer Temp.
Range °C (°F)
Net Wt.
Lbs. (kg)
Ship Wt.
Lbs. (kg)
10ECEETSA 115/60, 1.9 1° to 12°
(33.8° to 53.6°)
-12° to -20°
(10.4° to -4°)
120
(54.4)
150
(68)
10ECEETSV 230/50, 1 1° to 12°
(33.8° to 53.6°)
-12° to -20°
(10.4° to -4°)
120
(54.4)
150
(68)

Explosion-Proof Refrigerators and Freezers
Thermo Scientific Laboratory Refrigerators and Freezers Installation and Operation Manual 5
MODEL 05EREETSA
23.63" Wide, Under counter refrigerator
Features:
• Cold-wall design
• Ample door storage
• Adjustable thermostat
•Rearrollers
• Front legs level-adjust
• Magnetic gasket
• Sturdy metal hinges
• Seamless one-piece
• Polypropylene liner
• White color
• One glass shelf
Note THIS UNIT IS DESIGNED FOR FREE STANDING INSTALLATION
ONLY. IT MAY BE INSTALLED UNDER A COUNTER ONLY IF
SUFFICIENT SPACE FOR AIR FLOW IS PROVIDED. IT IS
SUGGESTED THE UNIT BE RECESSED ONLY 21"TO PERMIT EASY
ACCESS TO THE LOCK.
Note Amps listed are at normal run mode, starting amps may be higher.
Model
Refrigerator Chamber
Dimensions H x W x D
inches (cm)
Freezer Chamber
Dimensions H x W x D
inches (cm)
Total Vol.
Cu. Ft.
Exterior Dimensions
H x W x D
inches (cm)
05EREETSA 27.75" x 20" x 17.5"
(70.5 x 50.8 x 44.5 cm) N/A 5.5 33.5" x 23.63" x 28.1" (85.1 x 60 x 71.37 cm)
Model
Electrical
Characteristics
Volts/Hz, Amps
Refrig.Temp.
Range °C (°F)
Freezer Temp.
Range °C (°F)
Net Wt.
Lbs. (kg)
Ship
Wt.
Lbs.(kg)
05EREETSA 115/60, 1.0 1° to 12°
(33.8° to 53.6°) N/A 100 (45.3)
120
(54.4)

Flammable Materials Storage Refrigerators and Freezers
6 Installation and Operation Manual Thermo Scientific Laboratary Referigerators and Freezers
3 Flammable
Materials Storage
Refrigerators and
Freezers
3.1 Overview Conventional refrigerators and freezers are not suitable for storing
flammable materials. Such units have components in their electrical and
refrigeration systems that can trigger explosions of flammable air-vapor
mixtures inside the unit.
Flammable Materials Storage (FMS) refrigerators/freezers are designed for
use in locations, which are not classified by the Authority Having
Jurisdiction (AHJ) as hazardous. Under normal operating conditions the
build up or presence of flammable vapors will not occur in the environment
external to the unit. (Commonly known as “Ordinary Locations”)
FMS units are NOT designed for use in Class I, Groups C and D
environments, which require an Explosion-Proof Refrigerator/Freezer.
FMS units are designed and evaluated by Underwriters Laboratories (UL) to
meet the requirements of the National Fire Protection Association Standards
Nos. 45, 70 and 99. These units have no internal electrical components that
could trigger an explosion or fire of hazardous materials inside the unit.
These units are ideal for storing cyclopropane, ethyl ether, ethylene, acetone,
alcohol, benzene, butane, gasoline, hexane, lacquer solvent vapors, naphtha,
natural gas or propane along with many other potentially hazardous
materials.
All models have heavy-gauge, rigid, steel construction with a durable enamel
finish. Interiors have epoxy enamel or ABS plastic construction. Each unit is
insulated throughout for energy-efficient operation.

Flammable Materials Storage Refrigerators and Freezers
Thermo Scientific Laboratory Refrigerators and Freezers Installation and Operation Manual 7
MODEL 10FCEETSA, 10FCEETSV
23.63" Wide, Two-door refrigerator/freezer
Features:
• Overall 10.1 cu. ft.
• Adjustable thermostat
• ABS plastic interior
• Manual defrost
• White color
Note In order for freezer to reach -20°C, vent on inside upper rear of
refrigerator must be closed.
Note Amps listed are at normal run mode, starting amps may be higher.
Model
Refrigerator Chamber
Dimensions H x W x D
inches (cm)
Freezer Chamber
Dimensions H x W x D
inches (cm)
Total Vol.
Cu. Ft.
Exterior Dimensions
H x W x D inches (cm)
10FCEETSA 38.25" x 19.75" x 18.25"
(97.2 x 50.2 x 46.4 cm)
11.25" x 18" x 18.25"
(28.6 x 45.7 x 46.4 cm) 10.1 59.75" x 23.63"x 28.6" (151.77 x 60 x 72.64 cm)
10FCEETSV 38.25" x 19.75" x 18.25"
(97.2 x 50.2 x 46.4 cm)
11.25" x 18" x 18.25"
(28.6 x 45.7 x 46.4 cm) 10.1 59.75" x 23.63"x 28.6" (151.77 x 60 x 72.64 cm)
Model
Electrical
Characteristics
Volts/Hz, Amps
Refrig.Temp.
Range °C (°F)
Freezer Temp.
Range °C (°F)
Net Wt.
Lbs. (kg)
Ship Wt.
Lbs. (kg)
10FCEETSA 115/60, 1.9 1° to 12°
(33.8° to 53.6°)
-12° to -20°
(10.4° to -4°)
120
(54.4)
150
(68)
10FCEETSV 230/50, 1.5 1° to 12°
(33.8° to 53.6°)
-12° to -20°
(10.4° to -4°)
120
(54.4)
150
(68)

Flammable Materials Storage Refrigerators and Freezers
8 Installation and Operation Manual Thermo Scientific Laboratary Referigerators and Freezers
MODEL 05FREETSA
23.63"Wide, no-frost under-counter all refrigerator with key lock
Features:
• Cold-wall design
• Ample door storage
• Adjustable thermostat
•Rearrollers
• Front legs level-adjust
• Magnetic gasket
• Sturdy metal hinges
• Seamless one-piece polypropylene liner
• White color
• One glass shelf
Note (05FREETSA) THESE UNITS ARE DESIGNED FOR FREE
STANDING INSTALLATION ONLY. THEY MAY BE INSTALLED
UNDER A COUNTER ONLY IF SUFFICIENT SPACE FOR AIRFLOW IS
PROVIDED. 1 " ON THE SIDES, TOP AND REAR ARE RECOMMENDED.
Note Amps listed are at normal run mode, starting amps may be higher.
Model
Refrigerator Chamber
Dimensions
H x W x D
inches (cm)
Freezer Chamber
Dimensions
H x W x D
inches (cm)
Total
Vol.
Cu. Ft.
Exterior Dimensions
H x W x D inches (cm)
05FREETSA 27.75" x 20" x 17.5"
(70.5 x 50.8 x 44.5 cm) N/A 5.5 33.5" x 23.63" x 28.1" (85.1 x 60 x 71.37 cm)
Model Electrical Characteristics
Volts/Hz, Amps
Refrig.Temp.
Range °C (°F)
Freezer Temp.
Range °C (°F)
Net Wt.
Lbs. (kg)
Ship Wt.
Lbs. (kg)
05FREETSA 115/60, 1.0 1° to 12°
(33.8° to 53.6°) N/A 100 (45.4) 120 (54.4)

General-Purpose Laboratory Refrigerators/Freezers
Thermo Scientific Laboratory Refrigerators and Freezers Installation and Operation Manual 9
4 General-Purpose
Laboratory
Refrigerators/Freezers
4.1 Overview These are general-purpose units available in all refrigerator, all freezer and
combination refrigerator/freezer models.
MODEL 05LCEETSA, 05LCEETSV
23.63" Wide, Refrigerator/freezer
Features:
• One-piece seamless interior
• Three Glass, slide-out shelves
• Three in-door shelves
• Adjustable foot
• Drip tray
• Manual defrost
• White color
Note (05LCEETSA and 05LREETSA) THESE UNITS ARE DESIGNED
FOR FREE STANDING INSTALLATION ONLY. IT MAY BE
INSTALLED UNDER A COUNTER ONLY IF SUFFICIENT SPACE FOR
AIRFLOW IS PROVIDED.
Model
Refrigerator Chamber
Dimensions
H x W x D inches (cm)
Freezer Chamber
Dimensions
H x W x D inches (cm)
Total
Vol.
Cu. Ft.
Exterior Dimensions
H x W x D inches (cm)
05LCEETSA 19.5" x 20.5" x 17"
(49.5 x 52.1 x 43.2 cm)
5" x 19" x 11.5"
(12.7 x 48.3 x 29.2 cm) 5.6 33.5" x 23.63" x 23.5" (85.1 x 60.02 x 59.69 cm)
05LCEETSV 19.5" x 20.5" x 17"
(49.5 x 52.1 x 43.2 cm)
5" x 19" x 11.5"
(12.7 x 48.3 x 29.2 cm) 5.6 33.5" x 23.63" x 23.5" (85.1 x 60.02 x 59.69 cm)
Model Electrical Characteristics
Volts/Hz, Amps
Refrig.Temp.
Range °C (°F)
Freezer Temp.
Range °C (°F)
Net Wt.
Lbs. (kg)
Ship
Wt.
Lbs.(kg)
05LCEETSA 115/60, 1.3 1° to 12°
(33.8° to 53.6°)
-12° to -20°
(10.4° to -4°)
100
(45.4)
120
(54.4)
05LCEETSV 230/50, 0.5 1° to 12°
(33.8° to 53.6°)
-12° to -20°
(10.4° to -4°)
100
(45.4)
120
(54.4)

General-Purpose Laboratory Refrigerators/Freezers
10 Installation and Operation Manual Thermo Scientific Laboratary Referigerators and Freezers
MODEL 05LREETSA, 05LREETSV
23.63" Wide, Under-counter Refrigerator
Features:
• ABS plastic interior
• Four adjustable shelves
• Adjustable thermostat
• Magnetic door gasket
• White color
• Key lock
• One glass shelf
Note Amps listed are at normal run mode, starting amps may be higher.
Model
Refrigerator Chamber
Dimensions
H x W x D inches (cm)
Freezer Chamber
Dimensions H x W x
D inches (cm)
Total
Vol.
Cu. Ft.
Exterior Dimensions
H x W x D inches (cm)
05LREETSA 27.75" x 20" x 17.5"
(70.5 x 50.8 x 44.5 cm) N/A 5.5 33.5" x 23.63" x 23.5" (85.1 x 60.02 x 59.69 cm)
05LREETSV 27.75" x 20" x 17.5"
(70.5 x 50.8 x 44.5 cm) N/A 5.5 33.5" x 23.63" x 23.5" (85.1 x 60.02 x 59.69 cm)
Model Electrical Characteristics
Volts/Hz, Amps
Refrig.Temp.
Range °C (°F)
Freezer Temp.
Range °C (°F)
Net Wt.
Lbs. (kg)
Ship Wt.
Lbs.(kg)
05LREETSA 115/60, 1.0 1° to 12°
(33.8° to 53.6°) N/A 90 (40.82)
100
(45.4)
05LREETSV 230/50, 0.5 1° to 12°
(33.8° to 53.6°) N/A 90 (40.82)
100
(45.4)

General-Purpose Laboratory Refrigerators/Freezers
Thermo Scientific Laboratory Refrigerators and Freezers Installation and Operation Manual 11

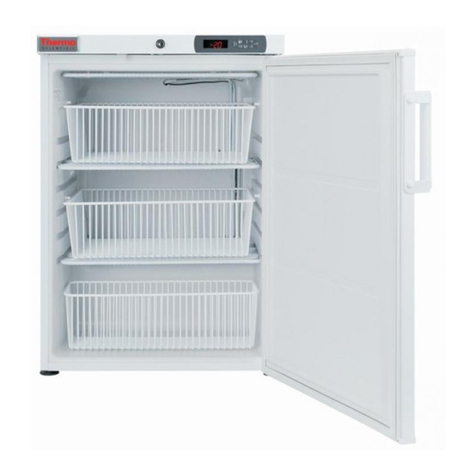

MODEL 04LFEETSA
23.63" Wide, Under-counter freezer
Features:
• Exterior thermostat
• High temperature alarm
• Reversible door
• 3 slide out drawers
• Key lock
• White color
Note Amps listed are at normal run mode, starting amps may be higher.
Model
Refrigerator Chamber
Dimensions
H x W x D inches (cm)
Freezer Chamber
Dimensions H x W x D
inches (cm)
Total
Vol.
Cu. Ft.
Exterior Dimensions
H x W x D inches (cm)
04LFEETSA N/A 24.25" x 17.75" x 16.5"
(61.6 X 45.09X 41.9 cm) 3.5 33.5" x 23.63" x 23.5" (85.1 x 60.02 x 59.69 cm)
Model
Electrical
Characteristics
Volts/Hz, Amps
Refrig.Temp.
Range °C (°F)
Freezer Temp.
Range °C (°F)
Net Wt.
Lbs. (kg)
Ship
Wt.
Lbs.(kg)
04LFEETSA 115/60, 1.3 N/A -12° to -20°
(10.4° to -4°)
100
(45.4)
120
(54.4)

General-Purpose Laboratory Refrigerators/Freezers
12 Installation and Operation Manual Thermo Scientific Laboratary Referigerators and Freezers
MODEL 02LFEETSA
18.63" Wide, Cube Size Freezer Reversible Door Swing
Features:
• Adjustable thermostat
• Manual defrost
• Front-mounted lock
• 100% CFC Free
Note Amps listed are at normal run mode, starting amps may be higher.
Model
Refrigerator Chamber
Dimensions
H x W x D inches (cm)
Freezer Chamber
Dimensions H x W x D
inches (cm)
Total
Vol.
Cu. Ft.
Exterior Dimensions
H x W x D inches (cm)
02LFEETSA N/A 18.63" x 13.38" x 13"
(47.32 x 33.9 x 39.02 cm) 1.8 24.5" x 18.5" x 17.75" (62.23 x 46.99 x 45.08 cm)
Model
Electrical
Characteristics
Volts/Hz, Amps
Refrig.Temp.
Range °C (°F)
Freezer Temp.
Range °C (°F)
Net Wt.
Lbs. (kg)
Ship Wt.
Lbs. (kg)
02LFEETSA 115/60, 0.8 N/A -12° to -25°
(10.4° to -13°)
43
(19.50)
53
(24.04)

General-Purpose Laboratory Refrigerators/Freezers
Thermo Scientific Laboratory Refrigerators and Freezers Installation and Operation Manual 13
MODEL 10LCEETSA, 10LCEETSV
23.63" Wide, Two-Door Refrigerator/Freezer
Features:
• 3 adjustable shelves
• Manual defrost
• White color
Note Amps listed are at normal run mode, starting amps may be higher.
Model
Refrigerator Chamber
Dimensions H x W x D
inches (cm)
Freezer Chamber
Dimensions H x W x D
inches (cm)
Total
Vol.
Cu. Ft.
Exterior Dimensions
H x W x D inches (cm)
10LCEETSA 38.25" x 19.75" x 18.25"
(97.2 x 50.2 x 46.4 cm)
11.25" x 18" x 18.25"
(28.6 x 45.7 x 46.4 cm) 10.1 59.75" x 23.63" x 24" (151.77 x 60.02 x 60.96 cm)
10LCEETSV 38.25"x 19.75"x 18.25"
(97.2 x 50.2 x 46.4 cm)
11.25" x 18" x 18.25"
(28.6 x 45.7 x 46.4 cm) 10.1 59.75" x 23.63" x 24" (151.77 x 60.02 x 60.96 cm)
Model
Electrical
Characteristics
Volts/Hz, Amps
Refrig.Temp.
Range °C (°F)
Freezer Temp.
Range °C (°F)
Net Wt.
Lbs. (kg)
Ship
Wt.
Lbs.(kg)
10LCEETSA 115/60, 1.9 1° to 12°
(34° to 53.6°)
-12° to -20°
(10.4° to -4°)
120
(54.4)
150
(68)
10LCEETSV 230/50, 1.0 1° to 12°
(34° to 53.6°)
-12° to -20°
(10.4° to -4°)
120
(54.4)
150
(68)

General-Purpose Laboratory Refrigerators/Freezers
14 Installation and Operation Manual Thermo Scientific Laboratary Referigerators and Freezers
MODEL 12LCEETSA
23.63" Wide, Combination Refrigerator/Freezer
Features:
• 4 adjustable refrigerator shelves
• 3 fixed freezer shelves
• Automatic defrost refrigerator
• Manual defrost freezer
• Reversible doors
• 2 independent adjustable thermostats
• 2 independent compressors
• White color
Note Amps listed are at normal run mode, starting amps may be higher.
Model
Refrigerator Chamber
Dimensions
H x W x D inches (cm)
Freezer Chamber
Dimensions
H x W x D inches (cm)
Total
Vol.
Cu. Ft.
Exterior Dimensions
H x W x D inches (cm)
12LCEETSA 35.25"x 19.75" x 18.5"
(89.5 x 50.2 x 46.99 cm)
25.38" x 17.13" x 15.5"
(64.5 x 43.5 x 39.4 cm) 11.8 79" x 23.63" x 23.75" (200.7 x 60.02 x 63.5 cm)
Model
Electrical
Characteristics
Volts/Hz, Amp s
Refrig.Temp.
Range °C (°F)
Freezer Temp.
Range °C (°F)
Net Wt.
Lbs. (kg)
Ship Wt.
Lbs. (kg)
12LCEETSA 115/60, 1.8 1° to 12°
(34° to 53.6°)
-12° to -20°
(10.4° to -4°)
192
(87)
251
(113.9)

Unpacking and Installation
Thermo Scientific Laboratory Refrigerators and Freezers Installation and Operation Manual 15
5 Unpacking and
Installation
5.1 Shipping Carton This should be inspected upon delivery. When received, carefully examine
for any shipping damage before unpacking. If damage is discovered, the
delivering carrier should both specify and sign for the damage on your copy
of the delivery receipt.
Open the carton carefully making certain that all parts are accounted for
before packaging materials are discarded. After unpacking, if damage is
found, promptly report it to the carrier and request a damage inspection
promptly.
IMPORTANT Failure to request an inspection of damage within a few
days after receipt of shipment absolves the carrier from any liability for
damage. You must call for a damage inspection promptly.
5.2 Unpacking Use the list below when unpacking to verify that the complete unit has been
received. Do not discard packing materials until all is accounted for.
The following items are included in the shipment:
5.3 Location Locate your unit in the most convenient place and near a grounded electric
outlet. If units are placed on a counter-top, the front should be 3" or more
back from the edge to avoid accidental tipping of the unit.
If possible, locate your unit out of direct sunlight and away from heat
sources such as a radiator, stove or heat duct.
5.4 Clearance Position the unit so that there is at least clearance as per the table below. It is
recommended that even more space be left at the back of the unit in case
maintenance is required.
Refrigerator/Freezer
Operation Manual 057-196-00
Volt Warning Tag 528-609-00
Inspection Tag 528-028-00
Model Top, in. Rear, in. Sides, in.
05LREETSA/05LREETSV/10LCEETSV/10LCEETSA/05LCEETSA/05LCEETSV/
04LFEETSA
222
05EREETSA/10ECEETSA/10ECEETSV/10FCEETSA/10FCEETSV/05FREETSA 3 12 3
12LCEETSA 4 4 4
02LFEETSA 5 5 5

Unpacking and Installation
16 Installation and Operation Manual Thermo Scientific Laboratary Referigerators and Freezers
5.5 Electrical Units must be connected to a grounded outlet matching the nameplate
and/or the information furnished in this manual.
If you are not sure about the outlet, you should contact a qualified
electrician for assistance.
The unit should always be connected to its own individual outlet.
CAUTION: DO NOT REMOVE, under any circumstance, the grounding
prongs from the 3-prong power cord supplied with all units.
CAUTION: DO NOT USE electrical extension cords that may result in
voltage loss and possible hazardous operation.
5.6 Electrical Schematic
Figure 1. Electrical Schematic of the 02LFEETSA Freezer
5.7 Be Advised
WARNING: Explosion-proof units do not come with line cords. They
require rigid conduit to be run directly in order to seal off the fitting on
thermostat housing. This should be done by a licensed electrician and follow
all local and electrician and follow all local electrical codes. If any questions
pertaining to electrical safety arises, please refer to article 501 of the
National Electrical Code.
