Orion Star™
Series Meter
User’s Guide
Analyze
•
Detect
•
Measure
•
Control
™

ROSS and the COIL trade dress are trademarks of Thermo Electron Corporation.
AQUAfast, Cahn, EZ Flash, Ionalyzer, ionplus, KNIpHE, No Cal, ORION, perpHect, PerpHecT, PerpHecTion, pHISA,
pHuture, Pure Water, Sage, Sensing the Future, SensorLink, ROSS Ultra, Sure-Flow, TEA Analyzer, Titrator PLUS,
TURBO2 and Wine Master are registered trademarks of Thermo.
1-888-pHAX-ION, A+, All in One, Aplus, AQUAsnap, AssuredAccuracy, AUTO-BAR, AUTO-CAL, AUTO DISPENSER,
Auto-ID, AUTO-LOG, AUTO-READ, AUTO-STIR, Auto-Test, BOD AutoE Z, Cable-Free, CERTI-CAL, CISA, DataCOLLECT,
DataPLUS, digital LogR, DirectCal, DuraProbe, Environmental Product Authority, Extra Easy/Extra Value, FAST
QC, Flash Titration, Flash Titrator, GAP, GLPcal, GLPcheck, GLPdoc, ISEasy, KAP, LabConnect, LogR, Low
Maintenance Triode, Minimum Stir Requirement, MSR, NISS, One-Touch, One-Touch Calibration, One-Touch
Measurement, Optimum Results, Orion Constellation Software, Pentrode, pHuture MMS, pHuture Pentrode,
pHuture Quatrode, pHuture Triode, Quatrode, QuiKcheK, rf link, ROSS, ROSS Resolution, SAOB, SMART
AVERAGING, Smart CheK, SMART STABILITY, Stacked, Stat Face, The Enhanced Lab, ThermaSense, Triode,
TRIUMpH, Unbreakable pH, Universal Access are trademarks of Thermo.
Guaranteed Success and The Technical Edge are service marks of Thermo.
PerpHecT meters are protected by U.S. patent 6,168,707.
PerpHecT ROSS are protected by U.S. patent 6,168,707.
ORION Series A meters and 900A printer are protected by U.S. patents 5,198,093, D334,208 and D346,753.
ionplus electrodes and Optimum Results solutions are protected by USPatent 5,830,338.
ROSS Ultra electrodes are protected by US patents pending 6,793,787.
Orion ORP Standard is protected by US Patent 6,350,367.
Orion NoCal electrodes have patent pending.
© Copyright 2006, Thermo Electron Corporation. All rights reserved. Question everything, and
Analyze.Detect.Measure.Control are trademarks of Thermo Electron Corporation.
The specifications, descriptions, drawings, ordering information and part numbers within this document are
subject to change without notice.
This publication supersedes all previous publications on this subject.

Table of Contents
Chapter I Introduction
PasswordProtectedMethods ......................................... I-1
AUTO-READ™ ..................................................... I-1
StirrerControl...................................................... I-2
SMART STABILITY™ and SMART AVERAGING™ . . . . . . . . . . . . . . . . . . . . . . . . . . I-2
Chapter II Display
GeneralDescription.................................................II-1
Chapter III Keypad
ConvenienceFeatures .............................................. III-2
Audible Signals & Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . III-2
AutomaticShut-off............................................... III-2
IconDefinitions.................................................... III-3
Chapter IV Preparation
Installingthepoweradapter.......................................... IV-1
Installingbatteries ................................................. IV-2
Connectingtheelectrodes........................................... IV-4
TurningontheInstrument ........................................... IV-6
Chapter V Generic Menu Setup
NavigationTips.....................................................V-1
GeneralMenuSettings...............................................V-2
Time/Date/DaySettings..............................................V-4
Continuous, Timed, or AUTO-READ™Measurement Selection . . . . . . . . . . . . . . . . V-6
StirrerControl....................................................V-7
GettingStartedwithGLPMethods .....................................V-8
PasswordProtectedMethods ......................................V-10
SelectingMeasurementMode........................................V-11
Calibration........................................................V-12
CalibrationAlarmSetup ...........................................V-13
Chapter VI Data Archiving and Retrieval
DatalogSetup..................................................... VI-1
Logview......................................................... VI-2
RS-232InstrumentSetup............................................ VI-3
Chapter VII pH Technique
pHSetup.........................................................VII-1
pHCalibration.....................................................VII-3
pHMeasurement..................................................VII-5

Chapter VIII Dissolved Oxygen Technique
DOSetup....................................................... VIII-1
DOCalibration ................................................... VIII-5
Air,Water,Manual .............................................. VIII-7
WinklerTitrationMethod ......................................... VIII-9
ProbeZeroCalibration .......................................... VIII-10
Chapter IX Conductivity Technique
DefinitionofTerms&Concepts....................................... IX-1
ConductivitySetup................................................. IX-4
ConductivityCalibration............................................. IX-6
ConductivityMeasurement .......................................... IX-7
Chapter X ISE Technique
DefinitionofTerms&Concepts........................................X-1
SetupOptions......................................................X-2
ISECalibration .....................................................X-4
AutoblankCorrection ..............................................X-5
ISEMeasurement...................................................X-7
Chapter XI mV and ORP Technique
DefinitionofTerms&Concepts....................................... XI-1
Relative mV and ORP(EH)Calibration................................... XI-1
mVMeasurement.................................................. XI-2
Chapter XII Orion Star Series Meter Specifications
Specifications.....................................................XII-1
2&3-StarMeter...................................................XII-3
4-StarMeter......................................................XII-4
5-StarMeter......................................................XII-6
Chapter XIII Care and Maintenance
ErrorCodes&Debugging........................................... XIII-1
Troubleshooting .................................................. XIII-7
Chapter XIV Terms and Conditions
Warranty........................................................ XIV-1
Chapter XV Declaration of Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . XV-1
WEEECompliance.................................................XV-2

Chapter I
Introduction
Congratulations! You have selected one of seven models of the industry-leading
Orion Star Series meter designed for electrochemistry measurement in the field or
in the laboratory.
• 2 & 3-Star meters provide single measurement of pH, Dissolved Oxygen,
or Conductivity.
• 4-Star meters provide dual-parameter measurement of pH/DO, pH/Conductivity,
or pH/ISE (ion selective electrode).
• The 5-Star meter provides multi-parameter measurement including mV/ORP.
Built to meet the demands of busy, multi-user laboratories or plant environments, all
meters are microprocessor controlled aiding in the delivery of accurate and precise
measurements. The waterproof portable meters can even withstand submersion
for short periods of time without any negative effect on operation. To better meet
the needs of users in environmental protection and control, food and beverage,
pharmaceutical, and consumer product laboratories, the Orion Star Series include
these key features:
• Password Protected Methods – Meter’s memory will save up to ten custom
measurements and calibrations for future reference. Password protection of
each method eliminates any tampering with methods as multiple users access
only the procedure most appropriate to their work.
• AUTO-READ™ – The instrument automatically starts a measurement and
automatically prints or logs data when the reading becomes stable.
I-1
Orion Star Series Meter
Thermo Electron Corporation

Thermo Electron CorporationI-2 Orion Star Series Meter
Introduction
• Stirrer Control – Benchtop meters have stirrer control for the Orion 096019
Stirrer and the Auto-Stir™ BOD probe eliminating the need for additional stir
plates and stir bars.
• SMART STABILITY™ and SMART AVERAGING™ – Remove the
guesswork by automatically compensating for measurement conditions thus
optimizing response time.
An easy-to-reference pictorial style Quick Guide, attached to each meter, supports
daily use.
Please read this manual thoroughly before using your benchtop or portable meter.
Any use outside of these instructions could invalidate your warranty and/or cause
permanent damage to the meter.

II-1
Orion Star Series Meter
Thermo Electron Corporation
Chapter II
Display
General Description
Throughout a given process, the LCD on any Orion Star Series meter provides
Temperature and Calibration data. The setup only appears when the meter is
in setup mode. The indicates an error condition; when displayed with the , a
sensor quality issue exists.
, and functions will be discussed in greater detail on page V-6 and VI-1.
Depicted here is the primary LCD of the 5-Star meter capable of multi-parameter
measurement.
Temperature
Calibration
5 Star Meter
pH/ISE/ORP
Unit
Conductivity
Unit
DO Unit

Thermo Electron CorporationII-2 Orion Star Series Meter
Display
Note: the lowest 3 lines of data correspond to what is being measured. s
ApH, mV, Rel mV, or ISE
BConductivity, TDS, Salinity, or
Resistivity
CDissolved Oxygen % Saturation,
DO Concentration,
or Barometric Pressure
Units of measure, displayed on the right side of the screen, will flash until the
reading is stable.

III-1
Orion Star Series Meter
Thermo Electron Corporation
Chapter III
Keypad
General Description
Keypad layout is the same for all Orion Star Series meters. The portable meters have
9 keys. The benchtop meters have 10 keys due to the addition of a button.
Power Back Light
View Log
Measure
Save/Print
Scroll Up
Calibrate
Setup
Scroll Down
Digits
Stirrer On/Off
Measure
Save/Print
View Log
Power
Line Select
Digits
Setup
Calibrate
Back Light
Portable Keypad
Benchtop Keypad
Line Select

Thermo Electron CorporationIII-2 Orion Star Series Meter
Keypad
The center area of the ergonomically designed keypad is the focal point for setting
up and navigating the meter. In particular, and / are used frequently to
change LCD views.
Convenience features include:
• Display Backlight – A quick press of the will turn the backlight “on”
and “off”. When the meter is operating on battery power, the backlight will
automatically turn “off” after two minutes to conserve power. When batteries
are low, the backlight will no longer turn “on”.
• Automatic Shut-off – All Orion Star Series meters will shutdown after 20
minutes without a keypress. This maximizes battery power on portable meters
or benchtop meters being run on battery power.
• Audible Signals – The meter will beep whenever a key is pressed providing
immediate verification that the user’s input was received.
• Visual Alarm Signals – Flashing and indicate calibration settings
need adjustment. For more detail, refer to subsequent sections of this manual
discussing specific measurement techniques.
To become familiar with each function, please review these icon definitions.

III-3
Orion Star Series Meter
Thermo Electron Corporation
Keypad

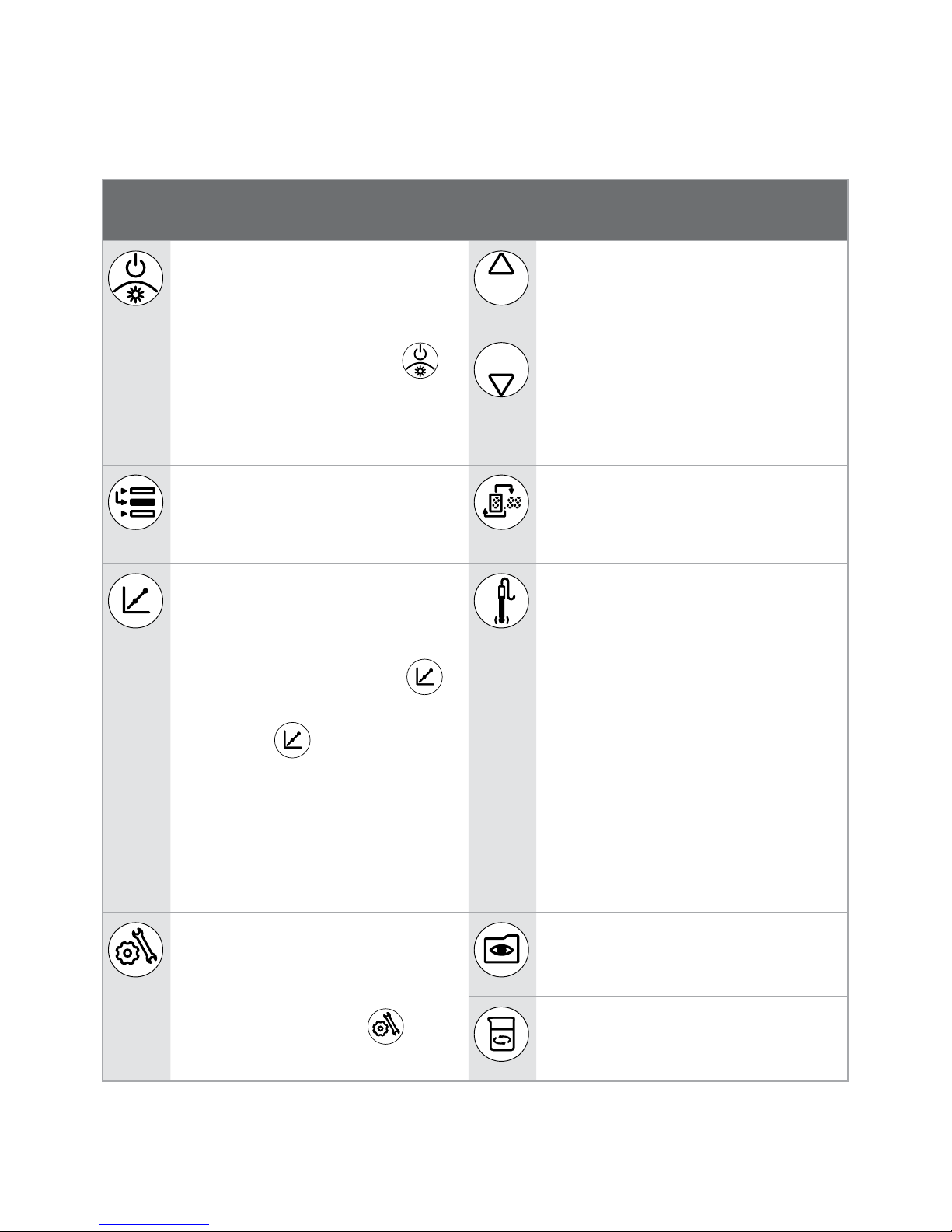

Icon Definitions
Key Description Key Description
• Turns meter on, if shut off.
• Toggles backlight on & off, if meter
is on.
• If meter is on, holding down
will turn off the meter.
• Changes measurement mode of the
selected line.
• Changes selected line in Setup,
Methods & Log View.
• Edits the value of the flashing digit
for Setup, Password entry, and
Calibration.
Switches arrow on left of the screen
between 3 display lines to select and
edit.
Changes selected digit to edit and moves
decimal point when changing values in
Setup, Password entry, & Calibration.
Starts calibration for currently selected
line and measurement mode.
• If arrow is pointed to the top line
and the current units are pH,
will start a pH calibration.
• Each time is pressed in the
calibration it will accept the current
point value and move to the next
cal pt until the max # of cal pts are
performed, then it will return to
measurement mode.
• Print & Log a measurement in
continuous or timed measurement
mode.
• Prints, Logs, & Freezes screen when
the reading becomes stable.
• Exits SETUP and returns to
measurement mode.
• Accepts Cal pt and returns to
measurement mode.
Enters SETUP menu starting with
selected line and measurement mode:
If arrow is pointed to top line and
current units are ISE, then will
enter the ISE setup screen.
Enters LOG View & Download Screens.
Turns stirrer on & off.

Thermo Electron CorporationIII-4 Orion Star Series Meter
NOTES

IV-1
Orion Star Series Meter
Thermo Electron Corporation
Chapter IV
Preparation
Installing Power Adapter
The universal power supply which is included with your benchtop meter is the ONLY
power supply source recommended for use with this unit. Use of any other power
supply will void your meter warranty.
The external electrical power supply is rated to be operated at 100-240 VAC, 0.5A,
50/60 Hz.
Based on your power source, select one of the three plugs provided – 110V, 220V,
240V – and slide it into the grooves on the adapter. A click will be heard when the
plug is properly in place.

Thermo Electron CorporationIV-2 Orion Star Series Meter
Preparation
Installing Batteries
Thermo Orion Star Series meters use four AA Alkaline batteries. Do not use lithium
or rechargeable batteries. Improper installation of non-alkaline batteries could create
a hazard.
1. Confirm meter is “off”.
2. Gently place meter upside down on a clean, lint-free cloth to prevent scratching
of LCD.
3. Remove the battery case cover.
4. Insert new batteries with the “+” pole oriented as depicted in the battery
compartment housing.
5. Replace the cover.
6. Stored data, calibrations and methods will remain in the meter’s nonvolatile
memory when batteries are being replaced, however, date and time may need
to be reset.

IV-3
Orion Star Series Meter
Thermo Electron Corporation
Preparation

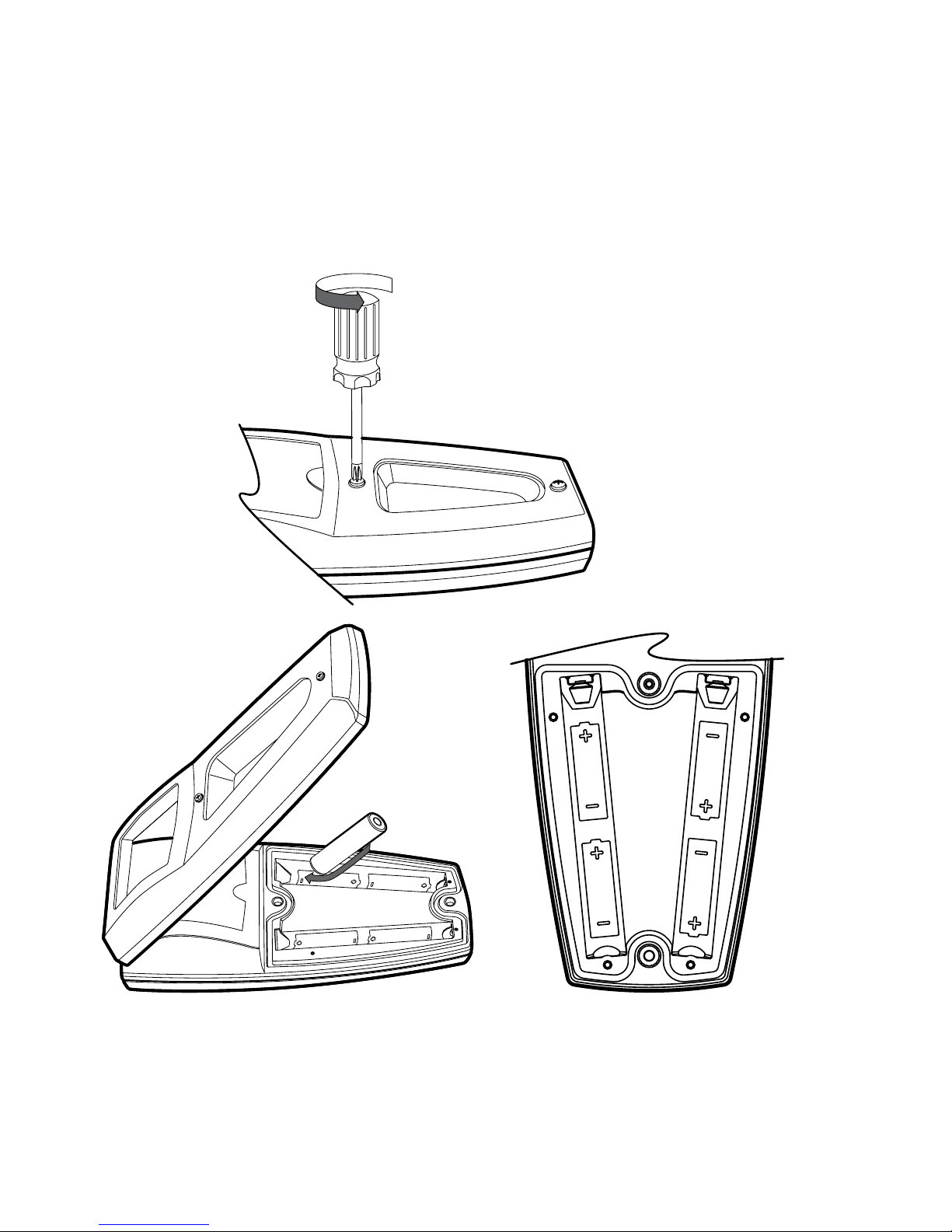

To access the battery compartment in portable meters, loosen the two screws
in the center back of the meter. Note these are captive screws which cannot be
completely removed.

Thermo Electron CorporationIV-4 Orion Star Series Meter
Preparation
Connecting the Electrodes
Follow the diagrams below to correctly connect electrodes and probes to the meter.
The 5-Star meter is depicted; 4-Star and 3-Star meters will have fewer connections.
Benchtop Meter – Electrode Connections
Portable Meter – Electrode Connections
Stirrer jack,
stirrer or DO
auto stir probe
Reference
pH or ISE
Cond
ATC
8 pin
DO
9 pin
Ground
BNC
Power
RS232
RS232
BNC
Cond
ATC 8 pin
DO 9 pin

IV-5
Orion Star Series Meter
Thermo Electron Corporation
Preparation
Some connections serve multiple uses, for example:
• Use the BNC post to connect pH, ISE and ORP combination and sensing
electrodes with a waterproof BNC connector.
• Benchtop meters have a pin tip jack for a separate reference electrode. These
require an appropriate BNC sensing electrode for measurement.
• The 970899WP Dissolved Oxygen electrode can be used with the
BNC connector.
• Use the waterproof 8 pin MiniDIN connector for Conductivity probes. All Orion
Star series 2- and 4- electrode cell conductivity probes have built-in temperature
sensors.
• The waterproof 8 pin MiniDIN connector is also used for Automatic Temperature
Compensation (ATC) probes.
• The DO autostir probe uses the waterproof 9 pin MiniDIN connector and the
stirrer jack for the smaller probe connector.

Thermo Electron CorporationIV-6 Orion Star Series Meter
Preparation
Turning On the Instrument
With the batteries installed in the portable meters, or either the batteries installed or
line power attached to the benchtop meter, press the to turn on the instrument.
A quick press of the after the meter has powered up will toggle the backlight
on & off. When the benchtop is drawing line power, the backlight will stay “on” until
turned “off” with the . To turn “off” the meter press and hold the for
3 seconds.

Thermo Electron Corporation V-1Orion Star Series Meter
Chapter V
Menu Setup
Navigation Tips
• Press / to scroll through main menu items on
the top line. You will see corresponding grey text on
the LCD.
• The enters the setup mode.
• Use to select top, middle or bottom line.
• Use / in combination with to edit the
values in selected line.
• Use to accept changes and return the arrow icon
to the top line.
• Use to save changes and return to the
measurement mode.

Thermo Electron CorporationV-2 Orion Star Series Meter
Menu Setup
General Menu Settings
The following table describes general instrument setup.
Description Display Range of Values Default
Value
Method
Specific
Manual Temperature
Compensation Setting
gEn
dEgC
25.0
-5.0 - 105 25.0 Yes
Stirrer Speed Setting
(Benchtop only)
gEn
StIr
4
OFF, 1, 2, 3, 4, 5, 6, 7 4Yes
Auto-Shut Off Selection gEn
AUtO
On
OFF, On On Yes
• Manual Temperature setting controls temperature compensation when no
temperature sensors are attached to the instrument.
• Stirrer Speed Setting (benchtop meters only) sets the speed from 1 through
7 with speed 1 being the slowest and 7 being the fastest. A speed of 3 or 4 is
recommended for most applications.
• Auto-Shut Off is the default which automatically turns off the instrument after
20 minutes elapse without a key press. To override this feature, select “Off” and
the instrument will continue to operate.
