ThermoFLUX INTERIO Operating instructions

ThermoFLUX d.o.o., Bage br. 3, 70101 Jajce, Bosnia and Hercegovina, Tel/Fax: [phone]
www.thermoflux.ba [e-mail]
PELLET STOVE
USER AND MAINTENANCE MANUAL

2
Dear users,
Congratulations on chosing a boiler from ThermoFLUX d.o.o..
Please note that all persons handling this pellet stove inspect and observe the operating
instructions and safety instructions. Always keep the instructions an place near the stove.
Due to constant improvement and development of our products some pictures or
illustrations in this guide may vary.
IMPORTANT INFORMATION:
The first commisioning and training of the user must be done by a service authorized
by ThermoFLUX d.o.o. or the importer, otherwise the guarantee will not be valid.

3
Content:
1NOTES ON THE MANUAL ............................................................... 6
1.1 Easy and safe operation ......................................................................................... 6
1.2 Technical changes.................................................................................................. 6
1.3 Copyright.............................................................................................................. 6
1.4 Security measures ................................................................................................. 6
1.5 Basic principles and operation ................................................................................. 7
1.6 Warning signs ....................................................................................................... 8
1.7 Other warnings...................................................................................................... 9
1.7.1 System overheating...........................................................................................10
1.7.2 Smoke .............................................................................................................10
1.7.3 Fire in the room ................................................................................................10

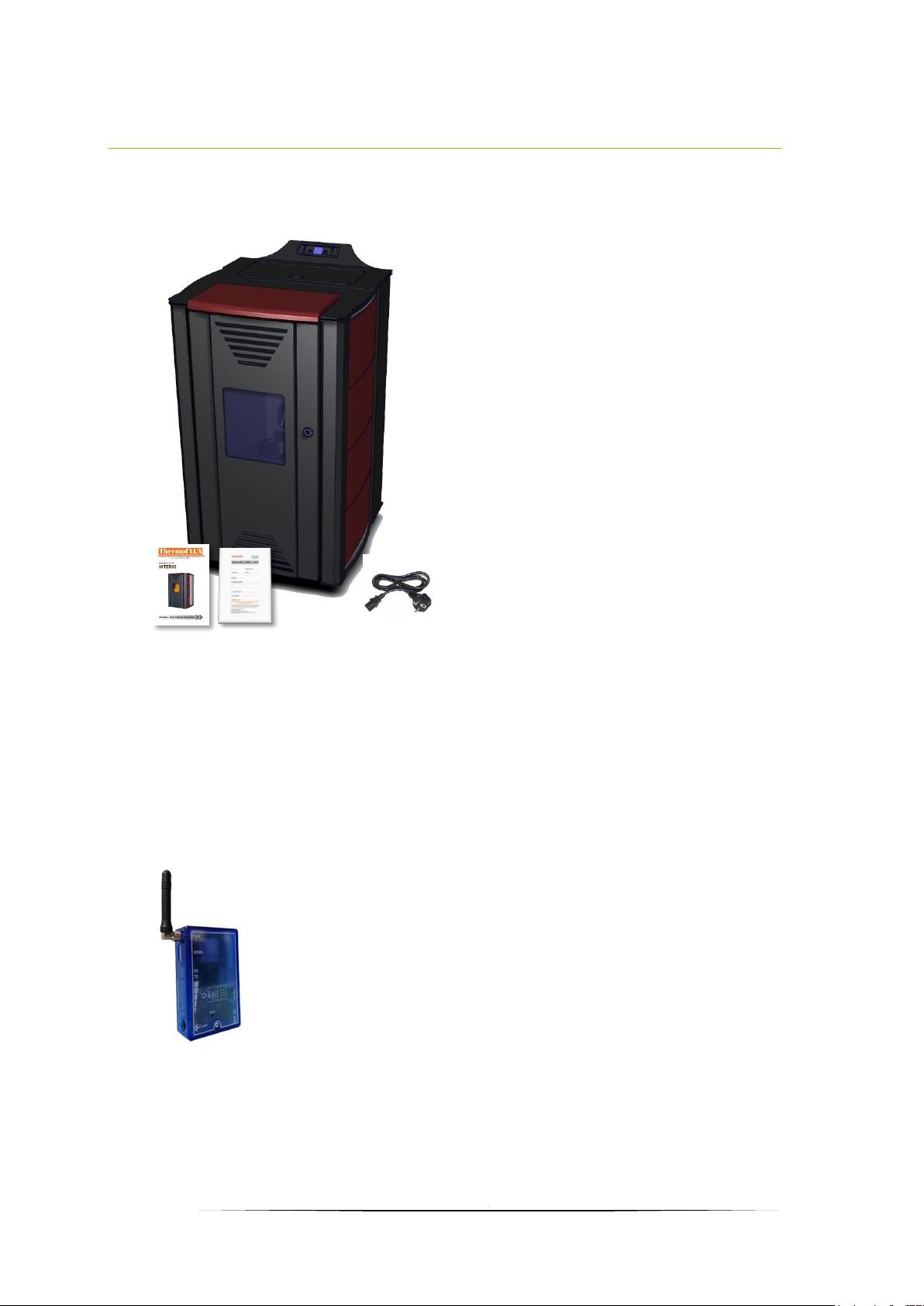

2GENERAL OVERVIEW .................................................................. 11
2.1 GSM modem ........................................................................................................11

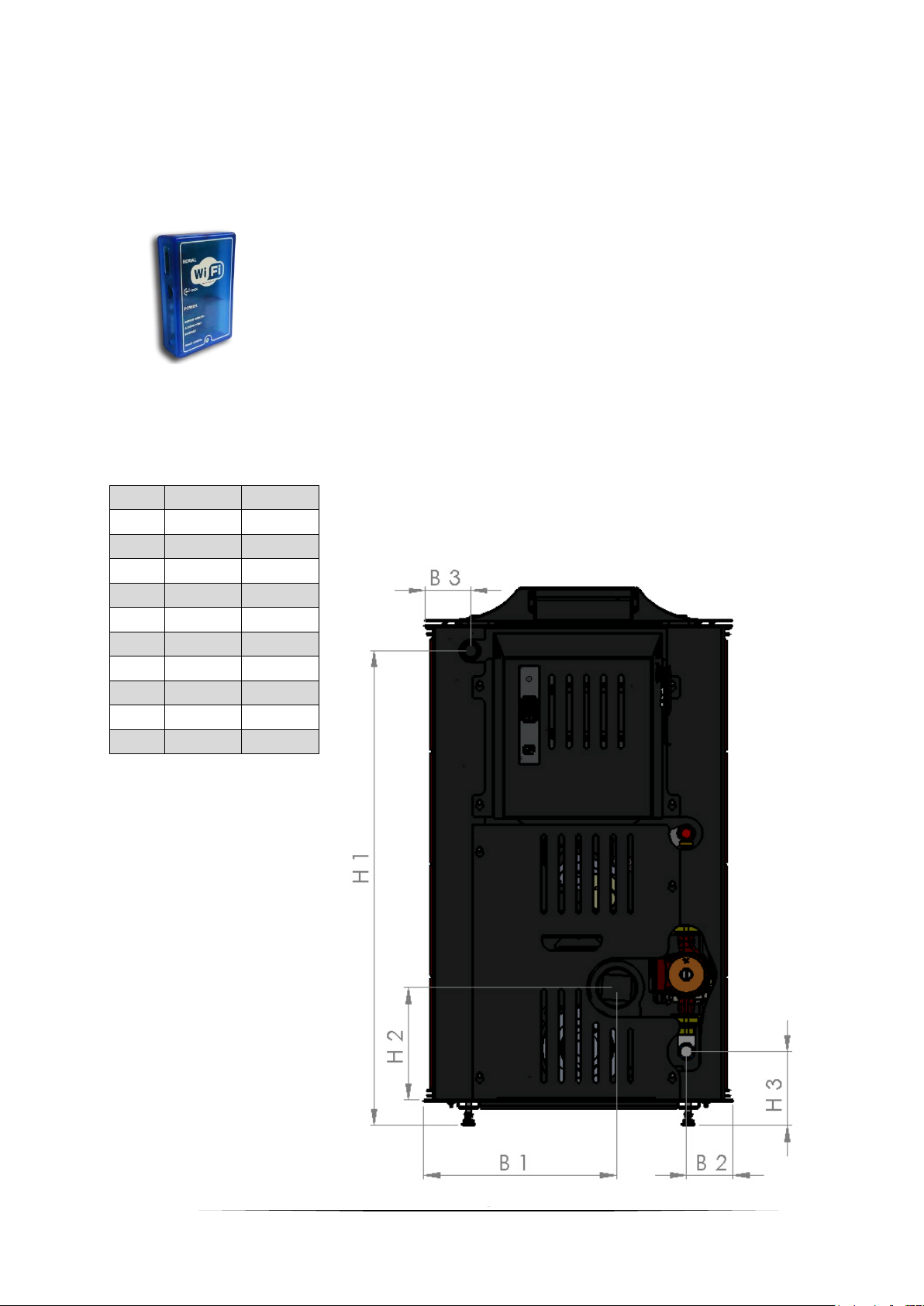

2.2 Wi-Fi module........................................................................................................12
2.3 Technical data ......................................................................................................12
3SAFETY INSTRUCTIONS .............................................................. 15
3.1 Proper use ...........................................................................................................15
3.1.1 Basic principles .................................................................................................15
3.1.2 Handling with the stove......................................................................................15
3.1.3 Use of the stove ................................................................................................15
3.1.4 Changes on the stove ........................................................................................15
3.2 Pellets that can be used in boilers ...........................................................................16
3.2.1 What is pellet....................................................................................................16
3.2.2 Recommended wood pellets and standars.............................................................16
3.2.3 Unallowed fuels.................................................................................................16
3.3 Obligatory information...........................................................................................17
3.4 Local standards ....................................................................................................17
3.5 Safety instructions for the heating room ..................................................................17
3.6 Fresh air supply....................................................................................................18
3.7 Boiler safety devices .............................................................................................18
4Installation................................................................................ 19
4.1 Installation conditions ...........................................................................................19
4.1.1 Switch off main power supply .............................................................................20
4.1.2 Check mechanical connections ............................................................................20
4.1.3 Check hydraulic connections ...............................................................................20
4.2 Chimney and flue gas pipes ...................................................................................20

4
5Connection ................................................................................ 23
5.1 Hydraulic schemes for connection ...........................................................................23
5.2 Electric scheme connection ....................................................................................24
5.2.1 Power supply ....................................................................................................25
5.2.2 Room thermostat ..............................................................................................25
6Function of stove ....................................................................... 26
6.1 Overview of the controls and display and their basic functions....................................26
6.2 Principle of stove operation ....................................................................................28
6.3 Schematic representation of the menu control..........................................................29
6.3.1 Clock adjustments .............................................................................................31
6.3.2 Adjustments of the programmed on and off mode .................................................32
6.3.4 LANGUAGE OPTIONS .........................................................................................34
6.3.5 STAND BY mode...............................................................................................34
6.3.5.1 STAND BY mode with installed sensor for water temperature...............................34
6.3.5.2 STAND BY mode with room thermostat connected..............................................35
6.3.6 Option Buzzer ...................................................................................................35
6.3.7 Filling of spiral dispenser ....................................................................................36
6.3.8 STATE OF THE STOVE ........................................................................................36
6.3.9 Technical settings..............................................................................................36
6.3.10 FUEL TYPE.....................................................................................................36
7Ignition and shutting down of stove.............................................. 37
7.1 Ignition ...............................................................................................................37
7.2 Shutting down of stove..........................................................................................38
7.3 Stove power adjustments ......................................................................................38
7.4 Adjustment of water temperature in stove ...............................................................39
7.5 Modulation...........................................................................................................39
7.6 Cleaning of FIRE-POT ............................................................................................40
8Cleaning and maintenance .......................................................... 41
8.1 Daily cleaning.......................................................................................................41
8.2 Weekly cleaning ...................................................................................................41
8.3 Cleaning the tube heat exchanger...........................................................................42
9Alarms...................................................................................... 45
10 Instruction about safety removal and proper disposal of stove ...... 47
10.1 Disposal ..............................................................................................................47
11 Guarantee.............................................................................. 48
11.1 Guarantee period..................................................................................................48
11.2 Guarantee terms ..................................................................................................48
11.3 Exemption from the guarantee ...............................................................................48

5

6
1NOTES ON THE MANUAL
1.1 Easy and safe operation
This manual is an integral part of the stove and contains important information
for proper and safe operation of the Interio pellet stove. Following the
instructions in this manual, the stove will work properly and you will avoid the
danger, the costs of repairing failures, and at the same time the lifetime of the
stove continues.
1.2 Technical changes
ThermoFLUX constantly develops and improves its stoves. The information in this
manual is accurate at the time it is printed.
All the details in this guide on standards and regulations should be checked and
compared before using the stove that is installed.
We reserve the right to make any changes that may result in deviation from the
technical details and illustrations shown in this manual.
1.3 Copyright
It is forbidden to copy and download content from this manual!
Required written permission by ThermoFLUX d.o.o. before any copying, storage in data
transmission systems electronically, mechanically or in any other way. As well as
copying and publication of parts or the entire instruction.

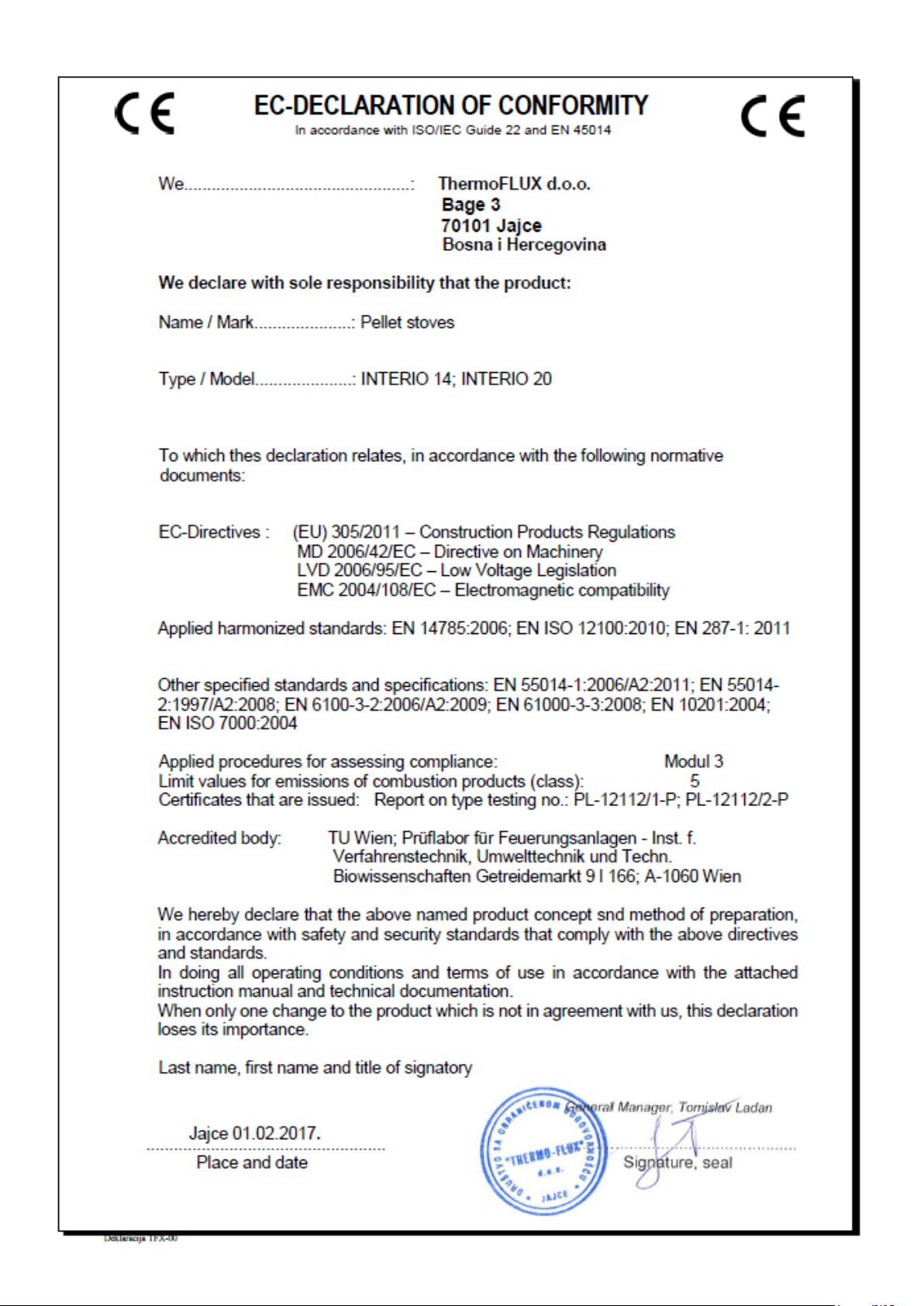

1.4 Security measures
The pellet stove is designed and manufactured in accordance with the Safety
regulations.
EU-Directives:
(EU) 305/2011
MD 2006/42/EG
LVD 2006/95/EG
EMV 2004/108/EG
The stoves Fulfill other specified standards and specifications: EN 55014-1: 2006 / A2:
2011; EN 55014-2: 1997 / A2: 2008; EN 6100-3-2: 2006 / A2: 2009; EN 61000-3-3:
2008; EN 10201: 2004; EN ISO 7000: 2004.
Improper use of the stove can result in bodily injury, leading ultimately to the death
of users and/or others as well as damage to the stove itself or other property.

7
1.5 Basic principles and operation
The Interio pellet stove is a special heater intended exclusively for domestic use and
intended only for burning wood pellets of 6 mm diameter and 30 mm length. During
operation, the integrated heat exchanger produces hot water which is delivered to a
central heating system. The integrated pump only switches on when the preset water
temperature in the system (50°C) is reached. For normal operation, it is only necessary
to start the stove and select the desired power value or temperature. By installing the
room thermostat, it is possible to automatically ignite and control the stove. The pellets
automatically fall into the burn pot and then are ignited with an electric heating
cartridge. Depending on the set value of the power, the pellet conveyor automatically
adds the required amount of pellets. The required air supply for combustion into the
combustion chamber is controlled. The resulting heat energy in the combustion
chamber is supplied to the central heating. At the end of the combustion chamber
there is an exhaust fan, which releases the flue gases created in the chimney. Every
day it is recommended to clean the ashes. Every 1-2 months or after consumption of
approx. 500kg Enplus (A1) pellets a cleaning of the flue gas chamber and the pipe
heat exchanger is required. The devices are designed and tested so that they can be
installed in homes and have the necessary approvals. For the combustion air is needed.
For this reason, the combined use of kitchen exhaust systems, and the ventilation in
the same room with a stove is not allowed.

8

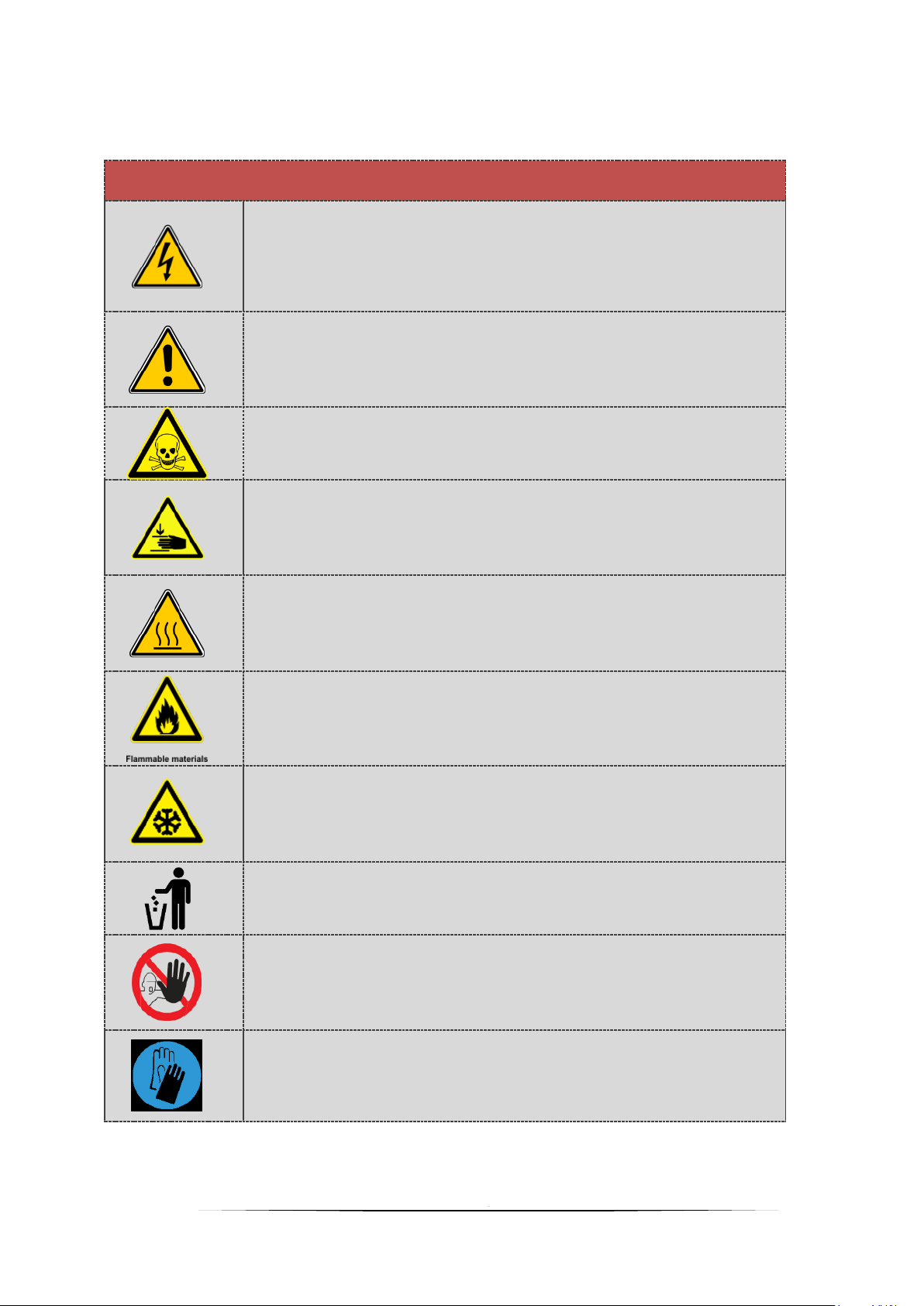

1.6 Warning signs
WARNING SIGNS
RISK OF ELECTRIC SHOCK.
Working in areas marked with this symbol must be done by a qualified
electrician.
WARNING!
Warning for hazardous locations and actions. Failure to follow can result
by fatal injuries.
CHOKING HAZARD DUE TO CARBON MONOXIDE
CAUTION!
Risk of injury. Work on locations marked with this symbol can cause
injuries.
CAUTION!
Hot surfaces. Work on locations marked with this symbol can lead to
burns.
CAUTION!
Risk of flammability. Work on locations marked with this symbol may
cause ignition injuries.
CAUTION!
Risk of frost. Work on the locations marked with this symbol may result
in freezing.
Instructions for proper disposal of waste.
NO ACCESS
Access to the boiler room to unauthorized persons, especially children
should be disabled .
Obligatory use of protective gloves

9

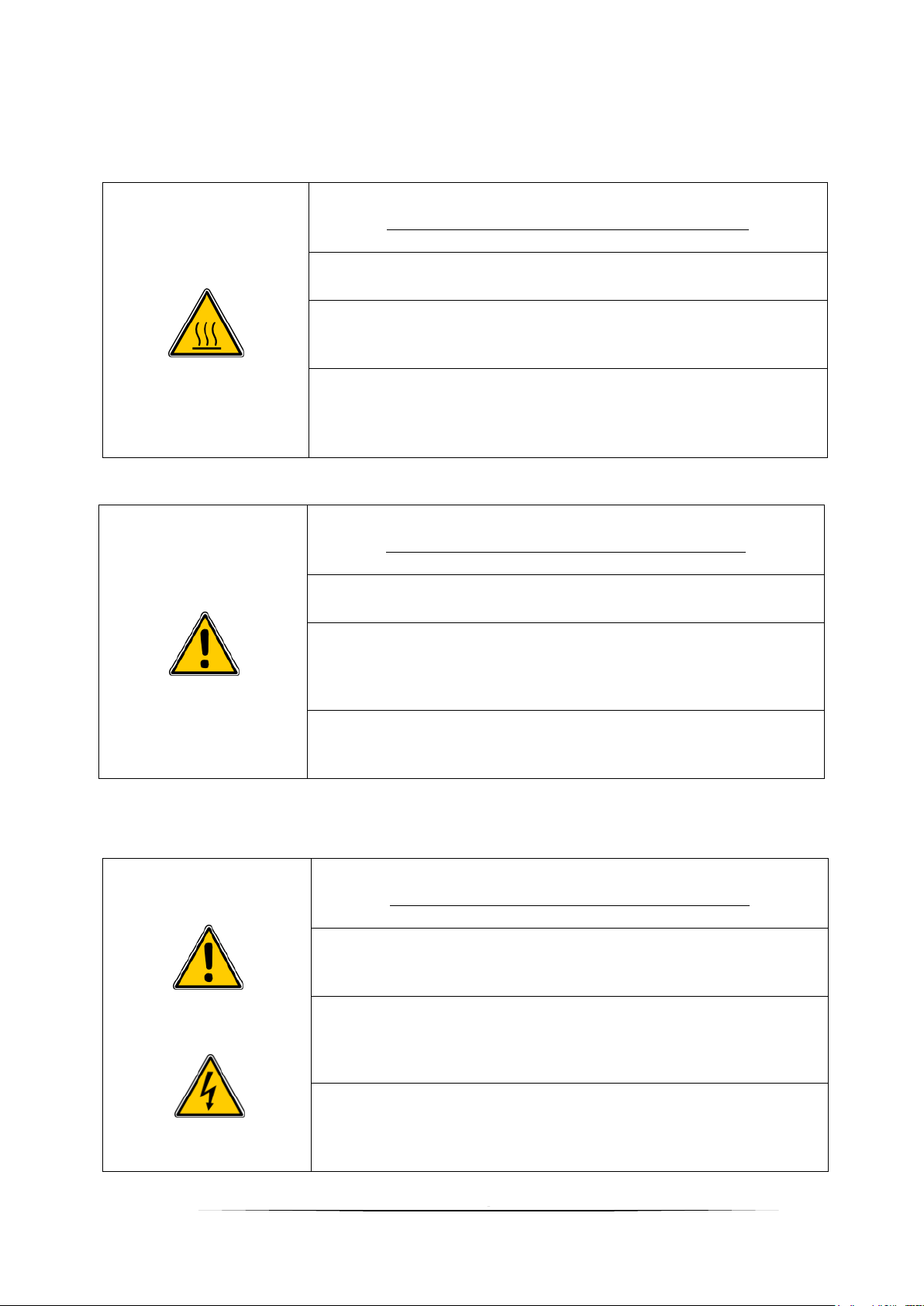

1.7 Other warnings
WARNING
Do not open the door for ash cleaning during operation!
Opening the door on the stove during work can cause the
switch off of the stove, injury, damage and leakage of flue
gases.
Open the door only during regular cleaning and
maintenance.
WARNING
Never touch hot surfaces!
The hot parts of the stove, flue gas pipes and heating pipes
can cause severe burns!
Use gloves when working with the stove.
Maintain the stove only according to the instructions.
Insulate the flue pipes and avoid possible contact
WARNING
NEVER SWITCH OFF THE STOVE FROM ELECTRIC
NETWORK DURING WORK!
Connection to the power should be with a permanent
connection to avoid the possibility of the accidental
shutdown.
Although the stove is secured with several levels of
protection, forced power shutdown can cause unplanned
failures.

10
1.7.1 System overheating
If the heating system overheats despite all the elements, it is necessary to
proceed as follows.
Do not open doors on the stove
Turn off the boiler pressing the button
for 3 seconds
Open all heating circuits and switch on
all pumps (stove control does this
automatically)
Leave the pellet stove room and close
the door
Open all available valves on the
radiators / distribution boxes
If the temperature in the system is not decreasing, call the authorized
service center.
1.7.2 Smoke
Flue gases can cause poisoning!
Do not open doors on the stove
Turn off the stove pressing the button
for 3 seconds
Ventilate the room where the stove is
located
Leave the room and close the door
1.7.3 Fire in the room
In case of fire in the room:
Turn off the boiler pressing the
button for 3 seconds
In case of fire use only
extinguishers type AB with
powder.

11
2GENERAL OVERVIEW
The Interio pellet stove is intended for
domestic use only and only for pellets
with a diameter of 6mm. The stove is
compact and requires only 1m2 for
installation, so it can be installed in the
smallest space. The 30kg capacity
pellet store, a weekday digital
controllerr, a cast iron pot, a expansion
vessel and safety valve make it easy to
install and use the stove for central
heating use. The stove is delivered with
the accompanying material:
Power cable
Key
Manual
Guarantee
Additional equipment which can be used (is not supplied with an
oven):
2.1 GSM modem
By using the cell phone and by sending an appropriate SMS message, you can
perform the following functions:
• Set default phone numbers
• Set up the communication languages between the modem
and the phone
• Tun on the boiler / stove
• Switch off the boiler /stove
• Change the default temperature
• Change work power
• Reading the status of the boiler / fireplace

12
2.2 Wi-Fi module
Designed for communication and control of boiler operation via the Internet.
Compatible with Android, IOS and Windovs devices. The user can have full control
over the boiler via the application:
enable / disable,
change the power of work,
change the temperature and
to program delayed ignition and shutdown times.
2.3 Technical data
L
[mm]
623
L1
[mm]
657
L2
[mm]
673
B
[mm]
634
B1
[mm]
281
B2
[mm]
98
B3
[mm]
93
H
[mm]
1089
H1
[mm]
960
H2
[mm]
315
H3
[mm]
151

13

14
RB
J.M
Interio 14
Interio 20
1
Weight
kg.
204
214
2
Power range
kW
4-14,1
4-18
3
Heat transfer to the water
kW
12,1
15,8
4
Heat in room
kW
2
2,2
5
Water content
L
33
25
6
Recom. draught ratio
Pa
5-12
5-12
7
Water conction Inlet/Outlet
inch
1''
1''
8
Flue gas temperature
oC
108,4
140
9
Max working temperature
oC
85
85
10
Max working pressure
bar
2,5
2,5
11
Height to center of flue pipe
mm
305
305
12
Depth
mm
650
650
13
Width
mm
630
630
14
Height
mm
1080
1080
15
Avaliable colors
red/beige/white
red/beige/white
16
Flue pipe diameter
mm
80
80
17
Outlet / Inlet height
mm
955/135
955/135
18
Pellet storage cappacity
kg
30
30
19
Electrica consumption nominal/max
W
90/340
90/340
20
Min/max water temperature
oC
55/85
55/85
21
Glass dimensions
mm
318x236x4
318x236x4
22
Min/max pellet consumption
kg/h
1-3,1
1-4
23
Fuel
-
Pellet
Pellet
24
Flue pipe direction
back
back

15
3SAFETY INSTRUCTIONS
3.1 Proper use
3.1.1 Basic principles
The Interio pellet stove has been designed and tested in accordance with the safety
regulations deriving from the EN 14785 directive (and agreed standards). However,
improper use of the stove can ultimately result in the death of users and/or third
parties as well as damages to the stove itself or other property.
3.1.2 Handling with the stove
The stove can only be used when it is in proper condition. Use the stove in the manner
described in this manual. Get acquainted with security measures and possible dangers.
Remove all faults and malfunctions that could affect your safety.
3.1.3 Use of the stove
The stove in intended for combustion of wood pellets. Any other use is improper. The
manufacturer will not be held responsible for any damage caused by improper
handling. Proper use implies maintenance of the installed stove, operation and
maintenance conditions prescribed by the manufacturer.
The user can enter or change only those values that are specified in this manual. Any
other parameter value will affect the control program and boiler operation itself, which
can ultimately lead to a Failure of the system or improper operation.
3.1.4 Changes on the stove
It is forbidden to make any changes to the stove and to the equipment supplied with
it. It is forbidden to deactivate the security functions. The manufacturer will not give
any warranty if the user or a third party performs unauthorized intervention on the
stove and equipment that comes with it.
The stove may only be used for the purpose for wich it is produced. The
manufacturer does not accept any responsibility for damage caused to
persons, animals or property resulting from faults in installation, incorrect
regulation and maintenance, and improper use of the boiler.

16
3.2 Pellets that can be used in boilers
The boiler is designed exclusively for burning wood pellets with a
diameter of 6 mm and a length of 10-30 mm.
3. 2.1 What is pellet
Pellet is obtained from wood, if it is
possible, from the core of the trunk with
the lowest proportion of bark. The bark
contains the most moisture, dust and
impurities that wood gets during growth,
therefore has a lower caloric value than
the core, and another problem is that it
leaves the sediment when burning. Ideal
wood for pellet production is one that does
not burn too long or too short and creates
a long-lasting glow. Pellets are made from
sawdust waste (typically in a ratio of 20-40% softwood + 60-80% hardwood), in
special machine under high pressure which leads to thickening. It is not allowed to
use any additives or glue during the pellet.production The pellet contains a minimal
amount of moisture and ash, and has a maximum energy value for the type of
wood from which they are produced.
3.2.2 Recommended wood pellets and standars
Pellets quality arises from Standard pellets C1 to EN 303-5: 2012 Table 7; Water
content less than 12% according to DIN 51731 - HP 5, DINplus certification program
and ÖNORM M 7135 - HP 1 or EN PLUS - UNI EN 14961 - 2 (UNI EN ISO 17225-2)
class A1 or A2, 6 mm diameter, length 10-30 mm.
Particular attention should be paid to the quality of wood pellets. Low-
grade pellets can cause malfunction of the stove.
3.2.3 Unallowed fuels
The pellets not consisting the standards mentioned in this manual is not allowed
to burn in a stove. Using a bad quality pellet or any other material can lead to
damaging your stoves's important functions and may result in the termination of
the warranty and associated liability.

17
3.3 Obligatory information
All persons managing the stove must read the manual before starting to
use it and in particular the "Safety instructions".
This applies especially to persons who occasionally work on a stove, e.g.
cleaning and maintaining stoves.
This instruction should always be kept near the installed stove.
Children aged 8 and over, persons with reduced physical, motor or mental capacity,
persons with insufficient experience and training, may use a device of this kind if they
have been provided with supervision or have been given instructions regarding the
safe use of the device and have been presented the dangers arising from it. Children
should not play with such devices. The devices must not be cleaned or maintained by
children without proper supervision.
3.4 Local standards
All local laws must be respected during installation, as well as standards
and norms that are in force in the country where the stove is installed
even though it is not listed in this manual.
During the first installation of the stove or in the event of changes on central heating
system, it is necessary to inform the competent authority in charge for control, and
provide all the necessary permits.
3.5 Safety instructions for the heating room
The heating room must be made according to current regulations, especially regarding
fire protection. Storage of flammable materials, cleaning agents and similar materials
must not be stored in the boiler room
The room where the stove is installed must be frost-resistant.
The stove should not be exposed to colds or freezing temperatures. Extreme low
temperatures can cause malfunction and unexpected behavior of electronic
components.

18
3.6 Fresh air supply
For combustion of pellets and normal work the stove needs fresh air. The room in
which the stove is installed must have an opening for fresh air supply. The
recommended minimum dimension is 30x15 cm.
3.7 Boiler safety devices
The pellet stove is equipped with safety systems which, in the case of
unforeseen situations, serve to stop the power supply and thus stop the boiler
operation.
Microprocessor control: Intervenes directly, turns off the stove until it cools down
and shows an error on the display screen in case of a failure of exhaust fan, malfunction
of the dispenser engine, or failure of the ignition.
Fuse: Quick fuse, protects the stove from large current drops and short circuit inside
the boiler.
Safety limit Thermostat STB: Intervenes with an interruption (turn off) off the
circuit of the auger (pellet feeder) and on the display is displayed AL6.
Vacuum gauge: Intervenes if there is insufficient pressure in the pellet stove (open
door of the stove, clogged chimney) and disconnects the circuit from the auger
(feeder) motor.

19
4Installation
The commissioning of the system must be carried out by the authorized
personnel by ThermoFLUX d.o.o. or the importer.
The Warranty will not be valid if the stove has not been commissioned by an
authorized repairer.
The first start-up includes the basic operation and maintenance of the stove. The
service technician authorized for the first commissioning must check the functioning of
the stove at least during one complete work cycle. In some countries, it is obligatoy for
first commissioning to be controled and autorizied by chimney sweep or a person
authorized to control.
Risk of material and physical damage due to improper commissioning. If
the first start-up is done by an unprofessional person, damage to the boiler
and the heating system may occur.
4.1 Installation conditions
The minimum distance from the stove must be observed.
A –Minimum distance in front of the door - 100 cm
B –Minimum distance from the left side - 20 cm
C –Minimum distance behind the chimney - 20 cm
D –Minimum distance from the right side - 20 cm
