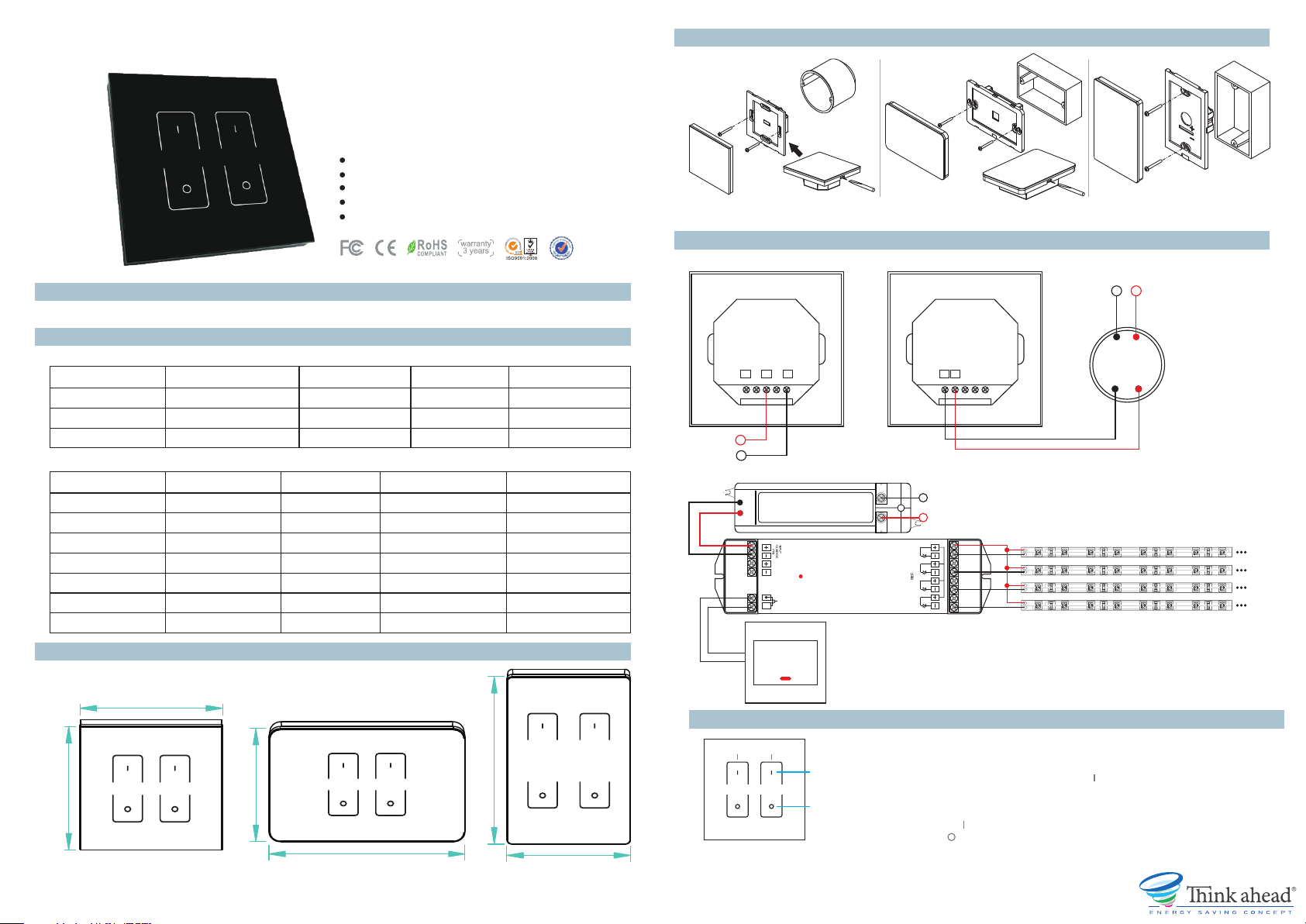

Think ahead SR-2805T1 User manual

2 zone RF wireless wall mounted touch dimmer remote
SR-2805T1
Parameter
Installation
Remote
Part No. Operation Voltage Output
SR-2805T1 12-24VDC/110-240VAC RF Wireless Signal
RF Frequency
434MHz/868MHz
Wiring diagram
Product Size
2 zone
Back lighting for finding in the dark
Italian/ Australian, US wall mounted size available as wel l.
Touch sensitive
Glass interface
SR-2805T1(IT) 12-24VDC/110-240VAC RF Wireless Signal 434MHz/868MHz
SR-2805T1(US) 12-24VDC/110-240VAC RF Wireless Signal 434MHz/868MHz
86.0
86.0
80.0
120.0
120.0
75.0
SR-2805T1 SR-2805T1(IT) SR-2805T1(US)
SR-2805T1 SR-2805T1(IT) SR-2805T1(US)
Feature
This is a RF Wireless full touch wall mounted dimmer Remote 2 zones
Control distance
About 30m
About 30m
About 30m
2)Receiver Connection Diagram
1)Sender DiagramConnection
LN
SR-2805T1-AC
110V-230VAC
N
L
VinGND
LN
110V-230VAC
Power Supply
12-24VDC
SR-2805T1-DC
Part No. Iuput Voltage Remarks
Current
SR-2501N 12-36VDC Constant voltage
4x(60-180)W
4x5A
Output
SR-2501NEA 12-36VDC Constant voltage
4x(96-288)W4x8A
Receiver
SR-2502N 12-36VDC Constant current
4x(4.2-12.6)W
4x350mA
SR-2503N 12-36VDC Constant current
4x(8.4-25.2)W4x700mA
SR-2501NS 12-36VDC Constant voltage
1x(96-288)W1x8A
SR-2502NS 12-36VDC Constant current
1x(4.2-12.6)W
1x350mA
SR-2503NS 12-36VDC Constant current
1x(8.4-25.2)W1x700mA
PUSH
Power Supply
12-36VDC
LN
110V-230VAC
GND
SR-2501N
RF Easy Dimmer
123
4
Learning Key
Push Swi tch
4x5A
Operation
Zone 1 Zone 2
On/dim up
Off/dim down
User manual when work with SR-2501/2/3N, SR-2501/2/3NS for single
color:
1. Pairing with remote: connect well receiver, short press learning key on
receiver,then immediately touch any of ,to assign the receiver in zone1
or zone2, the led light will flash, means well paired.
You can pair endless of receivers to any of the zones you want.
2. short touch to turn ON the light, long touch it to dim up brightness.
short touch to turn OFF the light, long touch it to dim down brightness.
3.if you want delete the receiver's learning data, just long press for 5
seconds the learning key on receiver, the reciever will be deleted the
learning, be set as factory defaults.
Think ahead ESC GmbH I Anzengruberstr. 39 I A-9020 Klagenfurt a. W. I T [phone] I [email protected] I www.think-ahead.at

Warranty Agreement
1) We provide lifelong technical assistance with this product:
3-year warranty. We print date on every products, for example :1125 means year 2011,week 25.The
warranty is for free repair or replacement and covers manufacturing faults only.
For faults beyond the 3-year warranty we reserve the right to charge for time and parts.
2) Limited Warrenty
Any defects caused by wrong operation.
Any damages caused by unauthorized removal, maintenance, modifying, incorrect connection and
replacement of chips.
Any damages due to transportation, vibration etc. after purchase.
Any damages caused by earthquake, fire, lightning, pollution and abnormal voltage.
Any damages caused by negligence, inappropriate storing at high temperatures and humidity or near
harmful chemicals.
Product has been updated
3) Repair or replacement as provided under this warranty is the exclusive remedy to the customer.
Safety & Warnings
1) The product shall be installed and serviced by a qualified person.
2) IP20.Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof
enclosure.
3) Always be sure to mount this unit in an area with proper ventilation to avoid overheating.
4) Please check if the output voltage of any LED power supplies used comply with the working voltage of the
product.
5) Never connect any cables while power is on and always assure correct connections to avoid short circuits
before switching on.
6)
7) For update information please consult your supplier.
Please ensure that the cable is secured tightly in the connector
