Think Appliances GEF61GG User manual

INSTALLATION INSTRUCTIONS
USER INSTRUCTIONS
COOKER MODEL
GEF61GG
60X60 cm

Dear Customer,
Congratulations on purchasing your new product from Think Appliances.
To register your parts and labour warranty (some conditions apply please refer to your
warranty card for more details) please contact out Customer Care team on:
1800 444 357
Our Customer Care centre is there to ensure you get the most out of your appliance. For
example, should you want to learn more about recommended cooking temperatures, the
various cooking functions available, how to set and program your LED clock, and importantly
taking care of your appliance when cleaning, please call us because we are here to help you.
It is important that you read through the following use and care manual thoroughly to
familiarize yourself with the installation and operation requirements of your appliance to
ensure optimum performance.
We also carry a complete range of spare parts for all Think products. For all your spare parts
enquiries please contact our team at Pronto Parts on:
1300 306 973
Again, thank you for choosing an appliance brought to you by Think Appliances and we look
forward to being of service to you.
Kind regards
Management
Think Appliances

Important information
Introducing your new cooker
We thank you and congratulate you on your choice.
These instructions cover four cooker models:
These carefully designed products, manufactured with the highest quality materials, have
been corefully tested to satisfy all your cooking demands.
We therefore request that you read and follow these easy instructions which will allow you
to obtain excellent results right from the start.
AlI cookers feature a gas hotplate containing 4 cooktop burners, including one wok burner
positioned from left, electronic ignition to all burners, and a minute minder. The fan gas
oven is fitted with an electric grill element positioned against the roof of the oven and self
cleaning aven linings.
The cooker's data plate is accessible even with the cooker fully installed. It is positioned
on the inside of the oven door, centre bottom. A copy of the data plate is also reproduced
on cover page of this booklet. Always quote the details from it to identify the appliance
when ordering spare parts or requesting a service.
Notes on disposal
Old appliances still have some residual value. An environmentally friendly method of
disposal will ensure that valuable raw materials con be recovered and used again.
Before you dispose of your old appliance, make sure that it has been rendered inoperable.
Your new cooker was protected by suitable packaging while it was on its way to you. All
materials used for this purpose are environmentally friendly and suitable for recyding.
Please make a contribution to protecting the environment by disposing of the packaging
appropriately.
Do not spray aerosols in vicinity of this appliance while it is operation.
Where this appliance is installed in a marine environment or in caravans,
for safety reasons it shall not be used as a space heater.
This appliance is unsuitable for installation in marine craft, caravans or
mobile homes, unless each burner is fitted with a flame safeguard.
DO NOT MODIFY THIS APPLIANCE
DO NOT USE OR STORE FLAMMABLE MATERIALS NEAR THIS APPLIANCE.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safely.
Children should be supervised to ensure that they so not play with the
appliance.
Warning: Accessible parts will become hot when in use. To avoid burns or
scalds children should be kept away.
Warning: In order to prevent accidental tipping of the appliance, for
example by a child climbing onto the oven door, the stabilising means

must be installed. Refer to the instructions for installation.
Before connecting your new cooker
Before using your new cooker, please read these 'Instructions for Use' carefully. They
contain important information concerning your personal safety as well as on use and care
of the oven.
Please keep the operating and installation instructions in a safe place; this important
documentation may also be of use to a possible subsequent owner.
Do not use the cooker if it is damaged in any way.
Installation and connection of the cooker should be performed according to the
instructions and connection diagram provided, and should be entrusted to a licensed
specialist. In the event of a damage that occurs as a result of improper connection, the
warranty will be void.
Our appliances meet the applicable safety regulations for electrical appliances, Repairs
may be performed only by authorised persons. Inexpert repairs may entail serious injury to
you, the user
Safety considerations
Never leave the appliance unattended when cooking with fat or oil. It could ignite if
overheated.
In case of a defect, switch off at the mains.
Do not dean the oven with steam or high pressure cleaners
Ensure that the power cord does not get caught in the hot oven door. The plastic
insulation could melt.
Do not use loose greaseproof paper in the oven (e.g. when heating the oven). The paper
could be drawn to the fan and damage the fan and the element
Do not insert a baking sheet or aluminium foil sheet at the bottom of the oven. A heat
build-up could result and cooking times and temperatures could change or enamel could
be damaged.
Do not pour water on the hot oven floor. Damage to enamel could result
Always piace a baking tray below a roast to prevent juices from dripping on the oven lining
Do not place heavy items on the oven door when open as this may result in damage to the
door hinges
To ensure correct cooking the oven door must dose properly.
Keep the door sealing surfaces clean at all times
Installation instructions
Statutory regulations
This appliance shall be installed in accordance with the manufacturer's installation
instructions, local gas fitting regulations, municipal building codes, electrical wiring
regulations, AS 5601 the Australian Standard for gas installations. Refer also to AS 5601
for pipe sizing tables
Gas supply
Check that the data plate shows the appliance is suitable for the available gas supply. The
data plate is located on the inside of the oven door, centre bottom. A copy of the data
plates is reproduced on the last page of this booklet.

Electrical supply
All three models require connection to a 10 Amp wall socket
Instructions
1. The model number and the type of appliance, gas pressure and gas type ore found on
the inside of the oven door, centre bottom. A copy of the data plates is reproduced
on the last page of this booklet.
2. The appliance requires connection to a 240 V,50 Hz electric supply. The power point
must be installed by an authorized person.
3. Before commencing any work, make sure that the power point switches ore turned off
and the three in plug is removed
4. If the appliance cannot be adjusted to perform correctly contact your local gas utility.
5. Instruct the user in the operation of the appliance before leaving.
Vertical clearances:
The cooker shall be installed so that a vertical clearance of at least 600 mm is maintained
between its burners and any combustible material, and where this is not practicable, the
underside of an combustible material less than 600 mm above the burner shall be
protected by noncombustible millboard at least 6 mm thick which is covered with sheet
metal not less than 0.4 mm thick, or shall be protected by an equivalent material,
extending at least 225 mm beyond the sides of the cooker.
Overhead clearances:
Range hoods and exhaust fans shall be installed in accordance with the manufacturer's
instructions. However, in no case shall the clearance between the top of the highest burner
of the cooking appliance and the underside of a range hood be less than 600mm, or an
overhead exhaust fan, 750 mm
Side clearances to vertical surface:
If the distance measured from the periphery of the nearest burner to any vertical
combustible surface, is less than 200 mm, the surface shall be protected in accordance
with clause 5.12.1.1 and 5.12.1.2 of A5 5601.
Installation
Make sure the minimum clearances to combustible materials are maintained during the
installation including adequate space for the operation and servicing of the cooker. For
height limitations use the dimensions as shown in the drawing.
Overall dimensions (with legs adiusted to 180mm).

Height over hob: 910 mm
Height over upstand: 980 mm
Width: 595mm
Depth: (incl. oven door handle & knobs): 650mm
Depth: (flush with oven door): 600mm
Gas and electric connection
Electrical connection

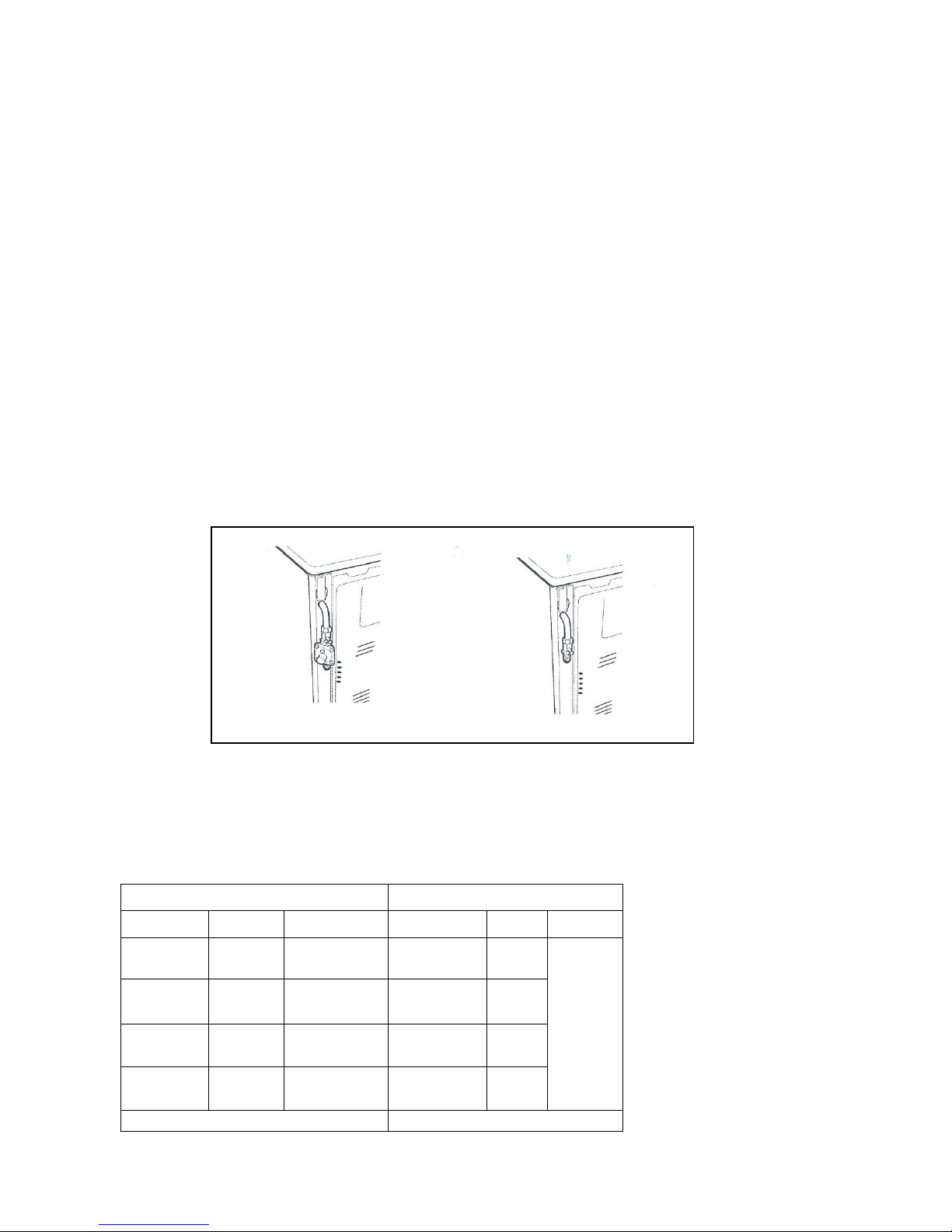

The electric lead and plug are for connection onto a 10 Amp socket. A 10 Amp
socket is to be within 1 m of the appliance.The lead is situated at the left hand side
of the cooker.
Gas regulator
The gas connection is via 1/2" compression. Connect the cooker to the gas supply
and check for gas soundness
If using a flexible connection
This appliance is approved for connection with a Flexible Hose, which complies with
AS/NZS 1869 (AGA Approved), 10mm ID, class B or D, between 1 - 1.2m long .
Connection shall be in compliance with AS 5601, clause 5.12.1.8
When installing the hose restraint device, the appliance anchor point is the rear panel
securing.
If using copper connection

To allow cooker to be moved forward for service make a loop in the copper tube
before connecting onto regulator.
Gas connection
The cooker must be connected to the gas supply with upstream connection of an
isolation valve in accordance with the respectively valid requlations. We
recommend that the isolation valve be fitted prior to the cooker to enable isolation
of the cooker from the gas supply. The valve must be easily accessable at all times.
To find out the factory set gps type, see label at rear of cooker
The gas connection is via 1/2" compression. Connect the cooker to the gas supply
and check for gas soundness. NEVER use a naked flame to check for gas leaks.
Gas inlet (mm)- Nat gas Gas inlet (mm)- LPG
From RH rear side: 35 mm From RH rear side: 35mm
Up from floor: 590 mm Up from floor: 675 mm
Gas inlet with different leg heights – mm
Min NG: 560 LP: 645
Ref NG: 590 LP: 675
Max NG: 595 LP: 680
Energy consumption
Burners Gas type
Pressure (kPa) Injector (mm) Mj/hr Watts
Small Natural 1.0 0.90 4.00
U-LPG 2.75 0.54 3.75
Medium Natural 1.0 1.18 7.10
U-LPG 2.75 0.70 6.20
Wok Natural 1.0 1.55 12.0
U-LPG 2.75 0.93 11.5
Oven Natural 1.0 1.50 11.0
U-LPG 2.75 0.85 9.40
Grill 2000 W

Test the operation of the cooker before leaving
Note: These burners have no aeration adjustment
Check correct operation of the ignitions system and operation of burners individually and in
combination. Burner flames should be clear blue, with no yellow tipping. If the burners
show any abnormality check that the burners are correctly located. If satisfactory
performance can not be obtained, contact the local gas utility.
Important
Before leaving instruct the owner in the use of the cooker it should be expressly noted that
we cannot accept any liability for direct or indirect damage caused by wrong connection or
improper installation. When being repaired, the appliance must always be disconnected
from the mains supply; if required, notify our customer service

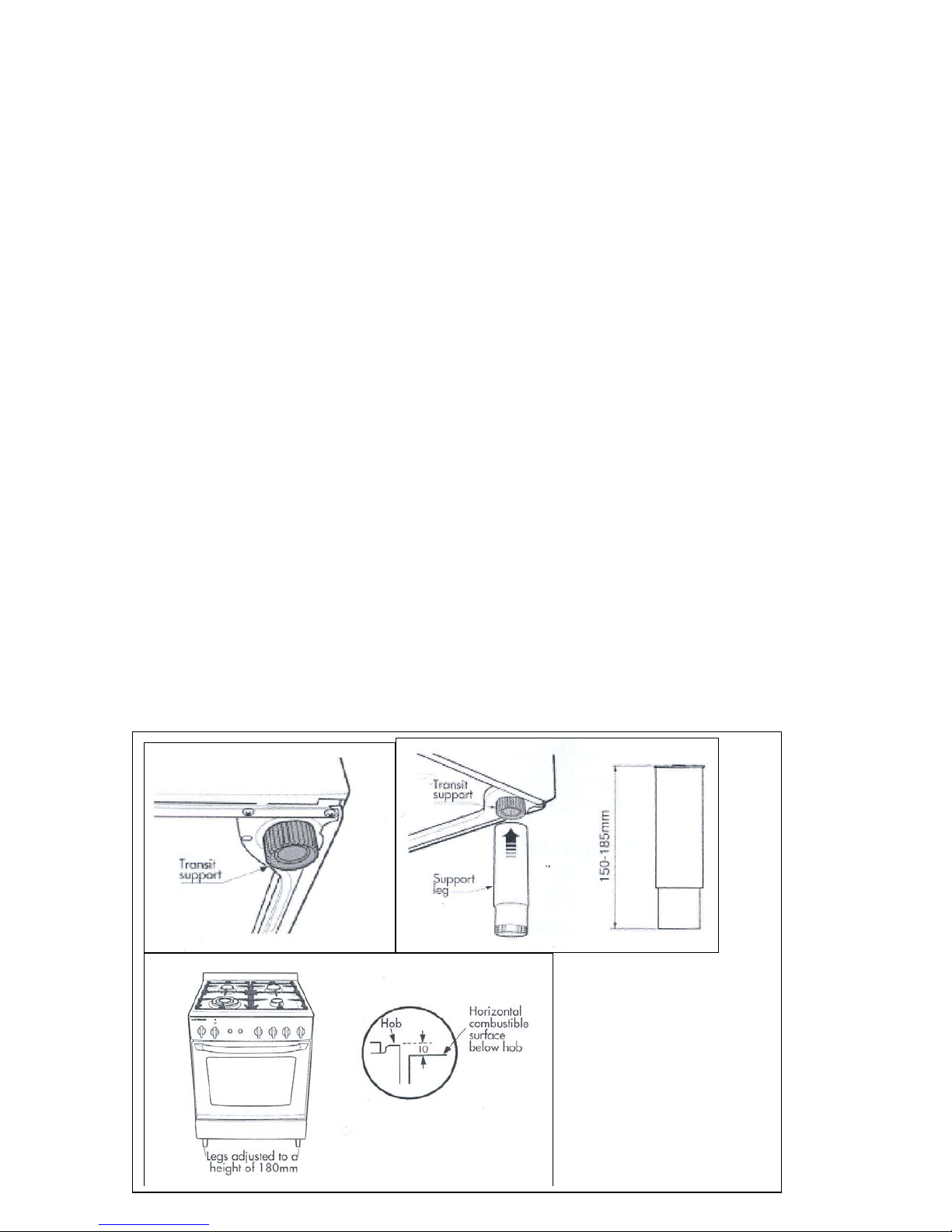

Support legs
The cookers ore supplied with four transit supports.(One for each corner).
4 support legs ore supplied separately and are fitted on location to the four corners
of the lower support frame. Each support leg is pushed over the relevant transit
support until flush with the support frame.
Each leg is adjusted by screwing the lower section in or out as required for fitting to a
900mm bench height. For lower bench tops adjust the height as required.The adjustment
range for the leg is 150-185mm. With the legs adjusted to a height of 180mm the hob is
located 10mm above the horizontal combustable surface, ref. AS5601

If the legs are not used and the cooker is mounted onto a plinth, fit transit legs to allow for
clearance.

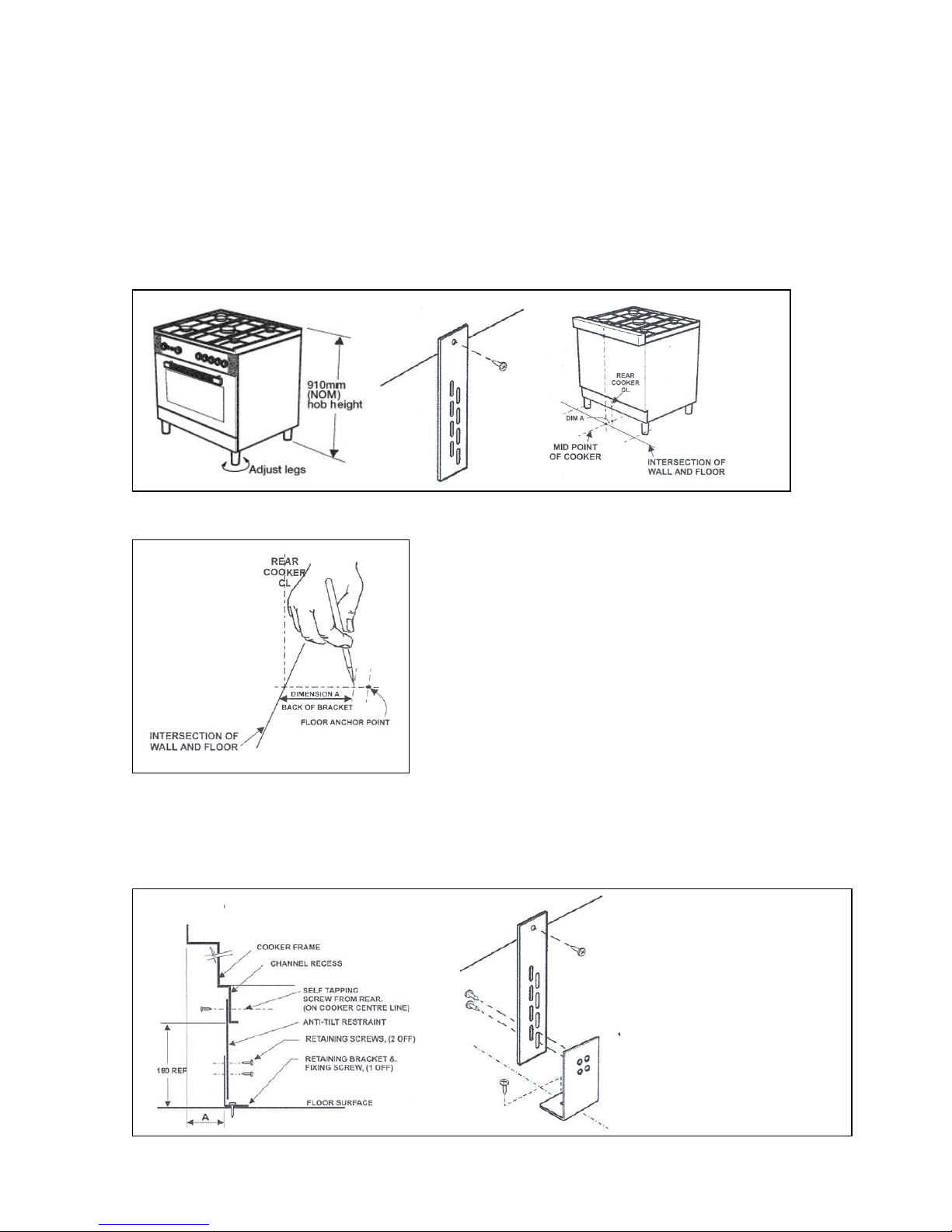

Once legs are adjusted to a nominai cooker height of 91 Omm, fit the antitilt restraint
bracket.
1. Fit flat strap to rear of cooker at the centre point on lower edge using supplied screw
2. Mark centre position of the cooker installed position on floor
3. Measure from rear most point hob to mount point of strap. (Dimension A), then using
Dimension A mark back edge of the bracket on centre line. Use bracket to mark fixing
point.

4. Fix restraint bracket to floor at position marked. Use suitable fixing.
Note: For concrete floor, use anchor provided. For other construction use a suitable
fastener.
5. Locate the cooker into the correct and final position. Then from the underside front,
secure into position with self tapping screw provided.
WARNING - IN ORDER TO PREVENT ACCIDENTAL TIPPING OF THE APPLIANCE, FOR EXAMPLE
BY A CHILD CLIMBING ONTO THE OVEN DOOR, THE STABILISING MEANS MUST BE INSTALLED.
REFER TO THE INSTRUCTIONS FOR INSTALLATION
Upstand installation
All stainless steel hob models are fitted with an upstand. The upstand is packaged
at the top rear of the cooker. The upstand is fixed along the rear of the cooker hob.
Fixing points for locating the upstand are at either end of the hob
1. Remove the upstand retaining brackets either side of the hob by removing the top and
rear fixing screws in each bracket
2. Peel away protective film from the underside of the upstand and locate onto the cooker

top.
3. Line up the bracket holes with the upstand fixing holes. Relocate the upstand brackets
and secure with the retaining screws.
4. Remove the remaining protective film from the upstand and secure end caps using
M4 CSK screws, one each end.
Hob & control panel lay-out
GEF61GG
1. Minute minder
2. Oven/Grill combination control Knob
3. Grill ON indicator light
4. Oven fan button
5. Oven light button
6. Left front (wok) burner control knob
7. Left rear burner control knob
8. Right rear burner control knob
9. Right front burner control knob

Cooktop burner operation
For cookers fitted with the optional glass lid the glass lid must always be in
the open position when the cooktop burners are operating.
First time use
Thoroughly clean cooktop with warm soapy water prior to first use.
Cooktop burner operation
The individual burner position on the cooktop is indicated by a graphic placed above the
burner control knob. Two further graphics indicated the 'full on' and 'turn down ' positions.
Ignition
1. To operate the individual cooktop burners depress the appropriate control knob and
turn anti-clockwise to the spark symbol. Push to activate the electronic ignition.
2. Once flame is established turn the knob to the desired setting. Keep Knob
depressed for 5 seconds to activate the flame failure device.
3. If the flame goes out repeat the procedure.
NOTE: if the burner does not ignite within 5 seconds, wait 5 minutes before reigniting.
Cooktop burner adiustments
The control knob is used to adjust the flame of the gas burner.
'High flame' graphic = highest output
'low flame' graphic = lowest output
Use 'High flame' setting to bring the pan to the boil, then adjust the flame to maintain the
required pan temperature. Burner flames should be clear blue, with no yellow tipping. If the
burners show any abnormality check that the burner heads are correctly located. lf
satisfactory performance cannot be abtained after consulting the trouble shooting guide,
contact the authorised service provider. Please state the cooker model number to the
service agent. The model number is stated on the data plate. The data plate is located on
the inside of the oven door, centre bottom. A copy of the data plate is also reproduced on
the last page of this booklet

Ventilation
The use of gas burners leads to the production of heat and moisture in the kitchen. For this
reason make sure that the room is properly ventilated. Keep ventilatin openings, such as
windows, open or provide a mecnanical ventilation device (e.g. a range hood of overhead
exhaust fan)
Minute minder
The minute minder control knob is positioned on the left hand side of the control panel. To
activate the timer, rotate the knob clock-wise through 360°, then return the knob anti-
clockwise to required cooking time
Use of cooktop burners
For safety and economie gas usage you should always use the correct pan on the correct
burner. Flames should not protrude beyond the base of the pan. You will save energy,
time and money by always placing the correct pan size on the correct gas ring
Oven /grill operation
Accessories
1 wire shelves
1 enamel baking tray
Foods being grilled must be monitored at ali times, especilally high fat
content foods such as sausages, chops, ek.
First time use
Thoroughly clean the appliance and accessories with warm soapy water before
using them for the first time. Operate the oven for about 30 minutes at gas mark 8
to eliminate any odours generated by the internal insulation.
Cooling fan operation

The cooling fan operates when the oven is switched on and will continue to operate
unti! the oven is switched off. The cooling fan ensures that the control knobs and
the surrounding fascia are always cool to touch.
Shelf positions
The oven features 5 shelf positions. The levels are counted from top to bottom.
This oven features 5 shelf positions. The levels are counted from top to bottom.
Shelf position 3 should be used for best results when baking with or without the fan.
Shelf positions 4 or 5 are ideai for baking pizzas, quiches and pies where a crisp base is
desirable.
Shelf position 2 is ideai for grilling; however larger foods, or foods with a high fat content,
can be grilled on shelf position 3.
Shelf positions 2, 3 and 4 are suitable for multi level cooking.
Grill operation
The oven is fitted with an electric element placed against the roof of the oven. To activate
the element, turn the oven/ grill combination control knob clockwise to grill symbol.
Oven /grill use
Thermostat and function selector control knobs
Please note that the grill has no variable heat adjustment.
It is not possible to operate the grill and the oven simultaneously.
1. Turn the oven/grill combination control knob to the grill position.
2. Preheat for 5-10 minutes.
3. Lightly oil meat or fish and piace food on wire grid of universo I pan at shelf position 2
or 3; refer to shelf positions.
4. Turn food only once during grill operation to conserve natural juices.
5. The oven door must be closed when operating the grill.
For browning and crisping, shelf position 2 will give best results. Shelf 2 may also be used
for grilling meats (shelf position 3 if the meat is thick or has a high fat content).

Oven thermostat operation
The oven is equipped with a gas thermostat. Its purpose is to keep the temperature at a
constant heat between 120° and 270°(. The oven is fitted with electric spark ignition and a
safety shut-off device.
To activate the oven turn the oven/ grill combination control knob anti-clockwise to desired
setting and follow ignition procedure as described on the following page.
Temperature settings
Refer to the chart below for required °C settings.
Thermostat settings Temperature equivalent °C Recipe description
1 100 - 120°C Very slow
2 120 - 150°C Slow
3 150 – 170°C Moderately slow
4 170 – 200°C Moderate
5 200 – 220°C Moderately hot
6 220 – 240°C Hot
7 240 – 270°C Very hot
8 270°C Very hot
When operating the oven without the fan these temperatures will apply to shelf position 3
only. Food placed on shelves below position 3 will be cooking at a higher temperature than
indicated whilst food placed above shelf position 3 will be cooking at a lower temperature
than indicated.
Automatic ignition
1. Open the door.
2. Depress the control knob, turn anti dockwise to setting 8 (spark position) and depress
to ignite burner. After the burner ignites keep the control knob depressed for a further 5
seconds. This allows tim.e for the Ha me control to operate and the flame to remai n
alight.
3. If the Hame extinguishes wait 5 minutes for the unburned gas to disperse and repeat
the procedure.
4. Gently dose the door.
Manual ignition
1. The oven is fitted with automatic ignition. However, if required, manual ignition can be
affected by depressing the control knob and turning it anti dockwise to the required
temperature setting. At the same time hold a lighted match to the small ignition tube
and check that the burner is completely lit.
2. After the burner ignites keep control depressed for a further 5 seconds. This allows
time for the Hame control to operate and the Hame to remain alight.
3. If the Hame extinguishes wait 5 minutes for the unburned gas to disperse and repeat
the procedure.

Oven cooking tips
It is recommended to preheat the oven for 10-15 minutes before placing food in it.
When baking cakes and pastries it is advisable to preheat the oven to one gas mark higher
than required. This will compensate for neat loss when opening the oven door. Reduce
temperature to setting required once food is placed in the oven.
When opening the door during operation turn the fan off to minimise heat loss. Turn fan on
again once cooking has resumed.
Open door as little as possible during operation.
If necessary to cover food with foil or baking paper whilst cooking in fan mode, ensure that
the foil or paper is firmly secured.
Avoid using dark scone trays, cake tins or muffin trays. Light coloured metal vessels will
give more even browning. Dark ones may cause scorching on the base.
For easy viewing and a more even cooking result bring the dishes and trays forward to the
front of the oven shelf.
For even heat circulation ensure that dishes and trays do not touch each other or the sides
of the oven. Best results when baking, roasting and multi level cooking will be obtained by
cooking with the fan in operation.
Best results when baking meringues, pavlovas, souffles and other delicate items will be
obtained by cooking without the fan in operation.
Do not piace foil, baking trays, dishes or any other items directly on the base of the oven.
Note: When oven is operating the glass door will become hot
Trouble shooting guide
Problem Possible cause Action
Burners don’t light Power to appliance turned off Turn on power supply
Oven burner diHicult to light Oven contrai not turned on fully or held
depressed for long enough
Turn to mark 8 (270) and hald in until
ignited
Fault in igniter Phone service number for service or
advice
Oven going out just after ignition Contrai knob not depressed long enough Depress contrai knob until burner remains
alight
Oven goes out during cooking Phone service number for service or
advice
Oven goes out when closing door Door closed too fast Close door gently
Hotplate burner diHicult to light Burner cap damp or incorrectly positioned Dry and reposition cap
Spark ignitor clogged with grease Clean ignitor
Burner ports blocked Clean ports
Spark igniter does not function Phone service number for servi ce or
advice.
Grill element/browner does not come on Power to appliance turned off Turn power on
Grill element/browner smoking when on Top of oven compartment soiled Clean top of oven compartment

Food is not cooking to expectation User may stili be using settings of previous
cooker - ali ovens have different
characteristics
Check cooking chart - consumer will become
familiar with use
If problem persists phone service number far
advice
Food burning on base Using black or dark caloured pans Use light coloured metaI pans
Cooking time too long
Check oven cooking'1 chart - check
with other foods
Temperature too Iow Raise temperature
Incorrect shelf position - too Iow in oven Use higher shelf
Opening oven door too frequently Avoid opening and minimize time opened
Oven overloaded Use single shelf cooking and ensure a 5
cm airflow around the pans. (2 levels of
cooking with fan on)
Oven not preheated sufficiently Allow Ionger pre-heat time
Heat loss from oven Phone service number for service or
advice
Food cooking too quickly Oven temperature set too high Check oven chort, lower temperature
Pan used lorger than recipe required Allow less time or use smaller pan
Thermostat too high - faulty Phone service number for service or
advice
Food taking too long to cook Opening oven door too frequently
or for too long
Avoid opening door and minimise
time open
Oven not preheated sufficiently Allow to preheat, especially for
high temperature cooking
Temperature set too low Check chort and / or raise
temperature
Food was chilled or portially frozen Allow to thaw completely or allow
Ionger time for cooking
Heat loss from oven Phone service number for servi ce or
advice
Thermostat too low - faulty Phone service number for service or
advice
Food is cooking unevenly Tray or pan pushed too far to the back
or sides of oven
Allow 5 cm airflow ali oround
Tray too lorge Use smaller tray
Tray or oven overloaded Reduce items on tray or number of
trays in oven
Cakes not cooked through to centre Temperature too high Reduce temperature
Oven overloaded Cook fewer items
Incorrect shelf position Refer oven cooking chart
Food pale on top Temperature too low Raise temperature - refer to chort
Insufficient cooking time Increase cooking lime
Sides too high on cake tin Use smaller tin
Incorrect position Refer to cooking chort
Tray too lorge Allow 5 cm airflow around items
Cake cracking on top Oven too hot Reduce temperature
Batter too thick Check recipe or add more liquid
Timer does not ring Timer has not been sufficiently wound
up
Even if setting for a short time it is
recommended to wind knob through
3600 (to 60 mins) then tum back to
required lime

Cleaning
Cleaning hob
Once the appliance is cold, clean it with a sponge and soapy water. Remove any spills
immediately. This will avoid unnecessary effort later
Allow burners and trivets to cool down before cleaning them.
The burners and trivets must be cleaned regularly to keep them in good condition. This is
done by submerging them in soapy water and scrubbing them with a non-metal brush to
keep the ports and slots free from obstructions so they give a perfect flame. Dry the burner
caps and trivets whenever wet or damp. Do not wash the burner caps and trivets in a
dishwasher.
After cleaning and drying ensure that the burner heads and caps are replaced correctly on
the burner body
For cookers fitted with a stainless steel hob the high temperatures generated by using
the wok burner may cause the stainless steel hob of your hotplate to become
discoloured over time. THIS IS NORMAL. Clean the hob with a product suitable for
cleaning stainless steel
Never use abrasive products, sharp objects, steel scouring pads, knives, etc., to remove
stubborn food remains from the hob surface, trivets, burners and oven interior
Do not allow acidic products such as vi negar, lemon juice etc., to come into contact with
the hob
Cleaning oven interior
Clean the oven enamelled floor, wire shelves and shelf supports with hot detergent
suds. This oven is fitted with self cleaning linings on the roof, sides and back of the oven.
The liners are covered with a special micro-porous enamel that absorbs and removes fat
residue during baking. Should any liquid fat splatter onto the liners, self cleaning action
may not be adequate. In this case the liners may be wiped with a damp sponge. Mild
detergent may be used but no chemical cleaners. After this, heat the oven to the
maximum temperature for a period of 30 minutes. If the stains persist wait until the oven
has cooled down and repeat the above precedure. Important: always clean the
enamelled surfaces and wire components prior to starting the 30 minute heat cleaning
cycle.
It is recommended that the oven interior be cleaned regularly as excessive build-up of
fat can become a fire hazard.
Cleaning oven shelf supports
To remove the shelf supports remove the knurled knobs either side, lift the wire
rack and swing forwards

Cleaning oven glass door
The oven door may be removed for cleaning. To remove the oven door follow the
steps below:
1. Open the door fully
2. Lift the two levers forward as shown in figure below left
3. Close the door as far as the first stop (created by the raised levers).
4. Lift the door upwards and outwards to remove it from its mounting as shown
in figure below right.
5. To replace the door, fit the hinges on their mountings and lower the levers
6. Close the door.
Use a window cleaner to clean the exterior glass panel.
Replacing the oven light bulb
Type: E 14, 25W, heat resistant to 300°C.
You may obtain this bulb from our service department
1. Disconnect the appliance from the main electricity supply.
2. To prevent damage place a teacloth in the bottom of the oven.
3. Unscrew the glass cover of the light.
4. Unscrew the old lightbulb and replace it with a new one.
5. Replace cover
6. Reconnect the power supply.

Service information
Service and maintenance must only be carried out by an authorised person
This appliance shall not be modified.
Always disconnect the gas supply and power before servicing the cooker.
After service always check connections for gas soundness at connections with
soapy water. NEVER use a naked flame to check for leaks.
To remove the upstand (for cookers fitted with upstand)
1. Pull cooker forward
2. To remove the upstand retaining brackets undo the 2 top and 2 rear retaining
screws securing each bracket.
2. Lift the upstand from the cooker hob.
To clean or replace a cooktop burner injector
1. Remove pan support, burner cap and burner head.
2. Using a 7mm socket spanner unscrew and clean or replace the cooktop burner's
injector.
3. Replace burner head, cap and pan support. Ensure that the burner head and cap are
in the correct position.
To dean or replace the oven burner or iniector
1. Drop down the warming compartment door.
2. Using a phillips head screw driver remove 2 screws positioned centrally below oven
surround panel at front.
3. Pull burner forward carefully to expose oven injector.
4. Using a 7mm socket spanner unscrew and clean or replace the oven burner injector.
5. Reassemble in reverse order.
Access to the under hob area
Pull cooker forwards to gain access to the rear of the cooker
1. Remove upstand
2. Remove pan supports, burner caps and burner heads
3. Using a torx T20 head driver remove the screws securing the burners to the hob. 2
per boiling burner and 4 for the wok burner.
4. Remove the lower 2 screws of each upstand bracket
5. lift hob at rear and slide out of position.
