Mighty-5TH
Guitar Amp Head
User Manual

Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
Internet: www.thomann.de
21.10.2022, ID: 420283 (V2)

Table of contents
1 General information................................................................................................................................. 5
1.1 Further information........................................................................................................................... 6
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 7
2 Safety instructions..................................................................................................................................... 9
3 Features....................................................................................................................................................... 12
4 Installation and starting up................................................................................................................ 13
5 Connections and controls................................................................................................................... 14
6 Technical specications....................................................................................................................... 16
7 Plug and connection assignment.................................................................................................... 18
8 Cleaning....................................................................................................................................................... 19
9 Protecting the environment.............................................................................................................. 20
Table of contents
Mighty-5TH 3
Guitar Amp Head

4Mighty-5TH
Guitar Amp Head

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
Mighty-5TH 5
Guitar Amp Head

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
1.2 Notational conventions
This manual uses the following notational conventions:
General information
6Mighty-5TH
Guitar Amp Head

The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Letterings
General information
Mighty-5TH 7
Guitar Amp Head

Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General information
8Mighty-5TH
Guitar Amp Head

2 Safety instructions
This device is intended to be used for the amplication of signals from musical instruments
with electromagnetic pickups. Use the device only as described in this user manual. Any other
use or use under other operating conditions is considered to be improper and may result in
personal injury or property damage. No liability will be assumed for damages resulting from
improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Safety
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking
hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke! Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device if covers, protectors or optical components are missing or damaged.
Intended use
Safety instructions
Mighty-5TH 9
Guitar Amp Head

DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a protective contact plug. Do not modify the mains cable
or the plug. Failure to do so could result in electric shock/death or re. If in doubt, seek advice from a registered electrician.
CAUTION!
Possible hearing damage
With loudspeakers connected, the device can produce volume levels that may cause temporary or permanent hearing impairment.
Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Do not operate the device per‐
manently at a high volume level. Decrease the volume level immediately if you experience ringing in your ears or hearing impair‐
ment. If this is not possible, keep a bigger distance to the speaker or use sucient ear protectors.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked ames.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside can
damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other malfunction.
Safety instructions
10 Mighty-5TH
Guitar Amp Head

NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC
outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the
user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric
shock or re.
NOTICE!
Possible damage due to installation of a wrong fuse
The use of dierent types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used.
NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react with the coating of your surface and after some time
cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the surface and use a suitable underlay if neces‐
sary, i.e. felt pads or similar.
Safety instructions
Mighty-5TH 11
Guitar Amp Head

3 Features
nTube amp head for electric guitar
nClass A circuit
nBuilt-in power soak for 1 W and 0.1 W allows for tube overdrive sounds with room volume
level
n1 channel
n5 watt output power
n12AX7 preamp tube
nEL84 power tube
nControls for bass, treble and volume
nSpeaker outputs for 8 and 16 Ω
nRobust metal housing
Features
12 Mighty-5TH
Guitar Amp Head

4 Installation and starting up
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
Installation and starting up
Mighty-5TH 13
Guitar Amp Head

5 Connections and controls
ö # $ % &
' ( ) * +
Connections and controls
14 Mighty-5TH
Guitar Amp Head

1[INPUT] | 1/4" jack socket to connect your instrument
2[BASS] | control for boosting / attenuating the bass
3[TREBLE] | control for boosting / attenuating the treble
4[VOLUME] | control to adjust the volume
5[POWER] | main switch. Turns the device on and o.
6 IEC chassis plug for connecting the mains cable with fuse holder
7[POWER ATTENUATOR] | switch to reduce the power to 1 W or 0.1 W at the 8 Ω output. If the switch is in the 5 W position, no
power reduction takes place.
8[8 Ω] | output for connecting speaker boxes with 8 Ω impedance
9[POWER ATTENUATOR] | switch to reduce the power to 1 W or 0.1 W at the 16 Ω output. If the switch is in the 5 W position, no
power reduction takes place.
10 [16 Ω] | output for connecting speaker boxes with 16 Ω impedance
Connections and controls
Mighty-5TH 15
Guitar Amp Head

6 Technical specications
Speaker Preamp 1 × 12AX7
Power amplier 1 × EL84
Amp class A
Output power max. 15 W @ 8 or 16 Ω
Input connections Power supply IEC chassis plug C14
Instrument 1/4" jack socket
Output connections Speaker 1/4" jack socket (8 Ω)
1/4" jack socket (16 Ω)
Supply voltage 230 V 50 Hz
Fuse 5 mm × 20 mm, 1 A, 250 V, slow-blow
Dimensions (W × H × D) 205 mm × 127 mm × 140 mm
Weight 3.2 kg
Ambient conditions Temperature range 0 °C…40 °C
Relative humidity 20 %…80 % (non-condensing)
Technical specications
16 Mighty-5TH
Guitar Amp Head

Power rating 5 W
Power tubes EL84
Channels 1
Reverb no
Foot switch no
Further information
Technical specications
Mighty-5TH 17
Guitar Amp Head

7 Plug and connection assignment
This chapter will help you select the right cables and plugs to connect your valuable equip‐
ment in such a way that a perfect sound experience is ensured.
Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a
plug ts into the socket, an incorrect connection may result in a destroyed power amp, a short
circuit or ‘just’ in poor transmission quality!

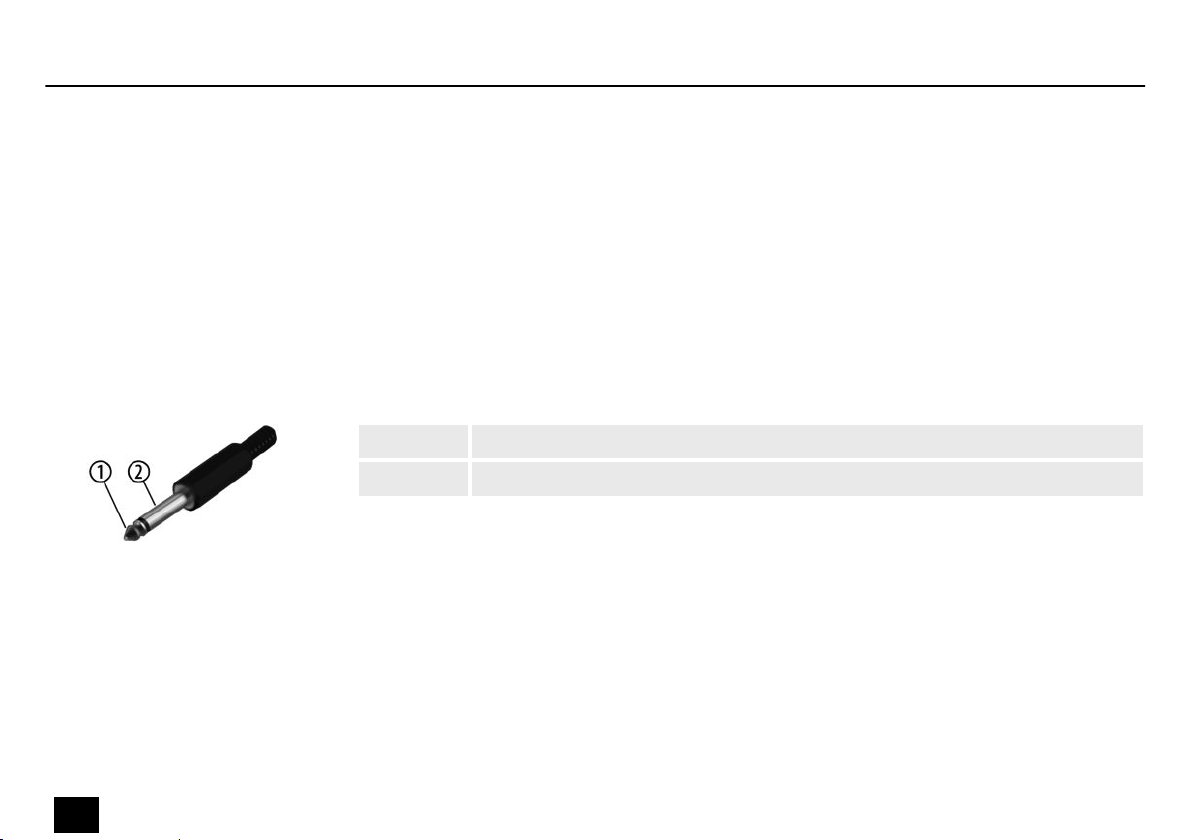

1 Signal
2 Ground, shielding
Introduction
1/4" TS phone plug (mono,
unbalanced)
Plug and connection assignment
18 Mighty-5TH
Guitar Amp Head

8 Cleaning
Clean the device components that are accessible from the outside regularly. The cleaning fre‐
quency depends on the operating environment: damp, smoky or particularly dirty environ‐
ments can cause greater accumulation of dirt on the device components.
nClean with a dry soft cloth.
nStubborn dirt can be removed with a slightly dampened cloth.
nNever use solvents or alcohol for cleaning.
Device components
Cleaning
Mighty-5TH 19
Guitar Amp Head

9 Protecting the environment
For the transport and protective packaging, environmentally friendly materials have been
chosen that can be supplied to normal recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make sure that
they are collected for recycling. Please follow the notes and markings on the packaging.
This product is subject to the European Waste Electrical and Electronic Equipment Directive
(WEEE) in its currently valid version. Do not dispose with your normal household waste.
Dispose of this device through an approved waste disposal rm or through your local waste
facility. When discarding the device, comply with the rules and regulations that apply in your
country. If in doubt, consult your local waste disposal facility.
Disposal of the packaging mate‐
rial
Disposal of your old device
