thomann Swissonic PA 3 User manual

PA 3
power amplifier
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
03.03.2017, ID: 382062

Table of contents
1 General information................................................................................................................................. 4
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 6
2 Safety instructions..................................................................................................................................... 8
3 Features....................................................................................................................................................... 15
4 Installation and starting up................................................................................................................ 16
5 Connections and controls................................................................................................................... 21
6 Technical specifications....................................................................................................................... 26
7 Plug and connection assignment.................................................................................................... 27
8 Cleaning....................................................................................................................................................... 30
9 Protecting the environment.............................................................................................................. 31
Table of contents
PA 3
3

1 General information
This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are subject to
change.
General information
power amplifier
4

1.1 Further information
On our website (www.thomann.de) you will find lots of further information and details on the
following points:
Download This manual is also available as PDF file for you to download.
Keyword search Use the search function in the electronic version to find the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
PA 3
5

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
1.3 Symbols and signal words
In this section you will find an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
General information
power amplifier
6

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General information
PA 3
7

2 Safety instructions
This unit amplifies audio frequency signals for the operation of passive loudspeakers. It is
designed for professional use only. Use the device only as described in this user manual. Any
other use or use under other operating conditions is considered to be improper and may result
in personal injury or property damage. No liability will be assumed for damages resulting from
improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Intended use
Safety instructions
power amplifier
8

DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or
damaged.
Safety
Safety instructions
PA 3
9

DANGER!
Hazardous voltage
Hazardous voltage may be present at cable ends and screw terminals.
The connection of screw terminals as well as all maintenance and repair work on
the electrical installation of the device must only be performed by qualified elec‐
trical personnel in volt-free condition. Failure to do so may result in electric shock
and risk of fire and loss of life.
By all means you have to observe all electrical safety instructions applicable at the
place of operation.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a pro‐
tective contact plug. Do not modify the mains cable or the plug. Failure to do so
could result in electric shock/death or fire. If in doubt, seek advice from a regis‐
tered electrician.
Safety instructions
power amplifier
10

CAUTION!
Possible hearing damage
With loudspeakers or headphones connected, the device can produce volume
levels that may cause temporary or permanent hearing impairment.
Do not operate the device permanently at a high volume level. Decrease the
volume level immediately if you experience ringing in your ears or hearing
impairment.
NOTICE!
Risk of fire
Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked flames.
Safety instructions
PA 3
11

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.
Safety instructions
power amplifier
12

NOTICE!
Magnetic fields
The device generates strong magnetic fields that can interfere with the function
of poorly shielded devices. The strongest magnetic fields are directly above and
below the power amplifier. Therefore, never place sensitive devices such as pre-
amplifiers, radio transmission systems, or tape decks directly above or below the
power amplifier. When installing the power amplifier into a rack, you should place
it in the lowest position, and further equipment such as pre-amplifiers in the
highest position.
Safety instructions
PA 3
13

NOTICE!
Possible damages by using an external battery
Improper handling may cause an arc or short circuit between the bare ends of a
live power cable to an external battery. This can destroy the battery and there is a
fire hazard!
If you use an external battery for power supply, connect the power cord to the
screw terminal on the rear panel first. Then connect the free ends of the cables to
the battery poles. Pay attention to the polarity marking! To disconnect the bat‐
tery, unscrew the cables on the battery first, then on the terminals of the device.
Also pay attention to the safety instructions of the battery manufacturer.
Safety instructions
power amplifier
14

3 Features
nFlexible high-performance power stage for PA application
n240 W (RMS)
nInputs: XLR, 1/4" phone socket (unbalanced), RCA sockets, screw terminals
nOutputs:
– Screw terminals for loudspeakers, optionally in 4 Ω, 70 V or 100 V technology
– Line output for connecting additional power stages (XLR, unbalanced 1/4" phone
socket, RCA sockets, screw terminals)
nProtection circuits: DC short-circuit protection, overheat protection
Features
PA 3
15

4 Installation and starting up
Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.
Create all connections while the device is off. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
Installation and starting up
power amplifier
16

DANGER!
Hazardous voltage
Hazardous voltage may be present at cable ends and screw terminals.
The connection of screw terminals as well as all maintenance and repair work on
the electrical installation of the device must only be performed by qualified elec‐
trical personnel in volt-free condition. Failure to do so may result in electric shock
and risk of fire and loss of life.
By all means you have to observe all electrical safety instructions applicable at the
place of operation.
DANGER!
Electric shock caused by high voltages at the power amplifier output
The output voltages of modern high-performance amplifiers may result in death
or serious injury.
Never touch the bare ends of loudspeaker cables when the amplifier is on.
Installation and starting up
PA 3
17

NOTICE!
Magnetic fields
The device generates strong magnetic fields that can interfere with the function
of poorly shielded devices. The strongest magnetic fields are directly above and
below the power amplifier. Therefore, never place sensitive devices such as pre-
amplifiers, radio transmission systems, or tape decks directly above or below the
power amplifier. When installing the power amplifier into a rack, you should place
it in the lowest position, and further equipment such as pre-amplifiers in the
highest position.
Installation and starting up
power amplifier
18

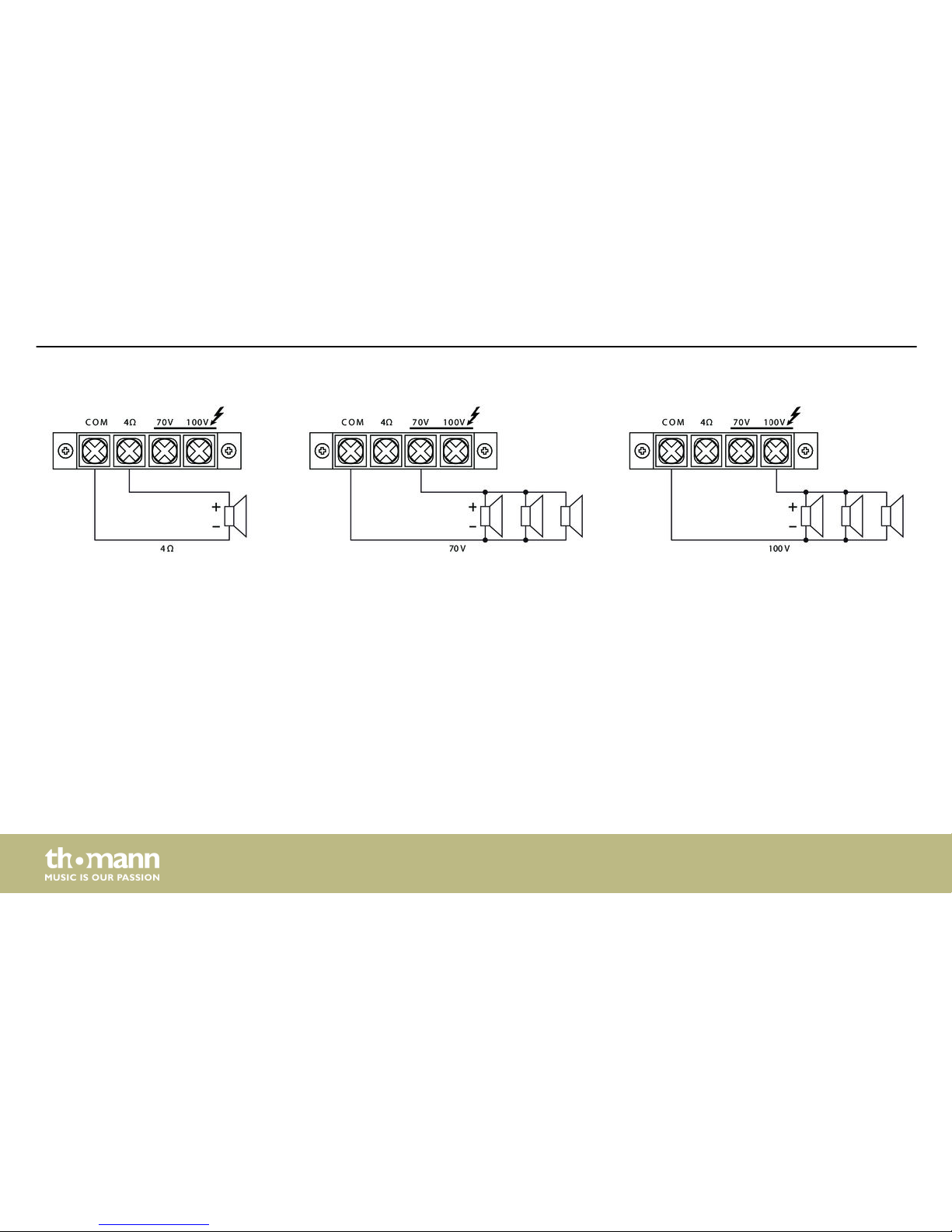

You can choose to either connect low-ohm loudspeakers with a total impedance of 4 Ω or ELA
speakers (70 V technology or 100 V technology). Observe the following diagram when con‐
necting the loudspeakers. The connectors are located under a removable cover. Replace this
cover after connecting the speakers and before you turn on the power.
Low-ohm speakers
On the output of the amplifier, the overall impedance resulting from the individual impe‐
dances of the connected speakers must not fall below the minimum allowable impedance of
the amp's output, for this model 4 Ω. If you want to connect multiple speakers to the amplifier
output, note the following:
nwhen connecting speakers in series, the impedances add up.
nwhen connecting speakers in parallel, the reciprocal value of the total impedance is equal
to the sum of the reciprocal values of the individual impedances.
This means, for example with two speakers with the same impedance: In series connection,
impedance is doubled. In parallel connection, it's halved.
ELA speakers
The total power consumption of the connected speakers must be below the maximum power
of the amplifier. We recommend a power reserve of 20 %.
Speaker connection
Installation and starting up
PA 3
19

The device can be supplied with 24 V DC voltage. Before connecting, ensure that the cable
cross-sections are sufficient.
The device has been designed for rack mounting in a standard 19-inch rack; it occupies two
rack units.
DC connection
Rack mounting
Installation and starting up
power amplifier
