thomann The Box Pro DSX 110 M User manual

DSX 110 M, DSX 112 M,
DSX 115 M
Active speaker
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
02.12.2020, ID: 505046, 505047, 505048

Table of contents
1 General information................................................................................................................................. 4
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 6
2 Safety instructions..................................................................................................................................... 8
3 Features....................................................................................................................................................... 14
4 Starting up.................................................................................................................................................. 15
5 Connections and controls................................................................................................................... 17
6 DSP functions............................................................................................................................................ 23
7 Technical specications....................................................................................................................... 25
8 Plug and connection assignment.................................................................................................... 32
9 Cleaning....................................................................................................................................................... 35
10 Protecting the environment.............................................................................................................. 36
Table of contents
DSX 110 M, DSX 112 M, DSX 115 M
3

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
Active speaker
4

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
DSX 110 M, DSX 112 M, DSX 115 M
5

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’ , ‘OFF’ .
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
Displays
General information
Active speaker
6

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General information
DSX 110 M, DSX 112 M, DSX 115 M
7

2 Safety instructions
This device is designed for sound reinforcement. Use the device only as described in this user
manual. Any other use or use under other operating conditions is considered to be improper
and may result in personal injury or property damage. No liability will be assumed for damages
resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Intended use
Safety instructions
Active speaker
8

DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or
damaged.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a pro‐
tective contact plug. Do not modify the mains cable or the plug. Failure to do so
could result in electric shock/death or re. If in doubt, seek advice from a regis‐
tered electrician.
Safety instructions
DSX 110 M, DSX 112 M, DSX 115 M
9

CAUTION!
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent
hearing impairment. Over an extended period of time, even levels that seem to
be uncritical can cause hearing damage.
Decrease the volume level immediately if you experience ringing in your ears or
hearing impairment. If this is not possible, keep a greater distance or use su‐
cient ear protectors.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked ames.
Safety instructions
Active speaker
10

NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or re.
Safety instructions
DSX 110 M, DSX 112 M, DSX 115 M
11

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctua‐
tions and do not switch the device on immediately after it was exposed to tem‐
perature uctuations (for example after transport at low outside temperatures).
Dust and dirt inside can damage the unit. When operated in harmful ambient
conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other
malfunction.
Safety instructions
Active speaker
12

NOTICE!
Possible damage due to installation of a wrong fuse
The use of dierent types of fuses can cause serious damage to the unit. Fire
hazard!
Only fuses of the same type may be used.
NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react
with the coating of your parquet, linoleum, laminate or PVC oor and after some
time cause permanent dark stains.
In case of doubt, do not put the rubber feet directly on the oor, but use felt-pad
oor protectors or a carpet.
Safety instructions
DSX 110 M, DSX 112 M, DSX 115 M
13

3 Features
The 2-way active speaker is characterized by the following features:
n2-way active speaker box for PA and DJ application
nMaximum output power: 900 W (DSX 110 M), 1200 W (DSX 112 M) oder
1350 W (DSX 115 M)
n10-inch woofer (DSX 110 M), 12-inch woofer (DSX 112 M) or 15-inch woofer (DSX 115 M)
n1.35" compression driver
nbacklit display for DSP functions
n4 DSP sound programmes: band, guitar, vocal, drums
nLow-Cut lter
n2 × adjustable MIC / Line input, XLR / 1/4" combo socket
n1 × Line out, XLR
nhigh-quality wooden housing with 36 mm tripod ange and carrying handles
nStandby function (DSX 110 M)
Features
Active speaker
14

4 Starting up
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
NOTICE!
Possible property damage by magnetic elds
Loudspeakers produce a static magnetic eld. Therefore, maintain an appropriate
distance to devices that can be adversely aected or damaged by an external
magnetic eld.
Starting up
DSX 110 M, DSX 112 M, DSX 115 M
15

The unit can be mounted on a stand or set up on the oor or a suciently sized and stable
surface.
NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.
Starting up
Active speaker
16

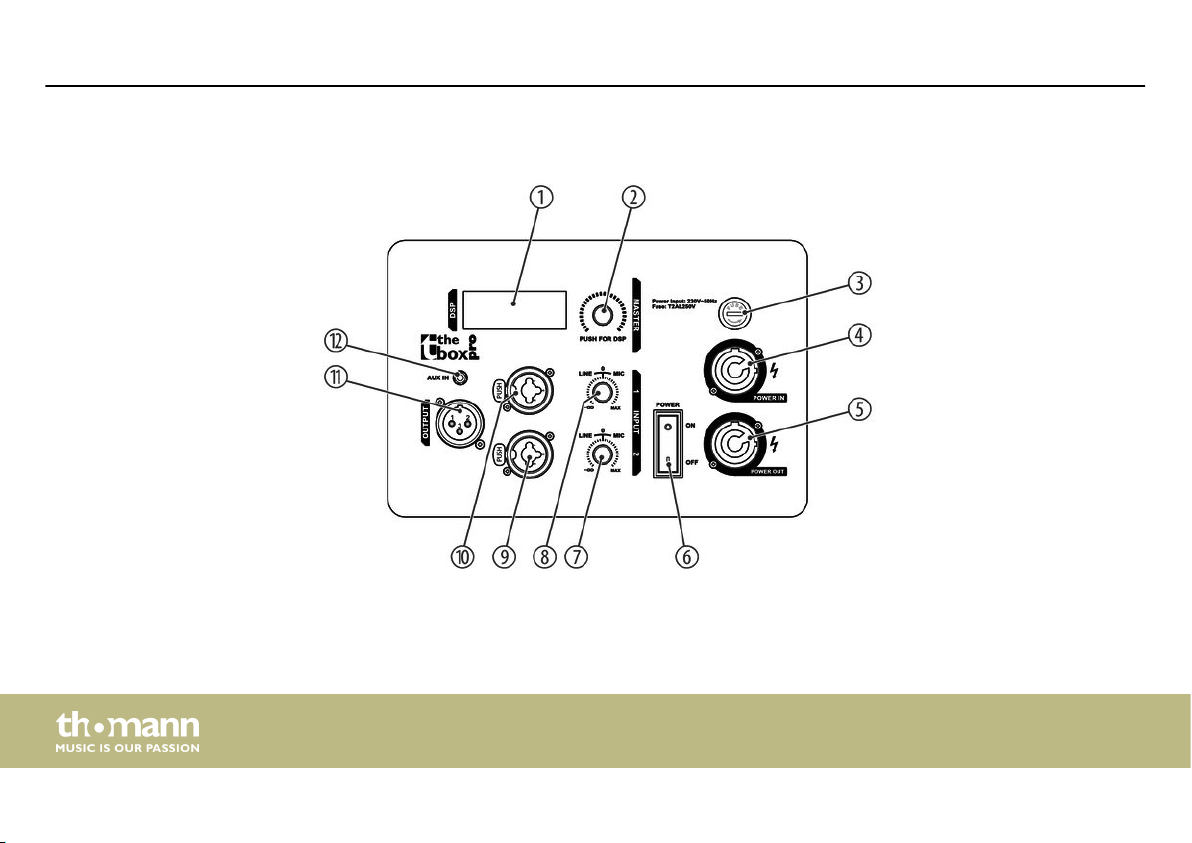

5 Connections and controls
Model DSX 110 M
Connections and controls
DSX 110 M, DSX 112 M, DSX 115 M
17

1[DSP]
backlit display for DSP functions
2[MASTER | PUSH FOR DSP]
Rotary control for the overall volume, push button for activating the DSP functions
3 Fuse holder
4[POWER IN]
Lockable input socket (Power Twist) for power supply
5[POWER OUT]
Lockable output socket (Power Twist) for the power supply of further units
6[Auto Stand-by]
Behind this opening, you nd the switch that turns the automatic shutdown function on and o. When pressed, the
function is deactivated; when released, it is activated and switches o the device after 60 minutes without input
signal. The device automatically turns back on again on returning input signal.
7[POWER]
Mains switch. Turns the device on and o.
Connections and controls
Active speaker
18

8 LED [AUTO Stand-by]
This LED lights up when the automatic shutdown function is active.
9[LINE / MIC 2]
Rotary gain control for input 2. Turning clockwise increases the input gain for connecting microphones. Turning
counterclockwise decreases the input gain for connecting instruments or devices with line level outputs.
10 [LINE / MIC 1]
Rotary gain control for input 1. Turning clockwise increases the input gain for connecting microphones. Turning
counterclockwise decreases the input gain for connecting instruments or devices with line level outputs.
11 Mic / Line input 2, designed as XLR / 1/4" combo socket, balanced
12 Mic / Line input 1, designed as XLR / 1/4" combo socket, balanced
13 [OUTPUT]
Line output, designed as XLR chassis plug. The combined signal of both inputs is present here, unaected by DSP.
14 [AUX IN]
3.5 mm jack socket for connecting line level devices such as MP3 or CD players. Stereo signals are combined.
Connections and controls
DSX 110 M, DSX 112 M, DSX 115 M
19

Model DSX 112 M, DSX 115 M
Connections and controls
Active speaker
