thomann Stairville WLS-DMX Pro G5 User manual

WLS-DMX Pro G5
transceiver
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
22.11.2019, ID: 464173

Table of contents
1 General information................................................................................................................................. 4
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 7
2 Safety instructions..................................................................................................................................... 9
3 Features....................................................................................................................................................... 14
4 Installation.................................................................................................................................................. 15
5 Starting up.................................................................................................................................................. 16
6 Connections and controls................................................................................................................... 20
7 Operating.................................................................................................................................................... 26
8 Technical specications....................................................................................................................... 29
9 Plug and connection assignments.................................................................................................. 31
10 Troubleshooting...................................................................................................................................... 32
11 Protecting the environment.............................................................................................................. 35
Table of contents
WLS-DMX Pro G5
3

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
transceiver
4

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
WLS-DMX Pro G5
5

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
The individual steps of an instruction are numbered consecutively. The result of a step is
indented and highlighted by an arrow.
Example:
1. Switch on the device.
2. Press [Auto].
ðAutomatic operation is started.
3. Switch o the device.
Letterings
Instructions
General information
transceiver
6

1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
General information
WLS-DMX Pro G5
7

Warning signs Type of danger
Warning – danger zone.
General information
transceiver
8

2 Safety instructions
This device is intended for the wireless transmission of DMX signals in lighting systems. Use
the device only as described in this user manual. Any other use or use under other operating
conditions is considered to be improper and may result in personal injury or property damage.
No liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Intended use
Safety
Safety instructions
WLS-DMX Pro G5
9

DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or
damaged.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord). Do not
modify the mains cable. Failure to do so could result in electric shock/death or
re. If in doubt, seek advice from a registered electrician.
Safety instructions
transceiver
10

NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked ames.
Safety instructions
WLS-DMX Pro G5
11

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctua‐
tions and do not switch the device on immediately after it was exposed to tem‐
perature uctuations (for example after transport at low outside temperatures).
Dust and dirt inside can damage the unit. When operated in harmful ambient
conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other
malfunction.
Safety instructions
transceiver
12

NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or re.
NOTICE!
Possible damage due to installation of a wrong fuse
The use of dierent types of fuses can cause serious damage to the unit. Fire
hazard!
Only fuses of the same type may be used.
Safety instructions
WLS-DMX Pro G5
13

3 Features
Special features of the device:
nWireless Solution G5 radio unit
nSwitchable operating mode: Transmitter or receiver
nWireless signal transmission in frequency range 2.4 GHz free of interference
nLatency-free wireless transmission of DMX signals
nToll-free operation in the EU and NAFTA countries, no permit required
nSupports RDM
nOperation via buttons on the unit
nKey lock to protect against accidental change of operating mode
nFour LEDs for monitoring the operating status
nLockable input socket (Power Twist TR1) for mains power supply
nPower cable included
nFast mounting with omega brackets with quick-lock fasteners
Features
transceiver
14

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
NOTICE!
Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not use ordi‐
nary microphone cables.
Never connect the DMX input or output to audio devices such as mixers or ampli‐
ers.
Installation
WLS-DMX Pro G5
15

5 Starting up
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
Starting up
transceiver
16

Connect a device congured as transmitter to the DMX output of your DMX controller and a
device congured as receiver to the DMX input of the rst DMX device in the DMX chain that is
to be controlled. In this point-to-point conguration the DMX signal from one transmitter is
sent to one receiver.

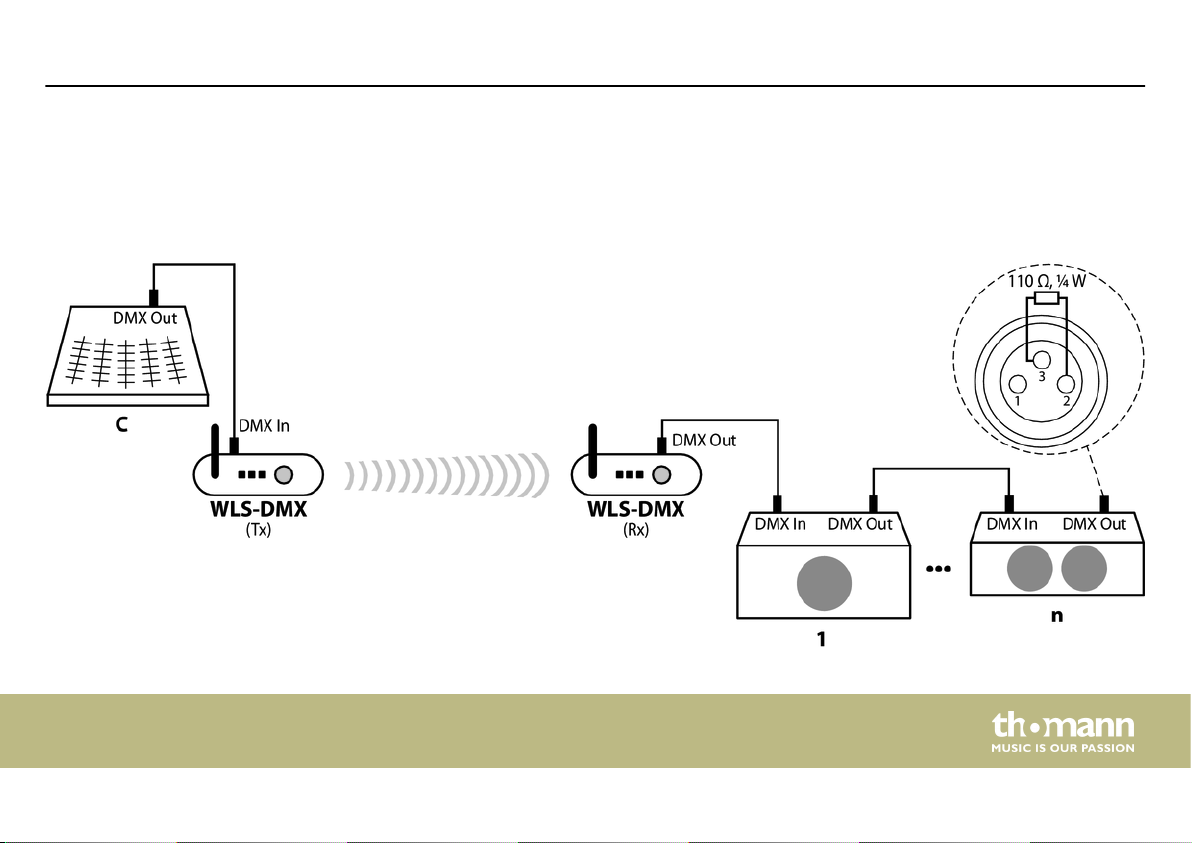

Point-to-point connection
Starting up
WLS-DMX Pro G5
17

Connect a device congured as transmitter to the DMX output of your DMX controller and a
device congured as receiver to the DMX input of the rst respective DMX device in the DMX
chains that are to be controlled. In this point-to-multipoint conguration the DMX signal from
one transmitter is sent to several receivers.
Point-to-multipoint connection
Starting up
transceiver
18

Connect the output of the rst DMX device to the input of the second one and so on, to form a
series connection. Make sure that the output of the last DMX device in the chain is terminated
by a resistor (110 Ω, ¼W).
DMX chain
Starting up
WLS-DMX Pro G5
19

6 Connections and controls

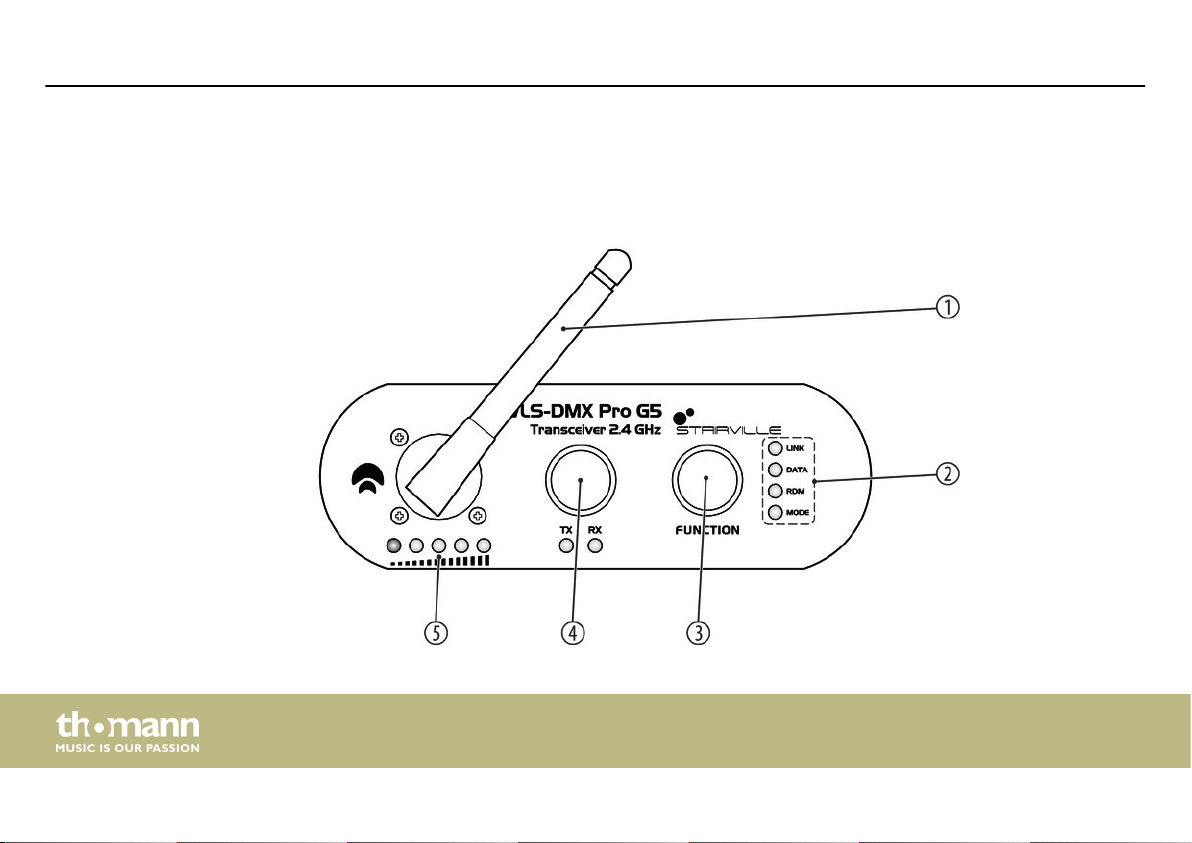

Front panel
Connections and controls
transceiver
20
