THOMSON GRASS VALLEY Triton TTN-BVS-1602CP User manual

MANUAL PART NO. 04-050464-002 Rev. 2
MARCH 04, 2003
INSTALLATION MANUAL
TRITON routing switcher
A
nalog Video Router 16x2
With Local Control Panel
Product model no. TTN-BVS-1602CP
the most watched worldwide

ii
Headquarters
Thomson Broadcast Systems
17 rue du Petit Albi - BP 8244
95801 Cergy Pontoise Cedex
FRANCE
Thomson Broadcast and
Media Solutions, Inc.
P.O. Box 599000
Nevada City, CA 95959-7900
USA
Copy
r
ight 2003 Thomson Broadcast and Media Solutions, Inc. All rights reserved. Grass Valley, Jupiter, and
Triton are trademarks of Thomson. Specifications subject to change without notice.
For customer service, please call [phone]. For comments or questions concerning this manual, please
contact: Technical Publications Department, P.O. Box 30816, Salt Lake City, Utah 84130 USA. Phone: (801)
972-8000. Fax: [phone]. Email: [e-mail]

iii
Contents
Electromagnetic Radiation Notice v
Hardware Warranty and Software License vi
Parts and Service vi
Revision history vii
1General 1
1.1 Specifications 1
1.2 Connection drawing 2
2Power connection 2
3Connecting the BVS-1602CP to your PC 3
3.1 Selection of router level 3
3.2 Pin-out of RS-232 connector 3
3.3 Maximum cable length 3
4NCB connection 4
4.1 Several routers in one system 4
4.2 Connecting control panels 4
4.3 Pin-out and cable type 5
4.3.1 RJ45 connectors 5
4.3.2 5-pin DIN connectors 5
4.3.3 RJ45 to 5-pin DIN converter 6
4.4 Control bus structure 6
4.5 Maximum distance between NCB devices 6
4.6 Control Bus configuration notes 6
5Router configuration 8
5.1 Router level 8
5.2 Router extension mode 9
5.3 Vertical interval trigger 9
5.4 Programming of restrictions 10
6Connecting video signals to the BVS-1602CP 10
7Input extension 11
8Control and connection of Triton systems, interface protocol 12
8.1 Important notes regarding the Triton Control Protocol 12
8.1.1 Binary Code 12
8.1.2 Echo 12
8.1.3 RS-422 Matrixes 12
8.1.4 Timeout 12

iv
8.2 Basic principles 12
8.2.1 Example: A single unit with no NCB connected 12
8.2.2 Example: Several units connected by NCB 13
8.3 RS232 13
8.4 NCB 13
8.5 Commands 14
8.5.1 Audio crosspoint set 14
8.5.2 Audio crosspoint set acknowledge 14
8.5.3 Video crosspoint set 14
8.5.4 Video crosspoint set acknowledge 15
8.5.5 Crosspoint status request 15
9Control panel operation 16
9.1 Front panel drawing 16
9.2 PANEL ENABLE button 16
9.3 V/A TOGGLE button 16
9.4 Operating crosspoints 16

v
Electromagnetic Radiation Notice
The following information is given to note compliance with the United States Government Federal Communications
Commission (FCC) Rules (47 CFR Part 15) designed to limit interference to radio and TV reception. The ruling establishes
measurement procedures and frequency criteria for Class A computing devices (commercial and industrial applications) with
the following conduction and radiation limits:
CLASS A COMPUTING DEVICE: CONDUCTION LIMIT (Part 15.812)
Frequency (MHz) Maximum RF Line Voltage (uV)
0.45 - 1.6 1000
1.6 - 30 3000
CLASS A COMPUTING DEVICE: RADIATION LIMIT (Section 15.810)
Frequency (MHz) Distance (meters) Field Strength (uV/m)
30 - 88 30 30
88 - 216 30 50
216 - 1000 30 70
The policy of Thomson is one of continual development and improvement. For that reason Thomson uses components and
manufacturing techniques that provide the current state-of-the-art suppression of electromagnetic radiation. This equipment, in
production before October 1, 1981, has not been tested to the above listed measurements. However, equipment such as this
delivered after October 1, 1983 will have the measurements on record at the factory. Therefore, in compliance with the stated
FCC Regulation, the following information is provided for the user:
NOTE
Interference to Radio Communications
This equipment generates, uses, and can radiate radio frequency energy and if not installed and used
in accordance with the instruction manual, may cause interference to radio communications. As
temporarily permitted by regulation it has not been tested for compliance with the limits for Class A
computing devices pursuant to Subpart J of of Part 15 of FCC Rules, which are designed to provide
reasonable protection against such interference. Operation of this equipment in a residential area
is likely to cause interference in which case the user at his own expense will be required to take
whatever measures may be required to correct the interference.

vi
Hardware Warranty and Software License
Please contact your local Thomson representative for
hardware warranty and software license information.
Parts and Service
Thomson maintains a full stock of replacement parts available for immediate shipment.
NORTH AMERICA PARTS AND SERVICE
Please call toll-free 1-800-547-8949.
You will be switched automatically to the parts and service representative nearest you.
For email correspondence: [email protected]
Internet: http://www.thomsongrassvalley.com
INTERNATIONAL PARTS AND SERVICE
Contact your Thomson representative.

vii
Revision history
Current revision of this document is the uppermost in the table below.
Revision Replaces Date Change Description
2 1 04/03/03 Updated with the new Thomson/GVG design.
1 0 30/01/01 Corrected error in baud rate setting
0 - 10/10/00 Initial Revision

BVS-1602CP Rev. 2
1
1 General
The BVS-1602CP is a 16x2 video router with vertical interval switching and integrated control panel.
This state of the art router provides high performance circuits in SMD technology for maximum system
performance. The BVS-1602CP is designed for all demanding routing tasks in digital studio and
broadcast environments. The BVS-1602CP offers the possibility to expand the router in the input
direction up to 128x2. The built-in RS-232 interface allows the user to control the router via the Triton
Router Control System PC software with many operational features. The control bus allows linking the
unit to the BAS-1602 or BES-1602 audio router thus creating a 16x2 AFV router. Several units can be
combined to form RGB, VGA or other matrix systems. One or several Triton remote control panels can
control the BVS-1602CP as well. The built-in control panel provides buttons for selection of inputs and 4
function keys with following functions:
• OUTPUT 1 Assigns input buttons to output 1
• OUTPUT 2 Assigns input buttons to output 2
• AUDIO / VIDEO Enables Audio, Video or AFV
• ENABLE Enables panel
1.1 Specifications
Frequency response: 0-80MHz -3dB
Differential gain: < 0.08% (3.58/4.43MHz)
Differential phase: < 0.3° (3.58/4.43MHz)
Crosstalk: < -55dB (3.58/4.43MHz
Video S/N Ratio: > 68dB
Bar tilt: < 0.1%
Lum. non-linearity: < 0.1%
Number of inputs: 16, switchable termination
Number of outputs: 2 with 2 BNC each
Auxiliary outputs: 2 for router expansion
Impedance: 75 ohms
Return loss: > 40dB
Max signal: 2 Vp-p
Coupling: DC
DC offset: typ. 30mV
Propagation delay: 7ns ± 1ns
Connector: BNC
AC power: External power supply 100 - 260 VAC
DC power: ±5V, connector DB9 male
Dimensions: 483 x 44 x 45 mm (19”, 1RU)

BVS-1602CP Rev. 2
2

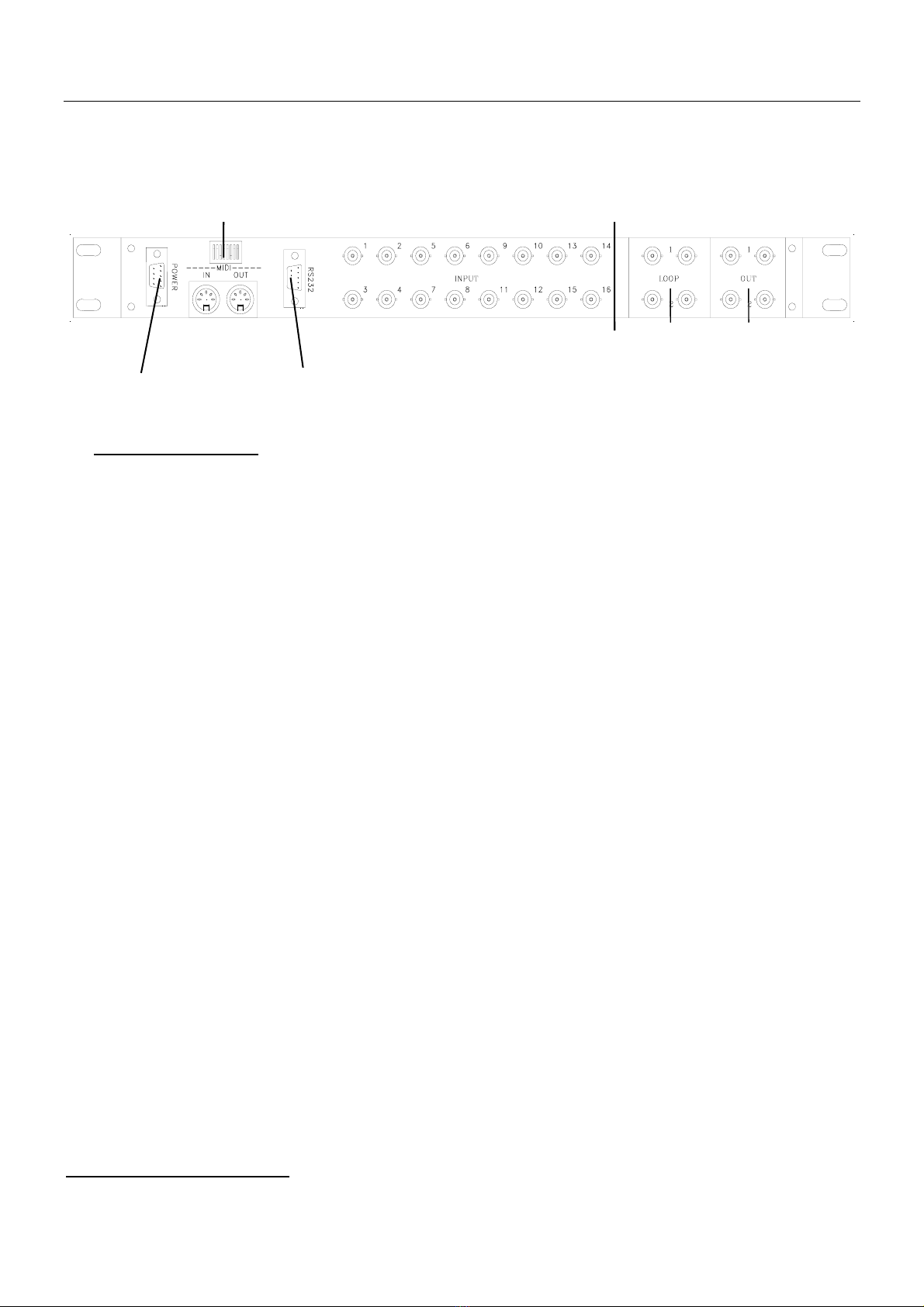

1.2 Connection drawing
Configuration switch
Video input section Video output section
NCB1Extension Extension
Router Output
Power connector RS-232 port
2 Power connection
Do not connect mains to the desktop power supply before connecting the power supply to the
router.
Connect the DB9 female connector from the desktop power supply to the main unit. Tighten the screws to
assure a proper contact. To connect mains to the desktop power supply you need a mains cord with IEC
320 connector.
The BVS-1602CP is normally delivered with the desktop power model AC ±5V / 10W. Upon customer
request, BVS-1602CP can also be delivered with DC ±5V / 30W, which may be fed by a 36 – 72 VDC
mains power source. A Frame mounted power supply solution is also available.
Please refer to the latest Triton Product Catalogue for power supply types, or call Thomson Grass Valley
for this information.
If any third party power supply is used the BVS-1602CP router requires ±5V DC with a minimum current
of 200mA. The following pin-out is used on the DB9 male power connector:
Pin 1 0V
Pin 2 +5V
Pin 6 -5V
1Network Control Bus. The protocol of this bus is equal, and compatible to the MIDI bus protocol.

BVS-1602CP Rev. 2
3
3 Connecting the BVS-1602CP to your PC
For connection to a PC with Triton Router Control System, the RS-232 interface is used. The RS-232 port
on all Triton devices uses the standard DCE pin-out, see pin-out table under 4.3.
A standard modem cable can be used for connecting the router to the PCs serial port.
3.1 Selection of router level
The router level depends on the system configuration the router is going to work with. See chapter 5 for
more information. All routers are delivered with default level 1. Triton Router Control System offers the
control of up to 16 different routers or combinations of routers.
3.2 Pin-out of RS-232 connector
The DB9 female connector for the RS-232 port has the following pin-out:
Pin 2 Tx
Pin 3 Rx
Pin 5 GND
3.3 Maximum cable length
The maximum cable length for an RS-232 connection is per definition 15m. Longer distances can be
installed depending on the environmental conditions of the installation site. It is the responsibility of the
installer / user to secure a proper installation of the RS-232 connection.

BVS-1602CP Rev. 2
4
4 NCB connection
Via the Network Control Bus system several routers and control panels can be interconnected.
The standard MIDI interface is used on all NCB control ports. The BVS-1602CP router utilises 5-PIN
DIN connectors for connecting to the NCB. This means that when you connect your BVS-1602CP router
to other Triton devices, with RJ45 connectors, an RJ45 to 5-pin DIN interface is necessary.
This converter can be ordered from Thomson Grass Valley.
The NCB system allows connection of up to 16 routers with different levels on the same bus. Control
panels dedicated to work with a specific router must be configured to the same level as the router. Several
panels can work together with one specific router. Up to 16 single routers or combinations of routers can
be controlled from the Triton Router Control System. The NCB system and all RS-232 ports interchange
the system status.
4.1 Several routers in one system
The NCB system allows the interconnection of up to 16 routers with different levels in one system. A
combination of routers working married counts as one level. This might for example be 1 audio router + 1
video router working as an audio follows video system or 3 video routers working as an RGB (YUV)
system. The routers in such a constellation must be configured to the same level.
4.2 Connecting control panels
To get a control panel working with a specific router, configure the control panel to the same level as the
router. Several panels can be configured to control the same router. The Triton panels can control 2 levels
with breakaway function. If it is necessary to control more levels with breakaway an additional panel
must be used. Panels can also be connected to a router via the RS-232 interface. Please refer to your
control panel manual for installation.

BVS-1602CP Rev. 2
5
4.3 Pin-out and cable type
4.3.1 RJ45 connectors
On some Triton devices, the NCB cable can be connected to RJ-45 connectors. The following pin-out is
used:
Pin 1 = Not Connected
Pin 2 = Not Connected
Pin 3 = Not Connected
Pin 4 = data
Pin 5 = data
Pin 6 = Not Connected
Pin 7 = Not Connected
Pin 8 = Not Connected
4.3.2 5-pin DIN connectors
However, the pin-out of most Network Control Bus ports, including that of the BVS-1602CP follows the
standard MIDI specification. A 1:1 cable with 5pin DIN connector is used. The following pin-out is used:
Pin 1 = Not Connected
Pin 2 = shield
Pin 3 = Not Connected
Pin 4 = data
Pin 5 = data
The standard MIDI specification recommends the use of shielded twisted pair cable types for
interconnection between the units.

BVS-1602CP Rev. 2
6

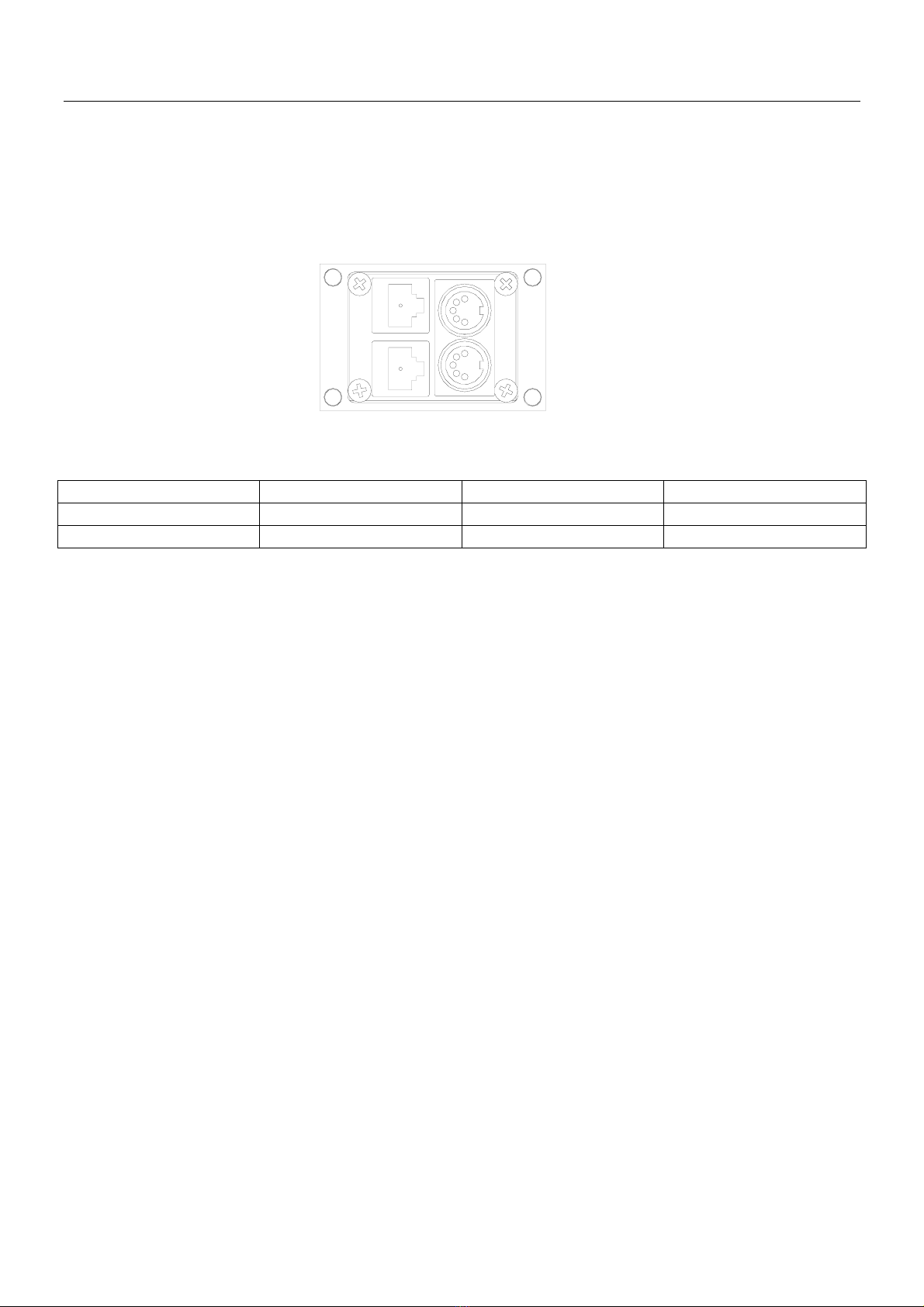

4.3.3 RJ45 to 5-pin DIN converter
In configurations that include both devices with RJ45 connectors, and devices with 5-pin DIN connectors,
an RJ45 to 5-pin DIN converter may be used to complete the control loop. This converter holds both
connector types, and may work both ways, thus from RJ45 to 5-pin DIN, as well as from 5-pin DIN to
RJ45.
The converter is connected as follows:
RJ45 (Router/CP) RJ45 (Converter) 5-pin DIN (Converter) 5-pin DIN (Router/CP)
IN IN IN OUT
OUT OUT OUT IN
4.4 Control bus structure
The Network Control Bus structure follows the standard MIDI bus definition. The NCB is defined as a
closed chain of units. This means that the NCB OUT of the last unit must be connected to the NCB IN of
the first unit in the NCB chain. To avoid problems with the control of Triton units the installer/user has to
assure that the bus structure is installed according to this definition. The total number of Triton devices in
an NCB chain is limited to 20.
4.5 Maximum distance between NCB devices
The standard MIDI definition allows a maximum cable length of 250 meters between two devices.
Longer distances can be made with MIDI repeater units. To avoid grounding problems all NCB ports
have opto-coupled inputs.
4.6 Control Bus configuration notes
In order to achieve a system that is easy to maintain and control, follow the important notes, presented
hereunder.
• Avoid using routers of different size, but same signal type (audio/video), on the same level.
Example: Do not configure a system with a BVS-1616 and a BVS-0808 on the same level. If they
were on the same level, crosspoint commands that were sent to the BVS-1616 lying outside the
range of the BVS-0808 would not be executed; the BVS-0808 would throw them off the bus.
However, a combination of a BVS-1616 and an BAS-0808 will work well, because commands are
different for video- and audio routers.
• Try to limit the number of devices on one Control Bus loop. If possible, separate systems that are
not to be controlled by one central control panel.
If you need to have several systems in one loop, try to separate as follows, using the DIP switches
on the rear of the devices:
o Analogue Video + Analogue Audio + CP for analogue system on Level 1
o SDI + AES/EBU + CP for digital system on Level 2
o RS-422 Data + CP for data on Level 3

BVS-1602CP Rev. 2
7
o Universal Control Panel to control all devices above, with user configurable default level.
• Pay attention to the figure below, in order to achieve full controllability of all devices in the loop.
Triton - RCS
• Complete the Control loop, by connecting all Control bus connections to all Triton devices, before
powering up any Triton device.

BVS-1602CP Rev. 2
8
5 Router configuration
5.1 Router level
Switch 1 - 4 on the configuration switch set the router’s level for communication with the Triton Router
Control System, and other units in the NCB system. The panels on the NCB dedicated to operate with the
router must be configured to the same level as that router.
If several routers are combined to form an audio follows video, RGB or similar system, these routers
must be configured to the same level.
The levels can be switched according to the following pattern:
- means switch down
* means switch up
Default level is 1.
Switch 1 2 3 4 Level
- - - - 1
- - - * 2
- - * - 3
- - * * 4
- * - - 5
- * - * 6
- * * - 7
- * * * 8
* - - - 9
* - - * 10
* - * - 11
* - * * 12
* * - - 13
* * - * 14
* * * - 15
* * * * 16

BVS-1602CP Rev. 2
9
5.2 Router extension mode
Switch 5, 6 and 7 on the configuration switch set the router’s input offset in systems with 2 or more BVS-
1602CP. You can build systems up to 128x2. The chosen input offset defines on which input range each
BVS-1602CP works on.
The offset can be switched according to the following pattern:
- means switch down
* means switch up
Switch 5 6 7 Offset
- - - 0
- - * 16
- * - 32
- * * 48
* - - 64
* - * 80
* * - 96
* * * 112
Default is offset 0.
5.3 Vertical interval trigger
Switch 8 on the configuration switch enables or disables the VIT sensing on video input 1. If VIT
switching is enabled but a proper signal is missing, the router will automatically switch without VIT.
The VIT can be switched according to the following pattern:
- means switch down
* means switch up
Switch 8 VIT
- disabled
* enabled
Default is VIT enabled.

BVS-1602CP Rev. 2
10
5.4 Programming of restrictions
If the user enables the Restrictions option, the previously programmed restrictions will be fetched from
the on-board memory during power-up. New restrictions may be programmed by putting the panel in
“Programming mode”. This is done, starting from Panel Disable state, by pushing and holding “V/A
toggle”, “Take On/Off” and “Take” and then pushing “Panel Enable”. Blinking “Panel Enable” and
“Take” indicates programming mode.
All the legal inputs for the selected output are shown by orange light in button. Pushing the appropriate
input button does the Legal/Illegal toggle. When a new output is selected, the programming of the
previous output is saved in the on-board memory and the old setting of the new output is fetched from the
on-board memory.
Push Panel Disable to stop the programming mode when all necessary programming is finished.
Disabling all inputs for the given output disables an output completely. When in normal mode these
outputs may be selected for viewing the status, but not controlled.
6 Connecting video signals to the BVS-1602CP
The BVS-1602CP router offers standard 75 ohms BNC connectors for video in- and outputs. All video
inputs are terminated with 75 ohms. DIP switches allow to switch off the termination for each input. One
DIP switch block is used for 4 inputs. The backplane is marked with "75" for the position with
termination and "High-Z" for the position without termination. For each input you will find 2 switches:
Input 1 Switch 1,2
Input 2 Switch 3,4
Input 3 Switch 5,6
Input 4 Switch 7,8

BVS-1602CP Rev. 2
11
7 Input extension
BVS-1602CP allows input extension up to 128x2. Please connect the routers like shown below. The end
of a loop chain must be terminated. This can be done either with a termination plug (75 Ohms) or the
termination on the loop section. Please refer to chapter 6 regarding termination switch.
Please refer to chapter 5.2 regarding input offset.

BVS-1602CP Rev. 2
12
8 Control and connection of Triton systems, interface protocol
8.1 Important notes regarding the Triton Control Protocol
8.1.1 Binary Code
The strings shown on the next pages are in binary coded format. Please be aware of the fact that any
terminal program you may use to control a Triton unit from a PC must be able to generate hexadecimal
characters. ASCII characters will not be accepted.
8.1.2 Echo
A matrix will reply on a crosspoint set command with an ECHO. In the case where a crosspoint is already
set no ECHO will be sent. If the matrix is part of an NCB system two types of reply will be sent.
Immediately after receiving the crosspoint set command the ECHO will be sent. The matrix will then wait
for the command to pass the NCB system. After receiving the command from the NCB system the matrix
will send the command as an ACKNOWLEDGE.
8.1.3 RS-422 Matrixes
RS-422 Data Routers do not accept distribution of an input signal to several outputs. An input signal can
only be routed to one single output. The Firmware of our RS-422 routers takes care of these limitations. If
an input (Source) is already connected to a particular output (Destination) any connection of this input to
another output would disconnect the previous connection. The router will in this case send the following
message for the disconnected output: Output connected to input 128. Input 128 is an internal default for
the disconnect status. Please see Triton recommendations for use of RS-422 data routers for further
information.
8.1.4 Timeout
The Crosspoint Status Request message has a timeout, which means that you need to wait 1 second in
between request messages.
8.2 Basic principles
Any message on any level (address) that conforms to the standard arriving at either the NCB or the
RS232 port will be re-sent on both NCB and RS232. The only exceptions are:
a) A matrix that recognizes its address will not re-transmit the message if the crosspoint is already
set.
b) A matrix that recognizes its address will not re-transmit the message if the output number or input
number exceeds its size.
c) A unit (matrix or panel) will not re-transmit a message arriving at the NCB if it was re-transmitted
a short while ago (typically 0.5 sec). This is done by grabbing a message storing it for the timeout
period, and comparing it with new messages. After the timeout period the unit will grab a new
message for compare. This is done to remove unwanted (read: unknown) messages from the NCB
ring.
d) A message arriving at the RS232 will always be re-transmitted unless it is a matrix, and one of the
cases a) or b) is fulfilled.
8.2.1 Example: A single unit with no NCB connected
Messages sent to the RS232 of a single unit will be returned once no matter what address or input/output
number the message has, unless it is a matrix which recognizes one of the conditions a) or b) above.
