Thule Chariot User manual

C www.chariotcarriers.com 51100933

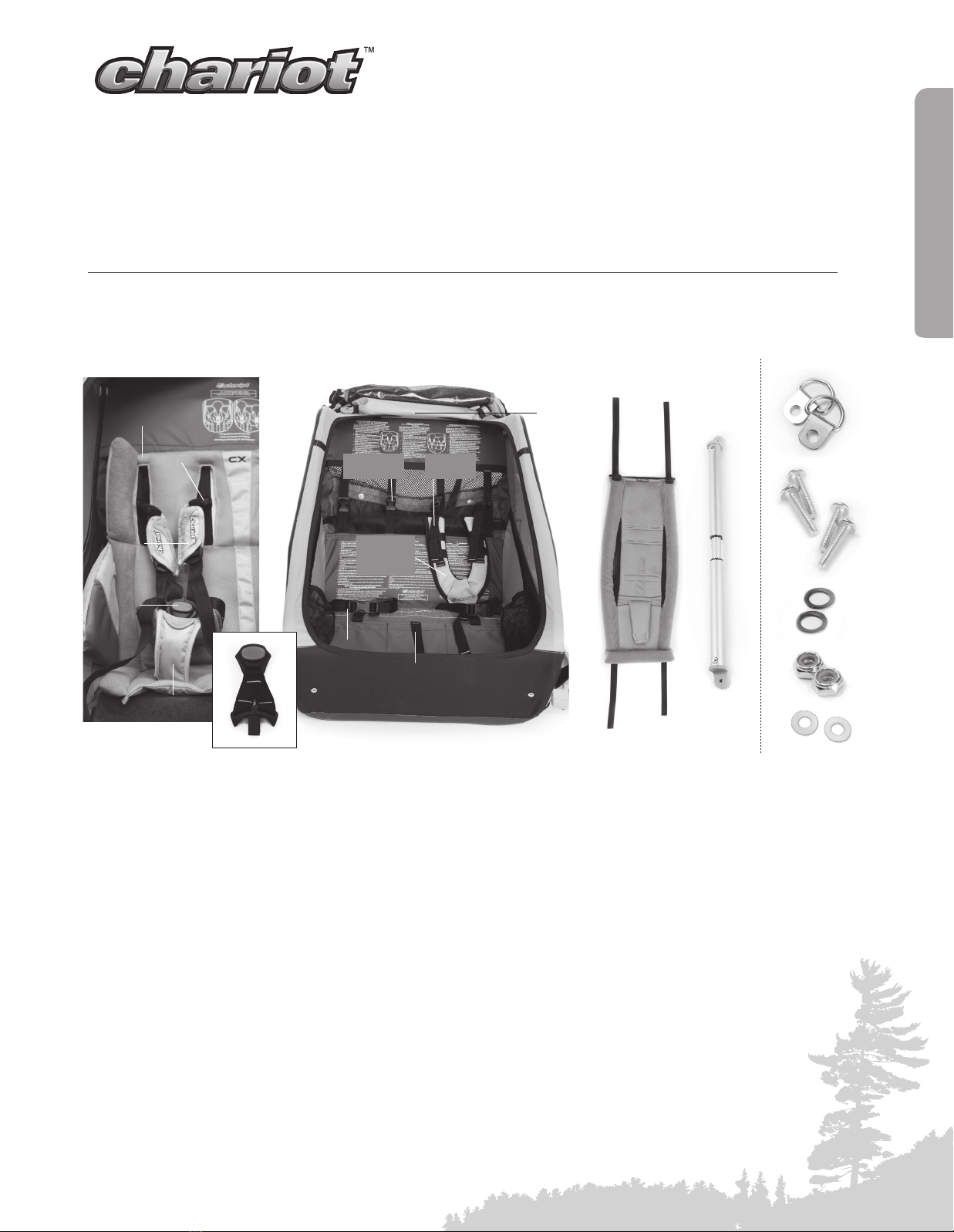

Parts DescriPtion
GeneraL WarninG
These instructions contain many WARNINGS. Read and
understand all of the WARNINGS. Failure to assemble and
use this carrier correctly may lead to serious personal injury or
death to you or your passenger.
• ThiskitcontainshardwareforinstallingtheInfantSling
into a variety of child carriers including older models.
If you are installing the Infant Sling into an older
modelchildcarrier,visitwww.chariotcarriers.comto
downloadthecorrectinstructions.Incorrectlyinstalling
the Infant Sling into any child carrier could result in
serious injury or death.
• Donotoperateachildcarrierwithoutreadingand
understanding this manual.
• Followtheinstructionsthatcamewithyourchildcarrier
for proper child placement and seatbelts.
Crotch Strap
Waist Belt
Seat
Frame
Bar
Shoulder
Straps
Shoulder
Buckles
Padded
Shoulder
Harness
INFANT SLING
INFANT SLING
• Neverleaveyourchildunattendedinthechildcarrier.
• Onlyparkthecarrieronatsurfacesandsecureitwith
theparkingbrake.
• TheInfantSlingcannotbeusedwiththeAll-Season
Bunting Bag or Baby Supporter.
• Onlyusethisproductwithchildrenwhocannotsit
unaidedbetweentheage1-10monthsold,who
weighlessthan22lb/10kg,andareshorterthan
29½in/75cm.
• ConsultyourpediatricianbeforeusingtheInfantSling
for activities besides strolling.
.
Head
Straps
Foot
Bar
Foot
Straps
Shoulder
Straps
Padded
Shoulder
Harness
Crotch Strap
Crotch Strap Extension
Waist
Belt
Shoulder
Buckles
(CX2013)
Infant_Sling_Manual.indd 1 07/12/12 11:36 AM

C www.chariotcarriers.com 51100933
CTS CROSS-COUNTRY SKI KIT
CTS CROSS-COUNTRY SKI KIT
INFANT SLING
1.1 instaLLinG the MetaL D-rinGs
Thefollowinginstructionsonlyapplyforsingleoccupant
child carriers.
A. Remove the bolts from the accessory mounts on
the child carrier.
B. ReplacetheboltsthroughthemetalD-ringsinto
theaccessorymounts.MakesuretheD-ringsare
pointinginwardsonceinstalled.(Seeimage1)
1
1.2 instaLLinG the Foot Bar
Thefollowinginstructionsonlyapplyfordoubleoccupant
child carriers.
A. Remove the bolts from the accessory mounts on
the child carrier.
B. Position both ends of the foot bar over the
accessory mounts.
C. Replacetheboltsthroughthemetalwasherandthe
ends of the foot bar into the accessory mounts.
(Seeimage2)
2
WARNING
Regularly check to make sure the D-rings/
foot bar are securely attached to the
accessory mounts.
Infant_Sling_Manual.indd 2 07/12/12 11:36 AM

C www.chariotcarriers.com 51100933
CTS CROSS-COUNTRY SKI KIT
CTS CROSS-COUNTRY SKI KIT
INFANT SLING

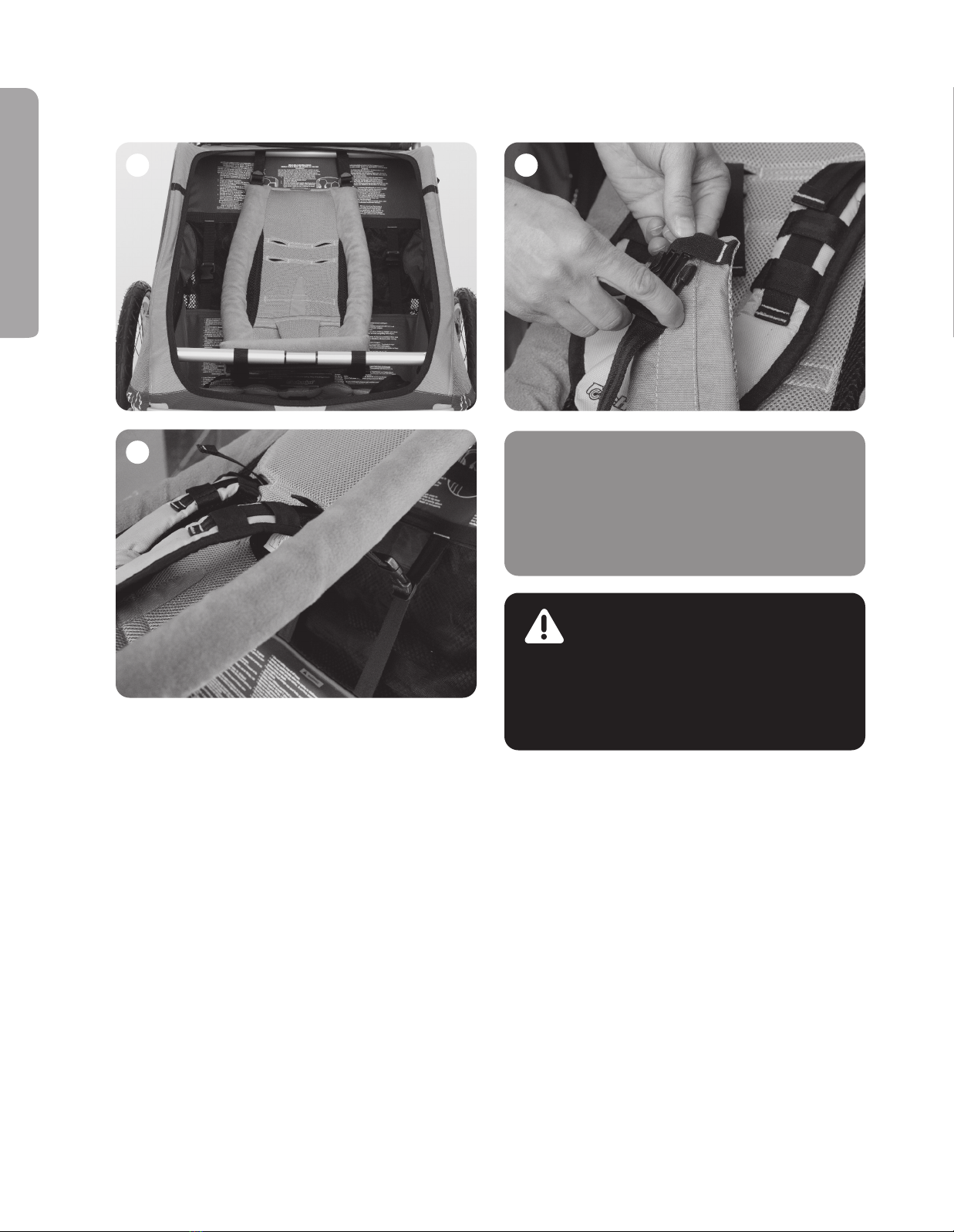

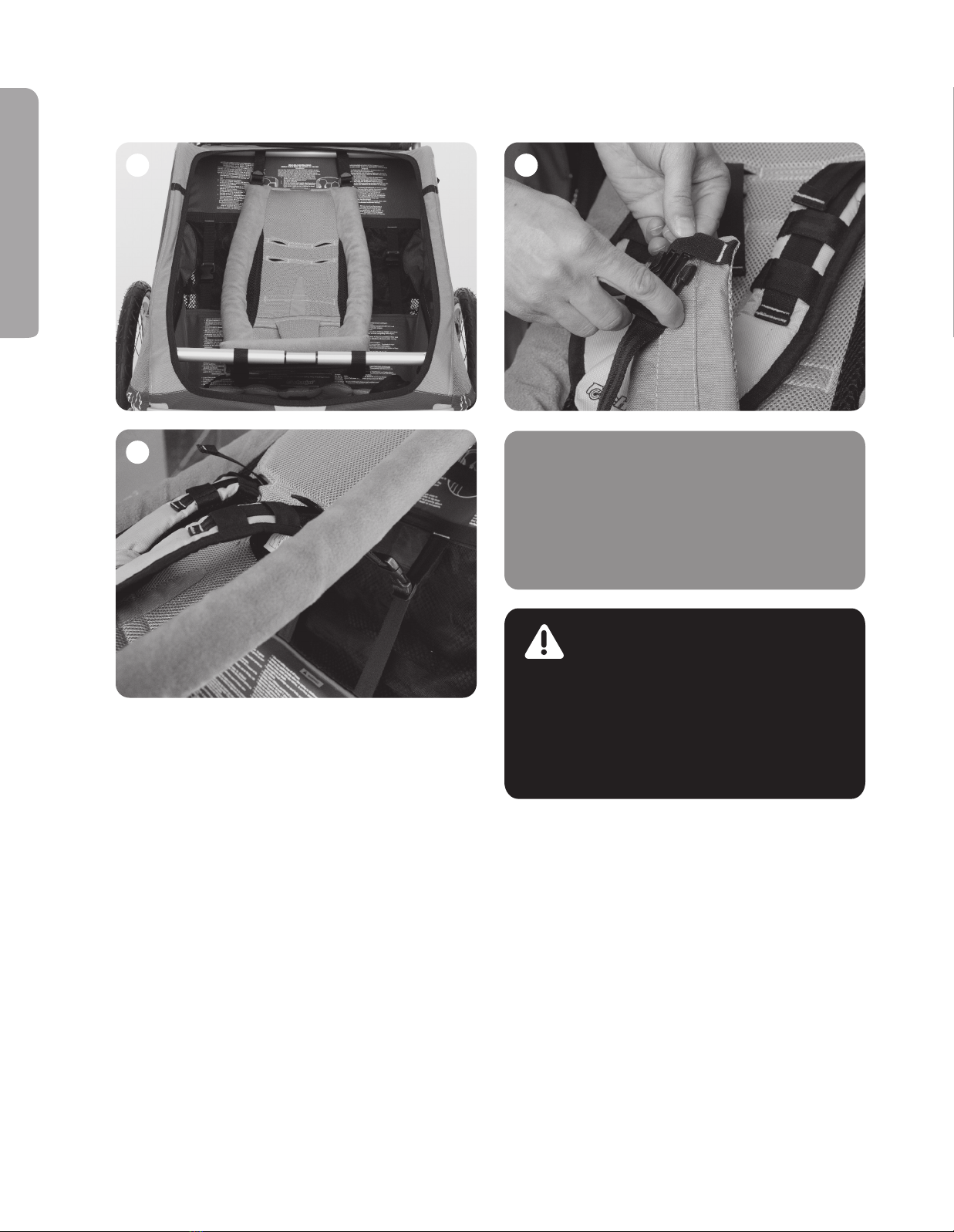

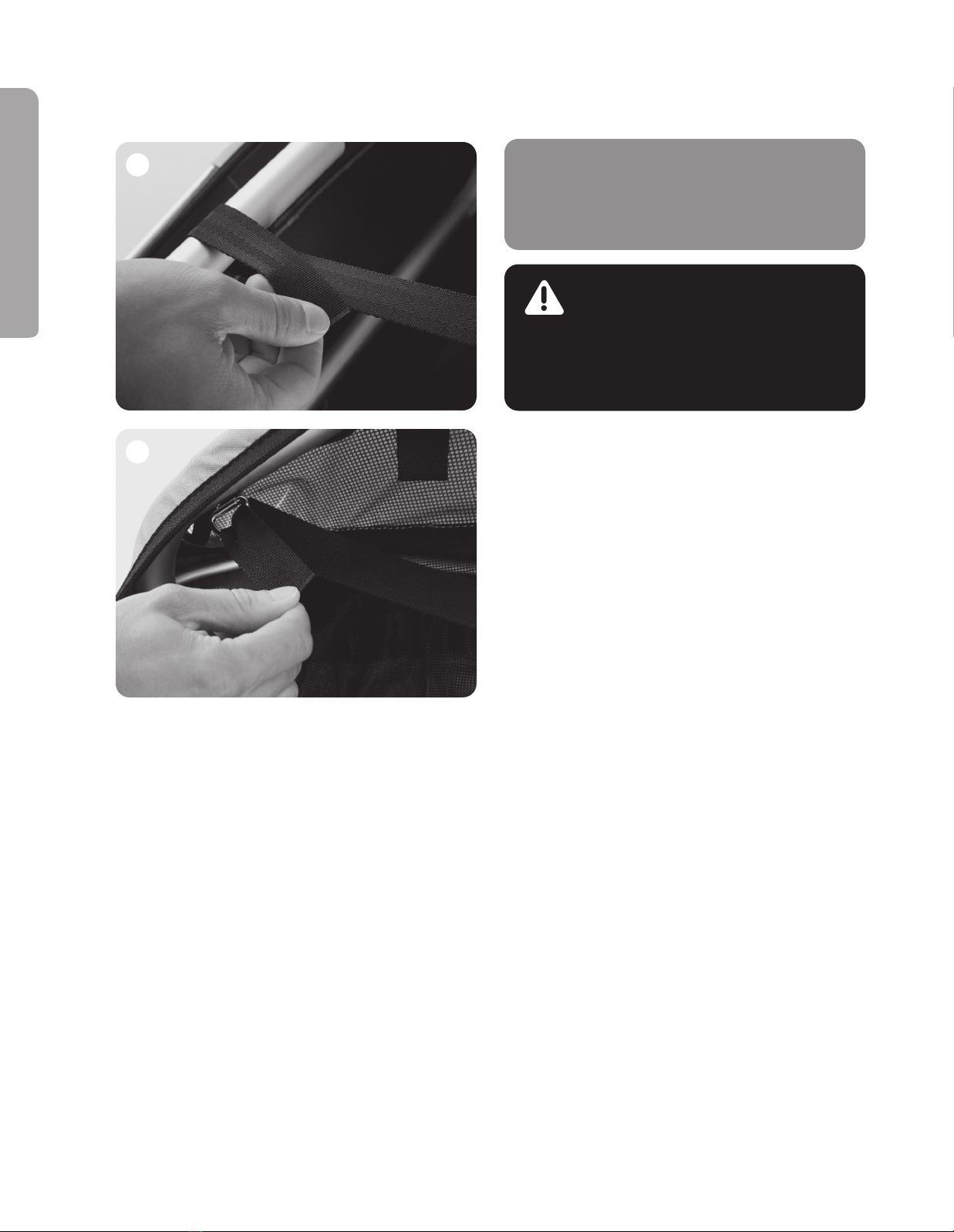

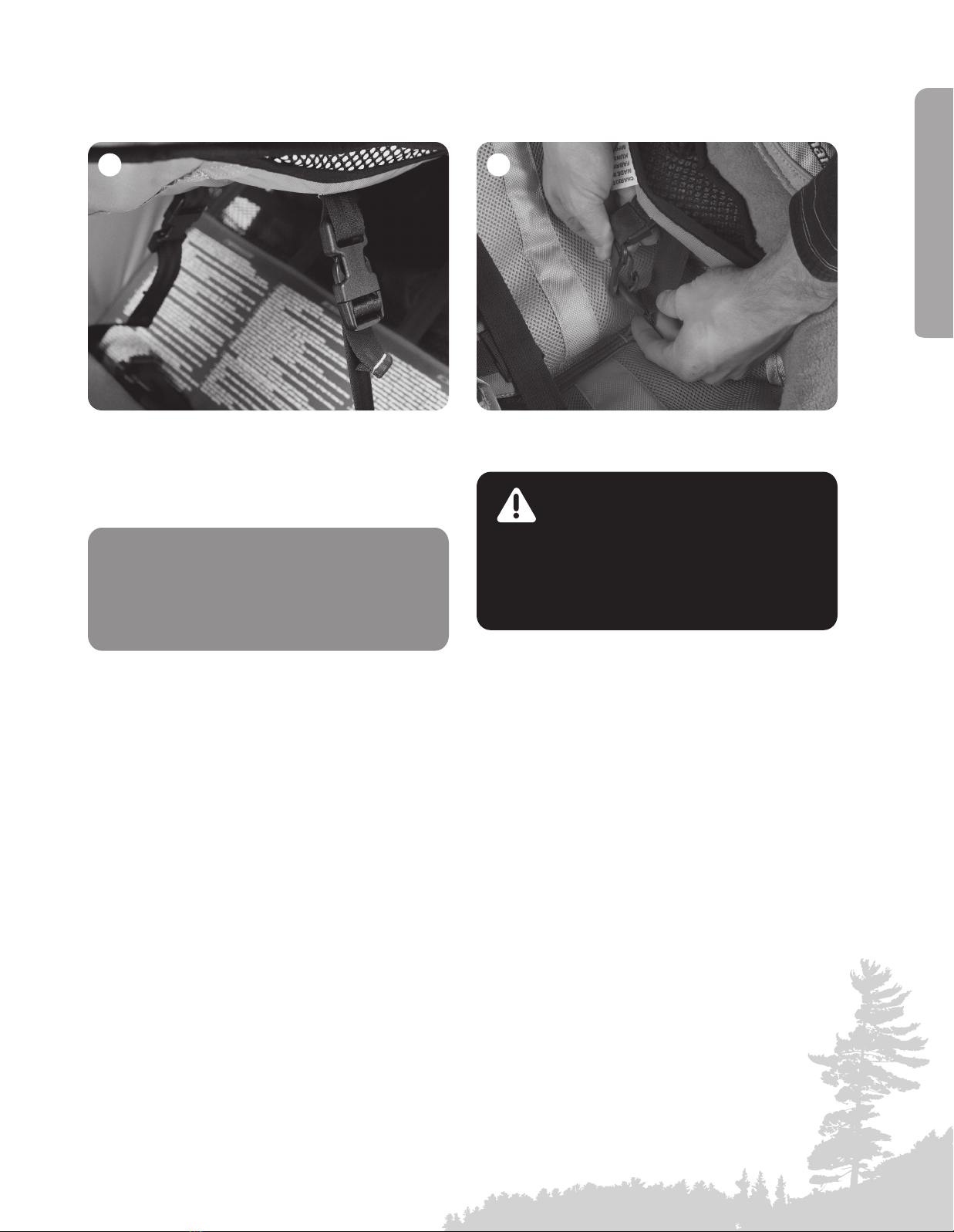

1.3 securinG the toP oF the
inFant sLinG
A. Removethepaddedshoulderharnessbyunbuckling
the shoulder straps and crotch strap.
B. Unbucklethewaistbelt.
C. Partially fold the child carrier.
D. Placetheinfantslinginsidethechildcompartment.
Makesuretheheadstrapsarepointingtowardsthe
seat frame bar and the crotch support is to the outside.
E. Loop both of the head straps up over the seat frame bar
andbackintothebucklesonthetopoftheinfantsling.
(Seeimage1)
F. Unfold the child carrier.
G. Tighten the head straps evenly until the infant sling is
positioned at your preferred height.
WARNING
Check the head straps before every journey
to be sure that they are securely attached to
the child carrier and have not loosened off.
21
NOTICE
The seat frame bar is not accessible on all
child carriers. For these carriers, loop the
head straps around back frame instead.
(See image 2)
Some child carriers are equipped with
straps on the seat back. Use these straps
instead of the head straps to secure the top
of the infant sling.
Infant_Sling_Manual.indd 3 07/12/12 11:36 AM

C www.chariotcarriers.com 51100933
INFANT SLING

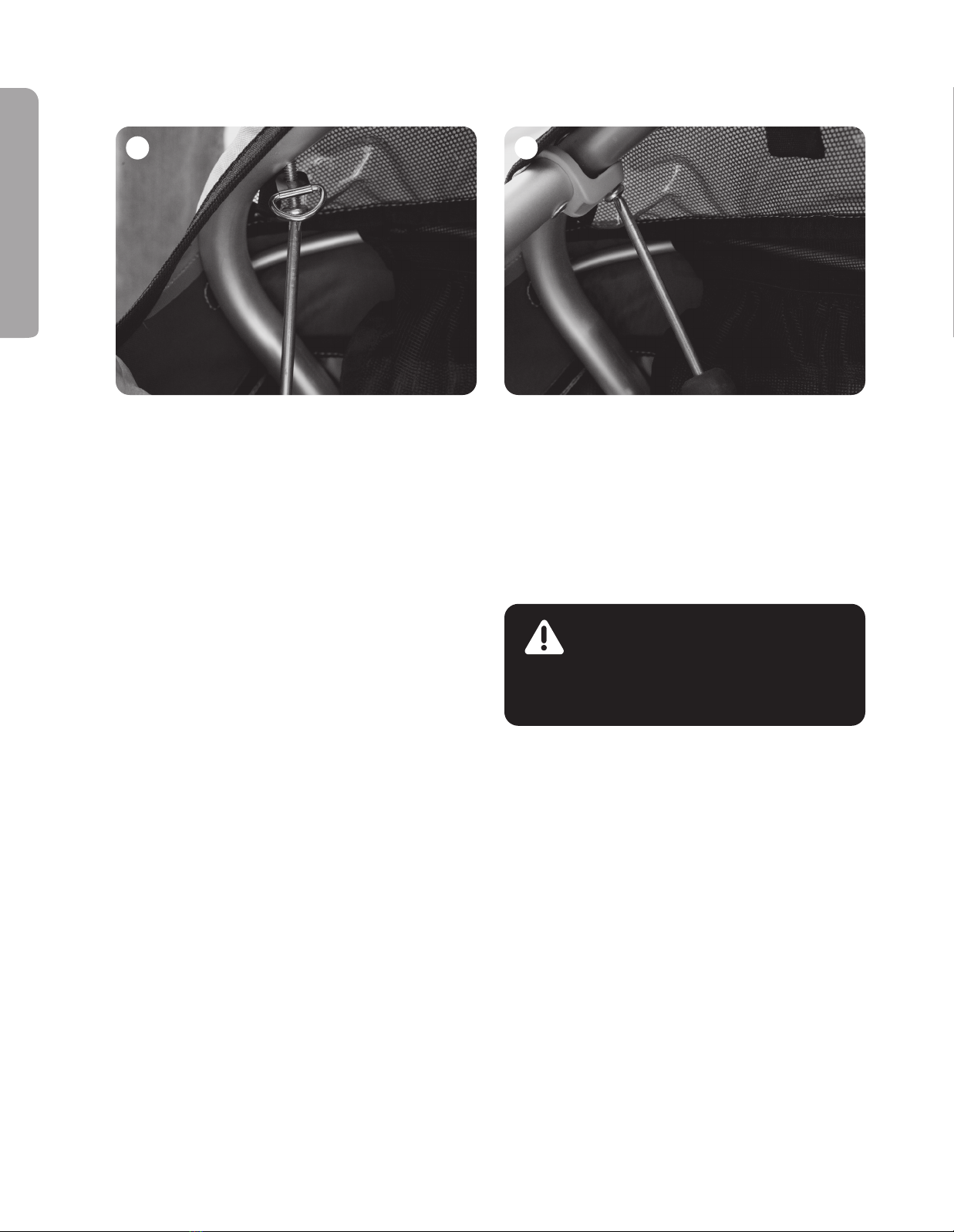

1.4 securinG the BottoM oF the
inFant sLinG
A. For a double carrier, loop the foot straps around the
footbarandbackintothebucklesonthebottomof
theinfantsling.(Seeimage1)
B. For a single carrier, thread the foot straps through the
D-ringsandbackintothebucklesonthebottomof
theinfantsling.(SeeImage2)
C. Tighten the foot straps evenly until the middle of the
infantslingissaggingapproximately2.5cm(1in).
WARNING
Check to make sure the Infant Sling has
been properly attached with the waist
buckles, head and foot straps before
releasing the parking brake and using your
child carrier.
2
1NOTICE
For use on double occupant child carriers in
the middle position; buckle outermost waist
belt straps to the waist buckles.
Infant_Sling_Manual.indd 4 07/12/12 11:36 AM

C www.chariotcarriers.com 51100933
INFANT SLING

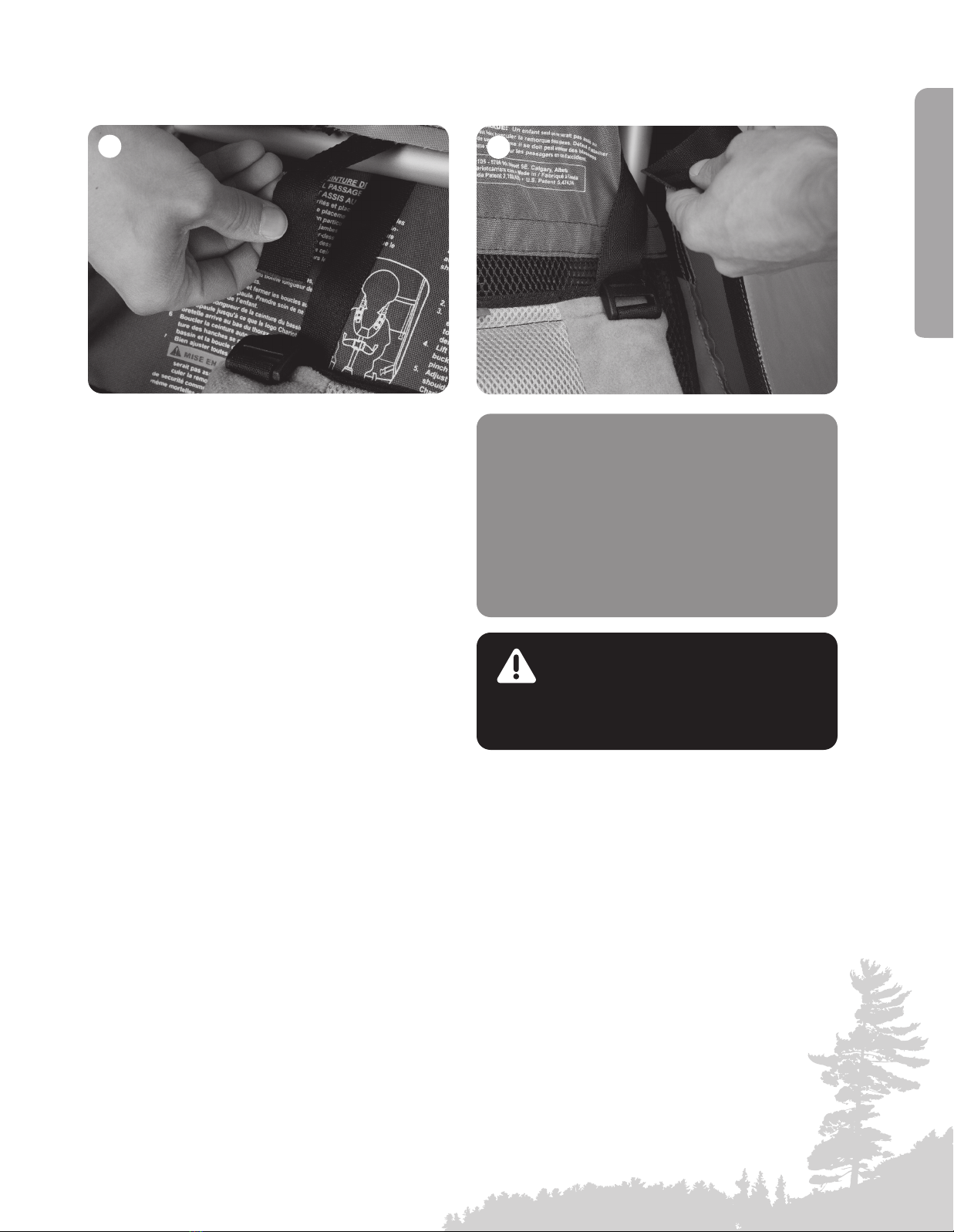

1.5 securinG the center oF the
inFant sLinG
A. Bucklebothofthewaistbucklesontotheendsofthe
waistbelt.(Seeimage1)
B. Tightenthewaistbeltstrapsevenlyuntiltheinfant
slingistightlysecuredwithaslightbowinthemiddle.
1.6 securinG the center oF the
inFant sLinG (cX 2013)
A. Attach the center of the infant sling by clipping the
D-rings.(SeeImage2)
WARNING
Check to make sure the Infant Sling has
been properly attached with the center
attachments, head and foot straps before
releasing the parking brake and using your
child carrier.
1 2
NOTICE
For use on double occupant child carriers in
the middle position; buckle outermost waist
belt straps to the waist buckles.
Infant_Sling_Manual.indd 5 07/12/12 11:36 AM

C www.chariotcarriers.com 51100933

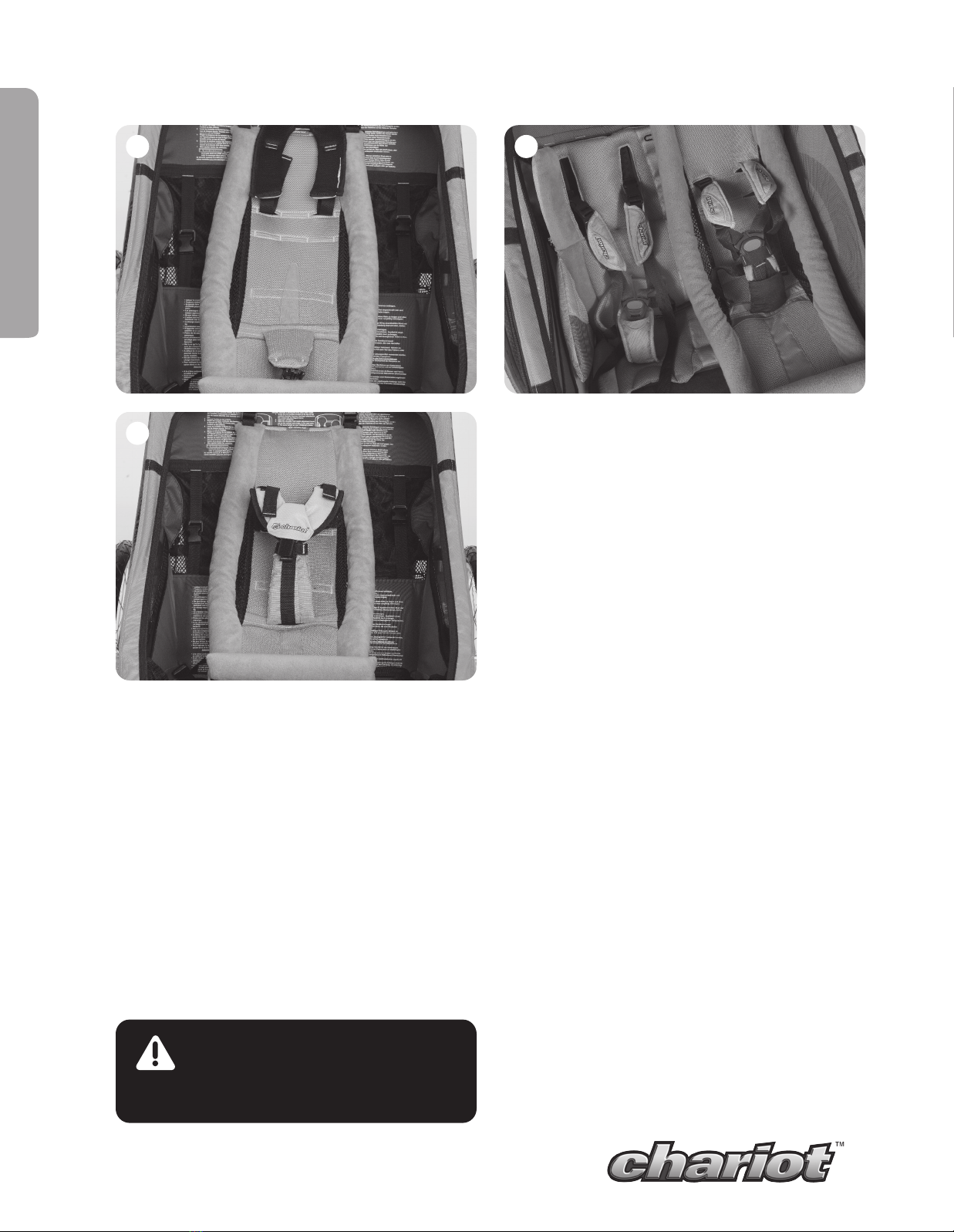

1.7 PreParinG the PaDDeD shouLDer
harness anD crotch straP
A. Engagetheparkingbrake.
B. Adjust the padded shoulder harness according to
the instructions for your child carrier.
C. Place your child in the secured infant sling
positioned comfortably over the crotch support.
D. Determinewhichoftheshoulderslotsareinlinewith
thetopofyourchild'sshoulders.(Seeimage1)
E. Remove your child from the carrier.
F. Feedtheshoulderstrapsdownthroughtheshoulder
slotsinlinewiththetopofyourchild'sshoulders.
G. Bucklebothoftheshoulderstrapsbackintothe
bucklesontheverticalwebstraps.(Seeimage2)
H. Slidetheshoulderbucklestothesameheightasthe
shoulder straps.
I. Feed the crotch strap up through the crotch slot and
insertthecrotchstrapthroughtheloopontheback
ofthecrotchsupport.(Seeimage3)
2
1 3
WARNING
Do not use the infant sling with your child
if their shoulders are above the uppermost
shoulder slots in the infant sling.
Ensure that the harness has been properly
prepared for the child being secured by it.
NOTICE
For use with child carriers equipped with
padded crotch straps, tuck the crotch
support down through the crotch slot and
use the padded crotch strap without the
crotch support.
INFANT SLING
Infant_Sling_Manual.indd 6 07/12/12 11:36 AM

C www.chariotcarriers.com 51100933
1.8 PreParinG the PaDDeD shouLDer
harness anD crotch straP
(cX 2013)
A. Engagetheparkingbrake.
B. Adjust the padded shoulder harness according to
the instructions for your child carrier.
C. Place your child in the secured infant sling
positioned comfortably over the crotch support.
D. Determinewhichoftheshoulderslotsareinlinewith
the top of your child's shoulders.
E. Remove your child from the carrier.
F. Feedtheshoulderstrapsdownthroughtheshoulder
slotsinlinewiththetopofyourchild'sshoulders.
G. Bucklebothoftheshoulderstrapsbackintothe
bucklesontheverticalwebstraps.(SeeImage1)
H. Slidetheshoulderbucklestothesameheightasthe
shoulder straps.
I. Feed the crotch strap through the crotch slot and
extend the crotch strap using the crotch strap
extension.(SeeImage2)
1 2
WARNING
Do not use the infant sling with your child
if their shoulders are above the uppermost
shoulder slots in the infant sling.
Ensure that the harness has been properly
prepared for the child being secured by it.
INFANT SLING
Infant_Sling_Manual.indd 7 07/12/12 11:36 AM

INFANT SLING
WARNING
Check the harness and waist belt before every
use to make sure they are in good condition.

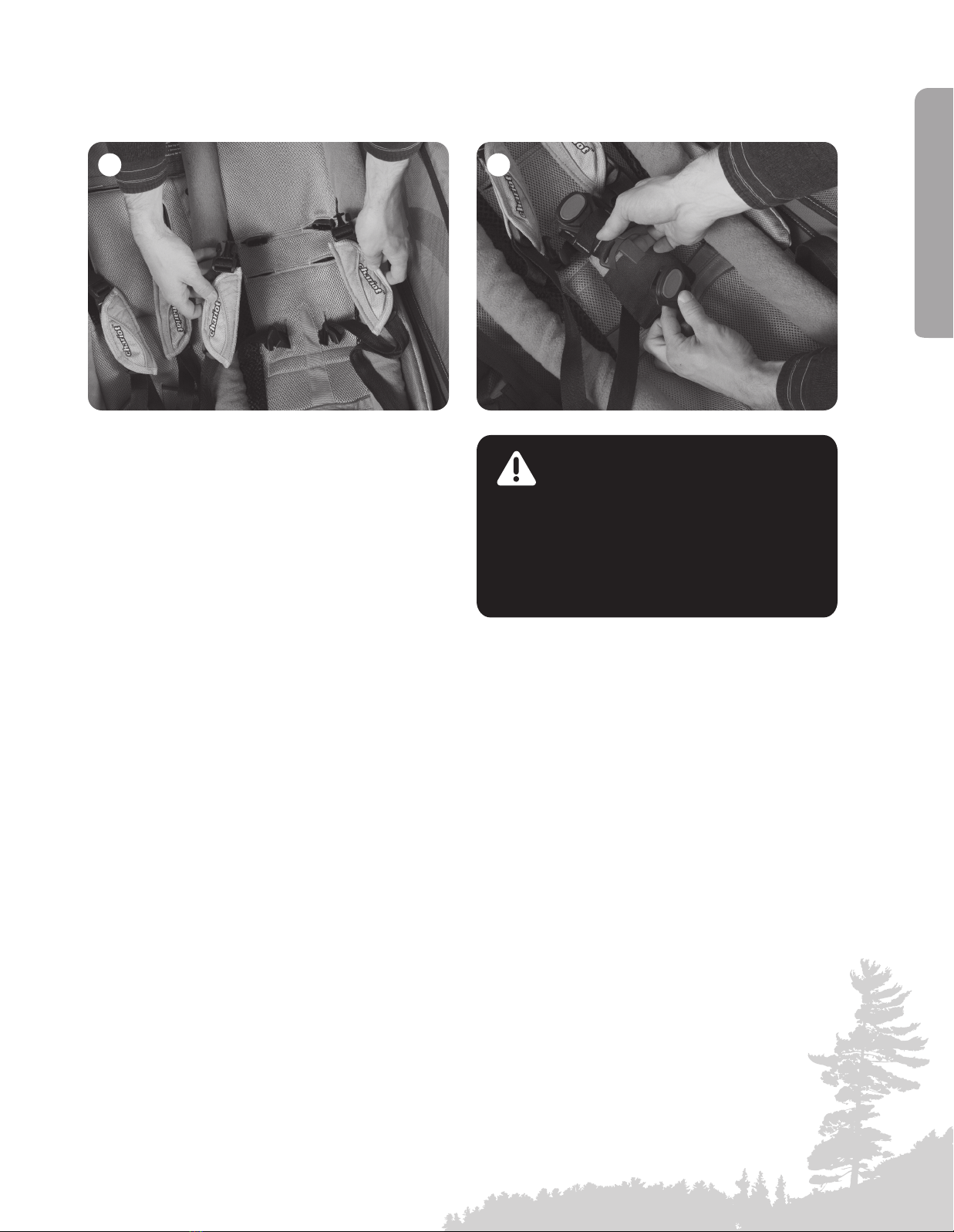

1.9 seatinG Your chiLD
A. Engagetheparkingbrake.
B. Loosen all of the belt adjustments on the shoulder
harness and crotch strap.
C. Unbucklethecrotchstrapfromtheshoulderharness.
(Seeimage1)
D. Withthepaddedshoulderharnessup,seatyourchild.
E. Bringthepaddedshoulderharnessdownoveryour
child'sheadandbuckleitintothecrotchstrap.
F. Adjust the system using the crotch strap and shoulder
length adjustments until the Chariot logo located on the
shoulderharnessispositionedovertheirlowerchest.
(Seeimage2)
G. Snugly tighten all belts.

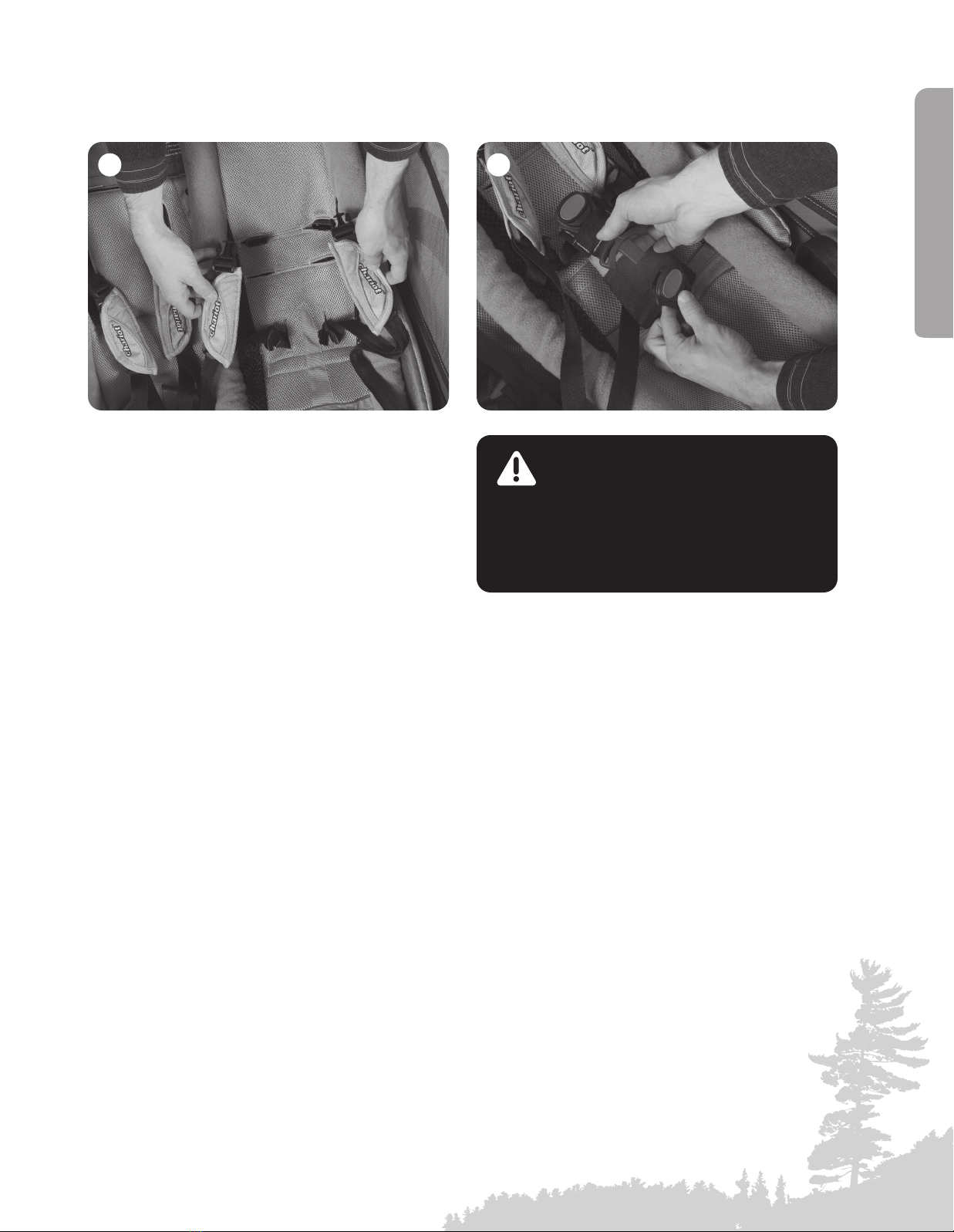

1.10 seatinG Your chiLD
(cX 2013)
A. Engagetheparkingbrake.
B. Loosen all of the belt adjustments.
C. Undothecrotchstrapbuckleontheshoulderharness
by pressing the red release button.
D. Seatyourchild.
E. Liftupthecrotchstrapandconnectthetwoshoulder
strapbucklestogetherandtheninsertthemtogether
intothecrotchbuckle.(SeeImage1)
F. Adjust the harness system using the shoulder length
adjustmentsuntilthecrotchstrapbuckleispositioned
abovethechild'slowerchest.
G. Snuglytightenthetwoshoulderstrapsbypulling
downwardontheshoulderstraplooseends.Ensure
that there is no looseness in the harness system at the
child'swaistandshoulders.Ensuretheshoulderpads
are positioned on top of the child's shoulders and next
totheirneck.
2
1 3
North America Contact:
Thule Child Transport Systems Ltd.
105-57609thStreetSE
Calgary,ABT2H1Z9
Canada
Telephone:
1.800.262.8651
[email protected]
Europe Contact:
[email protected]
Infant_Sling_Manual.indd 8 07/12/12 11:36 AM

C www.chariotcarriers.com 51100933
Description Des pièces
reMArQUe GÉnÉrALe
Ces instructions contiennent de nombreuses MISES EN
GARDE. Veuillez toutes les lire et les comprendre. Un
assemblage et une utilisation non appropriés de cette
remorque pour enfant peuvent provoquer des blessures
graves voire mortelles, pour vous ou pour votre passager.
• Cekitcontientlematérielpourl'installationduhamac
pour nouveau-né dans divers modèles de remorques pour
enfant, y compris les anciens modèles. Si vous installez
lehamacpournouveau-nédansunancienmodèlede
remorquepourenfant,allezsurwww.chariotcarriers.com
pourtéléchargerlesinstructionsnécessaires.Lemontage
incorrectduhamacpournouveau-nédansuneremorque
pourenfantquellequ'ellesoitpeutentraînerdes
blessures graves, voire la mort.
• Nepasutiliservotreremorquepourenfantsansd'abord
lire et comprendre le contenu du présent guide.
•
Observer les instructions fournies avec votre remorque
pourlepositionnementcorrectdel'enfantetdesceintures.
Bretelles
Harnais
d’épaule
rembourré
Sangle
d’entrejambe
Ceinture
Boucles des
bretelles
HAMAC POUR
NOUVEAU-NÉ
HAMAC POUR NOUVEAU-NÉ
• Nejamaislaisserl'enfantsanssurveillancedansla
remorque.
• Garezuniquementlaremorquesurunesurfaceplane
etl'immobiliseraveclefreindestationnement.
• Lehamacpournouveau-nénepeutpasêtreutilisé
avecleNidd'angetoutessaisonsouleSiègede
maintien pour bébé.
• Utilisezceproduituniquementavecdesenfantsquine
peuventpass'asseoirsansaide,entre1à10mois,qui
pèsentmoinsde10kg/22lbetmesurentaumaximum
75cm/29½po.
• Consultezvotrepédiatreavantd'utiliserle
hamacpournouveau-népourlesactivitésautres
quelamarche.
Sangle
d'entrejambe
Ceinture
Cadre
de
siège
Bretelles
Boucles des
bretelles
Harnais
d’épaule
rembourré
Sangles
supérieures
Barre
inférieure
Sangles
inférieures
Sangled'entrejambeextension
(CX2013)
Infant_Sling_Manual_FR2.indd 1 07/12/12 11:36 AM

C www.chariotcarriers.com 51100933
KIT CTS DE SKI DE FOND
KIT CTS DE SKI DE FOND
HAMAC POUR NOUVEAU-NÉ
1.1 MontAGe Des AnneAUx en D
MÉtALLiQUes
Lesinstructionssuivantesconcernentuniquementles
remorques pouvant transporter un enfant.
A. Déposezlesboulonsdesxationspouraccessoires
sur la remorque pour enfant.
B. RemontezlesboulonsàtraverslesanneauxenD
métalliquesetdanslesxationspouraccessoires.
Assurez-vousquelesanneauxenDsontdirigés
versl'intérieurunefoisenplace.(VoirImage1)
1
1.2 MontAGe De LA bArre infÉrieUre
Lesinstructionssuivantesconcernentuniquementles
remorquespouvanttransporterdeuxenfants.
A. Déposezlesboulonsdesxationspouraccessoires
sur la remorque pour enfant.
B. Placezlesdeuxextrémitésdelabarreinférieuresur
lesxationspouraccessoires.
C. Remontezlesboulonsàtraverslarondelle
métalliqueetlesextrémitésdelabarreinférieure
danslesxationspouraccessoires.(VoirImage2)
2
MISE EN GARDE
Vériez régulièrement que les anneaux en D/
la barre inférieure sont solidement attachés
aux xations pour accessoires.
Infant_Sling_Manual_FR2.indd 2 07/12/12 11:36 AM
