CABOOST COMPACT BOOSTER User manual

Owner’s Manual for
Inflatable Child Car
Booster Seat
IMPORTANT: READ THIS MANUAL
Do not install or use this seat until you
have read and understood the instructions
in this manual.
FAILURE TO FOLLOW THE INSTRUCTIONS
FOR THIS BOOSTER SEAT WILL INCREASE
THE RISK OF SERIOUS INJURY OR DEATH
IN A SUDDEN STOP OR CRASH
19746 CABO Manual.indd 1 22/04/2016 18:25

2
This Manual is designed to provide all users with all of the
necessary information for safe, reliable and ease of use of
your Caboost Car Seat. Your child’s safety depends on you
reading AND understanding the contents herein.
19746 CABO Manual.indd 2 22/04/2016 18:25

Contents
3
Page
4. Registering your Caboost Car Seat
5. Help with your Caboost Car Seat
6. Parts List
7. General Information
8. Warnings and Safety Information
9. Folding up your Caboost Car Seat
10. Assembling your Caboost Car Seat
13. Weight and Height Limits
14. Correct Vehicle Seat Locations
15. Correct Vehicle Seat Belt Systems
16. UNSAFE Vehicle Seat Belt Systems
17. USING Your Caboost Car Seat
19. General Care and Maintenance
19746 CABO Manual.indd 3 22/04/2016 18:25

Registering your Caboost Car Seat
4
Please post your details (Name, address and Contact telephone no.)
along with the following information:
• Batch No.
• Unit No.
• Purchase Date
• Where Purchased
To:
R K Designs (International) Ltd.
1 Louvigne Close
Burnham-on-Sea
Somerset
TA8 1EA
Or Register your Caboost online at www.caboostuk.com
19746 CABO Manual.indd 4 22/04/2016 18:25

Help with your Caboost Car Seat
5
If you need any assistance with your Caboost Car Seat, visit us online at
www.caboostuk.com and click on our Questions Page. If you don’t find
the answer to your query there, then simply fill out the form on the Contact
Page and you will receive an answer very quickly.
19746 CABO Manual.indd 5 22/04/2016 18:25

Parts List
6
Owner’s Manual for
Inflatable Child Car
Booster Seat
IMPORTANT: READ THIS MANUAL
Do not install or use this seat until you
have read and understood the instructions
in this manual.
FAILURE TO FOLLOW THE INSTRUCTIONS
FOR THIS BOOSTER SEAT WILL INCREASE
THE RISK OF SERIOUS INJURY OR DEATH
IN A SUDDEN STOP OR CRASH
Instruction ManualType Inflation Valve
Caboost
19746 CABO Manual.indd 6 22/04/2016 18:25

7
General Information
European Standards: The regulations (Laws) of European countries define
uniform technical standards which have to be complied with by all child restraint
systems (child car seats) and all of these must be tested and approved under
the specific regulation. In this case, your Caboost Car Seat has been approved
under UN Regulation ECE R44.04, for children falling into Group lll
(mass range of 22-36Kg) or up to a height of 135cm (typically children aged
6-12 years).
The approval mark (E) and authorisation no. (below the E mark) are to be found
on the Caboost Car Seat and must not be removed.
Your Caboost Car Seat may only be used in cars equipped with adult three
point safety belts approved according to UN ECE Regulation No. 16 or the
equivalent 77/541/EEC Regulation concerning the adult safety belts as amended.
Adult safety belts must be fastened only into points dedicated for their fastening
clips to be located, i.e. in anchoring points which meet the requirements of the
UN ECE Regulation No. 14 or the 76/115/EEC Regulation on the anchoring points
for adult safety belts as amended.
NOTICE
This is a “Universal” child restraint. It is approved to regulation No.44, 04 series
of amendments, for general use in vehicles and it will fit most, but not all, car
seats.
A correct fit is likely if the vehicle manufacturer has declared in the vehicle
handbook that the vehicle is capable of accepting a “Universal” child restraint
for this age group.
This child restraint has been classified as “Universal” under more stringent
conditions than those which applied to earlier designs which do not carry this
notice.
If in doubt, consult either the child restraint manufacturer or the retailer.
19746 CABO Manual.indd 7 22/04/2016 18:25

Warnings and Safety Information
• NO BOOSTER SEAT CAN GUARANTEE PROTECTION FROM INJURY.
HOWEVER, PROPER USE OF THE CABOOST CAR SEAT REDUCES THE
RISK OF SERIOUS INJURY OR DEATH TO YOUR CHILD.
• DO NOT INSTALL OR USE YOUR CABOOST CAR SEAT UNTIL YOU HAVE READ
AND UNDERSTOOD THE INSTRUCTIONS IN THIS MANUAL AND IN YOUR
VEHICLE OWNER’S MANUAL. DO NOT LET others install or use your Caboost
Car Seat unless they understand how to use it.
• FAILURE TO PROPERLY USE THE CABOOST CAR SEAT INCREASES THE
RISK OF SERIOUS INJURY OR DEATH IN A SHARP TURN, SUDDEN STOP
OR CRASH. Your child can be injured in a vehicle even if you are not in a crash.
Sudden braking and sharp turns can injure your child if the Caboost Car Seat
is not property installed or if your child is not properly secured in the
booster seat.
• NEVER PLACE THE CABOOST CAR SEAT IN A VEHICLE
SEATING LOCATION THAT HAS AN AIR BAG. If an air bag
inflates, it can hit the child and Caboost Car Seat with great
force and cause serious injury or death to your child. Refer to
your vehicle owner’s manual for information about air bags
and booster seat installation.
• According to accident statistics, CHILDREN ARE SAFER WHEN
PROPERLY RESTRAINED IN REAR VEHICLE SEATING POSITIONS, RATHER
THAN FRONT SEATING POSITIONS. For a vehicle with a front passenger air
bag, refer to your vehicle owner’s manual as well as these instructions for
booster seat installation.
• NEVER LEAVE YOUR CHILD UNATTENDED.
• NEVER LEAVE A BOOSTER SEAT UNSECURED IN YOUR VEHICLE.
An unsecured booster seat can be thrown around and may injure occupants
in a sharp turn, sudden stop or crash. Remove it or make sure that it is
securely belted in the vehicle.
8
19746 CABO Manual.indd 8 22/04/2016 18:25

Warnings and Safety Information
• REPLACE THE CABOOST CAR SEAT AFTER AN ACCIDENT OF ANY KIND.
An accident may cause damage to the booster seat that you cannot see.
• DO NOT MODIFY YOUR CABOOST CAR SEAT or use any accessories or part
supplied by other manufacturers.
• NEVER USE THE CABOOST CAR SEAT IF IT HAS DAMAGED OR HAS MISSING
PARTS. DO NOT use a cut, frayed or damaged vehicle seat belt
• THE CABOOST CAR SEAT CAN BECOME VERY HOT IF LEFT IN THE SUN.
Contact with these parts can burn your child’s skin. Always touch the surface
of any metal or plastic parts before putting your child In the booster seat.
• NEVER GIVE THIS BOOSTER SEAT to someone else without also giving them
this manual.
• NEVER USE A SECOND-HAND BOOSTER SEAT or a booster seat whose
history you do not know.
• NEVER USE THIS BOOSTER SEAT without the lap belt positioned through
the space beneath BOTH armrests and ensure the armrests are properly
located back in their clips.
9
Rolling your Caboost Car Seat
Before rolling your Caboost Car Seat, remove the valve from the unit and roll
lengthways as tightly as you can to force all of the air out. Whilst in this shape,
replace the valve. Then follow the diagrams to roll your Caboost from front end,
towards Velcro flap fasten Velcro flap together.
19746 CABO Manual.indd 9 22/04/2016 18:25

Assembling your Caboost Car Seat
1. Remove Caboost from box.
2. Remove all other wrapping from Caboost.
3. Unroll and open air valve. Allow Caboost to expand leave to stand for a
minute. Once Cabosst has taken shape.
4. Locate air valve at side of seat and ensure valve is properly screwed in then
remove top cap (by unscrewing).
5. Blow into air valve until seat reaches full capacity or until it is not possible to
inflate further by mouth. Do not use mechanical or air pump to inflate.
6. Replace cap (by screwing tightly). DO NOT OVERTIGHTEN
7. Position Caboost on seat (See Pages 14).
8. Position Child on Caboost Car Seat.
9 Pass the lap belt of the seatbelt under both arms of the Caboost, ensuring it
runs over the child’s pelvis, and pass the shoulder belt of the seat belt ONLY
under the armrest. The fronts of the armrests are connected to the seat
base, by means of the male and female clipping system. The male locates
into female (key)hole at the front and is pulled backwards to lock into place.
This action is reversed to release the clip.
10. Seat belt should rest firmly against the child and the lap straps worn low
downacross the child’s lap. Ensure straps are not twisted. For correct
positioning of seat belt.
11. Buckle Seat Belt.
10

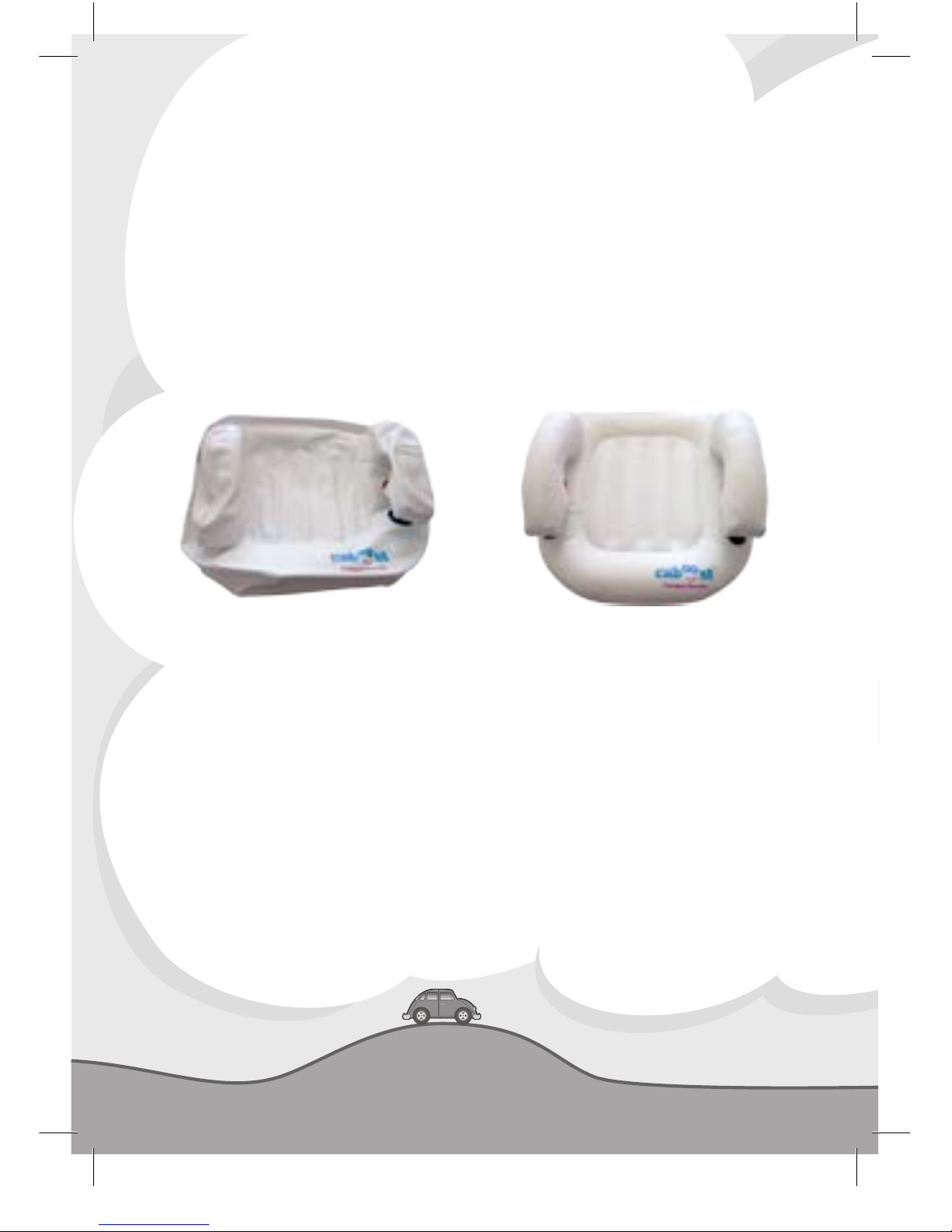

InflatedDeflated
19746 CABO Manual.indd 10 22/04/2016 18:25

11
Assembling your Caboost Car Seat
12. To store, remove from car, open air valve and roll the Caboost to expel air.
Close the air valve when deflated to prevent the seat from further inflating.
Roll carefully to align the Velcro strips to keep Caboost in its most compact
state and Store in a cool place and out of the reach of children under the
age of 3.
• Caboost should only be used when inflated and should be replaced if
damaged or involved in an accident.
• Do not make any alterations or attachments to your Caboost and follow
instructions carefully.
• Never leave your child unattended in any child restraint.
• Stow luggage appropriately in order to avoid injury.
• Caboost is surface washable with mild detergent. Do not machine wash.
• Do not expose Caboost to extreme temperatures for prolonged periods
of time.
• It is important that these instructions are retained with your Caboost Car
Seat, and, if misplaced, simply log onto www.caboostuk.com to
download instruction PDF online.
19746 CABO Manual.indd 11 22/04/2016 18:25

12
Assembling your Caboost Car Seat
1
3
5
2
4
1. Using the mouth piece, fully inflate your Caboost.
3. Position the child on the Booster Seat.
(Shown as Caboost).
5. Confirm that the lap portion of the seat belt is
correctly secured against the child’s pelvic region and
that the shoulder belt is over the child’s shoulder.
2.Ensure you Caboost is fully inflated and the air valve
screw cap is closed tight.
4. Fasten the seat belt, ensuring the belt passes under
the armrests, which are then re-secured with their
armrest clip attachments.
19746 CABO Manual.indd 12 22/04/2016 18:25

Weight & Height Limits
Warning
FAILURE TO USE booster seat in a manner appropriate for your child’s size may
increase the risk of serious injury or death.
To use this Caboost Booster Seat your child MUST meet ALL of the following
requirements (from 6 to 12 years old):
• Weigh between 22 and 36Kg.
Up to 135 cm in height, and
• the shoulder belt MUST lay across
child’s shoulder In red zone as shown
in Diagram to right and the lap portion is
positioned low on the child’s lap beneath
BOTH armrests, and
• when seated on the Caboost
booster seat. Your child’s ears are
below the top of the vehicle
seat head rest when seated in
the Caboost Car Seat.
13
19746 CABO Manual.indd 13 22/04/2016 18:25

14
Correct Vehicle Seat Locations
Warning
IMPROPER PLACEMENT OF THE BOOSTER SEAT INCREASES THE RISK OF
SERIOUS INJURY OR DEATH. Some seating positions in your vehicle may NOT
be safe for this booster seat. Some vehicles do not have any seating positions
that can be used safely with the booster seat. If you are not sure where to place
the booster seat in your vehicle, consult your vehicle owner’s manual.
• Children are safer when properly restrained in rear vehicle seating positions.
Never use the booster seat with only a vehicle lap belt.
• The vehicle seat MUST face forward
Side FacingRear Facing
19746 CABO Manual.indd 14 22/04/2016 18:25

Correct Vehicle Seat Belt Systems
Warning
MANY SEAT BELT SYSTEMS ARE NOT SAFE TO USE WITH THE BOOSTER SEAT.
Pay careful attention to these systems: some of the seat belts that are NOT
safe to use look very much like seat belts that are safe to use. If you are unsure,
consult your vehicle owner’s manual.
SAFE Vehicle Seat Belt System
ONLY A 3-POINT BELT
SYSTEM CAN BE USED WITH
THIS BOOSTER SEAT, IF
The seat location meets all other
requirements of those Instructions
and those in your vehicle owner’s
manual.
15
19746 CABO Manual.indd 15 22/04/2016 18:25

16
UNSAFE Vehicle Seat Belt Systems
DO NOT USE ANY OF THE FOLLOWING VEHICLE BELT SYSTEMS.
NEVER use a lap-only belt.
NEVER use a passive Restraint
- Lap or Shoulder Belt
Mounted on Door.
NEVER use a Passive Restraint -
Lap Belt with Motorized
Shoulder Belt
NEVER use vehicle
belts that are attached to
the door in any way or
that move along a track
to automatically
surround the passenger
when the door is closed.
19746 CABO Manual.indd 16 22/04/2016 18:25

17
Using Your Caboost Car Seat
Warning
FAILURE TO PROPERLY SECURE YOUR CHILD AND THE BOOSTER SEAT IN
YOUR VEHICLE INCREASES THE RISK OF SERIOUS INJURY OR DEATH IN THE
EVENT OF A SHARP TURN, SUDDEN STOP OR CRASH.
WARNING:
Use only the vehicle’s
3-point belt system when
restraining the child in this booster
seat. SEE PICTURE 1.
NEVER use a vehicle Lap-only belt
across front of child.
SEE PICTURE 2.
1
2 3
1
2
3
19746 CABO Manual.indd 17 22/04/2016 18:25

18
Using Your Caboost Car Seat
Warning
Vehicle belts MUST lay flat against
child and MUST not be twisted.
DO NOT use shoulder belt loose or
positioned under child’s arm.
See Picture 3
DO NOT position vehicle belt over
top of the arm rests. It MUST pass
beneath BOTH armrests.
Make sure vehicle belt is
NOT twisted.
Lap portion of 3-point belt
MUST be low and snug on hips,
just touching thighs.
DO NOT allow child to slide down
in booster seat. See Picture
If child will not keep vehicle
restraint properly positioned,
DO NOT use this booster seat.
Use a different child Restraint system.
1 2
3
19746 CABO Manual.indd 18 22/04/2016 18:25

General Care and Maintenance
19
CONTINUOUS USE OF BOOSTER SEAT MAY CAUSE DAMAGE
TO VEHICLE SEAT.
OWNER’S MANUAL
Your owner’s manual is stored in reusable plastic bag.
Surface clean only with mild soap and cool water. No bleach or detergents.
19746 CABO Manual.indd 19 22/04/2016 18:25

Additional Information
19746 CABO Manual.indd 20 22/04/2016 18:25
