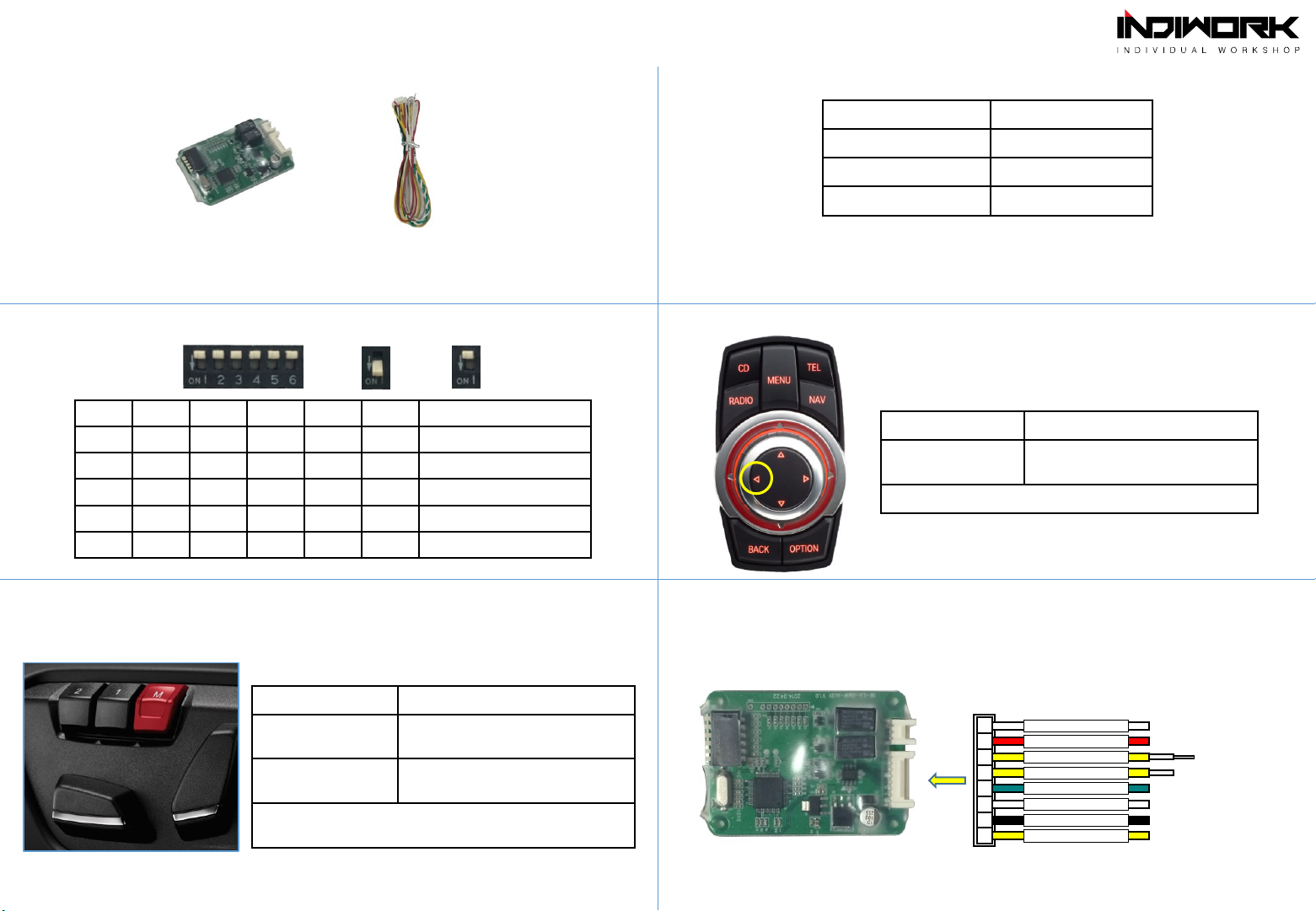

INDIWORK Easy Access User manual

BMW Easy Access Seats
Release Date: 2014 - 05 -08
Components
Save the seat position
1
Module POWER / CAN Cable
Dip Switch Settings
OFF
ON
ON: ▼OFF: ▲
No.1 No.2 No.3 No.4 No.5 No.6 Car Models
OFF(▲) OFF(▲) OFF(▲) OFF(▲) OFF(▲) OFF(▲)1, 3, 4 Series(F20, F30, F32)
ON(▼)OFF(▲) OFF(▲) OFF(▲) OFF(▲) OFF(▲)5 Series(F10) *6-Pin LVDS(2013+)
OFF(▲)ON(▼)OFF(▲) OFF(▲) OFF(▲) OFF(▲)5 Series(F10) *4-Pin LVDS(-2012)
Version Information
Model Name BMW Easy Access
Latest Firmware Date 2014 -05 -08
Manual Version Rev. 1.0
Manual Release Date 2014 -05 -08
Easy Access ‘ON-OFF’ Settings
Button Operation
Push to the Left(◁)Push the dial to the left 5 times,
quickly.
8
7
6
5
4
3
2
1
IN CAN H
IN CAN L
BMW-F30 4th PIN
BMW-F30 7th PIN
BAT +
GROUND
ⓐ ⓑ
Button Function
Memory No.2(ⓐ)Save a comfortable position of the
seat, when you get out of the car.
Memory No.1(ⓑ)Save a comfortable position of the
seat, when you get in the car.
Driver's seat is moved between position No.1 and position
No.2 automatically, when you turn on or turn off the ignition.
Connector Specification
AUDI KEY IN
AUDI KEY OUT
(Only for BMW 1, 3, 4 Series)
(Only for AUDI)

Installation Manual
BMW Easy Access Seats
5 Series(F10) 2010-2012(4-Pin LVDS)
Release Date: 2014 - 05 -08
2

1) Remove the vent cover and monitor.
3
2) Specification of the monitor 8-pin connector
< CAN HIGH & LOW >
No.5-pin(Light Green/Orange) = CAN HIGH
No.6-pin(Light Green) = CAN LOW
< POWER & GND >
No.1-pin(Red/Yellow) = 12V POWER
No.3-pin(Brown) = GROUND(GND)
1 2 3 4 5 6 7 8

4
3) Splice the ‘IN CAN H(No.3 / White) wire’ to
‘No.5 wire(Light Green/Orange)’ of the monitor 8-pin connector.
< CAN HIGH connection >
1 2 3 4 5 6 7 8
4) Splice the ‘IN CAN L(No.4 / Green) wire’ to
‘No.6 wire(Light Green)’ of the monitor 8-pin connector.
< CAN LOW connection >
1 2 3 4 5 6 7 8
1 3 5 6 8 1 3 5 6 8

5
5) Splice the ‘BAT +(No.1 / Yellow) wire’ to
‘No.1 wire(Red/Yellow)’ of the monitor 8-pin connector.
< POWER connection >
1 2 3 4 5 6 7 8
6) Splice the ‘GROUND(No.2 / Black) wire’ to
‘No.3 wire(Brown)’ of the monitor 8-pin connector.
< GROUND connection >
1 2 3 4 5 6 7 8
1 3 5 6 8 1 3 5 6 8

6
7) 4 wires should be spliced with each wires of monitor connector. 8) Set the DIP switch for BMW 5 Series(F10 / 4-Pin LVDS).

9) Red LED light will be turned on after connect the cable.
7
10) Driver’s seat is moved to the memory position No.1(ⓐ)
automatically, when you turn on the ignition.
The seat is moved back to the memory position No.2(ⓑ),
when you turn off the ignition.
