Tiger JD5075E T4F Service manual

JD5075E T4F
SIDE ROTARY
Current as of 10/30/2019
PARTS LISTING WITH
MOUNTING AND OPERATING
INSTRUCTIONS
Tiger Corporation
3301 N. Louise Ave.
Sioux Falls, SD 57107
1-800-843-6849
1-605-336-7900
www.tiger-mowers.com 06010052

TO THE OWNER / OPERATOR / DEALER
All implements with moving parts are potentially hazardous. There is no substitute for a cautious,
safe-minded operator who recognizes the potential hazards and follows reasonable safety practices.
The manufacturer has designed this implement to be used with all its safety equipment properly
attached to minimize the chance of accidents.
BEFORE YOU START!! Read the safety messages on the implement and shown in this manual.
Observe the rules of safety and use common sense!
READ AND UNDERSTAND THIS MANUAL! Non–English speaking operators will need to GET
THE MANUAL TRANSLATED as needed!
Warranty Information: Read and understand the complete Warranty Statement found in this manual. Fill out the
Warranty Registration form in full and return it within 90 days. Make certain the Serial Number of the machine is
recorded on the Warranty Card, and form that you retain.

FORWARD
Thismanualcontainsinformationaboutmanyfeaturesof the Tigermowing
androadsidemaintenanceequipment. Someoftheseinclude:Safetyprecautions,
Assemblyinstructions, Operations,MaintenanceandParts.Thismanualwill also
assistyouintheproperbreak-in,dailycare,andtroubleshootingofyournew
mower.
Werecommendthatyoureadcarefullytheentiremanualbeforeoperatingthe
unit. Also,timespentinbecomingfullyacquaintedwithitsperformancefeatures,
adjustments,andmaintenancescheduleswillbe repaidin a longandsatisfactory
lifeoftheequipment.
Troubleshooting- Please,before youcall, helpus to helpyou!
Pleaselookattheequipmenttoobserve whatishappening,then:
•Classifytheproblem
• Hydraulic,electrical ormechanical-Readthetroubleshootingsection
• Tractor orTruckchassis- Contactvehicledealer
•Ifunabletocorrect the problem yourself,contactyour localTiger Dealerafter
gathering:
• Machinemodel _______________________
•Serialnumber ________________________
• Dealername _________________________
• Detailedinformation abouttheproblemincludingresultsoftroubleshooting
AttentionOwner /Operator /Dealer: Itisyourobligationtoread,andunderstand,
thewarrantyinformationsectionlocatedat thebackofthismanualdenotingthatthe
purchaserunderstands thesafetyissuesrelatingtothismachine andhasreceived
andwillreada copy of thismanual.
Ifat any time,youhave a serviceproblemwith yourTigermower,Contact
yourlocaldealerforservice and partsneeded.
MANUFACTURED BY: DISTRIBUTED BY:
TigerCorporation _____________________
3301 N. LouiseAve. _____________________
SiouxFalls,SD57107 1-_____-_____-________
1-800-843-6849 1-_____-_____-________
1-605-336-7900
www.tiger-mowers.com

TABLE OFCONTENTS
SAFETY SECTION_____________________________________ 1
ASSEMBLY / MOUNTING SECTION______________________ 2
OPERATION SECTION_________________________________ 3
MAINTENANCE SECTION______________________________ 4
PARTS SECTION______________________________________ 5
COMMON PARTS SECTION____________________________ 6
WARRANTY INFORMATION_____________________________ 7
Thissymbolmeans:
CAUTION – YOUR SAFETY IS AT RISK!
When you see this symbol, read and
followtheassociated instructionscarefully
orpersonalinjuryordamage may result.
Tigerisa registeredtrademark.

SAFETY
SECTION

Side Rtry Safety Section 1-2
SAFETY
SAFETY
Indicates an imminently hazardous situation that, if not avoided, WILL result in
DEATH OR VERYSERIOUS INJURY.
Indicates an imminently hazardous situation that, if not avoided, COULD result
in DEATH OR SERIOUS INJURY.
Indicates an imminently hazardous situation that, if not avoided, MAY result in
MINORINJURY.
Identifies special instructions or procedures that, if not strictly observed, could
result in damage to, or destruction of the machine, attachments or the
enviroment.
NOTE: Identifies points of particular interest for more efficient or convienient operation
or repair. (SG-1)
General Safety Instructions and Practices
A safe and careful operator is the best operator. Safety is of primary importance to the
manufacturerandshouldbeto the owner /operator. Most accidentscan be avoided by
beingawareof yourequipment,yoursurroundings, andobservingcertainprecautions.
Thefirstsectionof this manualincludesalistof SafetyMessagesthat,iffollowed, will help
protecttheoperatorand bystandersfrominjuryor death. Read andunderstandthese
SafetyMessagesbeforeassembling,operatingor servicing this mower. This equipment
shouldonlybeoperated bythosepersonswho have readtheManual,who are responsible
andtrained,andwho know howtodososafely and responsibly.
TheSafetyAlertSymbol combined with aSignalWord,asseen below, is used
throughoutthismanual andondecalswhich areattachedtothe equipment. The
SafetyAlertSymbolmeans: “ATTENTION! BECOMEALERT! YOUR SAFETY
IS INVOLVED!” Thesymbolandsignalword are intended towarntheowner/
operatorofimpendinghazards and the degreeofpossibleinjurywhen operating
thisequipment.
Practice all usual and customary safe working precautions and
above all -- remember safety is up to YOU! Only YOU can
prevent serious injury or death from unsafe practices.
READ, UNDERSTAND, and FOLLOW the following Safety Messages.
Serious injury or death may occur unless care is taken to follow the
warnings and instructions stated in the Safety Messages. Always use
good common sense to avoid hazards. (SG-2)
IMPORTANT!

Side Rtry Safety Section 1-3
SAFETY
SAFETY
!
Si no lee Ingles, pida ayuda a alguien que
si lo lea para que le traduzca las medidas
de seguridad. (SG-3)
PELIGRO! LEA EL
INSTRUCTIVO!
DANGER! Never operate the Tractor or Implement until you have read and
completelyunderstandthisManual,theTractorOperator’s Manual,
andeachoftheSafetyMessagesfoundintheManualorontheTractor
andImplement. Learnhowto stopthe tractorenginesuddenly inan
emergency. Never allow inexperienced or untrained personnel too
operatetheTractorandImplementwithout supervision. Makesure
the operator has fully read and understood the manuals prior to
operation. (SG-4)
WARNING! Make certain that the “Slow Moving Vehicle” (SMV) sign is installed in
such a way as to be clearly visible and legible. When transporting the
EquipmentusetheTractorflashingwarninglightsandfollowalllocaltraffic
regulations.(SG-6)
WARNING! Operate this Equipment only with a Tractor equipped with an
approved roll-over-protective system (ROPS). Always wear seat
belts. Serious injury or even death could result from falling off the
tractor--particularly during a turnover when the operator could be
pinned under the ROPS. (SG-7)
WARNING! DonotmodifyoralterthisImplement. Donotpermitanyonetomodify
or alter this Implement, any of its components or any Implement
function. (SG-8)
DANGER! BEFOREleavingthetractorseat,alwaysengagethebrakeand/orset
thetractor transmissionin parkinggear,disengage thePTO, stopthe
engine,removethekey,andwaitforallmovingpartstostop. Placethe
tractorshiftleverintoalowrangeorparkinggeartopreventthetractor
fromrolling. NeverdismountaTractorthatismovingorwhiletheengine
is running. Operate the Tractor controls from the tractor seat only.
(SG-9)

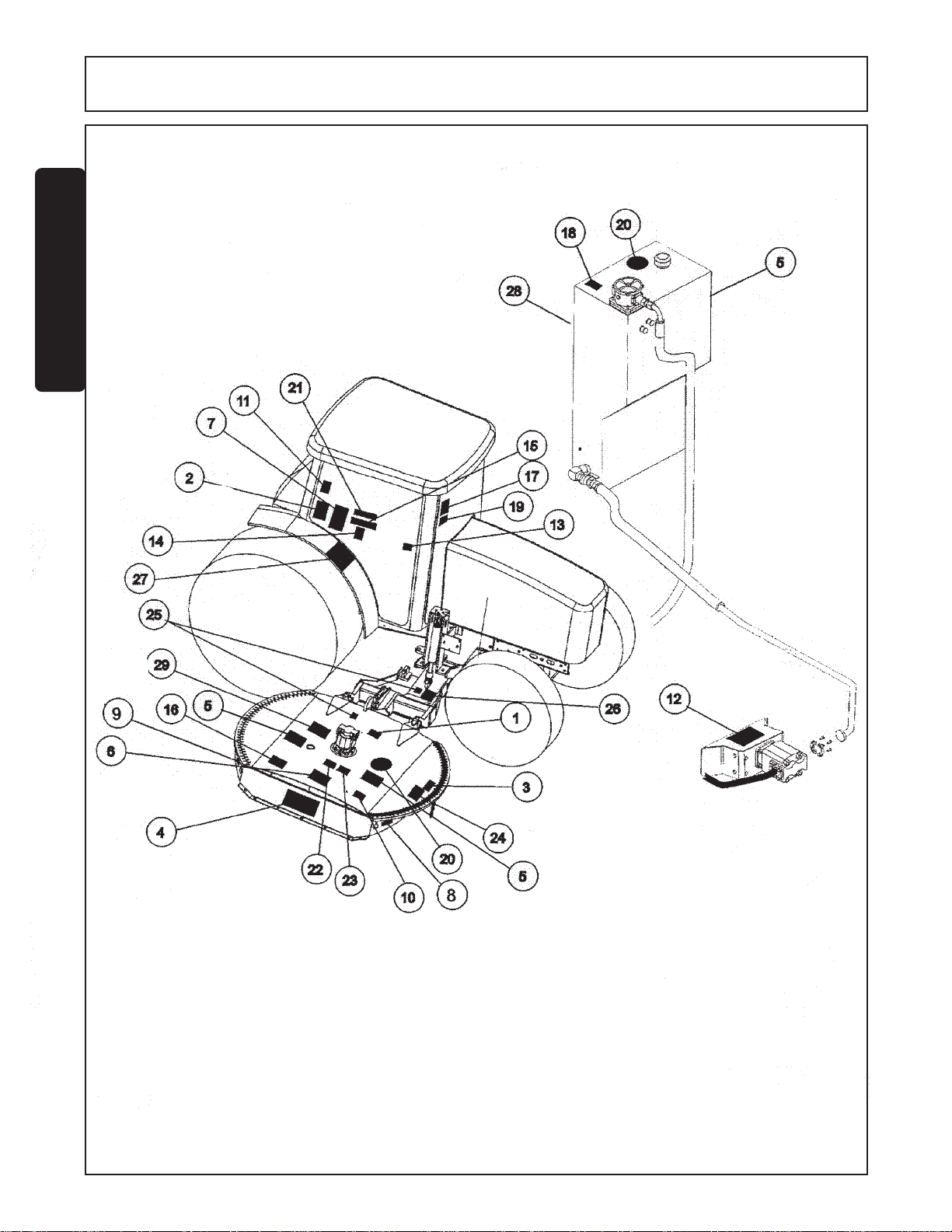

WARNING! Always maintain the safety decals in good readable condition. If the
decalsaremissing,damaged,orunreadable,obtainandinstallreplace-
ment decals immediately. (SG-5)

Side Rtry Safety Section 1-4
SAFETY
SAFETY
DANGER! NeverallowchildrenorotherpersonstorideontheTractororImplement.
Falling off can result in serious injury or death. (SG-10)
DANGER! Neverallow children to operate or rideontheTractor or Implement.
(SG-11)
WARNING! DonotmounttheTractorwhilethetractorismoving. MounttheTractor
only when the Tractor and all moving parts are completely stopped.
(SG-12)
DANGER! Start tractor only when properly seated in the Tractor seat. Starting a
tractor in gear can result in injury or death. Read the Tractor operators
manual for proper starting instructions. (SG-13)
DANGER! NeverworkundertheImplement,theframework,oranyliftedcompo-
nent unless the Implement is securely supported or blocked up to
preventsuddenorinadvertentfallingwhichcouldcauseseriousinjury
or even death. (SG-14)
DANGER! Do not operate this Equipment with hydraulic oil leaking. Oil is
expensiveanditspresencecouldpresentahazard. Donotcheckfor
leakswithyourhand! Useapieceofheavypaperorcardboard. High-
pressureoil streams from breaks inthe line could penetratethe skin
andcausetissuedamageincludinggangrene. Ifoildoespenetratethe
skin, have the injury treated immediately by a physician knowledge-
able and skilled in this procedure. (SG-15)

Side Rtry Safety Section 1-5
SAFETY
SAFETY
WARNING! The operator and all support personnel should wear hard hats,
safety shoes, safety glasses, and proper hearing protection at all
timesforprotectionfrominjuryincludinginjuryfromitemsthrownby
theequipment. (SG-16)
WARNING! Transport only at safe speeds. Serious accidents and injuries can
result from operating this equipment at unsafe speeds. Understand
the Tractor and Implement and how it handles before transporting
onstreetsand highways. Make surethe Tractor steeringand brakes
are in good condition and operate properly.
Beforetransporting the Tractor and Implement,determinethesafe
transport speeds for you and the equipment. Make sure you abide by
thefollowing rules:
Be aware of the operating conditions. Do not operate the Tractor
with weak or faulty brakes. When operating down a hill or on wet or
rain slick roads, the braking distance increases: use extreme care
and reduce your speed. When operating in traffic always use the
Tractor’s flashing warning lights and reduce your speed. Be aware of
traffic around you andwatch out for the other guy. (SG-19)
Test the equipment at a slow speed in turns. Increase the speed
through the turn only after you determine that it is safe to oper-
ate at a higher speed. Use extreme care and reduce your speed
when turning sharply to prevent the tractor and implement from
turning over. Determine the maximum safe turning speed for
you and this equipment before operating on roads or uneven
ground.
Only transport the Tractor and Implement at the speeds that you
have determined are safe and which allow you to properly con-
trol the equipment.
Test the tractor at a slow speed and increase the speed slowly.
Apply the Brakes smoothly to determine the stopping
characteristics of the Tractor and Implement.
As you increase the speed of the Tractor the stopping distance
increases. Determine the maximum safe transport speed for
you and this Equipment.
2.
1.
3.
CAUTION! PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE PER-
MANENT HEARING LOSS! Tractors with or without an Implement
attached can often be noisy enough to cause permanent hearing
loss. We recommend that you always wear hearing protection if the
noise in the Operator’s position exceeds 80db. Noise over 85db
over an extended period of time will cause severe hearing loss.
Noiseover90db adjacent to the Operator over an extended period of
time will cause permanent or total hearing loss. Note: Hearing loss
from loud noise [from tractors, chain saws, radios, and other such
sources close to the ear] is cumulative over a lifetime without hope
of natural recovery. (SG-I7)

Side Rtry Safety Section 1-6
SAFETY
SAFETY
WARNING! Periodically inspect all moving parts for wear and replace when
necessary with authorized service parts. Look for loose fasteners,
worn or broken parts, and leaky or loose fittings. Make sure all pins
have cotter pins and washers. Serious injury may occur from not
maintaining this machine in good working order. (SG-21)
WARNING! Always read carefully and comply fully with the manufacturers instruc-
tions when handling oil, solvents, cleansers, and any other chemical
agent. (SG-22)
DANGER! Never run the tractor engine in a closed building or without adequate
ventilation. The exhaust fumes can be hazardous to your health.
(SG-23)
DANGER! KEEPAWAYFROMROTATINGELEMENTS toprevent entanglement
andpossible serious injury or death. (SG-24)
DANGER! NeverallowchildrentoplayonoraroundTractororImplement. Children
can slip or fall off the Equipment and be injured or killed. Children can
causetheImplement toshiftorfallcrushingthemselvesor others. (SG-25)
WARNING! Never attempt to lubricate, adjust, or remove material from the
Implementwhileitisinmotionorwhiletractorengineisrunning. Make
sure the tractor engine is off before working on the Implement.
(SG-20)
DANGER! DO NOT allow any person under a folded wing unless wing is securely
locked up or supported. DO NOT approach the Implement unless the
Tractor is turned off and all motion has ceased. Never work under the
frame work, or any lifted component unless the implement is securely
supported or blocked up. A sudden or inadvertent fall by any of these
components could cause serious injury or even death. (STI-3)

Side Rtry Safety Section 1-7
SAFETY
SAFETY
CAUTION! On a fully-assembled unit, do not remove the Wing Retaining Strap
until hoses are attached to the tractor and the Wing Cylinders are
filled with oil. Lower the Wings slowly and carefully. Keep bystand-
ers away during operations. (STI-5)
DANGER! NEVER use drugs or alcohol immediately before or while operating the
Tractor and Implement. Drugs and alcohol will affect an operator’s
alertness and coordination and therefore affect the operator’s ability to
operate the equipment safely. Before operating the Tractor or Imple-
ment,an operator on prescription or over-the-countermedication must
consult a medical professional regarding any side effects of the medi-
cation that would hinder their ability to operate the Equipment safely.
NEVER knowingly allow anyone to operate this equipment when their
alertness or coordination is impaired. Serious injury or death to the
operator or others could result if the operator is under the influence of
drugs or alcohol. (SG-27)
WARNING! Mow only in conditions where you have clear visibility in daylight or with
adequate artificial lighting. Never mow in darkness or foggy conditions
whereyoucannotclearly seeat least100yardsinfront andto thesidesof
the tractor and mower. Make sure that you can clearly see and identify
passersby,steepslopes,ditches,drop-offs,overheadobstructions,power
lines,debris and foreign objects. If youareunable to clearly see thistype
ofitems discontinue mowing. (SGM-1)
DANGER! Thereareobviousandhiddenpotentialhazardsintheoperationofthis
Mower. REMEMBER! Thismachineisoftenoperatedinheavybrush
and in heavy weeds. The Blades of this Mower can throw objects if
shields are not properly installed and maintained. Serious injury or
evendeathmay occurunlesscareistaken toinsurethesafetyofthe
operator, bystanders, or passersby in the area. Do not operate this
machinewith anyone intheimmediatearea. Stop mowing ifanyone
is within 100 yards of mower. (SGM-2)
DANGER! OperatetheTractorand/orImplementcontrolsonlywhileproperlyseated
in the Tractor seat with the seat belt securely fastened around you.
Inadvertent movement of the Tractor or Implement may cause serious
injury or death. (SG-29)
DANGER! AllSafetyShields,GuardsandSafetydevicesincluding
(butnotlimitedto)-theDeflectors,ChainGuards,Steel
Guards, Gearbox Shields, PTO integral shields , and
Retractable Door Shields should be used and main-
tained in good working condition. All safety devices
should be inspected carefully at least daily for missing
orbrokencomponents. Missing,broken,or wornitems
must be replaced at once to reduce the possibility of
injury or death from thrown objects, entanglement, or
blade contact. (SGM-3)

Side Rtry Safety Section 1-8
SAFETY
SAFETY
DANGER! Therotatingpartsofthismachinehavebeendesignedandtestedfor
ruggeduse. However,thebladescouldfailuponimpactwithheavy,
solidobjectssuchasmetalguardrailsandconcretestructures. Such
impactcouldcausethebrokenobjectstobe thrown outward at very
highvelocities. Toreducethepossibilityofpropertydamage,serious
injury,or even death, never allow thecutting blades to contact such
obstacles. (SGM-4)
WARNING! Many varied objects, such as wire, cable, rope, or chains, can become
entangledin theoperatingparts ofthe mowerhead. Theseitems could
thenswingoutsidethehousingatgreatervelocitiesthantheblades. Such
a situation is extremely hazardous and could result in serious injury or
even death. Inspect the cutting area for such objects before mowing.
Remove any like object from the site. Never allow the cutting blades to
contact such items. (SGM-6)
WARNING! Mowatthespeedthatyoucansafelyoperateandcontrolthetractorand
mower. Safemowingspeeddependsonterrainconditionandgrasstype,
density,andheightofcut. Normalgroundspeedrangeisfrom0to5mph.
Use slow mowing speeds when operating on or near steep slopes,
ditches,drop-offs,overheadobstructions,powerlines,orwhendebrisand
foreign objects are to be avoided. (SGM-7)
WARNING! Extremecareshouldbetakenwhenoperatingnearlooseobjectssuch
as gravel, rocks, wire, and other debris. Inspect the area before
mowing. Foreignobjectsshouldberemovedfromthesitetoprevent
machinedamageand/orbodilyinjuryorevendeath. Anyobjectsthat
cannotberemovedmustbeclearlymarkedandcarefullyavoidedby
the operator. Stop mowing immediately if blades strike a foreign
object. Repair all damage and make certain rotor or blade carrier is
balancedbeforeresumingmowing.(SGM-5)
WARNING! Avoidmowinginreversedirectionwhenpossible. Checktomakesurethere
are no persons behind the mower and use extreme care when mowing in
reverse. Mowonlyataslowgroundspeedwhereyoucansafelyoperateand
control the tractor and mower. Never mow an area that you have not
inspected and removed debris or foreign material. (SGM-8)
WARNING! Donotputhands or feet under mower decks. Blade Contact can result
seriousinjuryorevendeath. Stayawayuntilallmotionhas stoppedand
the decks are securely blocked up. (SGM-9)
DANGER! Replacebentorbrokenbladewithnewblades. NEVERATTEMPTTO
STRAIGHTEN OR WELD ON BLADES SINCE THIS WILL LIKELY
CRACK OR OTHERWISE DAMAGE THE BLADE WITH SUBSE-
QUENTFAILUREANDPOSSIBLESERIOUSINJURYFROMTHROWN
BLADES. (SGM-10)
WARNING! Do not mow with two machines in the same area except with Cab tractors
with the windows closed. (SGM-11)

Side Rtry Safety Section 1-9
SAFETY
SAFETY
DANGER! RotaryMowersarecapableunderadverseconditionsofthrowing
objectsfor great distances (100yards ormore)andcausing
serious injury or death. Follow safety messages carefully.
STOPMOWING IFPASSERSBY AREWITHIN 100YARDS UN-
LESS: -FrontandRearDeflectorsareinstalledandingood,
working condition;
-MowerHead is running close toandparallelto the ground
without exposed Blades;
-Passersbyareoutside the existing thrown-object zone;
-Allareashave beenthoroughlyinspectedandallforeign
material such as rocks, cans, glass, and general debris
has been removed.
NOTE: Where there are grass and weeds high enough to hide debris
that could be struck by the blades, the area should be: in-
spected and large debris removed, mowed at an intermediate
height, inspected closely with any remaining debris removed,
and mowed again at desired final height. (SBM-1)
DANGER! UseextremecautionwhenraisingtheMowerhead. StoptheBlades
fromturningwhentheMowerHeadisraisedandpassersbyarewithin
100 yards. Raising the Mower head exposes the Cutting Blades
which creates a potentially serious hazard and can cause serious
injurybyobjectsthrownfromtheBladesorbycontactwiththeBlades.
(SBM-2)
WARNING! EachRearWheelmusthaveaminimumof1,000poundscontactwith
the surface to prevent lateral instability and possible tip-over which
couldresultinseriousbodilyinjuryorevendeath. Widenthewheel
treadandaddweightsifneeded. Refertothemountinginstructions
orcallCustomerServiceifyouneedassistancewithCouterweight
Procedure. (SFL-3)
WARNING! DonotoperateMowerifexcessivevibrationexists. ShutdownPTO
andtheTractorengine. InspecttheMowertodeterminethesource
of the vibration. If Mower blades are missing or damaged replace
themimmediately. Donotoperatethemoweruntilthebladeshave
been replaced and the Mower operates smoothly. Operating the
Mower with excessive vibration can result in component failure and
brokenobjectstobethrownoutwardatveryhighvelocities. Toreduce
thepossibilityofpropertydamage,seriousinjury,orevendeath,never
allow the Mower to be operated with blades missing. (SFL-4)
WARNING! Do not let the Blades turn when the Mower Deck is raised for any
reason, including clearance or for turning. Raising the Mower
deck exposes the Cutting Blades which creates a potentially
serious hazard and could cause serious injury or even death from
objects thrown from the Blades. (SRM-7)

Side Rtry Safety Section 1-10
SAFETY
SAFETY
WARNING! NeverleavetheTractorandImplementunattendedwhiletheImplementis
in the lifted position. Accidental operation of lifting lever or a hydraulic
failure maycausesuddendropofunitwithinjuryordeathbycrushing.
To properly park the implement when disconnecting it from the tractor,
lowerthestandandputtheretainingpinsecurelyinplace,orputasecure
supportundertheA-Frame. Lowertheimplementcarefullytotheground.
Do not put hands or feet under lifted components. (S3PT-1)
WARNING! Relieve hydraulic pressure prior to doing any maintenance or repair
work on the Implement. Place the Mower Head on the ground or
securelysupportedonblocksorstands,disengagethePTO,andturn
off the engine. Push and pull the control Levers or Joystick several
times to relieve pressure prior to starting any maintenance or repair
work. (SBM-6)
DANGER! Always disconnect the wire leads from the mower valve solenoid before
performing service on the Tractor or Mower. Use caution when working
on the Tractor or Mower. Tractor engine must be stopped before
working on Mower or Tractor. The Mower Blades could inadvertently be
turned on without warning and cause immediate dismemberment, injury
or death. (SBM-12)
WARNING! Use extreme care when lowering or unfolding the implement’s wings.
Make sure no bystanders are close by or underneath the wings. Allow
ample clearance around the implement when folding or unfolding the
wings. Use extreme caution around buildings or overhead power lines.
(S3PT-
5)
WARNING! Relieve hydraulic pressure prior to doing any maintenance or repair work
on the Implement. Place the Implement on the ground or securely
blocked up, disengage the PTO, and turn off the tractor engine. Push
and pull the Remote Cylinder lever in and out several times prior to
starting any maintenance or repair work. (S3PT-9)
DANGER! ThisImplementiswiderthantheTractor. Becarefulwhenoperating
ortransportingthisequipmenttopreventtheImplementfromrunning
into or striking sign posts, guard rails, concrete abutments or other
solidobjects. SuchanimpactcouldcausetheImplementandTractor
topivotviolentlyresultinginlossofsteeringcontrol,seriousinjury,or
even death. Never allow the Implement to contact obstacles. (S3PT-
12)
DANGER! Theflail cutter shaftisdesigned for standardrotation(samerotation
asthetractorwheelduringforwardtravel).Neveroperatethecutter
shaft in the reverse rotation. Operating this mower in reverse
rotation may cause objects to be thrown out the front of the mower
head.

Side Rtry Safety Section 1-11
SAFETY
SAFETY
WARNING! The rotating parts of this machine continue to rotate even after the Tractor
has been turned off. The operator should remain in his seat for 60
seconds after the brake has been set, the PTO disengaged, the tractor
turned off, and all evidence of rotation has ceased. (SBM-5)
“Wait a minute...Save a life!”
WARNING! Engine Exhaust, some of its constituents, and certain components
contain or emit chemicals known to the state of California to cause
cancer and birth or other reproductive harm.
WARNING! Battery post, terminals and related accessories contain lean and lead
compounds, chemicals known to the state of California to cause cancer
and birth or other reproductive harm. Wash hands after handling!
Inadditiontothe design andconfigurationof thisImplement,including Safety SignsandSafety Equipment,hazard
control and accident prevention are dependent upon the awareness, concern, prudence, and proper training of
personnel involved in the operation, transport, maintenance, and storage of the machine. Refer also to Safety
Messages and operation instruction in each of the appropriate sections of the Tractor and Equipment Manuals.
Pay close attention to the Safety Signs affixed to the Tractor and Equipment. (SG-18)
Tigermowers usebalancedandmatched systemcomponentsforblade carriers,blades,cutter-shafts,knives,knifehang-
ers,rollers, drive-traincomponentsandbearings. These partsaremadeandtestedtoTigerspecifications. Non-genuine
“willfit”parts do notconsistentlymeetthesespecifications. The use of“willfit”partsmayreduce mower performance,
voidmowerwarranties andpresentasafetyhazard. UsegenuineTigermowerpartsforeconomy andsafety.
SEE YOUR DEALER

Side Rtry Safety Section 1-12
SAFETY
SAFETY

Side Rtry Safety Section 1-13
SAFETY
SAFETY
ITEM PARTNO. QTY. DESCRIPTION
1 22839 1 INSTRUCT Don Not Lubricate With Automatic Grease Gun
2 22840 1 WARNING ForeignObjectsContacted
3 24028 1 WARNING InspectRearFlap
4 31522 1 LOGO TIGERMOWERS
5 31523 3 LOGO TIGERMOWERS
6 42350 1 DANGER CuttershaftDirection
7 33743 1 INSTRUCT MowingSafetTips
8 42399 1 REFLECT RedReflector
9 42400 1 REFLECT AmberReflector
10 6T3217 1 DANGER KeepHandsand FeetClear
11 6T3219 1 WARNING ReadOperatorsandMaintenanceManuals
12 6T3220 1 INTRUCT LubricatePump,DriveshaftDaily
13 6T3221 1 CAUTION Lubricate SpindleWhenMower andTractorOff
14 6T3222 1 INSTRUCT Engine will not start when mower is engaged
15 1059 1 INSTRUCT MowerPositions
16 6T3224 1 DANGER StayClear,Discharge Opening
17 6T3230 1 WARNING Don'tOperate withBystandersin Area
18 6T3233 1 CAUTION DONOTStart orRun withValves closed
19 6T3234 1 CAUTION CheckCrankshaftAdapterDaily
20 6T3236 1 LOGO MadeInUSA
21 6T3243 1 WARNING ReplaceBolts and Locknutifdamaged
22 6T3249A 1 INSTRUCT GreaseInst.CuttershaftBearing
23 6T3261 1 INSTRUCT GreaseInst.GroundRollerBearing
24 TB1011 1 WARNING Do NotWork Mowerwith SafetyShiel Removed
25 02962764 1 WARNING Pinch Point
26 02965262 1 WARNING HydraulicHoseRepair
27 02967827 1 DANGER Multi Warn Messages
28 34852 1 INSTRUCT HydraulicSpecifications
29 00756059 1 WARNING Check Hydraulic HosewithCardboard

Side Rtry Safety Section 1-14
SAFETY
SAFETY
10"X5.5" 31522
MOWER DECK
18.25"X10" 31523
HYDRAULIC TANK
22840
INSIDEOFCAB
22839
MOWER DECK
PARTNO.
LOCATION
24028
MOWER DECK
