Timberk TAP FL600 MF BL User manual

Instruction manual
Руководство по эксплуатации
Электрический
воздухоочиститель
Electric
air purifier
Outlook of devices, aslo colour scores can be revised without any special advance
notices.
Производитель вправе менять внешний вид прибора и цветовую гамму при-
бора без специального уведомления. Руководство по эксплуатации включает в себя гарантийный талон
Модели/Models:
Цвета/Colors:
TAP FL600 MF (BL)
TAP FL600 MF (W)
(BL) - черный/blaсk
(W) - белый/white

www.timberk.com • electric air purifier
2
The manufacturer reserves the right, without prior notification the buyer
to make changes in design, equipment or technology to manufacture
products with the aim of improving its properties.
The text and figures are given instruction may be a misprint.
If after reading the instructions you still have questions regarding the
operation of the unit and contact your dealer or authorized service facility
for clarification.
The product label is present, which are all necessary technical data and
other useful information about the instrument.
Use only for intended use as described in this manual. Air is designed to
clean air in residential areas.
Before the commissioning of the air purifier carefully read these instructions
for its use, and store it for later use.
When using the device, you must follow some precautions. Misuse of
power of ignoring safety precautions could cause harm the user and
others, as well as damage to their property.
The device is designed to work in a residential area in compliance with
these conditions. Use an air cleaner for other purposes may create a
situation dangerous to life and health.
1. Important information
2. Safeguards
3. Specification
4. Product description
5. Complete set
6. Operation of the instrument
7. Cleaning and maintenance instrument
8. Troubleshooting
9. Utilization
10. Transportation and storage
2
2
3
4
4
4
5
7
7
7
1. IMPORTANT INFORMATION
2. SAFEGUARDS
CONTENTS
Dear customer!
We thank you for your happy choice! You’ve bought an air
purifier TIMBERK. It will serve you for a long time. Please, read
this manual carefully before operating the device!
The air purifier is designed for purification of air in living
spaces to remove dust/dirt particles, bacteria, fungus spores,
unpleasant odor, and tobacco smoke (depending on the model
and availability of certain filter types in the appliance).

www.timberk.com • electric air purifier 3
The appliance should be monitored during its operation, especially when
close to him are the children. The device is not intended for use by persons
(Including children) with reduced physical, sensory or mental capabilities,
having insufficient experience and knowledge, unless they are supervised
and do not receive instructions on how to use the device from the person
responsible for their safety. Make sure that the children do not play with
the device.
Do not use the device in order not provided for this manual.
Not allowed to operate the appliance if the power cord or plug are
damaged, and if air cleaner is defective, damaged in the fall or in other
circumstances.
The device should be used only in fully assembled form.
To avoid electrical hazards, damaged power cord must be changed only at
authorized service centers by qualified personel.
To avoid electric shock, do not place the power cord near a heat source
and flammable or combustible substances.
To avoid personal injury and property damage, not try to repair the air
cleaner.
For repair of the air purifier, please contact the authorized service center of
the manufacturer. Its address can be obtained at www.timberk.com.
Remove the plug from the outlet device in the following cases: before
cleaning and maintenance, before moving to another place.
Install the air cleaner on a flat dry surface.
For damages received due to improper location of the humidifier, a
manufacturer and seller are not liable.
When not in use, unplug the power supply.
Do not route power cord under a carpet or other items.
Avoid contact with air filter foreign objects.
Do not block air intake with foreign objects and the air outlet.
The minimum distance from any of the instrument to objects and surfaces,
30 cm.
Do not sit, or stand or place heavy objects on the air purifier.
For damage to the instrument, derived from the non-fulfillment of this
requirement, a manufacturer and seller are not liable.
When you disconnect the unit from the mains, do not pull the power cable
and do not touch it with wet hands.
3. SPECIFICATION
Table 1
Specifications UoM Value
Air flow m3/h 120
Power supply V/Hz 220-240~/50
Nominal power consumption W 19
Nominal rated current A 0.09
Noice level dB 30/40/48
Water protection - IPХ0
Electrical protection class - Класс ll
Device dimension mm 375X278X165
Net weight kg 3.5
Area m225
IMPORTANT!
The manufacturer reserves the right to change the
set-list of the device (including liquid and powder
components) for different supplies without prior
notice. The changes either in no way influence the
basic technical parameters of the device or may
improve them, and also not violate the legislation or
quality standards of the countries of manufacture,
transit and selling.
The changes in the set-list may result in changing
of the weight and dimensions of the device, but not
more than by +\- 5-20% (depending on the product
category)

www.timberk.com • electric air purifier
4
1. Air Purifier - 1 pc.
2. Manual and warranty card - 1 pc.
3. Packing - 1 pc.
4. Brush - 1 pc.

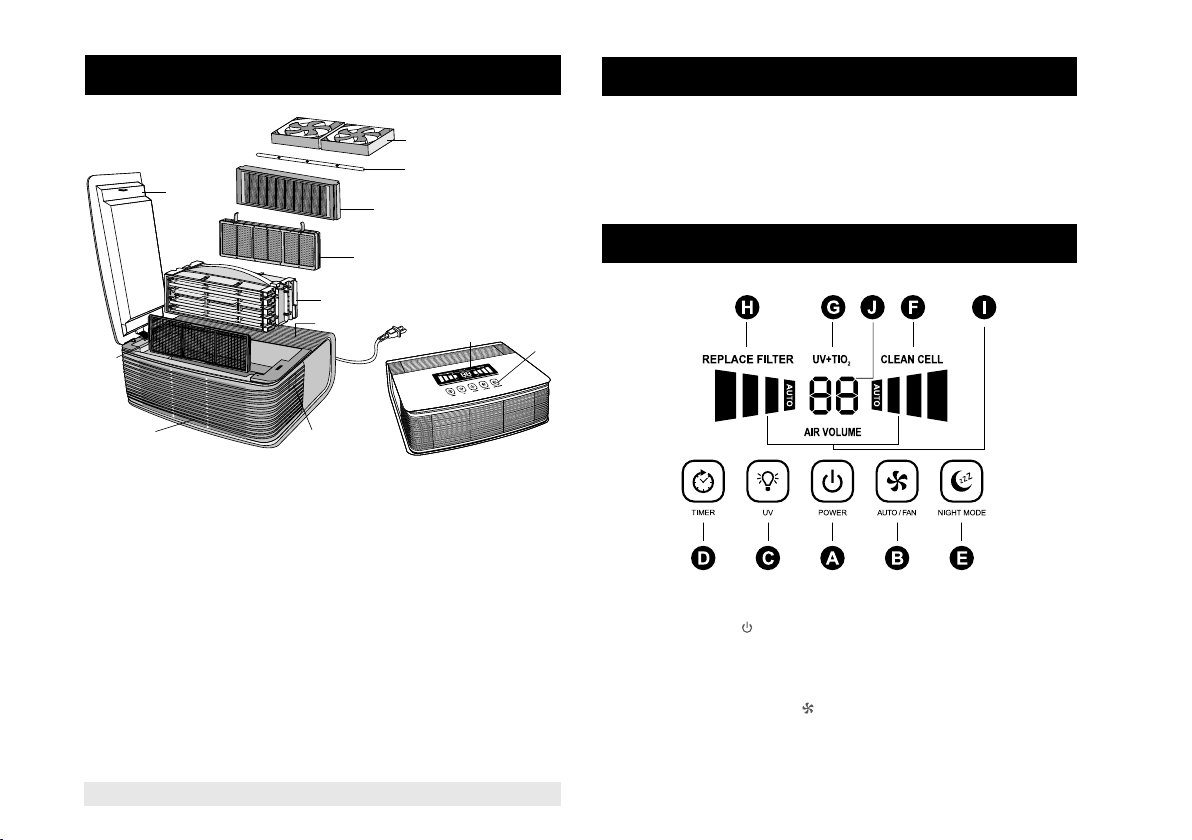

1. Motor fan
2. UV LED
3. Ozone, catalyst filter
4. Cover
5. VOC/Formaldehyde filter (Optional)
6. Collector cell
7. Exhaust grille
8. Display
9. Cover Switch
10. Front grille
11. Pre-filter
12. Control panel
Fig. 1
4. PRODUCT DESCRIPTION 5. COMPLETE SET
6. OPERATION OF THE INSTRUMENT
Fig. 2

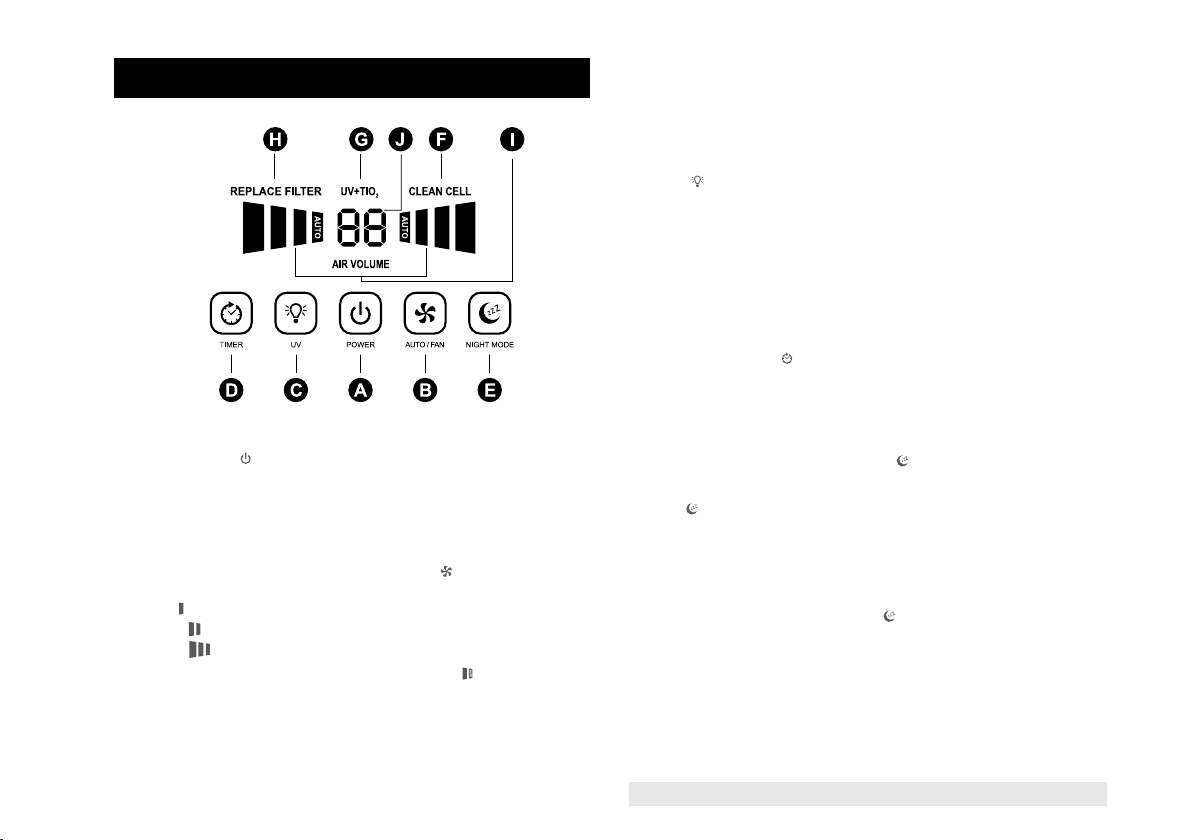

А) ON/OFF Button
By pressing button « » once, you can the unit on, display screen will
illuminate. The appliance will start to operate under AUTO mode. By
pressing it twice, the unit is switched off.
B) AUTO model/Fan Speed
By repeated pressing button « » you can adjust the air clean speed or
operate under AUTO mode. Symbol I show which of the four levels you
have selected:
1
2
3
5
6
7
8
9
10
11
4

www.timberk.com • electric air purifier 5
• Low for silence technology
• Medium for normal use
• High for maximum cleaning
• Once the AUTO is activated, appliance will automatically sense and
adjust the air clean speed once it detects pollutants in the air. Additionally
4 stages of clean sing, clearly shows your current air condition accordingly:
- Green: Clean
- Light Orange: Low pollution
- Orange: Medium pollution
- Red: High pollution
C) Operation with catalyst
Button « » is used for switching the catalyst on and off (Symbol «UV+TIO2»
lights up).
This appliance combines advanced catalytic technologies to reduce
odors and chemical fumes from glues, solvents, and synthetic materials
when air passes through the filter and is activated by the internal UV LED.
(The catalyst system cannot be removed). If turned off, the appliance will
continue to filter particles from the air that passes through the filter but its
odor and VOC capability will be greatly reduced.
D) Timer
Using button «» the operation time can be set-adjustable between 1~9
hours or continuous operation (circulated ), Sumbol J shows the operating
period that has been set (1h/2h/3h/4h/5h/6h/7h/8h/9h/ circulated ). The
display will automatically show the current value after a few seconds.
E) Night mode
By pressing the button « » once, the night mode is switched on which
automatically dims the display brightness, appliance continue to operate
under with silence technology. If button « » pressed again, the appliance
will no longer be in night mode.
F) Cleaning indicator
If red «CLEAN CELL» indicator appears on the display, the appliance should
be cleaned as recommended by the manufacturer. When the collector cell
is re-installed after cleaning, switch on the appliance and keep pressing
the button « » at least 3 seconds until buzzer beeps, red «CLEAN CELL»
indicator goes out and «CLEAN CELL» timer is reset.
G) Catalyst indicator
7. CLEANING AND MAINTENANCE INSTRUMENT
Cleaning the Collector Cell

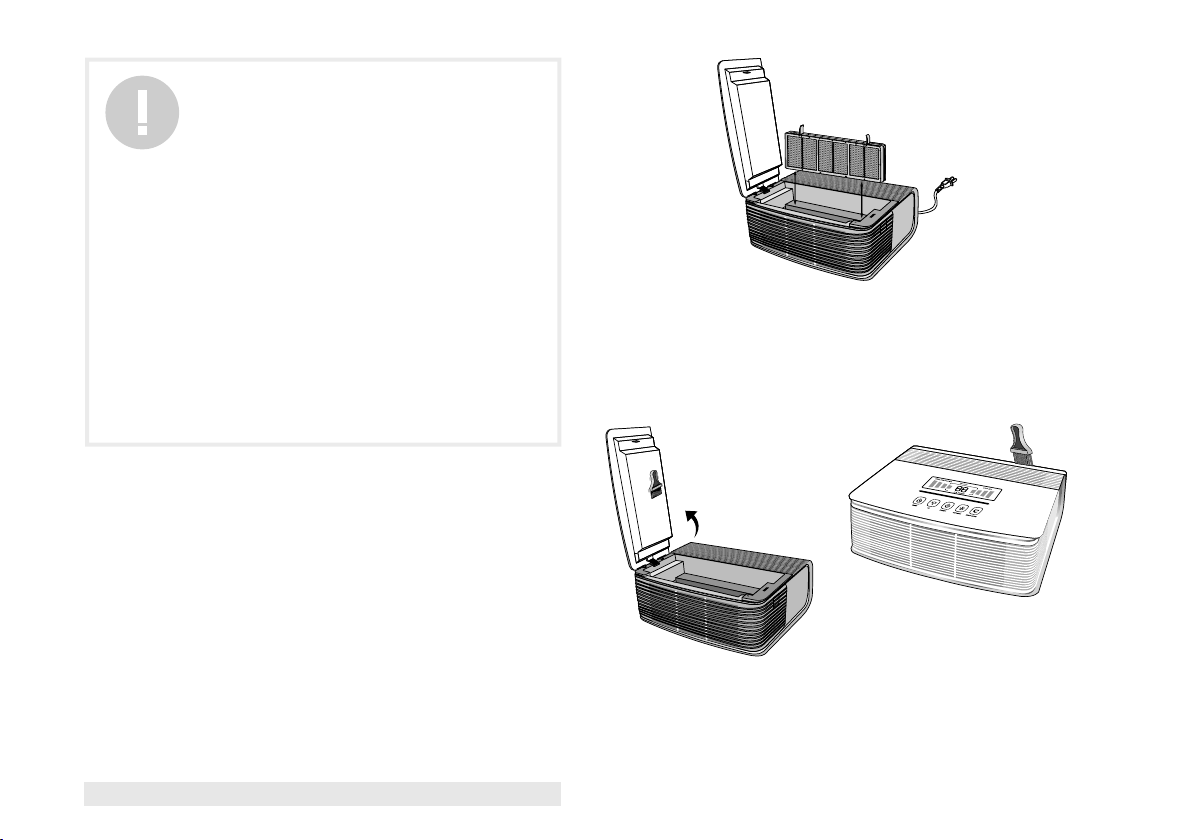

1. Unplug the appliance.
2. Open the cover from the right side by pressing the switch.
3. Pull the collector cell straight out of the cabinet.
4. Place collector cell in sink, bathtub or other location where cleaner can
cover every surface.
5. Spray specialized cleaner between each cell plate and covers each
surface. Allow the cleaner to soak for a few minutes but do not let it dry.
Thoroughly rinse the collector cell with clean water.
An alternative method to clean collector cell is to rinse or it in warm for
loose debris. Mild liquid dish detergent in water may also be used to help
break down tough dirt and residue. Thoroughly rinse the collector cell with
clean water.
6. Snake excess water from the collector cell to speed up drying time. Do
not use heated or compressed air to dry.
7. Place the collector cell back into the unit. The collector cell is specially
designed so that it can be only inserted in one direction.
8. Close the cover securely.
H) Replace indicator
If red «REPLACE FILTER» indicator appears on the display, the VOC/
Formaldehyde filter should be replaced as recommended be the
manufacturer. When the VOC/Formaldehyde filter is reins – talled after
replacement, switch on the appliance and keep pressing the button « » at
least 3 seconds until buzzer beeps, red «REPLACE FILTER» indicator goes
out and «REPLACE FILTER» timer is reset.
I) Fan speed indicator
J) Timer indicator
