Instruction manual
Outlook of devices, aslo colour scores can be revised without any special advance notices.
Electric air
washer (purifier)
TAW H2 D (BL)
/Model
www.timberk.com
Table of contents
1. Important information.............................................................................................
2. Safety measures..........................................................................................................
3. Technical characteristics..........................................................................................
4. Description of the unit.............................................................................................
5. Scope of supply..........................................................................................................
6. Filling tank with water..............................................................................................
7. Operation of the unit................................................................................................
8. Cleaning and maintenance of the unit..............................................................
9. Troubleshooting.........................................................................................................
2
1. Important information
To improve product quality, its design, scope of delivery or
manufacturing process can be revised without advance notice.
The text and digital notations in this manual may have misprints.
Should you have any questions on the functioning and operation of the
device, please refer to the seller or a specialized service center to receive
clarification.
There is a label on the product, indicating all necessary technical data
and other useful information regarding the device.
Use the device only for purposes, stated in this manual.
The air washer is intended to automatically maintain the preset level of
relative humidity indoors and for air purification. Comfortable
conditions are achieved at relative humidity ranging from 40 to 60%.
Insufficient air humidity results in drying of mucous membranes, which
in its turn is the reason for decrease in immunity, headache, lip cracking,
sandpaper in the eyes, it also enables infection spreading and
respiratory tract diseases, causes fatigue, results in increased eye fatigue
and worsening of attention focusing, it has a negative effect on the
condition of pets and house plants, causes increase of dust generation
and, increase of electrostatic charge of synthetic fabrics, as well as
carpets and synthetic floor coatings, it causes damage of wooden
furniture and especially parquet floors, it negatively affects tuning of
musical instruments.
2. Safety measures
Prior to operation of the device carefully read this operation manual and
save it for further use.
A number of safety measures should be followed upon operation of the
device. Improper operation due to ignoring precautions may result in
damaging of users and other peoples health, as well as damaging their
property.
The humidifier is intended for operation in living rooms subject to the
indicated operation conditions. The use of the humidifier for purposes
other than that intended may cause situations, hazardous for the life and
health of people.
The electric appliance must be kept watched during its operation,
especially if there are children in the vicinity. The unit is not intended to
be used by people (including children) with limited physical, sensory or
intellectual capabilities, having insufficient experience and knowledge,
unless they are supervised or received instructions on how to use the
unit from a person, responsible for their safety. It is necessary to be
careful that children do not play with the unit.
Do not use the unit for purposes, not specified by this operation manual.
It is forbidden to use the air washer if the power cord or a plug are
damaged, as well as if the device is broken, damaged as a result of falling
or under other circumstances. The humidifier must be operated fully
assembled only.
To prevent an electric shock, the damaged power cord must be replaced
only in authorized service centers by qualified specialists.
To prevent an electric shock, do not place the power cord next to
heating appliances and flammable or combustible substances.
To prevent injuries and damage to property, do not try to repair the
humidifier on your own.
DEAR CUSTOMER!
Thank you for a good choice and purchase of Timberk air washer. It will
serve you for a long time.
2
2
3
3
4
4
5
5
5
www.timberk.ru electric air washer (purifier) 3
ENGLISH
Take out the plug from an outlet in the following cases: prior to draining
or filling the tank with water; prior to cleaning and maintenance; prior to
mantling/dismantling of device elements; prior to transportation of
thedevice to another place.
Install the humidifier on to a smooth dry surface. The outgoing steam
may damage surfaces it contacts. Do not install the humidifier on the
floor, as well as in the vicinity of heating appliances, furniture and other
objects.
The manufacturer and the seller do not bear any responsibility for
damages, inflicted due to improper position of the device.
To prevent damage of the device, do not add essential oils,
preservatives, flavors and other foreign substances to humidification
water. The manufacturer and the seller do not bear any responsibility for
damages of the device, inflicted due to failure to follow this
requirement.
Do not pull the power cord and do not touch it by wet hands when you
unplug the device from electric mains.

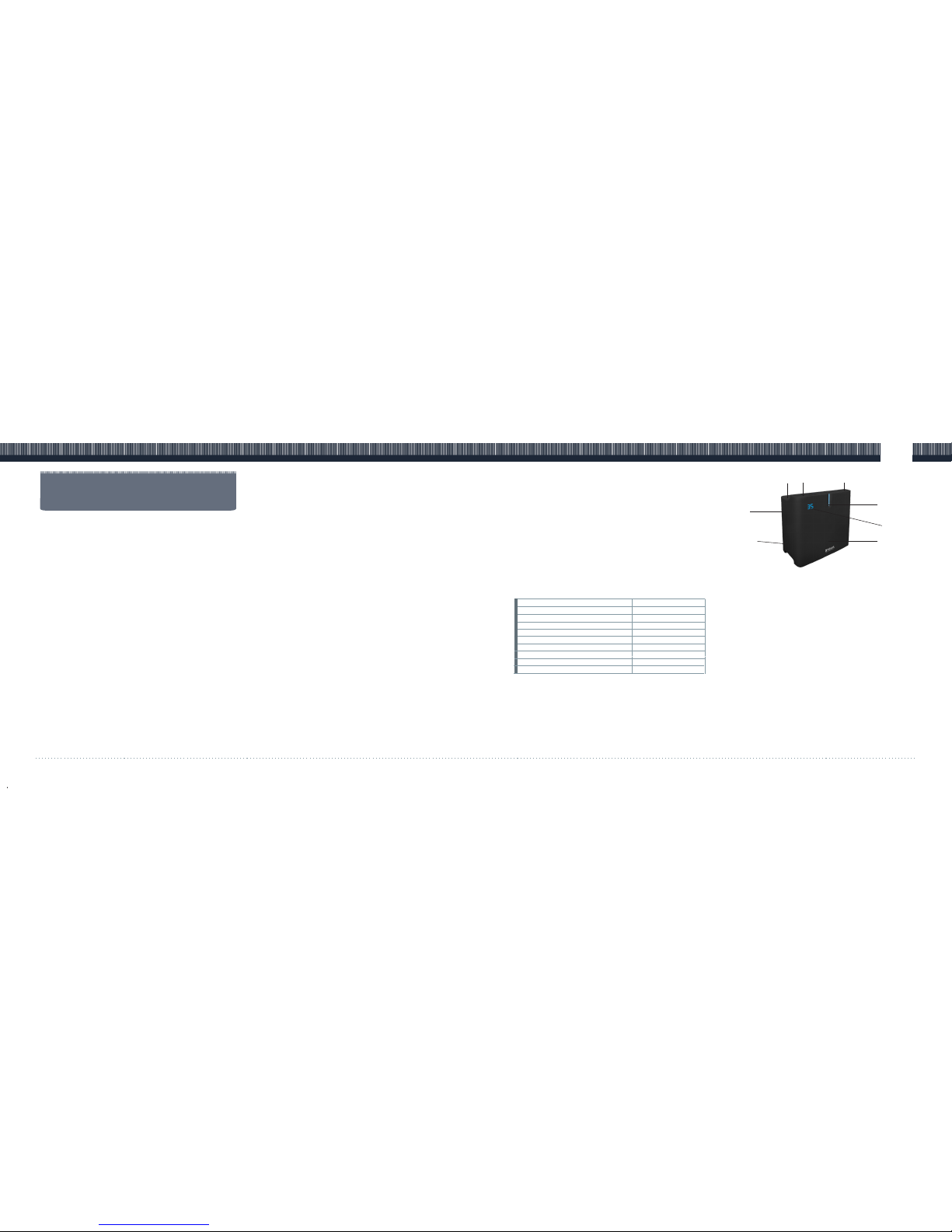

3. Technical characteristics
4. Description of the unit
Rated current, A
Power consumption, W
Power supply, V/Hz
Water protection
Water tank, L
Capacity of humidity, ml/h
Table 1.
Electrical protection class
Device dimension, mm
Net weight, kg
1 - Air inlet grille.
2 - Pallet for of water.
3 - Air release panel.
4 - Control Panel.
5 - Cover the tank.
6 - Color LED humidity levels.
7 - Display Area, which reflects the current level of humidity (humidistat).
8 - Power cable with plug.
Fig. 1
Air washer TAW H2 D (BL) moisturizes and cleanses the air without the
use of replacement filters.
220/50
380
IPX0
1,73
4,0
300
365200410
II
6,0
50,0
2
Application area, m
1
2
345
6
7
8
The principle of operation of the device.
Dry contaminated air is drawn into the fan unit. Passing through the
humidifying roller, which rotates with the engine and continuously
wetted with water, the air is moistened, and particles of dust and dirt
remain in the pan.
The air that pass through a great number of disk barriers fastly becomes
saturated with moisture and pures from the dust and dirt, that
afterwards flows to the water pan.
The treated air exits clean and moist - both in the nature of air is washed
by rain water.
Water is constantly being updated, acting out of the tank.
Performance device for moistening and cleaning is regulated by various
modes of operation.
Built-in humidistat constantly measures the level of relative humidity,
current figures reflected in the display area. Low, medium and high
levels of humidity indicator displays a color: white, blue and green,
respectively.
Humidification based on the principle of automatic self-regulation (cold
and heat of evaporation). Therefore, cleaning the air Timberk creates
optimum humidity without additional devices.
www.timberk.ru electric air washer (purifier)
4
5. Scope of supply
1. Air washer 1 pc.
2. Operation manual 1 pc.
3. Guarantee card 1 pc.
4. Packing 1 pc.
6. Filling tank with water
Prior to filling the tank remove the cover from the tank.
1. Grab the tank handle and pull it upwards.
2. Unscrew the tank cap counterclockwise.
3. Fill the tank with water.
4. Screw the tank cap clockwise.
Make sure the tank cap is securely tightened. Be sure that the rubber
gasket is installed to the tank cap.
5. Install watertank inside the device.
Important!
1. To prevent an electric shock, prior to dismantling the device
(removing the tank), unplug the device from electric mains! 2. Do
not fill the tank with liquids other than tap water.
Other composition of liquids has an adverse effect on internal
parts and results in a failure.
3. Do not fill the device or the water tank with such additives as
essential oil, flavoring substance, detergent, chemical medical
products, warm water (over 40°), etc.
Otherwise the water tank and internal parts of the unit will be
damaged and be broken.
4. Do not fill water directly into the internal part of the unit or the
atomizer.
Water inside the unit may result in failure of the device.
5. Do not hit and do not throw the water tank. It can be damaged
which will result in water leakage. Do not use the unit in case the
tank is heavily hit.
Contact a maintenance service or maintenance and repair station
immediately.
6. Every day fill the tank with pure water and keep the unit clean.

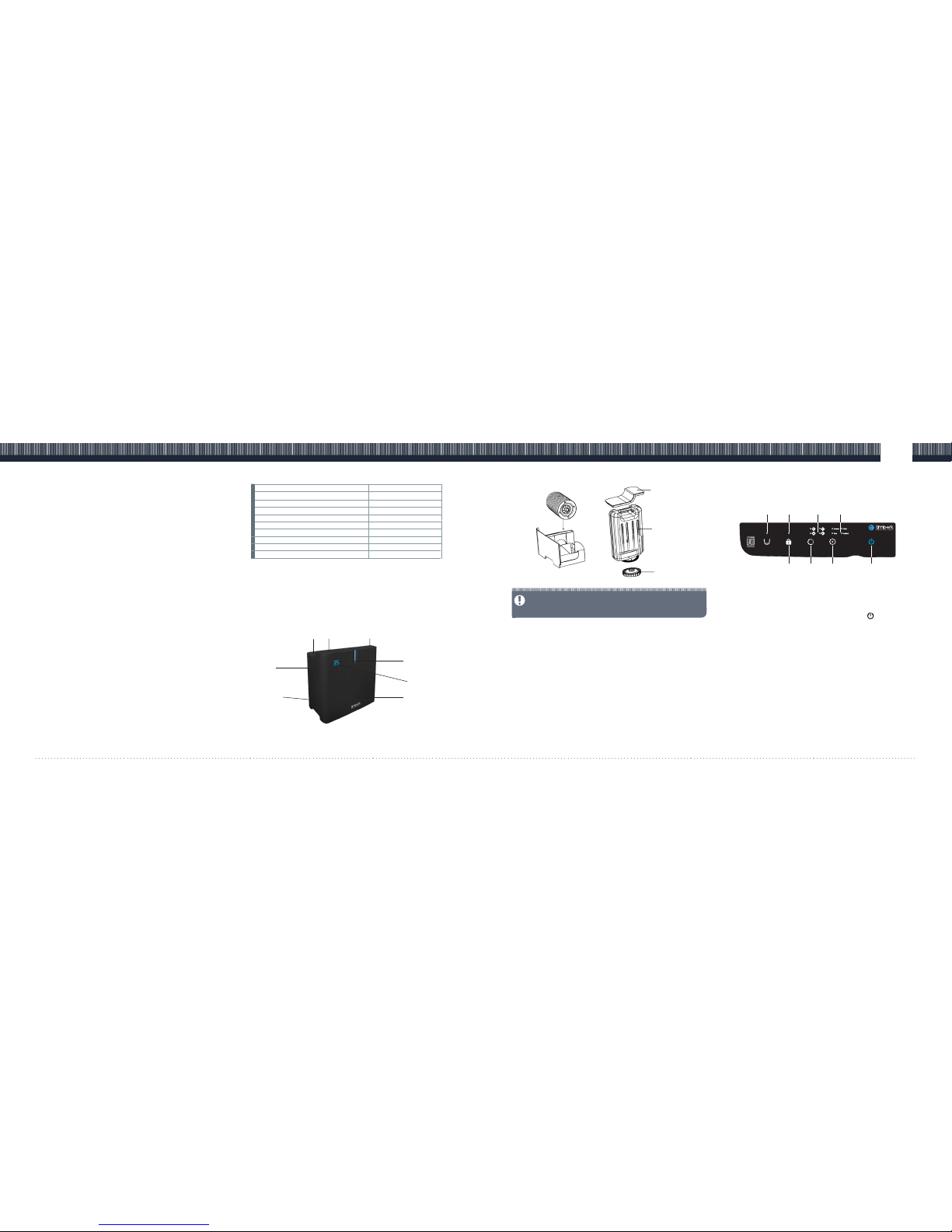

1 - The indicator of lack of water
2 - Lock Indicator panel
3 - Timer indicators (from left to right): device off after 2h, 4h, 6h, 8h
4 - Indicators of modes (from left to right): economic (Econom), intensive
(Turbo), automatic (Auto), comfortable (Comfort)
5 - Power on / off « »
Fig. 2
1 2 3 4
8 7 6 5
Panel control
humidifying discs ompartment
cover for water tank
pallet for water
water tank
water tank cover
Water tray and water tank design
Periodically clean the pallet and humidifying discs
ATTENTION!
Order to get the pallet, you must first remove the water tank.
6 - Push button operation modes: Economy (Econom), intense (Turbo),
automatic (Auto), comfort (Comfort)
7 - Button timer for automatic shut-off device after 2h, 4h, 6h, 8h
8 - On / Off button lock control panel
www.timberk.ru electric air washer (purifier) 5
ENGLISH
In automatic mode (the LED Auto) performance on humidifying device is
automatically adjusted.
If the humidity is 50-60% and above, includes economical mode
Econom.
If the humidity level of 40-50%, included a comfortable mode of
Comfort.
If the humidity is 40% or less, included intensive mode Turbo.
Indication of level of relative humidity
In the process of the device in the display area is displayed through the
plastic of the current level of relative humidity in the room (figure).
The optimum relative humidity for a man of 40-60%.
In addition, the device is equipped with a color indicator of moisture.
The vertical luminescent band in the center of the device changes color
depending on the level of relative humidity.
White LED indicates that the air is dry enough (40% and below).
Blue indicator light shows that air in the room good, moist (40-60%).
Green light indicates that the air is excessively humid (60% and above).
Blocking panel
To protect user-selected settings control panel can be locked. To do this
within 3 seconds to hold the lock button 8.
8. Cleaning and maintenance of the unit
Prior to cleaning make sure that the plug is disconnected from an outlet.
Otherwise it may result in an electric shock.
Before cleaning, wait until water in grooves is completely cooled down in
order not to burn hands.
8.1 To wipe the external surface of the unit use a damp and soft cloth.
To prevent an electric shock do not scratch and do not damage units
elements upon cleaning.
When cleaning the unit, do not use solvents, benzine, dimethylbenzene, hard
brush, talc powder and other substances other than water.
8.2 Remove the water tank, then take out the water tray and drain it, then
wipe remaining water inside the device under the tank with a damp and soft
cloth.
Add usual decalcifier to the tray, filled with water, allow it to hold for some
time; manually turn the disk pack several times. Then drain water and rinse
the tray and the disc pack.
To remove water remains on small parts you can use the brush, and then wipe
them again with a soft cloth. Clean the unit once or twice a wee
9. Troubleshooting
In case of emergencies resort to troubleshooting methods, given in tables.
If you are unable to solve issues by means of mentioned methods, contact
a service center.Life of the humidifier is 5 years.
Upon expiration of the humidifier it must be disposed in accordance with
regulations, rules and by means, currently in force at a disposal station.
7. Operation of the unit
To disconnect the unit again, press Power « ».
The choice of operating modes
To select one of four modes of operation, press the 6 button (selection
mode). Above the button will illuminate the appropriate indicator.
In eco-mode operation (indicator Econom) performance on humidifying
device will be 180 ml/h (fan speed 1100 RPM, power 32 W). In this mode,
the tank will be spent over 22 hours. The noise level will not exceed 30
dB (A).
In comfort mode (indicator Comfort) on the instrument performance
hydration of 320 ml/h (fan speed 1100 RPM, power consumption 200
watts). In this mode, the tank is used up in 12 hours. The noise level will
not exceed 30 dB (A). In this mode, for better performance on
humidifying device uses hot air.
In intensive mode (LED Turbo) performance on humidifying device is
500 ml/h (fan speed 1600 rpm, power 380 W). In this mode, the tank will
be spent over 8 hours. The noise level will not exceed 40 dB (A). In this
mode, for better performance on humidifying device uses hot air.
Timer to shut down
By clicking on the timer, you can choose the time after which the device
will automatically shut off:
" " - Shut off after 2 hours,
" " - Off after 4 hours
" " - Off in 6 hours
" " - Shut off after 8 hours.
www.timberk.ru electric air washer (purifier)
6
Low air flow
(insufficient
performance)
Remedy
Defect Possible cause
The device operates in
the economy mode
No defect. If necessary to switch to the intensive
mode, press Atomizing frequency button in
the manual setting mode and switch the unit
to the intensive operation mode.
No air flow The plug is poorly
inserted into an outlet Connect the plug into an outlet carefully
Light on the water
indicator has illuminated
and went out (water
tank is completely empty)
Add water to the tank
Difference between the
level of current humidity
and readings of a
humidity recorder
is too big
Dirt accumulation
inside an air vent Clean the air vent. Even in one room humidity
can be different depending on the location
The unit is operated in
places, where it is affected
by the environment,
for example, by a window
Install the unit in places, where it cannot be
affected by the environment
Air flow has an
unpleasant odor Not fresh water in use
Stale water or debris
accumulated
in the water tray
Clean the unit in accordance with the cleaning
and maintenance manual and fill it with fresh
water
Table 2.
www.timberk.ru electric air washer (purifier)
7
1.
,
.
.
,
.
,
.
,
.
,
.
40 60%.
,
, , ,
,
, ,
,
,
,
,
,
,
.
2.
.
,
.
,
.
.
,
.
, ,
.
( )
, ,
,
,
. ,
.
, ,
.
,
,
, ,
!
Timberk. .
, !
1. ...............................................................................................
2. .....................................................................................
3. .............................................................................
4. ..................................................................................................
5. ..................................................................................................
6. .........................................................................
7. .........................................................................................
8. ....................................................................
9. ...........................................................
10. ........................................................................
7
7
8
8
9
9
10
11
11
12
www.timberk.ru
.
.
,
.
.
.
: ;
;
/ ;
.
.
.
,
, ..
,
.
. ,
.
.
.
- .
,
.
, ,
. , -
,
.
.
.
3.
,
,
, / 220/50
380
IPX0
1,73
4,0
,
300
, /
1.
4.
1 - .
2 -
3 -
4 -
5 -
6 -
7 - , ()
8 -
365200410
II
,
, 6,0
. 1
TAW H2 D (BL)
.
2
50
, 2 50,0
1
2
345
6
7
8
8www.timberk.ru 9
www.timberk.ru
5.
1. 1 .
2. 1 .
3. 1 .
4. 1 .
. ,
,
, .
,
.
,
.
, .
.
,
. ,
: ,
.
1-
2-
3- : 2, 4, 6, 8
4 - : (Econom),
(Turbo), (Auto), (Comfort)
5 - / Power « »
6 - : (Econom),
(Turbo), (Auto), (Comfort)
7 -
2, 4, 6, 8
8 - /
,
.
. 2
( ).
Timberk
.
!
, ,
.
6.
1. .
.
2.
3. .
4. .
.
5. .
1 2 3 4
8 7 6 5
7.5
, ,
:
« » - 2 ,
« » - 4 ,
« » - 6 ,
« » - 8 .
7.6
1 .
.
8.
,
. ,
.
8.1
.
.
, ,
, , ,
.
8.2 ,
,
.
!
,
,
,
.
.
.
.
,
.
,
, .
.
.
9.
, .
.
5 .
, ,
.
,
(40% ).
,
, (40-60%).
,
(60% ).
7.4
.
3- 8.
8 3- .
, ;
.
.
, .
.
11
www.timberk.ru
!
1. , ,
( ),
!
2. ,
.
.
3.
, ,
, ,
( 40°) . .
.
4.
.
.
5. .
, .
.
.
6.
.
( Econom)
180 /
( 1100 ,
32 ). 22
. 30 ().
( Comfort)
320 /
( 1100 ,
200 ).
12 . 30 ().
.
( Turbo)
500 /
( 1600 ,
380 ). 8
. 40 ().
.
( Auto)
.
50-60% ,
Econom.
40-50%,
Comfort.
40% ,
Turbo.
7.3
().
40-
60%.
,
.
.
7.
7.1
.
.
/ « » .
.
/ « » .
7.2
6 ( ).
.
10 www.timberk.ru
(
)
2
.
« »
(
)
,
,
,
,
:
. RU.0001.11AB71.
"". : 123308. . , .
, .3, . 1, . 323;
: 115162, . , . 28, 4, .
+7 495 6044266, +7 495 6044266.
:
52161.2.30-2007,
51318.14.1-2006 .4,
51318.14.2-2006 .5,7,
51317.3.3-2008,
51317.3.2-2006 .6,7
: RU -IL.AB71.B.00081
: 5.07.2012 4.07.2015
*:
« » , 10, ,
88000
/ +972-8-637-88-311
*:
OOO «»
: . , . , 1, .1, 606
/ (499) 638-26-77
:
+ 7 (495) 6275285
* , ,
\ \ .
, ,
.
EEC 89/336,
,
.
.
Timberk ,
Timberk , ,
,
, ,
.
10.
12 www.timberk.ru 13
ENGLISH
www.timberk.ru
14www.timberk.ru 15
www.timberk.ru electric air washer (purifier)
Other manuals for TAW H2 D (BL)
1
Table of contents
Other Timberk Air Cleaner manuals
Popular Air Cleaner manuals by other brands
Shark
Shark HC450 Series owner's guide
Goodman
Goodman GDMHEPA Specification sheet
Coast-Air
Coast-Air CEP081C Installation and operation instruction manual
Carrier
Carrier EACA Installation and operation manual
Aprilaire
Aprilaire 1625FG Installation and operating instructions
LG
LG AP551A Series owner's manual
