Timberk THU UL 07 User manual
Instruction manual
Outlook of devices, aslo colour scores can be revised without any special advance notices.
Electric
humidifier
THU UL 07
THU UL 07 (BL)
/Model
ÀÂ71
1. IMPORTANT INFORMATION
To improve product quality, its design, scope of delivery or
manufacturing process can be revised without advance notice.
The text and digital notations in this manual may have misprints.
Should you have any questions on the functioning and operation of the
device, please refer to the seller or a specialized service center to receive
clarification.
There is a label on the product, indicating all necessary technical data
and other useful information regarding the device.
Use the device only for purposes, stated in this manual.
The humidifier is intended to automatically maintain the preset level of
relative humidity indoors. Comfortable conditions are achieved at
relative humidity ranging from 40 to 60%. If the actual humidity goes
below the level you set then the humidifier will switch on automatically
and operate until the set relative humidity level is achieved, after that
the humidifier switches off automatically (for models with the automatic
operation mode).
Insufficient air humidity results in drying of mucous membranes, which
in its turn is the reason for decrease in immunity, headache, lip cracking,
sandpaper in the eyes, it also enables infection spreading and
respiratory tract diseases, causes fatigue, results in increased eye fatigue
and worsening of attention focusing, it has a negative effect on the
condition of pets and house plants, causes increase of dust generation
and, increase of electrostatic charge of synthetic fabrics, as well as
carpets and synthetic floor coatings, it causes damage of wooden
furniture and especially parquet floors, it negatively affects tuning of
musical instruments.
2. SAFETY MEASURES
Prior to operation of the humidifier carefully read this operation manual
and save it for further use.
A number of safety measures should be followed upon operation of the
device. Improper operation due to ignoring precautions may result in
damaging of users and other peoples health, as well as damaging their
property.
The humidifier is intended for operation in living rooms subject to the
indicated operation conditions. The use of the humidifier for purposes
other than that intended may cause situations, hazardous for the life and
health of people.
The electric appliance must be kept watched during its operation,
especially if there are children in the vicinity. The unit is not intended to
be used by people (including children) with limited physical, sensory or
intellectual capabilities, having insufficient experience and knowledge,
unless they are supervised or received instructions on how to use the
unit from a person, responsible for their safety. It is necessary to be
careful that children do not play with the unit.
Do not use the unit for purposes, not specified by this operation manual.
It is forbidden to use the humidifier if the power cord or a plug are
damaged, as well as if the humidifier is broken, damaged as a result of
falling or under other circumstances. The humidifier must be operated
fully assembled only.
To prevent burns upon operation of the humidifier do not touch the
humidifiers membrane (for ultrasonic models). Due to high oscillations
frequency the membrane heats up very much.
High-frequency oscillations of the ultrasonic humidifier membrane are
not audible and completely safe for people and pets.
To prevent an electric shock, the damaged power cord must be replaced
only in authorized service centers by qualified specialists.
To prevent an electric shock, do not place the power cord next to
heating appliances and flammable or combustible substances.
To prevent injuries and damage to property, do not try to repair the
humidifier on your own.
DEAR CUSTOMER!
Thank you for a good choice and purchase of Timberk humidifier. It will
serve you for a long time.
TABLE OF CONTENTS
1. Important information....................................................................................................2
2. Safety measures...........................................................................................................2
3. Technical characteristics...........................................................................................3
4. Description of the unit...............................................................................................3
5. Scope of delivery..........................................................................................................3
6. Filling tank with water................................................................................................4
7. Operation of the unit..................................................................................................5
8. Cartridge filter with ion exchange resin...............................................................5
9. Cleaning and maintenance of the unit.................................................................6
10. Troubleshooting..........................................................................................................6
11. Utilization......................................................................................................................6
2www.timberk.com electric humidifier
220/50
30
IPX0
0,136
3,5
300
269x165x269
II
1,91
Take out the plug from an outlet in the following cases: prior to draining
or filling the tank with water; prior to cleaning and maintenance; prior to
mantling/dismantling of humidifiers elements; prior to transportation
of the humidifier to another place.
Install the humidifier on to a smooth dry surface. The outgoing steam
may damage surfaces it contacts. Do not install the humidifier on the
floor, as well as in the vicinity of heating appliances, furniture and other
objects.
The manufacturer and the seller do not bear any responsibility for
damages, inflicted due to improper position of the humidifier.
The humidifier should be installed on some kind of an elevation, for
example, on table, stand, etc.
It is not allowed to fill water into the humidifier through the atomizer.
Do not submerge the humidifier into water or other liquids.
Do not install the humidifier in places where it can be touched, tipped over, etc.
If the humidifier is not used, unplug it from electric mains.
Do not lay the power cord under a carpet or other objects. Position the
humidifier so that the power cord cannot be stumbled upon.
Do not use the humidifier in damp rooms.
Do not allow foreign object to get into the humidifier.
Do not block the air intake and humidifiers atomizer.
Do not sit, stand and put heavy objects on the humidifier.
To prevent damage of the humidifier, do not add essential oils,
preservatives, flavors and other foreign substances to humidification
water. The manufacturer and the seller do not bear any responsibility for
damages of the humidifier, inflicted due to failure to follow this
requirement.
Do not pull the power cord and do not touch it by wet hands when you
unplug the humidifier from electric mains.
3. TECHNICAL CHARACTERISTICS
Nominal rated current, A
Nominal power consumption, W
Nominal power supply, V/Hz
Water protection
Water tank, L
Capacity of humidity, ml/h
Table 1.
Electrical protection class
Device dimension, mm
Net weight, kg
Fig. 1
1 2
3
4
5
6
7
8
1 - Sprayer*
2 - The handle of the water tank
3 - Water tank
4 - Filter cartridge with ion exchange resins (cap of the water tank with flap)
5 - The base under the tank for water
6 - Ultrasonic membrane
7 - Control Panel
8 - Display
4. DESCRIPTION OF THE UNIT (Fig. 1,2)
ENGLISH
3
www.timberk.com electric humidifier
The manufacturer reserves the right to change the set-list of the device (including liquid and powder components) for
different supplies without prior notice. The changes either in no way influence the basic technical parameters of the device
or may improve them, and also not violate the legislation or quality standards of the countries of manufacture, transit and
selling. The changes in the set-list may result in changing of the weight and dimensions of the device, but not more than by
+\- 5-20% (depending on the product category)
6. FILLING TANK WITH WATER
Prior to filling the tank remove the atomizer from the tank. If you fail to do
so, then upon turning over the tank the atomizer will fall down. The device
must not be operated without the atomizer.
When moving the humidifier do not grab the water tank handle. You
should hold the humidifier by the base.
1. Remove the atomizer and then the water tank from the device.
2. Grab the tank handle and pull it upwards.
3. Unscrew the tank cap counterclockwise.
4. Fill the tank with water.
5. Screw the tank cap clockwise.
Make sure the tank cap is securely tightened. Be sure that the rubber
gasket is installed to the tank cap. Securely tighten the cap clockwise.
Incomplete fulfillment of the abovementioned measures causes the air
coming into the water tank and, as a result, a failure.
6. Install the tank and the atomizer to the device.
Fig. 2
9
10
11
12
13
14
15
16
* Sprayer rotates 360 °, the direction of spray vapor is adjusted manually
by the user.
9 - indicator output intensity of the pair
10 - indicator of the current and desired humidity level
11 - Power on / off
12 - button to turn off the timer from 1 to 12 hours
13 - Power on / off ionizer
14 - Button adjust the intensity of the steam
15 - Button set the desired humidity level - an increase of 80%
16 - Button set the desired level of humidity - a reduction of up to 40%
The display may reflect other indicators, it depends on a series of output
device. All the indicators corresponding to a particular mode of
operation (depending on user settings). For some series using water
level indicator, which signals the absence of water.
5. SCOPE OF DELIVERY
1. Humidifier 1 pc.
2. Operation manual 1 pc.
3. Guarantee card 1 pc.
4. Packing 1 pc.
5. Cleaning brush - 1pc.
IMPORTANT!
1. To prevent an electric shock, prior to dismantling the device
(removing the tank), unplug the device from electric mains!
2. Do not fill the tank with liquids other than tap water.
Other composition of liquids has an adverse effect on internal
parts and results in a failure.
3. Do not fill the device or the water tank with such additives as
essential oil, flavoring substance, detergent, chemical medical
products, warm water (over 40°), etc.
Otherwise the water tank and internal parts of the unit will be
damaged and be broken.
4. Do not fill water directly into the internal part of the unit or the
atomizer.
Water inside the unit may result in failure of the device.
5. Do not hit and do not throw the water tank. It can be damaged
which will result in water leakage. Do not use the unit in case the
tank is heavily hit.
Contact a maintenance service or maintenance and repair station
immediately.
6. Every day fill the tank with pure water and keep the unit clean.
4www.timberk.com electric humidifier
7. OPERATION OF THE UNIT (Fig. 2)
Switching on the unit
Connect the unit to electric mains. Fill the tank with water in advance.
A musical signal will be given when the unit is connected to a power supply
source.
Press On/Off button (Power, On/Off), a musical signal will be given and
the unit will automatically start operating.
AUTO mode will be shown on the display screen and steam will start
coming out of the atomizer.
The display screen will show current air humidity and the warm atomizing
mode will be switched on automatically.
Ten seconds after pressing the power button a light atomizing indicator
(preparation for operation) will be illuminated and then will go out.
At the very beginning of this operation the atomizing level could seem
unstable which is caused by the temperature difference and water quality.
It will take some time for water to transform into steam inside the
ultrasonic membrane and this process to be stabilized. In 10-25 minutes of
operation the atomizing level will be gradually stabilized.
Heating of steam will take about 10-20 minutes.
In order to specify the desired level of humidity in the room, press the set
humidity level - an increase (15) or decrease (16). The device will
automatically adjust the intensity of their work to achieve a desired level of
humidity you.
In order to regulate the humidity level manually, press (14), the
frequency of the steam will vary (low, middle, hight). This action will be
reflected on the display (9).
The display shows the preset humidity level during the installation and
the current humidity level after installation by the user.
By clicking on the timer, you can set the time on the instrument off after
1 - 12 hours.
To enable or disable the ionizer press the appropriate button (13).
The ionizer generates negative ions (anions) and refreshes the air in the
room. Anions strengthen the nervous and circulatory systems, improve
the lungs and provide effective protection against respiratory illnesses
(such as asthma and pneumonia). Anions purify the air of dust and smoke.
IMPORTANT!
At first or repeated use of the unit even with full tank the water level
indicator, showing there is no water, will be illuminated on the display
screen. It happens due to the fact that it takes some time for water to flow
from the tank to a water groove.
The unit will automatically start operating in 2-5 minutes.
In case if all water in the tank is used, the unit will be switched off and a
sound signal will be given prior to it and the water level indicator will be
illuminated. In five seconds the light indicator will go out and a red light
will be illuminated.
Add water in accordance with the manual for further use of the unit.
Switching off the unit
Press On/Off button, the light indicator will go out and the unit will be
switched off.
Disconnect the plug from an outlet.
8. CARTRIDGE FILTER WITH AN ION EXCHANGE RESIN
The set of the unit includes a cartridge filter with an ion exchange resin. Upon
long use of the humidifier without replacement of resin a white residue may
appear on the unit and objects next to it.
The white residue is calcium and magnesium comprised in the composition
of ordinary tap water. When the ion exchange resin in the filter expires, they
are released along with steam and settle on the surrounding objects and
surfaces. Though these substances are safe for people, in large amounts they
may have hazardous effect on furniture. By means of an ion exchange filter,
installed at the bottom of the tank, calcium and magnesium are removed
from tap water. At the beginning of operation the ion exchange filter can
make water tea-colored. This doesnt affect safety or operation of the unit.
The ion exchange filter is installed at the bottom of the water tank. To replace
the filter it is necessary to remove a cap by turning it counterclockwise and
then remove the filter also by turning it counterclockwise. The new filter is
installed in the reverse order. To purchase an ion exchange filter, please,
contact the seller.
ENGLISH
5
www.timberk.com electric humidifier
Difference between the
level of current humidity
and readings of a
humidity recorder
is too big
Dirt accumulation
inside an air vent Clean the air vent. Even in one room humidity
can be different depending on the location
The unit is operated in
places, where it is affected
by the environment,
for example, by a window
Install the unit in places, where it cannot be
affected by the environment
Steam has an
unpleasant odor Not fresh water in use
There are remains of
not fresh water or litter
in the water groove
Clean the unit in accordance with the cleaning
and maintenance manual and fill it with fresh
water
Poor atomizing
(insufficient
performance)
Remedy
Defect Possible cause
The unit is operating in
a light mode (low
atomizing frequency)
No defect. If necessary to switch to the intensive
mode, press Steam button in
the manual setting mode and switch the unit
to the intensive operation mode.
Atomizer is clogged Clean the atomizer
Tank water temperature
is too low Set the maximum performance. Humidifiers
performance will be increased in 10 minutes
No atomizing The plug is poorly
inserted into an outlet Connect the plug into an outlet carefully
Red light on the water
indicator has illuminated
and went out (water
tank is completely empty)
Add water to the tank
A white residue appeared
on objects around the
humidifier (salts,
separating from water)
Lime deposits are formed
on the membrane Clean the humidifiers membrane by a special brush
Water demineralization
cartridge is worn down
(ion exchange resin)
Replace the filter cartridge
Table 2.
IMPORTANT!
Useful capacity of an ion exchange filter is about 400 liters. Continuous
use after expiration reduces the capability to filter hard components
(calcium and magnesium) of tap water. As a result, the level of white
residue formation increases.
Standard filter replacement period is about 180 days given the
automatic operation mode (duration of humidification with heating
about 6 hours every day). Filter replacement period can be decreased
depending on different frequency of operation and water quality. Pay
attention to the formation of a white powder.
It is recommended to use softened water from a domestic filter to reduce
salification inside the device
9. CLEANING AND MAINTENANCE OF THE UNIT
Prior to cleaning make sure that the plug is disconnected from an outlet.
Otherwise it may result in an electric shock. Before cleaning, wait until water
in grooves is completely cooled down in order not to burn hands.
8.1 To wipe the external surface of the unit use a damp and soft cloth. To
prevent an electric shock do not scratch and do not damage units elements
upon cleaning.
When cleaning the unit, do not use solvents, benzine, dimethylbenzene, hard
brush, talc powder and other substances other than water.
8.2 Wipe water remains inside the groove under the tank by a damp and soft
cloth. To remove water remains on small parts you can use the brush, and
then wipe them again with a soft cloth. Clean the unit once or twice a week.
8.3 If there is dirt on the membrane, clean it by means of a brush. Clean the
unit once or twice a week.
8.4 Use a brush to remove water remains on the surface of the nozzle and
then wipe it again by a soft cloth. Clean the unit once or twice a week.
8.5 Clean the water tank and the atomizer by pure water. Clean the cap
carefully, without applying much effort, otherwise it may result in water
leakage through the cap.
Once water remains are removed from the surface of the atomizer, wipe it by
a soft cloth. Clean the external surface of the unit by a damp and soft cloth.
6
10. TROUBLESHOOTING
In case of emergencies resort to troubleshooting methods, given in tables.
www.timberk.com electric humidifier
11. UTILIZATION
If you are unable to solve issues by means of mentioned methods, contact
a service center.Life of the humidifier is 2 years.
Upon expiration of the humidifier it must be disposed in accordance with
regulations, rules and by means, currently in force at a disposal station.
The used water has a
hight content of calcium
and magnesium
Use softened water from domenic filter
1.
,
.
.
,
.
,
.
,
.
.
40 60%.
,
,
(
).
,
, , ,
,
, ,
,
,
,
,
,
,
.
2.
.
,
.
,
.
.
,
.
, ,
.
( )
, ,
,
,
. ,
.
, ,
.
,
, ,
,
!
Timberk. .
, !
1. ......................................................................................................7
2. ......................................................................................7
3. ..............................................................................8
4. ...................................................................................................9
5. ..........................................................................................9
6. ........................................................................10
7. .........................................................................................10
8. - ...............................................11
9. .....................................................................11
10. ............................................................12
11. ...........................................................................................12
12. ........................................................................13
7
www.timberk.com
.
.
. -
.
:
.
,
.
.
.
: ;
;
/ ;
.
.
,
. ,
,
, .
, -
, .
- ,
, , ..
.
.
,
, ..
,
.
. ,
.
.
.
.
,
.
,
,
. , -
,
.
.
.
3.
,
,
, / 220/50
30
IPX0
0,136
3,5
,
300
, /
1
269x165x269
II
,
, 1,91
8www.timberk.com
( \
),
, \
\ .
, +\- 5-20%
( ).
. 2
1 - *
2 -
3 -
4 - - (
)
5 - ;
6 -
7 -
8 -
9 -
10 -
11 - /
12 - 1 12
13 - /
14 -
15 - -
80%
16 - -
40%
,
.
( ).
,
.
5.
1. 1 .
2. 1 .
3. 1 .
4. 1 .
5. - 1.
* 360°,
.
1 2
3
4
5
6
7
8
4. (. 1,2)
. 1
9
10
11
12
13
14
15
16
9
www.timberk.com
7. (. 2)
,
.
«Power», (
),
.
,
. ,
. 1025
.
,
, -
(15) (16).
.
, ,
(14),
(, , ).
(9).
.
(12),
1 - 12 .
(13).
()
.
,
(
). .
!
1. , ,
( ),
!
2. ,
.
.
3.
, ,
, ,
( 40°) . .
.
4.
.
.
5. .
, .
.
.
6.
.
6.
.
, , .
.
.
.
1. , .
2. .
3. .
4. .
5. .
. ,
.
.
.
6. .
10 www.timberk.com
!
, -
, . - ,
. -
25 .
,
« ».
, . (. 6 «
»)
«POWER»,
,
.
.
8. -
-
.
.
,
.
.
,
.
,
,
.
. .
. ,
, ,
.
.
.
!
400
.
( ) .
.
180 .
.
.
9.
,
. ,
.
, .
.
.
, ,
, , ,
.
.
, .
.
,
.
.
11
www.timberk.com
.
,
.
.
.
10.
, 2.
.
!
,
,
,
.
.
.
.
,
.
,
, .
.
.
(
)
2
(
)
.
«Steam»
.
10
(
)
(,
)
(
)
-
,
,
,
,
12 www.timberk.com
11.
2 .
, ,
.
12.
13
www.timberk.com
:
. RU.0001.11AB71.
"". : 123308. . , .
, .3, . 1, . 323;
: 115162, . , . 28, 4, .
+7 495 6044266, +7 495 6044266.
:
52161.2.30-2007,
51318.14.1-2006 .4,
51318.14.2-2006 .5,7,
51317.3.3-2008,
51317.3.2-2006 .6,7
: RU C-IL.AB71.B.00081
: 5.07.2012 4.07.2015
*:
« » , 10, ,
88000
/ +972-8-637-88-311
*:
OOO «»
: . , . , 1, .1, 606
/ (499) 638-26-77
:
+ 7 (495) 6275285
* , ,
\ \ .
, ,
.
EEC 89/336,
,
.
.
Timberk ,
Timberk , ,
,
, ,
.
14 www.timberk.com
15
www.timberk.com
Timberk
.
Timberk,
,
:
1.
2.
3.
(
)
:
1.
2.
3. ,
c 10%,
4.
.
RU
BY
KG
KZ
UA
AK
TJ
()
.
OS
CIS
www.timberk.ru
www.timberk.com
ÀÂ71
This manual suits for next models
1
Table of contents
Other Timberk Humidifier manuals
Timberk
Timberk THU UL 09 (O) User manual
Timberk
Timberk T-HU5.2-A21E-W User manual
Timberk
Timberk THU UL 26 (PW) User manual
Timberk
Timberk THU UL 17 User manual
Timberk
Timberk THU UL 11 User manual
Timberk
Timberk Harmony Series User manual
Timberk
Timberk THU UL 03 (GN) User manual
Timberk
Timberk THU UL 05 User manual
Timberk
Timberk T-HU6-A19E-W User manual
Timberk
Timberk THU MINI 02 User manual
Timberk
Timberk H2O Series User manual
Timberk
Timberk THU UL 19 GU User manual
Timberk
Timberk TAW H6 D User manual
Timberk
Timberk THU UL 03 (BU) User manual
Timberk
Timberk T-HU3.5-A15E-W User manual
Timberk
Timberk THU 14 E User manual
Timberk
Timberk THU UL 08 User manual
Timberk
Timberk THU UL 43 E1 User manual
Timberk
Timberk THU MINI 01 (W) User manual
Timberk
Timberk T-HU6-A20M-W User manual
Popular Humidifier manuals by other brands
Tecnomac
Tecnomac T 98 E H4 instruction manual
DriSteem
DriSteem TCI-W11-U-H Installation, operation and maintenance manual
Air-O-Swiss
Air-O-Swiss 2055D Quick setup guide
Honeywell Home
Honeywell Home HC18A installation instructions
HoMedics
HoMedics TotalComfort UHE-WMTF185 instruction manual
Kenmore

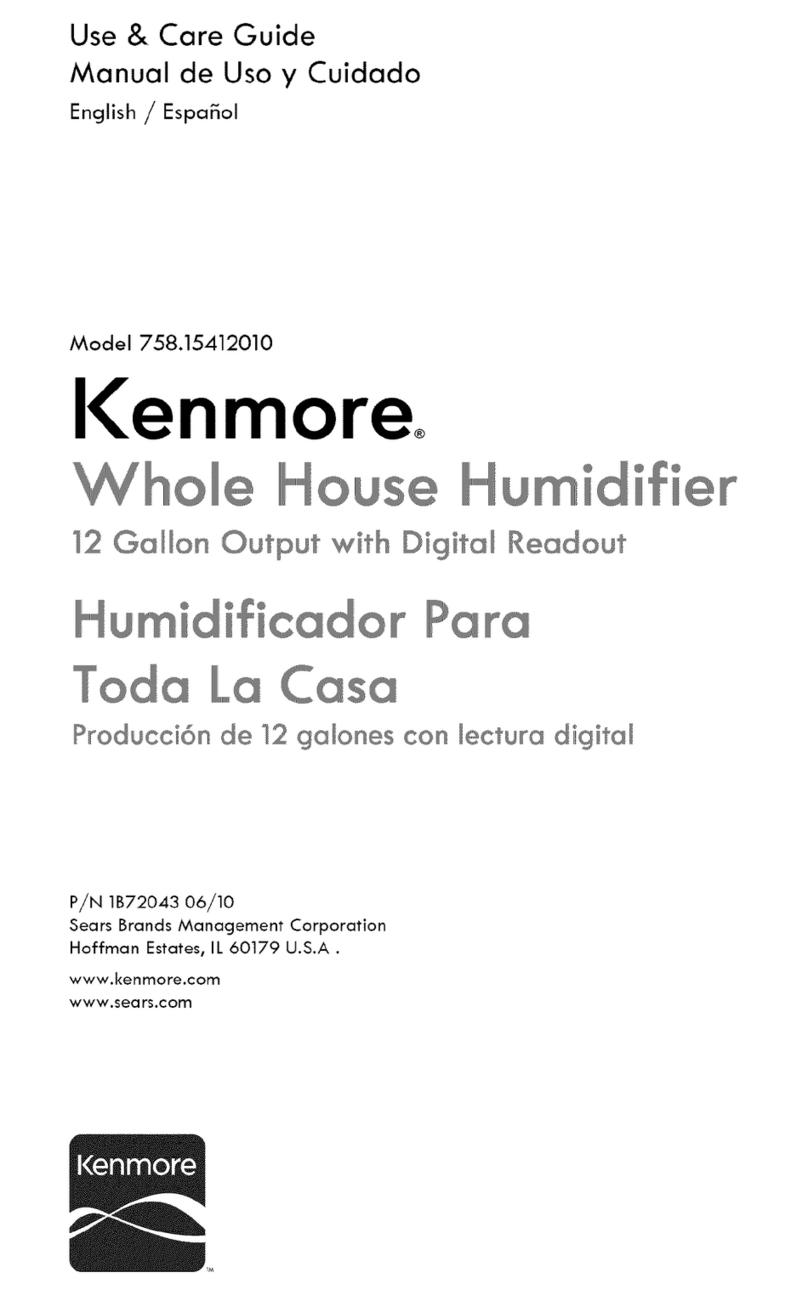

Kenmore 758.15412010 Use & care guide
