Timberline 75U05.01 User manual

Hand-Crank Chain-Saw Sharpener
(75U05.01)
The following instructions were provided by the manufacturer.
PLEASE READ BEFORE USE
Chainsaws are dangerous. Always use
caution when handling. Wear gloves to
prevent injury. Be sure chainsaw is turned
off, unplugged if electric, and cooled down
before sharpening.
Place chainsaw on flat surface pointing
towards you. Place tool on saw with side
set screws on side A. Make sure these
are loosened. Insert carbide cutter into guide and align
into a chain cutting tooth.
The carbide should now be inserted into
the guide. The tool should rock on the
carbide. FIND BALANCE POINT where
neither end of tool touches chain. Lock Pull out carbide. Pull chain forward to
test that it moves freely through tool. If
not, repeat step 3 and find correct
balance point.
this position by tightening the 2 outer
side set screws.

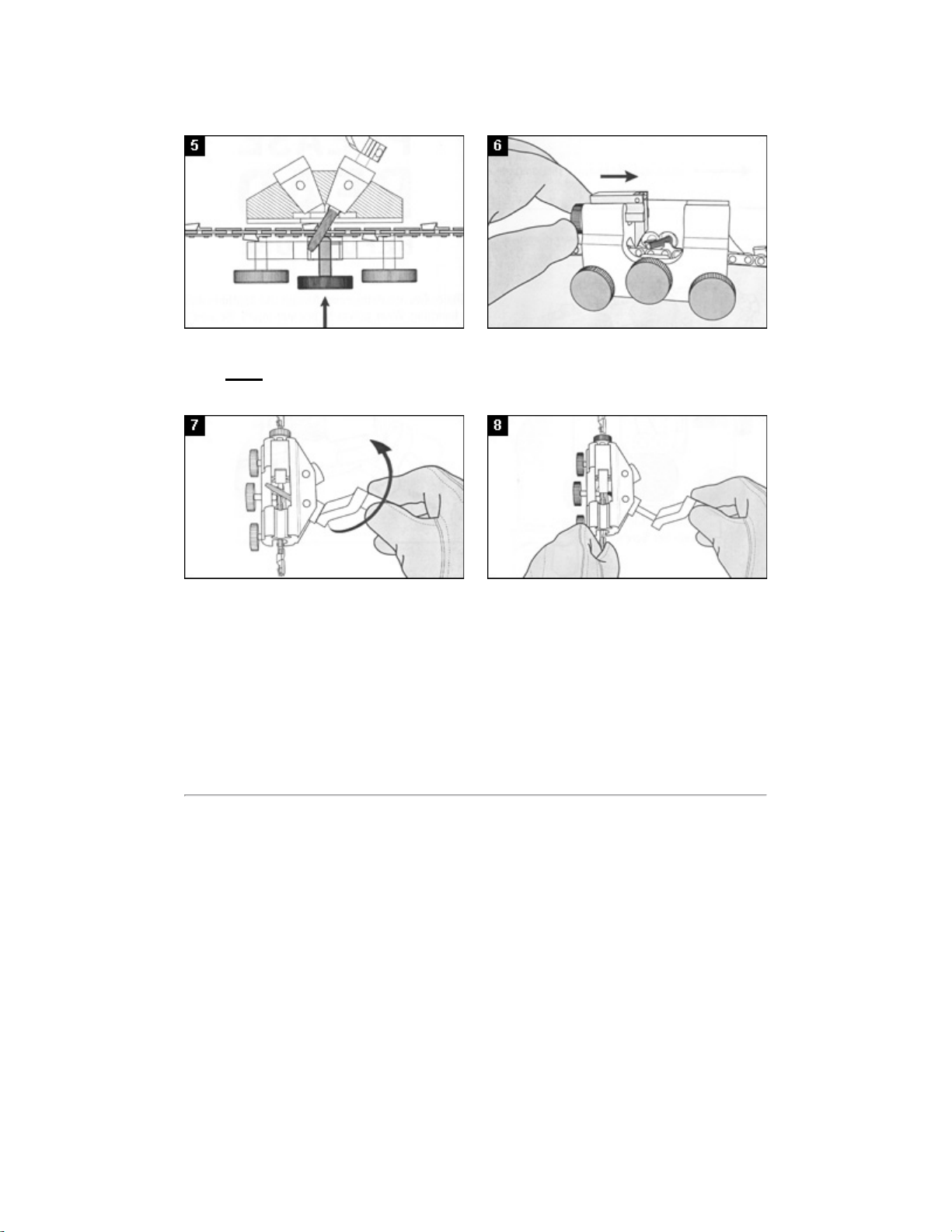

Reinsert carbide into guide and chain
tooth. Tighten middle side set screw to
apply slight side pressure via the spring
clip to keep the chain vertical if needed. Tighten the Rear Thumbscrew until the
Pawl pushes against the chain's tooth.
Pull carbide out and tighten rear
thumbscrew approx. 1/4 turn (this
adjustment controls the amount of
material shaved from the chain tooth).
Turn the handle and push the carbide
completely into the tooth.
* Turn the handle clockwise - NEVER
COUNTERCLOCKWISE. Carbide
should not bind and shave only small
amount off chain's tooth.
Pull carbide out and pull chain forward
to sharpen the next tooth. The
thumbscrew should not be adjusted
again. This insures all teeth are
sharpened the same amount making the
entire chain uniform and precise.
