TIS PL-171000 User manual
This product is a wireless audio streamer with
capability to support multiroom and multizone
music control via local wireless networks, Bluetooth
connections and TIS App.
PRODUCT INFORMATION
BARCODE (UPC-A)

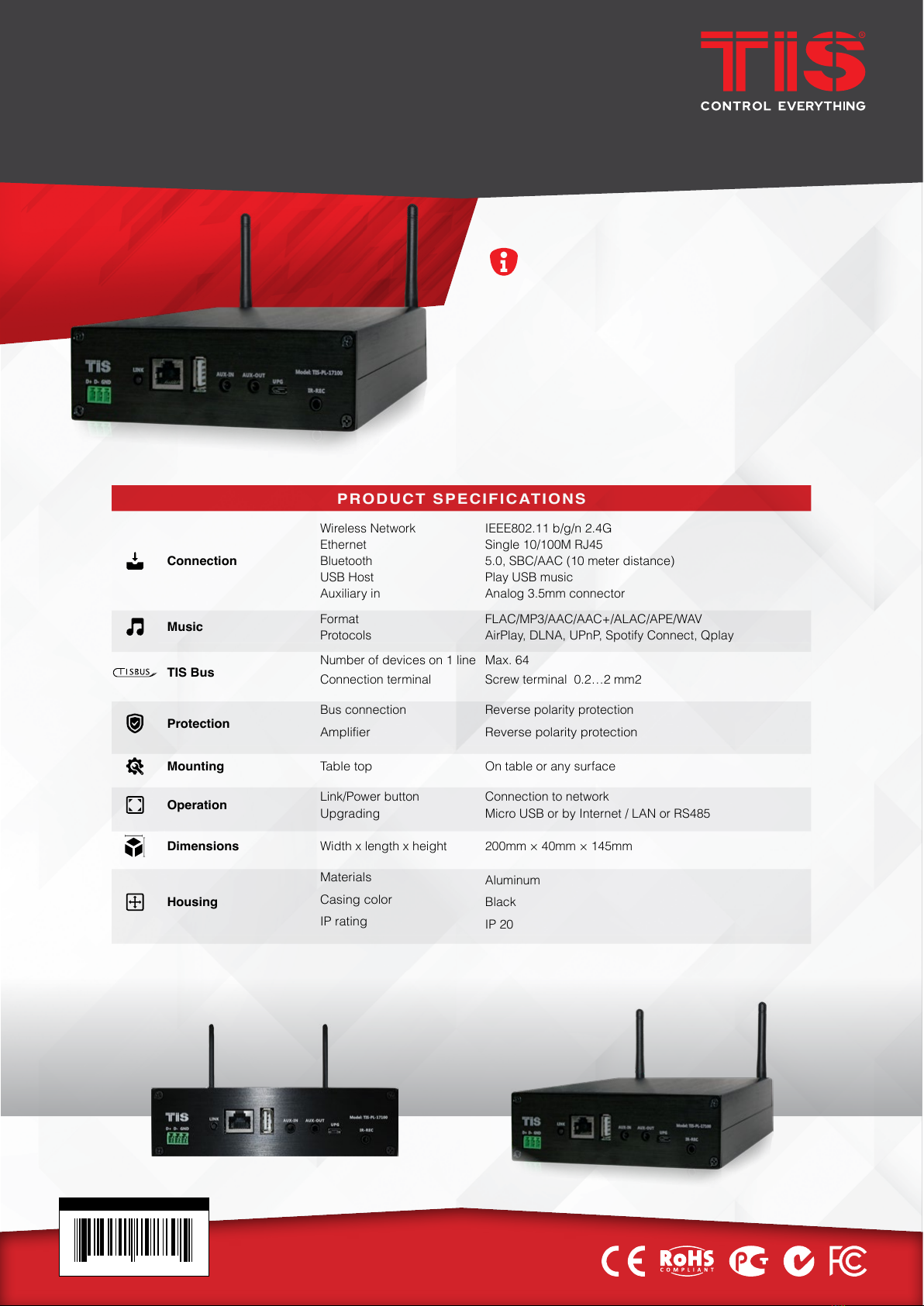

PRODUCT SPECIFICATIONS
Connection
Wireless Network IEEE802.11 b/g/n 2.4G
Ethernet Single 10/100M RJ45
Bluetooth 5.0, SBC/AAC (10 meter distance)
USB Host Play USB music
Auxiliary in Analog 3.5mm connector
Music
Format FLAC/MP3/AAC/AAC+/ALAC/APE/WAV
Protocols AirPlay, DLNA, UPnP, Spotify Connect, Qplay
TIS Bus
Number of devices on 1 line Max. 64
Connection terminal Screw terminal 0.2…2 mm2
Protection
Bus connection Reverse polarity protection
Amplifier Reverse polarity protection
Mounting Table top
On table or any surface
Operation
Link/Power button Connection to network
Upgrading Micro USB or by Internet / LAN or RS485
Dimensions
Width x length x height 200mm × 40mm × 145mm
Housing
Materials
Aluminum
Casing color
Black
IP rating
IP 20
6 58921 79880 5
SMART AUDIO STREAMER
Wireless 4-Zone Player
INSTALLATION MANUAL
Model: TIS-PL-171000
INSTALLATION MANUAL
MODEL : TIS-PL-171000
Smart audio Streamer
2
www.tiscontrol.com
TIS CONTROL LIMITED
Wanchai, Hong Kong
TIS CONTROL PTY LIMITED
SA , AUSTRALIA
Copyright © 2022 TIS, All Rights Reserved
TIS Logo is registered trademark of TIS CONTROL.
All of the specification are subject to change without notice.
Data Cable
For Ethernet connection Use Cat5e or
Cat6 Cable
For TIS-BUS connection use screened
standard RS485 data cable with four
twisted pairs. Congure devices in a
“Daisy Chain.”
Do not cut or terminate live data cables.
Warranty
There is a Two-Year warranty provided
by law. The hologram warranty seal and
product serial number are available on
each device.
Read Instructions
We recommend that you read this
Instruction Manual before installation.
Safety instructions
Electrical equipment should only be
installed and tted by electrically skilled
persons.
Failure to observe the instructions may
cause damage to the device and other
hazards. These instructions are an integral
part of the product and must remain with
the end customer.
Programming
This device can be tested and
programmed manually. Advanced
programming requires knowledge of
the TIS Device Search software and
instruction in the TIS advanced training
courses.
Simple Installation
You can use either the wall mount
installation , or simply put it o table.
Mounting Location
Position the TIS-PL-17100 on a stable
surface within clear reception of the local
Wi-Fi signal and where controls and
connections are accessible.
INSTALLATION MANUAL
MODEL : TIS-PL-171000
Smart audio Streamer
3
www.tiscontrol.com
TIS CONTROL LIMITED
Wanchai, Hong Kong
TIS CONTROL PTY LIMITED
SA , AUSTRALIA
Copyright © 2022 TIS, All Rights Reserved
TIS Logo is registered trademark of TIS CONTROL.
All of the specification are subject to change without notice.

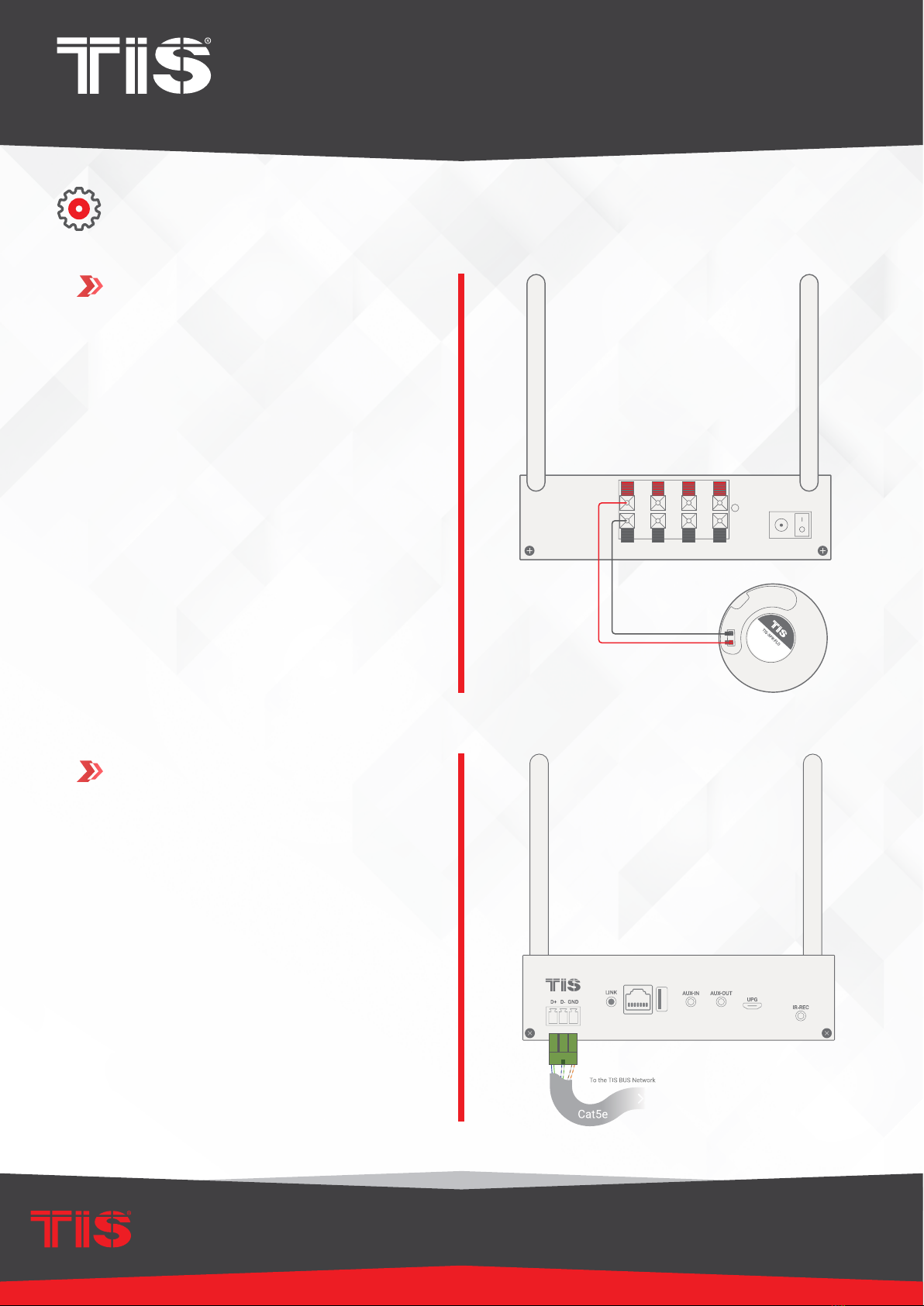

INSTALLATION STEPS
1Connect the speakers to the respecting
terminals.
2Link the Bus cable to TIS-BUS network
in case of operating the Matrix in 2-4
separated audio zones.
INSTALLATION MANUAL
MODEL : TIS-PL-171000
Smart audio Streamer
4
www.tiscontrol.com
TIS CONTROL LIMITED
Wanchai, Hong Kong
TIS CONTROL PTY LIMITED
SA , AUSTRALIA
Copyright © 2022 TIS, All Rights Reserved
TIS Logo is registered trademark of TIS CONTROL.
All of the specification are subject to change without notice.

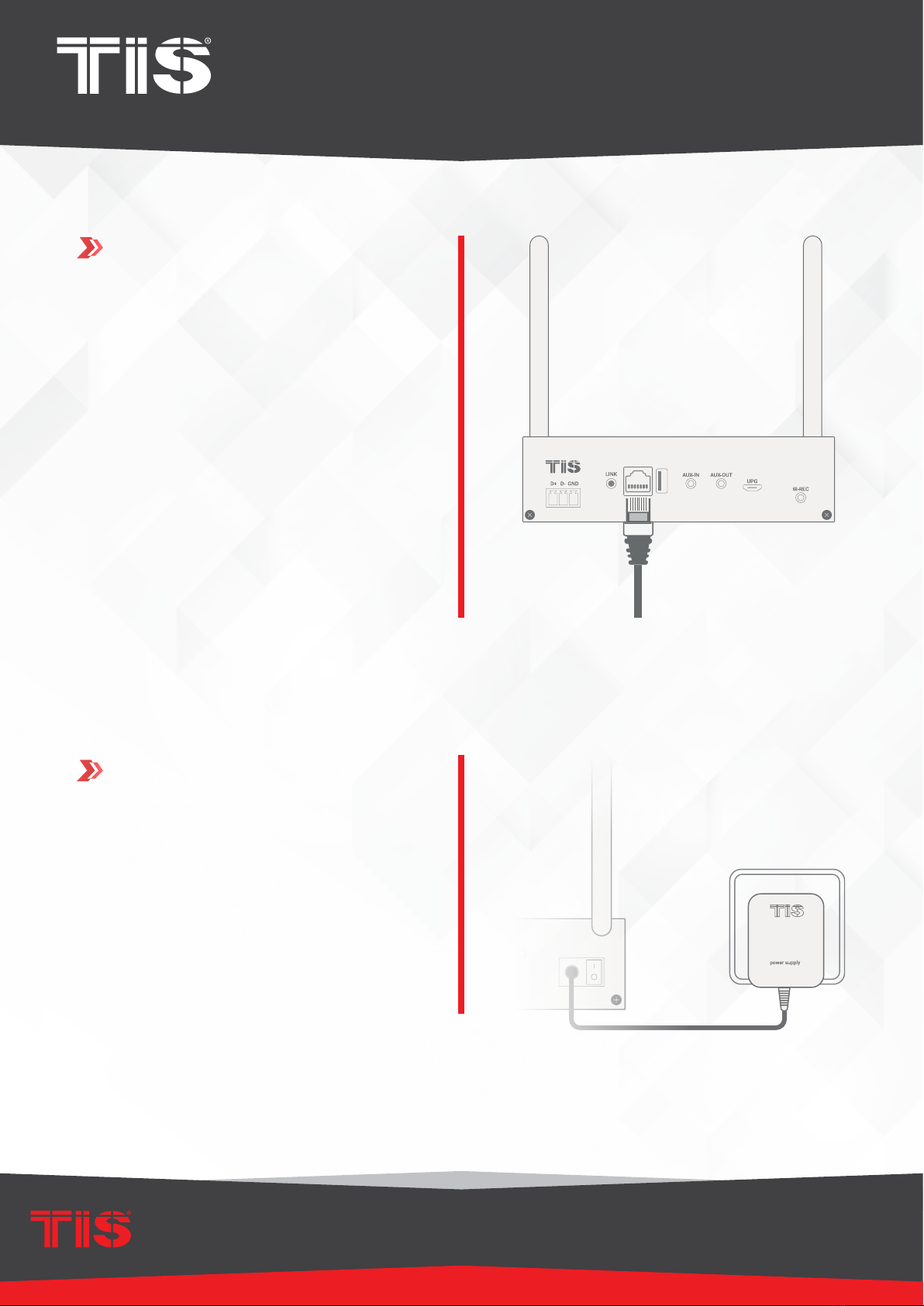

4Plug the power supply to the power
3Connect the Ethernet cable to your
network if required.
INSTALLATION MANUAL
MODEL : TIS-PL-171000
Smart audio Streamer
5
www.tiscontrol.com
TIS CONTROL LIMITED
Wanchai, Hong Kong
TIS CONTROL PTY LIMITED
SA , AUSTRALIA
Copyright © 2022 TIS, All Rights Reserved
TIS Logo is registered trademark of TIS CONTROL.
All of the specification are subject to change without notice.
Hold the LINK button, then, press “On”
button on the rear side of the player.
1
once you power on the device , wait 3
seconds then release the button
2
PAIRING
3”
INSTALLATION MANUAL
MODEL : TIS-PL-171000
Smart audio Streamer
6
www.tiscontrol.com
TIS CONTROL LIMITED
Wanchai, Hong Kong
TIS CONTROL PTY LIMITED
SA , AUSTRALIA
Copyright © 2022 TIS, All Rights Reserved
TIS Logo is registered trademark of TIS CONTROL.
All of the specification are subject to change without notice.

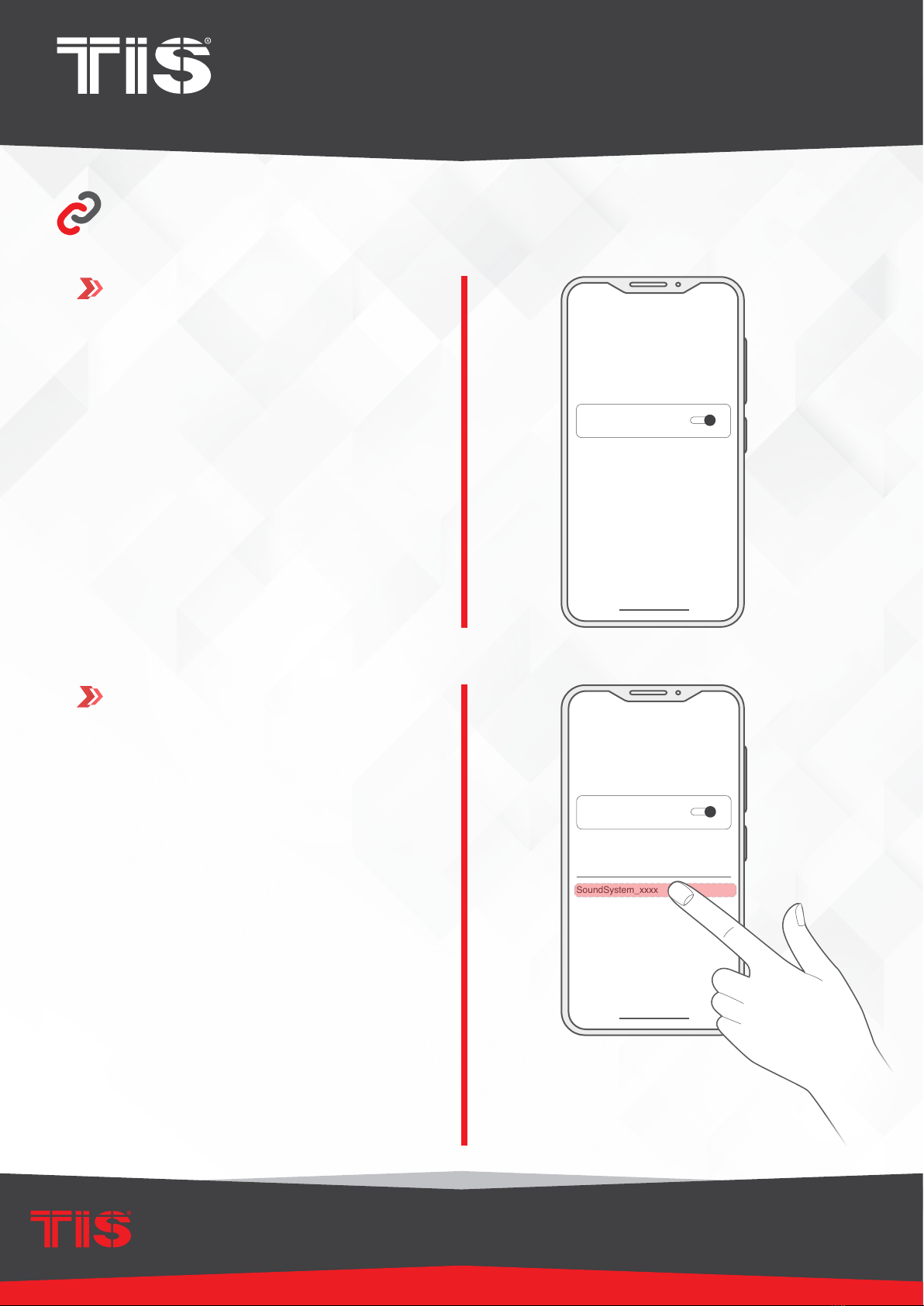

1Turn on your phone’s GPS.
LINKING TO NETWORK VIA WI-FI
Location
on
2Go to your mobile Wi-Fi settings and
search for SoundSystem_xxxx WiFi and
connect.
Wi-Fi
SoundSystem_xxxx
on
Avaialble networks
INSTALLATION MANUAL
MODEL : TIS-PL-171000
Smart audio Streamer
7
www.tiscontrol.com
TIS CONTROL LIMITED
Wanchai, Hong Kong
TIS CONTROL PTY LIMITED
SA , AUSTRALIA
Copyright © 2022 TIS, All Rights Reserved
TIS Logo is registered trademark of TIS CONTROL.
All of the specification are subject to change without notice.

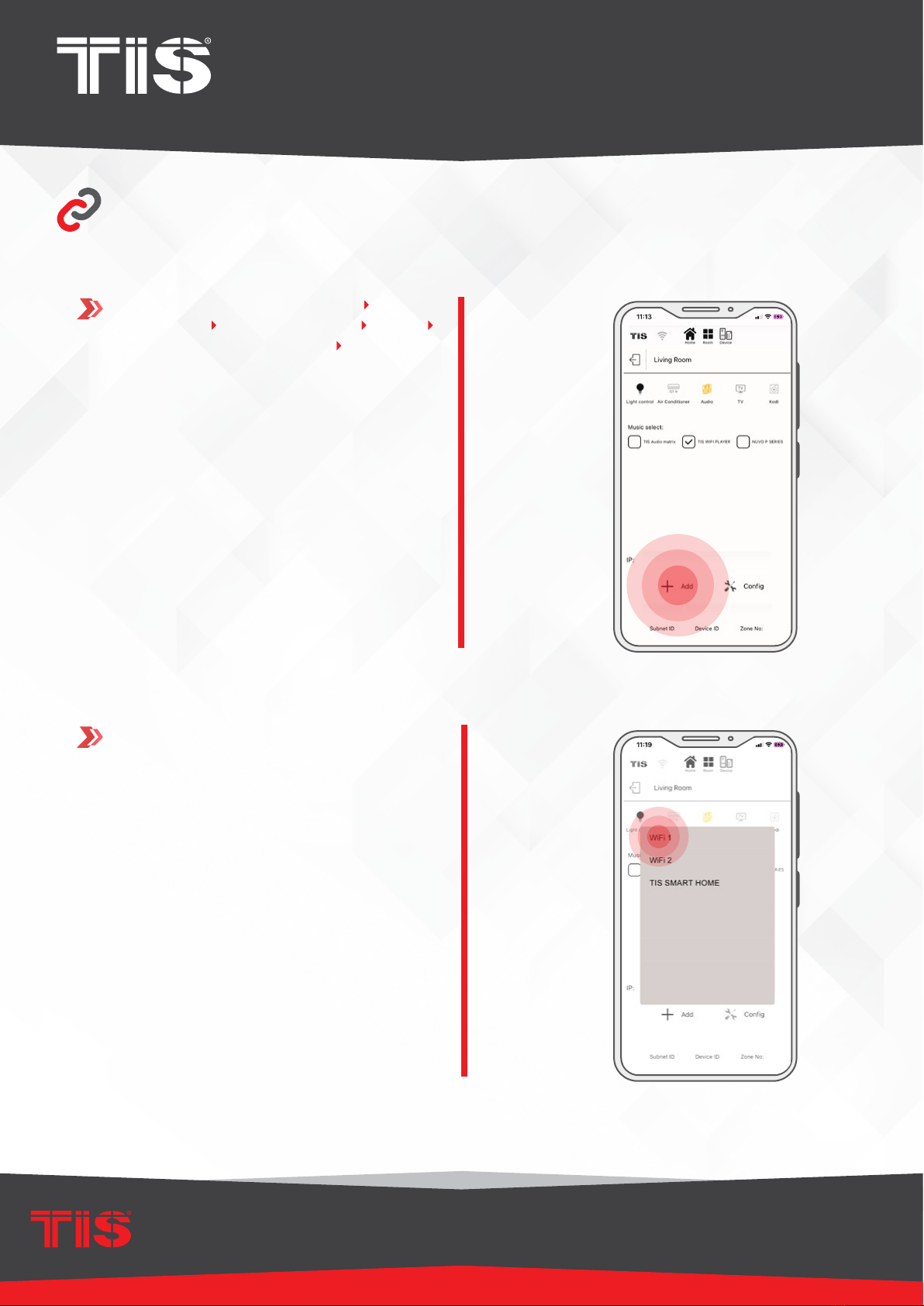

Go back to TIS App setting Rooms
manager select the room Audio
select TIS WiFi PLAYER press Add
1
APP CONFIGURATION
Select the router SSID you want your
player to be connected to (enter password
if required)
then select continue
2
INSTALLATION MANUAL
MODEL : TIS-PL-171000
Smart audio Streamer
8
www.tiscontrol.com
TIS CONTROL LIMITED
Wanchai, Hong Kong
TIS CONTROL PTY LIMITED
SA , AUSTRALIA
Copyright © 2022 TIS, All Rights Reserved
TIS Logo is registered trademark of TIS CONTROL.
All of the specification are subject to change without notice.
3Once connection is nished, it will
automatically check for new updates.
On TIS App, press on Add button and
select it the device to be added to the
room.
4
Wi-Fi
on
Avaialble networks
WiFi 1
WiFi 2
TIS SMART HOME
INSTALLATION MANUAL
MODEL : TIS-PL-171000
Smart audio Streamer
9
www.tiscontrol.com
TIS CONTROL LIMITED
Wanchai, Hong Kong
TIS CONTROL PTY LIMITED
SA , AUSTRALIA
Copyright © 2022 TIS, All Rights Reserved
TIS Logo is registered trademark of TIS CONTROL.
All of the specification are subject to change without notice.

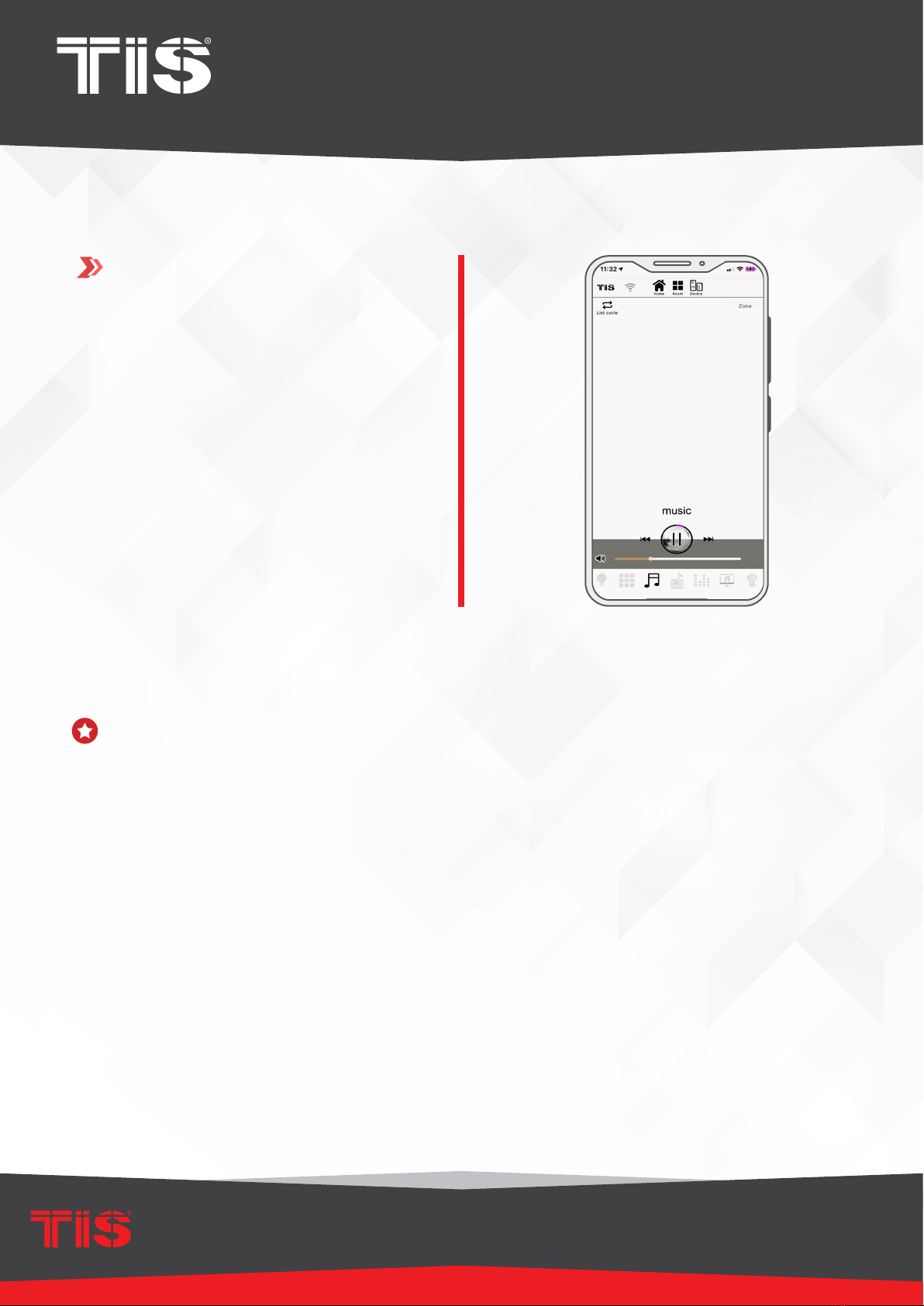

After you add the device, it appears in the
devices section. You can start streaming
music.
5
NOTICE
▸
If you change to another router, or the password of the connected router is changed, long
press the POWER button for 5 secs in Wi-Fi mode to reset the connection.
▸
Holding the POWER button and plugging in the power can force the device to enter the Wi-
Fi mode. Device will automatically connect to the router that has been congured previously.
INSTALLATION MANUAL
MODEL : TIS-PL-171000
Smart audio Streamer
10
www.tiscontrol.com
TIS CONTROL LIMITED
Wanchai, Hong Kong
TIS CONTROL PTY LIMITED
SA , AUSTRALIA
Copyright © 2022 TIS, All Rights Reserved
TIS Logo is registered trademark of TIS CONTROL.
All of the specification are subject to change without notice.
CONNECTION VIA LAN
▸
(Note: your smartphone and the
device must be connected to the
same network)
Plug in the wired cable to the RJ45
Ethernet, the device will show up on the
app in about 10 seconds. 10”
CONNECTION VIA USB
Connect the USB drive to the USB
port
1
INSTALLATION MANUAL
MODEL : TIS-PL-171000
Smart audio Streamer
11
www.tiscontrol.com
TIS CONTROL LIMITED
Wanchai, Hong Kong
TIS CONTROL PTY LIMITED
SA , AUSTRALIA
Copyright © 2022 TIS, All Rights Reserved
TIS Logo is registered trademark of TIS CONTROL.
All of the specification are subject to change without notice.

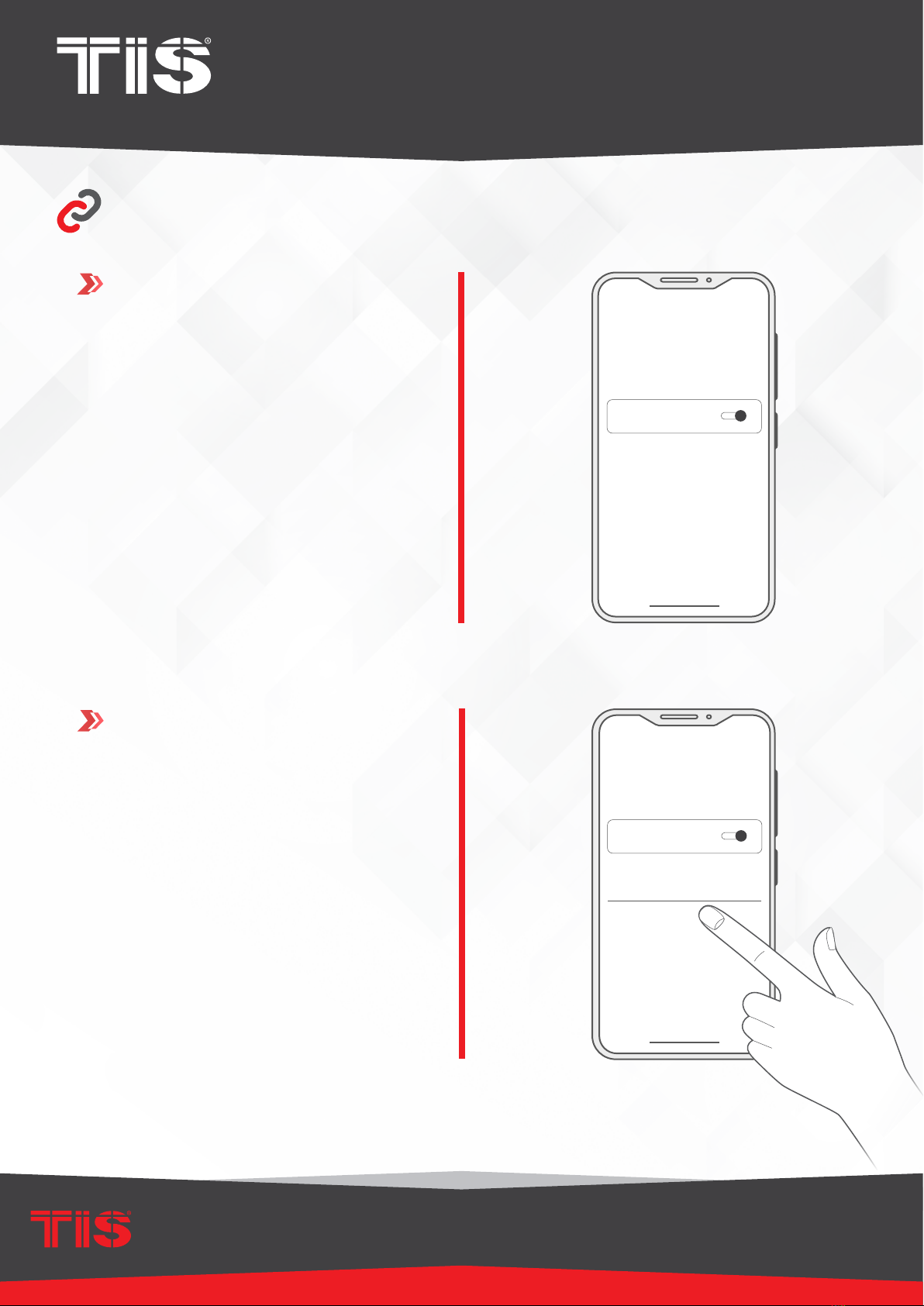

CONNECTION VIA BLUETOOTH
1
2
To use Bluetooth, please switch to
Bluetooth via app or use the remote
controller.
Then, nd Bluetooth device
SoundSystem_XXXX from your phone
Bluetooth setting and pair it.
Bluetooth
SoundSystem_xxxx
on
Avaialble devices
Bluetooth
on
