TIS ADS-2R-2Z User manual

The ADS Relay is a Wi-Fi module with 2-3 relays.
It can be used to control lights and shutters and
can connect to the Internet for remote control via
the TIS app. It includes 2-3 dry inputs that can be
linked to any mechanical wall switch or 3rd-party
sensor.
PRODUCT INFORMATION
TIS AIR ADS 2-3 RELAYS
INSTALLATION MANUAL
Model: ADS-2R-2Z, ADS-3R-3Z
RELAY MODULE wITh wI-FI COMPATIbILITY
PRODUCT SPECIFICATIONS
Power supply
Input Voltage 110-230 VAC 50/60 Hz
Output Power 3W / 12V
Protection Built in Protection fuse
Current consumption 10-20 mA / 12 V DC
Output
Number of relays 2 - 3 (refer to Model number)
Nominal voltage 110 / 230 V AC 50/60 Hz
Nominal current per channel 8 A / 230 VAC
Output switching current
Max switching current 10A/230 VAC Resistive
6A/230 VAC florescent
Max Continues current 8A/230 VAC
Max. switching Voltage 277VAC / 30VDC
Output service life Mechanical Endurance > 10,000,000 OPS
Output switching times
Operating time 8 mS (at nomi. Volt)
Releasing time 5 mS (at nomi. Volt)
Max. operating frequency 25 cycle/min
TIS AIR
Number of devices on 1 line Max. 64
Bus voltage 12-32 V DC
Current consumption <60 mA / 24 V DC
Reaction time approx. 30ms
Mounting Free locate Can be installed anywhere
Operating and display
elements
Digital inputs 2 dry inputs for control …
TIS AIR TIS Protocol messages and commands
PRG Button with LED Programming button and status LED.
Upgrading By WIFI Connection
Dimensions (Width × Length × Height) 50mm × 35mm × 50mm
Housing
Materials PC fire proof
Internal Parts color White
IP rating IP 50
bARCODE (UPC-A)
6 58921 79622 1
bARCODE (UPC-A)
6 58921 79621 4

2
INSTALLATION MANUAL
Model: ADS-2R-2Z, ADS-3R-3Z
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
TIS AIR ADS 2-3 RELAYS
Mounting Location
Install in a dry, indoor area with a suitable
temperature and humidity range.
Electrical wires
The recommended wire size for light
channels is 2.5mm, for the Line, Neutral,
and Load cables. The installer should
consider the total current consumption
when selecting the wires.
warranty
There is a two-year warranty provided
by law. The hologram warranty seal and
product serial number are available on
each device.
Read Instructions
We recommend that you read this
Instruction Manual before installation.
Safety instructions
Electrical equipment should only be
installed and tted by electrically skilled
persons.
Failure to observe the instructions may
cause damage to the device and other
hazards.
These instructions are an integral part of
the product and must remain with the end
customer.
Programming
This device can be tested and
programmed manually. Advanced
programming requires knowledge of
the TIS Device Search software and
instruction in the TIS advanced training
courses.
Simple Installation
it ts on most junction box sizes or can be
located anywhere.

3
INSTALLATION MANUAL
Model: ADS-2R-2Z, ADS-3R-3Z
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
TIS AIR ADS 2-3 RELAYS
INSTALLATION STEPS
2Remove the switch cover. Unscrew and
pull the wall switch out. Take the wires
out of the load and line.
3Find a total of 3-5 wires (3 wires if 1
channel, 4 wires if 2 channels, 5 wires if
3 channels).
1Turn off the power at the main circuit
breaker to turn off voltage supply to the
switch.
Neutral
Live
Switch 1
Switch 2
Earth
WARNING! HIGH VOLTAGE
Circuit Breaker
OFF

4
INSTALLATION MANUAL
Model: ADS-2R-2Z, ADS-3R-3Z
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
TIS AIR ADS 2-3 RELAYS

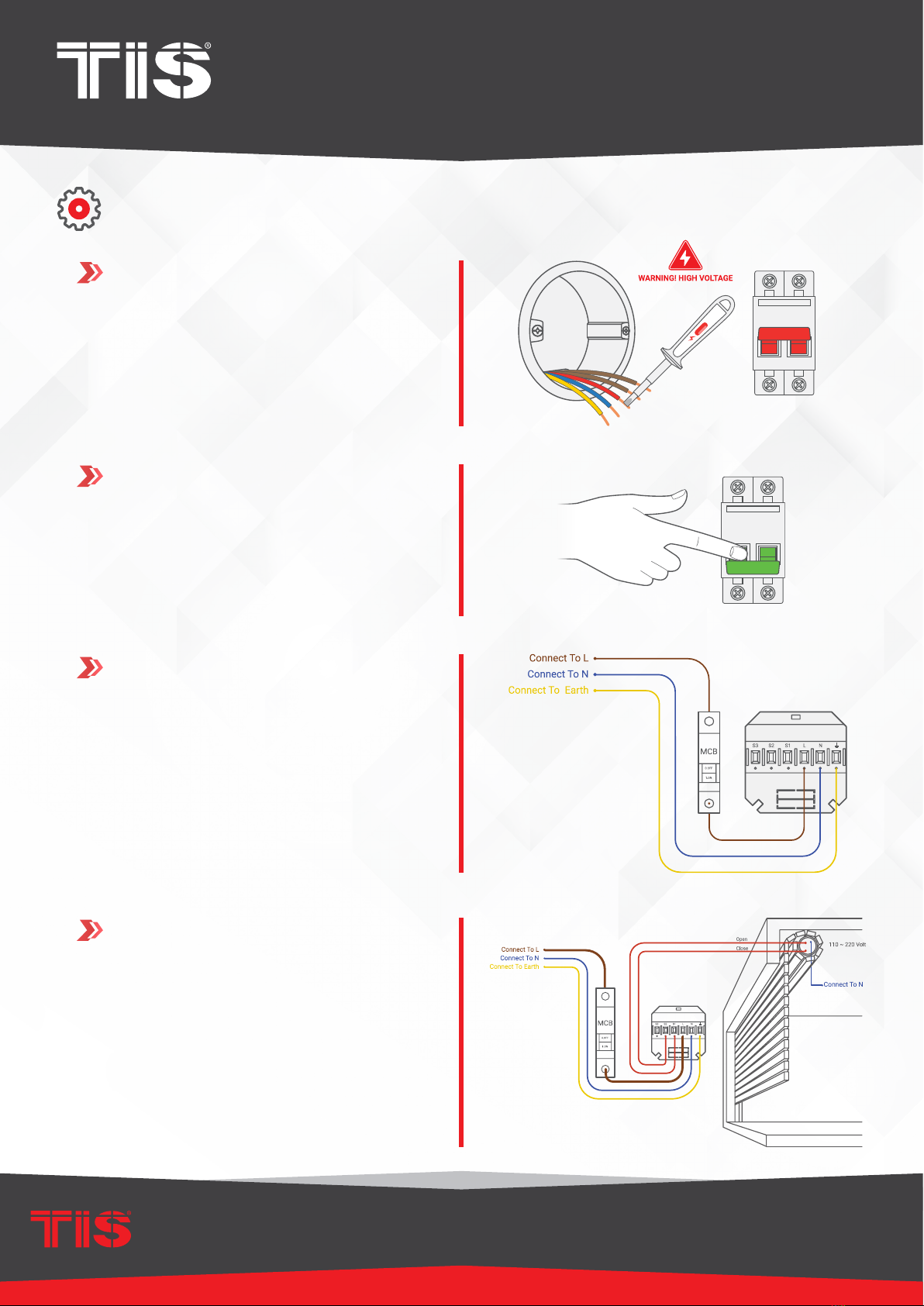

INSTALLATION STEPS
4Turn on the power at the main power
breaker, and carefully identify the live
wire using a voltage tester, and nd the
neutral wire.
5Turn off the main power breaker.
6 Attach the neutral and live wires to the N &
L terminals, respectively.
7 Attach the switch1, 2, & 3 wires to the S1,
S2, & S3 terminals, respectively.
Circuit Breaker
ON
Circuit Breaker
OFF

5
INSTALLATION MANUAL
Model: ADS-2R-2Z, ADS-3R-3Z
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
TIS AIR ADS 2-3 RELAYS
INSTALLATION STEPS
9
8
Turn on the breaker. The module should
turn on accordingly.
Connect the 3 Dry inputs wires to the wall
switch or any 3rd party sensor.
Circuit Breaker
ON

6
INSTALLATION MANUAL
Model: ADS-2R-2Z, ADS-3R-3Z
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
TIS AIR ADS 2-3 RELAYS

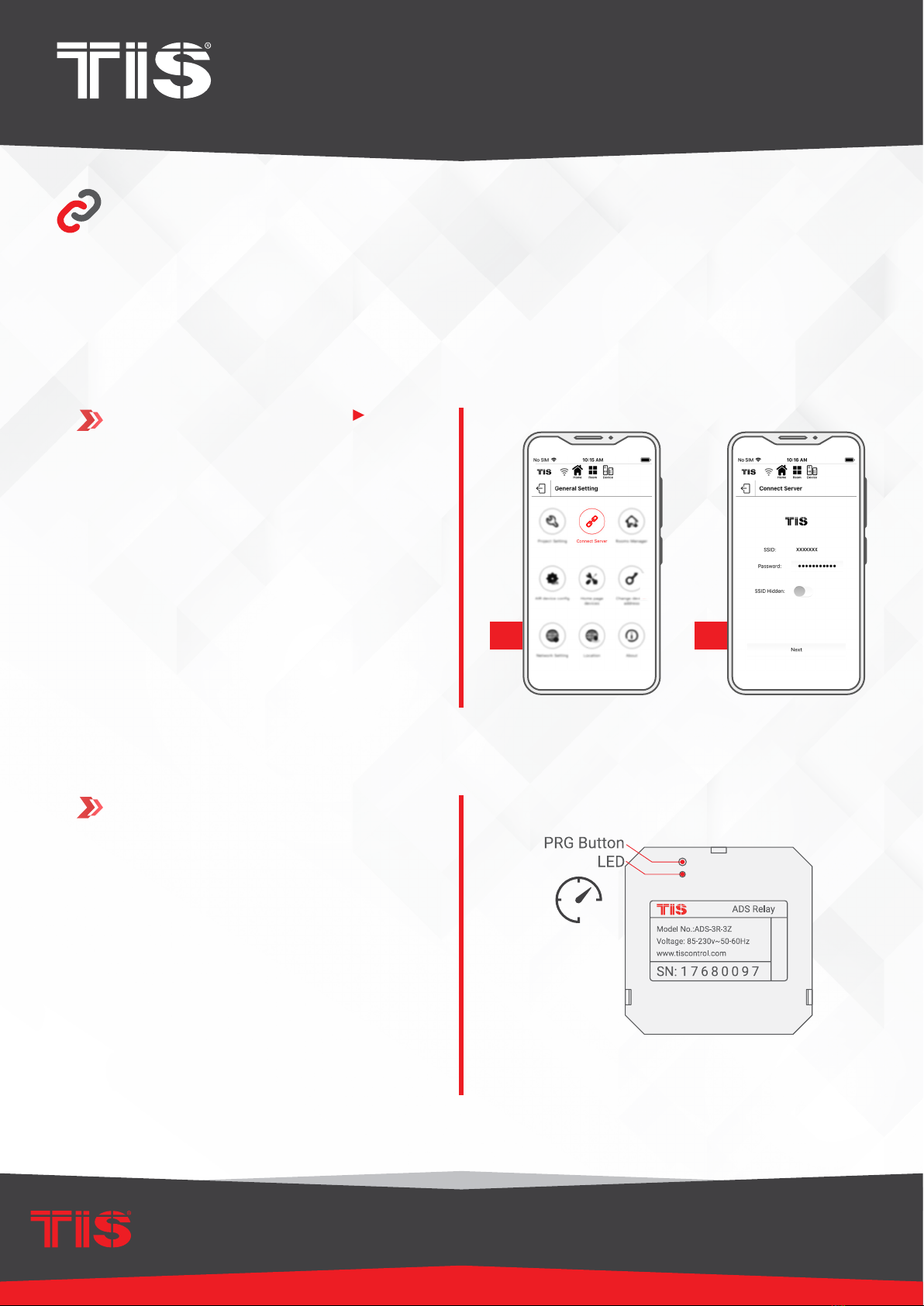

SERVER LINKING
In order for a project to be fully linked to the TIS server, server conguration must be
enabled in just 1 product within that project.
If you have already done that with any other panel, just ignore these steps and proceed to
conguration steps.
To do the server linking, complete the following steps:
2On the module, press and hold the PRG
button for 6 seconds. The PRG LED will
start blinking.
1In the TIS App, go to Settings Connect
Server, and follow the steps by entering
your SSID password.
21
6”

7
INSTALLATION MANUAL
Model: ADS-2R-2Z, ADS-3R-3Z
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
TIS AIR ADS 2-3 RELAYS

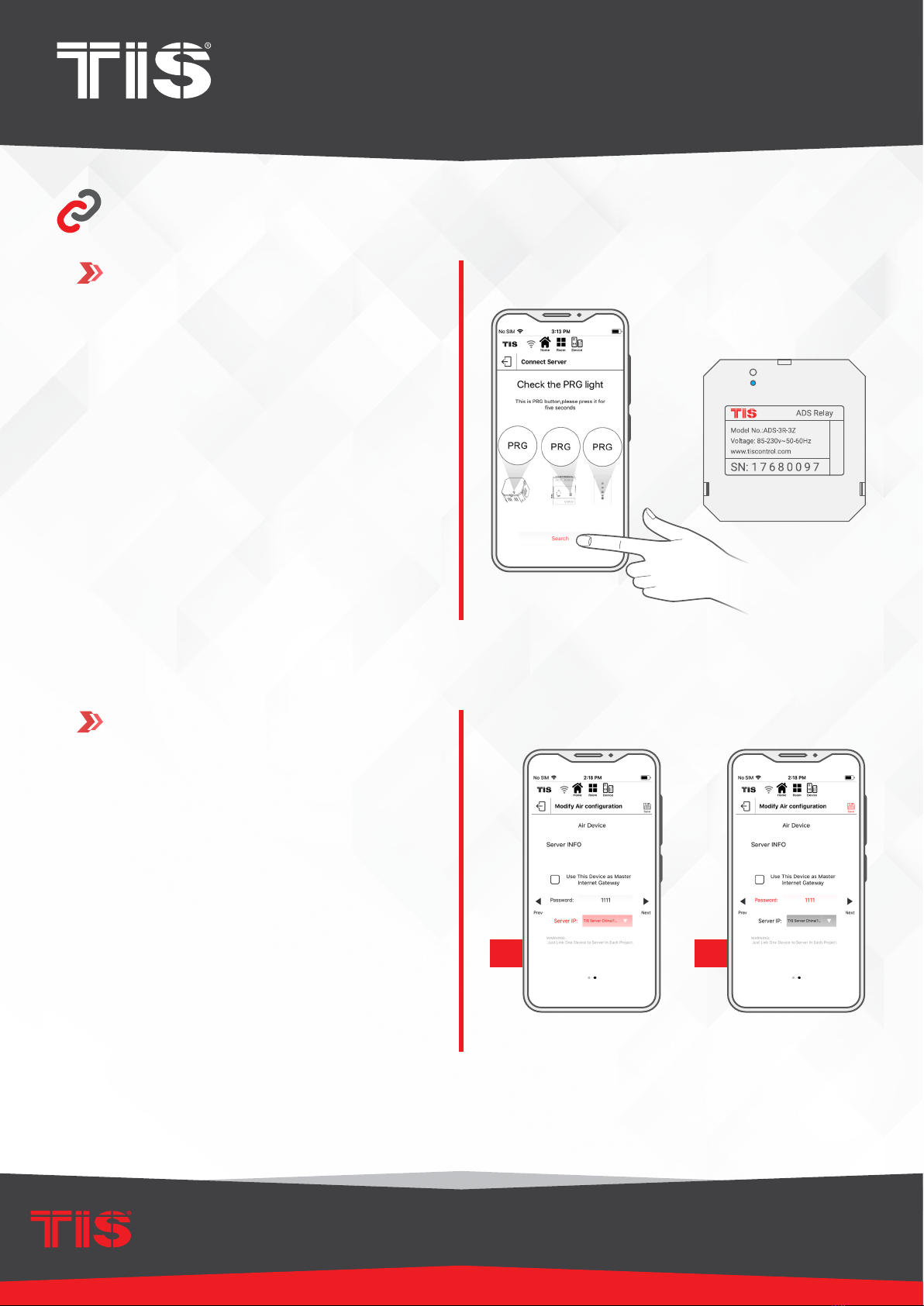

SERVER LINKING
4Select your server option and 4-digit
password. Then, press Save.
3On the TIS app, press Search and wait
for a few seconds. The panel will link to
your Wi-Fi, and the PRG button will turn
blue.
21

8
INSTALLATION MANUAL
Model: ADS-2R-2Z, ADS-3R-3Z
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
TIS AIR ADS 2-3 RELAYS
21
1In the TIS App, go to the Settings AIR
Device Conguration, and follow the
steps by entering your SSID password.
2On the module, press and hold the PRG
button for 6 seconds. The PRG LED will
start blinking.
CONFIGURATION STEPS
3On the TIS app, press Search and wait
for a few seconds. The module will link
to your Wi-Fi, and the PRG LED will turn
blue.
6”

9
INSTALLATION MANUAL
Model: ADS-2R-2Z, ADS-3R-3Z
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
TIS AIR ADS 2-3 RELAYS
2
2
1
1
5 Select the room; then, select channel
names and icons.
4 Select the Relay type (Lights, Curtain).
6 Go to the congured room’s page and
start controlling.
CONFIGURATION STEPS
ADS-2R-2Z ADS-2R-2Z
ADS-2R-2Z

10
INSTALLATION MANUAL
Model: ADS-2R-2Z, ADS-3R-3Z
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
TIS AIR ADS 2-3 RELAYS

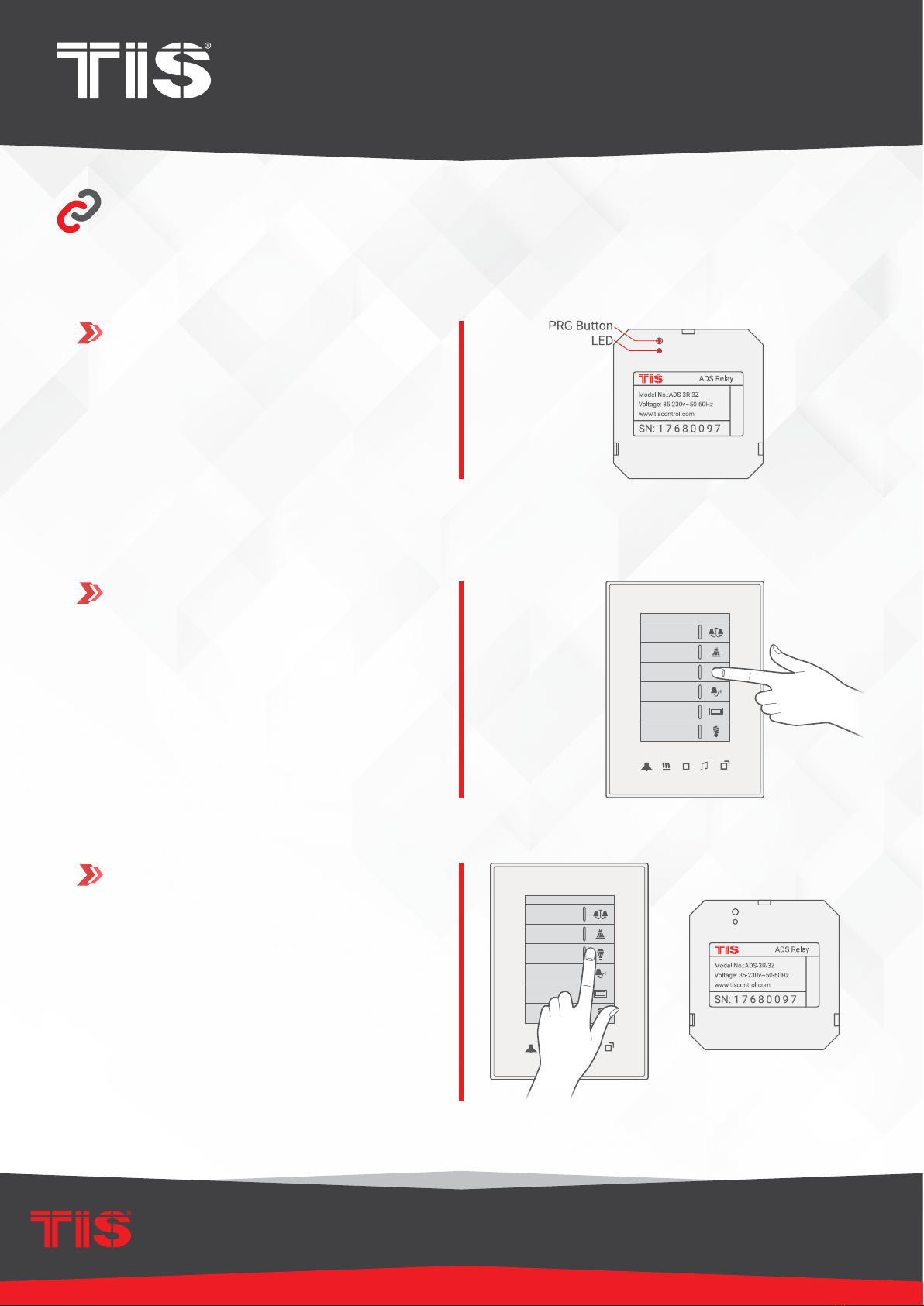

PAIRING (MANUAL PROGRAMMING)
2 Go to any other wall panel and short
press on any lighting button.
3 Test by pressing on the wall panel’s
ON/OFF button. The module relay
should respond by turning ON and OFF
accordingly.
To pair the TIS ADS module with any TIS wall panel buttons, do the following:
CHANDELIER
00-00-00 IN 22
SPOTLIGHT
CEILING
WALL LIGHT
ROPE LIGHT
FLUORESCENT
CHANDELIER
00-00-00 IN 22
SPOTLIGHT
CEILING
WALL LIGHT
ROPE LIGHT
FLUORESCENT
1Short press on the PRG button ve times
in a row until the PRG LED starts to blink
every 2 seconds.
×5

11
INSTALLATION MANUAL
Model: ADS-2R-2Z, ADS-3R-3Z
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
TIS AIR ADS 2-3 RELAYS
USER OPERATION
Use your mobile app or smart wall
switches to control lights ON/OFF.
Notice: Wall switches need to be
congured with this module’s dry inputs
beforehand.
PAIRING (MANUAL PROGRAMMING)
4 The same procedure must be followed
to program other relay channels. The
only exception is that you must press
the PRG button six and seven times
for channels 2 and 3 accordingly. The
following table displays method info in
detail.
METhOD RESPONSE
Channel 1: 5 Short
presses on the PRG
button
PRG LED blinks once
every 2 seconds
Channel 2: 6 Short
presses on the PRG
button
PRG LED blinks twice
every 2 seconds
Channel 3: 7 Short
presses on the PRG
button
PRG LED blinks three
times every 2 seconds

12
INSTALLATION MANUAL
Model: ADS-2R-2Z, ADS-3R-3Z
TIS CONTROL LIMITED
RM 1502-p9 Easey CommBldg
253-261 Hennessy Rd Wanchai
Hong Kong
TEXAS INTELLIGENT SYSTEM LLC
SUITE# 610. 860 NORTH DOROTHY DR
RICHARDSON
TX 75081.USA
Copyright © 2020 TIS, All Rights Reserved
TIS Logo is a Registered Trademark of Texas Intelligent System LLC in the
United States of America. This company takes TIS Control Ltd. in other
countries. All of the Specifications are subject to change without notice.
www.tiscontrol.com
TIS AIR ADS 2-3 RELAYS
TROUbLEShOOTING
PRG button blinks purple
color rapidly
Reason: The panel address conicts with another
device in the TIS network. You need to press and
hold the PRG button for 6 seconds so that the
module can get a new address.
Device’s PRG LED is RED Reason: The device is not connected to Wi-Fi.
Device can’t link to Wi-Fi
router
Reason 1: The device is too far from the WiFi
router.
Reason 2: The SSID or password is not correct.
Reason 3: Some setting in the WIFI router is
preventing new devices from being added.
Other wall panels can’t pair
with the device
Reason 1: Other panel connections are not linked
to the same Wi-Fi network.
Reason 2: The manual programming function is
disabled in the device (default is enabled).
Other wall panels can’t
control the device channels
Reason 1: Other panel connections are not linked
to the same Wi-Fi network.
Reason 2: The programming address is wrong.
