TIS HDBaseT 70 User manual

875730 User Manual
HDBaseT 70
Transmitter & Receiver

875730 User manual
TLS electronics GmbH Contact: [e-mail] 2
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or
adjusting this product. Please keep this manual for future reference.
SURGE PROTECTION DEVICE RECOMMENDED
This product contains sensitive electrical components that may be damaged by
electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the life
of your equipment.

875730 User manual
TLS electronics GmbH Contact: [e-mail] 3
Table of Contents
1. Introduction.........................................................................................4
2. Features...............................................................................................4
3. Panel Description..................................................................................5
4. Connection Diagram....................................................................9
5. Specifications.......................................................................................9
6. Package Contents................................................................................10
7. Maintenance.......................................................................................10
8. Warranty Policy.................................................................................10
9. Limitations of Warranty...............................................................................11
10. Exclusive Remedies.................................................................................12
11.RMA Policy.................................................................................12

875730 User manual
TLS electronics GmbH Contact: [e-mail] 4
Introduction
TLS HDBaseT 70 transmitter and receiver is a 70m (230ft) HDBaseT Extender.
It transmits 1080P@60HZ at 48bit deep color via single Cat5e-AWG24-cable up
to 70 meters (230ft). Bi-directional IR and RS232 can also be transmitted over
the same cable. With support of POH (power over HDBaseT), only one power
supply is needed at either transmitter or receiver.
Features
•HDMI v1.4 and HDCP compliant, support 1080p@60Hz, 3D, 4Kx2K@30Hz
•Support 1080P@60Hz or VESA: 1920x1200@60Hz up to 70m (230ft)
•Dolby TrueHD and DTS-HD master audio pass through HDMI output
•Bi-Directional IR and RS232 pass through.
•Power over HDBaseT supported, only one power supply needed at either
transmitter or receiver side
•With ESD Protection
Note：
：：
：
The POH function is designed for powering compatible transmitter or receiver
units of TLS only.

875730 User manual
TLS electronics GmbH Contact: [e-mail] 5

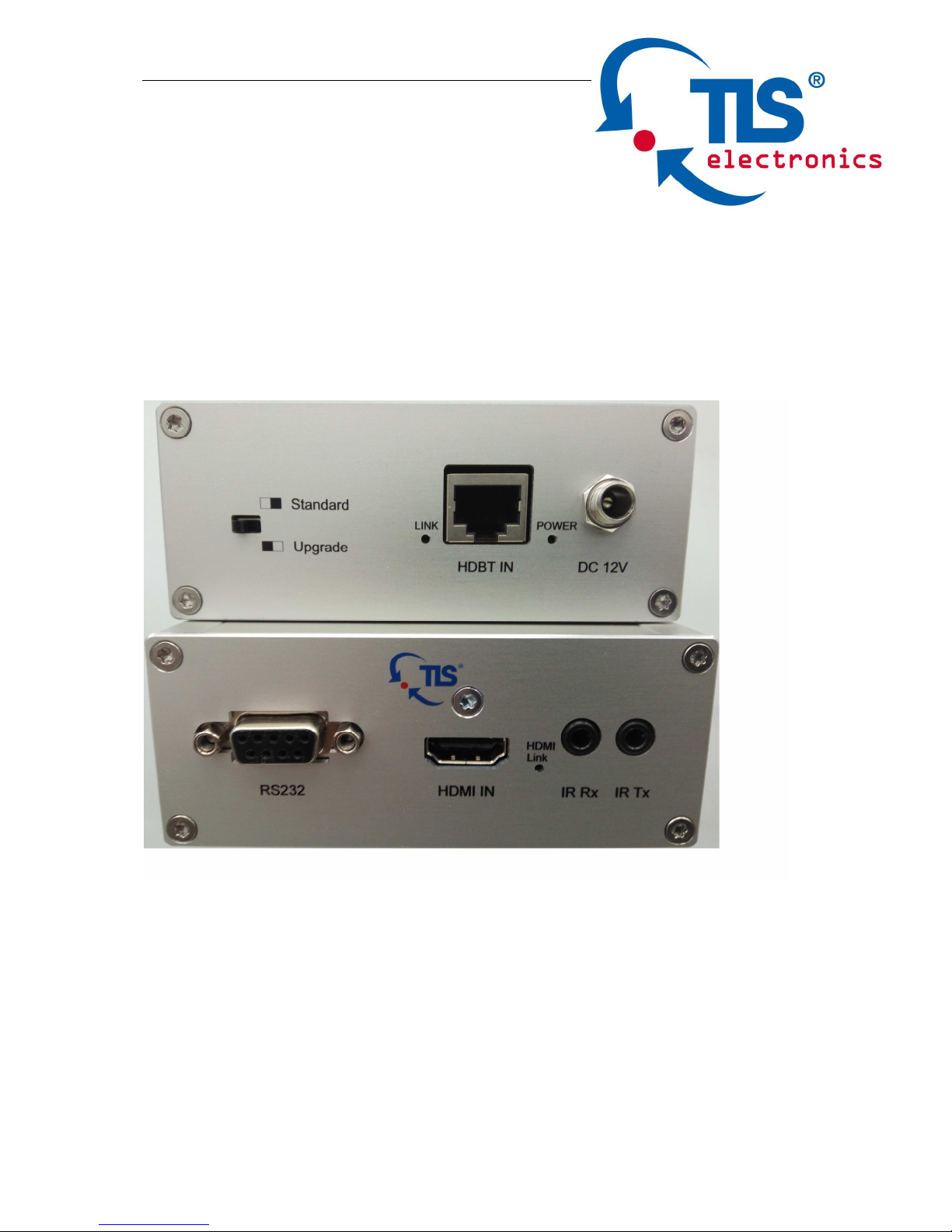

Panel Description
875730 Transmitter
1. RS232 connector
2. HDMI link indicator
3. IR TX jack
4. HDMI input
5. IR RX jack

875730 User manual
TLS electronics GmbH Contact: [e-mail] 6
1. Signal Link indicator
2. Power status indicator
3. EDID DIP switch ( UP=0, DOWN=1)
[DIP]=0000: HDMI 1080p@60Hz, Audio 2CH PCM
[DIP]=0001: HDMI 1080p@60Hz, Audio 5.1CH PCM/DTS/DOLBY
[DIP]=0010: HDMI 1080p@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=0011: HDMI 1080i@60Hz, Audio 2CH PCM
[DIP]=0100: HDMI 1080i@60Hz, Audio 5.1CH PCM/DTS/DOLBY
[DIP]=0101: HDMI 1080i@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=0110: HDMI 1080p@60Hz/3D, Audio 2CH PCM
[DIP]=0111: HDMI 1080p@60Hz/3D, Audio 5.1CH PCM/DTS/DOLBY
[DIP]=1000: HDMI 1080p@60Hz/3D, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=1001: HDMI 4K2K, Audio 2CH PCM
[DIP]=1010: HDMI 4K2K, Audio 5.1CH PCM/DTS/DOLBY
[DIP]=1011: HDMI 4K2K, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=1100: DVI 1280x1024@60Hz, Audio None
[DIP]=1101: DVI 1920x1080@60Hz, Audio None
[DIP]=1110: DVI 1920x1200@60Hz, Audio None
[DIP]=1111: EDID pass through
NOTE：The port will only read the DIP switch settings on power-up. The device must be powered off
and then back on again for it to implement any change of the DIP switch settings.
4. Upgrades DIP switch
5. HDBT output
6. DC 12V screw type connector

875730 User manual
TLS electronics GmbH Contact: [e-mail] 7

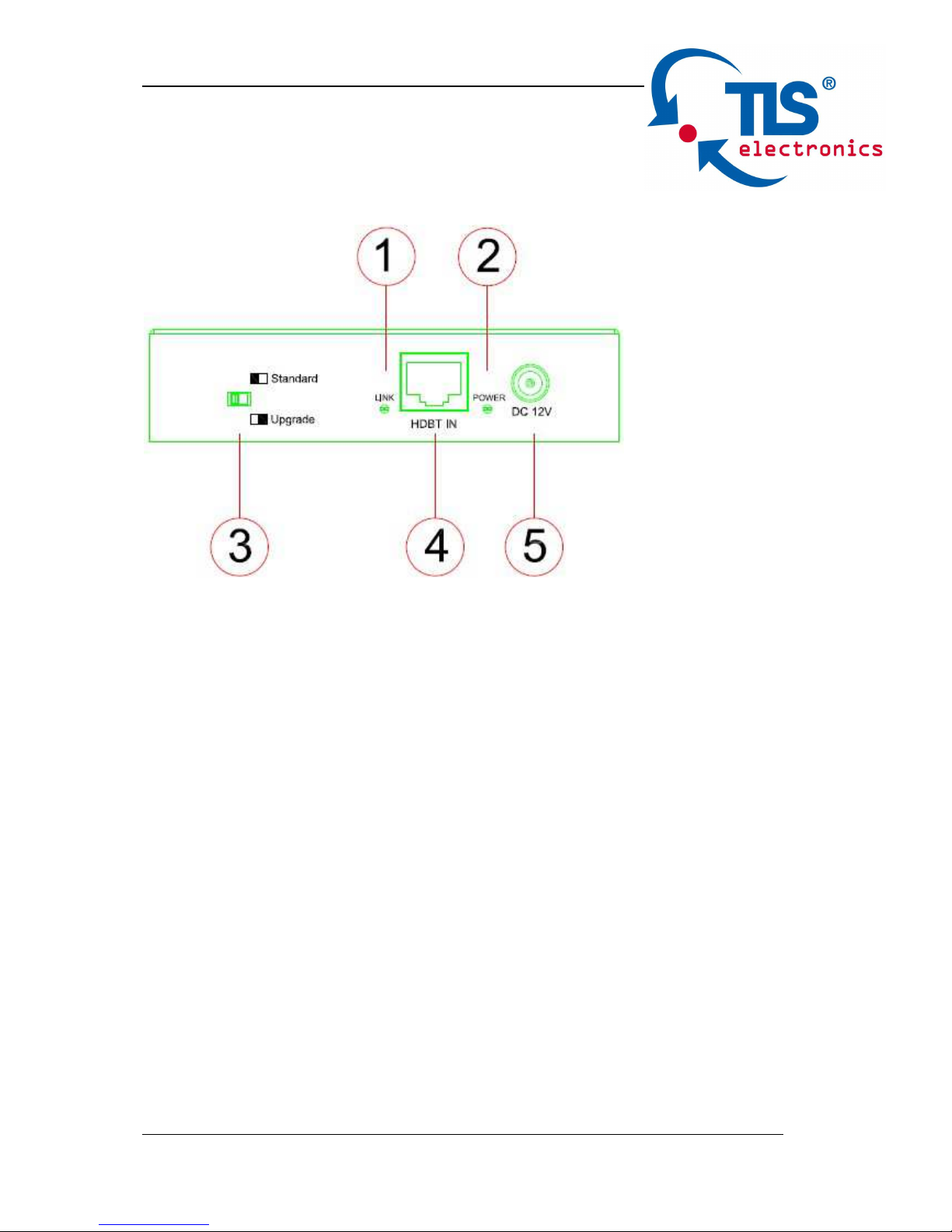

875730 Receiver
1. Signal Link indicator
2. Power status indicator
3. Standard/Upgrade mode switch
4. HDBT input
5. DC 12V screw type connector

875730 User manual
TLS electronics GmbH Contact: [e-mail] 8
1. RS232 connector
2. HDMI link indicator
3. IR TX jack
4. HDMI output
5. IR RX jack

875730 User manual
TLS electronics GmbH Contact: [e-mail] 9
Connection Diagram
Specifications
Bandwidth
2.97Gbps per Color
Video input
Transmitter
1XHDMI Type A, 19-pin, female
Receiver
1xRJ45
Video output
Transmitter
1xRJ45
Receiver
1XHDMI Type A, 19-pin, female
IR input
2x3.5mm stereo jack
IR output
2x3.5mm stereo jack
RS232 control
2x DB9
Power
Supply
12V/2A DC, screw type connector
Power Consumption
9.5W
Audio
Passes up to Dolby TrueHD or DTS-HD Master Audio
Resolution
Video: up to 4Kx2K
VESA: up to 1920x1200
Distance
230ft @ 1080p over CAT5e/6-AWG24
130ft @ 4Kx2K over CAT5e/6-AWG24
Dimensions
107x107x27mm
Weight
200g
Temperature
Operating
32°F to 104°F (0°C to 40°C)
Storage
-4°F to 140°F (20°C to 60°C)
Rack
-
Mountable
Rack ears included
NOTE:Specifications are subject to change without notice. Weight and dimensions are approximate.

875730 User manual
TLS electronics GmbH Contact: [e-mail] 10
Package Contents
•1x 875730 Transmitter
•1x 875730 Receiver
•1x 12V/2A DC power supply
•1x IR Transmitter, 1x IR Receiver.
Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene
to clean this unit.
Warranty Policy
TLS electronics products are warranted against defects in material and
workmanship for two years from the date of shipment. During the warranty
period, TLS electronics will, at its option, repair or replace products that prove to
be defective. Repairs are warranted for the remainder of the original warranty or
a 90 day extended warranty, whichever is longer.
For equipment under warranty, the owner is responsible for freight to TLS
electronics and all related customs, taxes, tariffs, insurance, etc. TLS
electronics is responsible for the freight charges only for return of the equipment
from the factory to the owner. TLS electronics will return the equipment by the
same method (i.e., Air, Express, Surface) as the equipment was sent to TLS
electronics.

875730 User manual
TLS electronics GmbH Contact: [e-mail] 11
All equipment returned for warranty repair must have a valid RMA number
issued prior to return and be marked clearly on the return packaging. TLS
electronics strongly recommends all equipment be returned in its original
packaging.
TLS electronics obligations under this warranty are limited to repair or
replacement of failed parts, and the return shipment to the buyer of the repaired
or replaced parts.
Limitations of Warranty
The warranty does not apply to any part of a product that has been installed,
altered, repaired, or misused in any way that, in the opinion of TLS electronics,
would affect the reliability or detracts from the performance of any part of the
product, or is damaged as the result of use in a way or with equipment that had
not been previously approved by TLS electronics.
The warranty does not apply to any product or parts thereof where the serial
number or the serial number of any of its parts has been altered, defaced, or
removed.
The warranty does not cover damage or loss incurred in transportation of the
product.
The warranty does not cover replacement or repair necessitated by loss or
damage from any cause beyond the control of TLS electronics, such as lightning
or other natural and weather related events or wartime environments.
The warranty does not cover any labor involved in the removal and or
reinstallation of warranted equipment or parts on site, or any labor required to
diagnose the necessity for repair or replacement.
The warranty excludes any responsibility by TLS electronics for incidental or
consequential damages arising from the use of the equipment or products, or
forany inability to use them either separate from or in combination with any other
equipment or products.
A fixed charge established for each product will be imposed for all equipment
returned for warranty repair where TLS electronics cannot identify the cause of
the reported failure.

875730 User manual
TLS electronics GmbH Contact: [e-mail] 12
Exclusive Remedies
TLS electronics’s warranty, as stated is in lieu of all other warranties, expressed,
implied, or statutory, including those of merchantability and fitness for a
particular purpose. The buyer shall pass on to any purchaser, lessee, or other
user of TLS electronics’s products, the aforementioned warranty, and shall
indemnify and hold harmless TLS electronics from any claims or liability of such
purchaser, lessee, or user based upon allegations that the buyer, its agents, or
employees have made additional warranties or representations as to product
preference or use.
The remedies provided herein are the buyer’s sole and exclusive remedies. TLS
electronics shall not be liable for any direct, indirect, special, incidental, or
consequential damages, whether based on contract, tort, or any other legal
theory.
RMA Policy
When returning product to TLS electronics for any reason, the customer should
fill out the official RMA form to obtain a RMA number. Without the permission or
approval, TLS electronics will be no responsible for any return.This can be
initiated by emailing or calling your related sales.
All requests are processed within 48 hours.
Standard Replacement
For customers that agree to return defective product to TLS electronics first, a
Standard Replacement option is available.
An RMA number must first be issued by sales. This RMA number will need to be
referenced on the outside of the return shipment.
Upon receipt of the defective product, TLS electronics will, at its discretion,
either repair or replace the product and ship it out in the most expeditious

875730 User manual
TLS electronics GmbH Contact: [e-mail] 13
manner possible. Subject to availability, the replacement product will be shipped
on the business day following receipt of the defective product.
In the event the product returned to TLS electronics has been discontinued (i.e.
the product is no longer being manufactured by TLS electronics but is still under
warranty), TLS electronics will, at its discretion, either repair or replace with
recertified product.
Once you have obtained an RMA number
After obtaining an RMA number from TLS electronics, you must send the
product - freight prepaid - to TLS electronics. The TLS electronics RMA number
must be prominently displayed on the outside of your package. If you send your
product to TLS electronics without the RMA number prominently displayed on
the outside of the package, it will be returned to you unopened.
Please use a shipping company that can demonstrate proof of delivery. TLS
electronics does not accept responsibility for any lost shipments unless proof of
delivery to TLS electronics is provided.
Please note:
Product shipped to TLS electronics must be properly packaged to prevent loss
or damage in transit.
Shipping your RMA to TLS electronics using regular mailing envelopes is not
acceptable, as they do not protect the product from damage during shipping.
TLS electronics will not repair or replace a module that is shipped in such a way
that the product is not properly protected.
TLS electronics will not accept any product that has been damaged as a result
of accident, abuse, misuse, natural or personal disaster, or any unauthorized
disassemble, repair or modification.
