DOD LS475W User manual

LS475W / LS475W+
User Manual

1
Table of Contents
Table of Contents...............................................................................................................1
Product Features ...............................................................................................................2
Safety Precautions.............................................................................................................5
Package Contents..............................................................................................................6
Optional Accessories ........................................................................................................7
Camera Controls................................................................................................................8
Getting Started.................................................................................................................13
Installing Your Camera....................................................................................................16
Basic Camera Operation .................................................................................................18
Camera Modes .................................................................................................................19
Camera Settings ..............................................................................................................21
System Settings...............................................................................................................25
Transferring Files ............................................................................................................28
Firmware Update..............................................................................................................29
LS475W Specifications....................................................................................................30
LS475W+ Specifications .................................................................................................30

2
Product Features
New SONY STARVIS Sensor- ISO Sensitivity up to ISO
12800
Features a new SONY STARVIS CMOS sensor with improved sensitivity
not only under normal lighting but also in low light and near infrared light
condition.
Integrated 10 Hz GPS Processor
Integrated is the fastest 10 Hz GPS processor, that updates GPS data 10
times per second, recording your speed and location accurately. Date
and Time automatically synchronizes with the atomic clock.
Advanced WDR Technology - Stunning Videos in Any
Light
WDR technology, well-balanced exposure for any condition. It makes
night shots brighter and prevents overexposure to create the clearest
image.
Speed Camera Alert
Remind you of approaching fixed speed camera locations and mobile
speed camera “hot-spots” well in advance so you can slow down in time.
Stay away from traps and always stay in control.
*Currently supported: US, CA, UK, NO, PL, NL, BE, AU.
*Speed Camera Alert act as a reference and is for reference only, which
does not act as an active radar detector.
Please follow all traffic rules and
drive safely.
Parking Surveillance
Ensure your peace of mind by recording continually even when you have
parked and left your car. Record and lock a file if unusual shock or motion
is detected.
*DOD DP4 hardwiring kit required

3
Support to 128GB Micro SDXC Memory Card
4X storage compatibility compared to predecessor models, supports up
to 128GB with more than 18 hours of recording.
DOD GPS Player
The DOD GPS Player generates 1080p video recordings with real-time
driving data such as speed and location clearly at a glance.
145º Wide Angle of View
Wide angle, wide view, without distortion. The brand-new-designed
optical lens captures images with ultra wide fields of view, covering up to
145 degrees, without pincushion or distortion.
f/1.6 Large Aperture Glass Lens - Super Low-Light
Performance
Equipped with f/1.6 large aperture, capturing better night shots than
conventional f/2.0, and records clearly sophisticated details such as the
license plate and others.
6G Sharp Glass Lens
6-Element sharp lens, made of 6 layers of glass, provides stunning clear
and non-deformed images.
G-Sensor Automatic Trigger for File Protection
When an impact or emergency brake occurs, the device will lock the
current video files automatically. Important files will not be overwritten by
loop recording.

4
Loop Recording
When the storage space is full, it can automatically overwrite the
unprotected files.
Path Analysis
Calculate the distance, time and average speed of your journey from
location A to B. It´s a very economical and practical way to save your time
and fuel consumption.
Circular Polarizing Filter
Adjustable CPL filter suppress glare from windshield and manage
reflection. Provides clear images with enhanced contrasts.

5
Safety Precautions
Product
Do not disassemble, repair, modify your camera or power related accessories. For
warranty service, please contact DOD Tech Support.
Do not adjust or operate camera while driving.
Avoid exposing your camera to extended periods of humidity and/or heat.
Prolonged exposure may reduce the product’s lifespan.
Do not spray water or cleaning agents directly onto the camera.
Fluids may cause fire, electric shocks, or malfunctions.
Avoid installing camera where it may obstruct the driver’s view or airbag deployment.
Car Power Adaptor
Use ONLY the DOD power adapter supplied with your unit.
Other power adapters may create a safety hazard or damage the unit.
Do not use damaged power adapters or cords. If damaged, please disconnect the power
adapter and contact DOD Tech Support for assistance.
Do not pull, insert, or bend the power cable using excessive force.
Do not operate or handle the power cable with wet hands.
In specified cars, the power may be constantly supplied to the device even the engine is
turned off. This may drain the vehicle battery. The optional DOD DP4 kit equipped with
low-voltage protection and is designed to prevent battery drain and reserve the minimum
voltage required for cranking.
Battery
Keep the device away from heaters or other hot objects.
Store the camera at lower temperatures to reduce the rate of self-discharge and
preserves the initial energy stored in the battery. The battery in the device self-discharges
naturally over time whether the battery is used or not.
Charge the dash camera for 5 minutes with the supplied DOD power cord if you are
unable to turn on the camera.

6
Package Contents
Dash Cam
User Guide
Bracket
Car Power Adaptor
CPL
[LS475W+]
Note: Supplied accessories may vary by region.

7
Optional Accessories
DP4
DP4 hardwiring kit offers constant
source and prevent battery drain
with low-voltage protection.
DA2S
DA2S Suction Savior provides a
long lasting adhesion to suction
cups.

8
Camera Controls
●1Mode【 】
When in stand by (not recording): Press to switch between recording and playback mode.
●2Power Button ON/OFF【 】
Turns unit on/off
●3Micro USB Port【 】
For use with the supplied DOD Car Power Adaptor or USB data cable.
LS475W
LS475W+

9
Camera Controls
●5Speaker
LS475W
LS475W+

10
Camera Controls
●6Micro SD Slot
Requires a micro SDHC/SDXC card, class 10 or above. Supports up to 128GB.
●7HDMI Output Slot
Outputs live view or recorded files to external display.
*Recording function is disabled while HDMI output is connected.
●8Reset Button
Use a small pin to press the button to force the device to reboot.
LS475W
LS475W+

11
Camera Controls

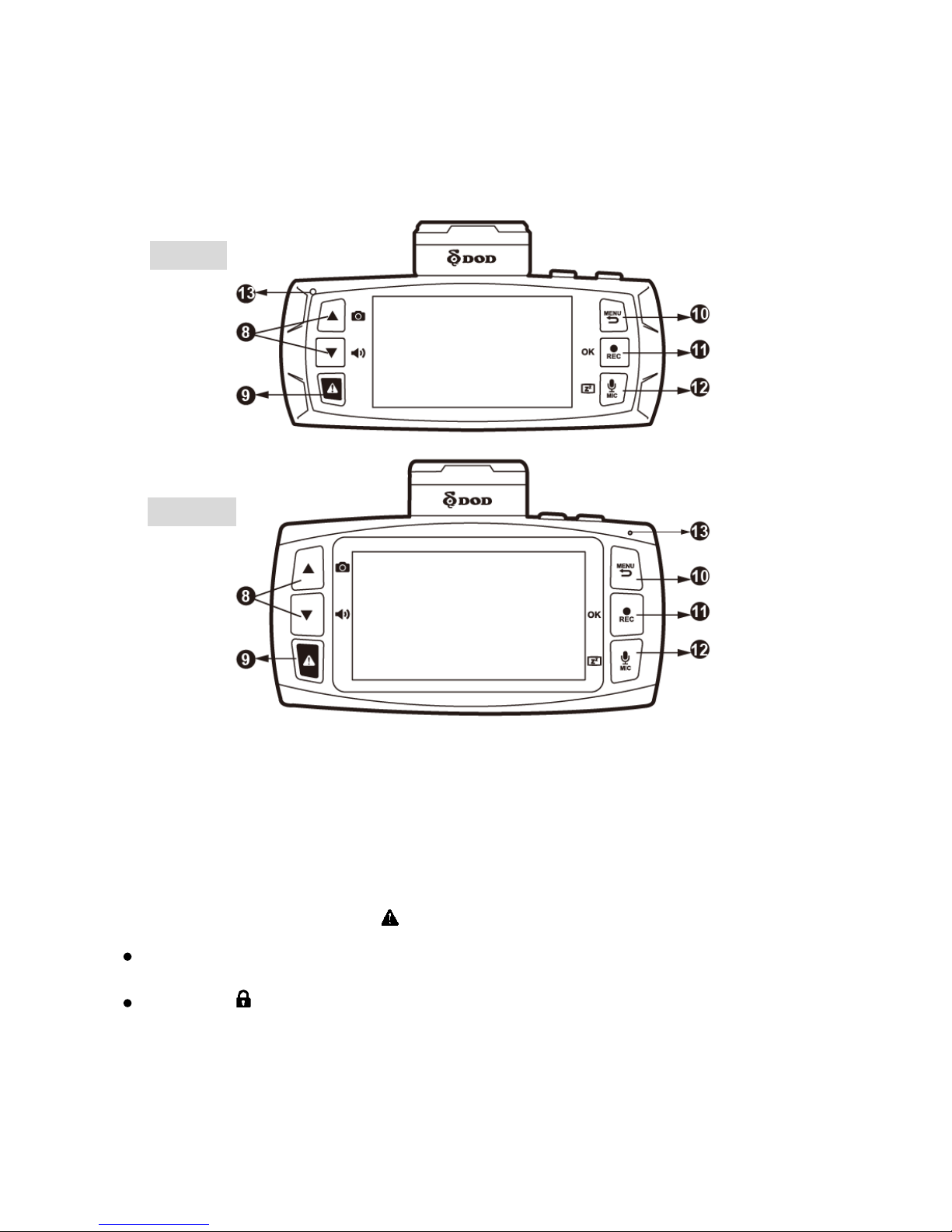

●9Arrow Keys【
/
】
Standby Mode: Used to navigate through menus and select videos for playback.
Recording Mode:
Press【】to capture snap shot of current recording.
Press【】to change notification/alert volume.
●10SOS Emergency File Lock【 】
While recording, press this button to lock the current recording file and protect it from
being over written.
A lock icon【 】will appear at the bottom left corner to indicate whether the current
recording is protected.
LS475W
LS475W+

12
Camera Controls
●11 Menu / Return【 】
When not recording, press to access menus, or to exit sub menu.
Press 【 】once for recording options.
Press 【 】twice for system options.
* Recording must be stopped before accessing menus.
●12OK / REC【/ 】
Stop or start recording.
Act as the OK button in menu.
●13MIC / Display OFF【/】
During standby / recording mode:
Press 【 】to switch ON/OFF voice recording.
Press 【 】and hold to turn ON/OFF LCD display. Display status does not affect
continuous recording.
●14Operation Status LED
Steady blue - Unit is powered off and is charging.
Steady pink - Unit is powered on and charging but not recording.
Steady red - Unit is powered on but not charging nor recording.
Flashing red - Unit is recording and battery is full.
Flashing between blue and pink - Unit is recording and charging.
Flashing blue – Charging malfunction.

13
Getting Started
Setting Up Your Camera
Set up your Dash Cam inside your vehicle to ensure easy access to power.
1. Start With SD Card.
To use with SD card, please format the microSD card in the camera menu to ensure correct
format before initial use. Memory card must be in FAT32 format to function properly.
Card slot is directional and may be damaged if SD card is inserted incorrectly.
To save recorded videos stably, DOD Tech recommends formatting your SD card every two
weeks from in the camera
Note: After formatting the SD card, all of your data will be deleted. Be sure
that you have backed up the important files.
Estimated Video Recording Length (1080p Full HD form)
Storage/Quality Recording length
16GB 110 minutes (1.8 hours)
32GB 200 minutes (3.2 hours)
64GB 380 minutes (6.3 hours)
128GB 780 minutes (12.8 hours)
*Video recording length may vary depending on environmental conditions.
LS475WLS475W+

14
Getting Started
2. Connect the Power Adapter.
Plug the DOD power adapter into your vehicle’s power/accessory outlet.
Then carefully insert the micro USB plug into the USB port.
3. Turn on Your Vehicle.
Powering from your vehicle through the accessory socket will automatically turn on your
camera and starts recording, and your camera will stop recording and shuts off
automatically when power is turned off.
Note: In specified cars, the power may be constantly supplied to the device
even when the engine is turned off. This may drain the vehicle battery. The
optional DOD DP4 kit equipped with low-voltage protection and is designed
to prevent battery drainage.
LS475W
LS475W+

15
Getting Started
4. Turn on/off Your Camera Manually.
Press【 】to turn on or turn off the unit manually.
*The Dash Cam will turn on and off automatically with the power supply from your vehicle.
5. Select Language➔Set the Time Zone➔Select the Speed Unit of Your
Choice
Upon powering up the camera for the first time or after upgrading the firmware on the
device, you will need to go through and input the Settings below.
Select Language
Select the language of your choice by pressing【/】.
Press【/】to proceed.
Set the time zone
Scroll down and select your respective time zone.
Press【/】to confirm.
Your camera will automatically sync with the time and date to the atomic clock base on the
chosen time zone.
Note: Daylight saving time requires adjustment manually.
Select the speed unit of your choice – KPH or MPH

16
Installing Your Camera

17
Installing Your Camera
1. Clean Windshield
Wipe down both the interior and exterior glass for the best image quality.
2. Attach the Mount to Your Camera
Attach the camera securely to the mount
Please insert MicroSD card to the unit.
3. Prepare the Camera for Installation
Peel off the protective mount cover.
Find a location which does not obstruct your view when driving.
It is recommended to place the camera behind the rearview mirror without blocking either
lenses or camera functions.
4. Adjust the Angle
The mount has an adjustable ball joint that can be loosened using
the plastic locking nut.
Angle your camera slightly below the horizon line to minimize glare.
Press the mount firmly against the glass and turn the mount nut
clockwise to secure the mount.
5. Install the Car Power Adaptor
If you have not done so previously, carefully insert the micro USB plug into the port on the
camera, and insert the power adapter into the cigarette lighter socket of your car.
The wiring can be hidden in the headliner, seams and rubber strips around the perimeter
of the windshield.
6. Remove the Lens Protector Film
Your camera is now installed and ready for daily use.
Note:
Always use the supplied DOD
car power adaptor to avoid the unexpected
damage.
If grease, fingerprints, or blots are found on the external/internal windshield
of the car, please wipe it clean or replace the windshield. Blots may affect
the recording quality or may cause the bracket to be unstable.
Due to various road condition in different countries, DOD Tech
recommends setting the G-Sensor sensitivity accordingly to suit driving
environments in your country.

18
Basic Camera Operation
Everyday Operation
Dash cam will automatically turn on and start recording when it starts receiving power. By
default, the camera will record over the oldest videos when the memory card is full (loop
recording). The protect files can take up to 30% of full SD card space, and not be over
written by normal recording files. When reaching 30% limit, files in RO (Read Only) folder
will be overwritten by newest protected file, starting with the oldest.
Continuously Powered Electrical Outlet
The camera will not automatically shut down when your vehicle is turned off If your vehicle
provides continuously power to the accessory outlet. To turn off your camera manually,
simply unplug the USB cable or press the power button can power button.
Continuously powered electrical outlet allows the camera to capture videos
while you are away but it will result in vehicle battery drainage
and may
eventually prevent your car from starting.
DOD Tech recommend to use
DP4 power kit for needs of parking surveillance.
Manually Turning On/Off Your Camera
Press【 】to turn on/off your camera.
Press【 】to begin/stop recording.
Video Directory:
Videos will be saved on the memory card and or in internal storage. Normal driving videos
are in the root directory and the protected files will be saved in the “RO” (Read Only) file.
File-naming for camera: 2017_0125_180946_001
Blue number sequence in example above indicates year/month/day,
Green number sequence indicates time in 24H format including seconds,

19
Camera Modes
Standby Mode: Press【 】to switch in between Video Recording and Playback Mode.
Press 【/OK】to stop recording before pressing 【 】to switch modes.
1.Recording Mode
Note: GPS icon flashes when it searches for GPS signal. HUD, Over-Speed Warning and
Speed Camera alerts only work when the GPS signals is stable.
●Recording Status Flashes when recording.
Exposure Value
Indicates the current exposure value setting.
MIC
Indicates if the audio recording is on or off.
Power Status
Indicates the power source and the battery status if external
power is not connected.
ISO Sensitivity
Indicates the current ISO value.
SOS File Lock
Indicates current recording file is locked and
protected. This
can be triggered by G-sensor or by pressing the SOS file
lock button,
Memory Card Status
Indicates if a memory card is inserted.
GPS Status Flashes whilst the device is searching for satellites. Once the
positioning is done, the icon will be solidly displayed.
Date/Time
Current date and time.
Current Time
Record Audio (On/Off)
Recording Time Exposure Value
Memory Card Status
ISO Sensitivity
File-Lock Indicator
Date
Power Status
GPS Status
Other manuals for LS475W
1
This manual suits for next models
3
Table of contents
Other DOD Dashcam manuals
